Reloading Room Layout Comparison Bench U Shape and Wall Mounted Setups: Understand how different reloading room layouts affect workflow space efficiency and long term usability before building your setup.

Direct Answer

The best reloading room layout depends on available space and how often you reload. Single-bench layouts work well for small or beginner setups, U-shaped rooms maximize workflow efficiency for high-volume reloaders, and wall-mounted benches are ideal when space is extremely limited.

Each configuration changes how tools are organized, how components flow through the process, and how comfortable long reloading sessions feel.

Quick Takeaways

1. Single-bench layouts are the simplest and work well for most casual reloaders.
2. U-shaped layouts dramatically improve workflow for high-volume reloading.
3. Wall-mounted benches save space but require careful structural support.
4. Good layout design reduces mistakes and improves safety during reloading.
5. Workflow efficiency matters more than room size in most reloading setups.

Introduction

After designing and observing dozens of hobby workspaces over the years, I’ve noticed something interesting: most people focus on equipment before they think about the reloading room layout. That’s backwards.

The layout of your reloading room determines how comfortable your workflow is, how easy it is to keep components organized, and how safely you can operate presses and powder systems. I’ve seen expensive presses installed on poorly planned benches where every step required turning around, reaching across clutter, or moving components multiple times.

Before you decide on storage cabinets or equipment positions, it helps to visualize the physical structure of the room itself. Many reloaders now use tools that let them experiment with layouts digitally before building anything. For example, you can visualize your workspace arrangement before building your bench setupto see whether your layout actually supports your workflow.

In this guide, I’ll break down three common configurations I see in real reloading spaces: the single-bench layout, the U-shaped room, and the wall-mounted setup. Each has clear advantages—but also hidden limitations that many guides never mention.

Understanding those trade-offs makes it much easier to build a workspace that still works well years later.

save pin

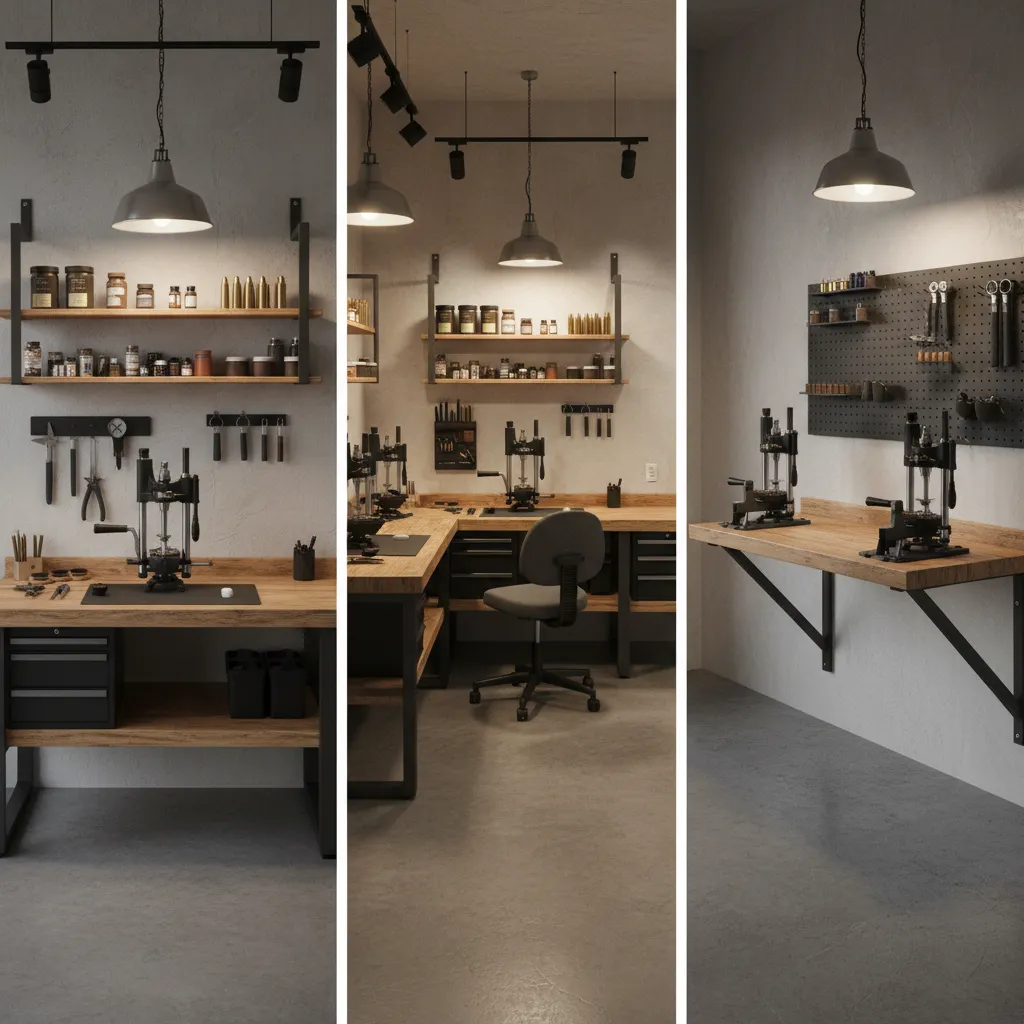

Overview of Common Reloading Room Layout Types

Key Insight: Most reloading rooms fall into three structural layouts, each designed around different space constraints and production volume.

Although equipment brands and storage solutions vary widely, the physical structure of reloading rooms usually fits into one of three layout models.

1. Single-bench linear layout
2. U-shaped workflow layout
3. Wall-mounted compact bench layout

The difference is not just visual—it changes how components move through the reloading process.

For example, competitive shooters who reload thousands of rounds per month often prefer U-shaped setups because they can rotate between stations without walking. Meanwhile, hobby reloaders with limited space often prefer a simple wall bench.

One overlooked factor is future expansion. Many reloaders add presses, case prep stations, tumblers, and storage over time. If the layout doesn’t anticipate growth, the room quickly becomes cramped.

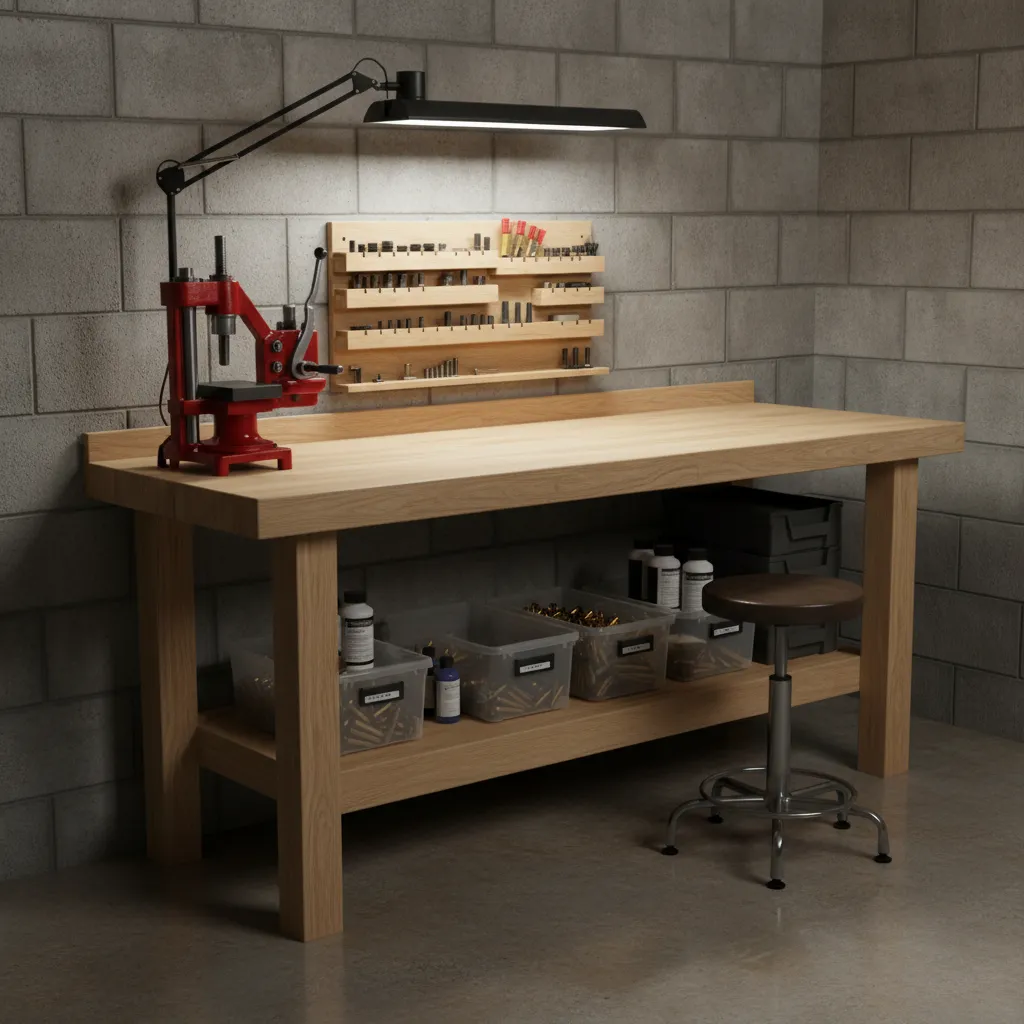

Single-Bench Layout Simplicity and Space Efficiency

Key Insight: The single-bench layout is the most practical starting point because it balances simplicity, accessibility, and space efficiency.

This layout places all equipment along one wall or a single freestanding bench. It’s extremely common in garages, basements, and spare rooms.

Typical structure includes:

1. Main reloading press mounted at center
2. Case prep tools on one side
3. Powder and component storage above or below
4. Lighting positioned directly over the bench

Advantages:

1. Minimal space requirement
2. Easy to build or modify
3. Lower construction cost

Hidden limitation many guides ignore: workflow interruptions.

Because everything sits along one surface, you constantly shift tools or clear space when switching steps. Over time this becomes inefficient for reloaders producing large quantities.

save pin

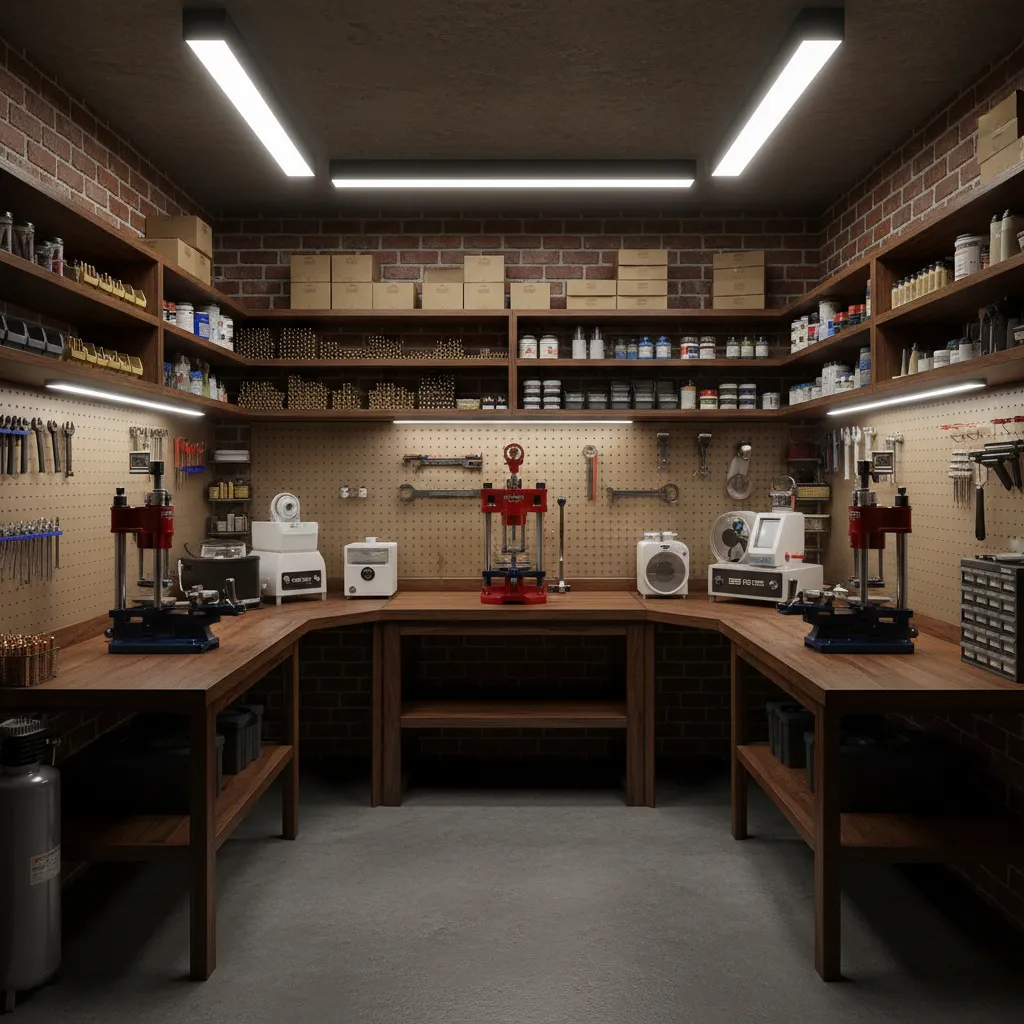

U-Shaped Reloading Rooms for Maximum Workflow

Key Insight: U-shaped layouts dramatically improve efficiency by separating different reloading stages across multiple work surfaces.

In a U-shaped configuration, three connected bench sections wrap around the operator.

Typical zone distribution:

1. Left side: case preparation
2. Center: main reloading presses
3. Right side: inspection, packaging, and storage

This structure reduces unnecessary movement and keeps each stage dedicated to one task.

From a design standpoint, the real benefit is workflow continuity. Instead of resetting the same surface repeatedly, each stage stays permanently configured.

One trick many experienced reloaders use is designing the entire layout digitally first. Tools that allow you to experiment with realistic workspace floor layouts in 3Dcan reveal spacing problems before construction.

However, U-shaped rooms require significantly more floor area and careful lighting planning. Without enough depth between benches, the space can feel cramped rather than efficient.

save pin

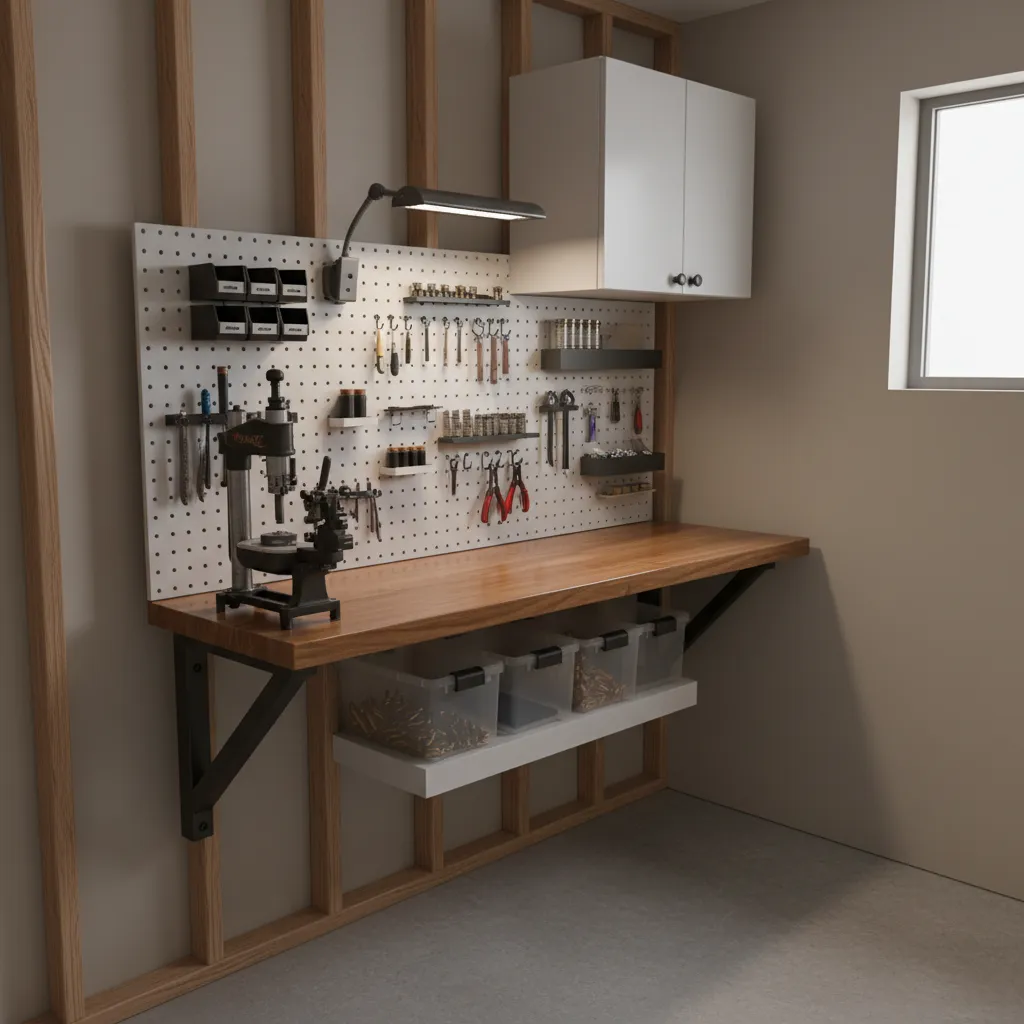

Wall-Mounted Bench Layouts for Small Spaces

Key Insight: Wall-mounted layouts are the most space-efficient option but require stronger structural support than many people expect.

This design attaches a heavy-duty bench directly to wall studs rather than using freestanding tables.

Typical design elements include:

1. Reinforced mounting brackets
2. Heavy plywood or hardwood bench tops
3. Vertical storage systems above the bench
4. Fold-down or modular tool mounts

The main advantage is footprint reduction. The entire workspace can fit within a narrow wall section, sometimes less than 24 inches deep.

But here’s the hidden mistake many reloaders make: underestimating press force.

Progressive presses generate significant leverage. If the wall structure isn’t reinforced properly, vibration and flexing can affect precision.

Proper wall-mounted setups usually anchor through studs or even add steel reinforcement plates.

save pin

Space Requirements and Accessibility Comparison

Key Insight: The best layout balances reach distance, tool access, and movement efficiency—not just total square footage.

Typical space requirements look roughly like this:

1. Single-bench layout: 4–6 ft wall space
2. Wall-mounted bench: 3–5 ft wall space
3. U-shaped layout: 8–12 ft room width

But accessibility matters just as much as size.

Design factors that dramatically affect usability:

1. Lighting directly above presses
2. Component storage within arm's reach
3. Clear floor space behind the operator
4. Noise and vibration isolation

Before committing to a permanent layout, many people find it useful to test different workspace configurations using a simple digital floor plan. Even rough planning often reveals spacing issues that are hard to visualize mentally.

Answer Box

The most efficient reloading room layouts prioritize workflow zones rather than equipment placement. U-shaped rooms are best for high-volume reloaders, while single-bench layouts remain the most practical for most hobby setups.

Which Layout Works Best for Different Reloading Volumes

Key Insight: Reloading volume—not room size—is the most important factor when choosing a layout.

Different production levels naturally favor different configurations.

Typical recommendations:

1. Occasional reloaders: Single-bench layout
2. Regular hobby reloaders: Large single bench or partial U-shape
3. Competitive shooters: Full U-shaped workflow room
4. Apartment or garage setups: Wall-mounted bench

A mistake I often see is copying professional setups without considering actual usage. A U-shaped room looks impressive, but if you reload a few hundred rounds per month, most of that space goes unused.

Practical layouts usually evolve over time as equipment and habits change.

Final Summary

1. Single-bench layouts offer the best balance of simplicity and efficiency.
2. U-shaped reloading rooms support the fastest workflows for high-volume reloaders.
3. Wall-mounted benches are ideal when space is extremely limited.
4. Workflow organization matters more than overall room size.
5. Testing layouts digitally can prevent expensive design mistakes.

FAQ

What is the best reloading room layout for beginners?

A single-bench layout is usually best. It’s simple, affordable, and provides enough workspace for learning the reloading process.

How much space do I need for a reloading bench?

Most setups need 4–6 feet of bench width and about 3–4 feet of standing space behind the operator.

Is a U shaped reloading room worth it?

Yes for high-volume reloaders. A U shaped reloading room setup reduces movement between steps and keeps each task organized.

Are wall mounted reloading benches strong enough?

They can be, but only when anchored into wall studs with reinforced brackets and a thick bench top.

What is the biggest mistake in reloading room layout design?

Ignoring workflow. Many setups place equipment randomly rather than organizing the room by reloading stages.

How deep should a reloading bench be?

Most benches work best between 24 and 30 inches deep to balance tool access and workspace.

Can a small room work for a full reloading setup?

Yes. With smart storage and a wall-mounted layout, even a small utility room can become a functional reloading workspace.

Why is reloading room layout important?

A well-planned reloading room layout improves safety, efficiency, and comfort during long reloading sessions.
