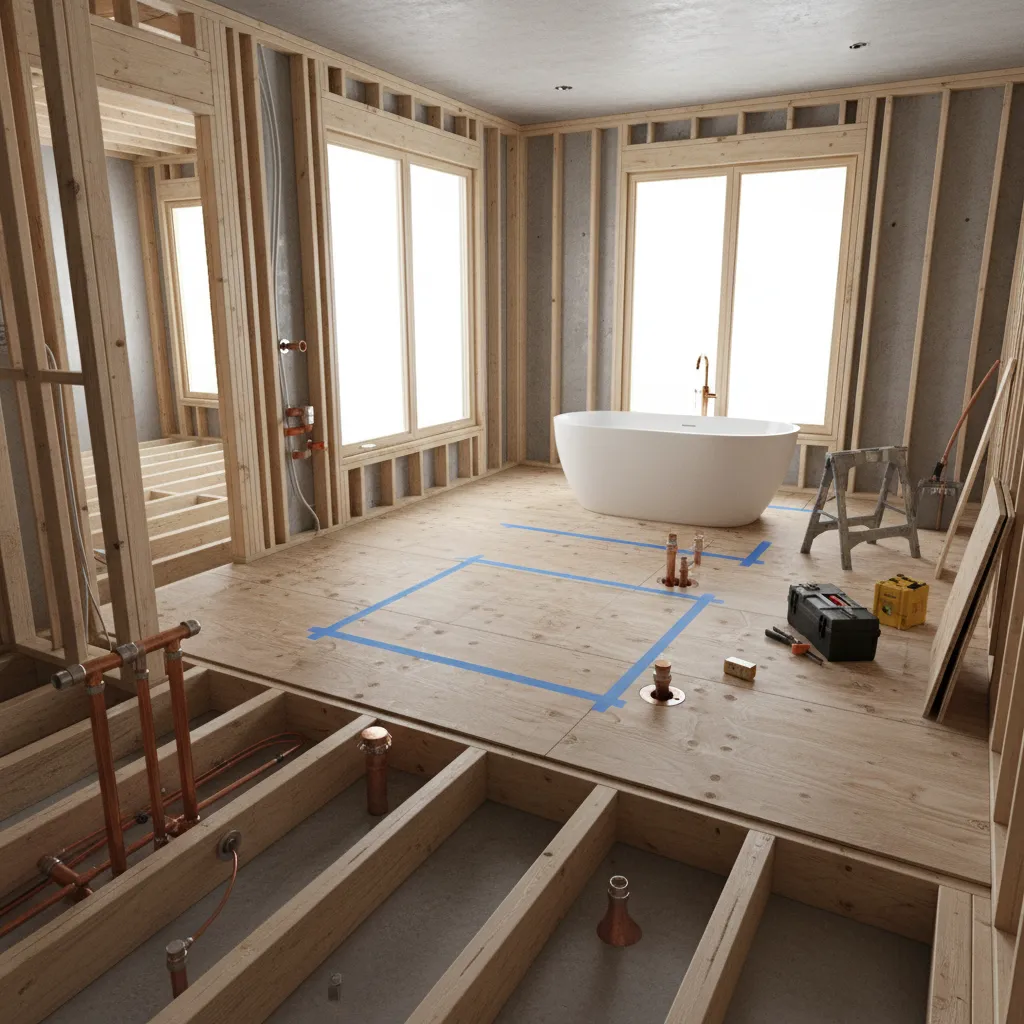

Residential Bathroom Floor Load Standards in Building Codes and Construction Practice: How building codes, engineers, and contractors determine safe bathroom floor load capacity in real residential construction.

Direct Answer

Residential bathroom floor load standards in most building codes are designed around a minimum live load of 40 pounds per square foot (psf), the same baseline used for typical residential rooms. However, engineers often increase structural capacity in bathrooms to account for concentrated loads from bathtubs, tile assemblies, water-filled fixtures, and heavy cabinetry.

In practice, contractors and structural engineers frequently design bathroom floors with additional reinforcement or localized load support, especially for modern features such as freestanding tubs, stone tile floors, and large vanities.

Quick Takeaways

1. Most residential building codes require at least 40 psf live load for bathroom floors.
2. Engineers frequently design higher load capacity around bathtubs and tile installations.
3. Water-filled fixtures can create concentrated loads exceeding typical room loads.
4. Inspection focuses on joist spacing, subfloor thickness, and proper structural support.
5. Modern bathroom designs often require structural upgrades compared with older homes.

Introduction

Bathroom floor load requirements are one of those topics that many homeowners only discover when something heavy gets installed — usually a freestanding tub, stone tile, or a double vanity. After working on residential interior projects for more than a decade, I've seen how often bathroom floor load assumptions create confusion between designers, contractors, and homeowners.

The reality is that residential bathroom floor load standards come from the same structural framework used for other living spaces, but bathrooms introduce unique structural stress points. Water weight, tile assemblies, and concentrated fixture loads can push the limits of what a typical wood floor system was originally designed to support.

When I work on renovation projects, especially older homes, I almost always review the structural layout early in the planning phase. Using a visual floor plan layout tool for remodeling projectshelps identify joist directions and fixture locations before heavy elements like tubs or stone tile are finalized.

This article explains how residential bathroom floor load standards appear in building codes, how structural engineers actually interpret them, and what contractors do in real construction scenarios to keep bathroom floors safe and compliant.

save pin

Overview of Residential Floor Load Requirements in Building Codes

Key Insight: Most residential building codes specify a minimum live load of 40 psf for habitable rooms, including bathrooms.

In the United States, residential structural requirements typically follow the International Residential Code (IRC). According to IRC Table R301.5, standard floor systems must support:

1. 40 psf live load (people, movable objects)
2. 10–15 psf dead load (floor materials)

At first glance, bathrooms appear identical to bedrooms or living rooms in structural calculations. However, practical construction introduces additional considerations:

1. Bathtubs can hold 400–800 pounds when filled
2. Tile flooring adds significant dead load
3. Stone countertops increase localized weight
4. Water damage risk requires stronger subfloor assemblies

Structural engineers often evaluate concentrated loads rather than relying purely on the 40 psf rule.

For example, a freestanding tub with water and a person can easily exceed 700 pounds concentrated across a small footprint. That kind of load behaves very differently than distributed floor load.

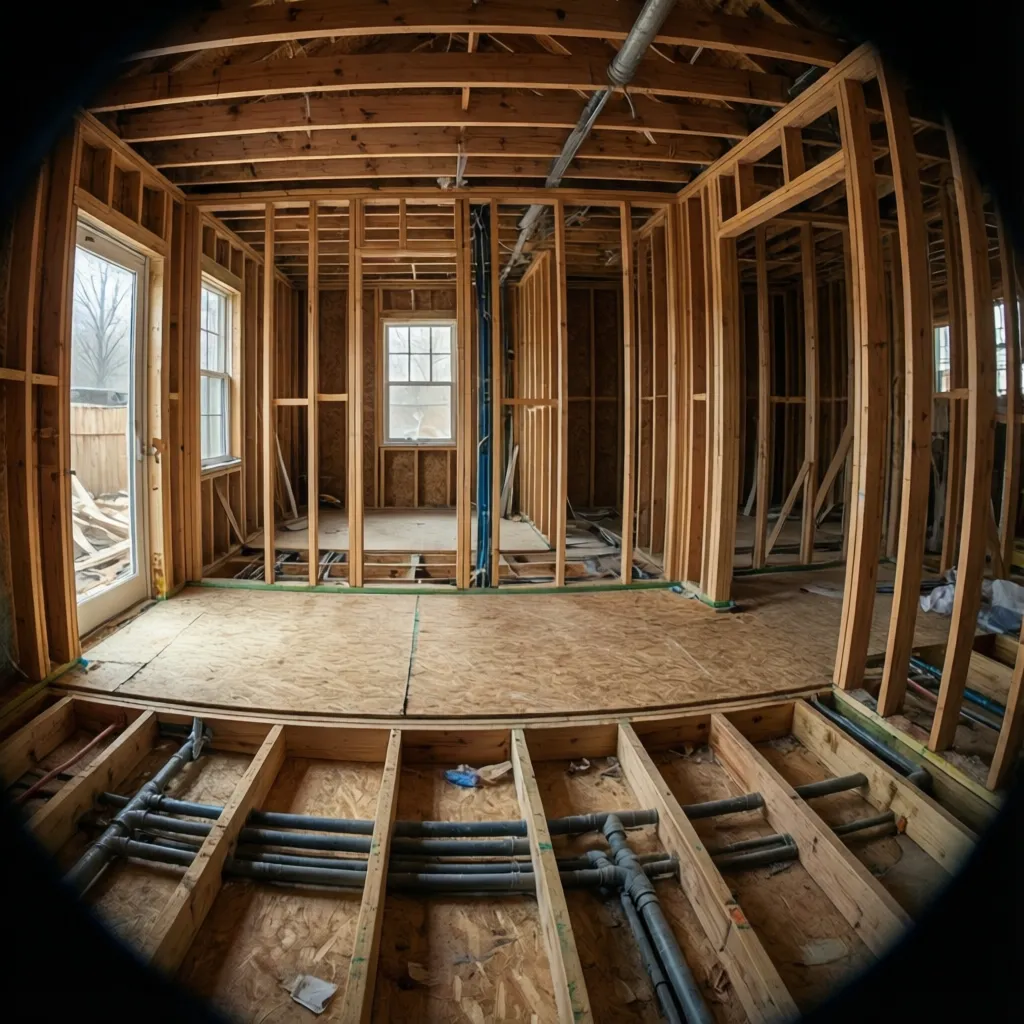

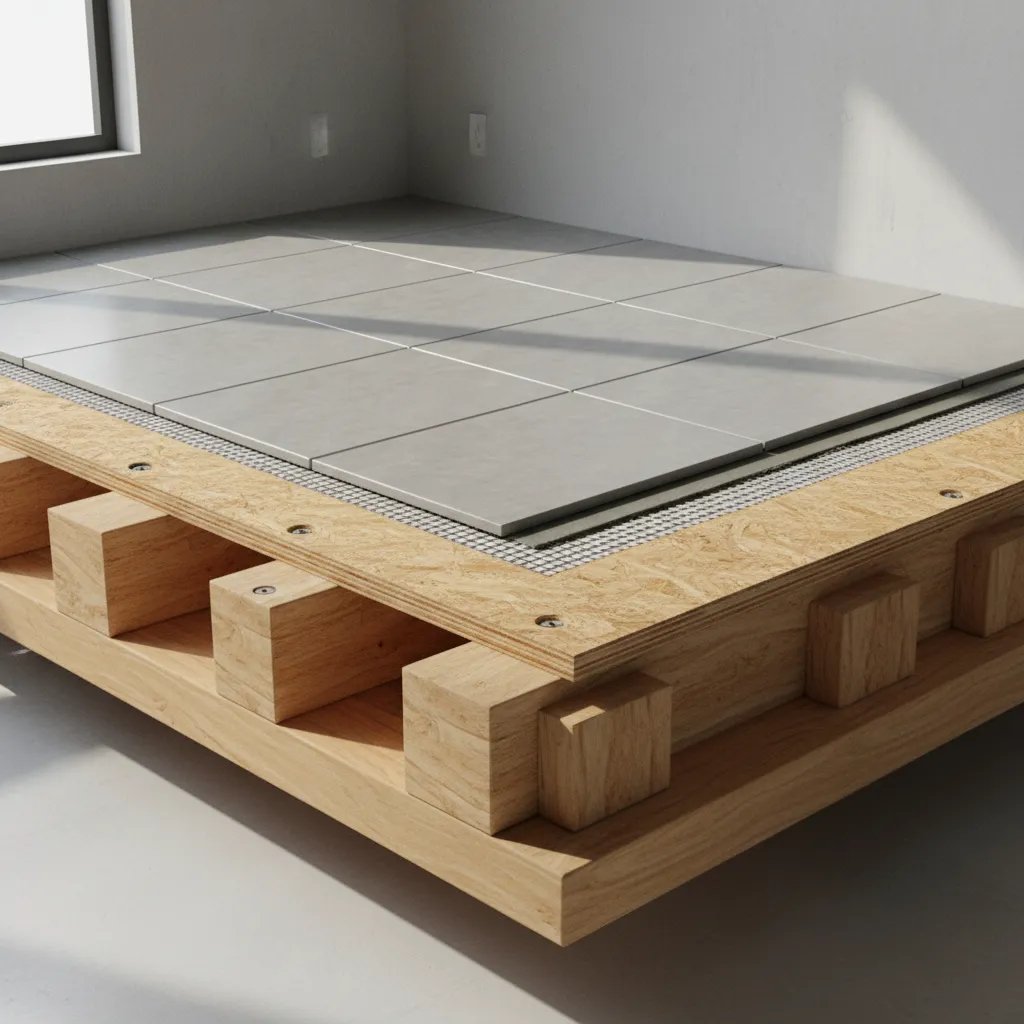

Bathroom-Specific Structural Requirements in Construction

Key Insight: Bathrooms often require stronger subfloors and tighter joist spacing because tile and plumbing systems increase structural stress.

While codes set minimum load requirements, bathroom construction practice frequently exceeds those minimums.

Common structural upgrades used in bathrooms include:

1. 3/4 inch or thicker plywood subfloor
2. Double-layer subfloor for tile installations
3. Joist spacing reduced from 16" to 12" in some designs
4. Additional blocking beneath bathtubs

Tile industry standards (Tile Council of North America) also introduce a critical structural factor called deflection rating.

1. Ceramic tile floors: L/360 deflection limit
2. Natural stone tile: L/720 deflection limit

That means the floor must bend far less than a standard wood floor designed only for typical room loads.

When planning layouts, many designers now simulate bathroom layouts before construction using tools like a 3D bathroom layout planning environmentto understand fixture placement and potential structural impact.

save pin

Typical Load Ratings Used by Structural Engineers

Key Insight: Engineers evaluate both distributed floor loads and concentrated fixture loads when designing bathroom structures.

In structural calculations, engineers usually analyze three load types:

1. Live load – people and movable items
2. Dead load – flooring materials and fixtures
3. Point loads – bathtubs, vanities, appliances

Typical bathroom fixture loads include:

1. Standard bathtub filled with water: 500–750 lbs
2. Cast iron bathtub: 300–500 lbs empty
3. Double vanity with stone top: 250–400 lbs
4. Tile floor assembly: 15–25 psf dead load

These numbers vary depending on material choices. For example, large-format porcelain tiles and thick mortar beds can dramatically increase dead load compared to vinyl flooring.

One mistake I often see in remodels is homeowners focusing only on the tub weight while ignoring the structural impact of tile layers, waterproofing membranes, and mortar beds.

save pin

Regional Code Variations and Compliance Considerations

Key Insight: While the IRC provides national guidance, local jurisdictions often modify load requirements based on climate, seismic risk, and building tradition.

Examples of regional considerations include:

1. Seismic regions may require stronger structural connections
2. Snow load areas influence overall structural design
3. Older housing stock may not meet modern load expectations

Many municipalities adopt slightly modified versions of the IRC, meaning engineers and contractors must verify local code amendments before construction.

In major renovation projects, local building departments may also request structural calculations when heavy bathroom fixtures are installed on upper floors.

How Contractors Implement Bathroom Floor Load Standards

Key Insight: Contractors rarely rely solely on code minimums; they reinforce areas with heavy fixtures to prevent long‑term floor deflection.

In real construction practice, builders typically reinforce bathroom floors using several strategies:

1. Sistering additional joists alongside existing ones
2. Installing blocking between joists under tubs
3. Upgrading subfloor thickness
4. Adding beams or support walls below

One pattern I've noticed across dozens of renovation projects is that structural reinforcement is far easier before plumbing rough‑in happens. Waiting until fixtures are installed makes upgrades significantly more expensive.

For homeowners visualizing final layouts, a realistic 3D home interior visualization workflowcan help evaluate how fixture placement interacts with structural framing before construction begins.

save pin

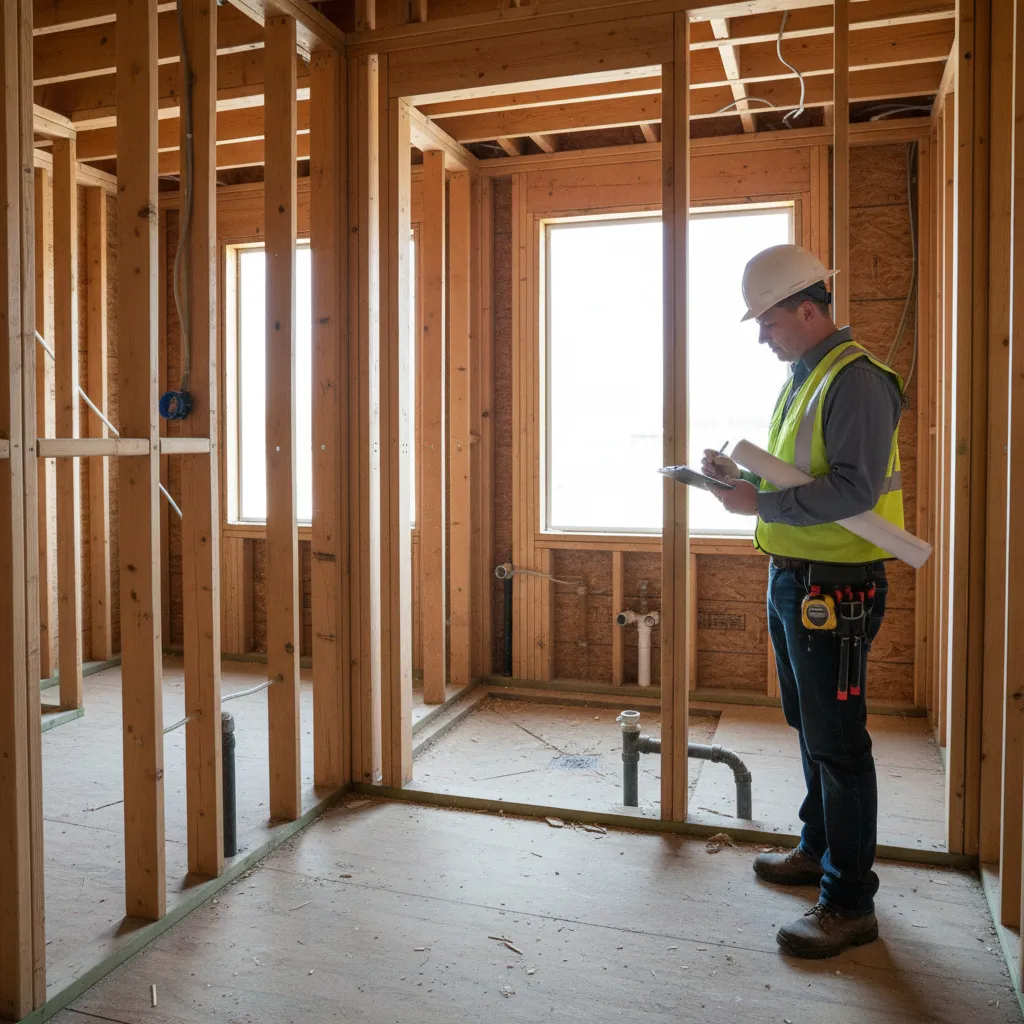

Inspection and Approval Processes for Bathroom Structures

Key Insight: Building inspectors verify structural integrity through framing inspections before the bathroom is finished.

Typical inspection stages include:

1. Framing inspection before drywall
2. Plumbing rough‑in inspection
3. Final building inspection

During the framing inspection, inspectors focus on:

1. Joist size and spacing
2. Structural reinforcement
3. Subfloor installation
4. Proper fasteners and connectors

If heavy fixtures such as whirlpool tubs or large stone installations are involved, the inspector may also verify engineering documentation.

Answer Box

Residential bathrooms generally follow the same 40 psf live load requirement as other rooms, but real construction frequently includes additional reinforcement for bathtubs, tile flooring, and concentrated fixture loads. Structural engineers often design bathroom floors stronger than minimum code to prevent deflection and long‑term structural issues.

Final Summary

1. Most residential bathrooms follow a 40 psf live load standard.
2. Tile, tubs, and stone materials significantly increase structural demand.
3. Engineers evaluate concentrated loads, not just distributed loads.
4. Contractors commonly reinforce joists and subfloors in bathrooms.
5. Framing inspections verify bathroom floor load compliance.

FAQ

What is the standard bathroom floor load capacity?

Most residential building codes require a 40 psf live load for bathroom floors, similar to other residential rooms.

Do bathtubs require additional structural support?

Yes. Large tubs can exceed 700 pounds when filled, which often requires reinforced joists or blocking beneath the fixture.

Are bathroom floor load requirements different from bedrooms?

Technically no, but bathrooms frequently carry heavier concentrated loads from fixtures and tile installations.

How much weight can a residential bathroom floor hold?

A properly built bathroom floor typically supports at least 40 psf plus additional concentrated loads from fixtures.

Does tile flooring increase structural load?

Yes. Tile, mortar, and backer board can add 15–25 psf of dead load depending on the installation method.

Do building inspectors check bathroom floor structure?

Yes. Structural framing is reviewed during inspection before drywall installation.

Should older homes upgrade bathroom floor structure?

Often yes, especially when installing modern tubs, stone tile, or large vanities.

When should structural evaluation happen during a bathroom remodel?

Ideally during the design stage before plumbing and fixture layouts are finalized.
