Restaurant, Cafeteria, and Community Dining Hall Design Standards: Professional layout guidelines for planning efficient, safe, and comfortable dining spaces in restaurants, cafeterias, and large community halls.

Direct Answer

Restaurant, cafeteria, and community dining hall design standards focus on seating density, circulation space, furniture dimensions, safety access, and service efficiency. Most commercial dining environments allocate 12–20 square feet per guest, maintain clear service aisles of at least 36–60 inches, and use standardized table and seating dimensions to ensure comfort and operational flow.

These standards are widely used by hospitality designers, architects, and facility planners when creating professional dining layouts.

Quick Takeaways

1. Restaurants typically allocate 15–20 sq ft per guest for comfort and service efficiency.
2. Cafeterias prioritize circulation flow and often work with 12–15 sq ft per seat.
3. Community dining halls balance flexibility and density with 14–18 sq ft per person.
4. Standard dining tables are usually 28–30 inches high with 24 inches of width per diner.
5. Clear service aisles of 36–60 inches are essential for staff movement and safety.

Introduction

Restaurant and dining hall layouts look deceptively simple. Tables, chairs, circulation paths—how complicated could it be?

After more than a decade working on hospitality interiors, I can say the real complexity hides in the numbers. Restaurant dining area design standards determine whether a space feels lively or cramped, profitable or inefficient. A difference of just a few inches in aisle width or seat spacing can dramatically affect guest comfort and staff workflow.

I’ve worked on everything from boutique cafés to university cafeterias, and the same issue appears again and again: people underestimate how critical layout standards are until the dining room is already built.

If you're planning layouts digitally, many designers start by mapping circulation and seating with tools that help visualize traffic patterns early in the process. A practical way to experiment with seating density is using a smart workflow for generating accurate dining layouts with an AI floor planning toolbefore moving into final construction drawings.

In this guide, I'll break down the professional hospitality dining layout guidelines I rely on in real projects—including some hidden trade‑offs most online articles never mention.

save pin

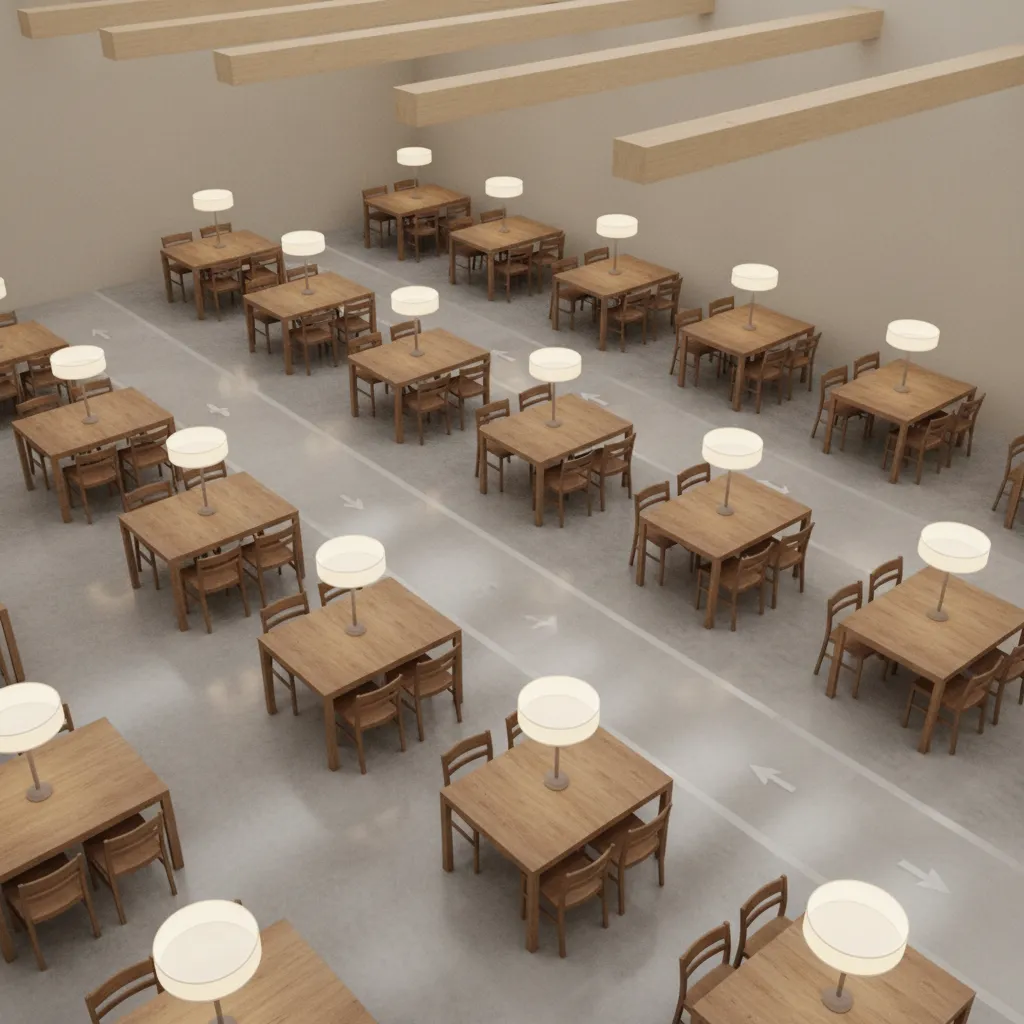

Key Design Standards for Restaurant Dining Areas

Key Insight: Successful restaurant layouts balance seating density with service circulation; overpacking tables is the most common design mistake.

Many new restaurant owners push for maximum seating capacity. From a revenue standpoint, it sounds logical. But in practice, overly dense seating reduces guest comfort and slows service.

Through multiple restaurant projects, I’ve found that profitability usually improves when the layout slightly reduces seating but improves circulation and table turnover.

Typical restaurant dining area standards:

1. 15–20 sq ft per guest in full-service restaurants
2. 12–15 sq ft per guest in quick-service environments
3. Main aisles: 48–60 inches wide
4. Secondary aisles: minimum 36 inches
5. Table spacing: 18–24 inches between chair backs

Common hidden mistake: Designers often forget service stations, waiting areas, and circulation around columns. These can consume 15–20% of usable floor area.

The National Restaurant Association and several hospitality architecture guides consistently recommend planning layouts from circulation outward—not from table count inward.

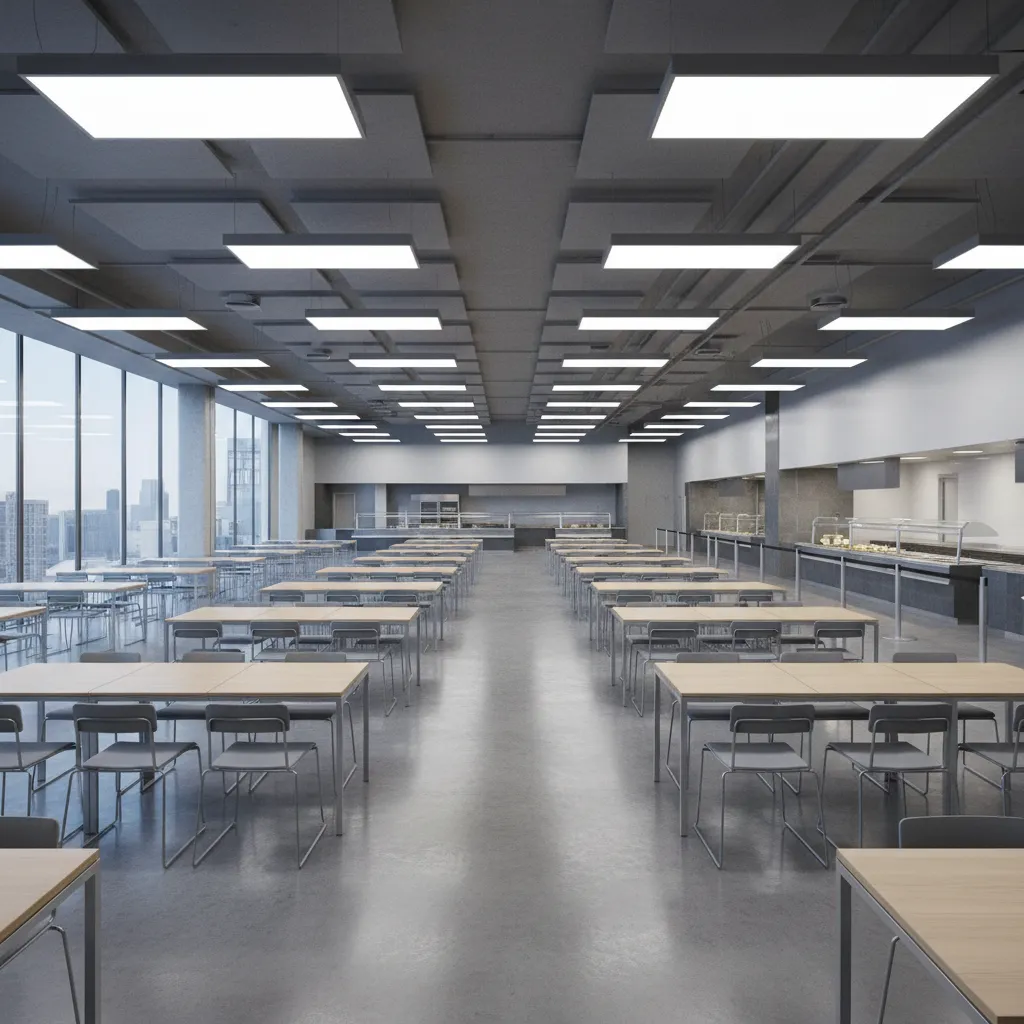

Cafeteria Layout Guidelines for High Traffic Environments

Key Insight: Cafeterias are circulation-driven spaces where queue flow matters more than seating aesthetics.

Unlike restaurants, cafeterias operate under peak traffic bursts—think school lunch periods or corporate office rush hours.

The layout must prioritize three movement zones:

1. Serving queue flow
2. Tray return paths
3. Seating circulation

Professional cafeteria seating layout guidelines:

1. 12–15 sq ft per diner
2. Queue lanes: 42–48 inches minimum
3. Main circulation spine: 60–72 inches
4. Tray return zones near exits
5. Mixed seating types (2‑seat, 4‑seat, communal)

One strategy I use often is clustering tables instead of placing them in rigid rows. This subtly improves circulation and reduces visual noise.

save pin

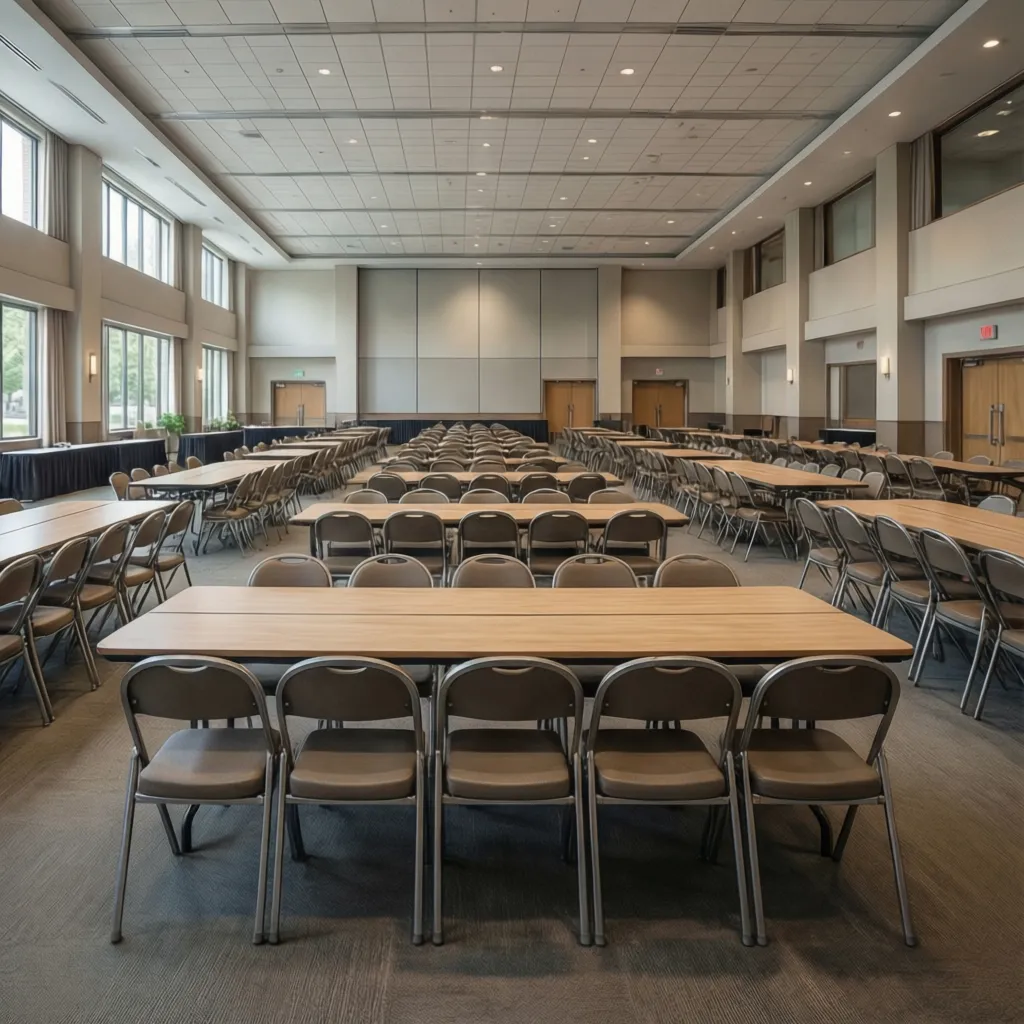

Space Requirements for Community Dining Halls

Key Insight: Community dining halls require flexibility first and density second.

Community halls serve multiple functions—banquets, events, meetings, and daily meals. Because of that, the layout must adapt quickly.

Recommended minimum space per person in dining halls:

1. Banquet seating: 10–12 sq ft per guest
2. Cafeteria-style seating: 12–14 sq ft
3. Flexible community dining: 14–18 sq ft

The extra space allows tables to be rearranged for events.

Another overlooked factor is storage. Folding tables and stackable chairs require dedicated storage zones—often 8–12% of total hall area.

When planning large halls digitally, designers often test multiple seating densities using a 3D environment that visualizes seating capacity and circulation pathsbefore committing to final layouts.

save pin

Furniture Dimensions and Seating Standards

Key Insight: Dining comfort depends more on seat width and elbow room than table size.

One misconception I see constantly is oversized tables paired with tight seating spacing. The result is uncomfortable dining even in large rooms.

Standard restaurant seating dimension standards:

1. Dining table height: 28–30 inches
2. Chair seat height: 17–19 inches
3. Width per diner: 24 inches minimum
4. Bar seating width: 24–30 inches
5. Banquette depth: 24 inches typical

Spacing rules that matter most:

1. 18 inches between chair backs
2. 30 inches minimum for tight circulation
3. 42–48 inches for comfortable service aisles

In real projects, ignoring these small measurements is what usually causes layout redesigns during construction.

Safety and Accessibility Considerations

Key Insight: Dining spaces must be designed around accessibility codes before aesthetics.

Accessibility compliance isn't optional in commercial dining environments. Designers must account for wheelchair circulation, accessible tables, and emergency egress routes.

Common accessibility requirements:

1. 36-inch minimum accessible pathways
2. 5-foot wheelchair turning radius
3. Accessible table height clearance: 27 inches
4. At least 5% of tables ADA accessible

Fire safety regulations also affect seating density. Exits, aisle width, and maximum occupancy are typically controlled by local building codes.

Answer Box

The most reliable commercial dining hall design standards focus on three measurable factors: space per guest, aisle width, and seating dimensions. Restaurants prioritize comfort and service circulation, cafeterias prioritize traffic flow, and community halls prioritize flexibility.

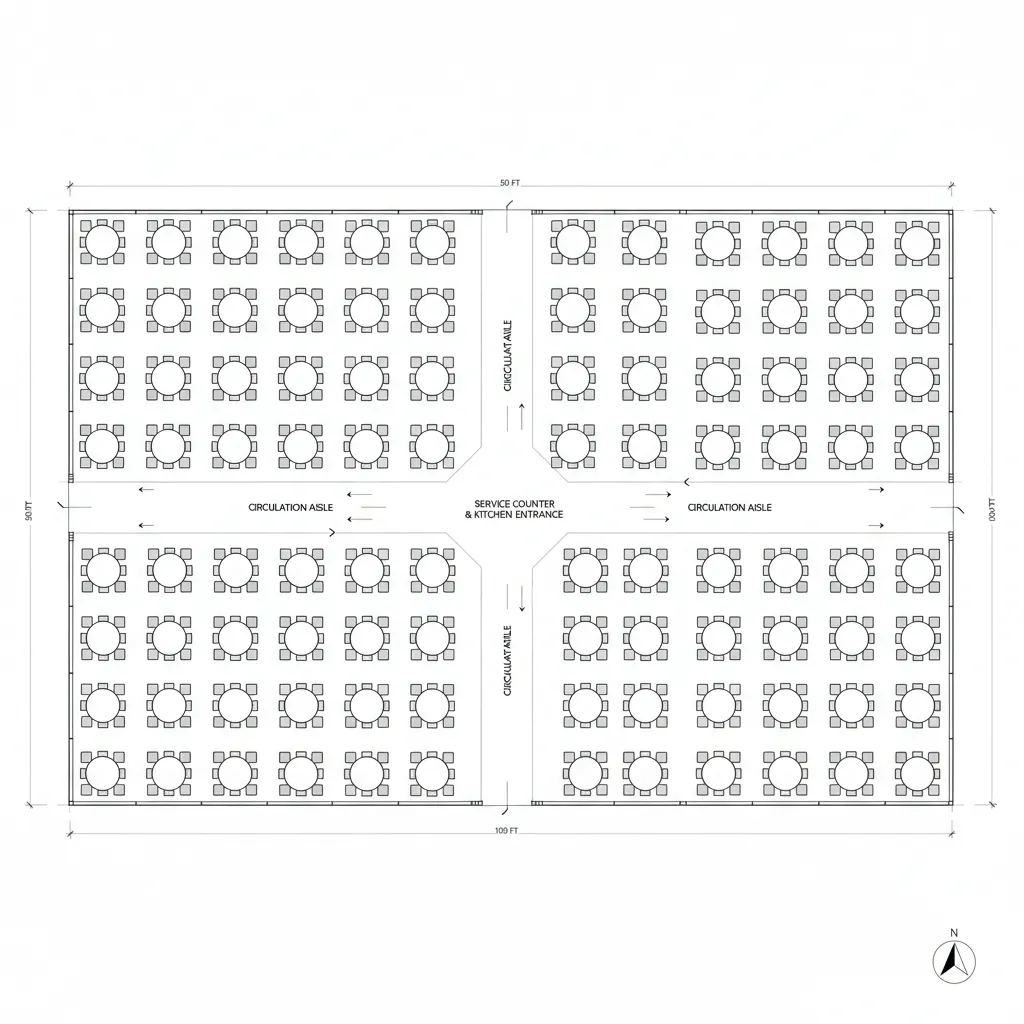

Applying Industry Standards in AutoCAD Floor Plans

Key Insight: The fastest way to validate dining standards is testing them directly in scaled floor plans.

Professional designers rarely finalize layouts on paper sketches. Instead, we test seating density, aisle widths, and circulation paths digitally before documentation.

A typical workflow looks like this:

1. Import or draw building shell
2. Define circulation spine
3. Place service zones
4. Insert seating blocks using standard dimensions
5. Simulate guest movement and capacity

Many teams speed up this stage by starting with a visual room layout planner for testing seating arrangements and circulationbefore producing detailed CAD drawings.

It’s faster to fix a circulation issue in a digital layout than after furniture is ordered.

save pin

Final Summary

1. Restaurants require 15–20 sq ft per guest for balanced comfort and efficiency.
2. Cafeterias prioritize circulation flow over seating density.
3. Community dining halls need flexible layouts and additional storage.
4. Standard furniture dimensions ensure ergonomic dining comfort.
5. Accessibility and safety rules shape seating layouts more than aesthetics.

FAQ

How much space should a restaurant dining area allocate per customer?

Most full‑service restaurants allocate 15–20 square feet per guest to balance comfort, circulation, and service efficiency.

What are standard restaurant seating dimensions?

Typical restaurant seating dimensions include 24 inches per diner, table height of 28–30 inches, and chair seat height of 17–19 inches.

What is the minimum space per person in a dining hall?

Community dining halls typically allocate 14–18 square feet per person for flexible seating and circulation.

How wide should restaurant aisles be?

Main aisles should be 48–60 inches wide for servers and guests. Secondary aisles can be 36 inches.

What is the difference between cafeteria and restaurant layouts?

Cafeterias prioritize queue flow and tray return paths, while restaurants focus on table spacing and service circulation.

How many accessible tables are required in restaurants?

Accessibility guidelines usually require at least 5% of tables to be wheelchair accessible.

What table size is best for four diners?

A 36–48 inch square table or a 42–48 inch round table comfortably seats four diners.

Why do restaurant layouts sometimes feel cramped?

Most cramped dining rooms result from ignoring circulation standards or placing too many tables into the available floor area.
