Restaurant Kitchen Chimney: Real Design Solutions: 1 Minute to Master Smart Restaurant Kitchen Chimney Design

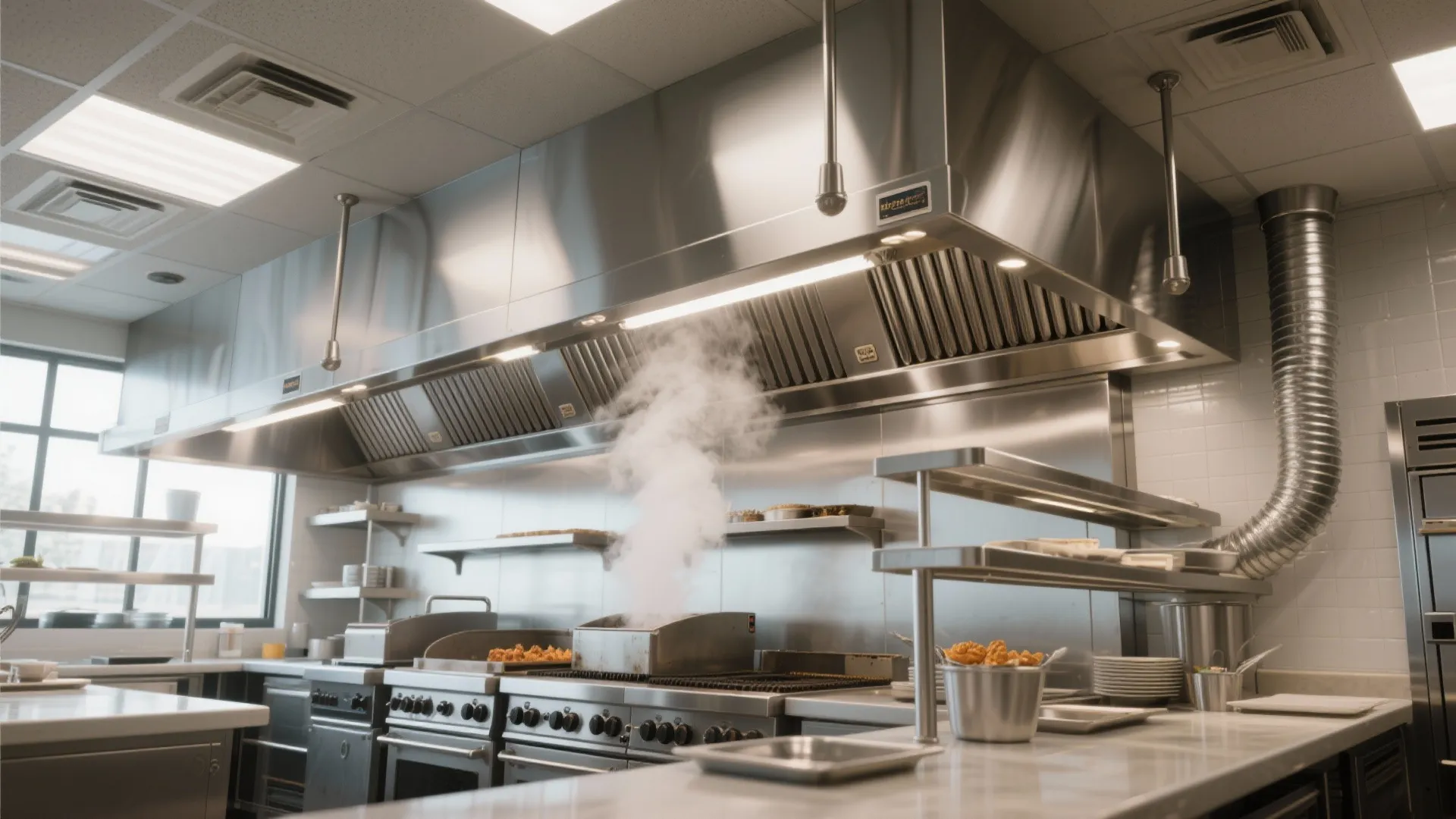

Designing a restaurant kitchen chimney is about more than getting smoke out; it’s about controlling heat, grease, airflow, lighting, and acoustics to keep crews safe and service steady. In high-output kitchens, a well-calibrated exhaust system reduces contaminants, stabilizes temperature, and protects finishes and equipment. The WELL v2 Air concept emphasizes ventilation rates and pollutant removal for occupant health; specifically, the WELL v2 standard encourages effective capture and filtration strategies that align with real cooking loads. From a productivity standpoint, Steelcase research associates thermal comfort and controlled environments with improved cognitive performance and fewer errors—conditions that start with robust extraction and balanced make-up air.

The reality of kitchen exhaust is measurable. The Illuminating Engineering Society (IES) recommends task lighting in food preparation zones around 500 lux to ensure safe handling—lighting levels that must be coordinated with hood geometry to prevent glare and shadows under the canopy. On the ergonomics side, Herman Miller’s workplace research links physical stress and inefficient workflows to increased fatigue; high heat and poor air quality compound that stress. Integrating a chimney and hood system that captures at source, controls radiant heat, and supports line-of-sight improves chef endurance over long service windows.

Design Objectives and Performance Criteria

My baseline targets for a restaurant kitchen chimney include: high capture efficiency at the cookline, stable negative pressure at the canopy, grease removal with accessible maintenance, low noise at the chef’s ear, and properly tempered make-up air to avoid drafts. For open kitchens, odor control and visual transparency are added layers. I focus on canopy depth and overhang, capture velocity at the hood face, and duct velocities that prevent grease deposition without creating excessive static pressure. Lighting, material selection, and clean-out access are treated as integral, not afterthoughts.

Determining the Right Hood and Chimney Geometry

Geometry drives capture. For a mixed cookline—charbroilers, fryers, griddles—a canopy overhang of 300–450 mm beyond the front edge of appliances helps contain plume roll-up. Island hoods need greater overhang because there’s no rear wall to help confine thermal plumes. Baffle filters should be installed at a tilt to encourage drainage into grease troughs. Duct risers should be vertical where possible to reduce grease-laden air deposition; use smooth-radius elbows if changes in direction are unavoidable. When configuring the hood footprint and traffic lanes, it’s helpful to test flow paths and spatial clearances with a room layout tool to simulate appliance adjacency and canopy coverage: room layout tool.

Airflow, Capture Velocity, and Make-up Air

Capture velocity at the hood face needs to be sufficient to contain buoyant, grease-laden plumes. While specific exhaust rates depend on equipment type and local codes, the principle is consistent: match airflow to actual cooking loads and ensure balanced make-up air. I typically distribute make-up air to avoid cold drafts at the neck and to prevent plume disruption. Supply air diffusers are placed away from the hood face and tuned to maintain comfortable air speeds for staff—generally below 0.5 m/s at breathing height in prep zones. With demand-controlled ventilation, fan speeds respond to real-time heat and effluent, cutting energy use during off-peak service while maintaining capture when the line is firing.

Grease Management and Duct Routing

Grease is the enemy of performance and fire safety. Use UL-listed baffle filters or cartridge systems matched to the cooking method. Incorporate slope toward grease cups and install duct clean-out doors at direction changes and base-of-riser points for maintenance. Horizontal duct runs should be minimized; if they are unavoidable, maintain adequate velocity to keep grease in suspension while controlling noise. Chimney penetrations through roof assemblies must include heat-resistant liners, spark arrestors where required, and access for inspection. Fire suppression nozzles should be coordinated with hood filter banks so maintenance doesn’t compromise coverage zones.

Lighting Under the Canopy

Task lighting impacts accuracy and safety. Coordinate sealed, heat-rated fixtures integrated into the hood underside to achieve that ~500 lux target recommended by IES for prep and task areas. Choose 3000–3500 K color temperature to maintain color fidelity for proteins and produce without washing out visual cues. Aim for low-glare optics that avoid specular reflections off stainless steel. Lighting controls should be separate from front-of-house ambiance to keep prep visibility consistent during rush periods.

Acoustics and Noise Control

Exhaust systems can be loud if fan selection and duct design are poor. I place fans away from the cookline where possible, add flexible connectors to reduce structure-borne noise, and size silencers or plenums to keep sound pressure levels manageable. Consider chef communication: maintaining clear verbal exchange is a safety requirement in cramped lines. Balancing static pressure to avoid whistling diffusers, and selecting fans with appropriate blade geometry, helps keep decibel levels in check.

Materials and Sustainability

Stainless steel (304 or 316) resists corrosion and simplifies cleaning. Where heat loads are extreme, 316 may extend life. Gaskets and sealants should be rated for high temperatures and grease exposure. For sustainability, combine high-efficiency motors with demand-controlled ventilation and heat recovery where code permits. Filtration stages—baffle plus electrostatic or cartridge—can reduce discharge particulates, improving neighborhood relations in dense urban sites. Maintenance accessibility is part of sustainability too; if techs can reach and clean, efficiency stays high.

Ergonomics and Workflow

Hood height should allow comfortable sightlines and head clearance, typically around 1950–2100 mm from finished floor to hood lip depending on appliance height and staff stature. Make-up air patterns should avoid blowing across plating stations; cooler air can be directed along corridors, not onto the cookline. Non-slip flooring, rounded corners, and protected edges reduce injury risk when working under a heavy canopy. Herman Miller’s research on workload and fatigue reminds me to keep thermal load off the chef’s face and hands—good extraction is a frontline ergonomic intervention.

Open Kitchen and Guest Experience

For open kitchens, odor and visual clarity are design drivers. The chimney and hood become part of the aesthetic; keep lines clean, integrate lighting to celebrate food, and ensure discharge treatment is adequate to prevent complaints. Acoustic treatments in ceilings and wall panels help dampen fan noise spilling into the dining room. Color psychology matters here too: warmer color temperatures and material palettes can make the chef’s station look inviting while keeping task zones properly lit.

Commissioning and Maintenance

Commissioning should verify capture performance with smoke tests, check airflow balance, and confirm that make-up air doesn’t disrupt plumes. Measure illuminance under the hood to verify target levels. Establish filter cleaning cycles based on actual load; busy fry lines may need daily service. Keep a log for duct clean-outs, fan bearing checks, and suppression system inspections. A well-maintained chimney is a safe chimney—and it keeps energy use predictable.

Authority and Standards

To align with health and performance benchmarks, leverage WELL v2 guidance on ventilation and air quality for occupant well-being, and use IES recommendations for lighting levels in task zones. Both resources help anchor decisions in measurable outcomes rather than generic rules. Reference materials from Steelcase and Herman Miller provide evidence linking environmental comfort to work quality, which is critical in kitchens where precision and timing drive revenue.

FAQ

Q1: How do I size the exhaust rate for my cookline?

A: Exhaust rates depend on equipment type and hood style. Start with manufacturer recommendations and local code tables, then validate with on-site plume testing. Demand-controlled systems can scale airflow to real-time heat and effluent.

Q2: What capture velocity should I target at the hood face?

A: The goal is containment, not maximum suction. For heavy-duty appliances like charbroilers, higher capture is required; ensure the hood overhang and side panels help confinement so you don’t rely solely on face velocity.

Q3: How do I balance make-up air without causing drafts?

A: Distribute tempered supply away from the hood face using low-velocity diffusers. Keep air speeds at breathing height comfortable (often under 0.5 m/s) and avoid directing air across open fryers or plating stations.

Q4: What lighting levels are recommended under the hood?

A: Aim for around 500 lux for prep and task areas per IES guidance. Use heat-rated, sealed fixtures at 3000–3500 K to maintain color accuracy and minimize glare.

Q5: Which filters are best for grease control?

A: UL-listed baffle filters are the baseline. For heavy effluent, consider electrostatic or cartridge stages after baffles. Ensure proper slope and drainage into grease cups and maintain a strict cleaning schedule.

Q6: How can I reduce exhaust noise?

A: Select appropriately sized fans, avoid sharp duct turns, add flexible connectors, and consider silencers or acoustical plenums. Place fans away from the cookline when feasible to lower chef exposure.

Q7: What’s the ideal hood height for ergonomics?

A: Maintain head clearance and sightlines—typically 1950–2100 mm to the hood lip depending on appliance height. Confirm with on-site mock-ups before finalizing.

Q8: Do open kitchens need special odor control?

A: Yes. Enhance filtration stages and ensure discharge treatment is adequate. Coordinate acoustics and lighting to balance guest comfort with chef visibility.

Q9: How often should ducts and filters be cleaned?

A: Frequency depends on cooking load. Many high-volume fry lines require daily filter cleaning and scheduled duct clean-outs based on grease accumulation measured during inspections.

Q10: Can heat recovery be integrated with kitchen exhaust?

A: In some jurisdictions yes, with appropriate filtration and separation to protect equipment. Evaluate energy savings against maintenance complexity and local code constraints.

Q11: What commissioning tests are essential?

A: Smoke capture tests, airflow balance verification, sound level checks, and illuminance measurements under the hood. Document setpoints for demand-controlled ventilation.

Q12: How do I plan the hood footprint during layout?

A: Map appliance dimensions, required overhangs, and traffic aisles, then simulate coverage with an interior layout planner to confirm clearances and service ergonomics.
