Rhinoceros 3D for Architectural Rendering: Mastering Architectural Visualization with Rhinoceros 3D

Direct Answer

Rhinoceros 3D is widely used for architectural rendering because it combines extremely precise modeling with flexible surface tools that handle complex geometry better than most traditional CAD platforms. In practice, designers model architecture in Rhino and then connect it to rendering engines like V-Ray, Enscape, or Lumion to produce photorealistic images.

The strength of Rhinoceros 3D for architectural rendering is not the renderer itself, but the modeling accuracy and design freedom that make high quality visualizations possible.

Quick Takeaways

1. Rhinoceros 3D excels at complex architectural modeling, especially curved or parametric structures.
2. Most architects pair Rhino with V-Ray, Enscape, or Twinmotion for final rendering.
3. Rhino is often used in early design stages before exporting to rendering software.
4. Grasshopper integration allows parametric forms that traditional CAD tools struggle to model.
5. Clean geometry in Rhino significantly improves rendering quality and performance.

Introduction

In many architecture studios I’ve worked with over the past decade, Rhinoceros 3D for architectural rendering shows up earlier in the design process than people expect. It’s rarely just a visualization tool. Instead, Rhino acts as the modeling backbone that feeds rendering engines later.

When projects involve complex surfaces, parametric façades, or organic forms, traditional BIM tools can feel restrictive. That’s where Rhino shines. I’ve used it on residential concept studies, façade explorations, and museum competition proposals where design freedom mattered more than rigid BIM workflows.

The misunderstanding I see most often is this: many beginners think Rhino itself is the rendering solution. In reality, Rhino becomes powerful when paired with a renderer and a disciplined modeling workflow. Once that pipeline is dialed in, it becomes one of the most flexible visualization setups available to architects.

save pin

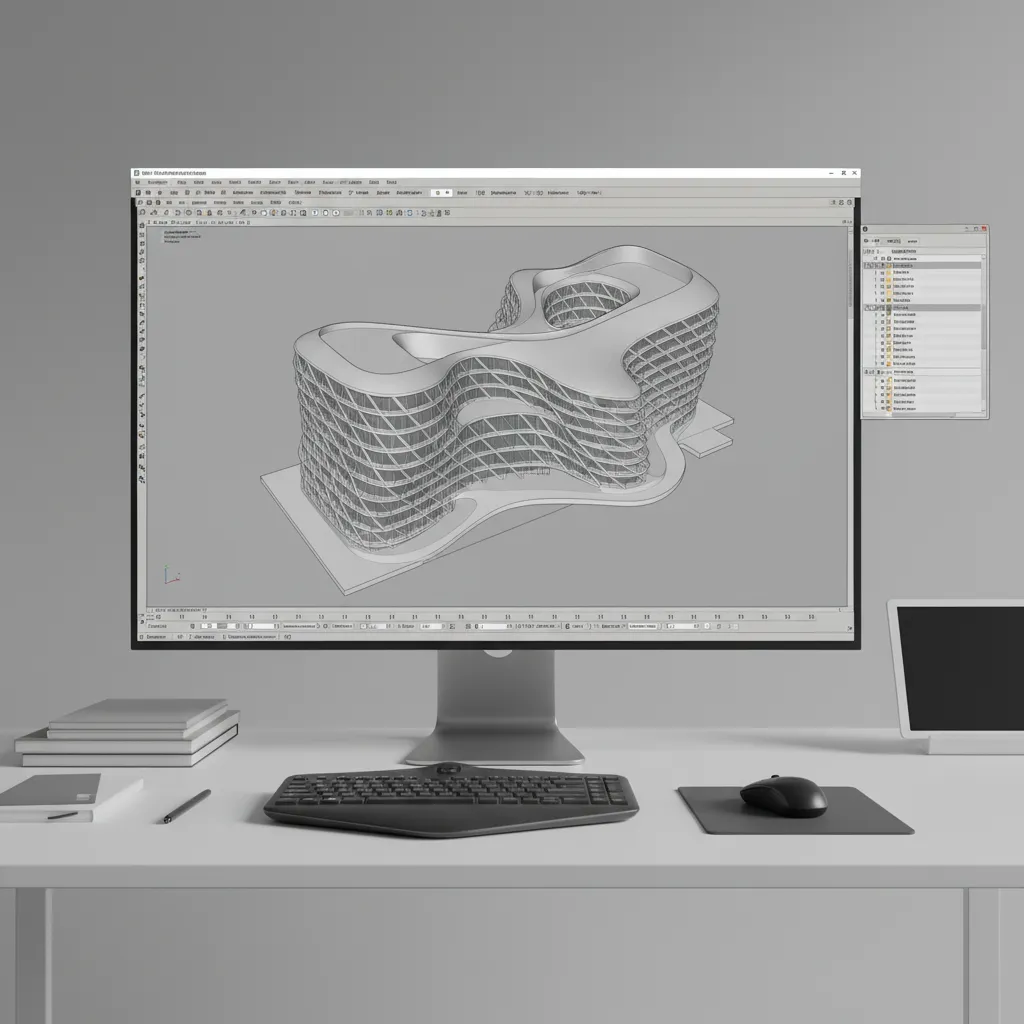

Why Do Architects Use Rhinoceros 3D for Architectural Rendering?

Key Insight: Architects use Rhino primarily for modeling flexibility, especially when projects involve complex geometry that standard CAD or BIM tools struggle to handle.

Unlike software designed strictly for documentation, Rhino focuses on geometric freedom. It uses NURBS modeling, which allows precise control over curves and surfaces. That matters a lot for modern architecture where façades, roofs, and structural elements are rarely simple boxes anymore.

In several design competitions I worked on, Rhino became the fastest way to prototype architectural ideas before committing them to BIM.

Typical Rhino visualization workflow:

1. Concept modeling in Rhino
2. Parametric exploration with Grasshopper
3. Material setup in rendering plugin
4. Lighting and environment creation
5. Final rendering export

Many large architecture firms follow a similar pipeline. Rhino handles geometry exploration, while BIM platforms like Revit handle documentation later.

save pin

Can Rhinoceros 3D Render Images by Itself?

Key Insight: Rhino includes a basic renderer, but most professional architectural renderings rely on external rendering engines.

Rhino's built‑in renderer is capable of producing simple images, especially for concept presentations. However, it lacks the advanced lighting, materials, and realism that architectural marketing visuals require.

That’s why most visualization workflows connect Rhino to specialized renderers.

Common rendering engines used with Rhino:

1. V-Ray for Rhino – industry standard for photorealistic architecture
2. Enscape – real‑time rendering for fast client presentations
3. Twinmotion – strong for landscape and environmental scenes
4. Lumion – popular for cinematic architectural animations

In my experience, the Rhino + V-Ray combination still produces some of the most detailed architectural still images, especially when materials and lighting require precise control.

save pin

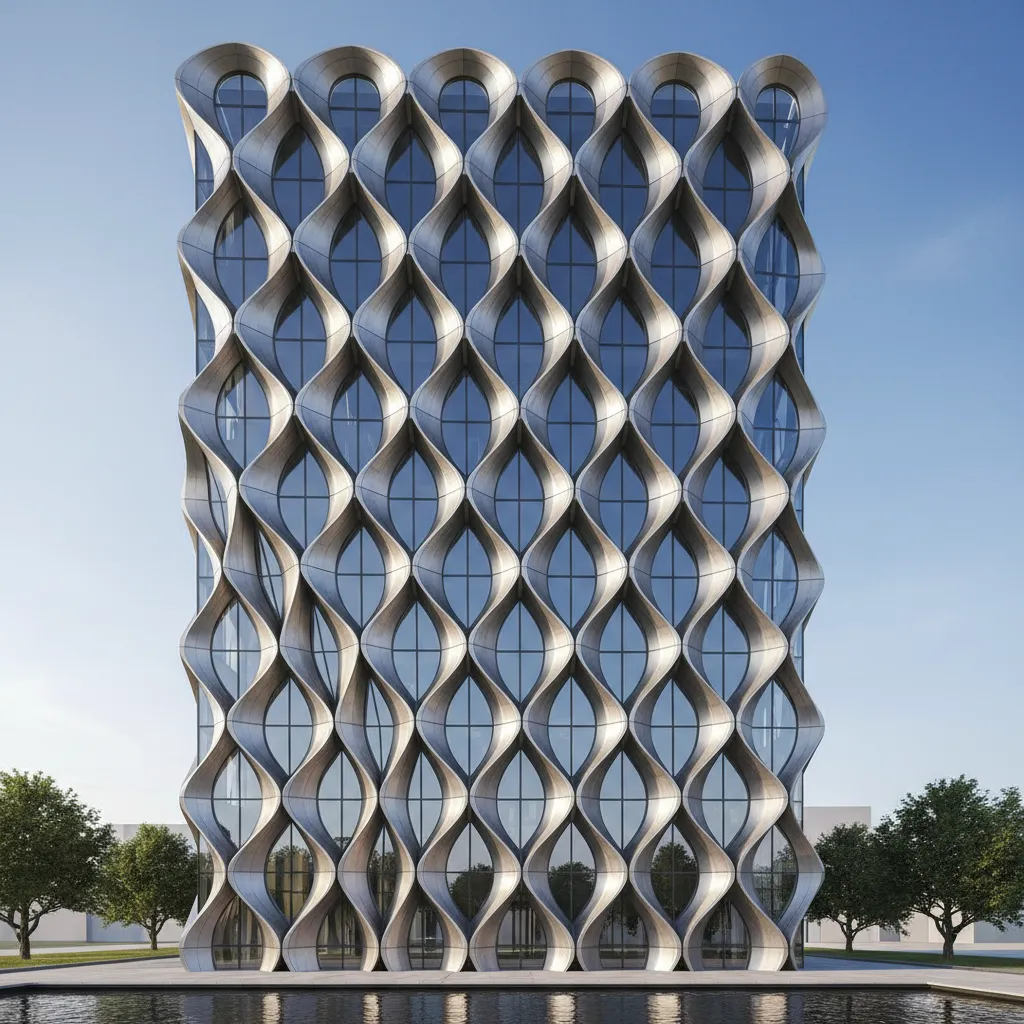

What Makes Rhino Better for Complex Architectural Geometry?

Key Insight: Rhino excels at modeling curved, parametric, and non‑standard architectural forms thanks to its NURBS engine and Grasshopper integration.

Traditional CAD systems rely heavily on solid modeling, which works well for orthogonal buildings. But modern architecture increasingly involves fluid forms, perforated façades, and algorithmic structures.

Rhino’s geometry system allows architects to manipulate surfaces with far greater freedom.

Where Rhino modeling becomes especially valuable:

1. Freeform roof structures
2. Parametric façades
3. Organic pavilions
4. Complex structural shells
5. Custom interior installations

Grasshopper adds another layer by enabling parametric design. Instead of manually editing geometry, designers build rule‑based systems that generate architectural forms automatically.

This is why many experimental architecture studios rely heavily on Rhino during concept phases.

Hidden Mistakes Beginners Make When Rendering with Rhino

Key Insight: Most rendering problems originate from messy geometry and poor modeling discipline inside Rhino.

After reviewing dozens of student portfolios and junior designer projects, I’ve noticed the same problems appear again and again.

Common mistakes include:

1. Overlapping surfaces causing lighting artifacts
2. Open geometry that breaks rendering materials
3. Unnecessary polygon density slowing render engines
4. Poor layer organization
5. Incorrect model scale affecting lighting calculations

A simple rule I always follow: clean geometry produces clean renderings. Before exporting a model to V‑Ray or Enscape, I spend a few minutes checking surface normals, edges, and duplicate geometry.

That small step often saves hours of rendering troubleshooting later.

How Rhino Fits into a Modern Architectural Visualization Workflow

Key Insight: Rhino works best as the modeling hub inside a broader visualization ecosystem rather than as a standalone rendering tool.

Today’s architectural rendering pipelines rarely depend on a single software platform. Instead, studios combine specialized tools.

A common workflow looks like this:

1. Rhino for architectural modeling
2. Grasshopper for parametric systems
3. V-Ray or Enscape for rendering
4. Photoshop for final image polish

This layered workflow is why Rhino remains popular even as new visualization tools appear. Its modeling flexibility integrates smoothly with almost every rendering platform used in architecture today.

Answer Box

Rhinoceros 3D is primarily used in architectural rendering for modeling complex geometry that feeds into powerful rendering engines like V‑Ray or Enscape. Its precision and parametric design capabilities make it one of the most flexible modeling tools in modern architectural visualization workflows.

Final Summary

1. Rhinoceros 3D is primarily a modeling tool used before rendering.
2. Architects rely on Rhino for complex and parametric geometry.
3. Most professional renderings use Rhino with V-Ray or Enscape.
4. Clean geometry inside Rhino directly improves rendering quality.
5. Rhino integrates easily into modern architectural visualization pipelines.

FAQ

Is Rhinoceros 3D good for architectural rendering?

Yes. Rhinoceros 3D is excellent for architectural modeling and works especially well when paired with renderers like V-Ray or Enscape.

Can Rhino produce photorealistic renderings?

Yes, but usually through plugins. Rhino combined with V-Ray or Twinmotion can produce highly photorealistic architectural images.

Is Rhino better than SketchUp for complex architecture?

For complex curved forms and parametric structures, Rhino is generally more powerful due to its NURBS modeling system.

Do architects still use Rhino in professional studios?

Yes. Many architecture firms use Rhino during concept design, façade studies, and parametric modeling.

Is Rhinoceros 3D difficult to learn?

The basics are fairly approachable, but mastering advanced modeling and Grasshopper workflows takes time.

What renderer works best with Rhinoceros 3D for architectural rendering?

V-Ray is widely considered the most powerful option, while Enscape offers faster real-time visualization.

Can Rhino models be used in other rendering software?

Yes. Rhino models can be exported to many platforms including Unreal Engine, Lumion, and Twinmotion.

Is Rhino used for interior design visualization?

Yes. Designers often use Rhino for furniture modeling, custom interiors, and spatial visualization.
