Risk and Building Code Considerations for 7x4 Bathrooms: Safety, ventilation, plumbing, and code compliance insights every homeowner should know before building a 7x4 bathroom.

Direct Answer

A 7x4 bathroom can meet building codes if minimum fixture clearances, ventilation requirements, waterproofing systems, and plumbing access standards are carefully planned. The biggest risks usually come from insufficient clearance, poor ventilation, and improper drainage slopes in ultra‑compact layouts.

Most compliance problems occur not because the space is small, but because the layout ignores code-required spacing around toilets, sinks, and showers.

Quick Takeaways

1. Most 7x4 bathrooms fail inspection due to insufficient toilet or sink clearance.
2. Mechanical ventilation is usually required if no exterior window exists.
3. Poor plumbing routing is a common hidden cost in narrow bathrooms.
4. Continuous waterproofing is critical because water spreads faster in compact spaces.
5. Local codes can vary widely, so layout flexibility matters.

Introduction

Designing a 7x4 bathroom looks simple on paper, but in real projects it’s one of the layouts that most frequently triggers inspection problems. After working on dozens of compact urban apartments and ADU remodels, I’ve learned that the real challenge isn’t fitting the fixtures — it’s making the layout compliant with building codes while keeping it functional.

The moment a bathroom drops below about 35 square feet, every inch becomes structural, mechanical, and regulatory territory. A toilet that shifts three inches too close to a wall can break clearance rules. A poorly placed shower drain can create standing water. Even ventilation requirements can invalidate a layout.

Before committing to a plan, I always recommend visualizing the layout using a step‑by‑step floor plan planning workflow for compact bathrooms. Seeing the clearances in scale helps catch compliance problems early.

In this guide, I’ll walk through the most important safety and code considerations for a 7x4 bathroom — including clearance rules, moisture control, plumbing risks, waterproofing strategy, and regional code differences.

save pinOpen in 3D Planner Processing...

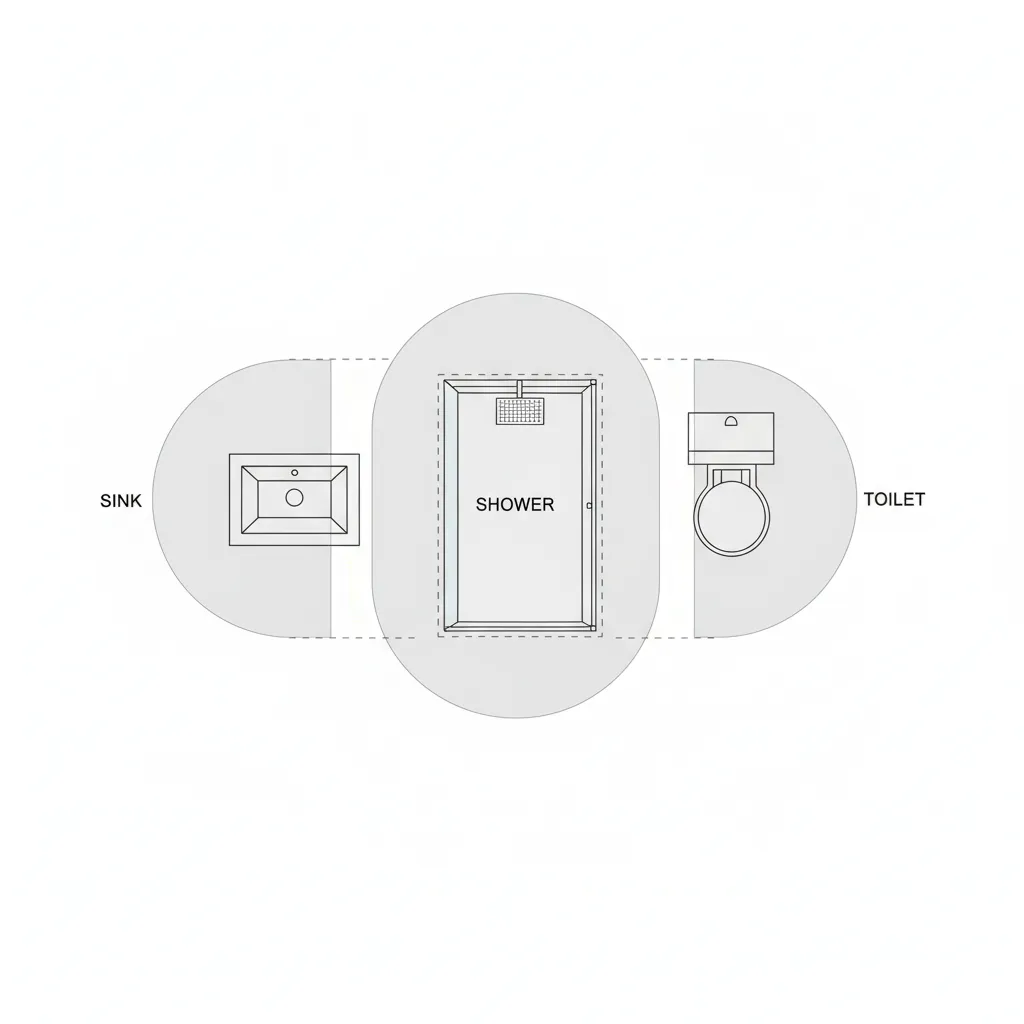

Minimum Clearance Requirements in Small Bathrooms

Key Insight: Fixture clearance — not room size — is the most common reason small bathrooms fail building inspections.

Most building codes follow spacing guidelines derived from the International Residential Code (IRC) or similar national standards. In a 7x4 bathroom, these clearances quickly consume the available floor area.

Typical minimum clearance rules:

1. Toilet centerline: at least 15 inches from each side wall
2. Minimum 21 inches clear space in front of toilet
3. Sink clearance: 21 inches in front
4. Shower minimum interior: typically 30x30 inches

In practice, this means certain layouts simply don’t work in a 7x4 footprint. For example, placing the toilet at the narrow end of the room often creates side clearance violations.

One strategy I use is aligning fixtures along a single wet wall. This keeps clearances predictable and simplifies plumbing access.

save pinOpen in 3D Planner Processing...

Ventilation and Moisture Control in 7x4 Spaces

Key Insight: Small bathrooms accumulate humidity faster, which makes ventilation requirements more critical than in larger rooms.

Many homeowners assume a tiny bathroom doesn’t need strong ventilation. The reality is the opposite. Because the air volume is smaller, moisture levels spike quickly during showers.

Common ventilation solutions:

1. Mechanical exhaust fan (usually 50–80 CFM)
2. Exterior window with minimum openable area
3. Humidity‑sensor automatic fans

From experience, humidity‑sensor fans are worth the small cost increase. They prevent the common issue where occupants forget to turn on ventilation.

According to the Home Ventilating Institute, inadequate bathroom ventilation is a major contributor to mold growth in residential bathrooms.

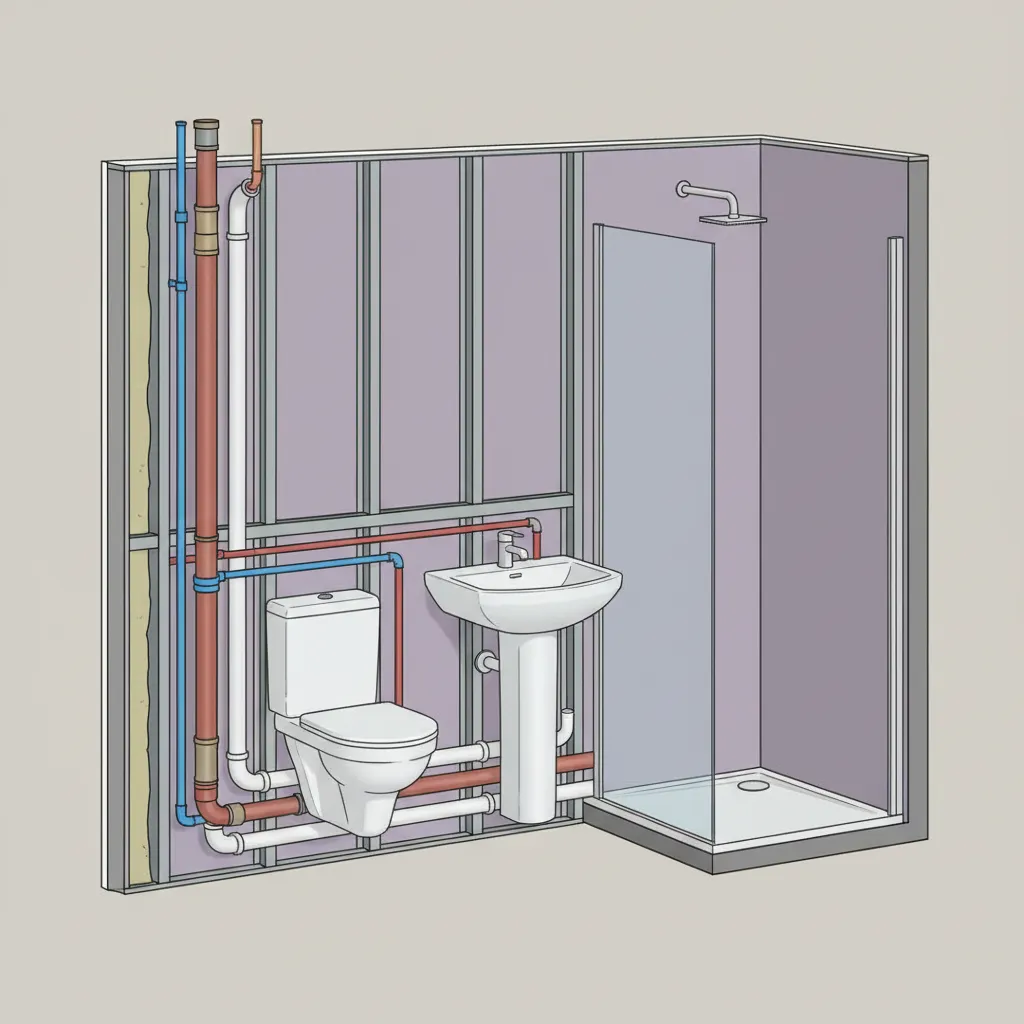

Plumbing Layout Risks in Ultra-Compact Bathrooms

Key Insight: The tighter the bathroom, the more expensive plumbing mistakes become.

In narrow bathrooms, pipes often compete for the same wall cavities. When toilets, sinks, and showers are not aligned strategically, plumbers may need to reroute pipes or cut structural members.

Common plumbing problems in 7x4 bathrooms:

1. Drain lines crossing structural joists
2. Insufficient slope for shower drains
3. Vent stack conflicts
4. Difficult access for maintenance

One of the smartest approaches is previewing the full layout with a visual bathroom layout simulator for tight spaces. Seeing fixture spacing in 3D often reveals plumbing conflicts that aren’t obvious in flat drawings.

save pinOpen in 3D Planner Processing...

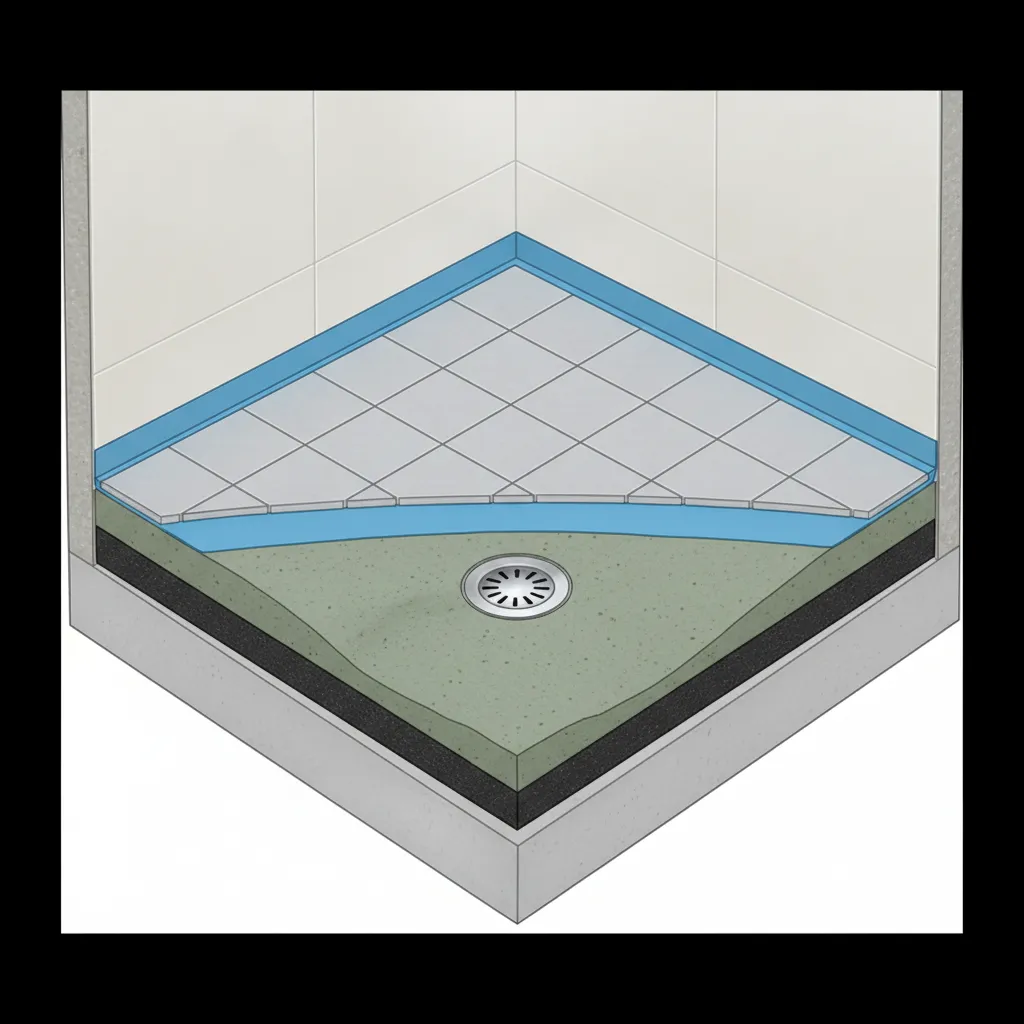

Waterproofing and Drainage Considerations

Key Insight: In small bathrooms, a single waterproofing failure can affect the entire room.

Because everything sits close together, water spreads quickly across the floor in compact bathrooms. Poor waterproofing around showers or toilets often leads to subfloor damage.

Critical waterproofing areas:

1. Shower floor and wall membrane
2. Floor-to-wall transitions
3. Toilet flange sealing
4. Drain slope (usually 1/4 inch per foot)

A detail many homeowners overlook is the shower curb height. Too low, and water escapes; too high, and accessibility suffers.

Answer Box

The biggest code risks in a 7x4 bathroom involve fixture clearance, ventilation, and drainage slope. When layouts respect minimum spacing and maintain proper ventilation and waterproofing, even extremely compact bathrooms can meet modern building codes.

Building Code Variations by Region

Key Insight: Bathroom building codes vary more than most homeowners expect.

While many regions reference the International Residential Code, local municipalities frequently modify requirements.

Examples of regional variation:

1. Minimum shower size requirements
2. Window vs mechanical ventilation rules
3. Accessibility guidelines
4. Minimum ceiling height

This is why professional designers always verify local regulations before construction. A layout that passes inspection in one state might require adjustments in another.

Design Adjustments to Stay Compliant

Key Insight: Small layout tweaks often solve major compliance problems.

In many of my projects, shifting a fixture just a few inches avoids expensive redesigns.

Practical adjustments that work well:

1. Wall‑mounted toilets to free floor space
2. Corner sinks to preserve clearance zones
3. Pocket doors instead of swing doors
4. Linear shower drains for flexible slopes

Before finalizing the design, I usually recommend generating a realistic 3D preview of the bathroom layout before construction. It helps confirm spatial clearance and reduces costly surprises during installation.

save pinOpen in 3D Planner Processing...

Final Summary

1. Fixture clearance rules determine whether a 7x4 bathroom is code compliant.
2. Proper ventilation is essential to prevent moisture buildup.
3. Efficient plumbing routing reduces construction risk.
4. Continuous waterproofing protects the entire small space.
5. Local code verification is always necessary.

FAQ

1. Is a 7x4 bathroom legal according to building codes?

A 7x4 bathroom can meet building codes if required fixture clearances, ventilation, and plumbing access rules are followed.

2. What is the minimum clearance for a toilet in a small bathroom?

Most codes require at least 15 inches from the toilet centerline to each side wall and 21 inches of front clearance.

3. Do 7x4 bathrooms require mechanical ventilation?

If no exterior window is present, most codes require a mechanical exhaust fan for proper ventilation.

4. What is the minimum shower size allowed in building codes?

Many regulations require a minimum interior shower size of 30 by 30 inches.

5. What are common plumbing problems in narrow bathrooms?

Typical issues include improper drain slope, vent conflicts, and pipes crossing structural framing.

6. Why is waterproofing more important in small bathrooms?

Water spreads across the entire floor more easily, increasing the risk of structural damage.

7. Are pocket doors better for small bathrooms?

Yes. Pocket doors eliminate door swing clearance and help maintain code‑required fixture spacing.

8. What are the typical 7x4 bathroom building code requirements?

Key requirements usually include minimum fixture clearances, proper ventilation, approved plumbing slopes, and waterproof shower construction.

References

1. International Residential Code (IRC)
2. Home Ventilating Institute Guidelines
3. National Kitchen and Bath Association Planning Standards
