Risk Control and Accuracy Validation in Laser-Based Floor Plan Creation: Professional methods to verify measurements, prevent costly errors, and maintain reliable laser-generated floor plans

Direct Answer

Risk control in laser-based floor plan creation depends on validating measurements, cross-checking key dimensions, and documenting every step of the measurement workflow. Even high‑precision laser devices can produce errors if scanning angles, reflective surfaces, or data handling are not properly managed. Professionals typically combine laser measurements with manual verification and structured quality checks to ensure reliable floor plan accuracy.

Quick Takeaways

1. Laser devices improve speed, but accuracy still depends on proper measurement workflows.
2. Cross‑checking critical dimensions prevents small measurement errors from spreading through a full floor plan.
3. Reflective surfaces, angles, and room clutter are common causes of laser measurement inaccuracies.
4. Structured documentation improves reliability across projects and protects against costly redesign mistakes.

Introduction

Laser measurement technology has dramatically improved how designers and architects create digital layouts. Today, generating a laser floor plan can take minutes instead of hours. But after working on residential renovations and commercial interior projects for more than a decade, I’ve learned that speed often hides a new set of risks.

The biggest misconception is that laser devices automatically guarantee accuracy. They don’t. A perfectly calibrated device can still produce flawed floor plans if measurement angles are wrong, reflective surfaces interfere with readings, or dimension data isn’t validated during digital processing.

In real projects, even a small error—two inches in a kitchen wall length, for example—can affect cabinet installation, electrical placement, or built‑in storage design. That’s why experienced designers always combine laser measurements with structured verification methods.

If you’re planning to generate digital layouts using modern tools, it helps to understand how professionals structure the process. Many designers begin with a step‑by‑step process for generating a complete 3D layout from measured floor dimensionsbefore validating measurements against site conditions.

This guide breaks down the risk control systems professionals use to maintain measurement accuracy when producing laser‑based floor plans.

save pin

Why Accuracy Matters in Laser-Based Floor Plans

Key Insight: A small measurement error in early scanning stages can multiply into major layout problems during design and construction.

Laser measurement tools are precise, but floor plans are systems of interconnected dimensions. When one wall length is slightly incorrect, the entire geometry of the room can shift.

In interior design projects, measurement accuracy directly affects:

1. Custom cabinetry alignment
2. Furniture layout planning
3. Lighting and electrical positioning
4. Door clearance and circulation paths
5. Kitchen and bathroom fixture placement

In one renovation project I worked on in Los Angeles, a laser scan misread a wall because the beam reflected off a mirrored wardrobe door. The measurement error was only about 1.5 inches—but it caused a cabinet system to collide with a door swing in the digital model.

Situations like this show why professional workflows never rely on a single measurement pass.

Common Risk Factors in Laser Measurement Workflows

Key Insight: Most measurement errors come from environmental conditions and workflow mistakes rather than equipment failure.

Laser devices themselves are typically accurate within a few millimeters. The real risks occur during the measurement process.

Common causes of inaccurate readings include:

1. Reflective surfaces such as mirrors or glass
2. Measuring from inconsistent reference points
3. Furniture blocking wall corners
4. Laser beam hitting angled surfaces
5. Room clutter affecting beam paths
6. Incomplete measurement sequences

From my experience reviewing measurement data across dozens of projects, reflective materials are the most overlooked problem. Glass panels, polished tiles, and metal appliances can all distort readings.

Professional workflows therefore include multiple measurement angles and cross‑checks for critical walls.

save pin

Validation Techniques for Floor Plan Dimensions

Key Insight: Reliable floor plans are created through validation cycles rather than single-pass measurements.

Professionals typically apply three validation layers when converting laser measurements into a usable plan.

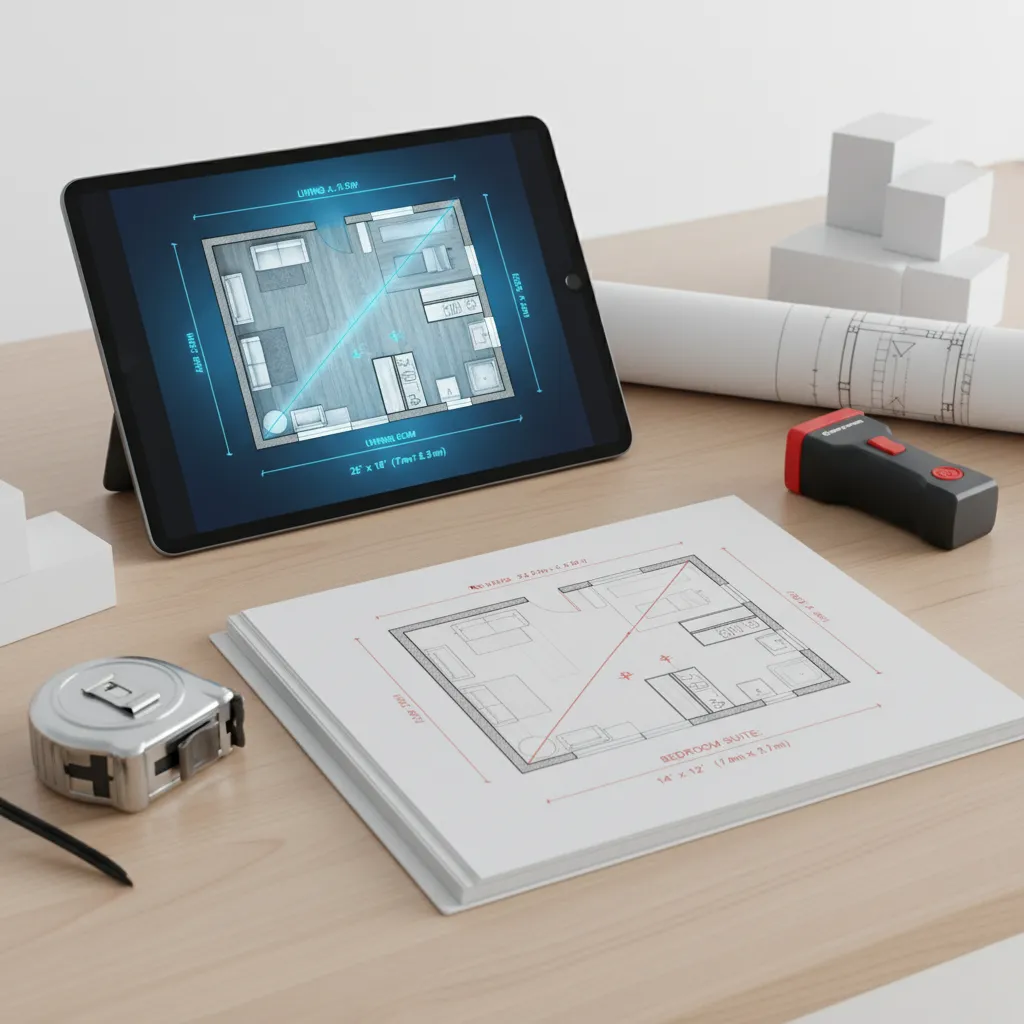

1. Diagonal Checks

1. Measure both room diagonals
2. Confirm that opposite corners match expected geometry

2. Wall Loop Verification

1. Add all wall segments around a room
2. Confirm they close correctly without dimensional gaps

3. Structural Reference Points

1. Use doors, windows, and columns as fixed references
2. Compare distances between these elements

These checks allow designers to detect measurement drift before the data enters modeling software.

Cross-Checking Laser Data With Manual Measurements

Key Insight: Manual tape measurements remain one of the most reliable ways to verify critical laser readings.

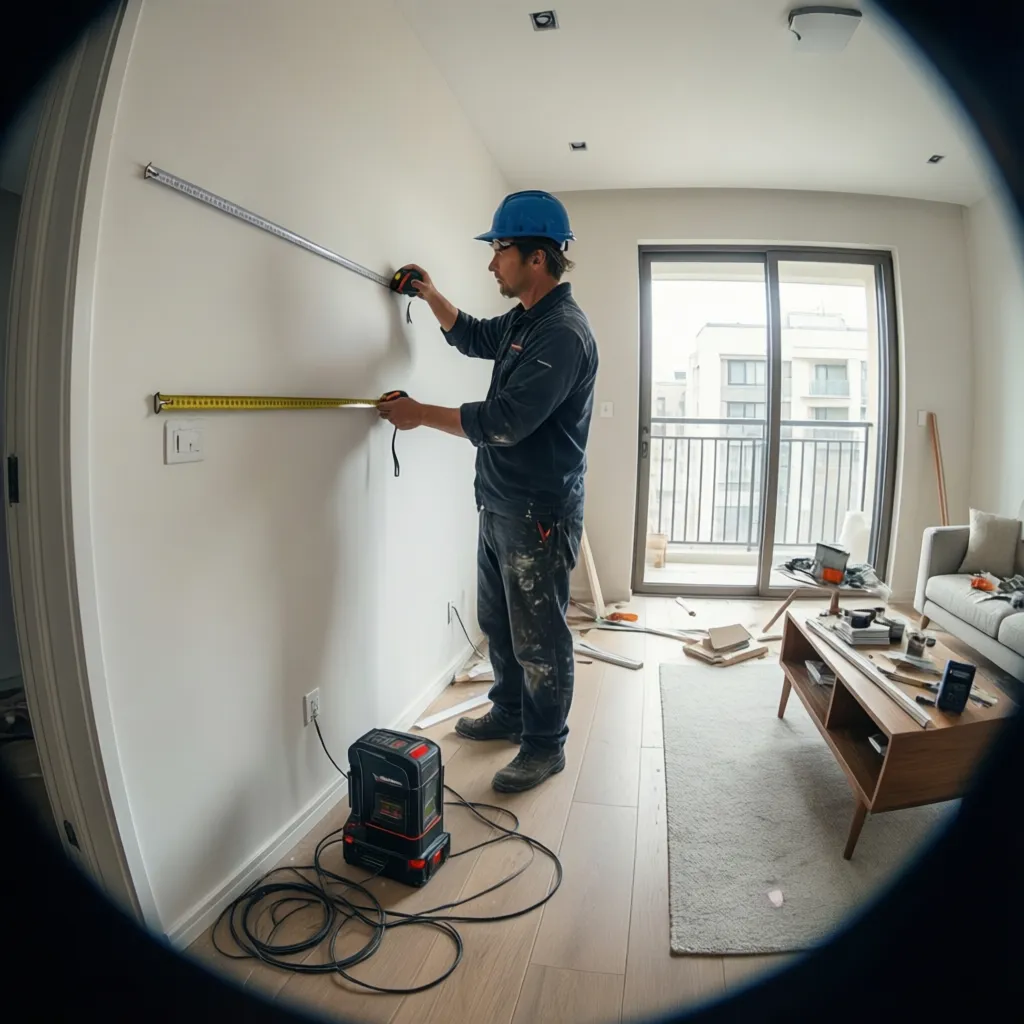

Despite the rise of digital measurement devices, experienced surveyors still carry a traditional measuring tape. The reason is simple: redundancy prevents mistakes.

Manual verification is particularly useful for:

1. Main structural wall lengths
2. Door openings
3. Window widths
4. Ceiling heights

Many designers combine both methods when building digital layouts using tools designed for creating accurate floor plans directly from measured room dimensions.

The laser measurement establishes the base data, while manual checks confirm that critical elements match real conditions.

save pin

Managing Data Errors During Digital Floor Plan Creation

Key Insight: Measurement accuracy can degrade during digital modeling if dimension data is incorrectly entered or interpreted.

Another overlooked risk appears after the measurement stage: transferring numbers into digital floor plan software.

Typical data errors include:

1. Entering dimensions in the wrong units
2. Swapping width and depth values
3. Misplacing interior partitions
4. Incorrectly aligning wall endpoints

A practical way to prevent these issues is to reconstruct the room geometry step‑by‑step while comparing it with site sketches.

Professional designers also keep original measurement photos and sketches for reference.

Documentation Standards for Measured Floor Plans

Key Insight: Proper documentation turns measurements into verifiable design data rather than temporary field notes.

Reliable floor plan documentation usually includes:

1. Room sketches with dimension labels
2. Photographs of measurement positions
3. Device calibration information
4. Date and project reference
5. Measurement sequence notes

This documentation becomes extremely valuable when projects move into construction or renovation phases.

It also makes it easier to recreate layouts later using digital tools that support visualizing measured rooms as intelligent AI‑generated layouts.

Maintaining Consistent Measurement Quality Across Projects

Key Insight: Consistency in measurement procedures matters more than individual device accuracy.

Design firms that produce reliable floor plans typically standardize their workflows.

A typical quality control routine includes:

1. Using the same measurement sequence for every room
2. Recording reference points first
3. Scanning diagonals after perimeter walls
4. Verifying openings before finalizing the layout

Over time, this structured approach dramatically reduces measurement mistakes.

Answer Box

Laser floor plan accuracy depends less on the device and more on the workflow. Reliable results come from combining laser measurements, manual verification, diagonal checks, and structured documentation throughout the measurement process.

Final Summary

1. Laser devices improve speed but still require measurement validation.
2. Environmental conditions often cause the biggest measurement errors.
3. Manual cross‑checks prevent small errors from affecting entire layouts.
4. Documentation ensures measurements remain reliable across project stages.
5. Standardized workflows maintain consistent floor plan accuracy.

FAQ

How accurate are laser distance measurements for floor plans?

Most professional laser devices are accurate within 1–3 mm. However, environmental conditions and measurement technique can reduce real‑world accuracy.

How do you ensure accuracy in laser floor plan measurements?

Use diagonal checks, repeat key measurements, and cross‑verify major dimensions with a manual measuring tape.

Can reflective surfaces affect laser measurements?

Yes. Mirrors, glass, polished tiles, and metal appliances can distort laser reflections and cause incorrect readings.

Should you still use manual tape measurements?

Yes. Manual measurements help verify critical structural dimensions such as door openings and main wall lengths.

What is the biggest risk in laser floor plan creation?

The most common risk is relying on a single measurement pass without validation checks.

How do professionals validate laser measurements for building plans?

They compare diagonals, confirm wall loops close correctly, and verify key distances between doors and windows.

How can data errors occur after measurement?

Mistakes often happen when transferring dimensions into digital floor plan software or mixing measurement units.

What documentation should accompany measured floor plans?

Room sketches, measurement photos, device calibration info, and labeled dimensions help maintain measurement reliability.
