Risk Control When Installing Wall Mounted Bathroom Mixers: Professional strategies to prevent costly plumbing mistakes and ensure precise wall mixer placement before tile and rough‑in work begin

Direct Answer

The biggest risks when installing a wall mounted bathroom mixer come from incorrect rough‑in depth, miscalculated tile thickness, and poor alignment with the basin and drain. These mistakes often require opening finished walls to fix. Careful measurements, tolerance planning, and a structured installation checklist significantly reduce these risks.

Quick Takeaways

1. Most wall mixer failures happen before tiles are installed, not after.
2. Tile thickness can shift final faucet height by 10–25 mm if not planned early.
3. Rough‑in plumbing must allow adjustment tolerance of at least 5–10 mm.
4. Incorrect basin alignment causes splash issues even when the faucet height is correct.
5. A pre‑installation checklist prevents nearly all wall mixer installation risks.

Introduction

After working on bathroom renovations for more than a decade, I can tell you that wall mixer installation risks rarely come from the faucet itself. The real problems start much earlier—during layout planning, plumbing rough‑in, and tile preparation.

Homeowners usually notice the issue only after everything is finished: the water stream hits the edge of the basin, the faucet sits slightly too high, or the handle interferes with the mirror. At that stage, fixing the problem can mean opening the wall, replacing tiles, and reinstalling plumbing lines.

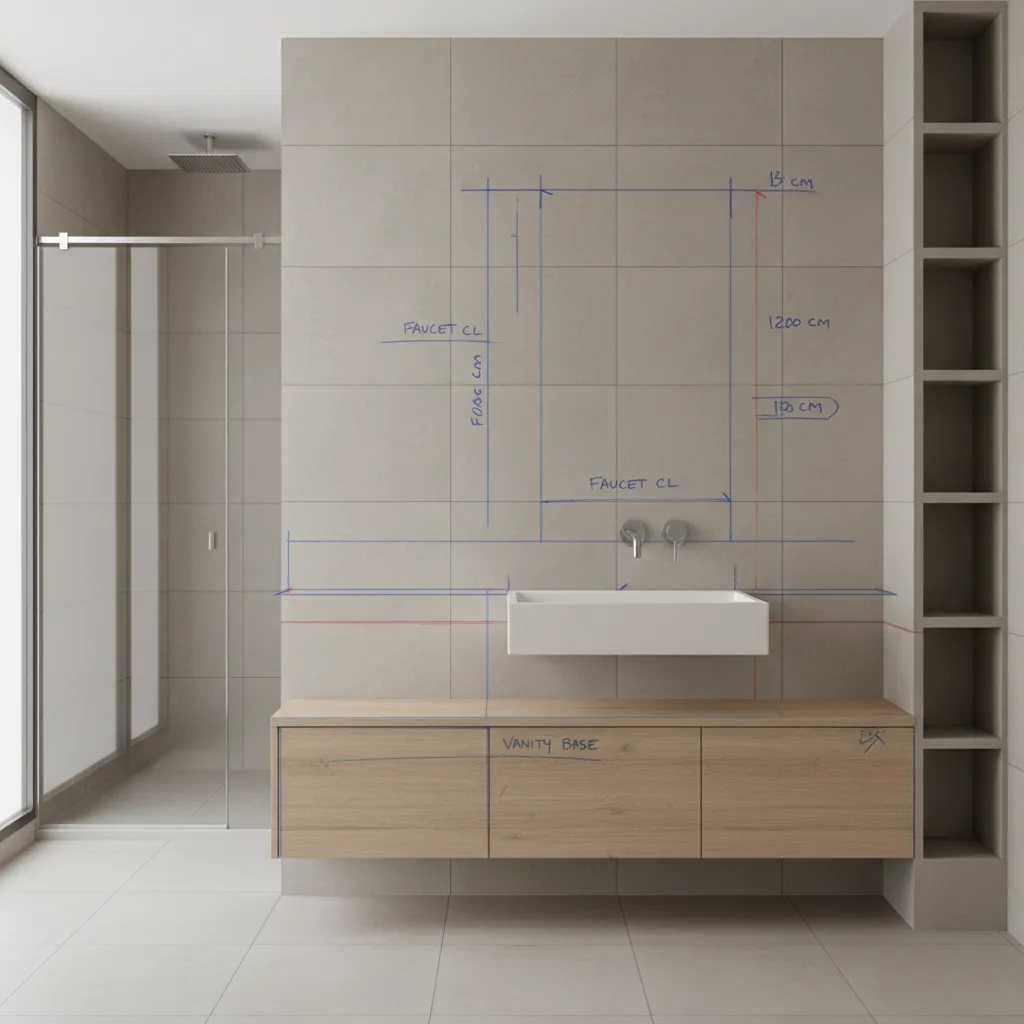

Before any pipes are installed, I always recommend designers and contractors first plan the exact basin and faucet wall layout before plumbing starts. Visualizing the entire bathroom layout dramatically reduces alignment mistakes.

In this guide, I’ll break down the most common installation risks I’ve seen in real projects, the hidden factors many installers overlook, and the practical checks that prevent expensive rework.

save pin

Why Wall Mixer Installation Errors Are Expensive to Fix

Key Insight: Wall mixer mistakes often require destructive repairs because the plumbing is sealed behind finished surfaces.

Unlike deck‑mounted faucets, wall mixers depend entirely on hidden plumbing infrastructure. Once the wall is closed with waterproofing layers, cement board, and tile, the faucet position becomes extremely difficult to adjust.

In renovation projects I’ve managed, these are the most common consequences of installation errors:

1. Tile removal to access incorrect pipe positions
2. Waterproofing membrane damage during repairs
3. Re‑plumbing inside finished walls
4. Replacing expensive stone or custom tiles

Contractors sometimes underestimate this risk because the faucet trim appears adjustable. In reality, most wall mixers only allow minimal adjustment through escutcheon plates or threaded connectors.

Industry plumbing guidelines such as those referenced by the International Residential Code emphasize precise rough‑in alignment because post‑finish corrections are limited.

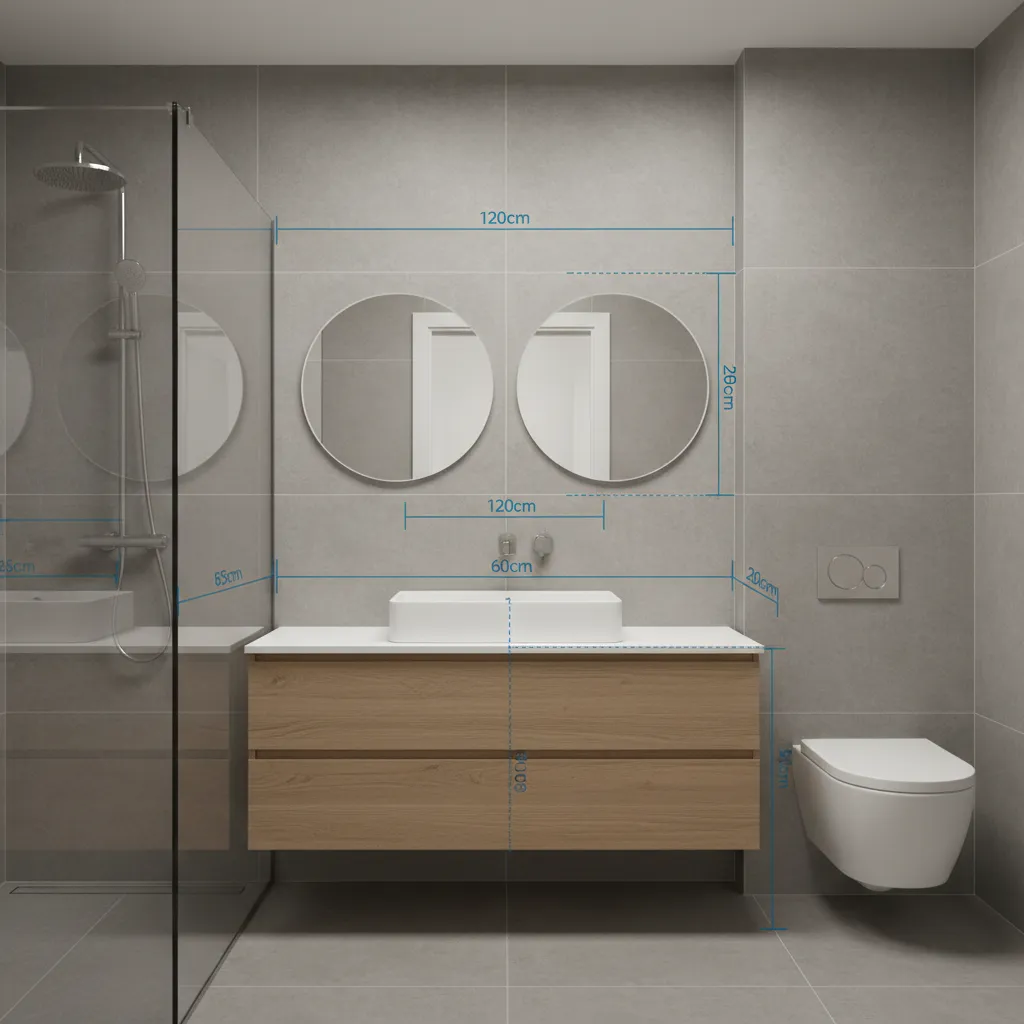

Pre-Installation Measurements Designers Must Verify

Key Insight: Accurate measurements before rough‑in prevent the majority of wall mounted faucet installation mistakes.

Many installation problems originate from incomplete layout measurements. Designers often focus on faucet height alone but ignore basin geometry and user ergonomics.

Before rough‑in plumbing begins, verify these measurements:

1. Finished floor to basin rim height
2. Basin depth and bowl slope
3. Faucet spout reach relative to basin center
4. Mirror clearance above the mixer
5. Wall thickness including substrate and tile

One mistake I see frequently is measuring from the subfloor instead of the finished floor level. Once tile and underlayment are added, the mixer can end up noticeably lower than intended.

Creating a simple scaled layout or 3D preview helps teams catch these issues early. Many designers also map fixture spacing and plumbing positions in a 3D bathroom layoutto visualize how faucets, sinks, and mirrors interact.

save pin

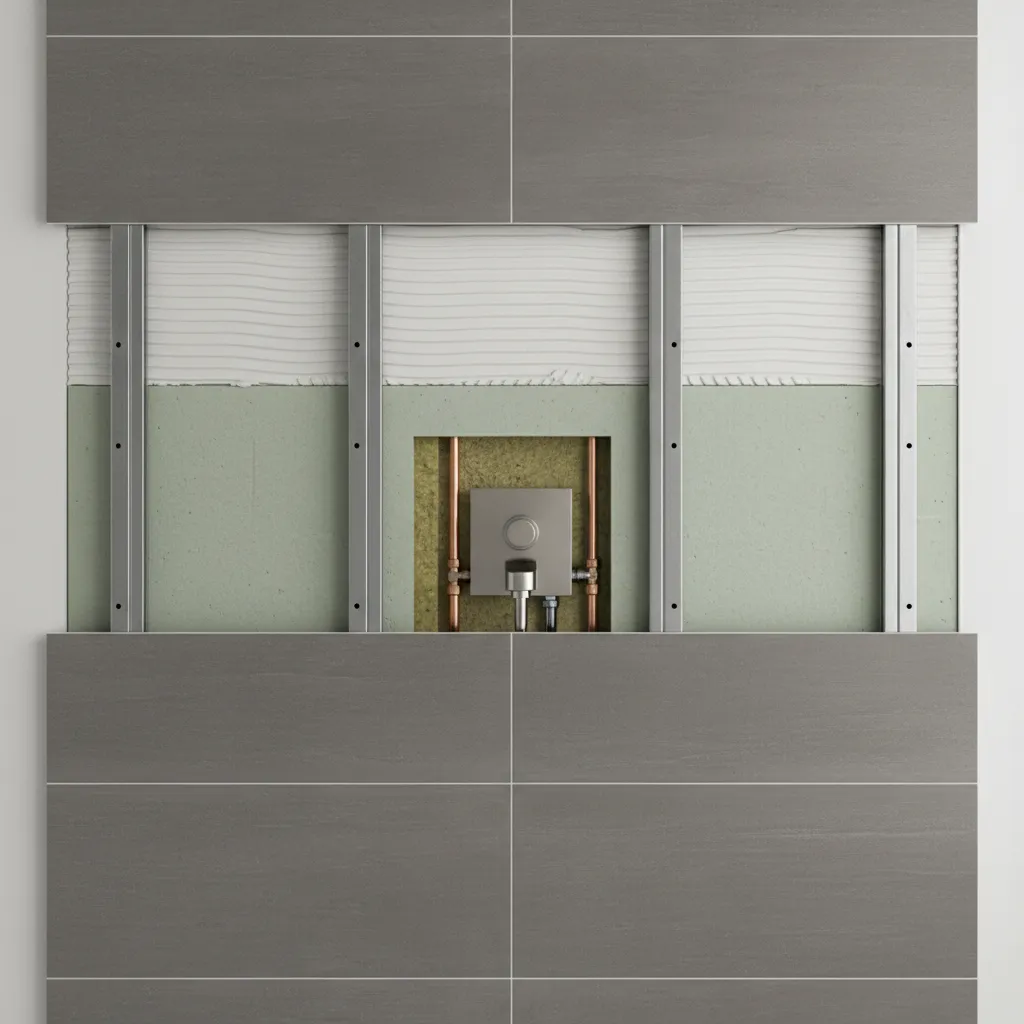

Tile Thickness and Its Impact on Mixer Height

Key Insight: Tile thickness is one of the most overlooked variables affecting final faucet height.

When installers measure faucet placement during framing or early plumbing work, the finished wall surface does not yet exist. But tile layers can significantly shift the final position of the faucet.

A typical wall build‑up may include:

1. Cement board or substrate: 10–12 mm
2. Waterproofing membrane
3. Tile adhesive
4. Tile thickness: 6–12 mm

Combined, this can add 20–30 mm to the wall depth. If the rough‑in depth isn't calculated correctly, the faucet trim may either sit recessed into the wall or protrude awkwardly.

Hidden issue many guides ignore: stone tiles and handmade ceramic tiles often vary in thickness across the wall. Installers must check the thickest tile in the batch when determining rough‑in depth.

save pin

Plumbing Rough-in Tolerances and Safety Margins

Key Insight: Professional installers always build adjustment tolerance into rough‑in plumbing to prevent alignment failures.

Perfect measurements rarely translate perfectly into construction. Walls shift slightly, tile layers vary, and basins may change during procurement.

Because of this, plumbers typically allow small safety margins during rough‑in:

1. Vertical tolerance: 5–10 mm
2. Horizontal alignment tolerance: 5 mm
3. Depth tolerance: compatible with manufacturer trim range

Always check the manufacturer's installation guide for the faucet model being used. Most brands specify acceptable rough‑in depth ranges for concealed mixer bodies.

Another professional practice is installing adjustable mounting brackets or alignment jigs during framing. These allow small corrections before the wall is closed.

Answer Box

The safest way to prevent wall mixer installation risks is to verify rough‑in depth, tile thickness, and basin alignment before plumbing is sealed behind the wall. Small measurement errors during rough‑in often become expensive structural fixes later.

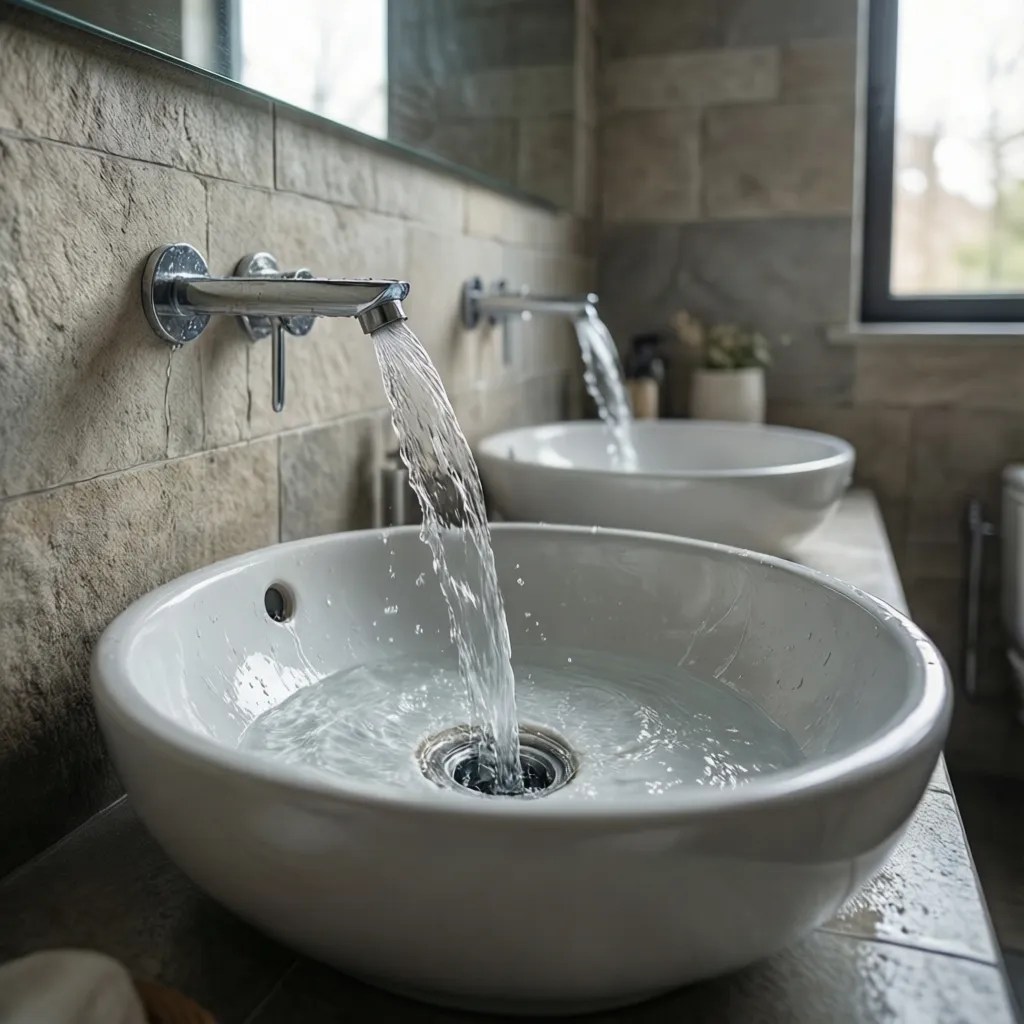

Water Splash and Drain Alignment Risk Factors

Key Insight: Even a correctly installed faucet can cause splash problems if basin geometry and drain alignment are ignored.

Water behavior inside a sink depends on the angle of the stream and the shape of the bowl. If the spout lands too close to the basin edge, water splashes outward instead of flowing toward the drain.

In projects where splash issues occurred, these were the typical causes:

1. Spout positioned too close to basin rim
2. Spout reach shorter than basin centerline
3. Very shallow vessel sinks
4. Drain offset from faucet center

A good rule used by many bathroom designers is to aim the water stream roughly toward the drain or slightly in front of it.

save pin

Checklist Before Final Wall Mixer Installation

Key Insight: A final verification checklist prevents most bathroom faucet installation safety mistakes.

Before tiles are installed and plumbing connections are sealed, confirm the following points:

1. Rough‑in depth matches faucet manufacturer specifications
2. Tile thickness accounted for in final wall position
3. Basin installed or accurately mocked up
4. Spout reach aligns with basin center
5. Drain location verified relative to faucet
6. Handle clearance checked against mirror or cabinet
7. Water supply connections pressure tested

For complex bathrooms with multiple fixtures, designers often visualize the finished bathroom with realistic fixture placement before approving final plumbing positions.

Final Summary

1. Most wall mixer installation risks originate during rough‑in plumbing.
2. Tile thickness can shift faucet position more than expected.
3. Allow adjustment tolerances to avoid alignment issues.
4. Basin geometry affects splash more than faucet height.
5. A structured checklist prevents costly wall repairs.

FAQ

What is the most common wall mixer installation mistake?

The most common mistake is incorrect rough‑in depth. If the concealed mixer body sits too deep or too shallow, the trim kit may not fit correctly after tile installation.

How do you prevent wrong wall mixer height?

Measure from the finished floor level and include tile thickness in calculations. This prevents wrong wall mixer height after tiling.

How much tolerance should plumbing rough‑in allow?

Professional installers usually allow 5–10 mm vertical and horizontal tolerance to accommodate tile thickness and minor construction variations.

Does tile thickness affect wall mounted faucets?

Yes. Tile layers, adhesive, and substrate can add 20–30 mm to wall depth, directly affecting wall mounted faucet installation alignment.

Where should the faucet water stream land in the basin?

The water stream should land near the drain or slightly in front of it to reduce splash and improve drainage.

Can a wall mixer be adjusted after installation?

Minor adjustments are possible through connectors or trim plates, but major errors usually require opening the wall.

What tools help prevent bathroom wall faucet rough in mistakes?

Layout drawings, laser levels, and installation templates from the faucet manufacturer are commonly used to ensure precise placement.

Is basin depth important for wall mounted faucets?

Yes. Shallow vessel sinks increase splash risk, especially if the faucet spout reach is short.
