Risk Factors When Building Basements With SIP Panels: Structural loads, groundwater pressure, and hidden design risks homeowners should evaluate before choosing SIP basement systems

Direct Answer

Building a basement with SIP panels can be structurally viable, but the system introduces several risks that must be carefully engineered. The biggest concerns are groundwater intrusion, soil pressure against panel walls, structural load transfer, and building code compliance. Without proper design, SIP basement systems can suffer moisture damage or structural failure below grade.

Quick Takeaways

1. SIP basement panels must be engineered to handle soil pressure and vertical structural loads.
2. Moisture intrusion is the most common failure point in below‑grade SIP installations.
3. Improper waterproofing can cause insulation degradation and long‑term structural damage.
4. Local building codes may require additional fire protection or structural reinforcement.
5. Pre‑installation planning dramatically reduces long‑term basement risks.

Introduction

SIP basement systems have gained attention because they promise faster construction and higher insulation compared to traditional concrete basements. But after working on multiple residential builds and retrofit projects over the last decade, I’ve noticed the conversation often skips the hard part: the risks of putting SIP panels below grade.

The truth is that structural insulated panels behave very differently from poured concrete when they’re surrounded by soil and moisture. A basement environment introduces lateral soil loads, hydrostatic pressure, and long‑term humidity exposure. If those factors aren't engineered properly, SIP basement structural risks become very real.

Before committing to a design, I always advise clients to visualize how loads and drainage interact with the structure. Tools that help homeowners experiment with early basement layout planningcan reveal space conflicts and drainage paths long before construction begins.

This guide breaks down the most important risk factors I’ve encountered in real projects—including a few issues many builders overlook until they become expensive problems.

save pin

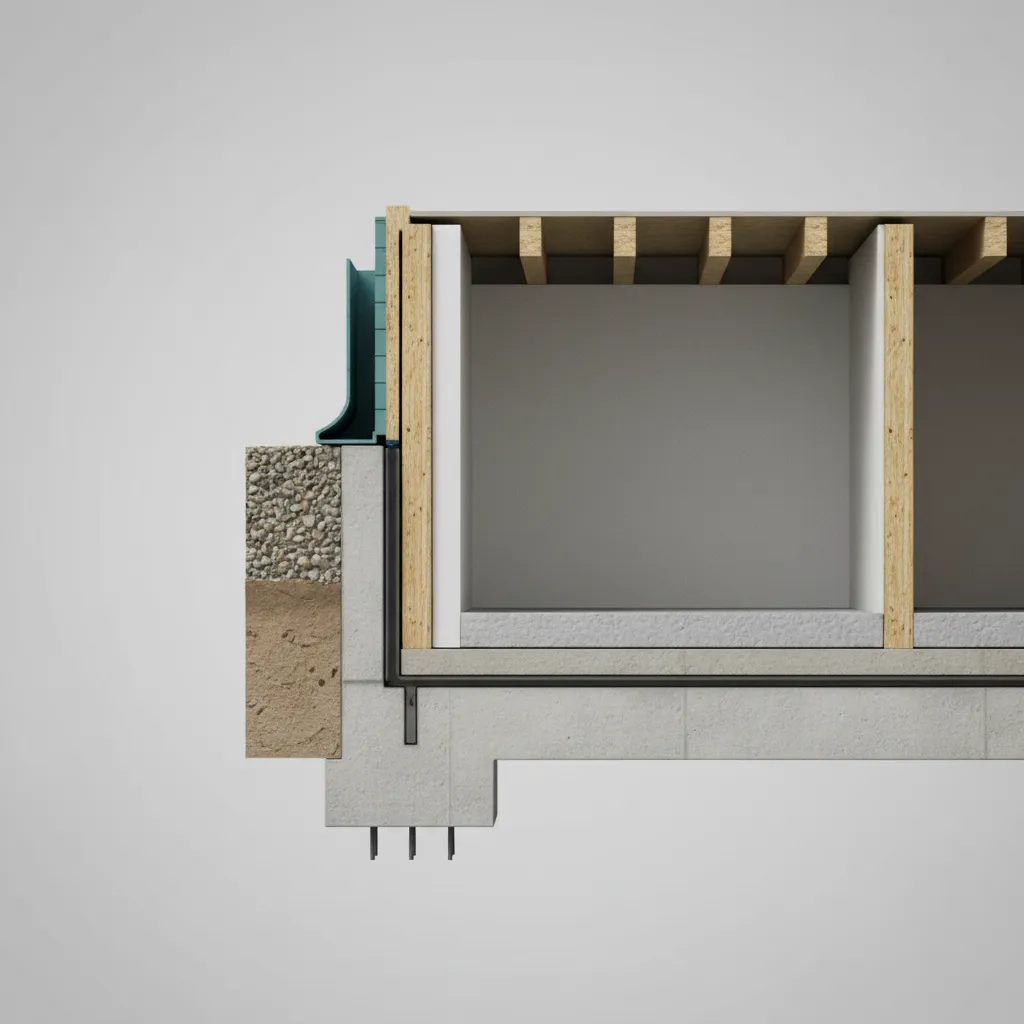

Understanding Structural Load Requirements for SIP Basements

Key Insight: SIP basement walls must carry both vertical building loads and lateral soil pressure, which is a combination many panels aren't originally designed for.

Unlike above‑grade walls, basement systems face pressure from two directions. The house load pushes downward while surrounding soil pushes inward. Standard SIP panels were originally designed for above‑ground structures, meaning they rely heavily on proper reinforcement when used below grade.

From experience, the structural problems usually appear in three places:

1. Panel joints under compression
2. Connection points between panels and foundation footings
3. Load transfer areas under beams or bearing walls

Most engineered systems address this through:

1. Concrete or steel reinforced cores
2. Hybrid foundations combining SIP with concrete grade beams
3. Structural splines or steel posts inside panel cavities

According to the Structural Insulated Panel Association (SIPA), below‑grade SIP installations must be engineered individually to account for site‑specific loads rather than relying on standard panel ratings.

Groundwater and Moisture Risks

Key Insight: Moisture is the number‑one failure point in SIP basements because insulation cores can deteriorate when exposed to persistent water infiltration.

Concrete absorbs water but doesn't lose structural integrity quickly. SIP panels, however, contain insulation cores—typically EPS foam—sandwiched between structural facings. If moisture enters through joints or damaged membranes, long‑term durability drops significantly.

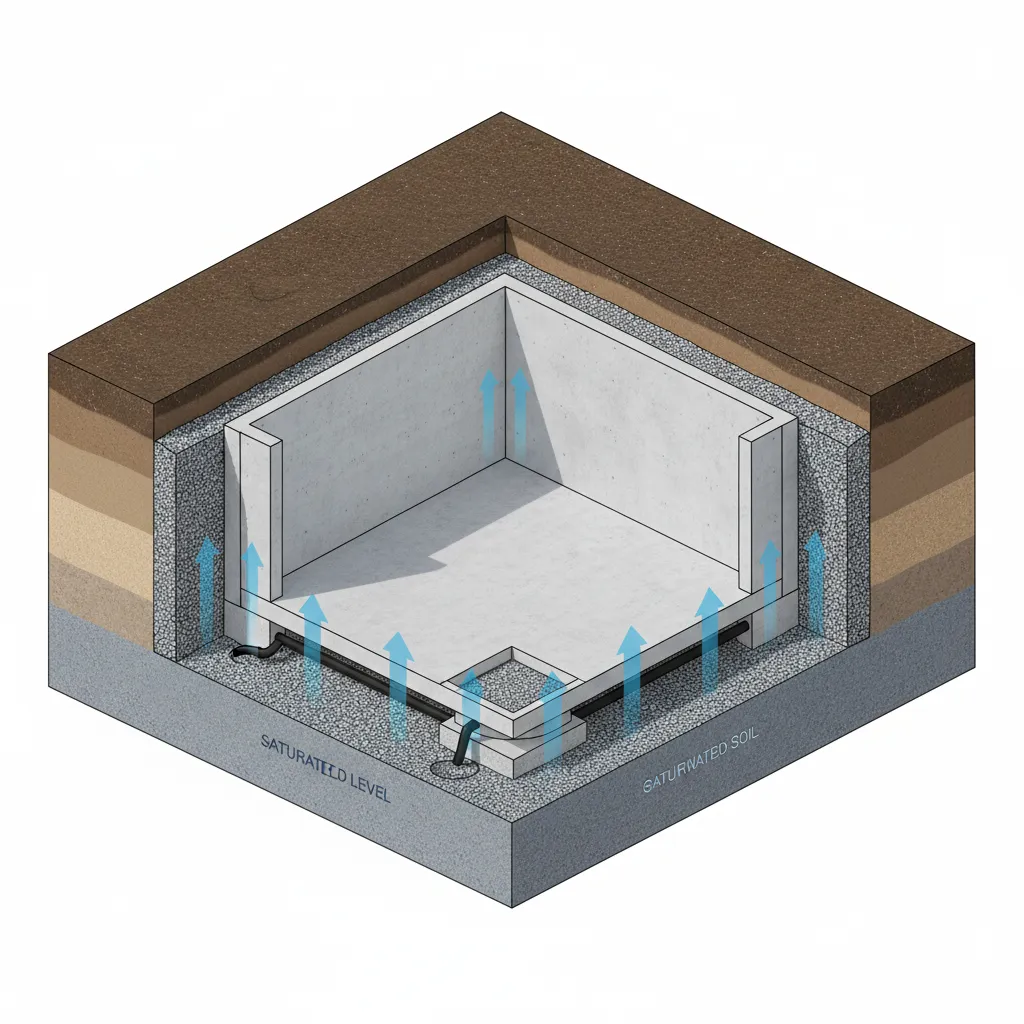

Common groundwater risks include:

1. Hydrostatic pressure during heavy rainfall
2. Poor site drainage
3. High seasonal water tables
4. Improperly sealed panel seams

One overlooked issue is capillary water migration through foundation joints. I’ve seen basements where the panel itself performed well but water entered through the connection between the SIP wall and the concrete footing.

Before construction, it helps to model how mechanical systems, drainage, and structural spaces interact. Many designers use tools that allow them to visualize basement structural layouts in 3Dso potential moisture zones and drainage paths become clearer.

save pin

Soil Pressure and Foundation Stability Considerations

Key Insight: Soil pressure is dynamic, meaning the load on SIP basement walls changes over time as soil compacts, freezes, and absorbs water.

This is where many SIP basement designs underestimate risk. Soil pressure isn’t static. Seasonal moisture changes, freeze‑thaw cycles, and poor backfilling practices can dramatically increase lateral forces.

Important soil factors include:

1. Soil type (clay soils expand significantly)
2. Backfill compaction quality
3. Drainage system performance
4. Frost depth in colder climates

Clay‑heavy soils are particularly problematic. They expand when wet and can push inward against basement walls. In SIP systems without reinforced structural backing, this pressure may lead to wall deflection.

Geotechnical reports are often skipped in residential projects, but for SIP basements they’re far more valuable than most homeowners realize.

Fire Safety and Building Code Compliance

Key Insight: Building codes often require additional fire protection layers for SIP panels used in basements.

Many building departments classify SIP panels similarly to foam insulation assemblies. Because of that, exposed foam cores must usually be protected by fire‑rated materials such as gypsum board.

Typical code requirements include:

1. Interior fire barrier (often 1/2" or 5/8" drywall)
2. Thermal barriers for foam insulation
3. Specific structural engineering documentation
4. Moisture control verification

Another issue is that some jurisdictions simply lack established guidelines for SIP basement installations. In those cases, engineers must provide stamped drawings verifying that the system meets structural and fire safety standards.

save pin

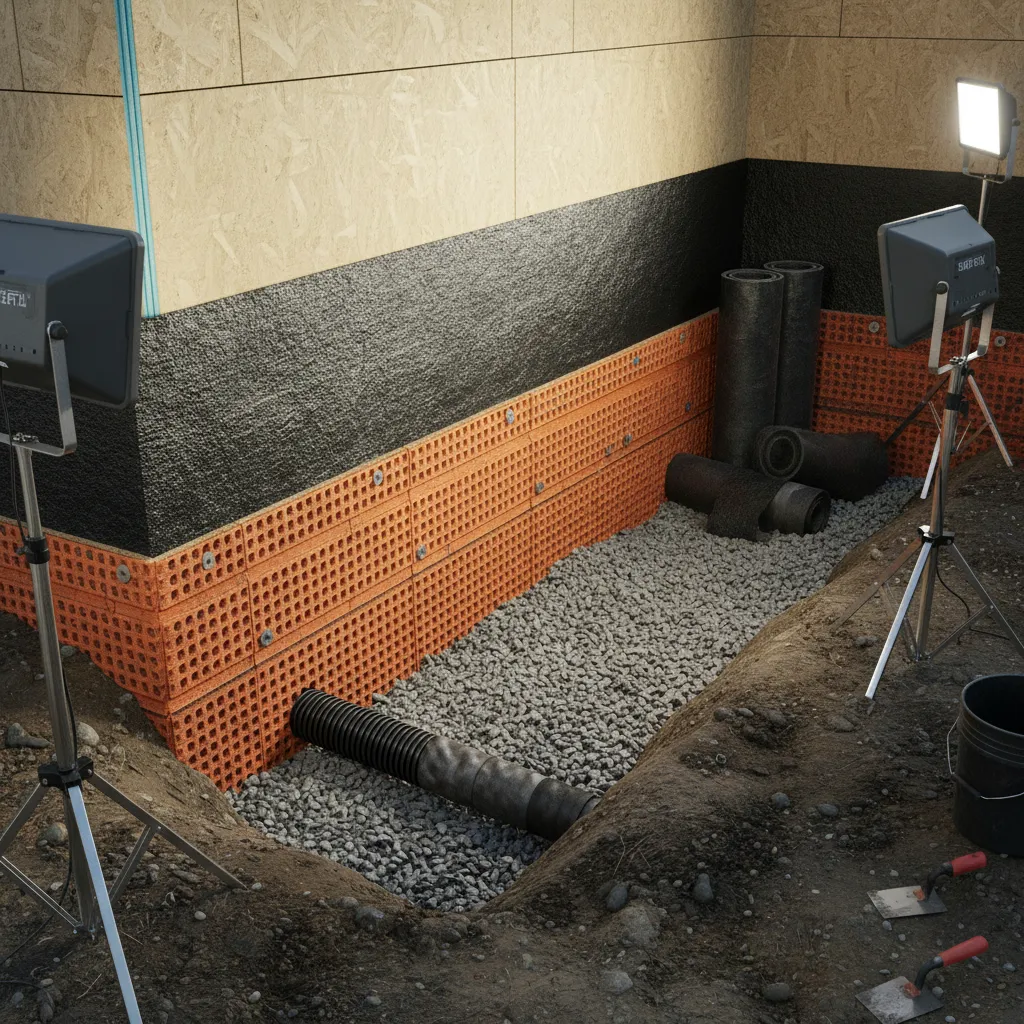

Waterproofing Systems for SIP Basement Walls

Key Insight: SIP basements require multi‑layer waterproofing because panel seams create more potential entry points than monolithic concrete walls.

In my projects, the most reliable waterproofing systems always combine multiple layers of protection rather than relying on a single barrier.

A typical system includes:

1. Exterior waterproof membrane
2. Dimple drainage board
3. Perimeter footing drains
4. Gravel drainage layer
5. Sealed panel joints

One mistake I still see is skipping the drainage board layer. Without it, soil pressure can trap water against the wall membrane and increase long‑term failure risk.

Answer Box: Are SIP Basements Safe Below Grade?

SIP basements can be safe below grade when engineered for structural loads, protected against groundwater, and installed with proper drainage and waterproofing systems. Most failures occur when builders treat SIP panels like standard concrete walls without adapting the design to soil pressure and moisture exposure.

Risk Mitigation Strategies Before Installation

Key Insight: The biggest SIP basement risks are prevented during design—not after construction begins.

Based on the projects I've reviewed, early planning reduces most structural and moisture failures. Before installing SIP basement panels, I recommend evaluating these factors carefully.

Key risk‑reduction steps include:

1. Conduct a soil and groundwater analysis
2. Use engineered structural load calculations
3. Design layered waterproofing systems
4. Install perimeter drainage and sump systems
5. Plan mechanical and structural layouts early

For homeowners planning finished basements or living spaces, realistic visualization helps identify structural conflicts before construction. Many designers now use tools that can preview realistic basement interiors before construction so layout and structural requirements stay aligned.

Final Summary

1. SIP basement panels face structural loads from both building weight and soil pressure.
2. Moisture intrusion is the most common failure risk for SIP basement systems.
3. Soil type and groundwater conditions significantly affect long‑term stability.
4. Building code compliance may require additional fire protection layers.
5. Early engineering and waterproofing design dramatically reduce basement risks.

FAQ

Are SIP basements safe below grade?

SIP basements can be safe when properly engineered and waterproofed. Structural load calculations and groundwater management are essential.

What are the biggest SIP basement structural risks?

The biggest risks include soil pressure, vertical load transfer issues, and moisture infiltration that weakens insulation cores.

Do SIP basement walls require waterproofing?

Yes. SIP basement walls require layered waterproofing systems including membranes, drainage boards, and perimeter drains.

Can SIP panels handle soil pressure?

They can when reinforced or combined with engineered foundation systems designed to resist lateral loads.

Do SIP basements meet building codes?

Most jurisdictions allow them, but they typically require engineering documentation and interior fire protection layers.

Are SIP basements cheaper than concrete basements?

Material costs can be similar, but labor and insulation savings may reduce total construction time.

How do you protect SIP basement panels from groundwater?

Install drainage systems, waterproof membranes, sealed joints, and exterior drainage boards.

Can SIP basements develop mold?

Yes, if moisture enters the panel system. Proper waterproofing and ventilation reduce this risk.
