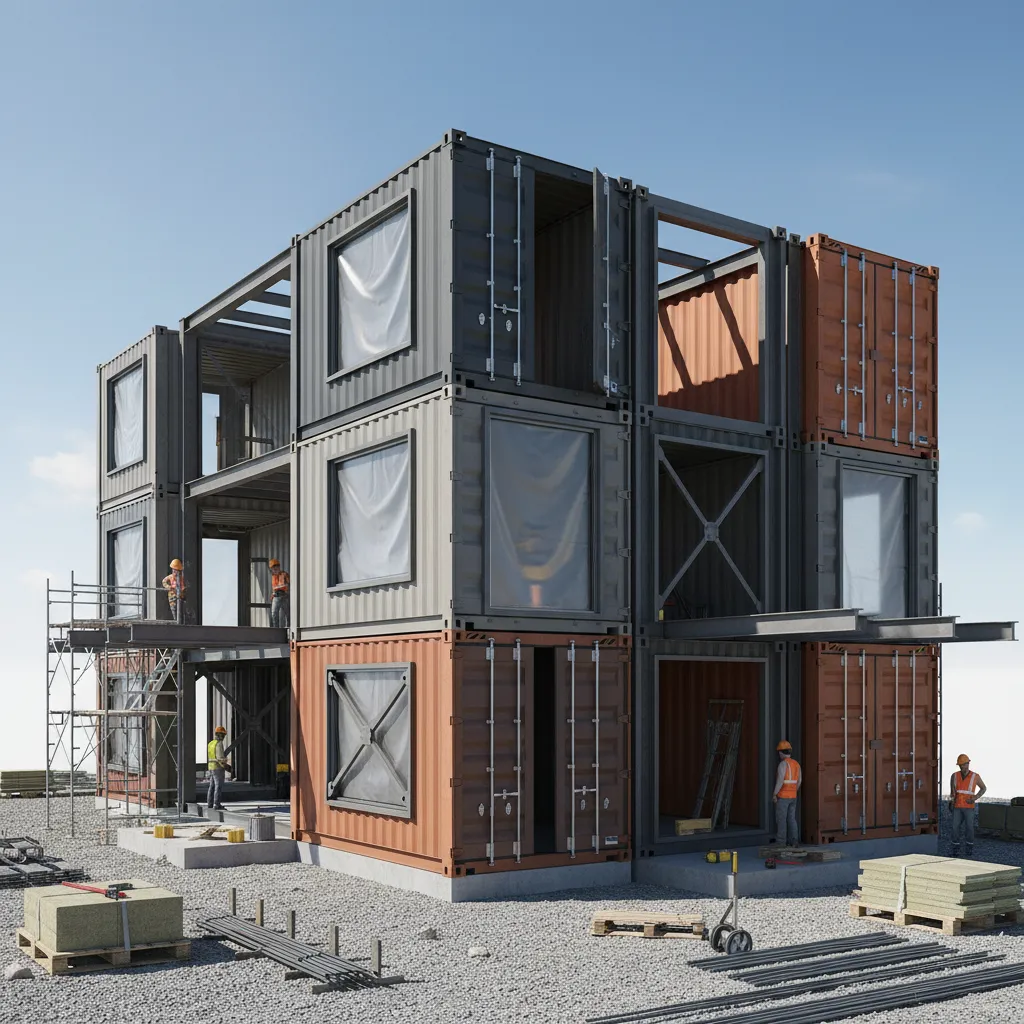

Risk Factors When Modifying Shipping Containers for Housing: Structural, safety, and compliance issues every container home designer should understand before cutting or stacking steel containers

Direct Answer

Modifying shipping containers for housing can compromise structural integrity, introduce toxic exposure risks, and create building code conflicts if not carefully engineered. The biggest dangers occur when load‑bearing walls are cut, containers are stacked without proper reinforcement, or hazardous coatings are ignored.

Safe container home design requires structural planning, corrosion control, and code‑compliant engineering before any physical modification begins.

Quick Takeaways

1. Removing container walls can weaken the entire steel structure if reinforcement frames are not installed.
2. Stacked containers require engineered load paths and reinforced corner posts.
3. Older containers may contain toxic floor treatments or industrial coatings.
4. Local building codes often treat container homes as modified steel structures, not simple prefab units.
5. Early layout planning prevents costly structural mistakes during construction.

Introduction

Shipping container homes look deceptively simple. After working on multiple container-based residential projects over the past decade, I can say the design stage is where most safety problems either get solved—or quietly introduced.

The structural risks of a shipping container house rarely come from the steel itself. Containers are incredibly strong when used the way they were designed: stacked vertically and supported at their corner posts. Problems begin when we start cutting openings, removing walls, or stacking containers in ways the original structure was never meant to handle.

Before any modification happens, I usually encourage clients to experiment with container layouts digitally so we can test ideas first. One of the easiest ways is to experiment with container layouts before cutting steel. It sounds simple, but catching structural conflicts early can prevent very expensive mistakes.

In this guide, I'll walk through the most common structural and safety risks I see when shipping containers are converted into homes—especially the ones that rarely get discussed in glossy architectural photos.

save pin

Understanding the Structural Integrity of Shipping Containers

Key Insight: Shipping containers are structurally strong only when their original load path—corner posts and perimeter rails—remains intact.

Containers are engineered to carry extremely heavy loads while stacked on cargo ships. The strength comes primarily from four structural elements:

1. Corner posts
2. Top side rails
3. Bottom rails
4. Corrugated steel walls that act as shear panels

In other words, the walls aren't just walls. They help stabilize the container's frame.

When large wall sections are removed for windows, sliding doors, or open-plan interiors, the container can begin to flex. Over time, that flexing leads to structural fatigue and potential failure if reinforcement isn't installed.

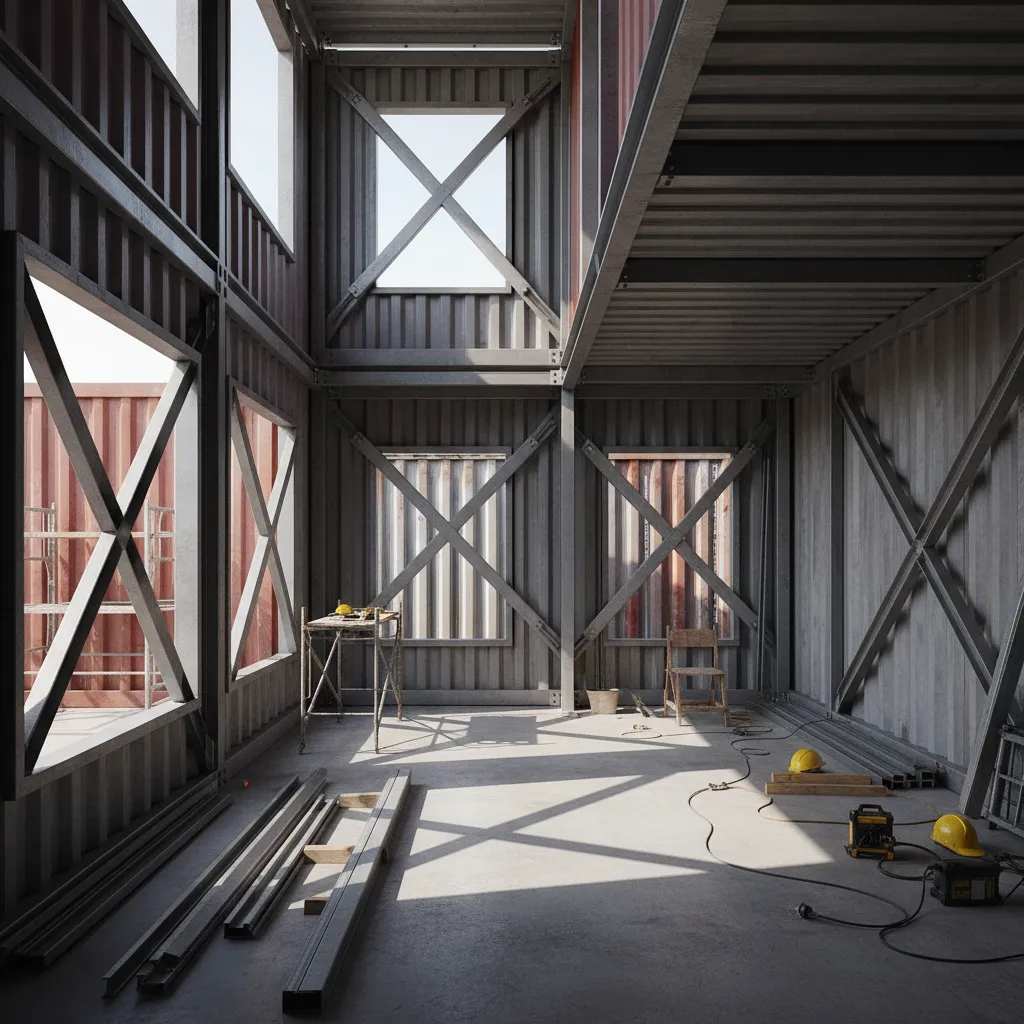

In professional container home construction, we usually add:

1. Steel tube reinforcement frames
2. Structural headers above openings
3. Additional vertical supports tied into corner posts

Engineering studies from the International Code Council and structural engineering associations consistently emphasize that modified containers behave like steel frame structures once panels are removed. Treating them as such dramatically improves safety outcomes.

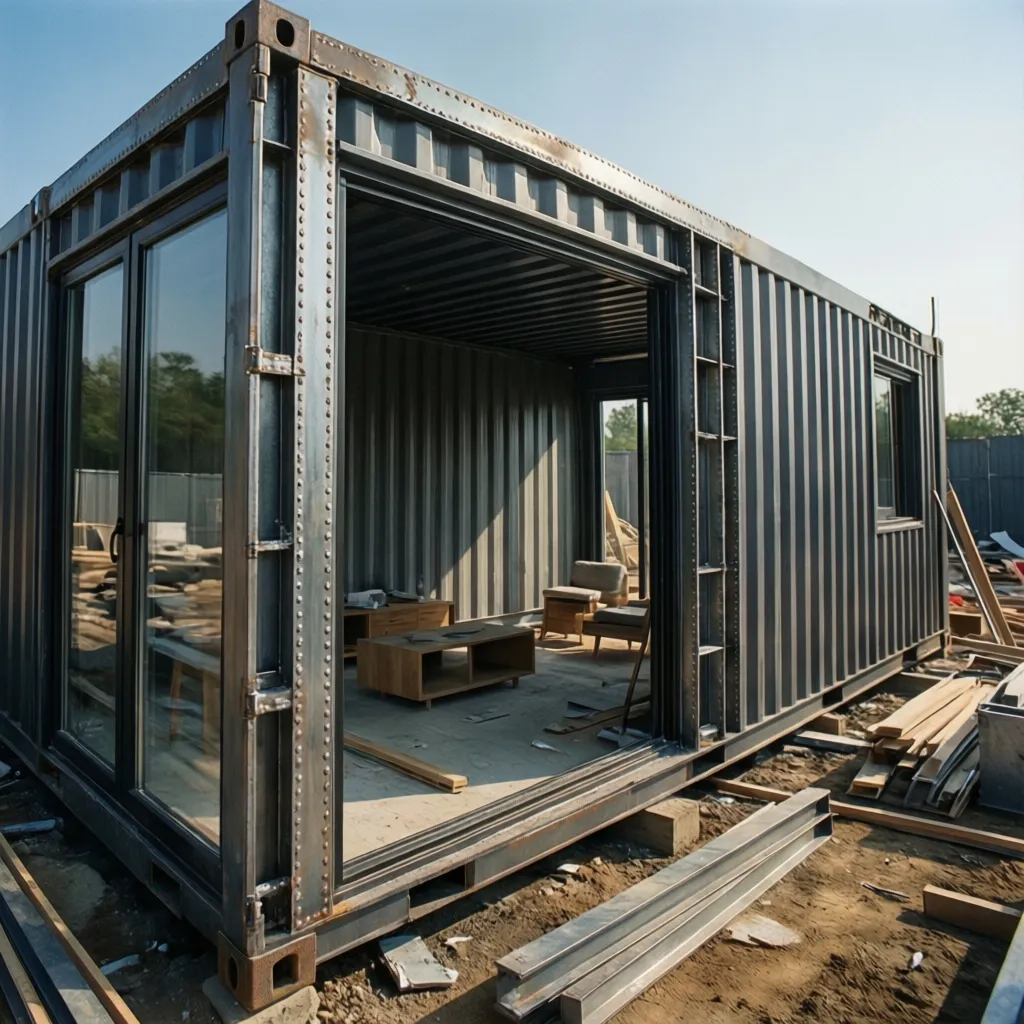

Risks of Cutting Walls and Removing Structural Panels

Key Insight: Large openings are the number‑one cause of structural weakness in container homes.

Designers love large glass walls in container homes, but cutting out long sections of corrugated steel eliminates the lateral rigidity that stabilizes the container box.

Common risky modifications include:

1. Removing an entire long side wall
2. Installing full‑height glass sliders
3. Combining two containers into a wide interior space
4. Cutting multiple openings too close together

When these changes are necessary, reinforcement strategies typically include:

1. Welded steel portal frames
2. Structural box beams around openings
3. Load transfer beams when combining containers

One mistake I see frequently is assuming the container roof will remain strong after wall removal. In reality, the roof panel is thin and depends on the wall corrugation for stability.

Without reinforcement, roof sagging becomes a real risk.

save pin

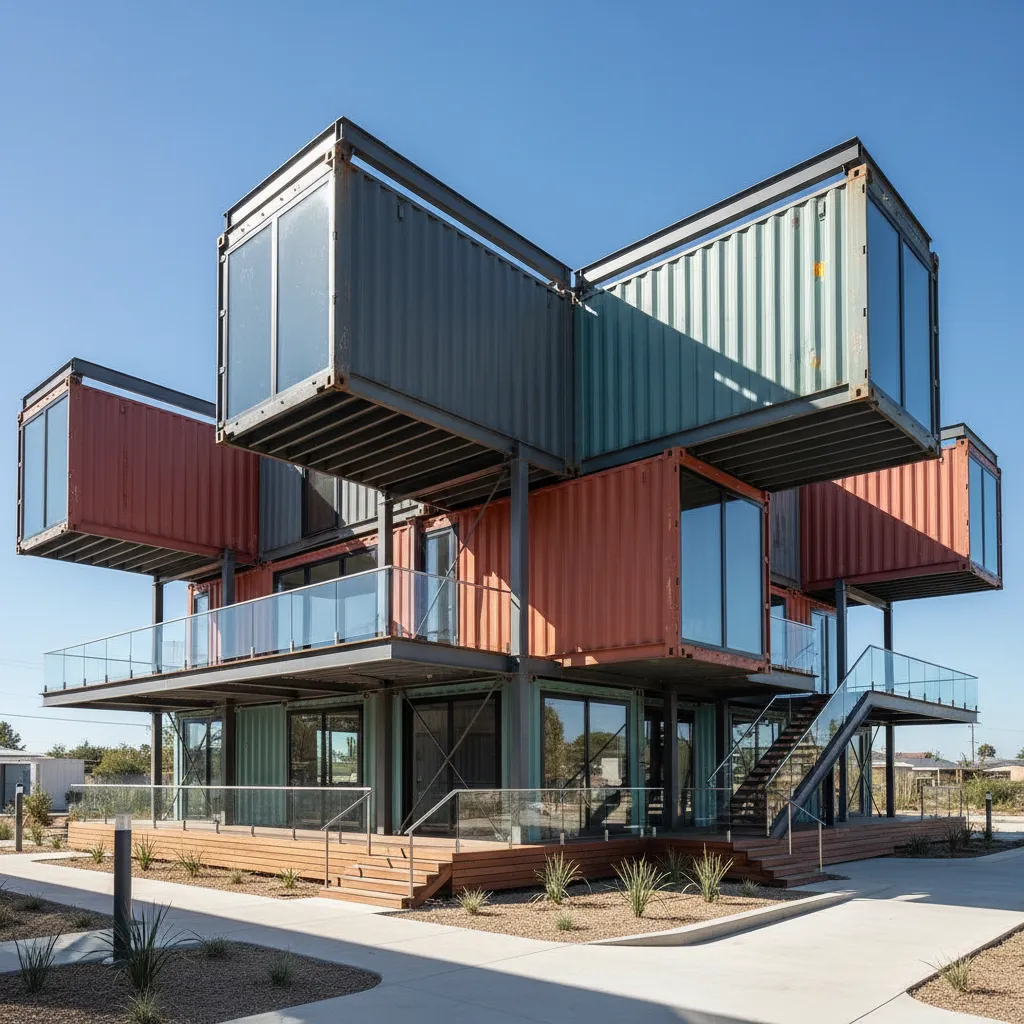

Load‑Bearing Considerations When Stacking Containers

Key Insight: Containers are designed to stack vertically through corner posts—not across modified walls.

Stacking containers is structurally efficient only when loads travel through the corner castings. This is how cargo ships stack them eight or nine units high.

Problems arise when architectural designs offset containers or place loads on modified sections.

Typical stacking risks include:

1. Containers partially overlapping instead of aligning corners
2. Stacking over large wall openings
3. Removing structural floors before stacking
4. Uneven foundations causing torsion stress

Professional solutions often include:

1. Structural steel transfer beams
2. Reinforced foundation pads under corner posts
3. Welded column supports for cantilever designs

When evaluating stacked layouts, I usually recommend clients first visualize stacked container configurations in 3D. Seeing the load alignment early helps prevent designs that look exciting but fail structurally.

save pin

Corrosion, Toxic Coatings, and Material Safety

Key Insight: Many used containers contain industrial chemicals that must be removed or sealed before residential use.

This is one of the least discussed risks in container housing.

Shipping containers are built for global logistics, not indoor living. Depending on age and origin, they may contain:

1. Lead-based paint
2. Chromate coatings
3. Pesticide-treated plywood flooring
4. Chemical cargo residue

Marine-grade container floors are commonly treated with pesticides to prevent insect damage during international shipping.

Typical remediation strategies include:

1. Removing the original plywood floor entirely
2. Grinding and sealing interior coatings
3. Sandblasting exterior steel
4. Applying low-VOC protective coatings

Organizations such as the U.S. Environmental Protection Agency recommend careful material assessment before converting industrial steel structures into residences.

Answer Box

The biggest structural risks in container homes occur when load-bearing walls are removed, containers are stacked without reinforcing corner loads, or hazardous coatings are ignored.

Safe designs treat containers as modified steel structures requiring engineered reinforcement, material remediation, and building code compliance.

Building Codes and Compliance Issues

Key Insight: Container homes are usually regulated as steel modular structures, not simple prefab houses.

Many first-time builders assume containers automatically qualify as approved building modules. In reality, most jurisdictions require extensive modification approvals.

Typical code requirements include:

1. Structural engineering certification
2. Thermal insulation compliance
3. Fire resistance ratings
4. Wind and seismic load analysis
5. Foundation engineering reports

The International Residential Code (IRC) does not directly address shipping containers, which means local authorities usually classify them as modified steel structures.

This classification changes how inspectors evaluate everything from structural stability to energy performance.

How to Reduce Structural and Safety Risks in Design

Key Insight: Most container house risks can be prevented during the design stage rather than during construction.

After years of designing container-based projects, a few preventive strategies consistently reduce risk:

1. Plan openings around structural rails
2. Keep corner post load paths uninterrupted
3. Limit long wall removals without reinforcement
4. Test stacked layouts before construction
5. Verify coatings and materials before renovation

Design exploration also helps identify layout problems before steel is cut. Reviewing real container home layout examples and spatial conceptscan make it much easier to understand how experienced designers solve structural limitations creatively.

save pin

Final Summary

1. Shipping containers rely on corner posts and corrugated walls for structural strength.
2. Cutting large openings requires steel reinforcement frames.
3. Stacked containers must transfer loads through aligned corner posts.
4. Industrial coatings and treated floors can introduce health risks.
5. Most container homes require structural engineering approval.

FAQ

Are shipping container homes structurally safe?

Yes, but only when modifications are engineered properly. Removing walls without reinforcement can compromise structural integrity.

Is it safe to cut large openings in shipping containers?

It can be safe if reinforced with steel framing. Large openings without reinforcement create serious structural risks.

What are the main shipping container house structural risks?

The biggest risks include removing load‑bearing panels, misaligned stacking loads, corrosion, and untreated hazardous coatings.

Do container homes need structural engineers?

In most regions, yes. Engineers verify load paths, foundation requirements, and safety compliance.

Are shipping containers toxic to live in?

Some older containers contain pesticide-treated floors or industrial coatings. Proper remediation eliminates these risks.

Can containers be stacked safely for houses?

Yes, if loads transfer through corner posts and additional steel support is used when openings are cut.

Do container homes follow normal building codes?

Most jurisdictions apply modified steel structure regulations rather than standard residential prefab rules.

What is the safest way to design a container home?

Plan structural openings carefully, maintain corner load paths, remediate materials, and validate designs before construction.
