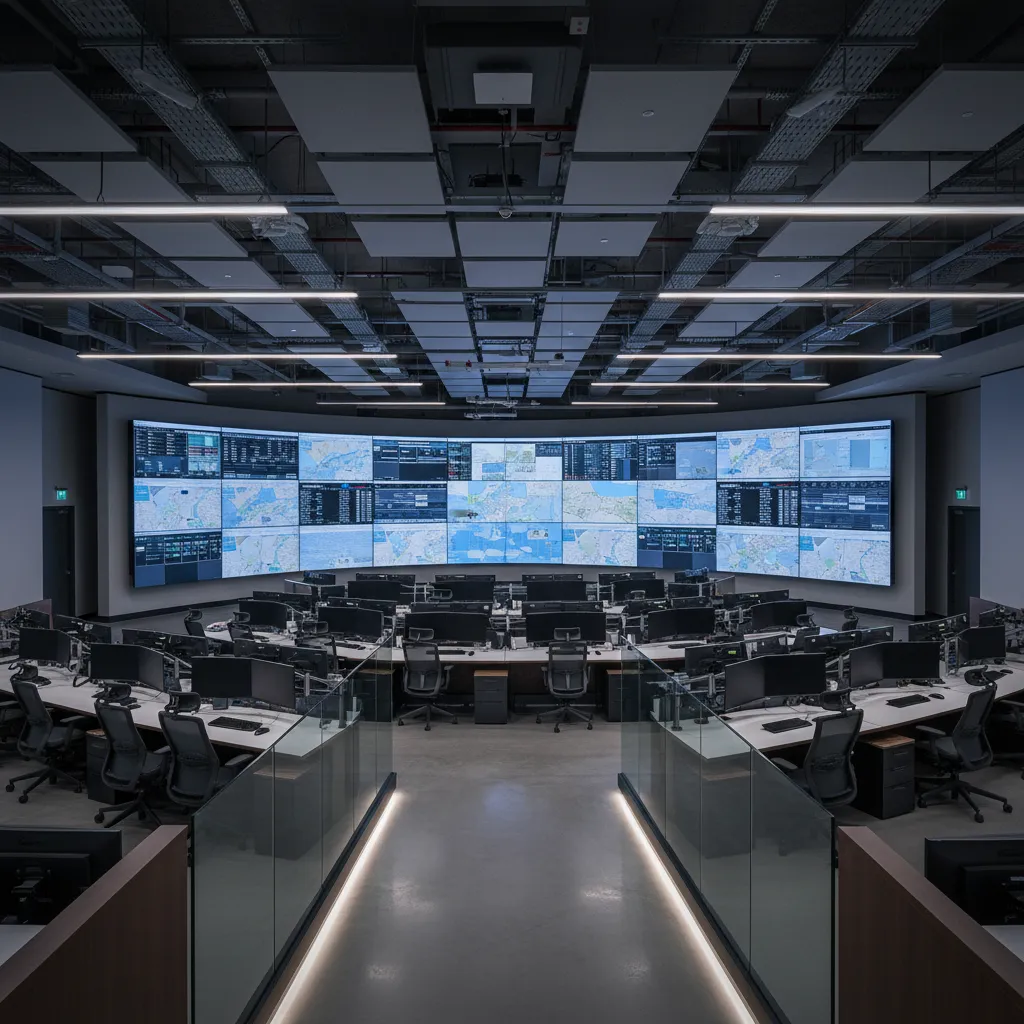

Risk Management in Emergency Operations Center Control Room Layouts: How thoughtful control room layout design reduces operational risk and protects decision making during high pressure emergency response

Direct Answer

Risk management in an emergency operations center control room layout focuses on eliminating single points of failure, improving operator visibility, and ensuring redundant power, data, and communication pathways. A well-designed layout reduces decision delays, prevents system outages from disrupting coordination, and supports operators during long-duration emergency events.

Quick Takeaways

1. Control room layout directly affects communication speed and decision clarity during emergencies.
2. Redundant power, network paths, and communication tools reduce operational downtime.
3. Poor workstation visibility can delay critical decisions during fast-moving incidents.
4. Designing for fatigue and stress improves performance during long emergency operations.
5. Physical access control protects command infrastructure from internal and external threats.

Introduction

After working on multiple municipal and corporate command facilities over the past decade, one pattern is impossible to ignore: layout mistakes create operational risk long before an emergency begins.

An emergency operations center control room layout is not just about fitting screens and desks into a room. It determines how quickly leaders receive information, how easily operators collaborate, and whether the system continues functioning when something fails.

In several post‑incident reviews I've participated in, the biggest problems were not software or staff training. They were physical design issues—blocked sightlines, power distribution failures, and communication equipment placed too far apart to coordinate efficiently.

Even basic spatial planning decisions—like workstation spacing or wall display positioning—can significantly affect operational risk. Many organizations now prototype their command environments using tools that simulate spatial workflows before construction. For example, teams often start by planning an emergency coordination workspace layout before construction beginsso operational flows can be tested early.

This guide explains how risk-aware design thinking improves reliability in mission‑critical facilities and what professionals should prioritize when designing or upgrading an EOC control room.

save pin

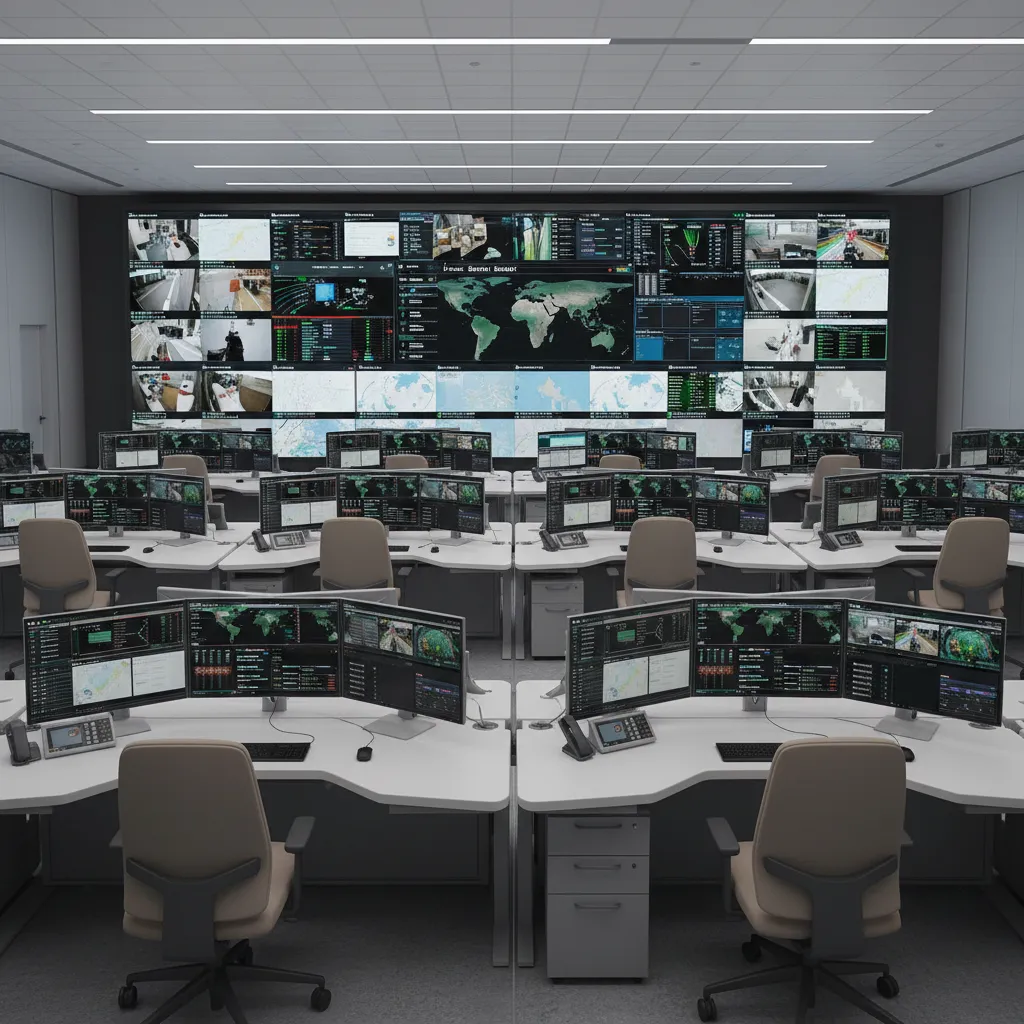

Why Layout Design Directly Affects Emergency Response Risk

Key Insight: The physical arrangement of operators, displays, and communication equipment directly influences decision speed and error rates during emergencies.

In high-pressure situations, response teams cannot afford friction between information and decision makers. If situational dashboards are poorly placed or team members cannot see each other easily, coordination slows down.

In several EOC assessments I conducted, the most common design issue was visual fragmentation: operators monitoring different data feeds couldn't quickly confirm what others were seeing.

Critical layout risks include:

1. Blocked sightlines between command staff and display walls
2. Overcrowded workstation clusters
3. Communication equipment placed in isolated corners
4. Noise interference between operational teams

The U.S. Federal Emergency Management Agency (FEMA) emphasizes clear visual communication as a fundamental principle in emergency coordination spaces, highlighting how physical layout influences situational awareness.

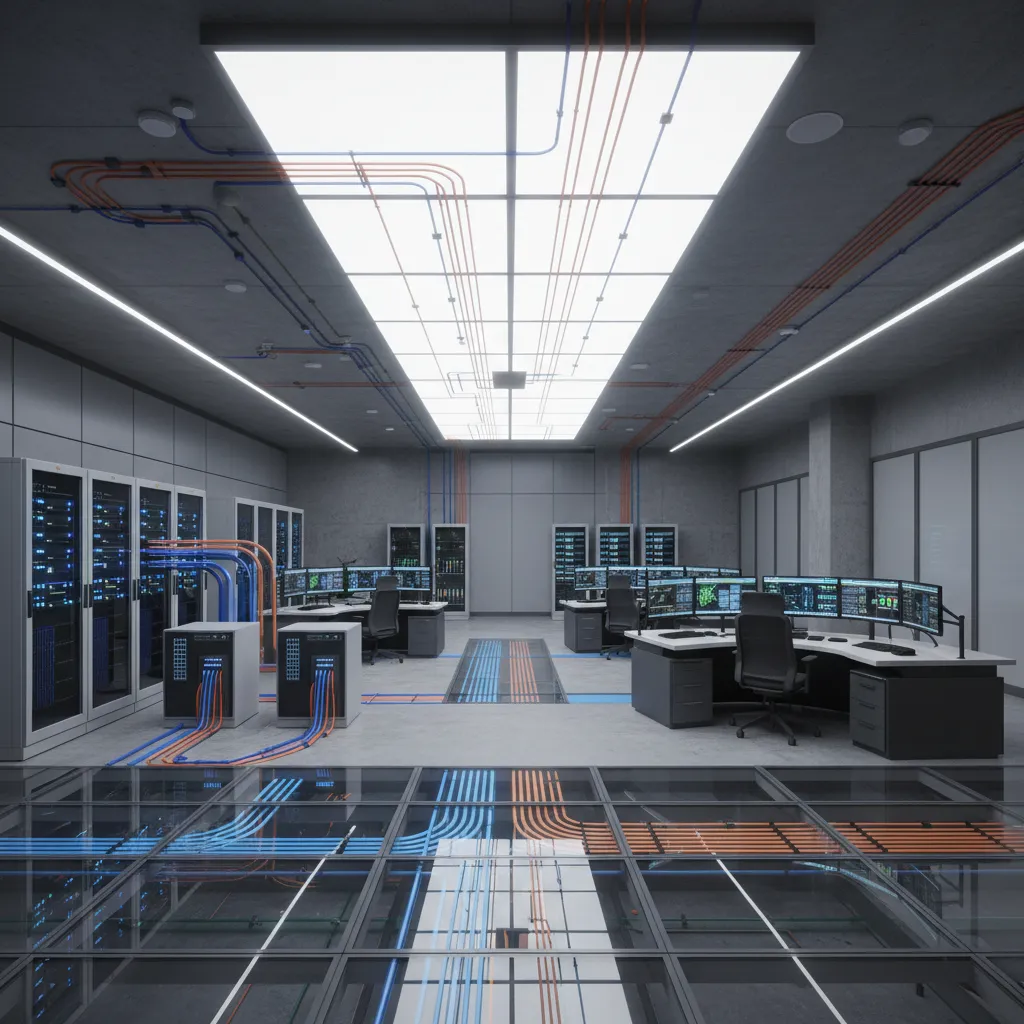

Redundancy Planning for Power and Communication Systems

Key Insight: Redundant infrastructure must be integrated into the layout itself, not added later as a technical upgrade.

One mistake I frequently see is treating redundancy as an IT issue rather than a spatial design decision. In reality, backup systems require physical separation to remain effective.

Essential redundancy layers include:

1. Dual power feeds routed through different pathways
2. Separate UPS clusters supporting workstation groups
3. Backup communication consoles located away from primary ones
4. Secondary network switch rooms

During a regional wildfire response project, our team intentionally distributed communication nodes across opposite sides of the room. When one network switch failed during a drill, operations continued with minimal disruption.

Many teams now prototype infrastructure positioning by visualizing command center infrastructure and workstation placement in a 3D floor planbefore finalizing construction.

save pin

Reducing Single Points of Failure in Control Room Layouts

Key Insight: The most dangerous risk in mission‑critical facilities is a hidden single point of failure embedded in the physical environment.

Single points of failure are often invisible until something breaks. They appear in surprisingly simple forms:

1. One shared display wall used for all critical dashboards
2. A single communication console for external agencies
3. Centralized power distribution panels
4. One entry point for all operational staff

A resilient EOC distributes responsibility across the room.

Example layout strategy:

1. Multiple smaller display clusters instead of one giant wall
2. Independent operator pods
3. Distributed network racks
4. Backup command workstation for incident leaders

This approach reflects guidance from organizations like the International Association of Emergency Managers, which emphasizes decentralized command capabilities.

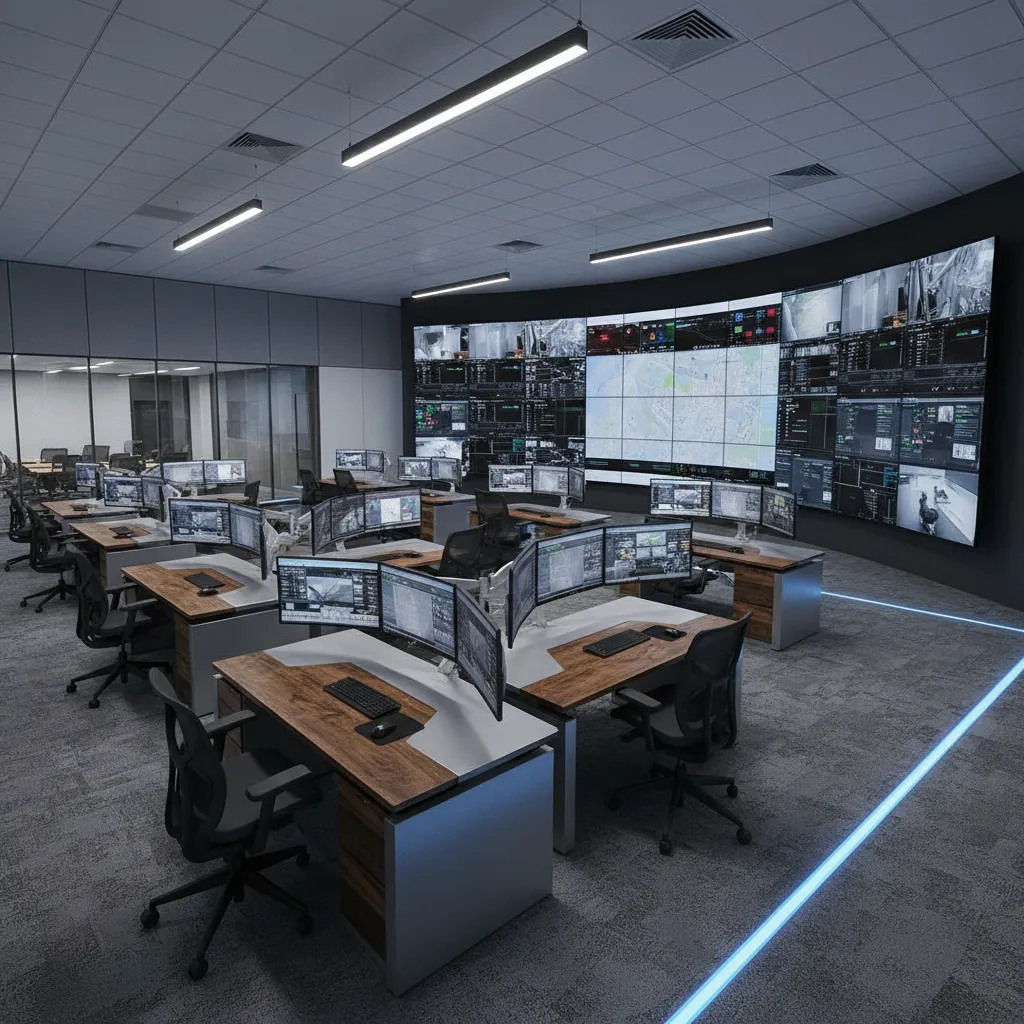

Operator Visibility and Decision Making Risks

Key Insight: If operators cannot quickly interpret shared information, layout becomes a silent barrier to decision making.

One counterintuitive design lesson: bigger display walls don't always improve decision speed.

In some EOCs I've evaluated, extremely large video walls forced operators to turn their heads constantly, which actually slowed reaction time.

Better visibility design includes:

1. Angled workstation rows facing display walls
2. Tiered seating similar to a briefing room
3. Dedicated tactical displays for specific teams
4. Clear sightlines between leadership and operations staff

When planning workstation orientation, teams often simulate sightlines by testing operator visibility and command desk positioning inside a virtual room layout.

save pin

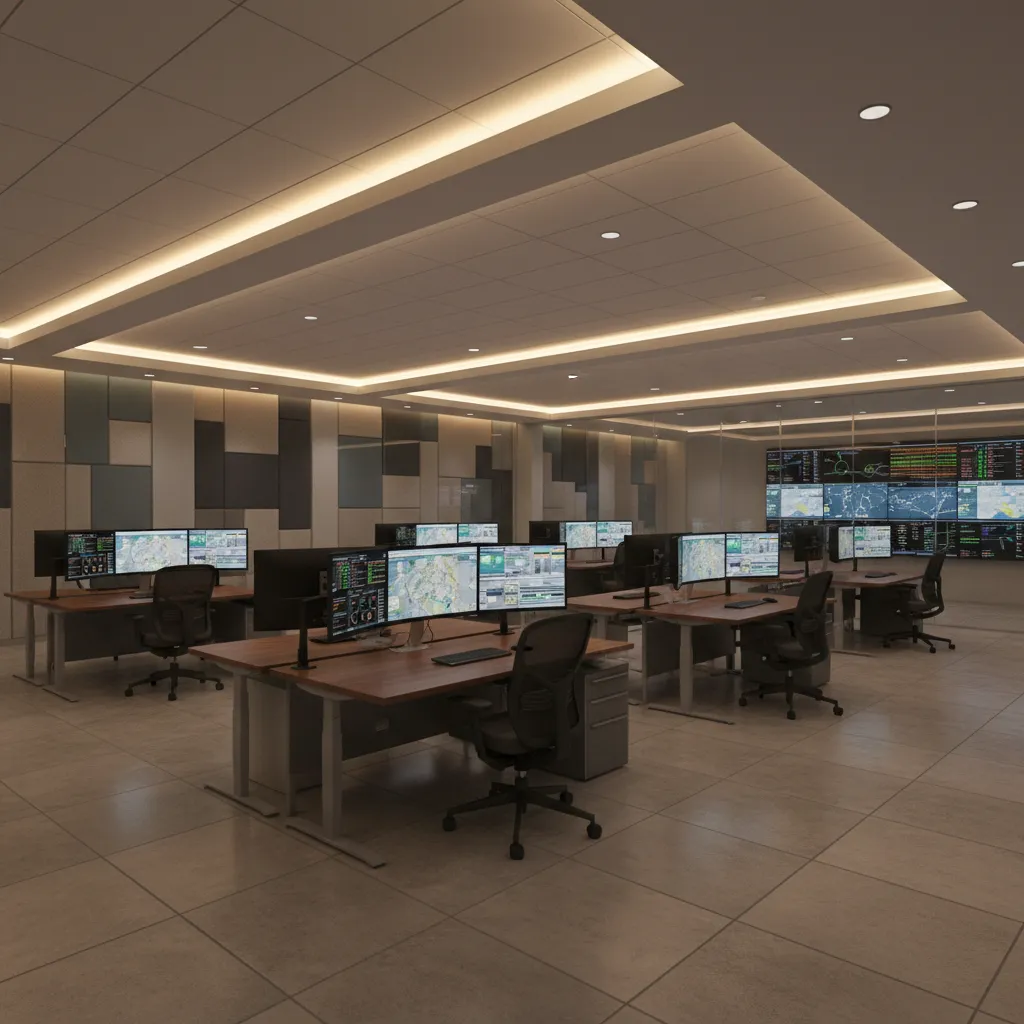

Designing for High Stress and Long Duration Incidents

Key Insight: Long emergencies introduce fatigue, and fatigue dramatically increases operational error rates.

Major disasters rarely last a few hours. Hurricanes, wildfires, cyber incidents, and infrastructure failures can require 24–72 hours of continuous monitoring.

Unfortunately, many control rooms are designed like conference rooms rather than endurance work environments.

Risk‑reducing design elements include:

1. Ergonomic workstation spacing
2. Dedicated rest rotation zones
3. Low‑glare display lighting
4. Acoustic separation between teams
5. Clear circulation paths for shift transitions

Research from the National Institute for Occupational Safety and Health (NIOSH) shows fatigue significantly increases decision errors in high‑stress operational environments.

save pin

Security and Access Control in EOC Facilities

Key Insight: Physical access design is a core component of emergency operations center risk management design.

EOCs frequently host representatives from multiple agencies, contractors, and leadership teams. Without clear security zoning, sensitive operational data can be exposed.

Effective security layout strategies include:

1. Layered access zones (public, operational, command)
2. Credential-controlled entry points
3. Secure communication booths
4. Separate technical equipment rooms

One overlooked risk is equipment access. If network racks or communication consoles are located in open operational areas, accidental disruptions become far more likely.

Answer Box

The safest emergency operations center control room layouts prioritize redundancy, eliminate single points of failure, maintain clear operator visibility, and support long‑duration operations. Risk-aware spatial design ensures command systems continue functioning even when infrastructure or personnel are under extreme stress.

Final Summary

1. Control room layout decisions directly influence emergency decision speed.
2. Redundant infrastructure must be built into spatial design.
3. Distributed systems reduce catastrophic single‑point failures.
4. Operator visibility strongly affects coordination efficiency.
5. Fatigue‑resistant design improves performance during extended incidents.

FAQ

What is risk management in an emergency operations center control room layout?

It involves designing spatial layouts that reduce operational failures, improve communication, and ensure redundant infrastructure so emergency teams can operate reliably during crises.

Why is layout important in emergency command centers?

Layout determines how quickly information flows between operators, leadership, and systems. Poor spatial design slows decision making and increases coordination errors.

What is a single point of failure in EOC design?

A single point of failure is any system, device, or layout element that can disable operations if it fails, such as centralized power panels or one shared display wall.

How does visibility affect emergency response operations?

Clear sightlines between operators and displays improve situational awareness, allowing teams to interpret data faster and coordinate responses efficiently.

What redundancy systems are required in EOCs?

Typical redundancy includes backup power feeds, duplicate network systems, secondary communication consoles, and geographically separated infrastructure.

How should control rooms handle long emergency operations?

They should include ergonomic workstations, quiet rest zones, adjustable lighting, and circulation paths that support shift rotations.

What security risks exist in emergency operations center layouts?

Uncontrolled access to command areas, exposed network equipment, and poorly separated operational zones can compromise sensitive emergency coordination.

What is the goal of emergency operations center risk management design?

The goal is to create a resilient control room environment that continues functioning even when equipment, power systems, or communication networks experience failures.

References

1. FEMA Emergency Operations Center Assessment Guidance
2. International Association of Emergency Managers Planning Resources
3. National Institute for Occupational Safety and Health Fatigue Research
