Risk Management When Adding Plumbing for Bathroom or Laundry Conversions: How to avoid leaks, structural damage, and drainage failures when installing plumbing for a new bathroom or laundry space

Direct Answer

The biggest risks when adding plumbing for a bathroom or laundry conversion are drainage slope errors, overloaded pipes, hidden leaks, and inadequate waterproofing. Managing these risks requires proper pipe sizing, correct drain gradients, reliable leak detection, and professional installation when structural plumbing changes are involved.

Quick Takeaways

1. Improper drainage slope is one of the most common causes of plumbing failure in room conversions.
2. Waterproofing mistakes often cause more damage than pipe leaks themselves.
3. Older homes frequently lack pipe capacity for new bathrooms or laundry appliances.
4. Early leak detection systems can prevent thousands of dollars in water damage.
5. Licensed professionals are essential when altering structural plumbing lines.

Introduction

Adding plumbing during a bathroom or laundry conversion sounds straightforward on paper. In reality, it is one of the most failure-prone parts of a renovation. After working on dozens of residential conversions over the past decade, I can tell you the biggest issues rarely come from the fixtures themselves. The problems come from what sits behind the walls and under the floor.

Many homeowners focus on finishes and layout while underestimating plumbing risks. A poorly designed drain line or undersized pipe can cause slow drainage, recurring clogs, or worse—hidden leaks that damage framing and flooring over time. I have seen beautifully renovated spaces completely reopened six months later because the drainage slope was off by just a few degrees.

Planning the layout early helps avoid these issues. Before installing any pipes, mapping fixture positions using a visual room layout planning workflow for renovation projectshelps identify conflicts between structural framing, plumbing runs, and appliance placement.

In this guide, I’ll walk through the most common plumbing risks I see in bathroom and laundry conversions—and the practical steps that prevent expensive mistakes.

save pin

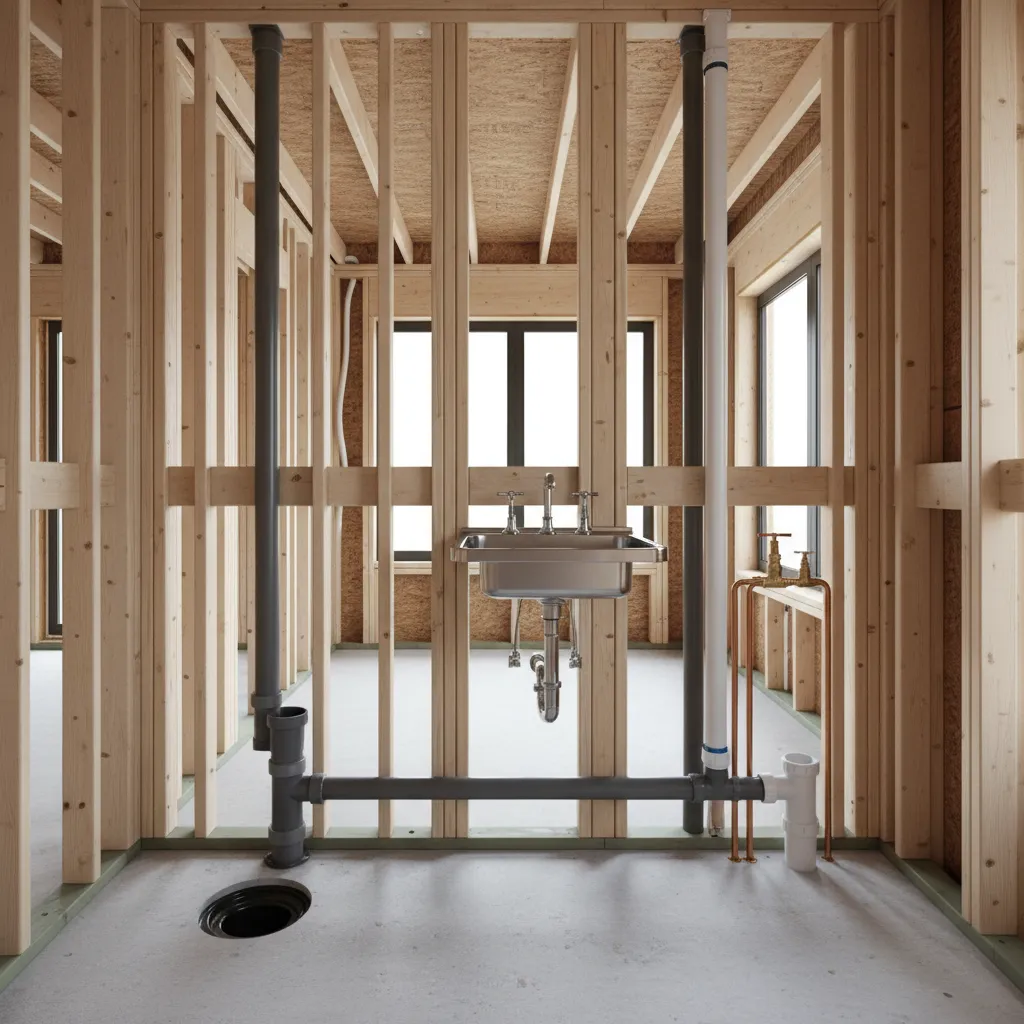

Major Plumbing Risks in Room Conversions

Key Insight: Most plumbing failures in room conversions happen because the existing plumbing system was never designed to support additional fixtures.

When a bedroom, closet, or storage area is converted into a bathroom or laundry space, the original home infrastructure often becomes the weak link. Pipes, vents, and drainage systems were designed for the original layout—not for additional water loads.

Common risk factors include:

1. Insufficient pipe diameter for new fixtures
2. Long horizontal drain runs
3. Poor venting for new drain lines
4. Appliances producing high water volume
5. Older galvanized or corroded pipes

For example, washing machines discharge water extremely quickly compared with sinks or showers. If the drainage line isn't sized correctly, the pipe can back up or overflow.

The International Residential Code (IRC) highlights that laundry standpipes typically require larger drainage capacity than standard sink drains because of rapid discharge rates.

One overlooked issue I frequently see: homeowners tap into the nearest drain instead of the correct main stack. It works temporarily but eventually creates pressure problems and slow drainage.

Can Existing Pipes Handle a New Bathroom or Laundry?

Key Insight: Pipe capacity—not just pipe location—determines whether your plumbing system can support a new conversion.

Many people assume that if a pipe runs nearby, it can handle additional fixtures. That assumption causes major problems.

Here is a simplified capacity comparison used in many renovation assessments:

1. Bathroom sink drain: typically 1.25–1.5 inches
2. Shower or tub drain: typically 2 inches
3. Toilet drain: typically 3–4 inches
4. Laundry standpipe drain: typically 2 inches

If multiple fixtures share the same drain line without proper sizing, wastewater flow slows dramatically.

During design planning, I often sketch plumbing paths alongside floor layouts using a simple floor plan mapping approach for plumbing planning. It immediately reveals whether fixtures can realistically connect to the main stack.

This early check prevents one of the most expensive renovation mistakes: installing fixtures that require relocating the entire plumbing stack.

save pin

Water Damage Risks and Prevention Methods

Key Insight: Water damage during renovations usually comes from slow leaks and poor waterproofing—not dramatic pipe failures.

One of the biggest misconceptions in renovations is that catastrophic pipe bursts cause most damage. In reality, hidden micro-leaks behind walls cause far more structural issues.

Typical failure points include:

1. Loose compression fittings
2. Improper pipe sealing
3. Unprotected wall penetrations
4. Poorly sealed floor drains
5. Missing waterproof membranes

Bathrooms are especially vulnerable because they combine pressurized supply lines and standing water zones. Laundry rooms, on the other hand, face risk from vibration and appliance movement.

Effective prevention strategies include:

1. Installing shutoff valves for each fixture
2. Using braided stainless supply lines
3. Adding floor drains in laundry rooms
4. Applying waterproof membrane systems
5. Pressure testing plumbing before closing walls

The National Association of Home Builders consistently highlights water intrusion as one of the top causes of renovation insurance claims, especially in improperly waterproofed bathrooms.

save pin

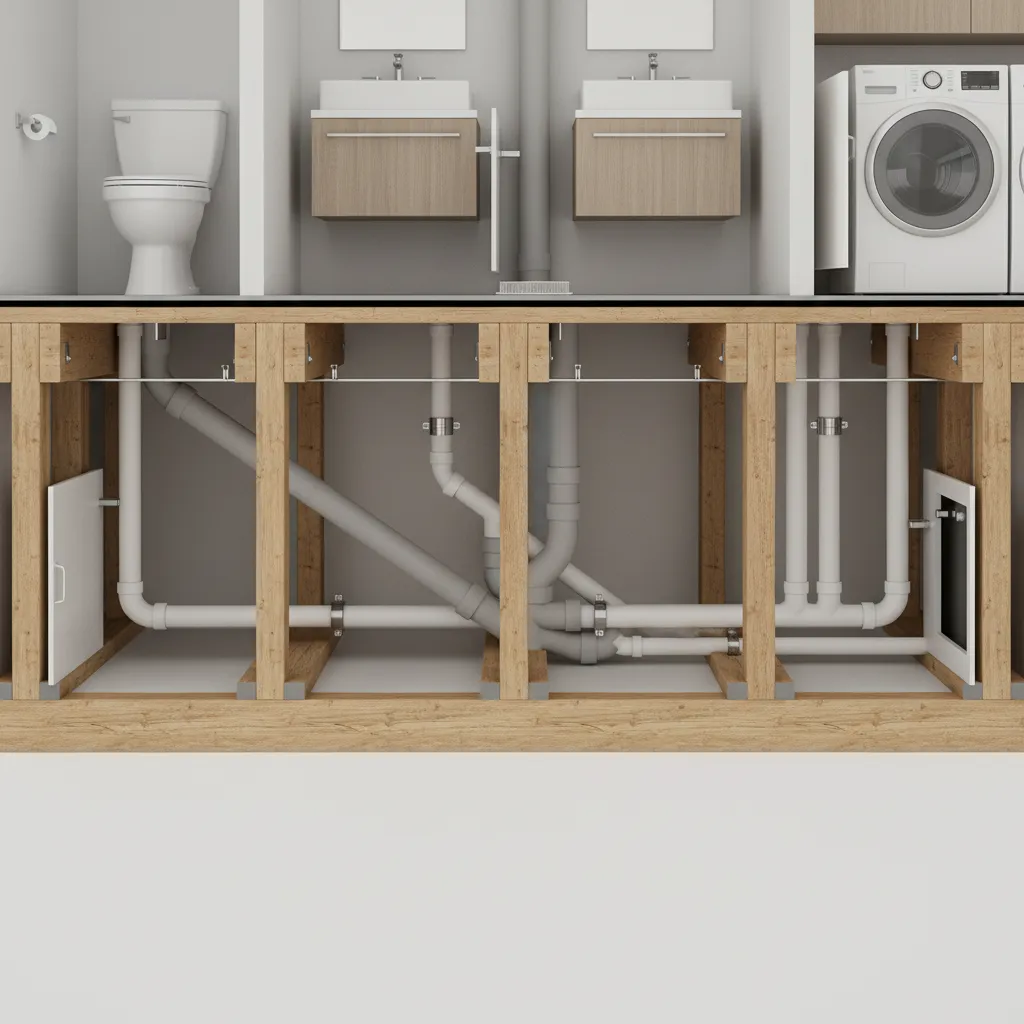

Drainage Slope and Pipe Capacity Considerations

Key Insight: Incorrect drain slope is one of the most common—and expensive—plumbing mistakes in bathroom and laundry conversions.

Drain pipes must slope correctly to move wastewater efficiently. Too little slope causes standing water; too much slope allows water to outrun solids, leading to blockages.

Typical residential plumbing guidelines recommend:

1. 1/4 inch slope per foot for pipes under 3 inches
2. 1/8 inch slope per foot for larger pipes

In conversions, this becomes tricky because floors were not originally designed for plumbing runs. Structural beams or joists may restrict proper pipe routing.

This is why many professional designers plan plumbing routes alongside layout diagrams before construction begins. Visualizing fixture placement and pipe direction using tools like a practical bathroom layout design workflow for renovation planning helps prevent impossible drain paths.

In tight retrofits, sometimes the best solution is raising the floor slightly to maintain proper drainage slope.

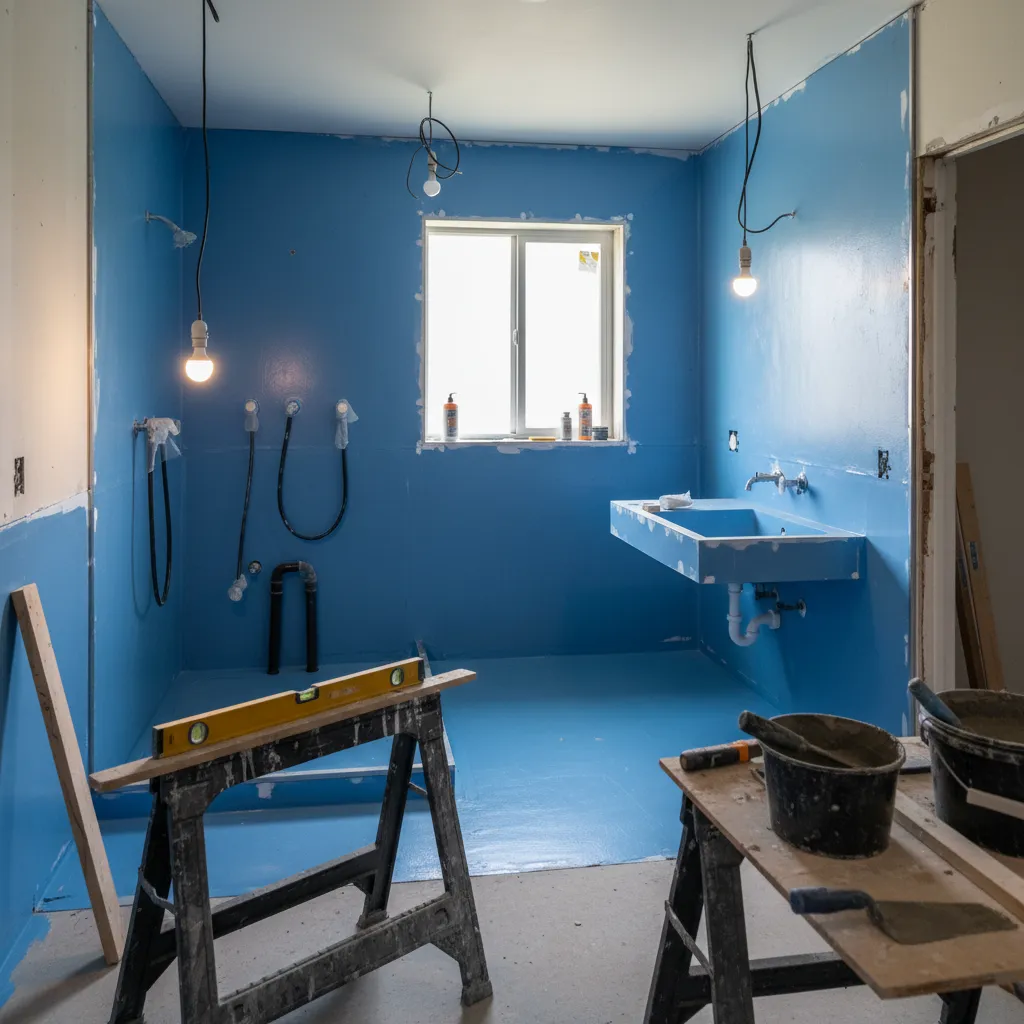

Leak Detection and Waterproofing Strategies

Key Insight: The safest plumbing systems combine waterproof construction with early leak detection.

Waterproofing and monitoring should work together. If one fails, the other limits damage.

Modern renovation projects often include layered protection:

1. Waterproof membranes under tile and flooring
2. Silicone sealing around all penetrations
3. Smart leak sensors near appliances
4. Drain pans under washing machines
5. Automatic water shutoff systems

Insurance companies increasingly recommend smart leak sensors because they detect moisture long before visible damage appears.

I have seen these sensors prevent major structural repairs simply by alerting homeowners to a slow supply line drip.

When to Hire a Licensed Professional

Key Insight: If your conversion involves moving drain stacks, cutting structural framing, or adding new vent lines, a licensed plumber is essential.

Simple fixture replacements can often be handled by experienced homeowners. Structural plumbing modifications are different.

You should hire a licensed professional when:

1. Installing a new toilet location
2. Running long horizontal drain lines
3. Connecting to the main sewer stack
4. Cutting or drilling floor joists
5. Installing new venting systems

Beyond technical skill, licensed plumbers ensure the system complies with local building codes—something many DIY installations overlook.

Answer Box

The safest way to add plumbing during a bathroom or laundry conversion is to confirm pipe capacity, maintain proper drain slope, waterproof all wet zones, and use licensed professionals for structural plumbing changes. Most renovation failures occur when existing plumbing systems are pushed beyond their design limits.

Final Summary

1. Drainage slope errors cause many hidden plumbing failures.
2. Pipe capacity must match the number of fixtures.
3. Waterproofing failures often cause worse damage than leaks.
4. Laundry appliances require stronger drainage systems.
5. Professional installation prevents structural plumbing mistakes.

FAQ

What are the biggest plumbing risks in a bathroom conversion?

The biggest plumbing risks include incorrect drainage slope, insufficient pipe diameter, poor waterproofing, and improper venting. These issues can lead to leaks, clogs, or long-term structural damage.

Are laundry room plumbing installations risky?

Yes. Laundry room plumbing installation risks include high water discharge from washing machines, inadequate drainage pipes, and vibration that loosens fittings.

How do you prevent water damage during renovation?

Use waterproof membranes, pressure test pipes before closing walls, install shutoff valves, and add leak detection sensors near appliances and plumbing connections.

Do I need a permit to add plumbing for a bathroom?

In most areas, yes. Adding new plumbing fixtures usually requires permits and inspection to ensure compliance with building and safety codes.

What slope is required for bathroom drain pipes?

Most residential plumbing systems require a slope of about 1/4 inch per foot for smaller drain pipes to ensure proper wastewater flow.

Can existing pipes handle a bathroom conversion?

Not always. Older homes often lack sufficient pipe capacity. A plumbing assessment is recommended before installing new fixtures.

What is the safest way to install laundry room plumbing?

Use dedicated drainage lines, install proper standpipes, add shutoff valves, and include floor drains or drain pans for overflow protection.

What are bathroom plumbing installation safety tips?

Maintain proper drainage slope, install venting for all drains, waterproof wet areas, and pressure test all pipes before finishing construction.
