Risks of Using Old or Incomplete House Plans in the UK: Why outdated property drawings can create legal, safety, and renovation problems for homeowners and buyers.

Direct Answer

Old or incomplete house plans in the UK can lead to planning permission issues, renovation mistakes, structural misunderstandings, and costly compliance problems. Property drawings often become inaccurate over time because homes are modified without updated documentation.

Before relying on historic drawings, homeowners should verify them against the current structure or commission a measured survey to avoid legal or safety risks.

Quick Takeaways

1. Original house plans often become inaccurate after decades of renovations or undocumented alterations.
2. Outdated drawings can cause planning permission complications or rejected applications.
3. Contractors relying on inaccurate plans may miscalculate structural loads or dimensions.
4. A measured survey is usually the safest way to confirm current property layout.
5. Many renovation delays happen because the existing drawings don’t match the building.

Introduction

One of the most common surprises I see when reviewing renovation projects is how often the existing drawings don’t match the actual building. Old house plans might look official, but in practice they’re often incomplete, outdated, or simply wrong.

In the UK especially, many homes built before the 1990s went through decades of extensions, loft conversions, or internal layout changes. Those updates rarely made their way into the original architectural drawings. Homeowners assume the plans are reliable—until a contractor opens a wall and discovers something completely different.

Before committing to renovations or property purchases, it’s often worth reviewing the current layout using tools that help visualise accurate room dimensions and layouts, such as a step‑by‑step way to visualise an accurate home layout in 3D. Even a quick comparison between drawings and reality can reveal major discrepancies.

After working on dozens of renovation consultations, I’ve noticed the same pattern: people treat old plans as technical documents when they’re often closer to historical references. In this guide, I’ll break down the real risks—legal, structural, and financial—of relying on outdated house plans in the UK.

save pin

Why Original House Plans May No Longer Match the Property

Key Insight: Original house plans rarely stay accurate for more than a decade because properties evolve faster than their documentation.

Most UK homes undergo multiple modifications during their lifetime. Kitchens move, walls disappear, lofts become bedrooms, and extensions expand living areas. However, these changes are not always recorded in official drawings.

Common reasons plans stop matching the building include:

1. Unrecorded internal renovations
2. Loft conversions done decades ago
3. Garage conversions
4. Extensions drawn differently from the final build
5. Builder-led layout changes during construction

One issue many people overlook is that planning application drawings are not "as-built" drawings. They represent what was proposed—not necessarily what was constructed. Contractors frequently adjust dimensions, wall thickness, or structural details on-site.

From a design perspective, even a 100 mm wall shift can change room sizes enough to affect furniture layouts, circulation, and structural calculations.

save pin

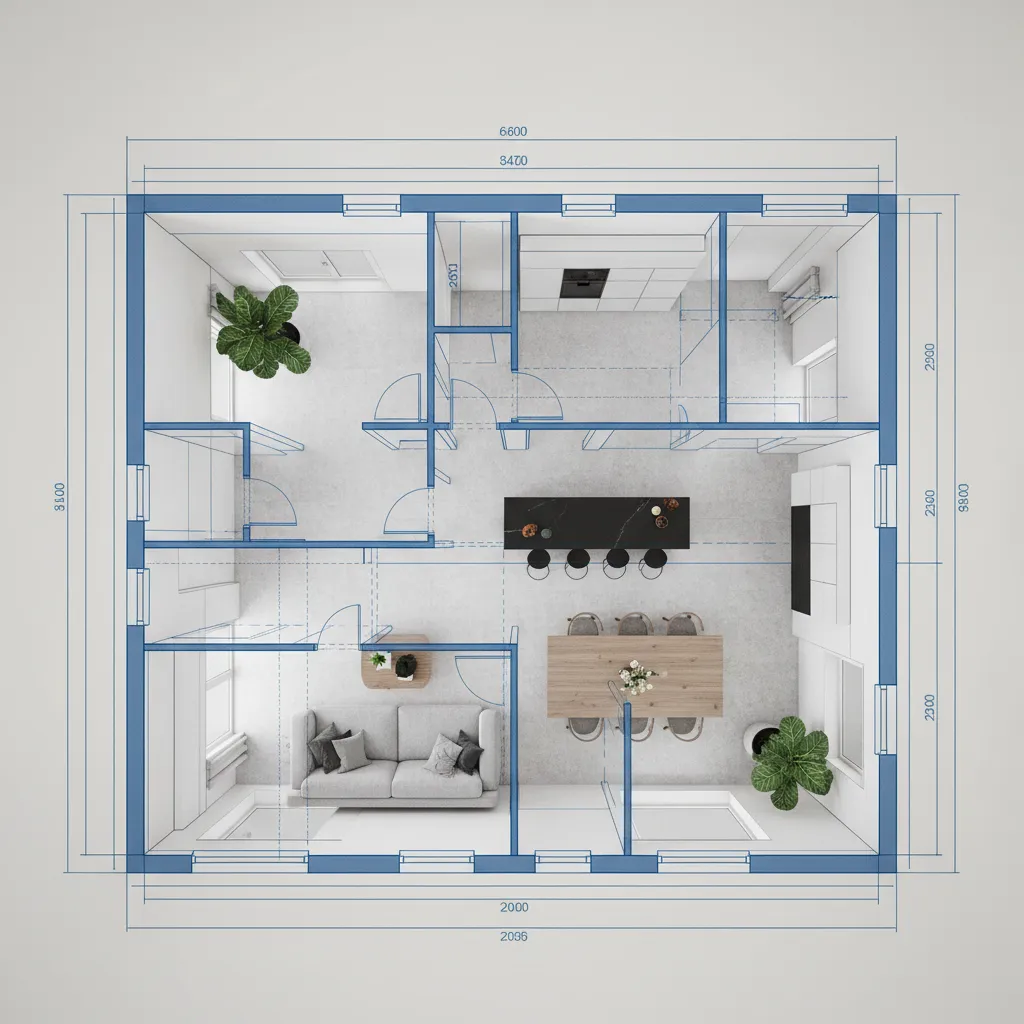

Planning Permission Risks When Drawings Are Outdated

Key Insight: Submitting outdated plans during a planning application can trigger delays, rejections, or requests for additional surveys.

Planning authorities expect drawings that accurately represent the current condition of the property. When submitted plans show layouts that don’t match the real structure, planning officers often flag the discrepancy.

Typical problems include:

1. Extensions shown in the wrong position
2. Incorrect building footprint measurements
3. Rooflines that differ from reality
4. Missing previously approved alterations

In planning reviews, inconsistencies raise two concerns for local authorities:

1. The proposal may exceed permitted development limits.
2. The drawings may not reflect the legal building record.

In several renovation consultations I’ve reviewed, projects were delayed weeks simply because the architect had to redraw the entire existing house layout before submitting new proposals.

Structural and Safety Issues from Inaccurate Plans

Key Insight: Structural decisions based on inaccurate plans can lead to safety risks or expensive redesign during construction.

Builders and structural engineers rely heavily on existing drawings when assessing load paths, beam placements, and wall removals. When those drawings are wrong, structural assumptions can fail.

Common risks include:

1. Load‑bearing walls mistakenly identified as non‑structural
2. Incorrect floor span assumptions
3. Hidden steel beams not shown in plans
4. Incorrect ceiling heights affecting staircase design

In practice, the biggest hidden cost appears when demolition begins and contractors discover the structure doesn’t match the drawings. Work stops, engineers revisit calculations, and redesign fees accumulate.

For homeowners preparing renovations, visualising the space accurately first—often using tools that allow you to create a detailed floor plan from measured room dimensions—can reveal inconsistencies before construction begins.

save pin

Problems During Renovations or Extensions

Key Insight: Renovation costs increase significantly when builders discover that the house differs from the original drawings.

During design consultations, one pattern appears again and again: contractors quoting from outdated plans underestimate complexity.

Typical renovation disruptions include:

1. Walls positioned differently than expected
2. Ceiling heights inconsistent with drawings
3. Drainage lines not shown on plans
4. Staircase locations slightly offset

These mismatches create a domino effect. When one measurement changes, kitchen layouts, window placements, and structural beams may all need adjustment.

From a project management perspective, this is why experienced architects prefer starting with verified measurements rather than relying solely on historical documentation.

How to Verify That Existing Drawings Are Accurate

Key Insight: The most reliable way to confirm old house plans is by comparing them directly with measured site dimensions.

Before planning renovations, homeowners should validate the accuracy of any drawings they possess.

Practical verification steps include:

1. Measure key wall lengths and compare them with the plan.
2. Check ceiling heights and staircase dimensions.
3. Confirm window and door positions.
4. Compare extension footprints with the drawings.
5. Look for structural elements not shown on plans.

Even simple layout checks can reveal inconsistencies. Many homeowners now use digital layout tools to recreate the existing space and compare dimensions visually, such as this visual method for mapping an existing home layout quickly.

save pin

Answer Box

Old house plans in the UK frequently become inaccurate due to undocumented renovations, construction changes, and outdated measurements. Relying on them without verification can cause planning delays, structural mistakes, and unexpected renovation costs. A measured survey or verified layout is usually the safest approach.

When a New Measured Survey Is the Safer Option

Key Insight: If a property has undergone multiple alterations or the drawings are older than 15–20 years, a measured survey is often the safest investment.

A professional measured survey creates an accurate "as‑built" record of the property. Architects and engineers use this as the foundation for renovation design.

A new survey is especially recommended when:

1. The house has multiple extensions
2. Original drawings are missing dimensions
3. The property is over 30 years old
4. Major structural changes are planned
5. Planning permission is required

While a survey adds upfront cost, it usually prevents far larger expenses later. In renovation planning, accurate information is often the most valuable resource.

Final Summary

1. Old house plans frequently fail to reflect decades of property changes.
2. Planning applications require drawings that match the current building.
3. Structural decisions based on outdated plans increase construction risk.
4. Renovations often stall when builders discover inaccurate layouts.
5. A measured survey provides the most reliable foundation for design work.

FAQ

Are old house plans accurate in the UK?

Often not. Many homes have undocumented alterations. Original drawings may represent the proposed design rather than the final built structure.

Can you rely on planning drawings for renovation?

Not completely. Planning drawings show approved proposals, not always the finished building. Contractors should verify dimensions before construction.

What problems can outdated property plans cause?

They can cause incorrect renovation estimates, planning delays, structural miscalculations, and layout design mistakes.

How do you check the accuracy of house plans in the UK?

Measure major walls, ceiling heights, and openings, then compare them with the drawings. Large discrepancies indicate outdated plans.

Do I need a measured survey before renovating?

If the property has extensions or old drawings, a measured survey is highly recommended for accurate design and planning submissions.

What is the difference between building surveys and old plans in the UK?

Old plans show historical design information. A building survey records the property's current structure and condition.

Can inaccurate house plans delay planning permission?

Yes. Local authorities may request corrected drawings if submitted plans do not match the current building layout.

Why do architects recreate house plans for renovations?

Because reliable renovation design requires accurate "as-built" measurements rather than historical drawings.
