Risks of Using Unofficial or Outdated Building Floor Plans: Understand the legal, safety, and renovation problems that can arise when relying on inaccurate or unofficial building plans.

Direct Answer

Using unofficial or outdated building floor plans can lead to serious legal, safety, and renovation issues. Inaccurate drawings may misrepresent structural walls, utilities, or property boundaries, causing permit delays, construction errors, or code violations. Verifying the accuracy of any recovered floor plan before using it for renovation or documentation is essential.

Quick Takeaways

1. Unofficial floor plans often omit structural and utility updates made after construction.
2. Incorrect plans can lead to permit rejections or failed inspections.
3. Safety risks increase when structural walls or fire exits are misidentified.
4. Professional verification dramatically reduces renovation and compliance risks.
5. Old blueprints rarely reflect decades of small undocumented changes.

Introduction

In more than a decade working on residential renovations, I’ve seen the same mistake repeat itself: someone finds an old drawing online or from a previous owner and assumes it represents the real building. Unfortunately, unofficial or outdated building floor plans rarely match reality.

Walls move. Extensions are added. Plumbing and electrical routes change. Even small undocumented renovations can make a once-accurate blueprint unreliable. When designers or homeowners rely on these drawings without verification, problems tend to appear during permitting, construction, or safety inspections.

Before using any recovered plan, it’s important to understand the risks of outdated building blueprints and how to confirm their accuracy. If you're starting with incomplete documentation, reviewing a practical approach to rebuilding accurate floor plans from existing spacescan help establish a reliable baseline before design or renovation begins.

Let’s look at where unofficial plans go wrong—and how professionals avoid costly mistakes.

save pin

Why Floor Plan Accuracy Matters

Key Insight: Even small inaccuracies in a floor plan can cascade into expensive construction errors and safety risks.

Architectural drawings are more than visual guides—they’re technical documents used for engineering calculations, building permits, contractor coordination, and code compliance. When measurements or structural details are wrong, every downstream decision becomes unreliable.

Common inaccuracies in unofficial floor plans include:

1. Walls drawn as non‑structural when they actually support loads
2. Missing beams or columns hidden inside walls
3. Incorrect ceiling heights
4. Outdated room dimensions after renovations
5. Relocated staircases or partitions not reflected in the drawing

According to the American Institute of Architects, renovation projects frequently require field verification because older drawings rarely reflect all modifications made during decades of occupancy.

In practice, I treat any recovered plan as a starting hypothesis—not a reliable source of truth.

Legal Risks of Using Unverified Building Plans

Key Insight: Submitting inaccurate floor plans for permits can expose homeowners and designers to legal and liability issues.

Municipal permit departments require drawings that accurately represent existing conditions. If plans misrepresent the structure, the application may be rejected—or worse, approved but later flagged during inspection.

Legal issues using incorrect floor plans typically involve:

1. Permit rejection due to mismatched measurements
2. Insurance disputes after construction errors
3. Liability for structural damage caused by incorrect assumptions
4. Violation of fire escape or accessibility regulations

In some jurisdictions, submitting knowingly inaccurate drawings can even invalidate permits. That’s why licensed architects typically conduct site verification before sealing renovation plans.

save pin

Renovation and Permit Problems Caused by Wrong Plans

Key Insight: Renovation budgets often explode when contractors discover that the plan doesn’t match the real structure.

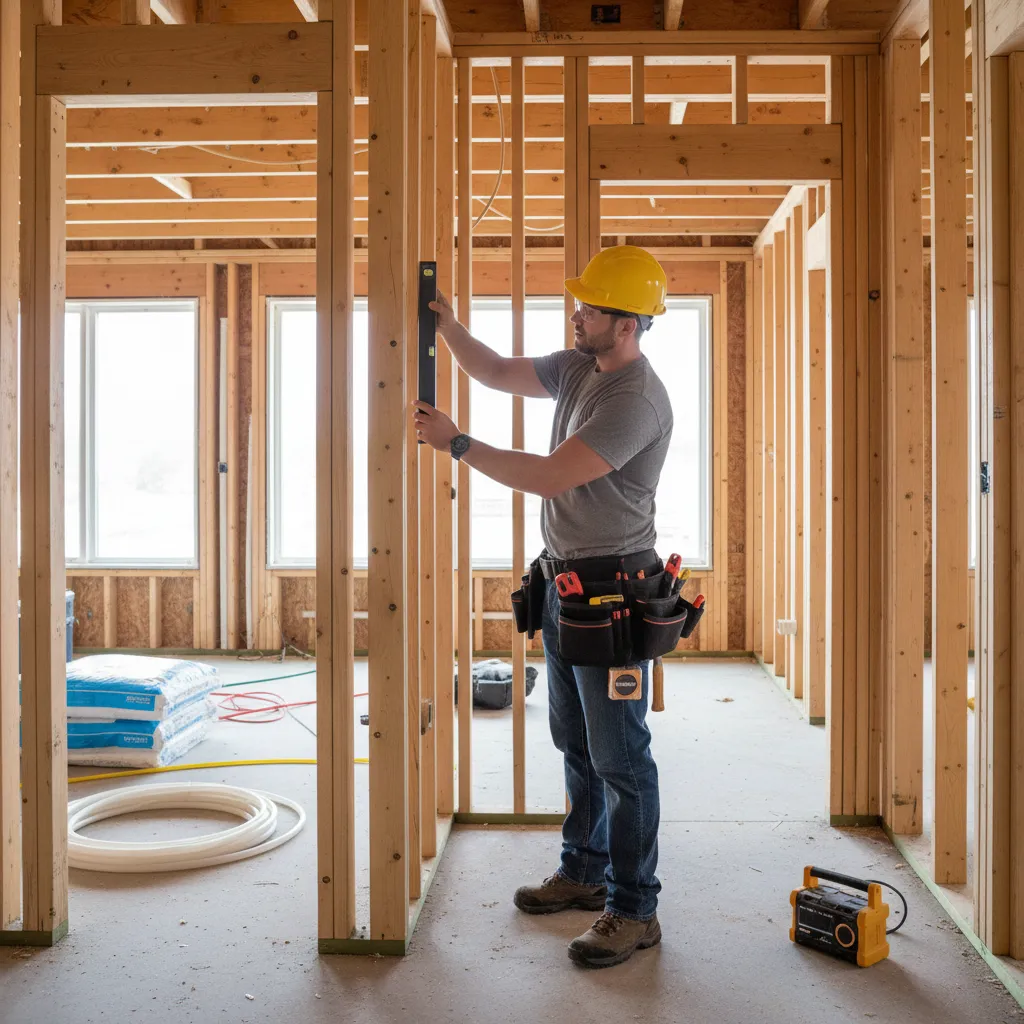

One of the most common problems with outdated building blueprints appears during demolition. A contractor removes a wall expecting it to be non‑structural—only to find a load-bearing beam inside.

Typical renovation disruptions caused by inaccurate plans include:

1. Unexpected structural reinforcement requirements
2. Electrical or plumbing lines located differently than shown
3. Permit revisions and project delays
4. Material orders based on incorrect measurements

Even a two‑inch measurement error can cause cabinetry, flooring layouts, or stair calculations to fail inspection. For layout planning, many designers now start by creating verified spatial models using tools like visualizing the true layout with a measured 3D floor planning workflow before any renovation drawings are finalized.

Safety Issues From Inaccurate Layouts

Key Insight: The biggest hidden risk of unofficial floor plans is safety—especially around structure, egress, and utilities.

Incorrect architectural drawings can create dangerous assumptions. Fire exits, structural walls, ventilation paths, and mechanical systems must be accurately documented for safe design decisions.

Potential safety issues include:

1. Blocked or misidentified emergency exits
2. Structural load paths removed during renovation
3. Gas or water lines cut during demolition
4. Incorrect spacing for stairways or railings

Building inspectors frequently catch these issues only after construction has begun. At that stage, redesigning the project becomes far more expensive than verifying the original layout.

save pin

How to Verify the Accuracy of Retrieved Floor Plans

Key Insight: The safest approach is to treat recovered plans as references and confirm them through measurement or professional documentation.

Checking the accuracy of house floor plans typically involves a combination of field measurement and comparison against official records.

Reliable verification steps include:

1. Measure major room dimensions with laser tools.

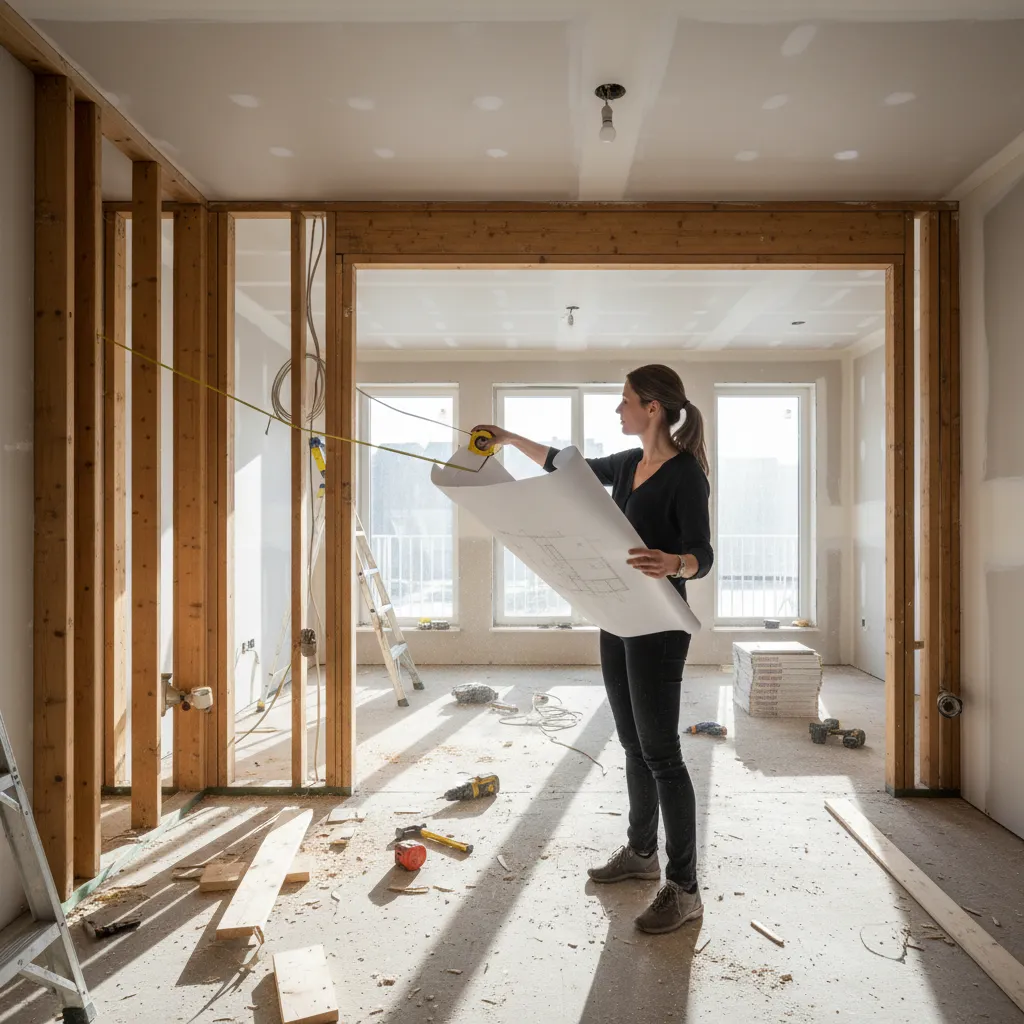

2. Compare window, door, and stair locations with the drawing.
3. Check ceiling heights and structural beam locations.
4. Review municipal building permit archives if available.
5. Confirm structural walls with a contractor or engineer.

For large properties or older buildings, professionals often rebuild the plan from scratch. A detailed workflow for digitally reconstructing building layouts from real measurements can speed up this process while preserving dimensional accuracy.

Answer Box

Unofficial or outdated building floor plans should never be trusted without verification. Even small measurement errors or undocumented renovations can cause legal issues, permit delays, or structural safety risks. Always confirm plans through measurement, official records, or professional documentation.

When a Professional Verification Is Necessary

Key Insight: Some situations require professional verification because the risk of error is simply too high.

In my projects, I always recommend professional measurement or architectural verification when the building meets any of the following conditions:

1. Homes older than 30 years with multiple renovations
2. Major structural changes such as removing walls
3. Multi‑family buildings or commercial spaces
4. Projects requiring engineering calculations
5. Permit submissions involving structural work

Architects and survey professionals use laser scanning, detailed measurement protocols, and structural assessment to ensure documentation reflects the true building layout. This verification step often prevents thousands of dollars in construction corrections later.

save pin

Final Summary

1. Unofficial floor plans rarely reflect real building conditions.
2. Incorrect drawings can cause legal and permit complications.
3. Safety risks increase when structural details are misidentified.
4. Verification through measurement or professionals prevents costly mistakes.
5. Accurate plans are essential before renovation or structural work.

FAQ

Are unofficial floor plans reliable?

Usually not. Unofficial floor plans often miss renovations, structural changes, or utility updates, making them unreliable for construction or permits.

What are the risks of outdated building blueprints?

Outdated blueprints may show incorrect wall locations, structural supports, or dimensions, which can cause renovation errors or permit issues.

Can I submit old floor plans for building permits?

Most municipalities require accurate drawings of current conditions. Old plans often need verification or updates before submission.

How do professionals verify architectural drawings?

They typically perform on-site measurements, laser scanning, and structural inspections to ensure the drawings match real building conditions.

What if I cannot find official building floor plans?

You can reconstruct them through field measurement, digital modeling, or professional architectural documentation.
