Rock Lights Not Working After Wiring to Battery: Troubleshooting Guide: A step‑by‑step diagnostic process to find wiring mistakes, blown fuses, grounding issues, and controller problems after installing rock lights.

Direct Answer

If your rock lights are not working after wiring to the battery, the most common causes are a poor ground connection, a blown fuse, reversed polarity, or a faulty controller. Start by checking the battery terminals, fuse, and ground point, then verify voltage with a multimeter before assuming the lights themselves are defective.

Quick Takeaways

1. Most rock light failures come from bad ground connections rather than defective LEDs.
2. A blown fuse usually indicates a short circuit or undersized fuse rating.
3. Testing voltage with a multimeter quickly identifies where power stops.
4. Controllers and wireless modules can fail even when wiring is correct.
5. Many DIY installations fail due to weak chassis grounding points.

Introduction

Few things are more frustrating than finishing a wiring job, flipping the switch, and realizing your rock lights are not working after wiring to the battery. I have installed lighting systems on everything from weekend trail rigs to full overland builds, and this exact issue shows up more often than most people expect.

In many cases, the lights themselves are perfectly fine. The problem usually comes from grounding, fuse selection, or wiring mistakes that happen during installation. Even experienced DIY installers sometimes miss small details like paint blocking a ground connection or a fuse holder installed backward.

If you want to compare your setup with a correct installation layout, it helps to see a clear example of a step‑by‑step wiring layout for vehicle lighting systems. Visualizing how power flows from battery to switch to lights often reveals mistakes instantly.

Below is the same diagnostic process I use on real installs when rock lights refuse to turn on.

save pin

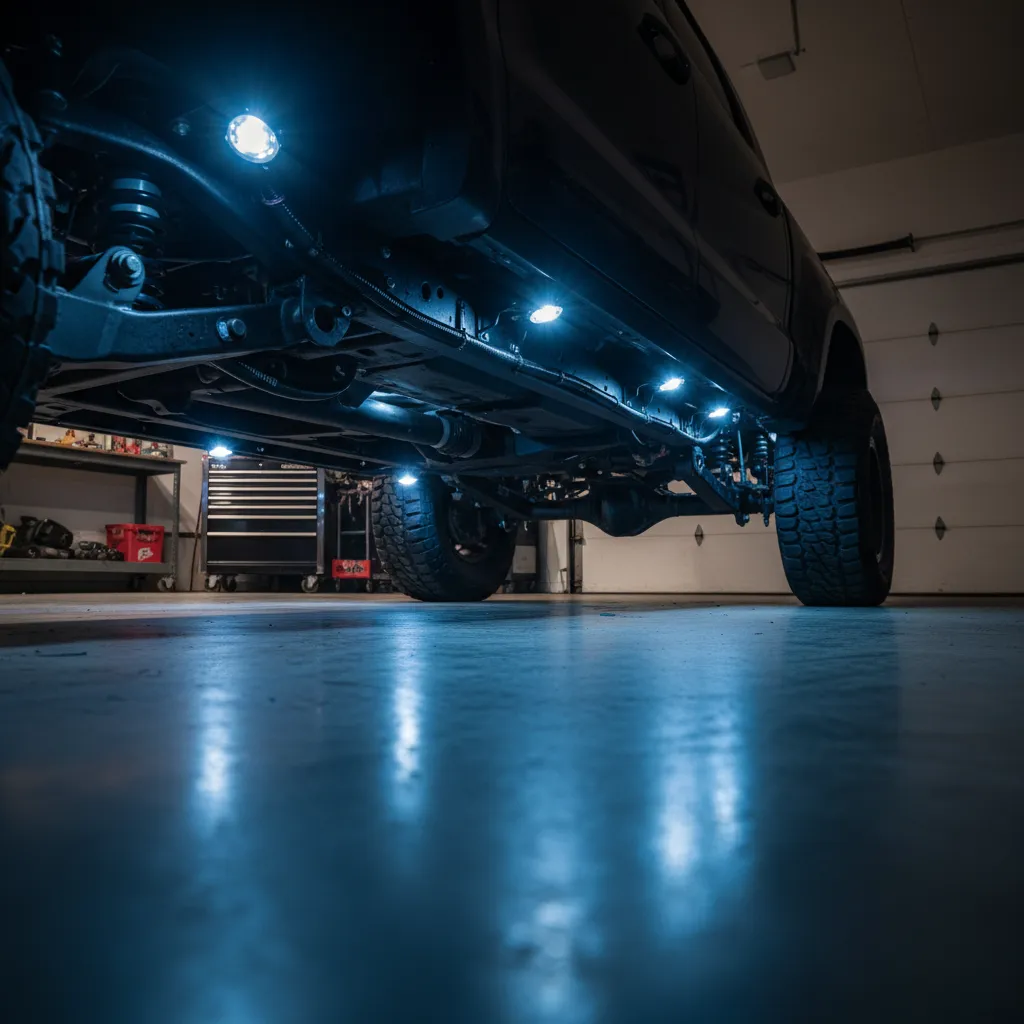

Rock Lights Not Turning On After Installation

Key Insight: When rock lights fail immediately after installation, the problem is almost always in the power delivery path rather than the lights themselves.

LED rock lights are extremely reliable. In my experience, more than 80% of "dead" light systems turn out to be wiring issues. The most frequent problems include incorrect polarity, missing ground connections, and inline fuse problems.

Start with these quick checks:

1. Confirm the battery positive wire connects to the fuse holder first.
2. Ensure the fuse holder connects to the switch or controller input.
3. Verify the ground wire connects directly to chassis metal.
4. Check that no connectors are loose or partially crimped.

Another overlooked issue is mounting location. Some installers run the ground wire to painted brackets or powder‑coated parts. Paint acts as insulation, preventing proper grounding.

Checking Battery Connections and Ground Points

Key Insight: A weak or painted ground point is the single most common cause of rock lights wired to a battery but not turning on.

Electric circuits need a complete loop: power from the battery and a return path through ground. If the ground connection has resistance, the lights may flicker, stay dim, or never turn on.

Here is the grounding checklist I use during installs:

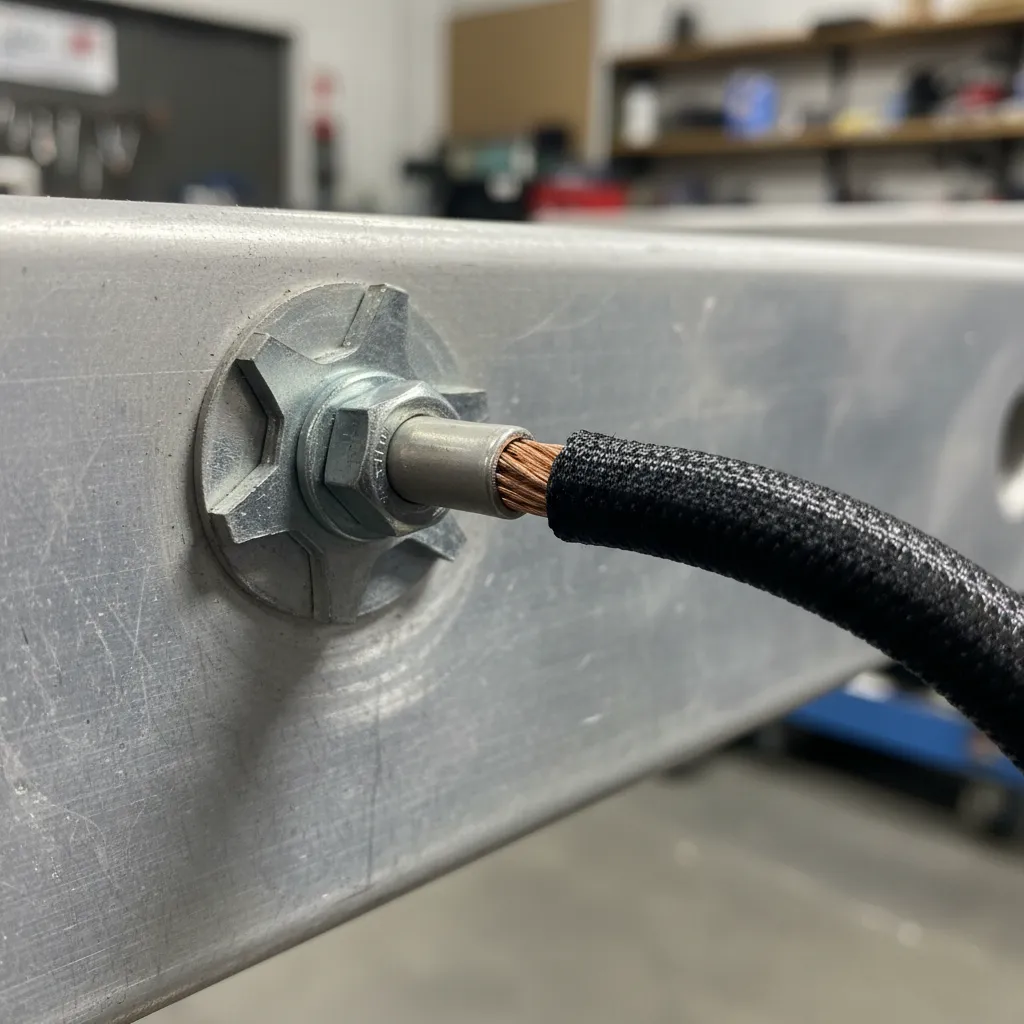

1. Use bare chassis metal for the ground point.
2. Sand away paint before attaching the ground terminal.
3. Use a star washer to improve metal contact.
4. Tighten with a bolt rather than a sheet‑metal screw.

Automotive wiring guides from organizations like SAE recommend direct metal‑to‑metal ground contact for auxiliary lighting circuits. Even a thin layer of paint can create enough resistance to stop LED systems from functioning properly.

save pin

How to Diagnose a Blown Fuse or Wiring Fault

Key Insight: If your fuse blows repeatedly, the system likely has a short circuit or incorrect fuse rating.

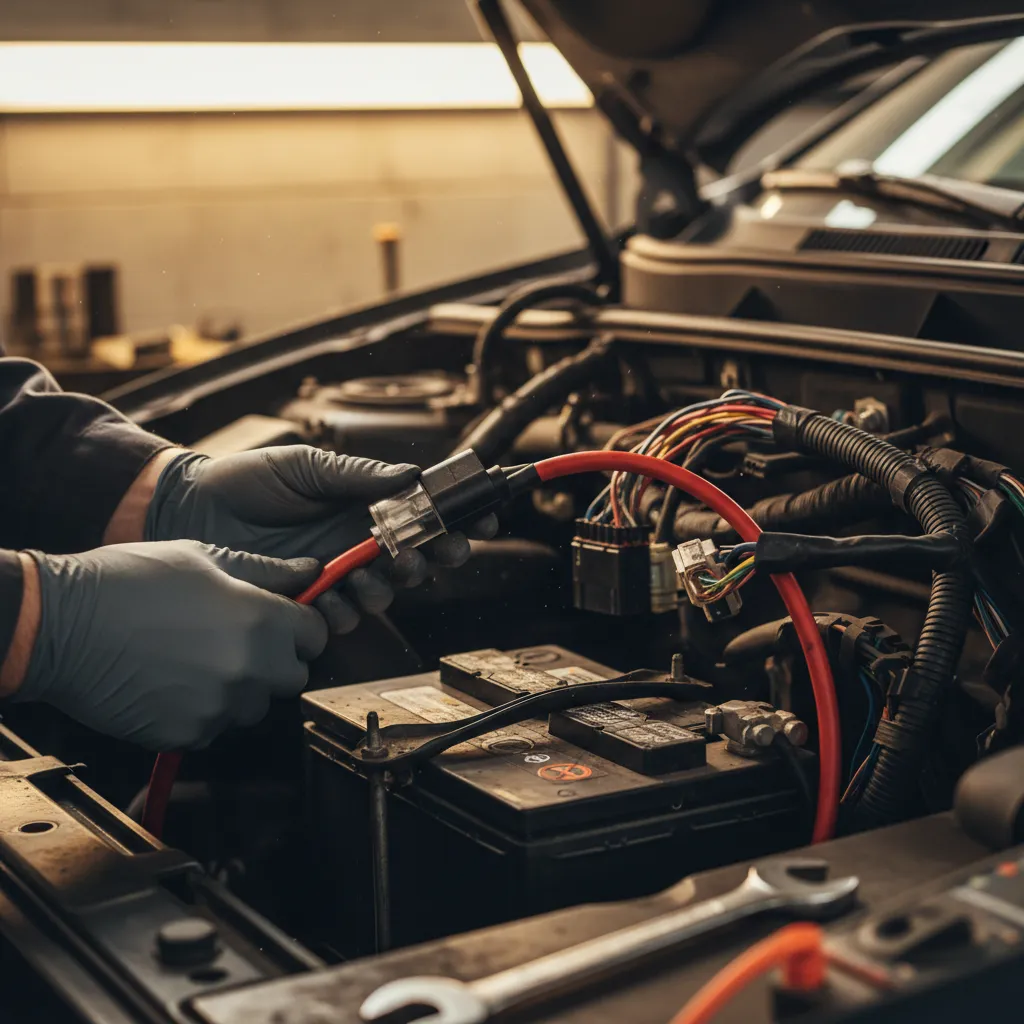

Inline fuses are designed to protect your wiring and battery from overheating. When a fuse fails immediately after installation, something is pulling too much current.

Common reasons a rock light fuse keeps blowing:

1. Wire insulation damaged against sharp metal edges
2. Incorrect fuse rating for the lighting kit
3. Positive wire touching chassis ground
4. Water entering poorly sealed connectors

A safe troubleshooting process looks like this:

1. Disconnect the lights from the harness.
2. Replace the fuse.
3. Reconnect one light at a time.
4. Identify which section causes the overload.

If you want a visual example of how wiring paths should be organized, you can map your wiring layout step by step with a simple planning diagram. Many installers discover crossed wires or incorrect branching this way.

save pin

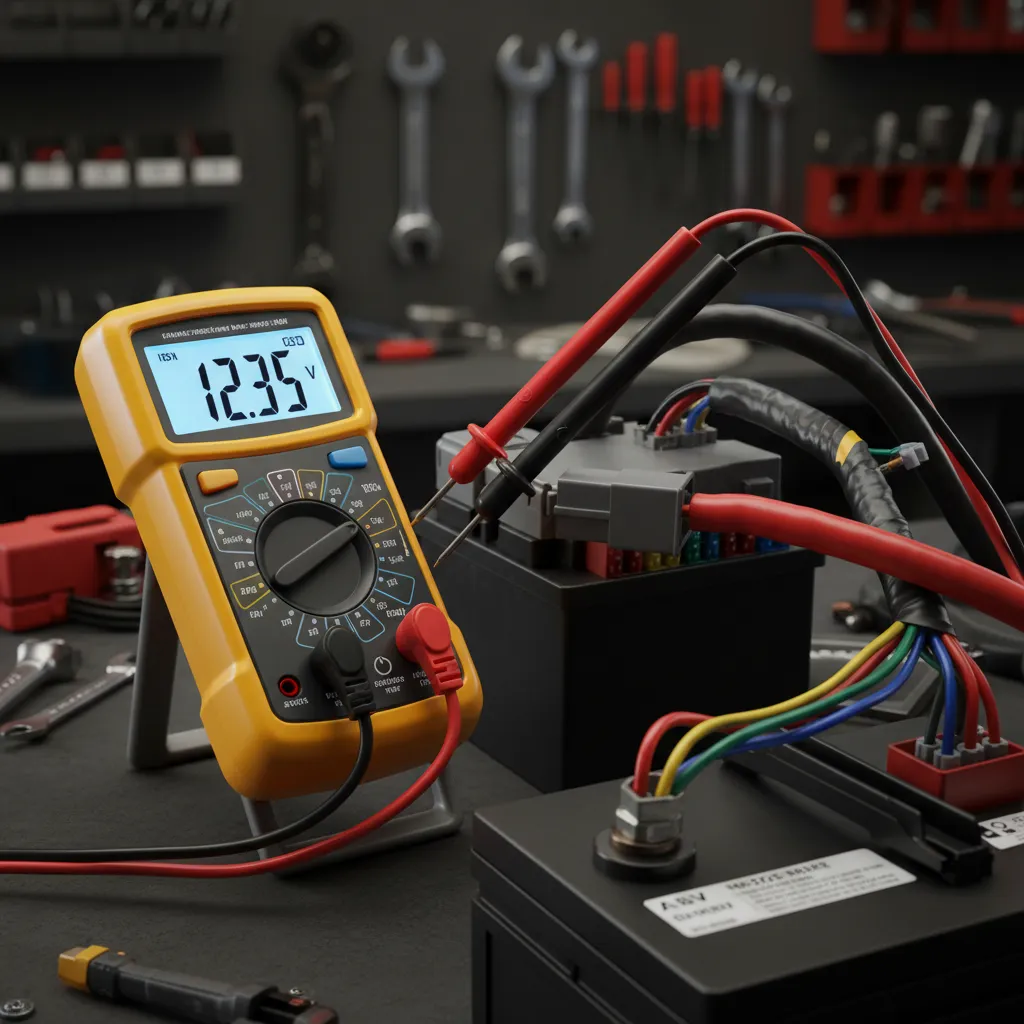

Testing Rock Light Power with a Multimeter

Key Insight: A multimeter instantly tells you where electricity stops flowing in the circuit.

When diagnosing LED lighting systems, guessing wastes time. A simple digital multimeter removes the guesswork.

Use this testing sequence:

1. Measure voltage directly at the battery (should be ~12–13V).
2. Check voltage after the fuse holder.
3. Test voltage at the controller input.
4. Check voltage at each individual light connector.

If voltage disappears between two points, the wiring or connector between them is the problem.

This method works whether you're trying to troubleshoot LED rock lights wiring or any other vehicle accessory.

save pin

Common Wiring Mistakes in DIY Installations

Key Insight: Most DIY failures come from small installation shortcuts rather than major wiring errors.

After years of inspecting off‑road builds, I've noticed the same mistakes appear repeatedly.

The most common ones include:

1. Using household wire connectors instead of automotive crimp terminals
2. Running wires near exhaust components
3. Skipping fuse protection entirely
4. Using undersized wiring for multiple lights
5. Routing ground wires through painted brackets

Another hidden problem is voltage drop. Long wire runs with thin gauge wiring can cause LEDs to receive less power than required.

For example, a set of eight LED rock lights drawing 24 watts combined may still require 16‑gauge wiring depending on cable length.

When the Rock Light Controller Is the Problem

Key Insight: If power reaches the controller but the lights stay off, the controller module is likely failing.

Modern rock light kits often include Bluetooth or RF controllers. While convenient, these modules add another failure point.

Symptoms of controller failure:

1. Lights work intermittently
2. Lights respond only at close range
3. Voltage reaches controller but not output wires
4. App connects but lights stay off

A quick diagnostic trick is to bypass the controller temporarily. Connect the lights directly to fused battery power for testing.

Answer Box

The fastest way to diagnose rock lights that stop working after battery wiring is to verify the ground point, inspect the fuse, and test voltage with a multimeter. Most systems fail due to grounding mistakes or damaged wiring rather than defective LEDs.

Final Safety Checks Before Rewiring

Key Insight: Before rewiring the entire system, confirm that power, ground, and fuse protection are correctly configured.

Rewiring should be the last step, not the first. Many installers replace wiring unnecessarily when the real issue is a single connector or fuse holder.

Final checklist before redoing the install:

1. Battery terminals are tight and corrosion‑free
2. Fuse holder installed within 12 inches of the battery
3. Ground wire attached to bare metal
4. All connectors properly crimped and heat‑shrunk
5. Wires routed away from heat and moving parts

If you're planning to redo the system completely, it helps to plan a clean wiring route and component layout before reinstalling the lights. Organizing the wiring path first prevents most installation mistakes.

Final Summary

1. Most rock light failures come from grounding problems.
2. A multimeter is the fastest troubleshooting tool.
3. Repeated blown fuses usually indicate a wiring short.
4. Controllers can fail even when wiring is correct.
5. Careful routing and grounding prevent most issues.

FAQ

Why are my rock lights wired to battery but not turning on?

Most often the ground connection is poor or the fuse is blown. Verify chassis grounding and check voltage with a multimeter.

Can rock lights be damaged during installation?

Yes, but it is uncommon. Incorrect polarity or short circuits during installation can damage LEDs or the controller.

Why do my rock lights work sometimes but not always?

Intermittent behavior usually indicates a loose connector, weak ground point, or failing controller module.

How do I troubleshoot LED rock lights wiring quickly?

Check the battery connection, inspect the fuse, and measure voltage at each stage of the circuit using a multimeter.

What fuse size should rock lights use?

Most kits use a 5–10 amp fuse depending on total wattage. Always follow the manufacturer’s specification.

Why does my rock light fuse keep blowing?

This usually means a short circuit where the positive wire touches ground or insulation is damaged.

Do rock lights need a relay?

Small LED kits often work without a relay, but larger multi‑light systems benefit from one to protect switches and wiring.

Can a bad ground cause rock lights to flicker?

Yes. Poor grounding increases resistance and causes unstable voltage, leading to flickering or dim lights.
