Rock Lights Wiring: Direct Battery vs Relay Harness: Which wiring method is safer and more reliable for LED rock lights? A practical comparison based on real installation experience.

Direct Answer

Direct battery wiring connects rock lights straight to the vehicle battery through a fuse and switch, while a relay harness uses a relay to control power flow safely from the battery to the lights. For small LED rock light kits, direct wiring can work, but a relay harness is generally the safer and more reliable method, especially when running multiple lights or higher power setups.

Quick Takeaways

1. Direct battery wiring is simpler but puts more electrical load on the switch.
2. A relay harness protects switches and reduces voltage drop in larger lighting setups.
3. Most multi-light rock light kits perform better with a relay system.
4. Proper fusing matters more than the wiring method itself.
5. Off‑road vehicles with multiple accessories should almost always use relays.

Introduction

Rock lights wiring is one of those topics that looks simple until you start installing the system. After helping several off‑road enthusiasts plan garage installs and electrical layouts, I've noticed the same question comes up repeatedly: should rock lights be wired directly to the battery, or should you use a relay harness?

The confusion usually comes from how small LED lights appear. Many people assume the power draw is so low that wiring straight to the battery is fine. In some cases that's true. But in real vehicles—especially rigs with winches, compressors, or auxiliary lighting—the decision has long‑term reliability implications.

When planning electrical layouts inside a workshop or vehicle build space, I often recommend mapping equipment placement visually first. A simple way to do that is to map out wiring routes and equipment zones in a simple 3D layoutso power paths and mounting points are easier to visualize.

In this guide, I'll break down both wiring approaches, where each works best, and the common mistakes that cause electrical issues later.

save pin

What Direct Battery Wiring Means for Rock Lights

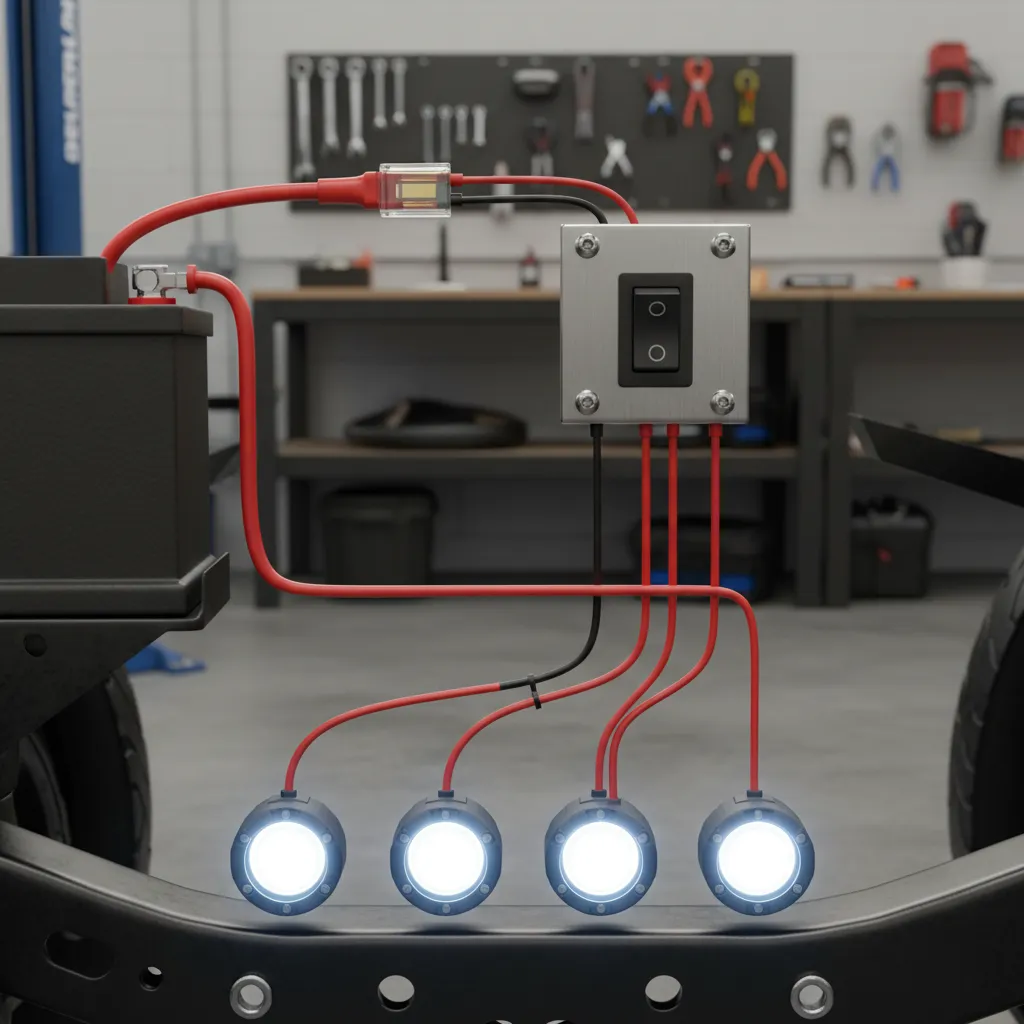

Key Insight: Direct battery wiring sends power from the battery to the lights through a fuse and switch without using a relay.

This method is the simplest possible installation. Power leaves the battery, passes through an inline fuse, then through a dashboard switch before reaching the rock lights.

For small LED rock light kits—especially 4‑pod setups drawing under 3–4 amps total—this setup can work reliably if installed correctly.

Typical Direct Wiring Setup

1. Battery positive terminal
2. Inline fuse holder
3. Dashboard or toggle switch
4. Power wire to rock lights
5. Ground connection to chassis

Where installers often go wrong

1. Using undersized wire
2. Skipping the fuse entirely
3. Running too many lights through a small switch
4. Poor chassis grounding

In many budget kits, manufacturers assume users will wire lights this way because it reduces cost and installation complexity.

How Relay Harness Systems Work

Key Insight: A relay harness allows a small switch to control a high‑current circuit safely without sending full power through the switch.

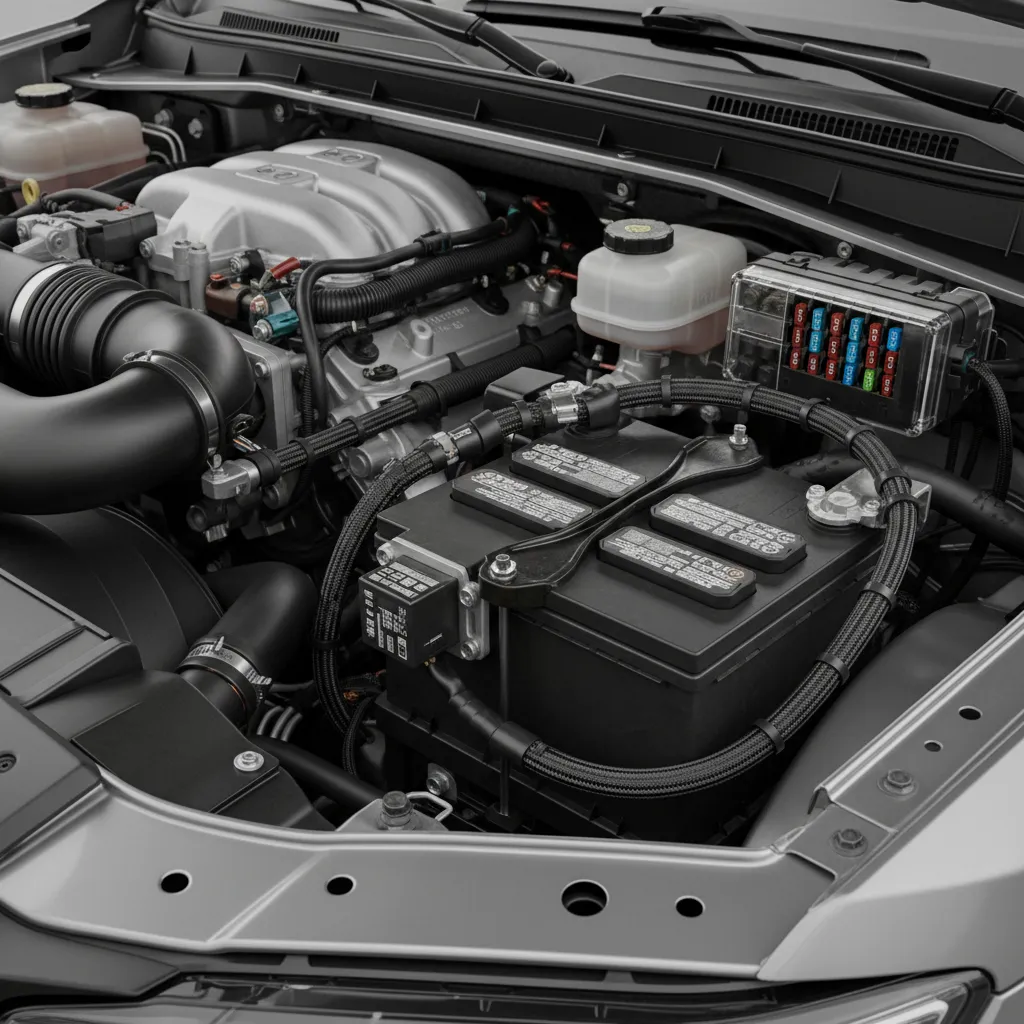

A relay is essentially an electrically controlled switch. The dashboard switch activates the relay, and the relay then allows battery power to flow directly to the rock lights.

This design dramatically reduces the electrical load on interior switches.

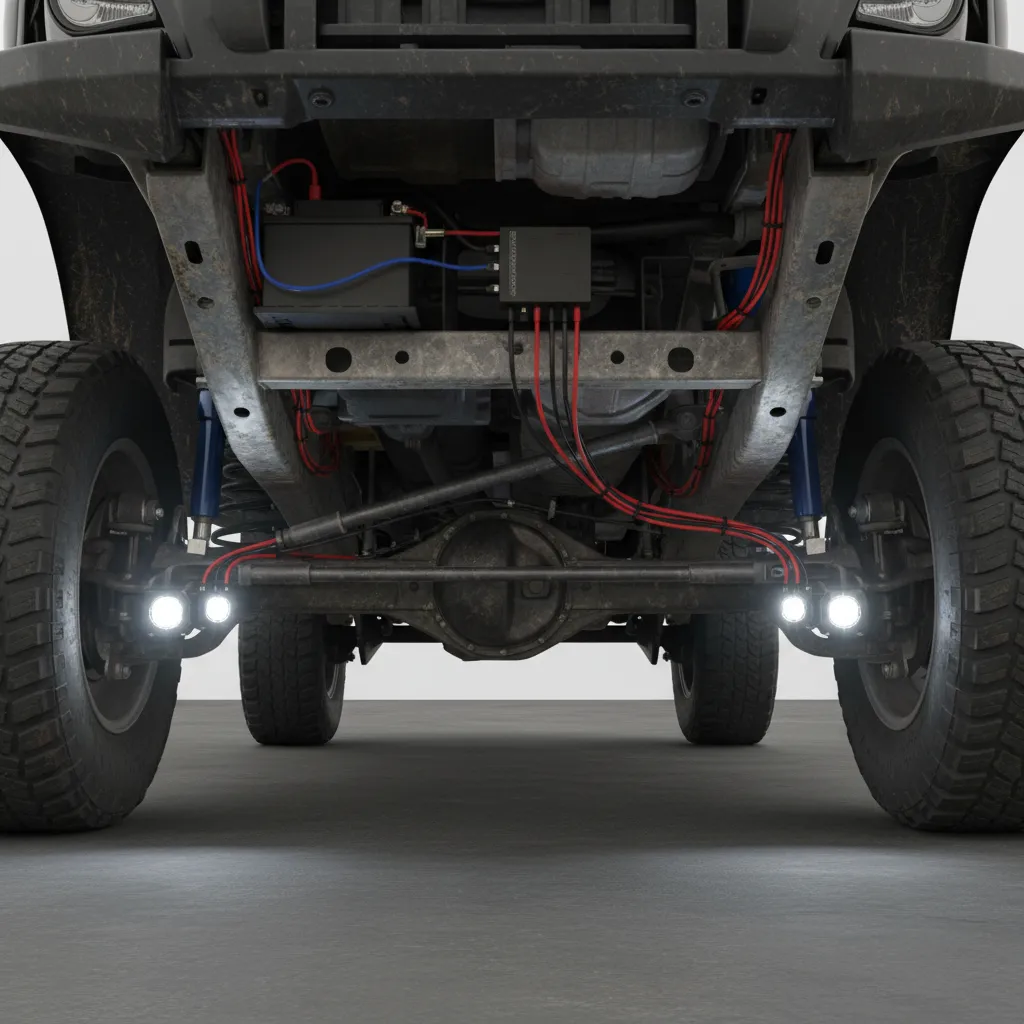

Basic Relay Harness Components

1. Battery connection with fuse
2. Automotive relay
3. Low‑current trigger wire to switch
4. High‑current wire to lights
5. Ground wires

Why off‑road builders prefer relays

1. Higher current capacity
2. Reduced voltage drop
3. Safer wiring for large light kits
4. Switch longevity

When organizing complex vehicle builds—especially with lighting, compressors, and power systems—it helps to plan equipment placement and electrical access inside the workspacebefore installation begins.

save pin

Pros and Cons of Each Wiring Method

Key Insight: Direct wiring is easier, but relay harness systems scale much better as electrical loads increase.

Direct Battery Wiring Advantages

1. Simple installation
2. Lower cost
3. Fewer components
4. Good for small LED kits

Direct Battery Wiring Drawbacks

1. Switch handles full current
2. Higher risk of overheating
3. Not ideal for large lighting setups
4. Harder to expand later

Relay Harness Advantages

1. Handles higher loads safely
2. Protects dashboard switches
3. Better voltage stability
4. Easier to expand lighting systems

Relay Harness Drawbacks

1. More wiring complexity
2. Slightly higher cost
3. Requires mounting space for relay

In real off‑road builds, the biggest hidden mistake is assuming today's lighting setup is permanent. Many people add ditch lights, underglow, or light bars later, which quickly overloads direct wiring systems.

save pin

When Direct Battery Wiring Is Enough

Key Insight: Direct wiring is acceptable when total current draw is low and the system is unlikely to expand.

In smaller setups, simplicity can actually improve reliability. Fewer components mean fewer potential failure points.

Direct wiring usually works well when:

1. You have 4–6 low‑power LED rock lights
2. Total current draw is under 5 amps
3. A quality fused harness is installed
4. The switch is rated for the load

Typical example setup

1. Small Jeep rock light kit
2. Single waterproof toggle switch
3. Inline fuse near battery

The key is calculating the actual load. Many modern LED pods draw less than 1 watt per diode, which keeps total current surprisingly low.

Answer Box

For most off‑road vehicles, a relay harness is the safest and most future‑proof wiring method for rock lights. Direct battery wiring can work for small LED kits, but relays provide better electrical protection and scalability.

When a Relay Harness Is the Better Choice

Key Insight: Relay systems become essential once lighting setups grow beyond small basic kits.

If you're installing 8–12 rock lights, RGB controllers, or planning future lighting upgrades, a relay harness is the safer architecture.

Situations where relays are strongly recommended

1. More than 6 rock lights
2. RGB or Bluetooth lighting controllers
3. Multiple accessory lighting systems
4. Vehicles used for frequent night off‑roading

In my experience reviewing dozens of vehicle builds, the most common failure point isn't the lights—it's overheated switches caused by direct wiring.

save pin

Safety and Electrical Load Considerations

Key Insight: Proper fuse sizing and wire gauge matter more than the wiring method itself.

Even the best relay harness won't protect a system if wire gauge and fuse sizing are incorrect.

Basic electrical safety checklist

1. Install fuse within 12 inches of the battery
2. Use automotive‑grade wiring
3. Match fuse size to total current draw
4. Ensure solid chassis grounding
5. Protect wires from heat and abrasion

For DIY installers setting up a workspace or planning electrical projects, it's often useful to sketch a simple garage layout before installing equipment and wiring so cable routes and mounting areas are clear.

Final Summary

1. Direct battery wiring is simple but best for small rock light setups.
2. Relay harness systems improve safety and electrical reliability.
3. Switch overload is the most common failure in direct wiring.
4. Future upgrades strongly favor relay‑based wiring.
5. Proper fuse sizing is critical regardless of wiring method.

FAQ

Do rock lights need a relay?

Not always. Small LED rock light kits can run without a relay, but larger setups benefit from relay protection.

Is direct battery wiring safe for rock lights?

Yes, if a fuse is installed and total current draw is low. Safety depends more on fuse protection and wire size.

What is the best wiring method for rock lights?

Most installers prefer relay harness systems because they reduce switch load and improve reliability.

How many amps do rock lights use?

Most LED rock lights draw between 0.2 and 0.8 amps per pod depending on brightness and color controller.

Can I add more lights later if wired directly?

Possibly, but the switch and wiring may become overloaded. Relay systems handle expansion better.

Where should the fuse be placed?

Always place the fuse within 12 inches of the battery connection.

Are relay harness kits universal?

Most automotive relay harnesses work with LED rock lights if the current rating matches the system load.

Does relay wiring improve brightness?

Sometimes. Relays can reduce voltage drop, allowing lights to receive closer to full battery voltage.
