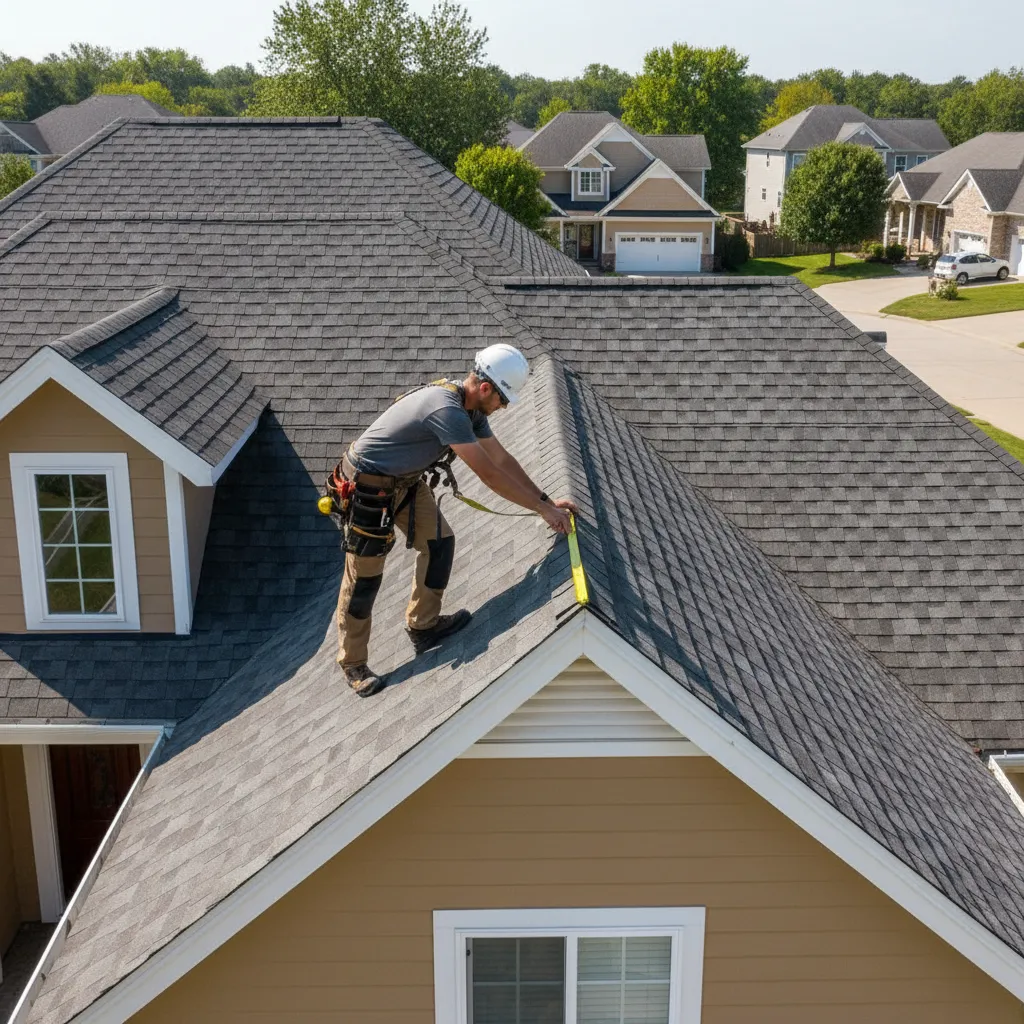

Roof Measurement Guide for Accurate Metal Panel Estimates: Learn how to measure a roof correctly so you can estimate metal roofing panels with confidence and avoid costly ordering mistakes.

Direct Answer

To measure a roof for metal panels, calculate the total roof area by measuring each roof section's length and width, then adjust for pitch using a slope multiplier. Break complex roofs into simple rectangles or triangles, measure each section separately, and add the totals. Accurate roof measurement prevents panel shortages, excess material, and costly installation delays.

Quick Takeaways

1. Measure each roof section separately instead of estimating the entire roof at once.
2. Always adjust flat measurements with a pitch multiplier for accurate metal roofing area.
3. Complex roofs require section-by-section measurements and separate calculations.
4. Ordering errors often come from ignoring roof slope and overlap requirements.
5. Precise measurements reduce waste and improve installation efficiency.

Introduction

After working with contractors and homeowners on renovation projects for more than a decade, I've noticed the same issue repeatedly: people try to calculate metal roofing materials before they actually understand how to measure the roof properly. That’s a problem. If your roof measurement is wrong, every panel estimate that follows will also be wrong.

Learning how to measure a roof for metal panels is the foundation of any successful roofing project. A small measurement mistake can easily translate into dozens of extra panels or—worse—not having enough materials when installation starts.

In design planning, I often visualize the roof layout digitally before doing any calculations. Tools used for mapping roof sections with a digital floor planning layoutmake it much easier to understand how different roof areas connect before measuring them physically.

In this guide, I’ll walk through the exact process professionals use to measure roof sections, account for slope, and turn raw measurements into accurate metal panel estimates.

save pin

Why Accurate Roof Measurement Matters for Metal Panels

Key Insight: Metal roofing panels must align precisely with roof dimensions, so inaccurate measurements directly lead to material waste or installation delays.

Unlike asphalt shingles, metal panels are manufactured in fixed widths and often cut to custom lengths. If measurements are off—even slightly—you can end up with panels that don’t fit properly across the roof deck.

From a project management perspective, measurement errors create three common problems:

1. Ordering too few panels, which halts installation
2. Overordering materials that cannot be returned
3. Poor panel alignment that affects weatherproofing

The Metal Construction Association frequently emphasizes accurate measurement as one of the most critical early steps in metal roofing installation planning.

Hidden issue many guides skip: beginners usually measure roof edges from the ground and forget about ridge lines, valleys, and pitch adjustments. That’s where the biggest estimation errors happen.

Tools Needed to Measure a Roof Safely

Key Insight: The right tools improve measurement accuracy and reduce the risk of mistakes or accidents during roof measurement.

You don't need specialized surveying equipment, but relying on rough estimates or visual guesses is where most DIY measurements fail.

Basic tools professionals use include:

1. Tape measure (at least 25–50 ft)
2. Laser distance measurer
3. Roof pitch gauge or smartphone pitch app
4. Ladder stabilizer
5. Notebook or digital layout planner
6. Chalk or marking tape

Many contractors now sketch roof layouts digitally before taking final measurements. I’ve seen teams create quick structural layouts similar to how designers build spatial plans using a visual 3D layout tool for mapping structural dimensions. The visual context helps prevent missed sections during measurement.

save pin

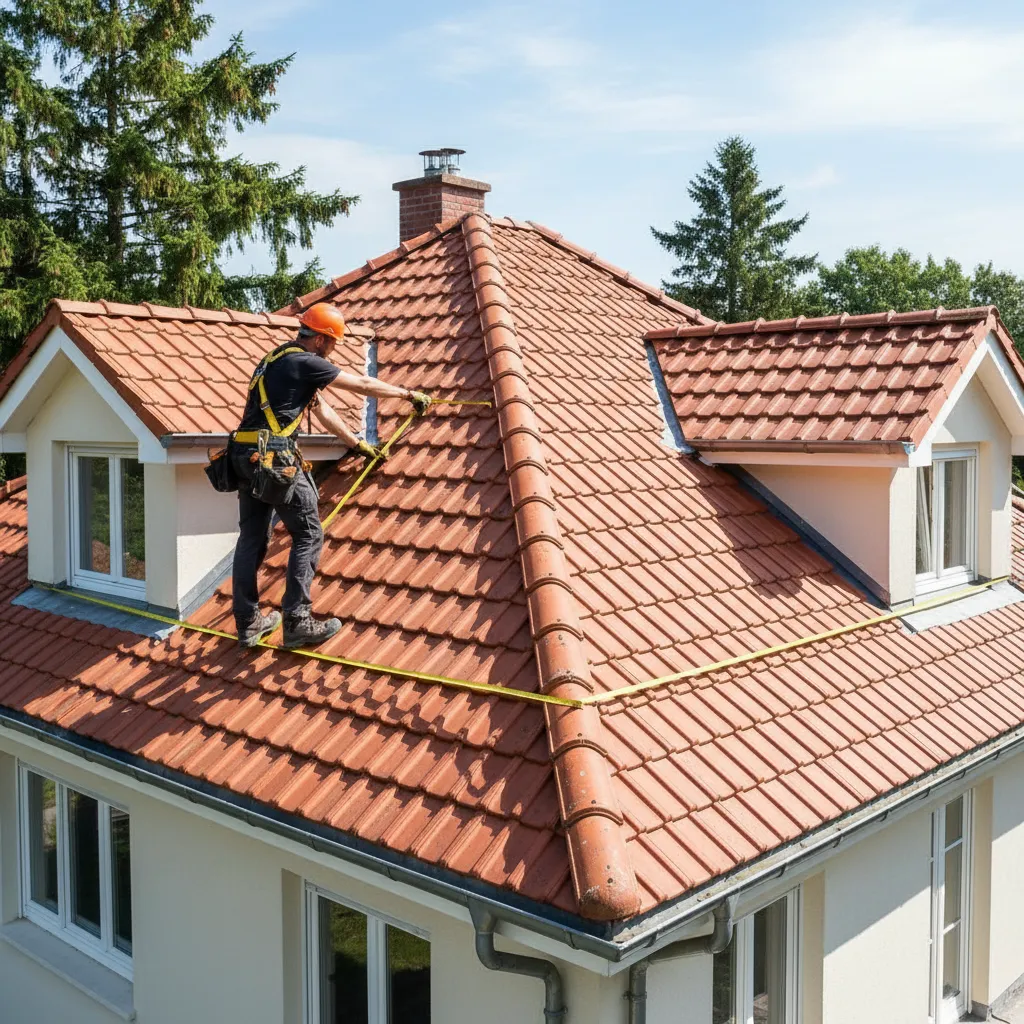

How to Measure Roof Length and Width

Key Insight: Measure roof sections individually instead of trying to measure the entire roof footprint at once.

Most roofs are combinations of simple geometric shapes. Breaking them into sections makes the process much more accurate.

Step‑by‑step measurement process:

1. Sketch a top-down diagram of the roof.
2. Divide the roof into rectangles, squares, or triangles.
3. Measure ridge length and eave length.
4. Measure rafter length from ridge to eave.
5. Record measurements for each section separately.

Example:

1. Section A: 30 ft × 15 ft
2. Section B: 20 ft × 12 ft

Total flat roof area = (30×15) + (20×12)

However, this is only the starting point. The actual roof surface area must account for pitch.

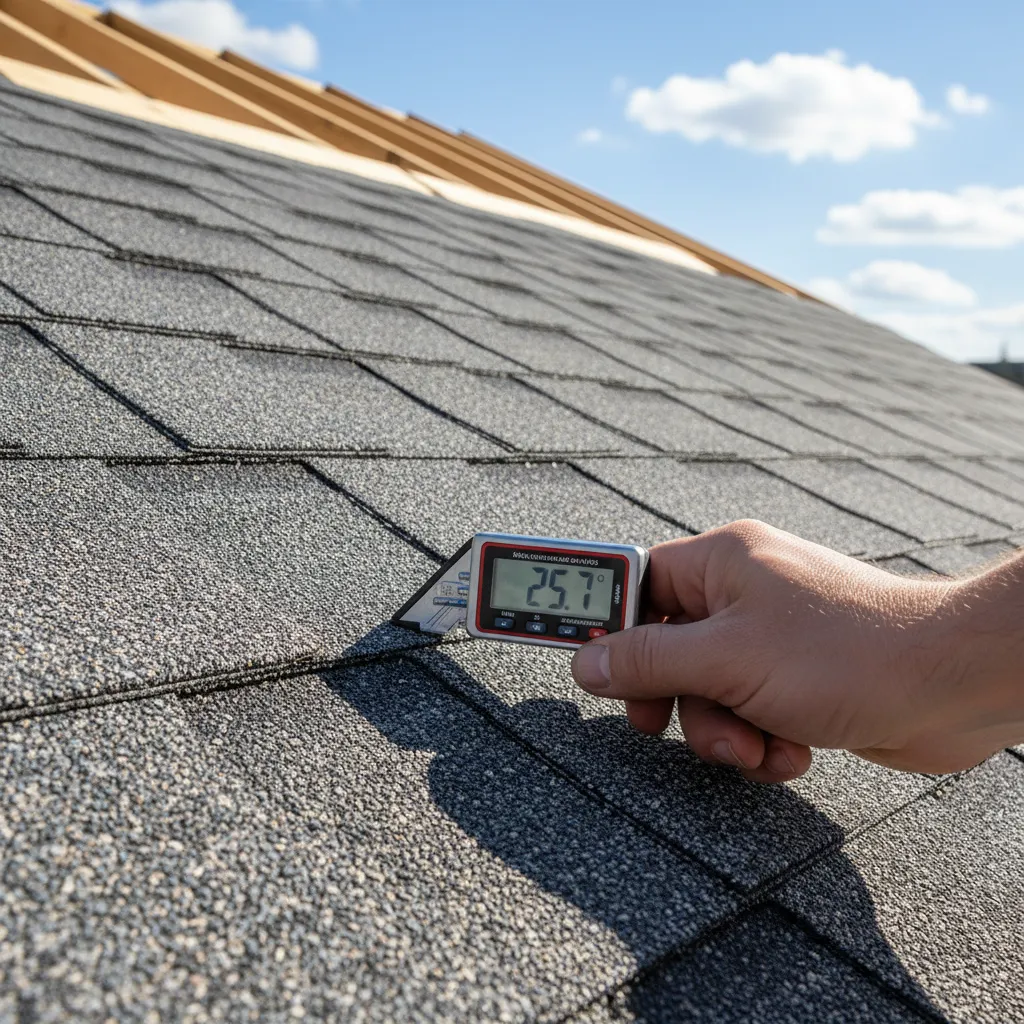

Adjusting Measurements for Roof Pitch and Slope

Key Insight: Flat measurements underestimate roofing area unless they are multiplied by a slope factor.

A roof with a steep pitch has more surface area than its footprint suggests. That’s why professional estimators apply a pitch multiplier.

Common pitch multipliers:

1. 4/12 pitch → multiplier 1.054
2. 6/12 pitch → multiplier 1.118
3. 8/12 pitch → multiplier 1.202
4. 10/12 pitch → multiplier 1.302

Example calculation:

1. Flat area: 1,200 sq ft
2. Pitch: 6/12
3. Adjusted area: 1,200 × 1.118 = 1,341.6 sq ft

This corrected area is the number used when estimating metal roofing panels.

save pin

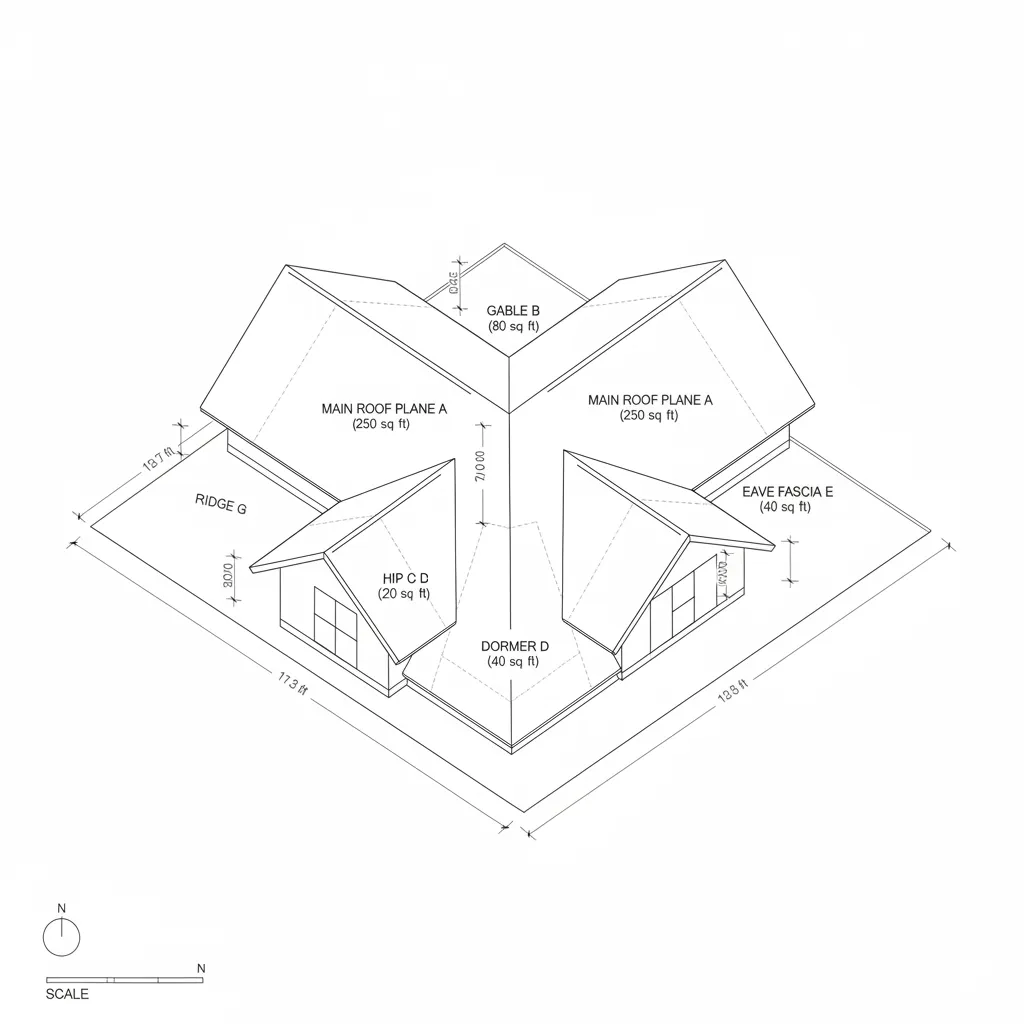

Measuring Complex Roof Shapes and Sections

Key Insight: Complex roofs must be measured section by section; treating them as a single shape leads to large estimation errors.

Roofs with dormers, hips, valleys, and intersecting ridges require more detailed measurement planning.

Recommended approach:

1. Measure main roof sections first.
2. Measure dormers and extensions separately.
3. Include valley lengths and ridge lengths.
4. Add a small waste margin for panel trimming.

Hidden mistake I see frequently:people forget to include overhangs and eaves in measurements. Metal panels usually extend beyond the wall line, so ignoring this detail leads to panels that are too short.

save pin

Turning Roof Measurements Into Panel Quantity Estimates

Key Insight: Once roof area is calculated, divide the area by panel coverage width to estimate the total number of metal panels required.

Metal panels typically cover between 24 and 36 inches in width depending on the profile.

Basic estimation formula:

1. Total roof area ÷ panel coverage area

Example:

1. Roof area: 1,340 sq ft
2. Panel coverage: 3 ft × 12 ft (36 sq ft)
3. Estimated panels: 1,340 ÷ 36 ≈ 37 panels

For installation efficiency, many contractors also create a visual layout before ordering materials. Planning roof sections similarly to how designers generate realistic home structure previews before construction helps identify tricky areas like valleys and ridge transitions.

Answer Box

The most accurate way to measure a roof for metal panels is to measure each roof section individually, adjust for slope using a pitch multiplier, and calculate total surface area before estimating panels. Skipping the slope adjustment is the most common measurement mistake.

Final Summary

1. Measure roofs by sections rather than estimating the entire structure.
2. Always apply a pitch multiplier to flat roof measurements.
3. Include overhangs, valleys, and dormers in calculations.
4. Accurate roof measurements reduce metal panel waste.
5. Visual layout planning helps prevent measurement gaps.

FAQ

How do you measure a roof for metal panels?

Measure each roof section’s length and width, calculate area, and multiply by a pitch factor to account for slope.

What is the easiest way to calculate roof area for metal roofing?

Divide the roof into rectangles and triangles, calculate each section, then add them together and adjust for pitch.

How accurate do roof measurements need to be?

Measurements should be within a few inches. Small errors can significantly affect panel counts.

Do you measure roof slope when estimating metal panels?

Yes. Roof slope increases the actual surface area and must be included when calculating metal roofing material.

Can I measure a roof from the ground?

You can estimate from the ground, but direct roof measurements or building plans are far more accurate.

How do contractors measure complex roofs?

They divide the roof into multiple sections and measure each ridge, valley, and slope separately.

How much extra material should be added?

Most professionals add 5–10% extra for waste, trimming, and installation adjustments.

Why is roof measurement important for metal roofing?

Because metal panels are fixed-width materials, accurate roof measurement ensures correct panel ordering and installation.

References

1. Metal Construction Association – Metal Roofing Installation Guidelines
2. National Roofing Contractors Association – Roof Measurement Standards
3. U.S. Department of Energy – Cool Roof and Metal Roofing Resources
