Roof Plan Drainage and Slope Optimization Techniques: Practical strategies architects use to improve roof pitch, drainage paths, and long‑term roof durability

Direct Answer

Roof plan drainage and slope optimization ensures rainwater flows quickly and safely off the roof without pooling, structural stress, or leakage. By calculating the correct roof pitch, planning drainage paths, and coordinating ridges and valleys, designers can dramatically extend roof lifespan and reduce maintenance issues.

Well‑optimized roof plans combine geometry, drainage planning, and simulation tools to prevent water accumulation before construction even begins.

Quick Takeaways

1. Proper roof slope prevents water pooling and reduces long‑term structural damage.
2. Roof pitch must balance climate, material performance, and drainage path efficiency.
3. Valleys and ridges should guide water intentionally toward controlled drainage points.
4. Digital planning tools help detect drainage problems before construction begins.
5. Poor roof drainage design is one of the most common causes of premature roof failure.

Introduction

In more than a decade of residential design projects, I've noticed that roof problems rarely come from materials alone. Most failures actually begin in the roof plan itself—especially when slope and drainage paths aren't carefully considered.

Homeowners usually focus on aesthetics: roof style, materials, or color. But architects and experienced designers know the real performance story happens in the geometry. If the slope is too shallow, water lingers. If drainage paths aren't clear, water collects at valleys. Over time, even premium roofing systems start leaking.

Modern planning tools now make it much easier to visualize these risks early. When designers build detailed layouts using tools that allow you to create precise architectural layouts before construction, drainage paths and roof pitch relationships become much easier to evaluate.

In this guide, I'll walk through the practical techniques architects use to optimize roof slope, improve drainage flow, and design roof plans that perform well for decades—not just look good in drawings.

save pin

Why Roof Slope and Drainage Matter in Roof Plans

Key Insight: A roof's ability to shed water efficiently depends more on slope geometry and drainage design than on roofing materials.

Many homeowners assume leaks happen because shingles fail. In reality, poor water movement is usually the root cause.

Flat or poorly sloped roofs allow water to sit longer than intended. That standing water accelerates:

1. Membrane deterioration
2. Freeze‑thaw damage
3. Structural load stress
4. Mold and insulation degradation

The International Building Code (IBC) generally recommends a minimum slope of 1/4 inch per foot for low‑slope roofing systems, specifically to prevent water ponding.

In real projects, I often see drainage failures caused by three hidden mistakes:

1. Valleys that trap water instead of directing it
2. Drain points placed too far from low points
3. Inconsistent roof pitch across intersecting roof planes

These issues rarely appear obvious in simple 2D drawings—but they become clear when modeled properly.

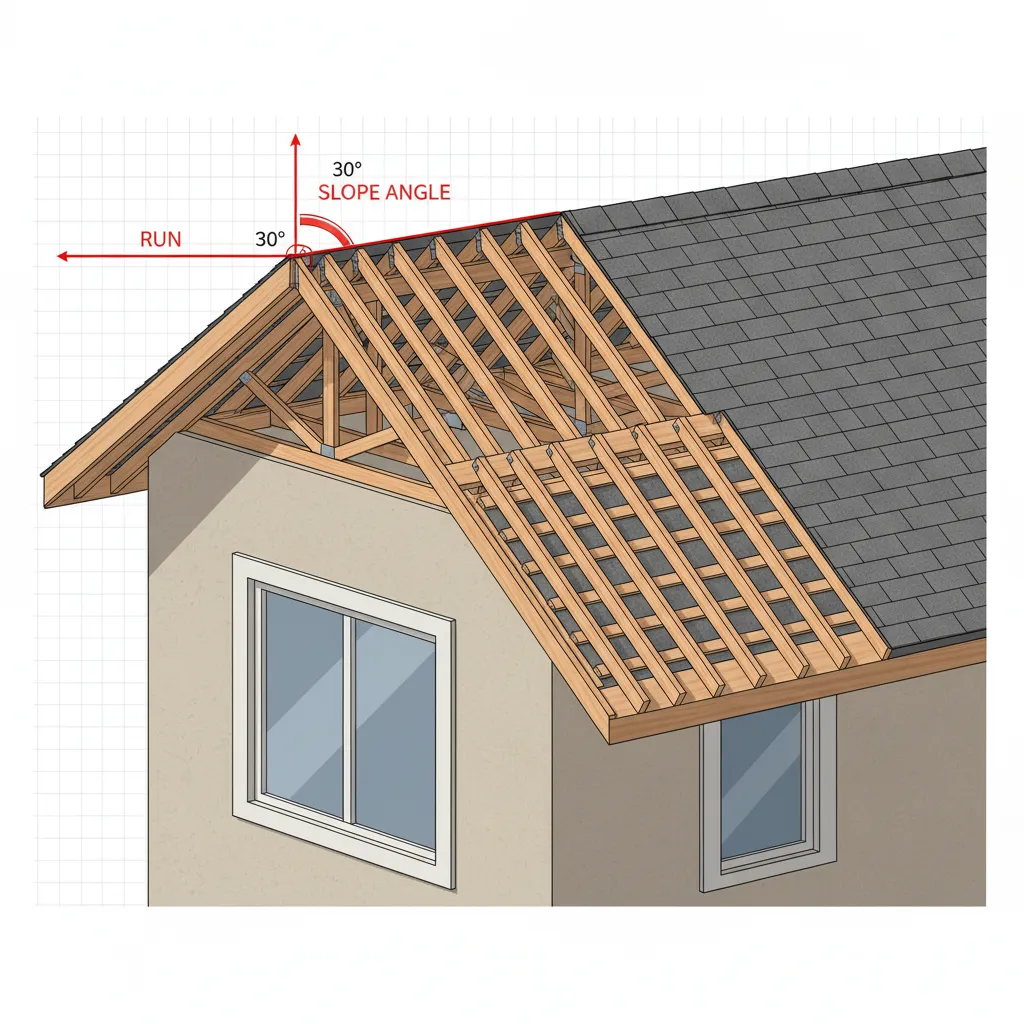

Calculating Optimal Roof Pitch

Key Insight: The optimal roof pitch depends on climate conditions, roofing material performance, and drainage efficiency—not aesthetics alone.

Roof pitch is usually expressed as a ratio (rise over run). For example, a 6:12 roof rises six inches for every twelve inches of horizontal run.

Different roof types perform best at different slopes:

1. Low‑slope roofs: 1:12 to 3:12
2. Standard residential roofs: 4:12 to 9:12
3. Steep roofs: 10:12 and above

However, pitch selection should always consider local climate.

Example considerations:

1. Snow‑heavy climates require steeper slopes to shed snow loads.
2. Rain‑heavy regions benefit from faster water runoff.
3. Wind‑exposed areas may need lower profiles for stability.

The National Roofing Contractors Association emphasizes that improper slope selection is one of the leading causes of premature roofing failure in residential construction.

save pin

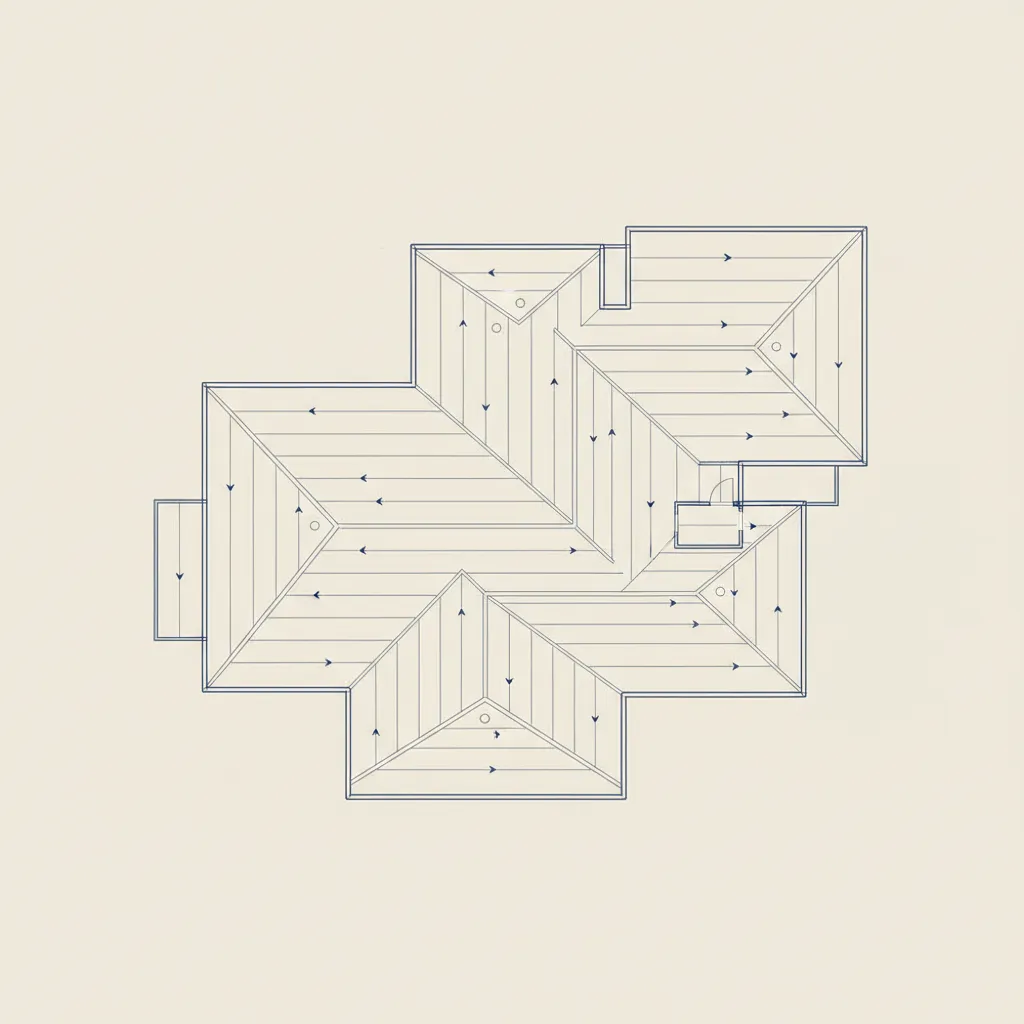

Designing Effective Drainage Paths

Key Insight: Every roof plane should intentionally guide water toward defined drainage points—never rely on natural flow alone.

Professional roof plans treat drainage like a system rather than an afterthought.

Effective drainage layout typically includes:

1. Primary drainage paths following slope direction
2. Secondary overflow drainage routes
3. Strategically placed gutters or scuppers
4. Downspout alignment with structural framing

When designers want to visualize these paths more clearly, they often model roof geometry using platforms that help visualize architectural layouts in three‑dimensional space. Seeing the slopes in 3D quickly reveals whether water naturally reaches drains or gets trapped.

A useful rule I apply in projects:

1. Every roof section should drain within 40 feet of travel distance.

Beyond that distance, water velocity drops and pooling risk increases.

Valleys, Ridges, and Water Flow Management

Key Insight: Roof intersections control most of the water flow on complex roofs, making valleys the highest‑risk drainage zones.

In multi‑plane roofs, valleys concentrate water from multiple roof surfaces.

If valley angles are shallow or misaligned, water flow slows dramatically.

Designers should focus on three critical elements:

1. Valley slope — must maintain consistent pitch to avoid water traps.
2. Ridge height coordination — prevents uneven drainage distribution.
3. Valley flashing width — accommodates concentrated runoff.

A mistake I frequently see in residential plans is aesthetic roof complexity: multiple intersecting planes that look impressive but create chaotic water flow patterns.

Simpler roof geometries almost always perform better in long‑term durability.

Answer Box

The most effective roof drainage design combines correct slope, clear water paths, and properly aligned valleys and ridges. When these elements work together, roofs shed water quickly and avoid the pooling that causes most long‑term roofing failures.

save pin

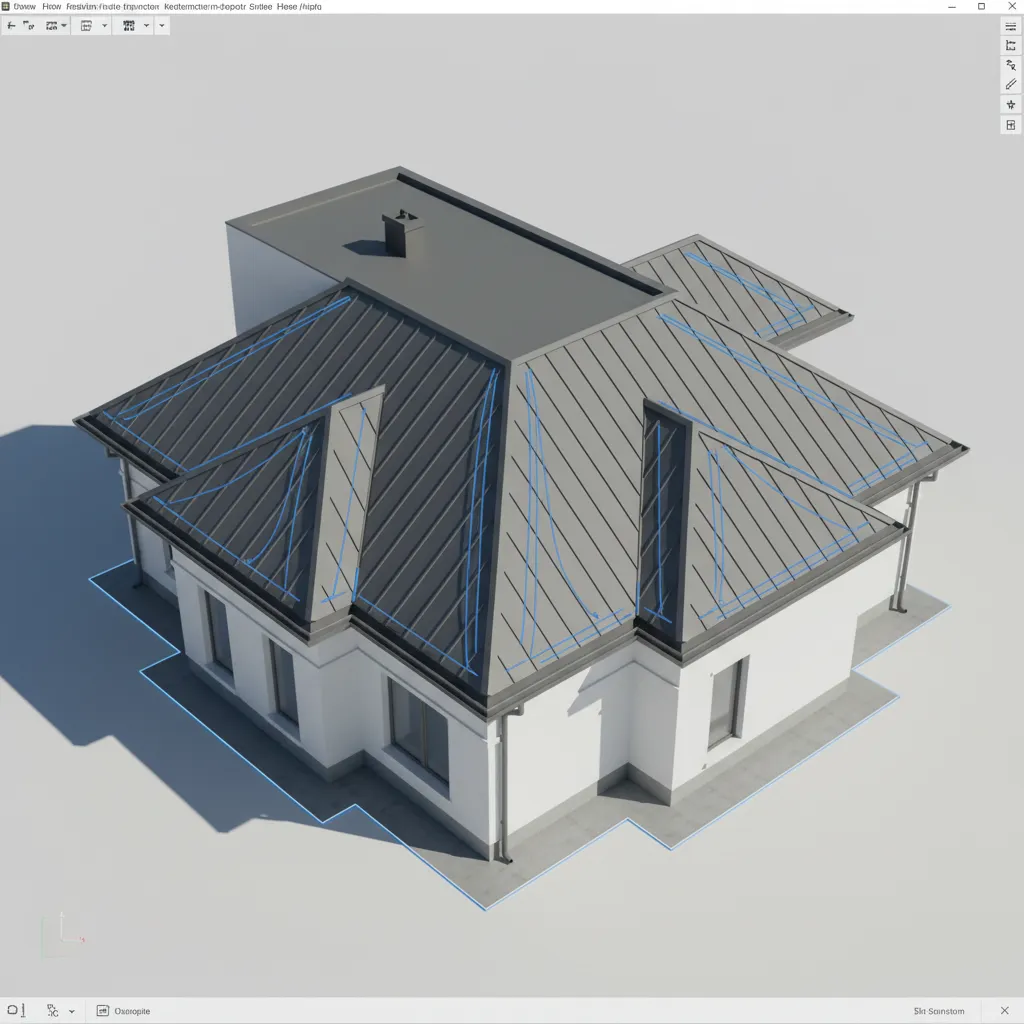

Tools for Simulating Roof Drainage Performance

Key Insight: Digital modeling tools allow designers to detect drainage problems before construction begins.

In earlier decades, architects relied mainly on experience and section drawings to predict water flow. Today, simulation tools make roof planning far more precise.

Modern design platforms can help evaluate:

1. Slope gradients
2. Drainage direction
3. Roof intersection behavior
4. Water collection points

Some designers also integrate drainage evaluation while planning overall layouts with systems that allow them to generate layout concepts and spatial planning quickly, then refine roof geometry afterward.

This workflow shortens design cycles while reducing the risk of hidden drainage flaws.

save pin

Best Practices for Long-Term Roof Durability

Key Insight: Roof durability depends on how well slope design, drainage systems, and structural layout work together.

After working on dozens of residential and renovation projects, these practices consistently produce the best long‑term results:

1. Keep roof geometry as simple as possible.
2. Maintain consistent slope across connected planes.
3. Limit valley intersections when possible.
4. Ensure drainage points sit at the lowest geometric locations.
5. Use overflow drains for flat or low‑slope systems.

One overlooked factor is maintenance access. Even well‑designed roofs fail when drains become clogged and homeowners cannot safely access them.

Designing accessible drainage points can dramatically reduce long‑term repair costs.

Final Summary

1. Proper roof slope is the foundation of effective roof drainage.
2. Valleys and ridges control most water flow on complex roofs.
3. Drainage paths should be intentionally designed, not assumed.
4. Digital modeling helps detect drainage risks early.
5. Simpler roof geometry usually leads to better long‑term performance.

FAQ

What is the ideal roof slope for drainage?

Most residential roofs perform well between 4:12 and 9:12 slopes. Low‑slope roofs require specialized drainage systems to prevent standing water.

How do you design roof drainage in roof plans?

Roof drainage design in roof plans involves aligning slopes, valleys, gutters, and downspouts so water flows naturally toward controlled drainage points.

Can a flat roof drain properly?

Yes, but flat roofs require subtle slopes (usually 1/4 inch per foot) and carefully positioned drains to avoid water pooling.

Why do roof valleys leak more often?

Valleys collect water from multiple roof planes. High water concentration increases stress on flashing and waterproofing layers.

What causes water pooling on roofs?

Common causes include insufficient roof slope, poor drainage layout, clogged drains, or structural sagging.

How do architects calculate roof pitch?

Roof pitch is calculated by measuring the vertical rise over a 12‑inch horizontal run. For example, a 6:12 roof rises six inches per foot.

What tools help with roof slope optimization techniques?

3D architectural modeling tools allow designers to analyze slope angles and drainage paths before construction begins.

How can you optimize roof slope for water runoff?

To optimize roof slope for water runoff, maintain consistent pitch, minimize intersections, and direct water toward valleys and drains.

References

1. International Building Code (IBC) Roof Drainage Guidelines
2. National Roofing Contractors Association Technical Resources
3. Building Science Corporation – Roof Design Principles
