Roof Plan Requirements in Different Construction Industries: How residential, commercial, and industrial roof plans differ in codes, layout strategy, and documentation standards

Direct Answer

Roof plan requirements vary significantly across residential, commercial, and industrial construction because each building type faces different structural loads, drainage needs, safety codes, and mechanical integration demands. Residential roof plans focus on slope, framing clarity, and material transitions, while commercial and industrial roof plans must document drainage systems, equipment zones, and maintenance access paths.

Quick Takeaways

1. Residential roof plans prioritize slopes, ridge lines, and structural framing clarity.
2. Commercial roofs must document drainage systems, HVAC zones, and safety access paths.
3. Industrial roof layouts often include heavy mechanical loads and structural reinforcement planning.
4. Building codes dictate drainage slopes, parapet heights, and fire safety separation.
5. Clear roofing documentation reduces contractor errors and costly construction delays.

Introduction

After more than a decade working on residential remodels, office interiors, and large commercial projects, I’ve noticed something that surprises many clients: a roof plan is never a one-size-fits-all drawing. The roof plan requirements that work perfectly for a house can fail completely in a commercial or industrial building.

In residential projects, roof plans are usually about slope direction, ridge lines, and how the structure handles rainwater. But in commercial buildings, the roof becomes a functional platform for HVAC systems, drainage networks, and maintenance circulation. Industrial roofs go even further—they often carry heavy equipment, large-span structures, and strict safety regulations.

One of the easiest ways to understand these differences is to visualize a complete roof layout before drafting construction drawings. Seeing roof slopes, equipment zones, and drainage paths in 3D prevents many of the mistakes I frequently see in early-stage documentation.

This guide breaks down how roof plan standards differ across industries, the building codes that influence them, and the documentation contractors expect before construction begins.

save pin

Why Roof Plan Requirements Differ by Industry

Key Insight: Roof plan complexity increases as buildings shift from residential to commercial and industrial uses because roofs evolve from simple weather protection into functional infrastructure.

Residential roofs primarily manage weather protection and structural loads. Commercial and industrial roofs, however, must support mechanical systems, drainage infrastructure, safety equipment, and maintenance access.

Across many projects I've worked on, the biggest difference is how much coordination the roof requires with other systems. A home roof plan rarely needs coordination with mechanical engineers. A hospital or factory roof absolutely does.

Key Differences by Industry

1. Residential: Focus on slopes, valleys, ridges, and roofing materials.
2. Commercial: Requires drainage mapping, rooftop equipment layout, and access planning.
3. Industrial: Includes structural load zones, ventilation infrastructure, and safety clearances.

Hidden Issue Many Plans Miss

1. Maintenance pathways for rooftop equipment
2. Overflow drainage systems
3. Future equipment expansion space

These details are rarely emphasized in early architectural drawings, yet they are the first things contractors ask about.

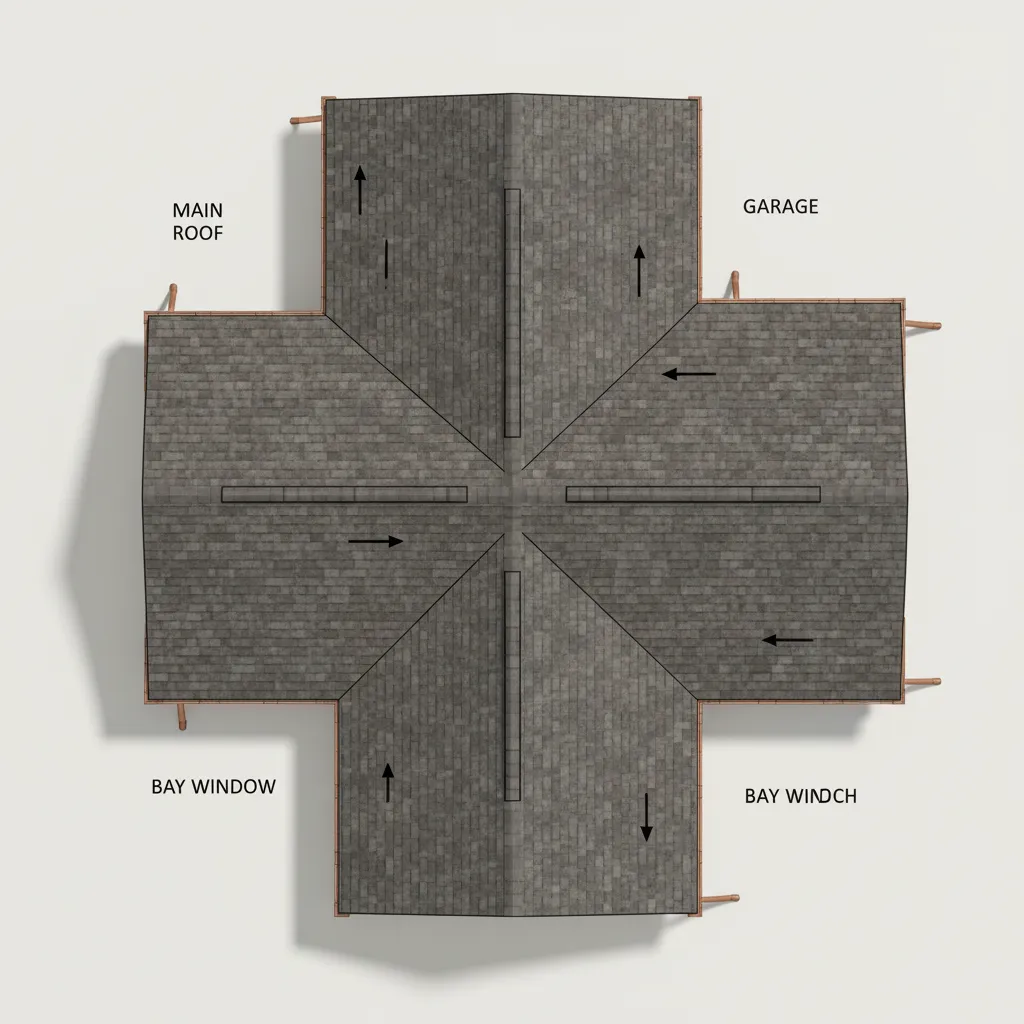

Residential Roof Plan Standards

Key Insight: Residential roof plans prioritize structural clarity and drainage direction rather than equipment coordination.

Most houses use pitched roofing systems such as gable, hip, or shed roofs. Because of this, the primary goal of the roof plan is to communicate slope direction and structural framing relationships.

Typical Elements in Residential Roof Plans

1. Ridge lines and valley locations
2. Roof pitch or slope ratios
3. Eave and overhang dimensions
4. Roof material transitions
5. Drainage directions and gutter placement

One mistake I see frequently in residential drawings is incomplete drainage notation. Even sloped roofs can cause water pooling when valleys meet incorrectly.

Common Residential Roofing Systems

1. Asphalt shingle roofs
2. Metal standing seam roofs
3. Clay or concrete tile roofs
4. Composite roofing systems

According to the International Residential Code (IRC), roof slopes, load resistance, and ventilation must be clearly documented in residential drawings.

save pin

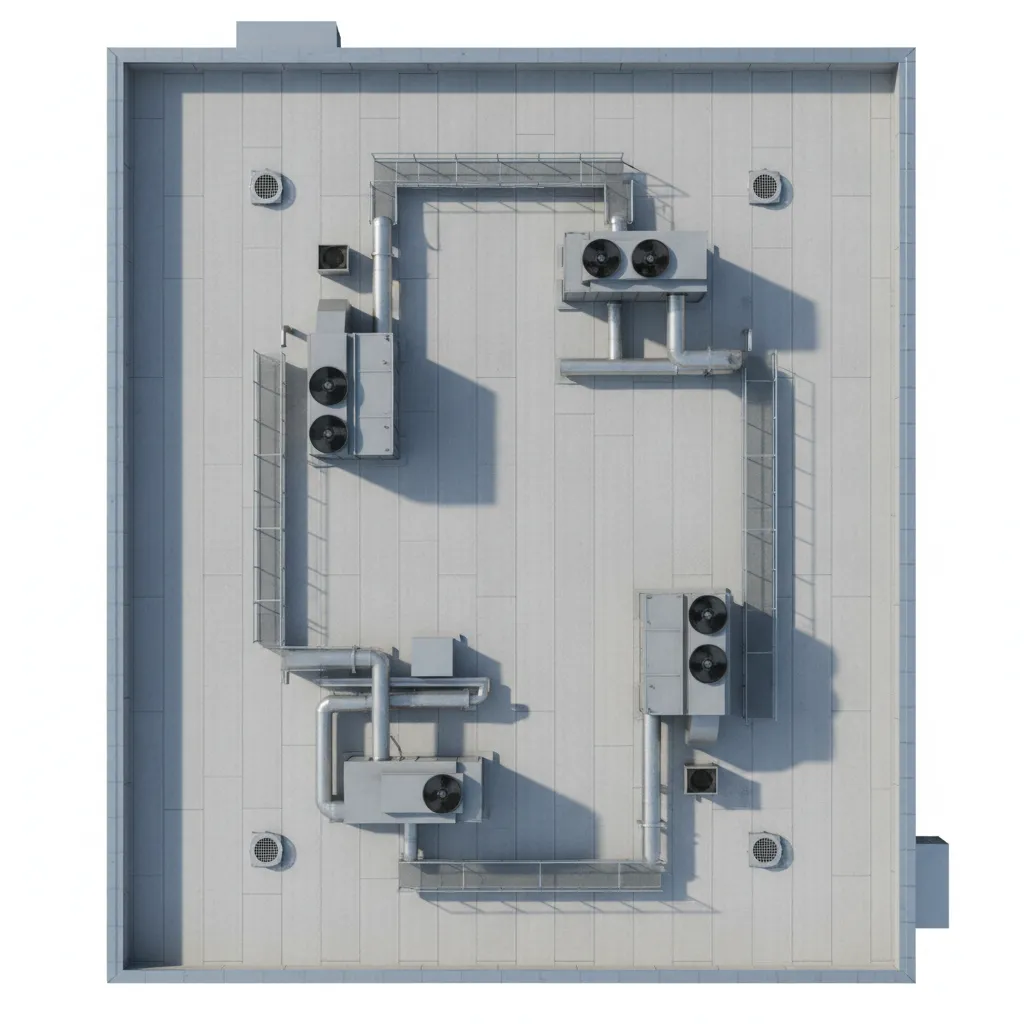

Commercial Building Roof Plan Considerations

Key Insight: Commercial roof plans must coordinate mechanical systems, drainage networks, and safe maintenance access.

Unlike houses, most commercial buildings use low-slope or flat roofing systems. This makes drainage design far more critical because water does not naturally run off as easily.

Essential Components in Commercial Roof Plans

1. Primary and secondary roof drains
2. HVAC equipment zones
3. Parapet wall heights
4. Roof access points and ladders
5. Maintenance walkways

A common design oversight is failing to plan equipment clearances. Mechanical contractors often require specific service zones around rooftop units, which must be included in the roof plan.

Designers increasingly rely on digital modeling to simulate these layouts. Many teams now build early-stage construction layouts using interactive floor plan tools so drainage slopes and equipment placement can be tested before documentation is finalized.

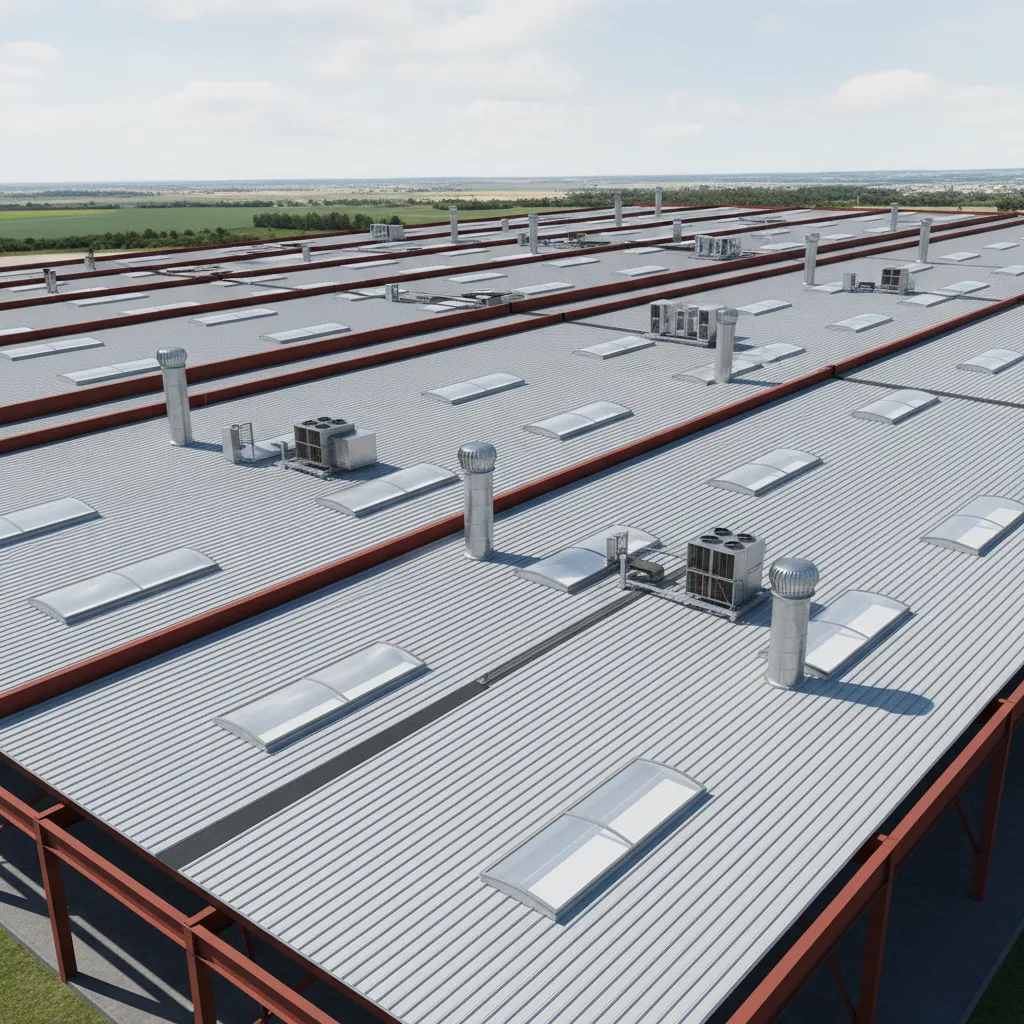

Industrial Facility Roofing Layouts

Key Insight: Industrial roof plans must support large structural spans, heavy equipment loads, and complex ventilation systems.

Industrial facilities such as factories, warehouses, and logistics centers place far greater demands on roofing systems than residential or standard commercial buildings.

Industrial Roof Plan Requirements

1. Large-span structural support systems
2. Equipment load distribution zones
3. Ventilation and exhaust shafts
4. Skylight or daylighting systems
5. Fire safety ventilation openings

Warehouse roofs, for example, often integrate smoke ventilation systems required by fire codes. These systems must be clearly mapped in the roof plan alongside drainage slopes and structural beams.

Industrial roofs also require more detailed structural coordination. Engineers must confirm that roof framing supports both environmental loads and mechanical systems.

save pin

Answer Box

Residential roof plans mainly communicate slope and structure. Commercial roofs add drainage systems and mechanical coordination. Industrial roof plans go further, integrating structural load zones, ventilation infrastructure, and strict safety requirements.

Building Codes Affecting Roof Plan Design

Key Insight: Building codes strongly influence roof plan requirements, especially regarding drainage, fire safety, and structural loads.

Across the United States, roof plan documentation is typically governed by several major codes.

Major Codes Influencing Roof Plans

1. International Building Code (IBC)
2. International Residential Code (IRC)
3. ASHRAE mechanical guidelines
4. Local municipal building codes

Common Code Requirements

1. Minimum drainage slopes
2. Emergency overflow drains
3. Wind uplift resistance
4. Fire separation distances
5. Roof access safety standards

Many design teams now produce realistic visualizations to validate compliance and coordination early. Some architects even generate realistic architectural renderings to review structural and roofing design concepts before issuing final construction documents.

Documentation Requirements for Contractors

Key Insight: Clear roof documentation reduces construction delays and prevents expensive contractor revisions.

Contractors rely heavily on roof plans to coordinate structural framing, waterproofing, mechanical installations, and safety systems.

Documents Typically Included in Roofing Packages

1. Roof plan drawing
2. Roof framing plan
3. Drainage layout diagrams
4. Roof detail sections
5. Material specifications

Information Contractors Expect

1. Exact roof slope directions
2. Drain locations and pipe sizes
3. Equipment mounting details
4. Flashing and waterproofing sections
5. Roof edge and parapet conditions

In my experience, unclear documentation is one of the biggest sources of change orders during construction.

Final Summary

1. Residential roof plans emphasize slope direction and structural clarity.
2. Commercial roofs require drainage systems and mechanical equipment coordination.
3. Industrial roofing must support heavy loads and ventilation infrastructure.
4. Building codes heavily influence roof slope, drainage, and safety requirements.
5. Clear documentation prevents costly construction revisions.

FAQ

What are roof plan requirements for residential buildings?

Residential roof plans typically show slope directions, ridge lines, valleys, materials, and gutter drainage systems.

What makes commercial roof plan standards different?

Commercial roof plan standards require detailed drainage systems, HVAC equipment zones, parapet heights, and maintenance access paths.

Do industrial buildings require special roof layouts?

Yes. Industrial roof layout planning must support heavy equipment loads, ventilation systems, and large structural spans.

What building codes affect roof plan design?

Common codes include the International Building Code (IBC), International Residential Code (IRC), and local municipal regulations.

How detailed should architectural roofing documentation be?

Roof plans should include slopes, drainage systems, materials, structural coordination, and equipment clearances.

Why are drainage systems important in roof plans?

Poor drainage design can cause water pooling, structural damage, and expensive roof repairs.

Do contractors rely heavily on roof plan drawings?

Yes. Contractors use roof plans to coordinate framing, waterproofing systems, mechanical installations, and safety access.

Can software help plan roof layouts?

Yes. Modern digital design tools allow architects to test slopes, drainage systems, and equipment placement before construction begins.
