Roof Plan vs Roof Framing Plan: Key Differences and When to Use Each: Understand how roof plans and roof framing plans differ, why both exist, and how architects use them during real construction projects.

Direct Answer

A roof plan shows the overall shape, slopes, drainage, and surface elements of a roof when viewed from above. A roof framing plan focuses on the structural skeleton underneath—rafters, trusses, beams, and load paths that physically support the roof. Architects typically use both drawings together: the roof plan communicates design intent, while the roof framing plan guides structural construction.

Quick Takeaways

1. A roof plan focuses on exterior roof geometry, slopes, drainage, and materials.
2. A roof framing plan shows the structural system supporting the roof.
3. Builders rely on framing plans to construct rafters, trusses, and load-bearing elements.
4. Roof plans help coordinate drainage, mechanical placement, and exterior design.
5. Both drawings are essential parts of professional construction documentation.

Introduction

If you've ever compared architectural drawings and wondered about the difference between a roof plan vs roof framing plan, you're not alone. Even many homeowners reviewing construction documents mix them up.

After working on residential and small commercial projects for more than a decade, I can tell you this confusion usually happens because both drawings show the roof from above. But they serve completely different purposes. One communicates design and drainage; the other reveals the structural system that keeps the roof standing.

In practice, contractors read both drawings side‑by‑side. When I coordinate with builders, the roof plan helps them understand slopes, ridges, valleys, and penetrations, while the framing plan tells them exactly where structural members go.

If you're trying to visualize how these drawings translate into an actual structure, it often helps to first explore how a complete house layout becomes a 3D architectural floor plan, because roof systems are always built on top of that spatial framework.

This guide breaks down the real differences, when architects use each plan, and the common mistakes people make when reading them.

save pin

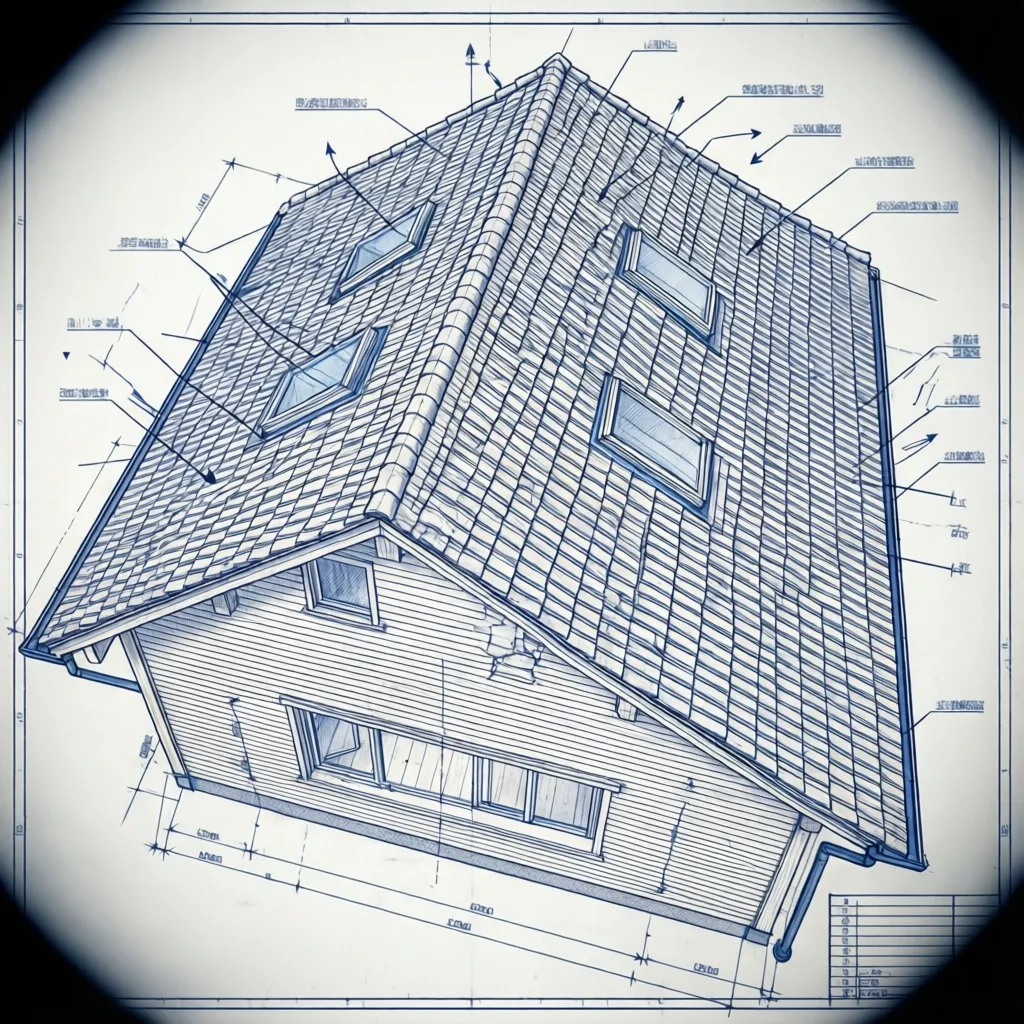

What Is a Roof Plan in Architectural Drawings

Key Insight: A roof plan illustrates the visible geometry and functional elements of the roof, not the structural system underneath.

Think of a roof plan as the "map" of the roof's surface. It shows what you would see if you were floating above the building looking straight down.

In my projects, the roof plan is primarily used to coordinate architecture, drainage, and exterior appearance. It helps builders understand how water moves off the roof and how different roof sections connect.

Typical elements shown in a roof plan:

1. Roof slopes and pitch direction
2. Ridges, hips, and valleys
3. Drainage arrows and slope indicators
4. Roof materials or finishes
5. Skylights, vents, and mechanical penetrations
6. Parapets and roof edges

According to guidance from the American Institute of Architects (AIA), roof plans are essential for coordinating waterproofing, drainage, and building envelope performance.

One thing beginners often miss: roof plans rarely show structural members like rafters or beams. That information lives in a different drawing set entirely.

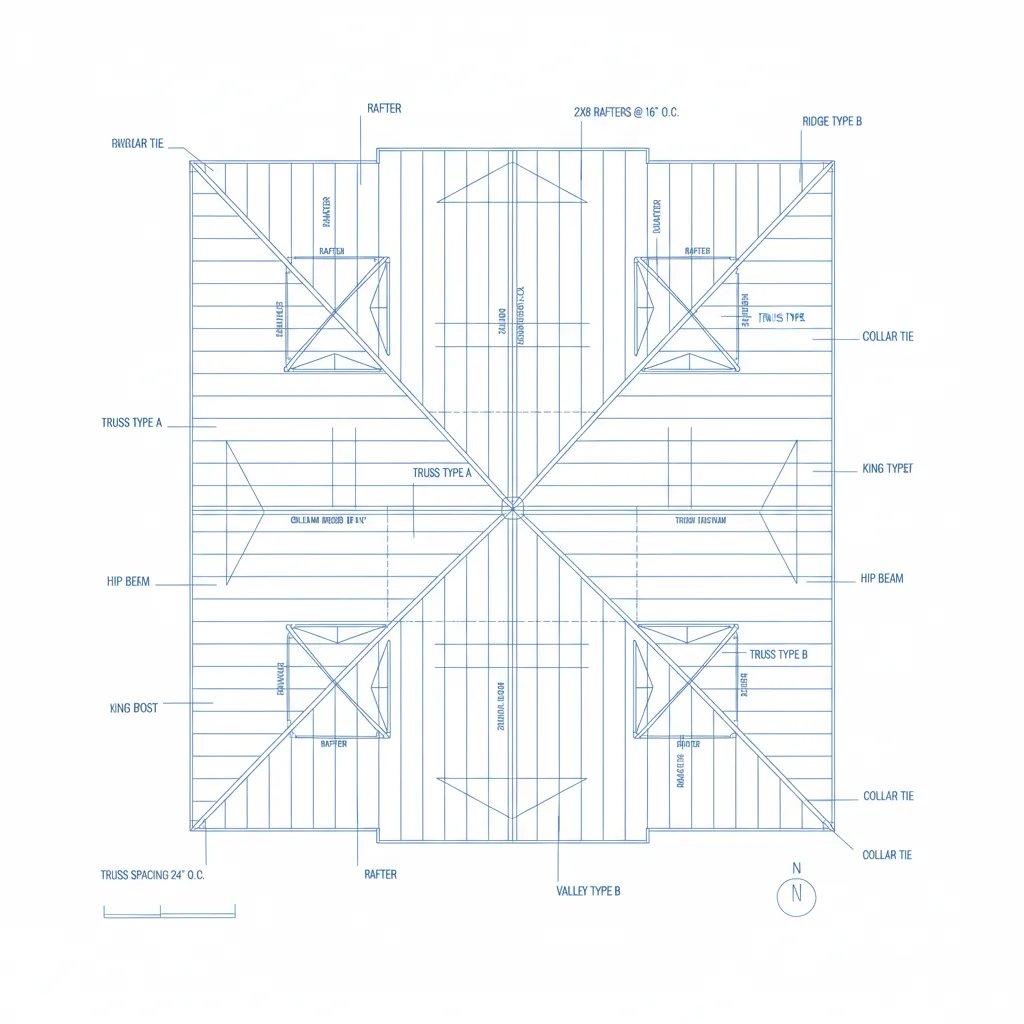

What Is a Roof Framing Plan

Key Insight: A roof framing plan focuses on the load‑bearing structure that physically supports the roof.

Where the roof plan shows the outer surface, the roof framing plan reveals the skeleton underneath. Structural engineers and framers rely on this drawing to build the roof correctly.

On real job sites, framing crews often ignore the roof plan until later stages. Their primary reference is the framing plan because it dictates how structural members are placed.

Key components of a roof framing plan:

1. Rafters or truss locations
2. Ridge beams
3. Hip and valley rafters
4. Structural beams
5. Spacing between framing members
6. Load‑bearing walls beneath the roof

Structural notes typically accompany this drawing to specify lumber sizes, fastening methods, and load requirements based on local building codes.

In modern workflows, many architects preview these structural layouts using tools that simulate framing structures—similar to how designers experiment with layouts using an interactive AI-assisted layout generator for floor planningbefore finalizing technical drawings.

save pin

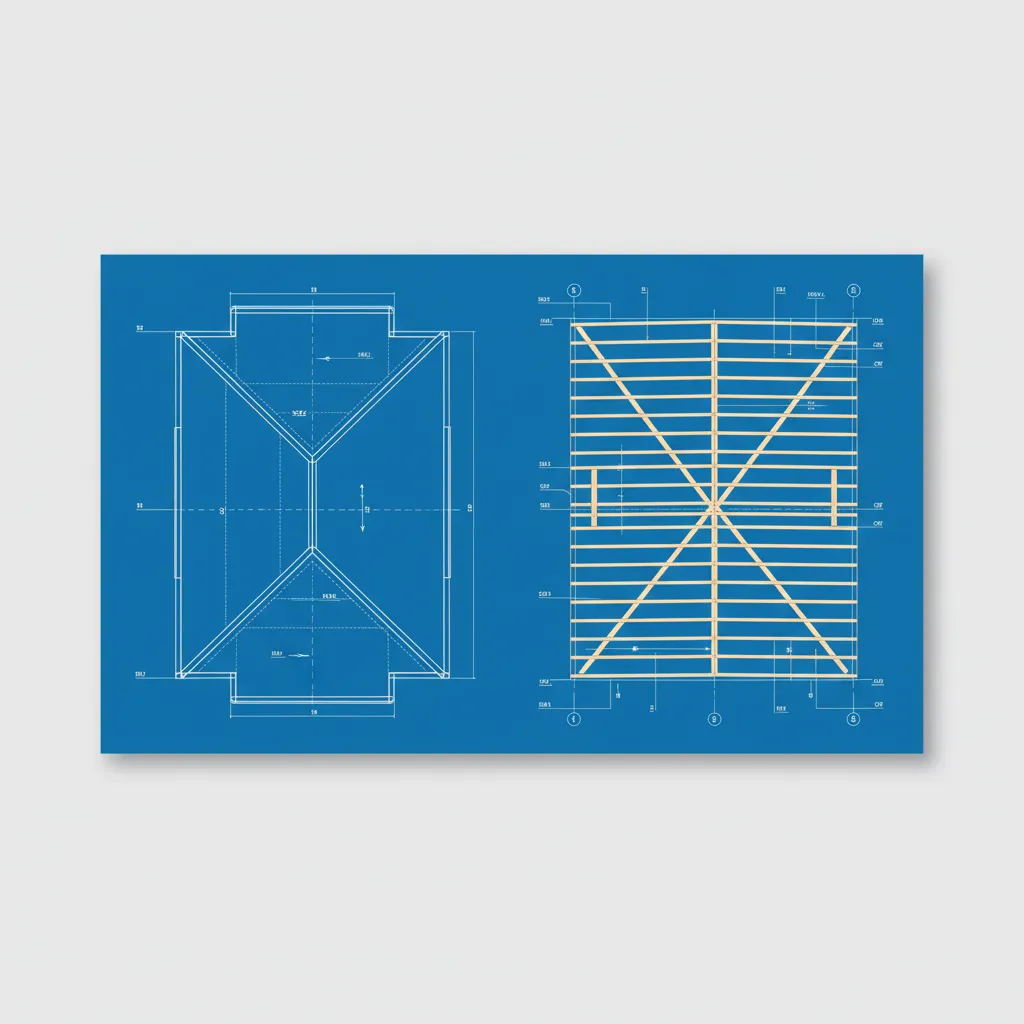

Key Differences Between Roof Plans and Framing Plans

Key Insight: The roof plan communicates design intent, while the roof framing plan communicates structural execution.

Although they share a top‑down perspective, their purpose and users are different.

Main differences:

1. Purpose
2. Roof Plan: Shows roof layout, slopes, and drainage.
3. Framing Plan: Shows structural members and load paths.
4. Primary Users
5. Roof Plan: Architects, roofing contractors.
6. Framing Plan: Structural engineers, framing crews.
7. Key Information
8. Roof Plan: Hips, valleys, ridges, skylights.
9. Framing Plan: Rafters, trusses, beams, spacing.
10. Design vs Structure
11. Roof Plan: Architectural representation.
12. Framing Plan: Structural instruction.

A practical rule I often tell junior designers: if the drawing helps water leave the roof, it's a roof plan. If it tells carpenters where to place lumber, it's a framing plan.

When Architects Use Each Type of Plan

Key Insight: Architects use roof plans during design development, while framing plans become critical during structural documentation and construction.

Different stages of a project rely on different drawings.

Roof plan usage:

1. Conceptual design
2. Planning drainage systems
3. Coordinating skylights and roof features
4. Permitting documentation

Roof framing plan usage:

1. Structural engineering calculations
2. Construction documentation
3. Framing contractor instructions
4. Material estimation

In residential design, the roof plan usually appears in architectural sheets, while the framing plan appears in structural sheets prepared or reviewed by engineers.

save pin

Answer Box

The difference between a roof plan and a roof framing plan is simple: the roof plan shows the roof's surface layout, while the framing plan shows the structural framework beneath it. Both drawings are required to translate architectural design into buildable construction instructions.

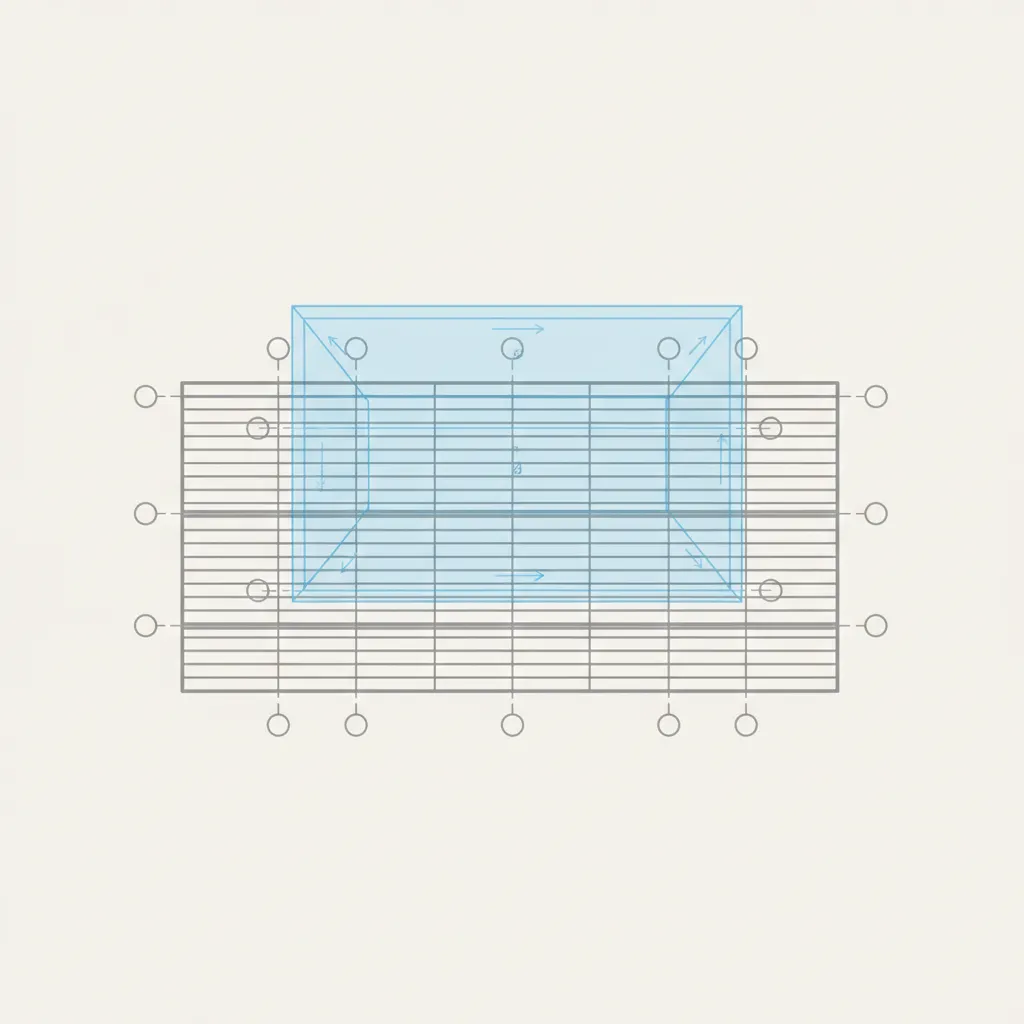

How Both Plans Work Together in Construction Documents

Key Insight: Roof plans and roof framing plans must align perfectly, or construction conflicts occur.

One of the most common coordination tasks during design review is checking whether these two drawings match.

For example:

1. A roof ridge shown on the roof plan must align with a ridge beam in the framing plan.
2. A valley intersection requires structural support beneath it.
3. Roof openings such as skylights require adjusted framing.

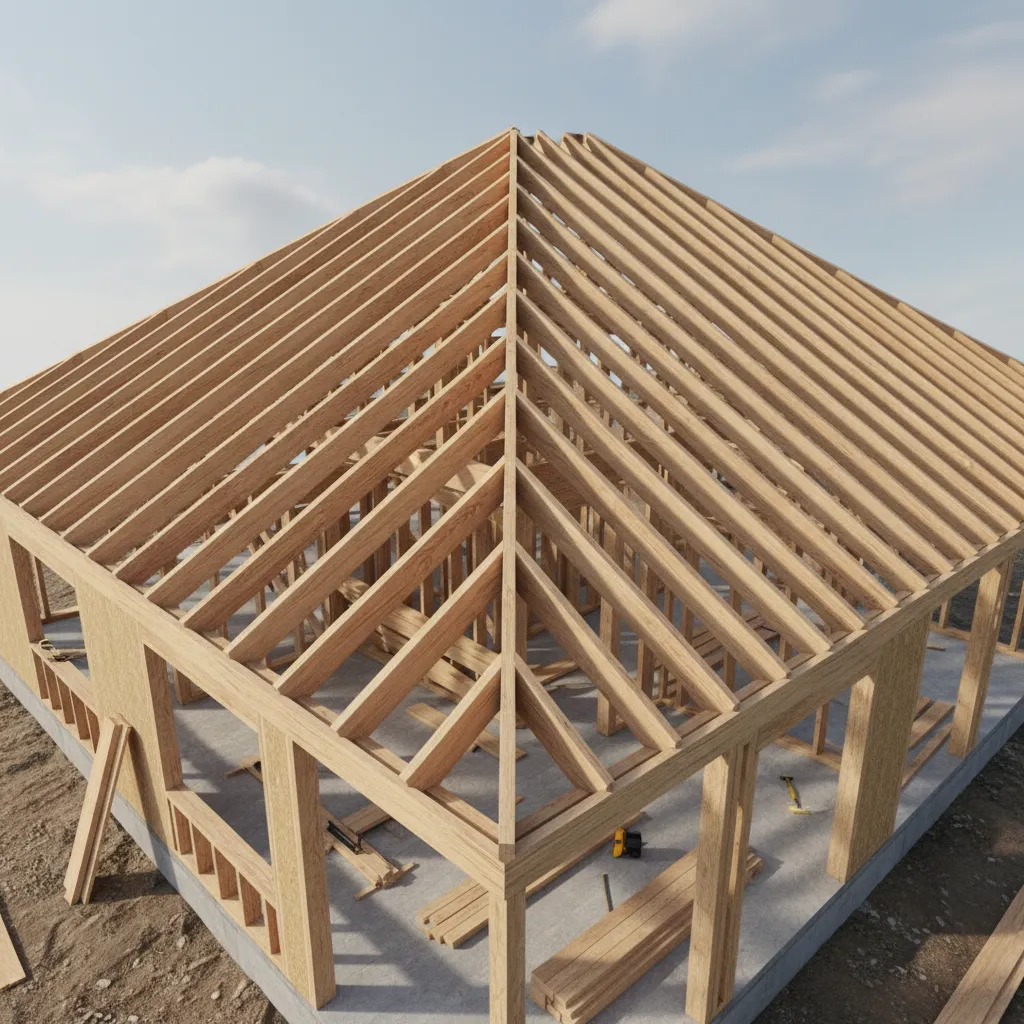

During visualization phases, many teams create realistic previews using tools similar to a high‑quality architectural render workflow for visualizing complete homes, which helps catch conflicts between roof design and structural framing early.

save pin

Common Mistakes When Interpreting These Drawings

Key Insight: Most interpretation errors happen when people assume one drawing contains all roof information.

In practice, each drawing only tells part of the story.

Frequent mistakes:

1. Assuming rafters are shown on the roof plan
2. Ignoring slope arrows when estimating materials
3. Misreading ridge lines as structural beams
4. Overlooking framing adjustments around skylights

One hidden issue I’ve seen repeatedly: junior contractors estimating lumber quantities directly from roof plans. That leads to costly material miscalculations because the structural spacing information exists only in the framing plan.

Final Summary

1. A roof plan shows roof geometry, slopes, and drainage systems.
2. A roof framing plan shows rafters, trusses, and structural support.
3. Architects design with roof plans but build using framing plans.
4. Both drawings must align to avoid construction conflicts.
5. Reading both documents together gives the full roof system picture.

FAQ

What is the main difference between a roof plan and a roof framing plan?

A roof plan shows the roof's layout and slope directions, while a roof framing plan shows structural members such as rafters, beams, and trusses.

Do contractors use roof plans or framing plans more often?

Framing contractors rely primarily on roof framing plans because they provide structural placement and spacing information.

Is a roof framing plan required for residential construction?

Most residential projects include one, especially when structural engineers specify load-bearing roof systems.

Can a roof plan show rafters?

Typically no. Rafters and structural components belong on the roof framing plan.

Why are both drawings included in architectural documents?

Each drawing communicates different information: one for roof design and drainage, the other for structural construction.

What does a beginner need to understand about roof plan vs roof framing plan?

The roof plan explains the roof's shape, while the framing plan explains how that shape is structurally built.

Do roof plans affect roofing material estimates?

Yes. Roof plans show slopes and surfaces, which are essential for calculating roofing materials.

Who creates roof framing plans?

Structural engineers typically prepare or verify roof framing plans to ensure safety and code compliance.
