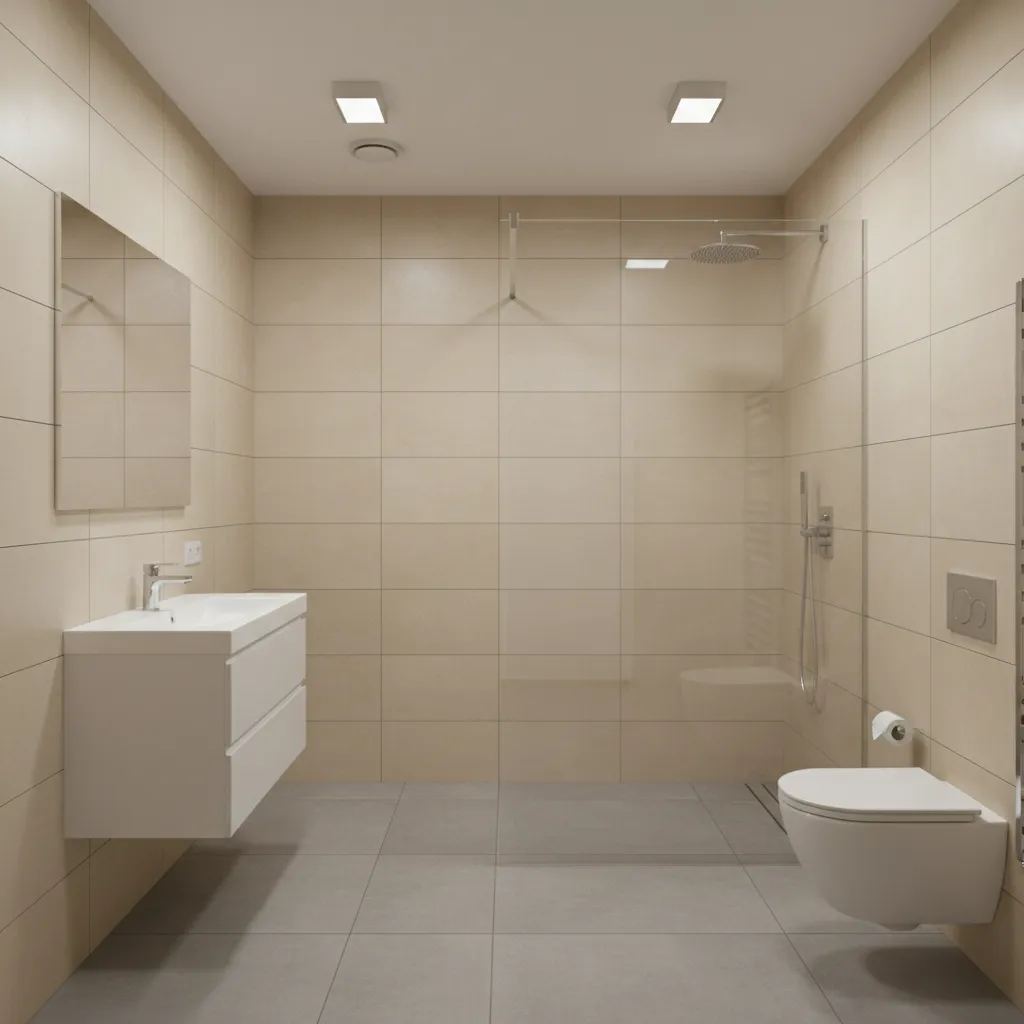

Safety and Moisture Control in a 9x5 Bathroom Design: Practical strategies to prevent mold, reduce humidity, and improve safety in a compact 9x5 bathroom layout.

Direct Answer

Moisture control in a 9x5 bathroom design depends on three things: proper ventilation, waterproof surfaces, and slip‑resistant materials. Because the space is narrow and humidity builds quickly, small design decisions—like exhaust fan placement or flooring texture—have an outsized impact on mold prevention and safety.

When these elements are planned together, even a compact 9x5 bathroom can stay dry, safe, and easy to maintain for years.

Quick Takeaways

1. Small bathrooms trap humidity faster, making ventilation critical.
2. Continuous waterproofing behind tile prevents hidden wall damage.
3. Slip‑resistant flooring significantly reduces injury risk in tight layouts.
4. Electrical fixtures must be positioned away from wet zones.
5. Routine maintenance is the easiest way to avoid mold growth.

Introduction

After working on dozens of compact renovations, I’ve learned something about the typical 9x5 bathroom design: the biggest problems rarely show up during construction. They appear six months later—peeling paint, a faint mildew smell, or a slippery floor that suddenly feels unsafe.

The reason is simple. Small bathrooms hold humidity like a sealed container. Without thoughtful moisture control, steam from a single shower can linger for hours. Over time, that moisture works its way into grout, drywall, and cabinetry.

One of the first things I recommend during planning is mapping airflow and waterproof zones early. If you want to visualize how ventilation and fixtures interact in a tight layout, it helps to explore interactive bathroom layout planning examples for compact spacesbefore finalizing the design.

In this guide, I’ll break down the most effective ways to control humidity, prevent mold, and improve safety in a 9x5 bathroom—based on what actually works in real renovation projects.

save pin

Why Moisture Control Matters in Small Bathrooms

Key Insight: In compact bathrooms, moisture accumulates faster than it can naturally dissipate.

In larger bathrooms, steam spreads out and evaporates gradually. In a 9x5 layout, however, the air volume is small and surfaces are close together. Steam immediately condenses on walls, mirrors, and ceilings.

This creates three common hidden problems:

1. Persistent humidity that feeds mold growth
2. Water absorption into drywall and subfloor
3. Premature failure of paint, caulk, and grout

According to the U.S. Environmental Protection Agency, indoor humidity should remain below 60% to prevent mold development. Small bathrooms without ventilation frequently exceed this level after showers.

In many renovations I inspect, the issue isn't obvious leaks—it's slow, constant humidity exposure.

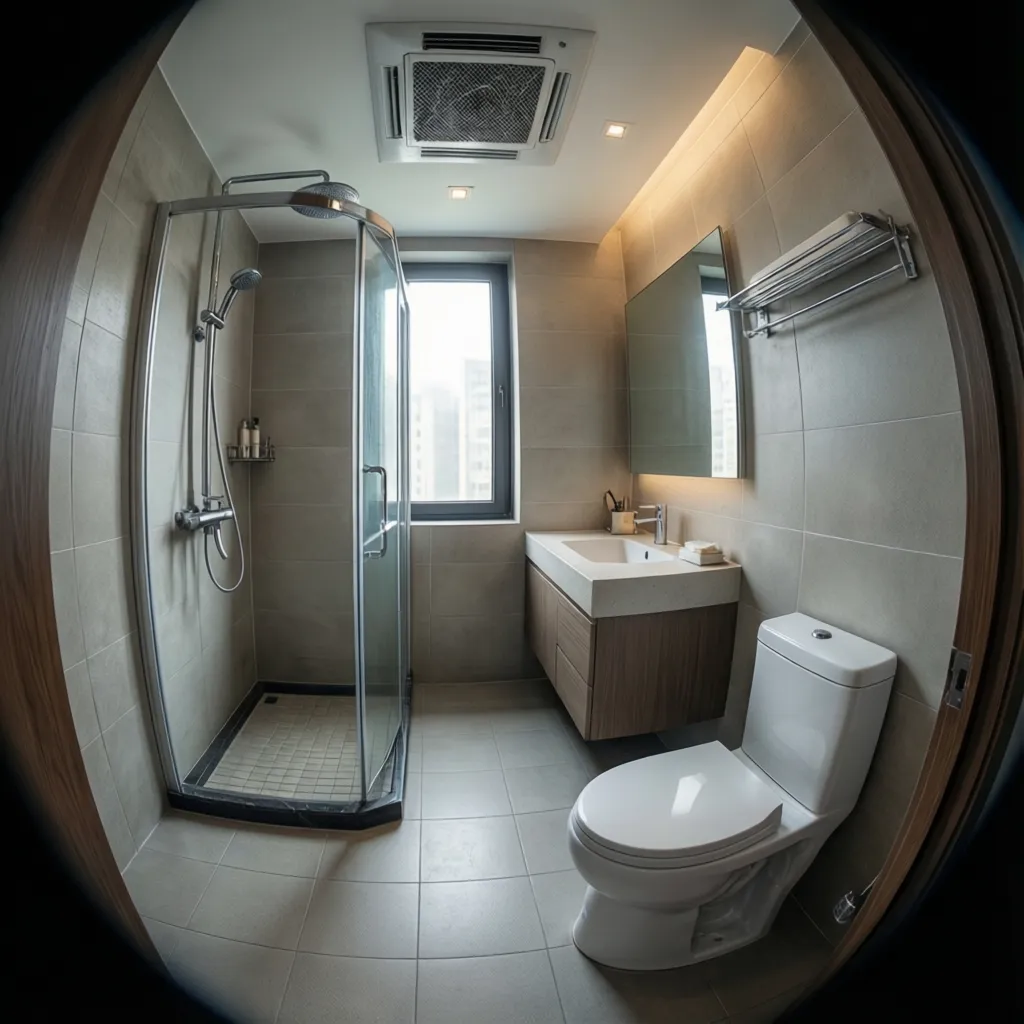

Ventilation Requirements for a 9x5 Bathroom

Key Insight: Proper exhaust ventilation is the single most effective defense against moisture buildup.

Building codes typically require bathroom exhaust fans rated around 50 CFM for small spaces. However, based on my experience, slightly higher airflow (70–80 CFM) performs better in narrow bathrooms where steam concentrates quickly.

Key ventilation considerations include:

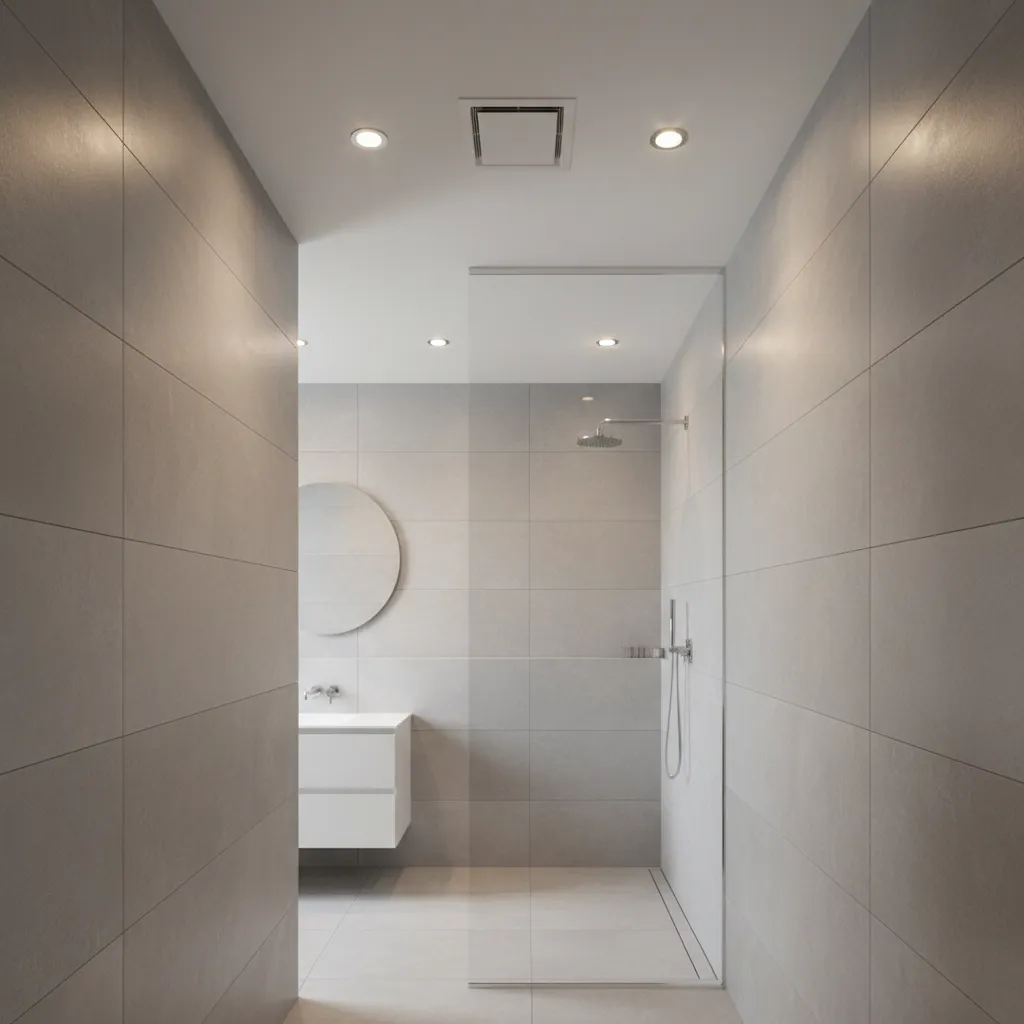

1. Fan placement – Install near the shower or tub where humidity originates.
2. Duct length – Short, direct ducts reduce moisture condensation.
3. Timer switches – Keep fans running 15–20 minutes after showers.
4. Quiet operation – Fans under 1.5 sones encourage regular use.

If you're testing layouts and airflow patterns, it helps to preview fixture positions using a visual 3D layout simulation for narrow bathroomsbefore construction.

save pin

Preventing Mold in Tight Bathroom Spaces

Key Insight: Mold prevention starts with eliminating trapped moisture—not just cleaning surfaces.

A mistake I often see is homeowners relying solely on mold‑resistant paint. While helpful, paint alone cannot stop mold if moisture remains behind walls or under flooring.

Effective mold prevention involves layered protection:

1. Moisture‑resistant drywall or cement board
2. Continuous waterproof membranes behind tile
3. Proper grout sealing
4. Ventilation running after every shower

Another overlooked detail is shower glass or curtains that allow airflow. Fully enclosed showers can trap humidity unless ventilation is strong.

save pin

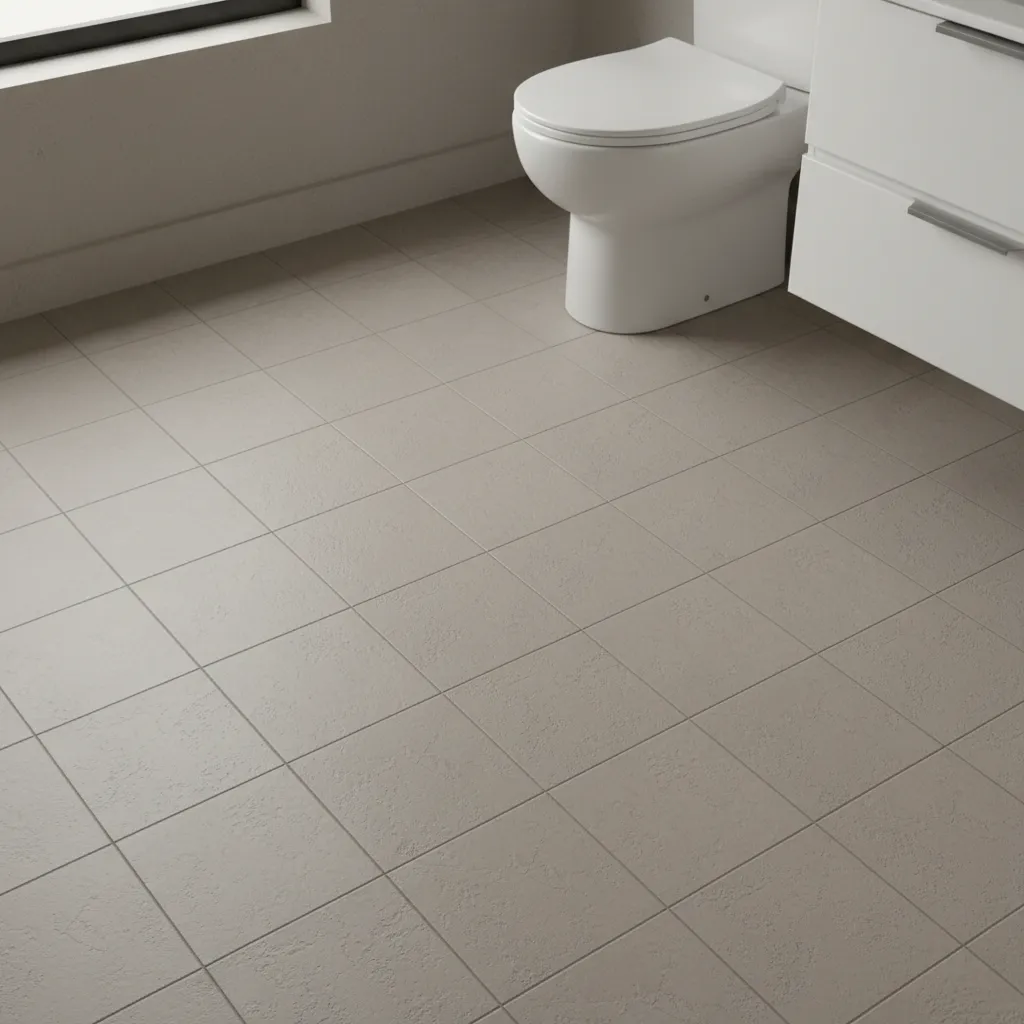

Slip-Resistant Flooring Options

Key Insight: Flooring texture is one of the most important safety features in a small bathroom.

Because a 9x5 bathroom leaves limited walking space, wet floors become hazardous quickly. I’ve seen beautiful polished tiles become accident risks simply because the finish was too smooth.

Safer flooring materials include:

1. Matte porcelain tile
2. Textured ceramic tile
3. Small mosaic tiles with grout grip
4. Slip‑rated vinyl flooring

Look for tiles rated R10 or higher for wet environments. The extra grip significantly reduces slipping without sacrificing aesthetics.

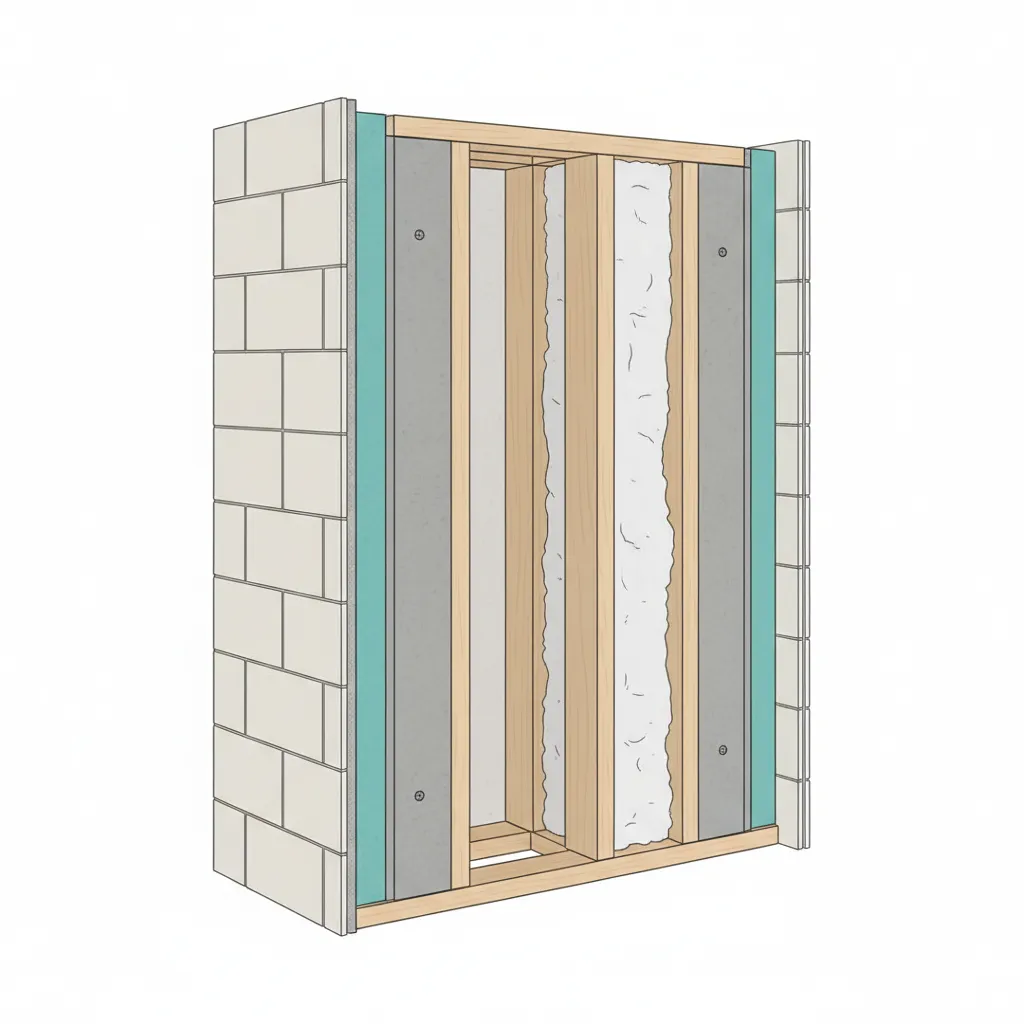

Waterproofing Walls and Shower Areas

Key Insight: Waterproofing behind surfaces matters more than the tile you see.

Many homeowners focus on tile style, but the real protection is hidden underneath. Without proper waterproofing membranes, moisture slowly penetrates grout and reaches drywall.

A reliable waterproofing system includes:

1. Cement backer board or waterproof panels
2. Liquid waterproof membrane or sheet membrane
3. Sealed joints and corners
4. Sloped shower base for drainage

Professional installers treat the entire wet zone as a sealed envelope rather than protecting individual tiles.

save pin

Safe Electrical and Lighting Placement

Key Insight: Electrical placement must respect wet zones to prevent shock risks.

Bathroom electrical planning follows strict spacing rules because water and electricity are a dangerous combination.

Safe design practices include:

1. GFCI outlets near sinks
2. Moisture‑rated ceiling lights
3. Wall sconces positioned away from direct spray
4. Separate circuits for exhaust fans and lighting

LED lighting is especially useful in small bathrooms because it produces minimal heat, reducing humidity buildup near ceilings.

Maintenance Tips for Long-Term Durability

Key Insight: Even the best bathroom design fails without consistent moisture management habits.

The most durable bathrooms I’ve designed all share the same maintenance routine.

1. Run exhaust fan during and after showers
2. Wipe down glass and tile weekly
3. Re‑seal grout every 12–18 months
4. Check caulking around fixtures annually
5. Monitor humidity levels with a small hygrometer

For homeowners experimenting with safer layouts and durable materials, reviewing AI‑assisted bathroom design scenarios for moisture‑heavy environments can reveal how ventilation, lighting, and surfaces interact before committing to renovation.

Answer Box

The safest 9x5 bathroom design controls humidity through strong ventilation, continuous waterproofing, and slip‑resistant flooring. When airflow, materials, and maintenance work together, mold growth and moisture damage become far less likely.

Final Summary

1. Small bathrooms accumulate humidity quickly.
2. Ventilation is the most important moisture control feature.
3. Waterproofing behind tile prevents hidden structural damage.
4. Slip‑resistant flooring improves safety in narrow layouts.
5. Regular maintenance keeps mold from developing.

FAQ

1. Is a 9x5 bathroom prone to mold?

Yes. A 9x5 bathroom design traps humidity quickly. Without ventilation or waterproof materials, mold can develop behind tile and inside drywall.

2. What fan size is best for a small bathroom?

Most experts recommend at least 50 CFM, but 70–80 CFM works better in narrow bathrooms where steam accumulates faster.

3. How do I reduce humidity in a small bathroom?

Use an exhaust fan, open doors after showers, install moisture‑resistant surfaces, and keep humidity below 60%.

4. What flooring is safest for small bathrooms?

Matte porcelain tile, mosaic tile, and slip‑rated vinyl flooring provide the best traction for wet areas.

5. Do I need waterproof walls behind shower tile?

Yes. Tiles alone are not waterproof. A membrane or waterproof backer board is required to protect the wall structure.

6. Can lighting placement affect bathroom safety?

Yes. Moisture‑rated fixtures and proper spacing from wet zones prevent electrical hazards.

7. How often should bathroom grout be sealed?

Typically every 12–18 months depending on usage and humidity levels.

8. What causes mold even in newly renovated bathrooms?

Poor ventilation, unsealed grout, and trapped humidity can lead to mold even when surfaces appear clean.
