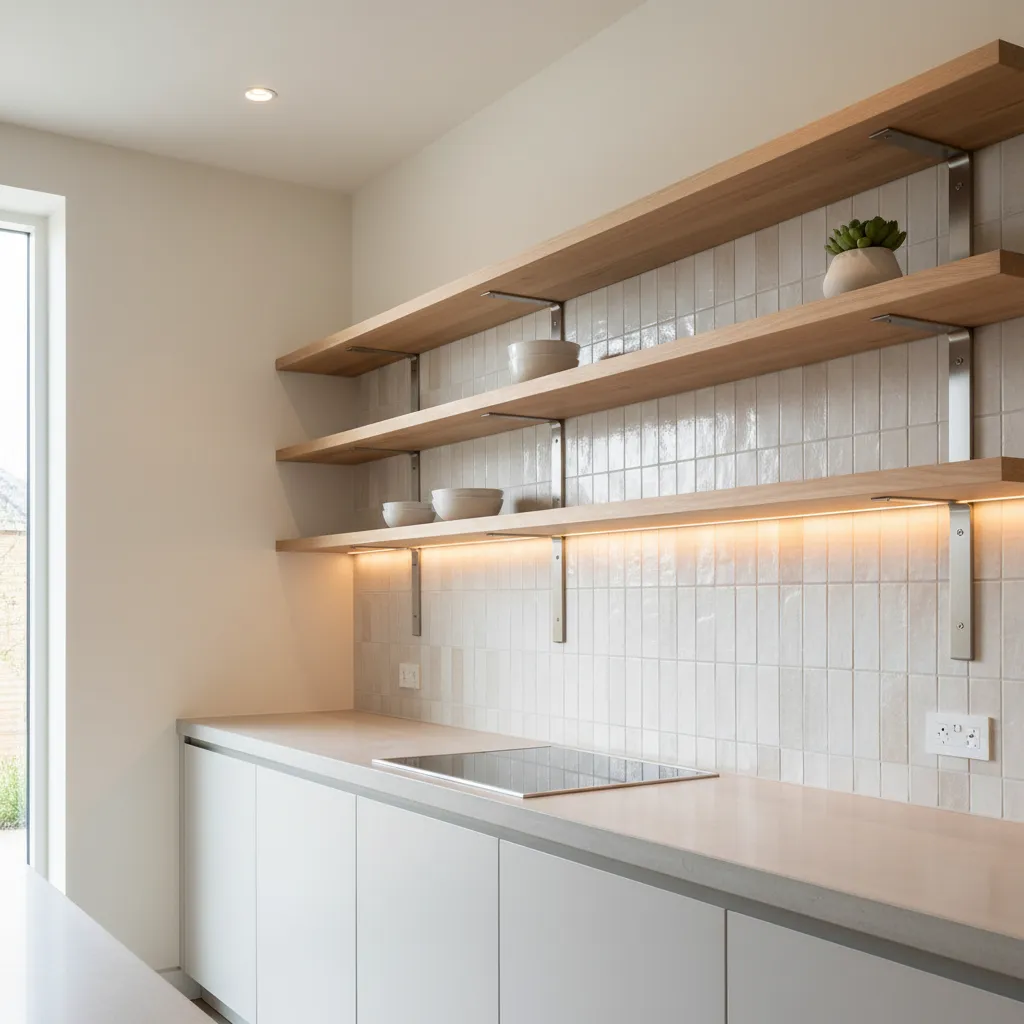

Safety and Moisture Risks When Combining Backsplashes with Floating Shelves: Understand hidden moisture, heat, and structural risks before installing floating shelves over a kitchen backsplash

Direct Answer

Installing floating shelves over a kitchen backsplash can create hidden risks related to moisture exposure, heat from cooking, and improper wall support. If shelves are installed without proper sealing, spacing, and load calculation, water infiltration and long‑term wall damage can occur. With correct materials, ventilation space, and safe mounting methods, the design can remain durable and safe.

Quick Takeaways

1. Backsplash areas experience constant moisture and heat that can damage poorly installed shelves.
2. Improper mounting through tile often causes hidden wall moisture infiltration.
3. Floating shelf brackets must anchor into studs, not tile alone.
4. Water resistant finishes significantly extend shelf lifespan.
5. Routine inspection prevents mold and structural weakening.

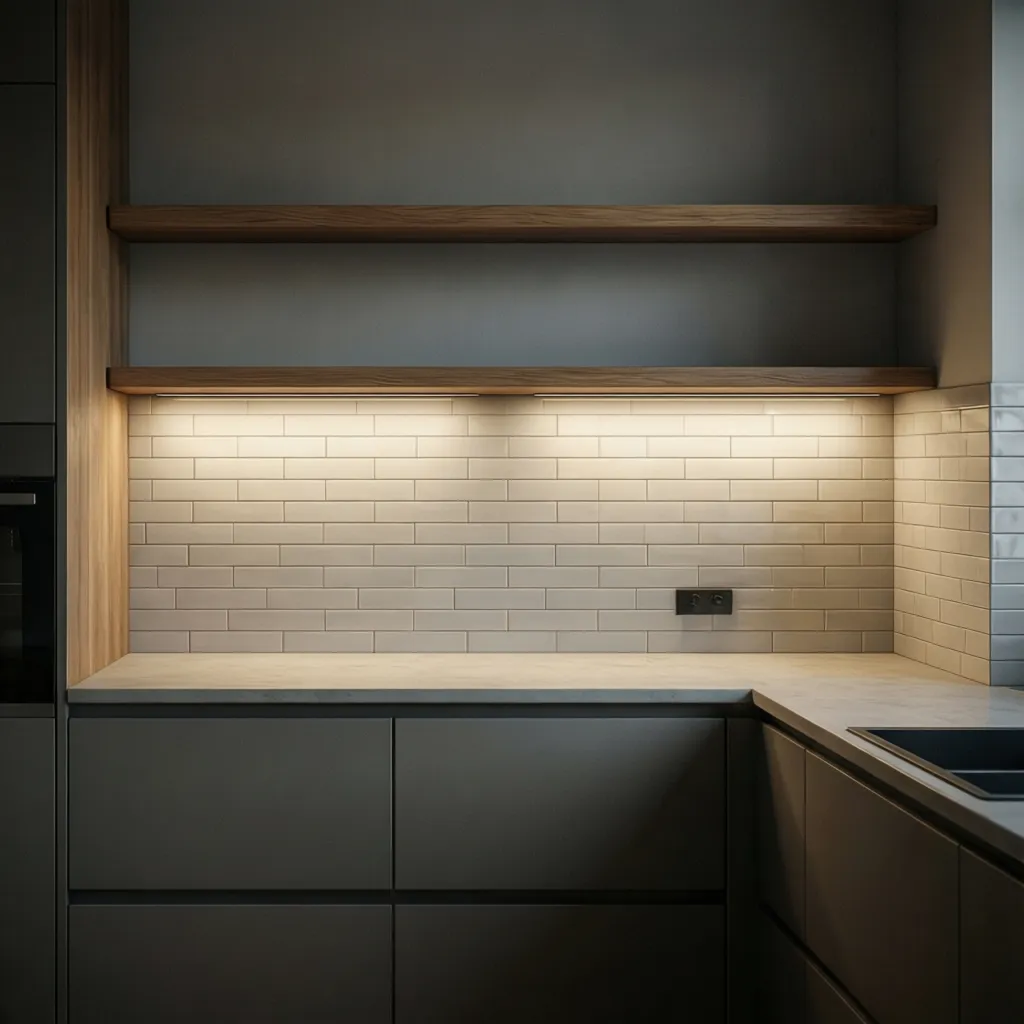

Introduction

Floating shelves above a backsplash look clean and modern, which is why so many homeowners ask about them during kitchen remodel consultations. But after working on dozens of projects over the past decade, I can tell you that the visual appeal often hides a few real risks.

The combination of water, steam, cooking grease, and wall penetrations means this area behaves very differently from a normal wall. When floating shelves are mounted directly through tile or stone backsplash panels, small installation mistakes can lead to moisture intrusion, loose brackets, or even mold growth behind the wall.

One thing I often recommend during early planning is mapping the shelf layout together with the cooking and sink zones. A simple planning step like using a visual layout guide for planning kitchen shelf placementhelps identify where steam, splash zones, and heavy loads will interact.

In this guide, I’ll break down the real structural and moisture risks that most design articles skip—and how to install floating shelves over backsplashes safely so they last for years.

save pin

Moisture Exposure Near Kitchen Backsplashes

Key Insight: Backsplash zones experience constant micro‑moisture, which makes poorly sealed shelf installations vulnerable to hidden water damage.

Most homeowners assume backsplash tile fully protects the wall. In reality, the tile protects the surface—but the moment you drill through it for shelf brackets, you create new moisture entry points.

Typical moisture sources include:

1. Sink splashes
2. Steam condensation from cooking
3. Grease mixed with humidity
4. Cleaning sprays that run down tile seams

If bracket penetrations are not sealed with waterproof silicone or appropriate anchors, water can slowly migrate behind the tile.

According to guidance from the National Kitchen and Bath Association, penetrations through backsplash tile should always be sealed to prevent moisture intrusion behind wall assemblies.

In several renovation projects I've worked on, the damage wasn't visible until shelves were removed years later—revealing softened drywall or minor mold patches behind the mounting points.

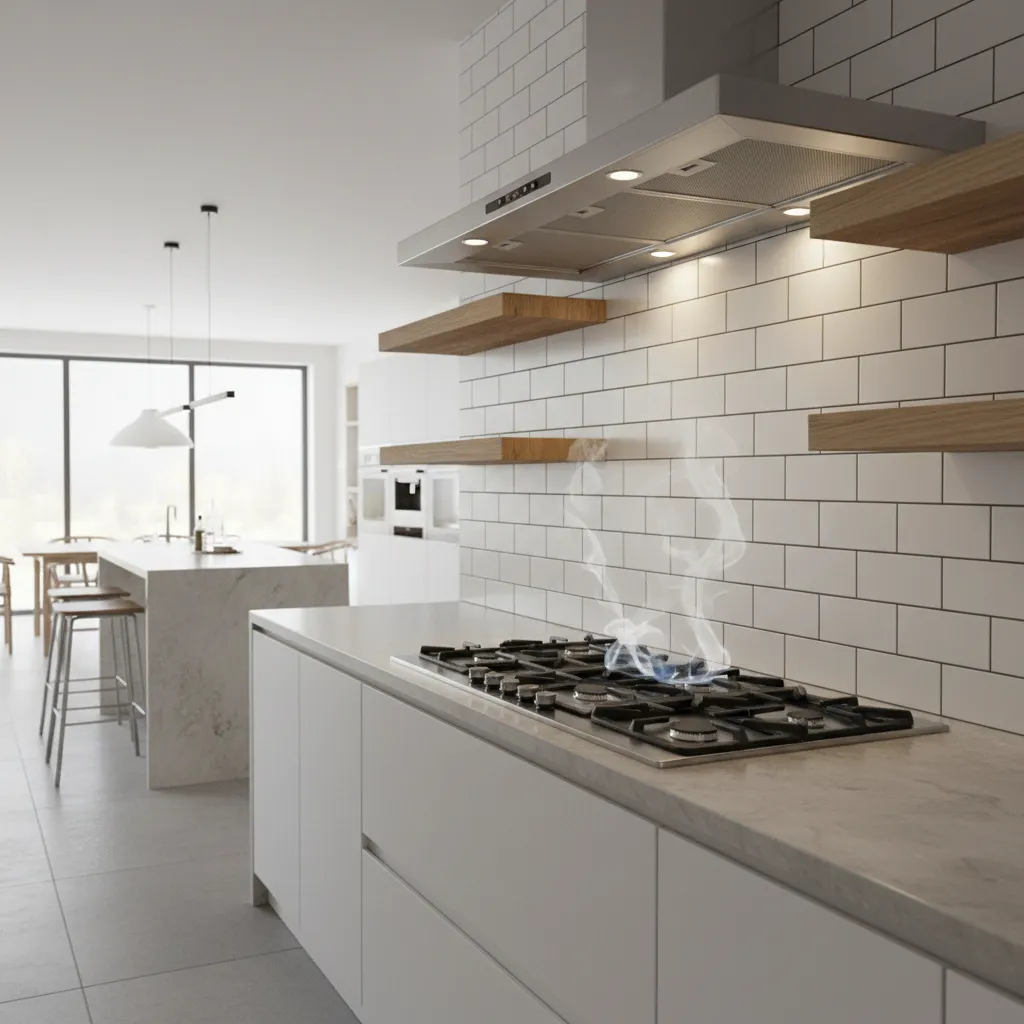

Heat and Steam Risks Around Cooking Areas

Key Insight: Floating shelves installed too close to cooktops experience both heat stress and grease‑laden steam that degrades materials over time.

One overlooked risk is the thermal environment above a stove. Steam rises quickly, carrying oil particles and moisture that settle onto shelf surfaces and the wall behind them.

Common heat‑related issues include:

1. Warping of low‑quality wood shelves
2. Adhesive breakdown in laminated materials
3. Grease buildup that traps moisture

Professional kitchen guidelines generally recommend:

1. Minimum 18–24 inches between cooktop and shelf
2. Heat resistant finishes such as sealed hardwood or metal brackets
3. A powerful range hood to reduce steam exposure

In one Los Angeles remodel I worked on, we replaced decorative pine shelves above a gas range after only two years because heat and steam had warped them slightly.

save pin

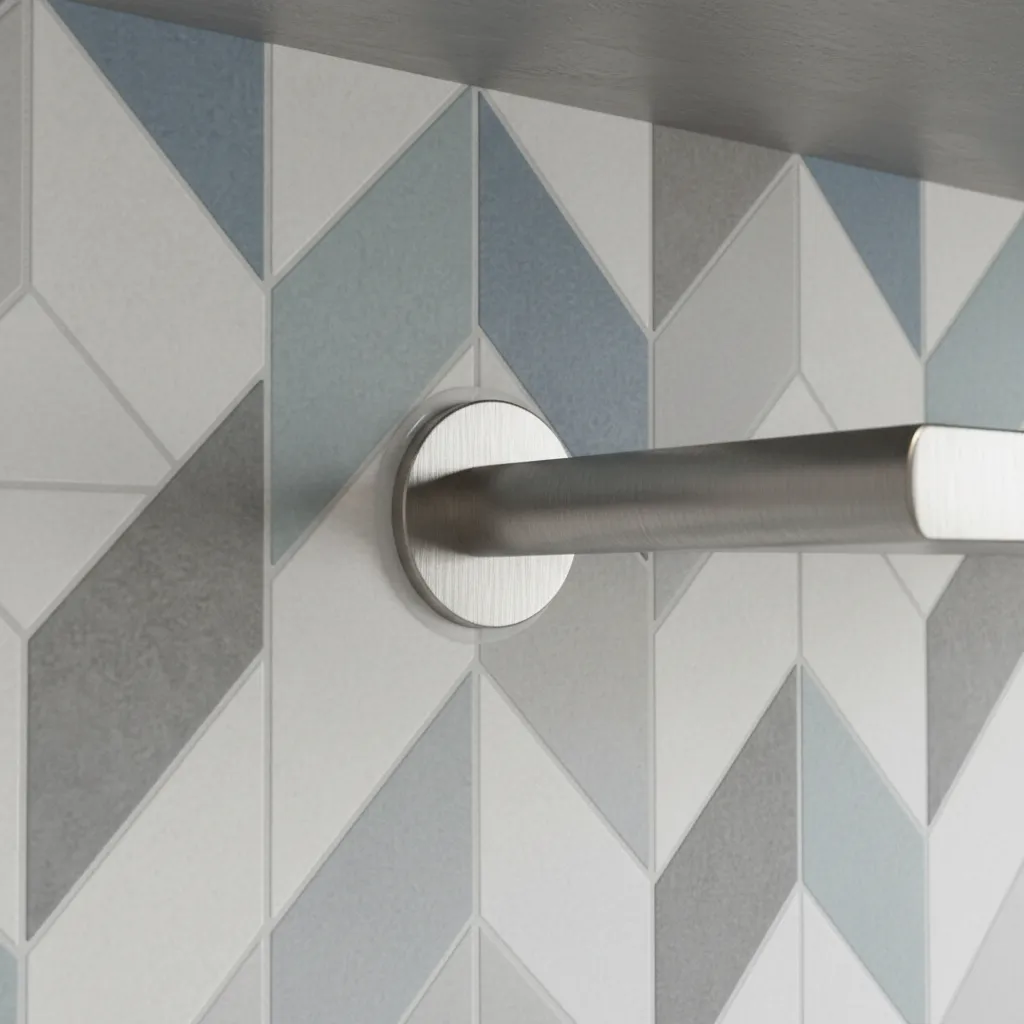

Preventing Mold and Water Damage Behind Shelves

Key Insight: Mold rarely forms on the visible backsplash surface—it forms in the sealed air pocket between the wall and shelf brackets.

This is the hidden zone most homeowners never see.

When moisture enters through mounting holes and airflow is restricted by shelves, the wall cavity can trap humidity.

Effective prevention methods include:

1. Sealing every drilled hole with waterproof silicone
2. Using stainless steel or rust‑resistant brackets
3. Leaving a 1–2 inch gap between shelf and backsplash in high‑steam zones
4. Using moisture resistant drywall or cement board behind tile

Many designers also visualize airflow and splash patterns during planning using a simple room visualization layout for testing shelf positionsto avoid high‑humidity pockets behind shelving.

save pin

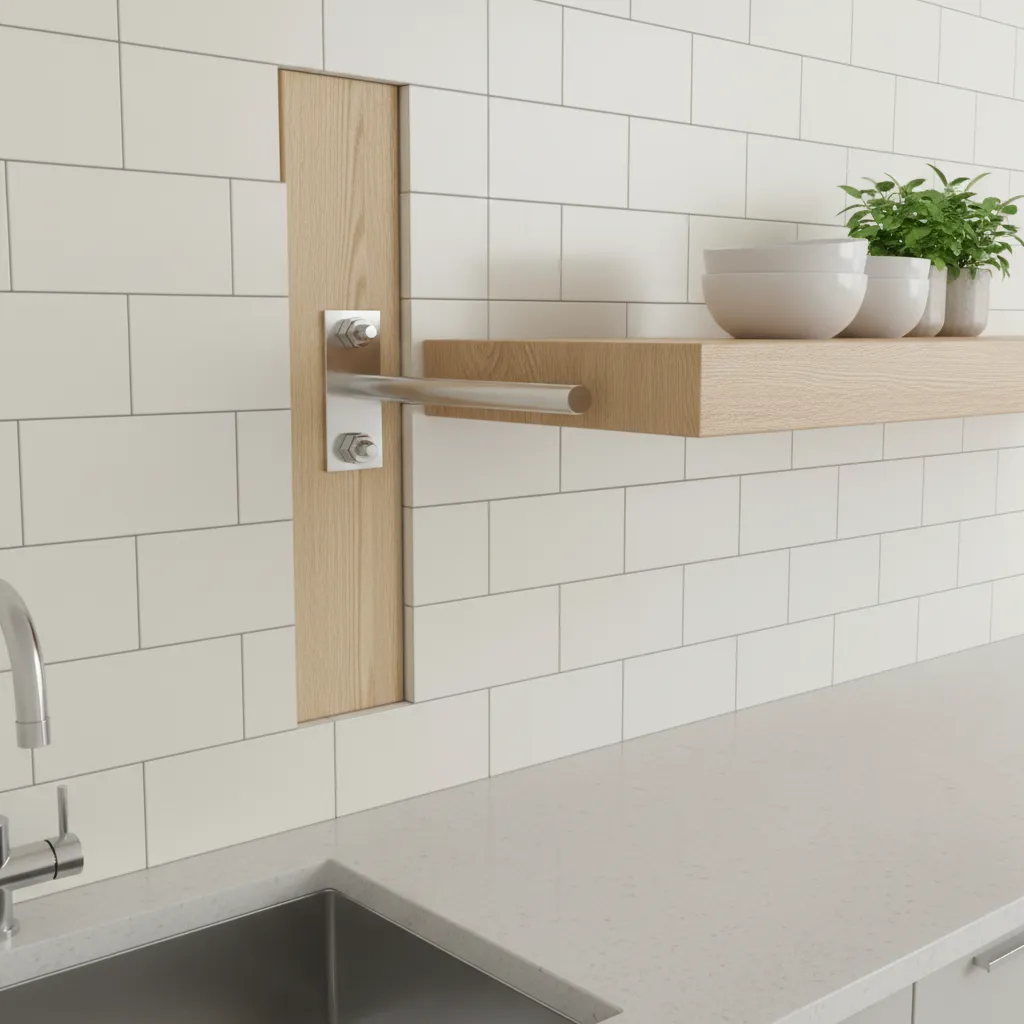

Weight Limits and Structural Safety for Floating Shelves

Key Insight: Tile backsplashes do not provide structural support—floating shelf brackets must anchor into wall studs.

This is one of the most common installation mistakes.

Tile is brittle and decorative. It cannot safely hold weight without proper backing.

Typical safe load guidelines:

1. Stud‑mounted floating shelf: 40–80 pounds depending on bracket design
2. Drywall anchors only: often under 20 pounds
3. Tile‑only anchors: not recommended for load bearing shelves

When shelves hold dishes, cookbooks, or ceramic jars, the load adds up quickly.

During installation planning, I often model shelf placement and cabinet clearance using a 3D kitchen visualization to check shelf spacing and weight distributionbefore drilling through expensive backsplash tile.

save pin

Choosing Water Resistant Materials and Finishes

Key Insight: The material choice of the shelf itself often determines whether the installation lasts two years or twenty.

Some materials simply perform better in humid kitchen environments.

Best performing shelf materials:

1. Sealed hardwood (oak, walnut)
2. Powder‑coated metal shelves
3. Marine‑grade plywood with veneer

Materials that commonly fail:

1. Unsealed pine
2. MDF shelves near sinks
3. Low‑grade laminate boards

Protective finishes also matter. Polyurethane or catalyzed lacquer finishes provide far better moisture resistance than basic oil finishes.

Maintenance Tips for Long Term Durability

Key Insight: Most floating shelf failures are slow problems—routine inspection prevents expensive repairs.

Simple maintenance habits dramatically extend shelf lifespan.

Recommended routine checks:

1. Inspect bracket joints every 6–12 months
2. Look for swelling near wall contact points
3. Reapply sealant if cracks appear around mounts
4. Remove grease buildup that traps moisture

In my experience, shelves that receive even basic yearly inspection almost never develop structural problems.

Answer Box

Floating shelves over backsplashes are safe when installed into studs, sealed against moisture, and positioned away from intense heat. Most long‑term problems come from unsealed drill holes, weak anchors, or moisture‑sensitive materials.

Final Summary

1. Backsplash areas expose shelves to moisture and steam.
2. All bracket penetrations must be sealed.
3. Shelves must anchor into wall studs.
4. Heat resistant and sealed materials last longer.
5. Routine inspection prevents hidden wall damage.

FAQ

Are floating shelves safe above a kitchen backsplash?

Yes, if they are anchored into studs, sealed against moisture, and placed a safe distance from cooking heat sources.

Can moisture damage occur behind floating shelves?

Yes. Backsplash moisture damage behind shelves can occur when drilled holes are not sealed properly, allowing water into the wall.

What is the safest distance between a stove and floating shelf?

Most kitchen design guidelines recommend at least 18–24 inches between a cooktop and the bottom of a shelf.

What materials are best for shelves near a backsplash?

Sealed hardwood, powder‑coated steel, or marine‑grade plywood resist moisture and heat better than MDF or untreated wood.

How much weight can kitchen floating shelves hold?

Stud‑mounted floating shelves typically hold 40–80 pounds depending on bracket design and shelf length.

Can mold grow behind backsplash shelves?

Yes. Mold can develop if moisture enters through mounting holes and airflow behind the shelf is restricted.

Do floating shelves damage tile backsplashes?

They can if installed incorrectly. Drilling through tile without proper anchors may cause cracking or long‑term loosening.

Is it safe to install floating shelves near a stove?

Floating shelves near stove safety depends on spacing, ventilation, and using heat‑resistant materials.
