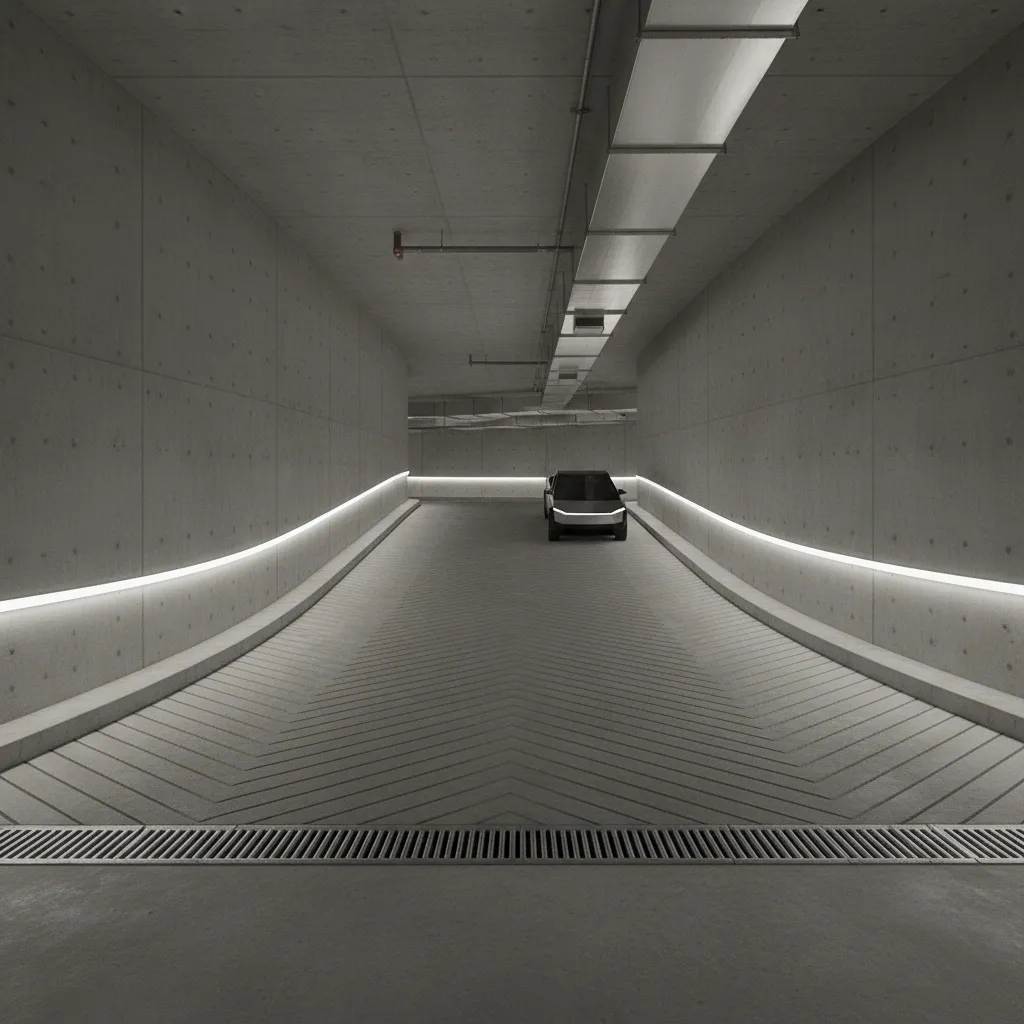

Safety and Risk Control in Basement Parking Ramp Design

Direct Answer

Effective safety and risk control in basement parking ramp design focuses on three core factors: controlled vehicle movement, clear driver visibility, and reliable drainage protection. When ramps are designed with proper slope limits, anti‑skid materials, lighting, and water management systems, the most common risks—collisions, slipping, and flooding—can be significantly reduced.

From my experience working on multi‑level residential and commercial parking facilities, most ramp accidents are not caused by drivers but by poor design decisions that ignore visibility angles, surface friction, and drainage planning.

Quick Takeaways

1. Visibility at ramp entrances prevents most vehicle conflicts.
2. Anti‑skid surfaces are essential for ramps steeper than 10%.
3. Drainage systems must intercept water before it reaches the basement level.
4. Lighting consistency reduces reaction delays for drivers entering slopes.
5. Emergency access paths should remain usable even during power failure.

Introduction

Designing a safe basement parking ramp is more complex than simply connecting street level to underground parking. Parking ramp safety design involves slope control, vehicle visibility, water management, lighting conditions, and emergency planning—all working together.

Over the past decade, I have reviewed dozens of residential towers and commercial garages where ramp issues created real risks: cars scraping the floor at transitions, drivers unable to see oncoming vehicles, and in some cases, rainwater flowing directly into the basement level.

Most of these problems weren’t construction mistakes. They were design oversights that could have been prevented during early planning.

Before we even talk about materials or safety devices, the geometry of the ramp must be planned carefully. Many designers now test layouts using digital planning tools before construction. If you want to see how professionals simulate circulation and ramp geometry early in the process, this guide on planning vehicle circulation with a 3D floor layout simulationshows how early modeling helps catch safety conflicts.

In this article, I’ll walk through the most important risk control strategies used in modern underground parking design—based on real issues I’ve seen across residential towers, shopping centers, and mixed‑use developments.

save pin

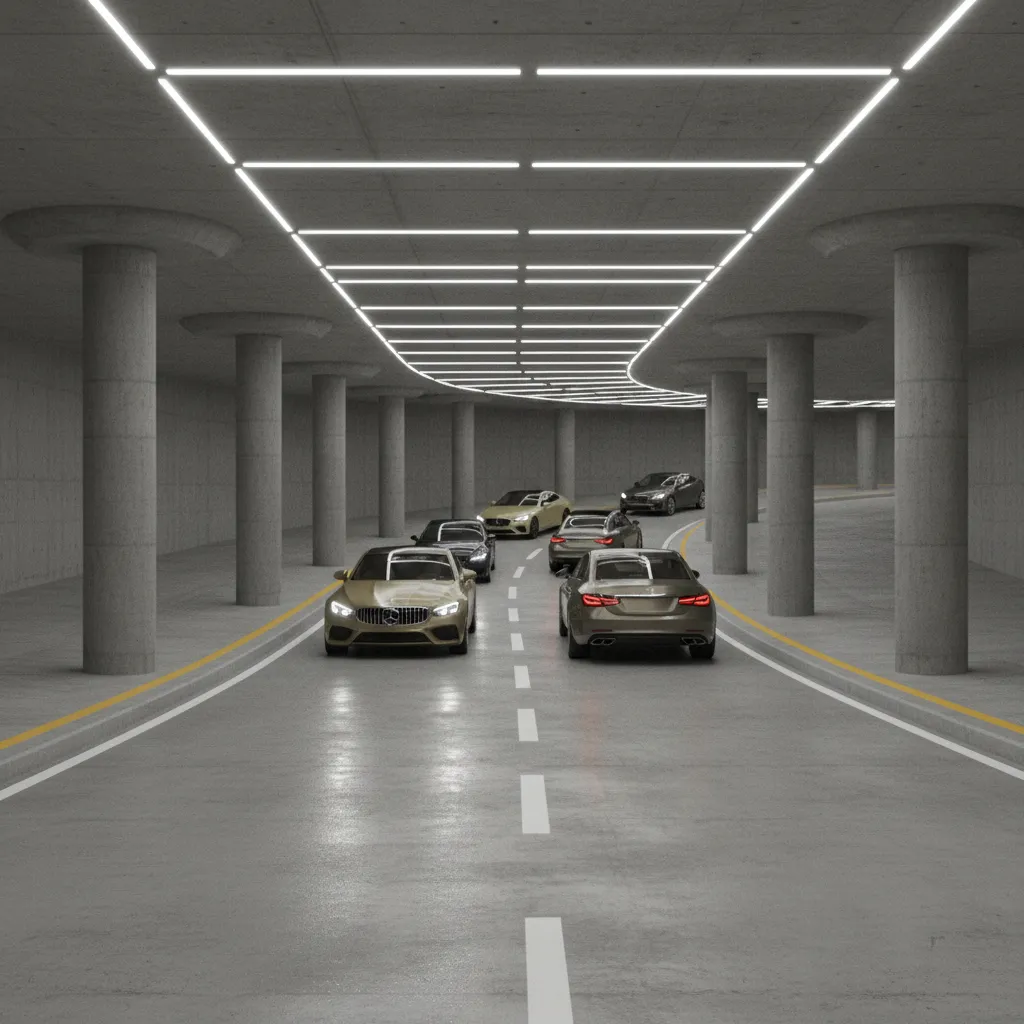

Major Safety Risks in Basement Parking Ramps

Key Insight: Most parking ramp accidents are linked to visibility conflicts, excessive slope transitions, or slippery surfaces—not driver error.

In real projects, four risks appear repeatedly. If these are addressed early in the design phase, most operational problems disappear.

1. Vehicle collision risk at ramp entrances where drivers cannot see incoming vehicles.
2. Loss of traction on steep ramps during rain or snow.
3. Water intrusion and flooding from poorly designed drainage systems.
4. Driver disorientation caused by poor lighting or tight turning radii.

According to international parking design guidelines referenced by the National Parking Association and several municipal planning codes, ramp grades typically range between 10% and 15%. Anything steeper significantly increases braking distance and traction risk.

Another overlooked problem is the ramp transition zone. If the transition between flat floor and ramp slope is too abrupt, vehicles with longer wheelbases may scrape the ground.

These issues are easier to identify during early layout planning. Designers often test vehicle paths using tools similar to those shown in this walkthrough on creating early layout drafts for vehicle circulation planning, which helps identify turning conflicts before construction begins.

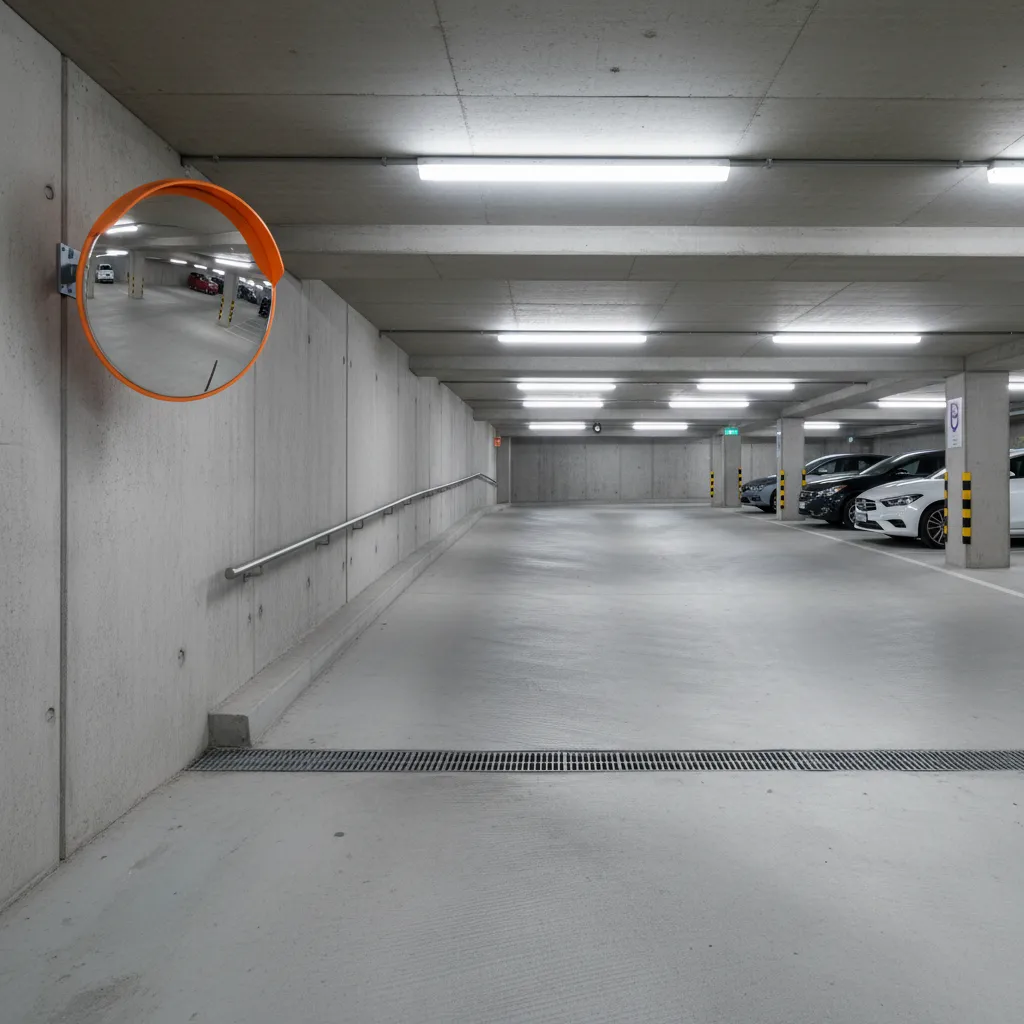

Designing Proper Visibility at Ramp Entrances

Key Insight: Clear sightlines at ramp entrances are the single most important factor for preventing collisions.

Drivers entering or exiting a basement ramp have only a few seconds to react. If they cannot see an approaching vehicle, even low speeds can lead to accidents.

Good visibility design usually includes:

1. Convex safety mirrors positioned at blind corners
2. Wide entrance openings
3. Gradual horizontal curves instead of sharp turns
4. Separate entry and exit lanes where space allows

One common mistake I see is placing structural columns too close to the ramp entrance. Columns reduce the driver’s field of view and create blind spots.

A better approach is aligning the ramp so drivers can see at least 10–15 meters ahead before committing to the descent.

save pin

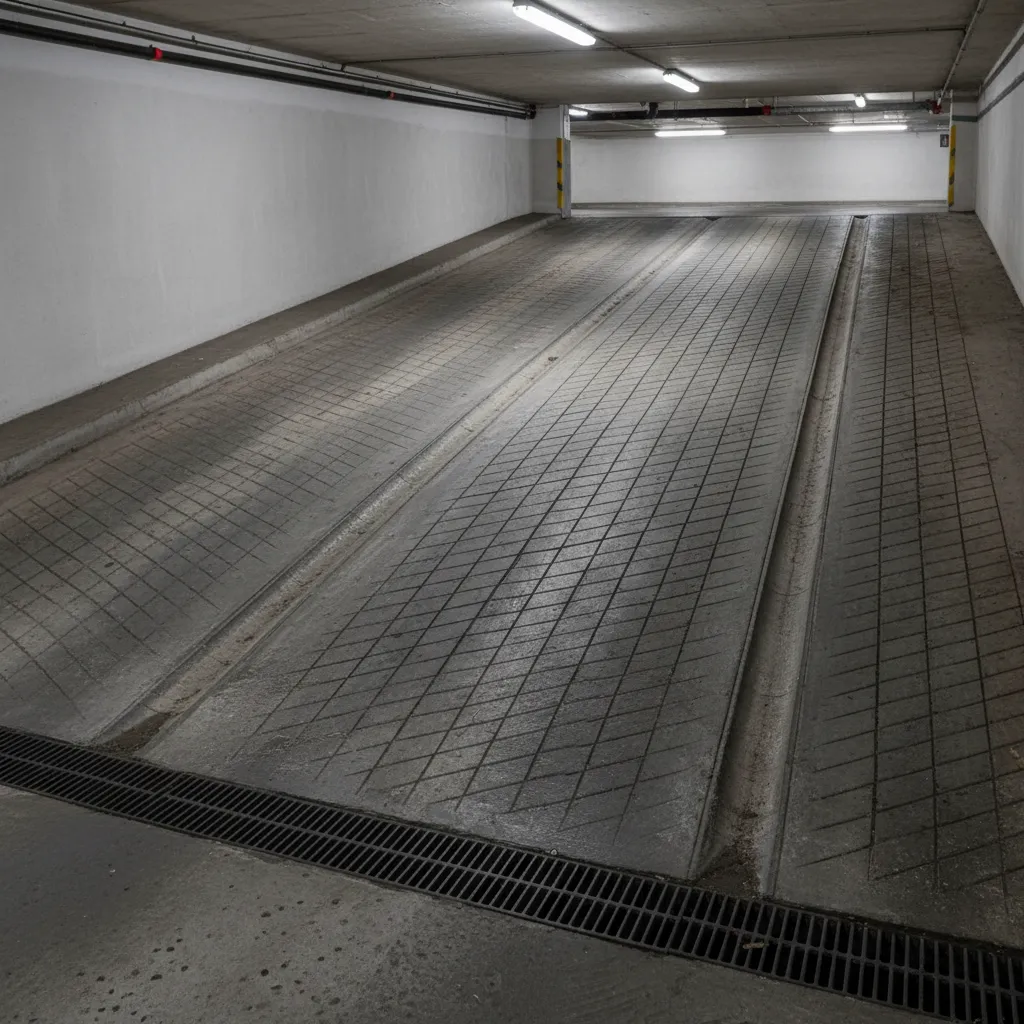

Anti-Skid Surfaces and Vehicle Control on Slopes

Key Insight: Surface friction is critical on ramps; polished concrete alone is rarely safe enough.

When vehicles brake on a slope, tire grip becomes the main safety factor. Smooth concrete surfaces can become dangerously slippery when wet.

Most modern basement ramp anti skid surface requirements include one of these solutions:

1. Broom‑finished textured concrete
2. Grooved ramp surfaces
3. Epoxy anti‑skid coatings
4. Embedded aggregate traction strips

Grooved concrete is one of the most reliable solutions. The grooves increase friction while also channeling water away from the tire path.

From a maintenance perspective, epoxy coatings work well but require periodic resurfacing. Concrete grooves, on the other hand, usually last the life of the ramp.

save pin

Flood Prevention and Drainage Safety Measures

Key Insight: Water should always be intercepted before it reaches the ramp slope leading underground.

Flooding is one of the most expensive failures in underground parking design. During heavy storms, water can quickly flow down the ramp and accumulate inside the garage.

Effective flood prevention for basement parking ramps usually includes:

1. Trench drains at the ramp entrance
2. Secondary drainage channels mid‑ramp
3. Sump pumps at the lowest level
4. Raised ramp thresholds

In coastal cities and flood‑prone regions, some garages now include automatic flood barriers that deploy during extreme rainfall events.

Answer Box

The safest basement parking ramps combine three elements: controlled slope geometry, high‑traction surfaces, and proactive water management. When visibility, drainage, and lighting are designed together, the risk of collisions, slips, and flooding drops dramatically.

Lighting and Signage for Ramp Safety

Key Insight: Drivers entering a ramp must adapt quickly to changing light conditions, making lighting design essential for safety.

One overlooked factor in parking ramp lighting and visibility design is contrast adaptation. Drivers moving from bright outdoor sunlight into a darker ramp need time to adjust their vision.

Effective ramp lighting strategies include:

1. High illumination at ramp entrances
2. Gradual light level transitions
3. Reflective lane markings
4. Directional signage

LED lighting systems are now widely used because they provide consistent brightness and low maintenance.

Emergency Access and Evacuation Considerations

Key Insight: Basement ramps must remain usable during emergencies such as power failure, fire, or flooding.

Emergency planning is often ignored in smaller residential developments, but it becomes critical in large parking facilities.

Important design considerations include:

1. Clearly marked pedestrian escape routes
2. Fire‑rated stair access near ramps
3. Backup emergency lighting
4. Vehicle clearance for emergency responders

When planners test circulation routes during early design phases, they often simulate vehicle flow and emergency access simultaneously. This walkthrough on visualizing vehicle movement and circulation paths during layout planning shows how digital planning helps identify conflicts before construction.

Final Summary

1. Visibility at ramp entrances prevents most vehicle collisions.
2. Anti‑skid surfaces significantly improve traction on steep slopes.
3. Drainage systems must intercept stormwater before the ramp descent.
4. Lighting transitions help drivers adapt quickly when entering underground areas.
5. Emergency access planning improves safety during unexpected events.

FAQ

What is the safest slope for a basement parking ramp?

Most design standards recommend slopes between 10% and 15%. Steeper ramps increase braking distance and traction risk.

What surface is best for a parking ramp?

Grooved concrete or textured broom‑finish concrete provides reliable traction and long‑term durability.

How do you prevent basement ramp flooding?

Install trench drains at the entrance, mid‑ramp drainage channels, and sump pumps at the lowest level.

Why are convex mirrors used in parking ramps?

Convex mirrors improve visibility at blind corners and help drivers see approaching vehicles.

Do basement ramps need special lighting?

Yes. Parking ramp lighting and visibility design should include bright entry lighting and gradual light transitions.

What are common parking ramp safety design mistakes?

Common mistakes include steep slopes, poor drainage, limited visibility, and slippery ramp surfaces.

How wide should a basement parking ramp be?

Single‑lane ramps are typically 3–3.5 meters wide, while two‑way ramps require around 6–7 meters.

Is an anti‑skid surface required for basement ramps?

Most building codes recommend anti‑skid materials when ramp slopes exceed 10%.
