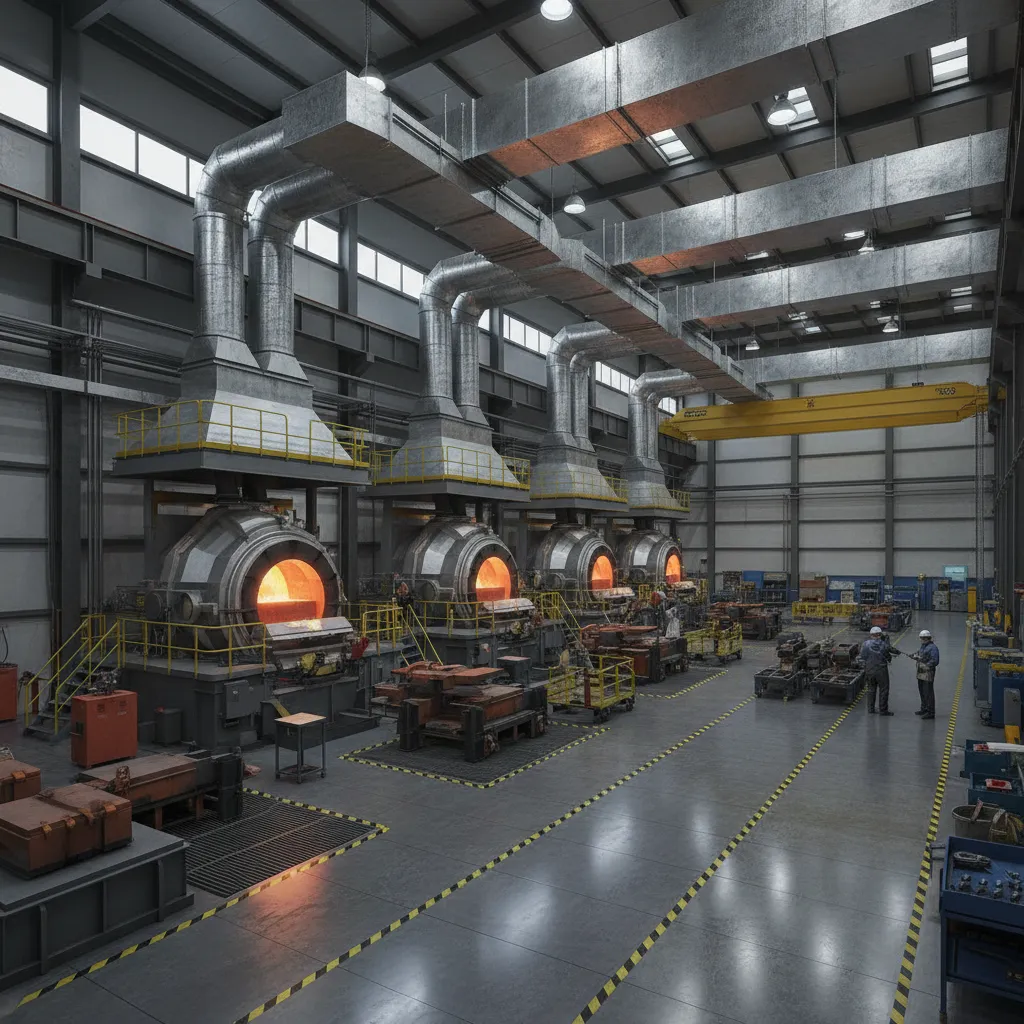

Safety and Risk Control in Casting Room Design: Practical layout, ventilation, and fire‑prevention strategies to reduce hazards in modern casting workshops

Direct Answer

Effective casting room safety design focuses on controlled airflow, heat‑resistant zoning, clear equipment spacing, and strict emergency planning. A well‑planned layout can significantly reduce fire hazards, toxic fume exposure, and accident risks in casting workshops.

In practice, safe casting environments rely on three core factors: ventilation, thermal protection, and organized workspace planning. When these elements are built into the room layout from the start, risk levels drop dramatically.

Quick Takeaways

1. Proper ventilation is the most critical safety control in any casting room.
2. Clear equipment spacing prevents heat accumulation and collision risks.
3. Fire‑resistant materials and zoning reduce molten metal hazards.
4. Emergency exits and response plans must be integrated into layout design.
5. Safety protocols work best when the workspace layout supports them.

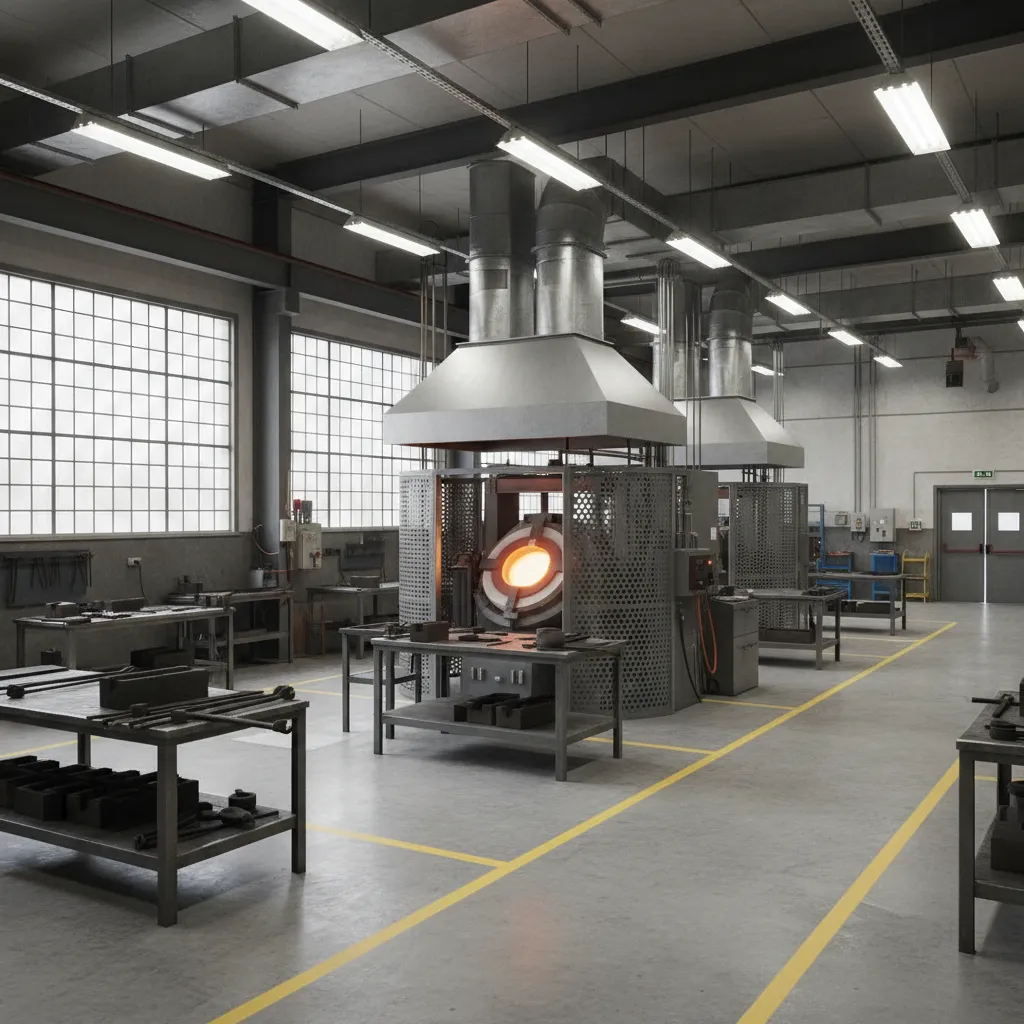

Introduction

In more than a decade working on industrial and workshop interiors, I've noticed something consistent: most casting room accidents aren't caused by a single mistake. They're usually the result of poor layout decisions made early in the design process.

When people search for casting room safety design, they often focus on protective gear or safety rules. Those matter, but the real risk control happens in the spatial planning — where furnaces are placed, how airflow moves, and whether workers can move safely around high‑temperature equipment.

I've helped redesign several small foundry workshops where simply reorganizing the room layout reduced heat exposure and accident risk significantly. Many of those projects started with a clear spatial plan created using tools like this guide on visualizing workshop layouts before construction, which helps identify safety problems long before equipment is installed.

This article breaks down the key safety risks in casting rooms and explains how to design a safer, more controlled workspace.

save pin

Major Safety Risks in Casting Rooms

Key Insight: Most casting workshop hazards fall into four categories: heat exposure, toxic fumes, fire risk, and physical workspace collisions.

Casting environments combine high temperatures, molten materials, and chemical emissions. Without a structured design approach, these risks quickly compound.

Common hazards include:

1. Molten metal splashes causing severe burns
2. Toxic fumes from metal alloys and binders
3. Fire risk from combustible materials near furnaces
4. Worker collisions in crowded equipment zones
5. Poor airflow leading to heat buildup

The Occupational Safety and Health Administration (OSHA) consistently highlights ventilation, spacing, and protective infrastructure as critical safety factors in metal casting facilities.

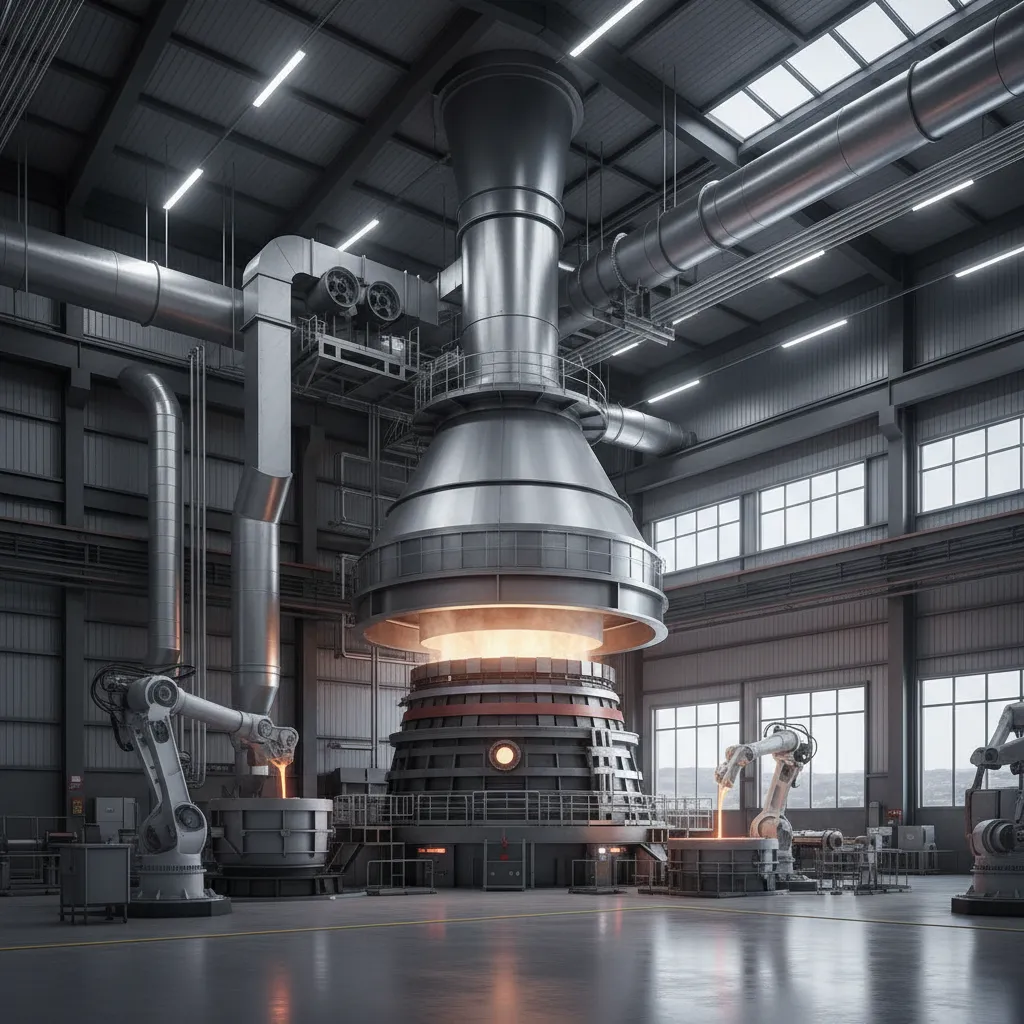

Ventilation and Air Quality Management

Key Insight: Proper ventilation is the single most effective safety control in casting workshop design.

Metal casting releases fumes, particulate matter, and heat. Without controlled airflow, these accumulate rapidly and create both health and fire hazards.

Effective ventilation strategies include:

1. Local exhaust ventilation directly above furnaces
2. High‑capacity roof extraction systems
3. Cross‑ventilation airflow paths
4. Dedicated fume capture for mold materials

According to the American Foundry Society, well‑designed ventilation systems can reduce airborne contaminants by over 70% in typical casting environments.

save pin

Fire and Heat Hazard Prevention

Key Insight: Fire prevention in casting rooms depends more on zoning and materials than on extinguishers.

One of the most common mistakes I see in small casting workshops is placing combustible storage too close to heat sources. Even experienced operators sometimes overlook how heat radiates across the room.

Key fire‑prevention design measures:

1. Separate furnace zones from storage areas
2. Use fire‑resistant flooring and wall materials
3. Maintain safe distances between heat sources
4. Install automatic fire detection systems
5. Provide Class D fire extinguishers for metal fires

NFPA foundry safety guidelines emphasize non‑combustible construction materials and dedicated furnace zones as essential risk controls.

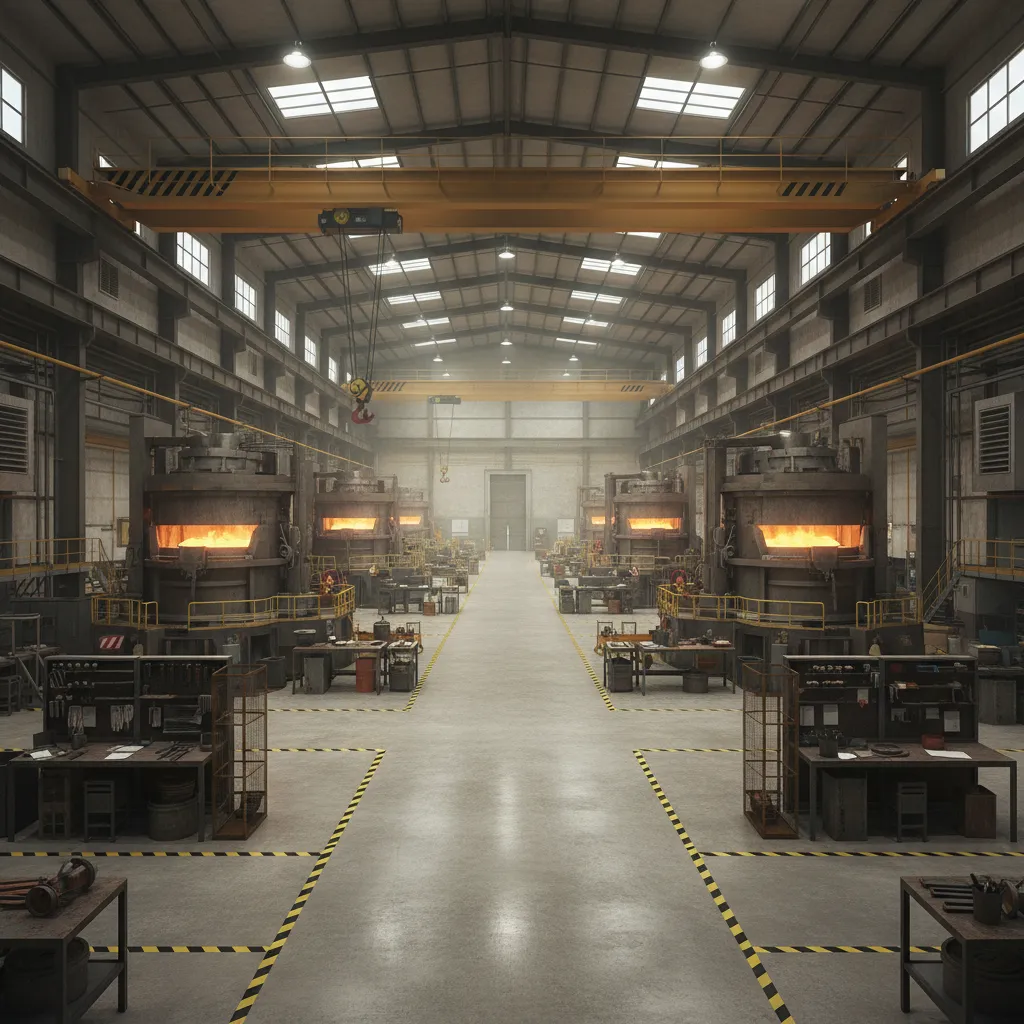

Safe Equipment Spacing and Layout Planning

Key Insight: A poorly spaced casting room increases both accident probability and heat concentration.

In several projects I've worked on, simply increasing the clearance around furnaces and workstations dramatically improved safety and workflow.

Recommended layout guidelines:

1. Maintain minimum 1.2–1.5 meters between major equipment
2. Ensure clear transport paths for molten material
3. Avoid dead‑end circulation routes
4. Separate hot work zones from finishing areas

Before construction, many teams test layouts using tools similar to this approach for mapping safer workshop floor plans. It helps identify congestion points and emergency access issues early.

save pin

Protective Gear and Safety Protocols

Key Insight: Protective equipment is only effective when the workspace layout supports safe behavior.

Even the best protective gear can't compensate for a dangerous workspace design.

Essential safety equipment includes:

1. Heat‑resistant gloves and face shields
2. Flame‑retardant clothing
3. Respiratory protection in enclosed areas
4. Steel‑toe boots

But the hidden issue is accessibility. If storage for protective gear is too far from the work zone, workers often skip it. Good design places safety stations directly along the workflow path.

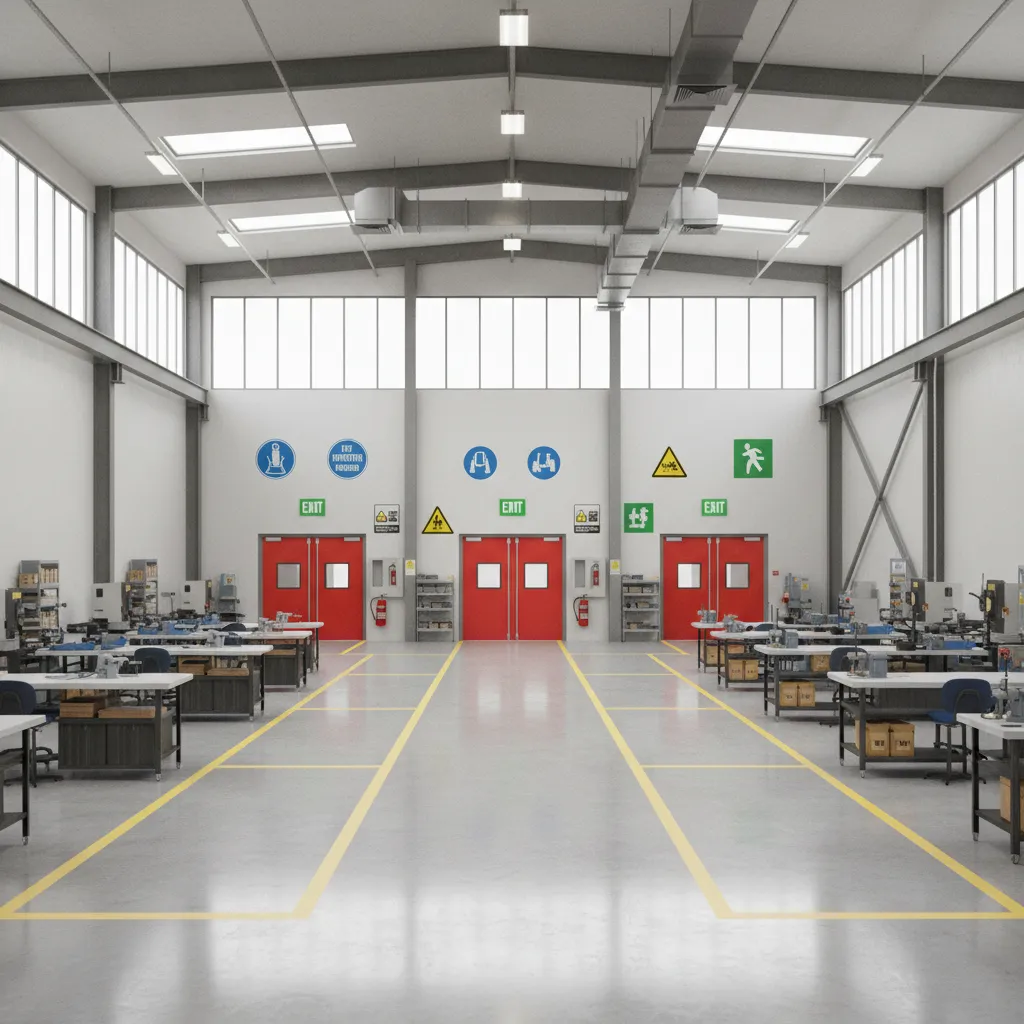

Emergency Planning in Casting Workshops

Key Insight: Emergency response must be built into the spatial design, not treated as an afterthought.

In casting environments, emergencies escalate quickly. Layout design should ensure immediate access to exits, safety equipment, and isolation controls.

Critical emergency design features:

1. Clearly marked evacuation routes
2. Minimum two emergency exits
3. Accessible emergency shutoff systems
4. Dedicated first‑aid stations
5. Spill containment areas

Many workshops now test emergency scenarios through digital layout simulations. Visualization methods like previewing the full casting workspace in realistic 3Dhelp teams evaluate visibility, movement, and evacuation routes before construction.

save pin

Answer Box

The safest casting rooms are designed around airflow control, heat zoning, and clear circulation paths. When ventilation, spacing, and emergency planning are integrated into the layout, most operational risks can be significantly reduced.

Designing a Safer Casting Workspace

Key Insight: The biggest safety improvements usually come from layout redesign rather than new equipment.

After working on multiple casting workshop upgrades, one pattern stands out: risk decreases dramatically when designers rethink the workspace as a system instead of focusing on individual machines.

A safer casting workspace typically includes:

1. Dedicated furnace zones
2. Ventilation‑aligned workstation placement
3. Clear transport paths
4. Separate storage and finishing areas
5. Integrated safety infrastructure

Design decisions made during planning often determine whether a workshop becomes safer or more dangerous over time.

Final Summary

1. Ventilation and airflow control are the foundation of casting room safety.
2. Heat zoning prevents fire risk and thermal exposure.
3. Clear equipment spacing improves both safety and workflow.
4. Emergency planning must be integrated into layout design.
5. Workspace planning is the most powerful risk‑reduction tool.

FAQ

What is the most important factor in casting room safety design?

Ventilation. Proper airflow removes fumes, reduces heat buildup, and improves worker safety in casting environments.

How much space should be between casting equipment?

Most workshops maintain 1.2–1.5 meters between major equipment to allow safe movement and reduce heat concentration.

Why is ventilation critical in a casting workshop?

Casting processes release metal fumes and particulates. Effective ventilation prevents toxic exposure and maintains safe air quality.

What type of fire extinguisher is used in casting rooms?

Class D fire extinguishers are designed for combustible metal fires common in foundry environments.

How can layout planning improve casting room safety?

Good layout planning separates hot zones, improves ventilation paths, and ensures safe movement routes.

Do small casting workshops need professional safety planning?

Yes. Even small casting spaces can produce dangerous fumes and extreme heat, making layout planning essential.

What materials are best for casting room floors?

Fire‑resistant concrete or specialized heat‑resistant flooring materials are commonly used in foundries.

What is casting room ventilation safety?

Casting room ventilation safety refers to systems designed to remove fumes, heat, and airborne particles from casting environments.
