Safety, Compliance, and Infection Control in Medical Building Floor Plans: How to design healthcare layouts that meet safety regulations, reduce infection risk, and pass compliance reviews

Direct Answer

Medical building floor plans must prioritize patient safety, regulatory compliance, and infection control through zoning, clear circulation paths, proper ventilation, and accessibility standards. A compliant layout separates clean and contaminated areas, ensures emergency access, and follows ADA and healthcare facility guidelines.

When these elements are built into the floor plan early, medical facilities are far more likely to pass regulatory review and operate safely for both patients and staff.

Quick Takeaways

1. Healthcare floor plans must separate clean, sterile, and contaminated circulation paths.
2. Ventilation and airflow design are critical for infection control in clinical environments.
3. Emergency access routes must remain unobstructed and clearly defined in layouts.
4. ADA accessibility standards influence door widths, corridors, and restroom design.
5. Compliance issues are far easier to fix during planning than after construction.

Introduction

Designing a medical building floor plan is very different from designing a typical office or retail space. In healthcare architecture, layout decisions directly affect patient safety, infection control, and regulatory approval.

After working on outpatient clinics, surgical centers, and specialty treatment facilities over the past decade, I've noticed that many compliance issues originate at the floor plan stage—not during construction. A corridor that's slightly too narrow, a poorly placed waiting area, or shared circulation between sterile and contaminated zones can quickly trigger costly redesigns.

Many project teams now begin layout exploration using visual planning tools that allow them to quickly prototype medical layouts and circulation paths before construction drawings begin. Catching design conflicts early dramatically reduces compliance risks.

In this guide, I'll break down the safety, regulatory, and infection-control principles that experienced healthcare designers prioritize when developing medical building floor plans.

save pin

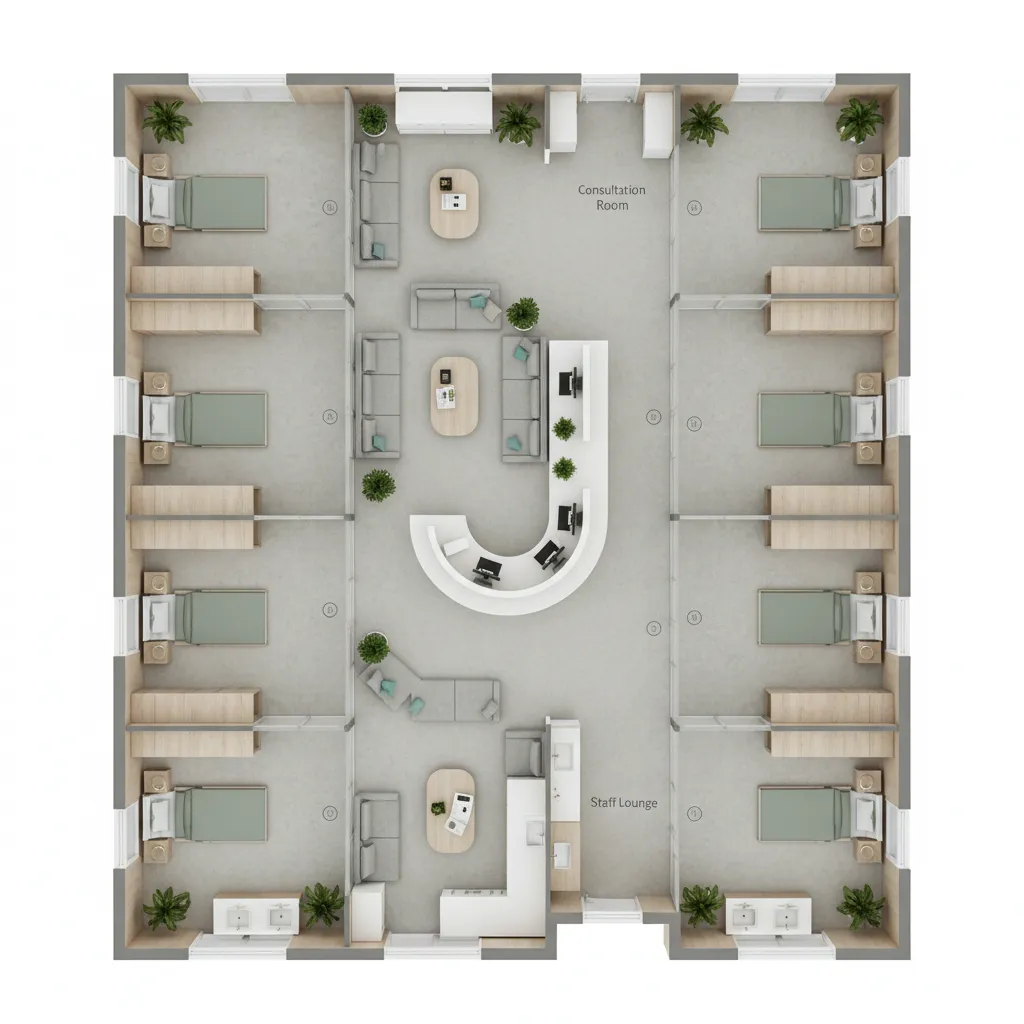

Key Healthcare Regulations Affecting Medical Facility Layouts

Key Insight: Most healthcare compliance failures happen because designers underestimate how deeply regulations influence spatial planning.

Medical facilities are governed by multiple regulatory frameworks that directly shape how rooms, corridors, and departments must be organized. Ignoring these rules early in design usually leads to expensive redesigns.

Major regulatory frameworks influencing medical layouts include:

1. Facility Guidelines Institute (FGI) healthcare design standards
2. International Building Code (IBC) life-safety requirements
3. NFPA 101 Life Safety Code
4. Centers for Disease Control infection control guidance
5. Americans with Disabilities Act (ADA)

For example, the FGI Guidelines specify minimum room sizes for exam rooms, required handwashing stations, and separation of clean and dirty areas in clinical departments.

In one outpatient surgery project I worked on, the entire recovery area had to be redesigned because patient beds were positioned too close together to meet spacing guidelines. Fixing the problem early in the floor plan stage saved weeks of revisions later.

Designing for Infection Prevention and Control

Key Insight: Infection control begins with spatial separation, not equipment.

Many people assume infection prevention is mostly about sanitation protocols. In reality, layout design plays a massive role in limiting cross-contamination inside healthcare facilities.

Effective infection-control layouts usually include:

1. Separate circulation paths for patients, staff, and supplies
2. Dedicated clean and dirty utility rooms
3. Handwashing stations located near every clinical area
4. Isolation rooms positioned away from general traffic
5. Clearly defined sterile storage zones

CDC infection control recommendations consistently emphasize the importance of hand hygiene infrastructure and patient separation within healthcare buildings.

save pin

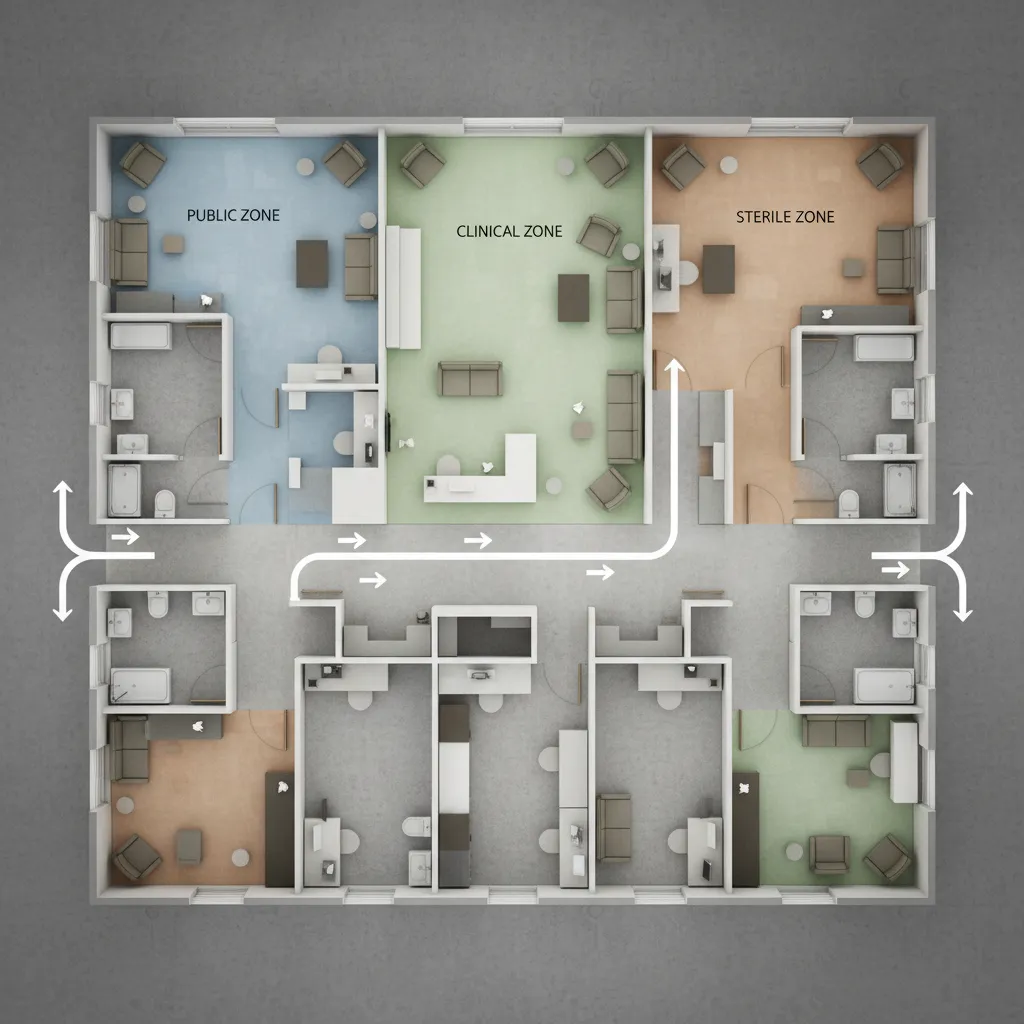

Isolation Areas and Contamination Control Zones

Key Insight: Isolation spaces should be strategically placed, not simply added at the end of the hallway.

A common design mistake I see is placing isolation rooms in high-traffic corridors. This increases exposure risk and complicates staff workflow.

Instead, effective contamination control planning divides the facility into clear zones:

1. Public zone: reception, waiting areas, administration
2. Clinical zone: exam rooms and treatment rooms
3. Sterile zone: operating or procedure rooms
4. Restricted zone: staff-only and supply areas

Isolation rooms typically work best when placed near entrances or triage areas so infectious patients can be separated quickly.

During layout development, many design teams also review circulation patterns in 3D environments where they can visualize patient movement and room relationships in a full medical floor layout. This makes contamination risks easier to identify before construction.

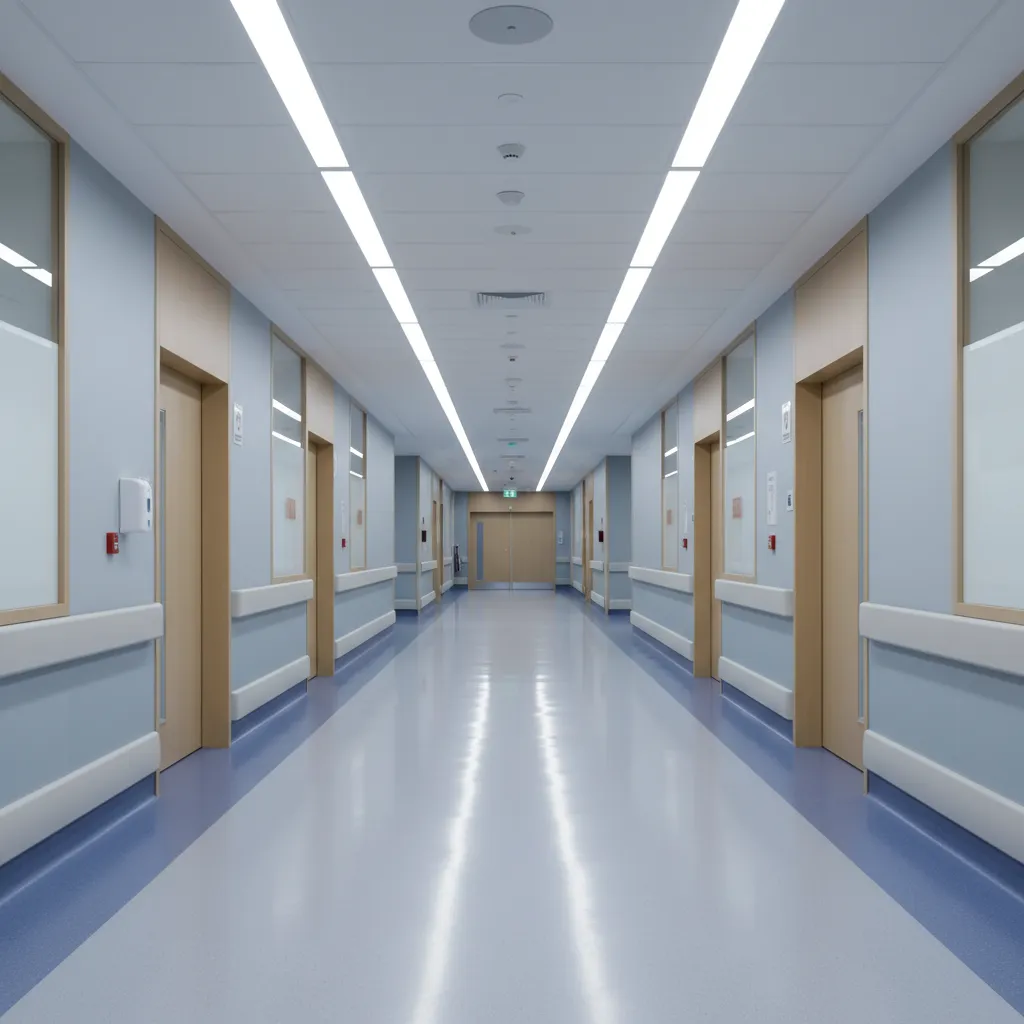

Emergency Access and Life Safety Requirements

Key Insight: Life-safety codes often determine corridor widths, exit placement, and department adjacency.

Healthcare facilities must maintain safe evacuation and emergency access at all times. This requirement affects many floor plan decisions.

Typical life-safety design requirements include:

1. Minimum corridor widths for patient transport
2. Direct access routes for emergency responders
3. Fire-rated walls between departments
4. Multiple exit paths from patient areas
5. Smoke compartments to slow fire spread

The NFPA Life Safety Code often requires hospitals to divide floors into smoke compartments so patients can be relocated horizontally during emergencies instead of evacuated vertically.

save pin

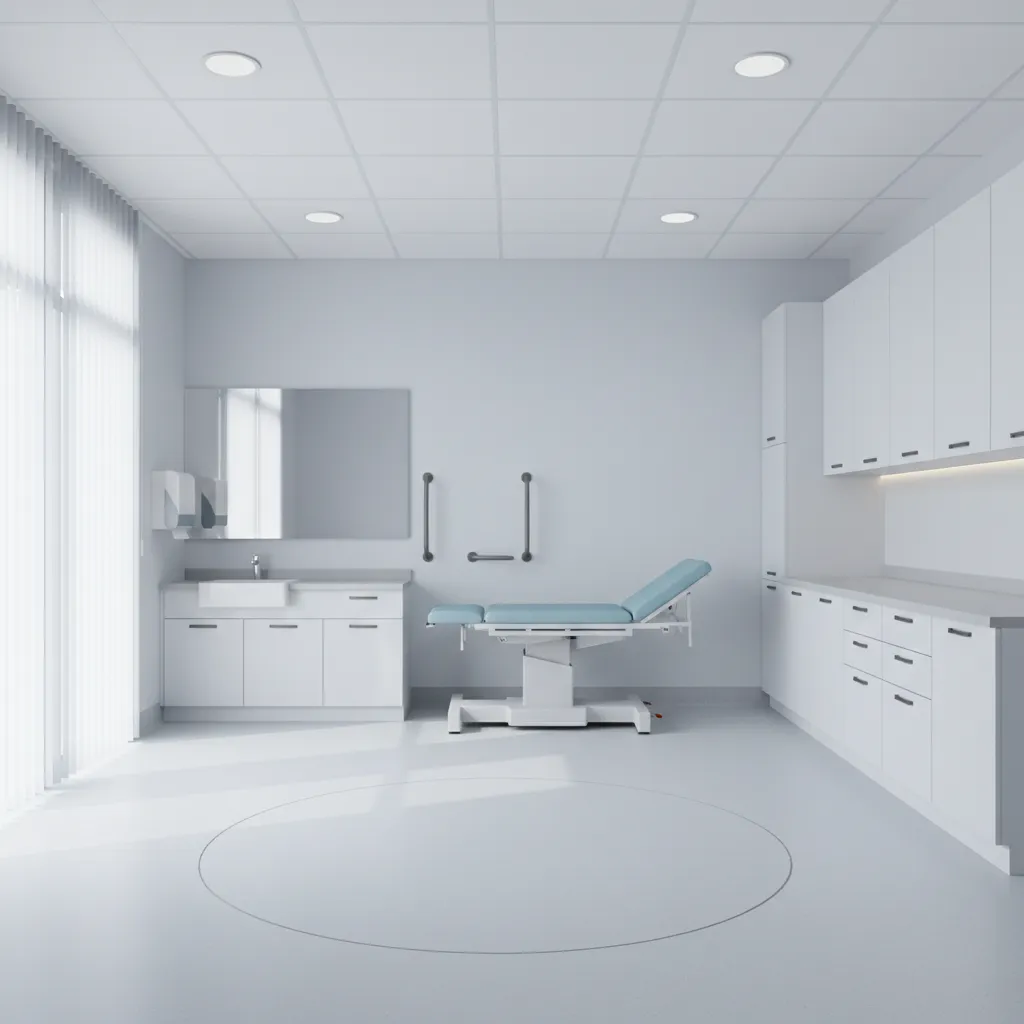

Accessibility and ADA Considerations

Key Insight: ADA requirements influence almost every dimension inside a medical building.

Accessibility standards aren't limited to ramps or entrances. They affect the layout of exam rooms, restrooms, waiting areas, and corridors.

Common ADA planning requirements include:

1. Door clear width of at least 32 inches
2. Turning radius for wheelchairs (typically 60 inches)
3. Accessible restroom layouts
4. Clear pathways without obstacles
5. Lowered reception counters

One frequently overlooked issue is exam room circulation. Rooms may technically meet ADA size requirements but still fail accessibility checks if furniture blocks wheelchair movement.

Ventilation, Airflow, and Environmental Safety

Key Insight: Airflow planning is one of the most important—and most misunderstood—parts of healthcare facility design.

Infection control often depends on maintaining pressure relationships between rooms. For example:

1. Isolation rooms use negative pressure
2. Operating rooms use positive pressure
3. Procedure rooms require controlled air exchanges

ASHRAE healthcare ventilation standards define minimum air change rates and filtration requirements for different clinical spaces.

From a layout perspective, this means mechanical rooms, duct paths, and air returns must be considered early in the floor plan.

Answer Box

The safest medical building floor plans separate public, clinical, sterile, and contaminated zones while supporting emergency access, ventilation control, and ADA accessibility. Most compliance issues originate from poor spatial planning rather than missing equipment.

save pin

Design Review Checklist for Compliance

Key Insight: A structured review process catches most compliance risks before construction drawings begin.

Before finalizing a medical facility layout, experienced healthcare architects typically review these items:

1. Are clean and contaminated circulation paths separated?
2. Are isolation rooms located near triage or entrances?
3. Do corridors meet patient transport width requirements?
4. Are ADA turning clearances maintained in exam rooms?
5. Do emergency exits provide direct access from clinical zones?
6. Are mechanical spaces planned for ventilation systems?

Many teams run this checklist while reviewing digital layouts where they can test healthcare room arrangements and workflow scenarios before construction.

Final Summary

1. Medical floor plans must separate clean, contaminated, and sterile zones.
2. Infection prevention starts with spatial planning and circulation control.
3. Life-safety codes influence corridor widths and emergency access routes.
4. ADA requirements affect exam rooms, restrooms, and patient circulation.
5. Ventilation planning should be integrated during early floor plan design.

FAQ

What regulations affect medical building floor plans?

FGI Guidelines, ADA standards, NFPA Life Safety Code, and local building codes commonly influence healthcare facility layouts.

Why is infection control important in healthcare building design?

Layout design affects patient separation, airflow, and staff circulation, all of which influence infection transmission risk.

What is the ideal corridor width for hospitals?

Most healthcare facilities require corridors at least 8 feet wide to allow patient transport and emergency access.

Do small clinics need isolation rooms?

Many outpatient facilities include at least one isolation room to manage infectious patients safely.

What ADA requirements apply to medical facilities?

ADA standards require accessible entrances, wheelchair turning space, compliant restrooms, and clear circulation paths.

How does ventilation affect infection control in healthcare architecture?

Proper airflow and pressure control prevent contaminated air from spreading between clinical spaces.

What is the biggest mistake in medical facility layout compliance?

Mixing public and clinical circulation paths is one of the most common and costly design mistakes.

Can digital floor planning help with healthcare compliance?

Yes. Visual planning tools help identify circulation conflicts, spacing issues, and zoning problems early in the design process.
