Safety, Compliance, and Risk Management in Small Cinema Hall Design: A practical guide to meeting safety regulations, preventing costly mistakes, and designing compliant compact movie theaters.

Direct Answer

Designing a safe small cinema hall requires strict planning around fire safety, emergency exits, crowd movement, electrical systems, and accessibility regulations. Even compact theaters must meet the same life‑safety standards as large multiplexes, including evacuation routes, ADA accessibility, and properly rated projection equipment. Ignoring these factors early in design often leads to expensive redesigns or permit delays.

Quick Takeaways

1. Small cinema halls must follow the same fire and evacuation codes as large theaters.
2. Emergency exits and aisle widths determine maximum seating capacity.
3. Electrical safety around projection equipment is a frequent compliance failure.
4. Accessibility regulations apply even to very small theaters.
5. Most compliance problems come from layout decisions made too late.

Introduction

In the past decade I’ve worked on several boutique theaters and compact screening venues, and one pattern shows up repeatedly: safety planning is usually underestimated during early design.

Owners tend to focus on screen size, seating count, or acoustic treatments first. But the reality is that small cinema hall safety regulations often dictate the layout long before aesthetic decisions begin. I’ve seen projects lose weeks in permit reviews simply because exit spacing or aisle width didn’t match code.

The tricky part is that compact venues have less margin for error. When you only have a few thousand square feet, every wall shift affects evacuation routes, ADA seating placement, and electrical infrastructure.

That’s why many design teams now prototype circulation and emergency routes early using tools that allow designers to visualize evacuation paths inside a 3D floor layout before construction. It’s a simple step that prevents expensive compliance corrections later.

This guide breaks down the most important safety factors in small cinema hall design—from fire code fundamentals to the compliance mistakes I see most often on real projects.

save pin

Why Safety Planning Is Critical for Compact Cinemas

Key Insight: In small theaters, safety regulations often determine the entire layout—not the other way around.

Large multiplexes can distribute exits across multiple corridors and floors. Small cinema halls rarely have that luxury. The building footprint is limited, which means evacuation paths, seat rows, and projection placement must all coexist within tight geometry.

Here are the primary design constraints safety codes introduce:

1. Minimum aisle width requirements
2. Maximum travel distance to exits
3. Emergency lighting coverage
4. Fire‑rated wall assemblies
5. Maximum occupancy load per square foot

The International Building Code (IBC) and National Fire Protection Association (NFPA) standards typically require that occupants reach an exit within a defined travel distance—often around 200 feet depending on sprinkler systems and occupancy classification.

For small theaters, this rule frequently determines the location of the screen wall and seating orientation.

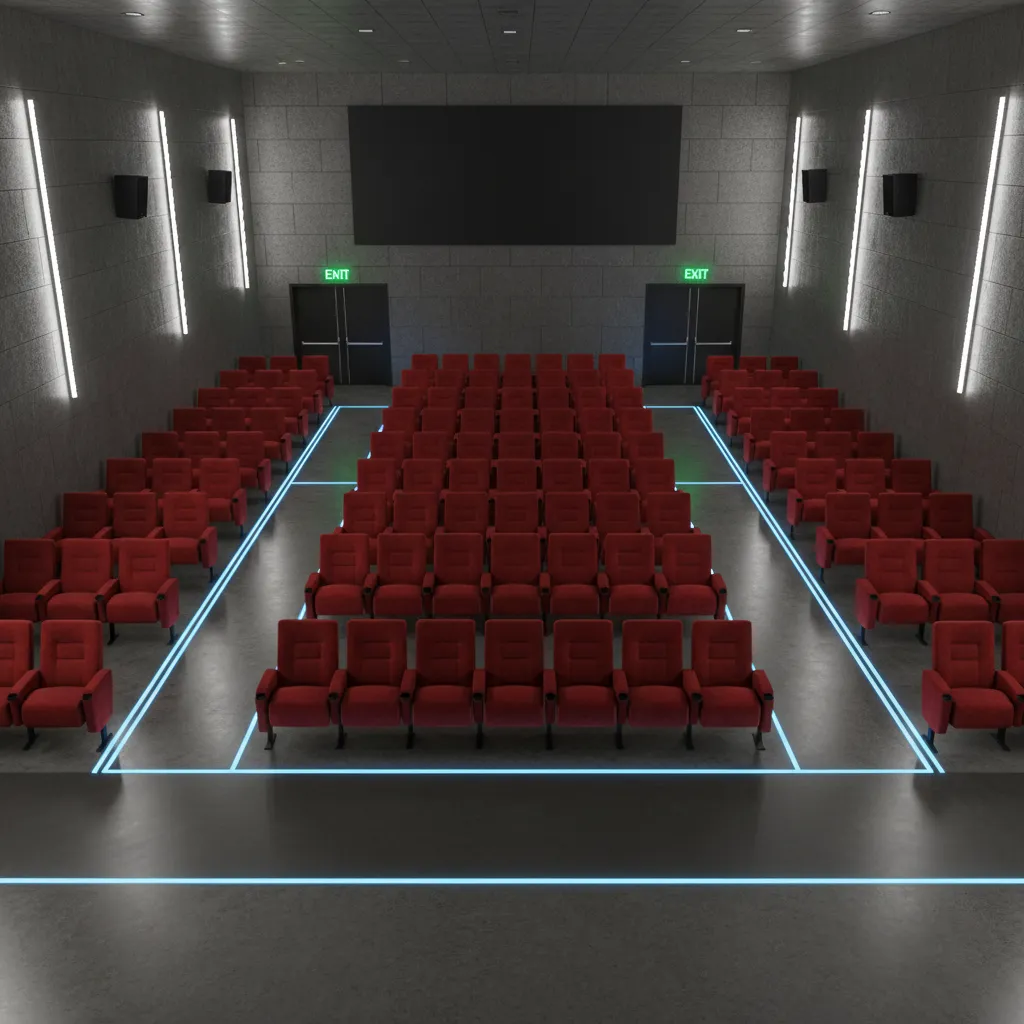

Fire Safety and Emergency Exit Requirements

Key Insight: Emergency exit placement is the single most important compliance factor in cinema safety planning.

Movie theater fire safety requirements are strict because auditoriums operate in low‑light conditions with dense seating arrangements. During an emergency, people must exit quickly without confusion.

Typical requirements include:

1. At least two independent exit routes
2. Illuminated exit signage
3. Fire‑rated doors with panic hardware
4. Clearly lit aisle pathways
5. Emergency lighting backup systems

One hidden issue I often encounter is exit door swing direction. In assembly occupancies like theaters, exit doors must open in the direction of egress. If the design doesn’t account for this, it can block circulation or conflict with lobby space.

According to the NFPA Life Safety Code, assembly spaces with more than 50 occupants must have outward‑swinging exit doors and clearly marked escape routes.

save pin

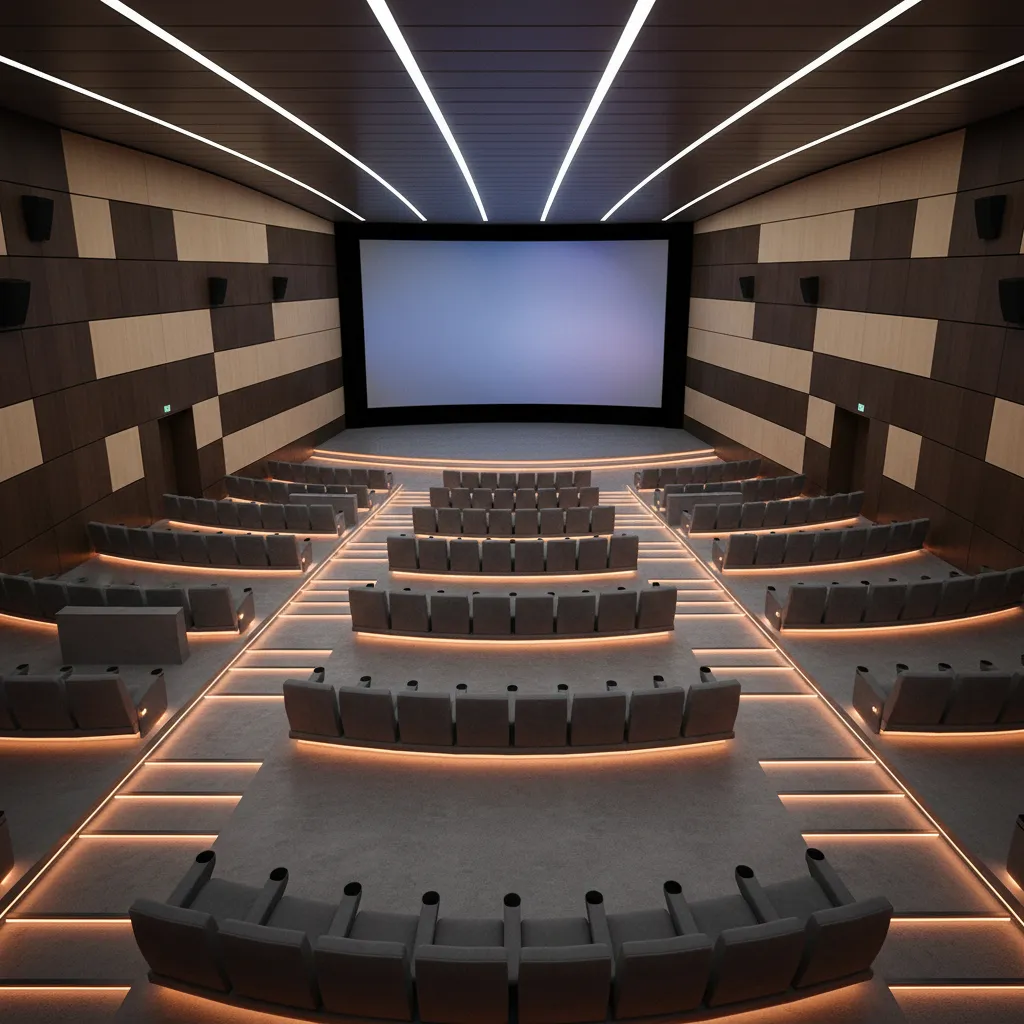

Crowd Flow and Evacuation Planning

Key Insight: Safe evacuation depends more on aisle geometry than on the number of exits.

Designers often assume adding more exits solves evacuation issues. In practice, poor aisle layout creates the biggest bottlenecks.

Effective cinema emergency exit planning focuses on three elements:

1. Aisle width relative to seating count
2. Clear visual guidance toward exits
3. Balanced distribution of seating blocks

A common strategy I use is splitting seating into smaller clusters rather than long continuous rows. This allows faster dispersal toward aisles.

Digital layout tools can help simulate this flow. For example, designers often test different seating layouts and circulation paths in a virtual room configurationbefore finalizing the plan.

This step reveals crowd bottlenecks that are difficult to spot on a simple 2D drawing.

save pin

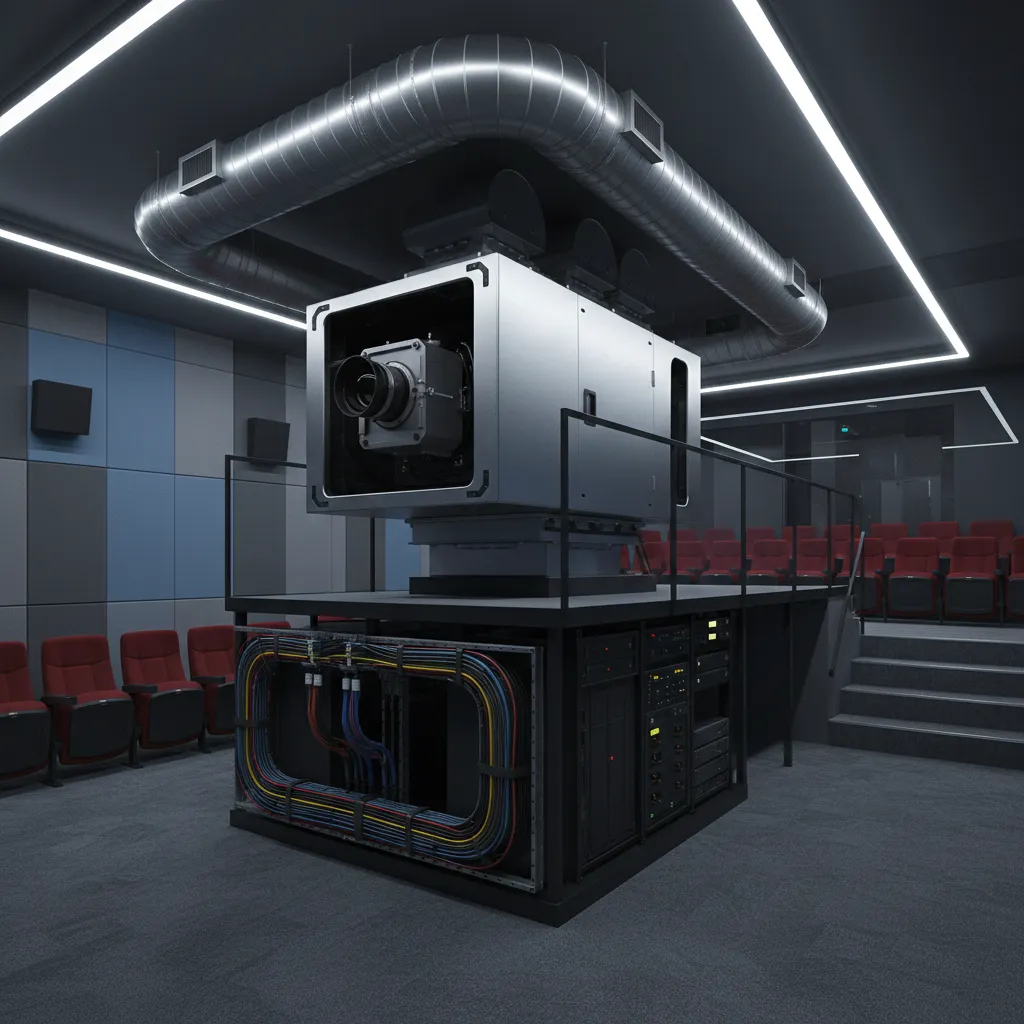

Electrical and Projection Equipment Safety

Key Insight: Projection and AV systems introduce electrical loads that many small theater designs underestimate.

Modern digital projection equipment generates significant heat and requires stable electrical infrastructure. Improper installation can create both fire hazards and operational downtime.

Key electrical safety considerations include:

1. Dedicated circuits for projection equipment
2. Ventilation for projector heat output
3. Surge protection for AV systems
4. Emergency power integration
5. Fire‑rated cable routing

The National Electrical Code (NEC) requires proper grounding and circuit protection for high‑load audiovisual systems, especially in commercial assembly environments.

In smaller venues, projection booths are sometimes removed to save space. When this happens, equipment ventilation becomes even more critical.

save pin

Accessibility and ADA Compliance in Small Theaters

Key Insight: Accessibility compliance must be integrated into seating design—not added afterward.

ADA compliance for small theaters requires accessible seating locations that provide equivalent viewing angles and experiences.

Key accessibility requirements include:

1. Wheelchair seating integrated within primary seating areas
2. Companion seating adjacent to accessible spaces
3. Accessible routes without stairs
4. Accessible restrooms and ticket counters
5. Proper viewing angles relative to the screen

One mistake I see often is placing wheelchair spaces only at the very front row. That technically provides access, but it may not meet the "comparable viewing experience" requirement emphasized in ADA guidance.

Answer Box

The safest small cinema halls integrate fire exits, aisle spacing, accessibility seating, and electrical planning at the earliest design stage. Most compliance problems occur when safety requirements are applied after seating layouts are finalized.

Common Compliance Mistakes in Cinema Construction

Key Insight: The most expensive safety issues usually come from design shortcuts made early in planning.

Across many theater projects, several compliance mistakes appear repeatedly.

Common issues include:

1. Underestimating exit width requirements
2. Ignoring ADA seating distribution
3. Improper projection equipment ventilation
4. Insufficient aisle lighting
5. Exceeding allowed occupant load

One practical way to prevent these problems is testing layout options early. Many architects start by building a preliminary cinema floor plan and adjusting seating density before permit submission.

This simple step dramatically reduces the risk of costly revisions during inspection.

Final Summary

1. Small cinema halls must follow full fire and safety regulations.
2. Exit planning directly affects seating capacity.
3. Aisle design determines evacuation efficiency.
4. Projection systems require specialized electrical planning.
5. Accessibility rules must shape the layout from the start.

FAQ

What safety codes apply to small cinema halls?

Most theaters follow the International Building Code, NFPA Life Safety Code, and local fire regulations for assembly occupancies.

How many exits does a small movie theater need?

Typically at least two exits are required if occupancy exceeds 50 people, though local regulations may vary.

What are common small cinema hall safety regulations?

They include exit spacing, fire‑rated construction, emergency lighting, aisle width requirements, and occupant load limits.

How wide should cinema aisles be?

Minimum aisle width varies by code but is often between 36 and 44 inches depending on seating capacity.

Do small theaters need ADA seating?

Yes. ADA compliance for small theaters requires wheelchair spaces and companion seating integrated into the seating layout.

Is a projection booth required in modern theaters?

Not always. Many digital theaters place projectors in open equipment rooms, but ventilation and fire safety still apply.

What is the biggest safety risk in small theaters?

Poor evacuation planning caused by narrow aisles or poorly placed exits.

How can designers reduce cinema construction safety risks?

Testing circulation, seating density, and exit placement early in the design phase reduces compliance issues.

References

International Building Code (IBC)

NFPA 101 Life Safety Code

Americans with Disabilities Act (ADA) Accessibility Guidelines
