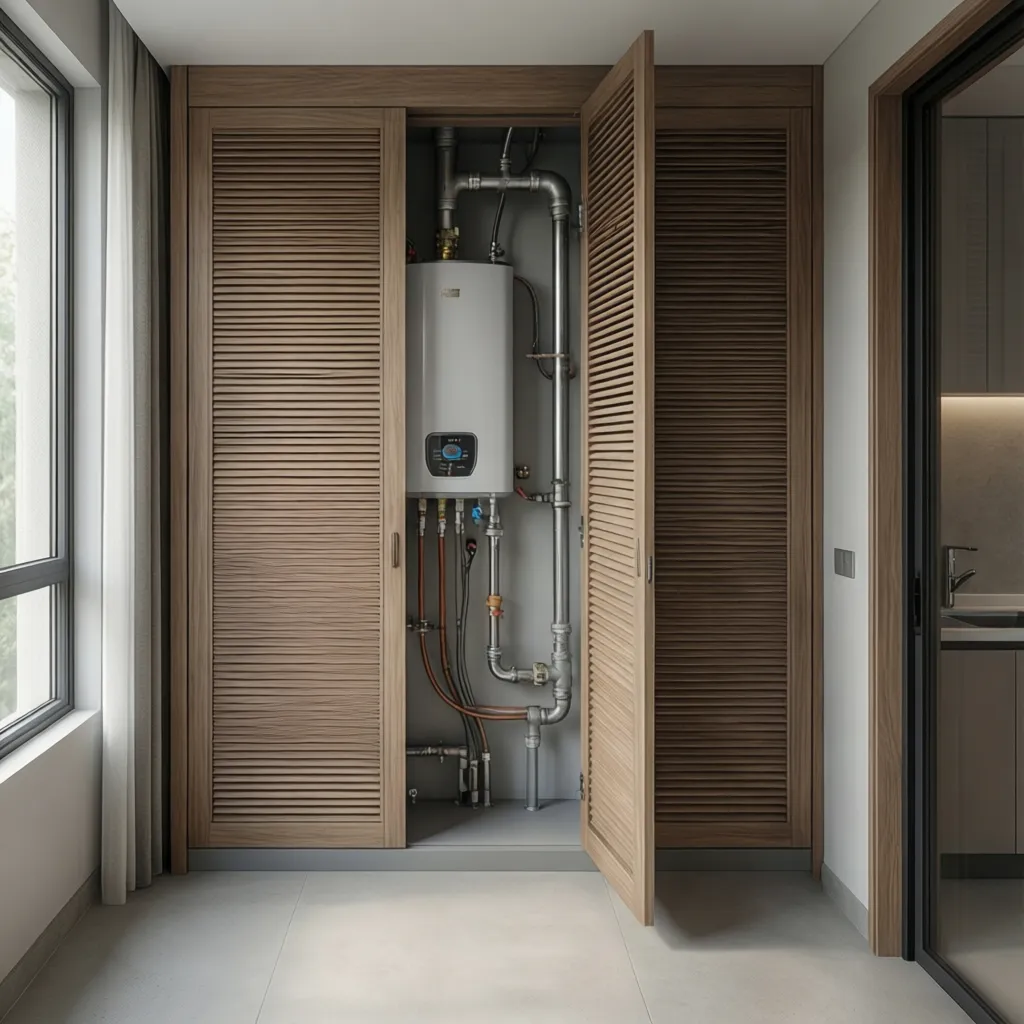

Safety Rules and Clearance Requirements When Building a Water Heater Enclosure: Learn the essential clearance, ventilation, and material rules that keep a hidden water heater safe and code compliant.

Direct Answer

Building a water heater enclosure is safe only if you maintain manufacturer clearance distances, proper ventilation, and full maintenance access. Gas and electric models require different airflow and spacing rules, and violating these requirements can create fire hazards or carbon monoxide risks.

The safest enclosures prioritize airflow, non‑combustible materials, and easy service access while respecting local building codes.

Quick Takeaways

1. Most water heaters require at least 6–12 inches of clearance around key components.
2. Gas water heaters must have ventilation to prevent dangerous exhaust buildup.
3. Non‑combustible materials dramatically reduce enclosure fire risk.
4. Access panels are required for inspection, repair, and emergency shutoff.
5. Many DIY enclosures fail because they restrict airflow or service space.

Introduction

After working on dozens of laundry rooms, basements, and small utility closets, I’ve learned that hiding a water heater can dramatically improve how a space looks—but it’s also where homeowners make some surprisingly risky mistakes.

The biggest issue isn’t design. It’s safety.

When someone builds a water heater enclosure without understanding clearance rules, ventilation needs, or access requirements, the result can range from annoying maintenance problems to genuine fire hazards. I’ve walked into homes where the heater was boxed into cabinetry so tightly that even a technician couldn’t reach the shutoff valve.

If you're planning to disguise or enclose a unit, it helps to first visualize the layout carefully. Many homeowners start by sketching the utility area using tools like a simple layout planner for mapping utility room dimensionsso they can confirm clearances before building anything permanent.

This guide explains the real safety rules behind water heater enclosures—based on manufacturer requirements, building codes, and lessons I’ve learned designing real homes.

save pin

Why Safety Matters When Covering a Water Heater

Key Insight: A water heater enclosure can become dangerous if it traps heat, blocks airflow, or restricts maintenance access.

Water heaters generate heat, pressure, and sometimes combustion gases. When enclosed incorrectly, three major risks appear:

1. Overheating caused by restricted airflow
2. Combustion gas buildup (for gas units)
3. Delayed emergency access during leaks or failures

According to the U.S. Department of Energy, water heating accounts for about 18% of household energy use. That means these systems run frequently, producing heat that must dissipate safely.

In my projects, the safest designs treat the enclosure more like a "ventilated housing" than a sealed cabinet. Decorative panels, louvered doors, and partial partitions usually outperform tight cabinetry.

A good rule I give clients: if the space feels like a closet instead of a mechanical zone, it probably needs more airflow.

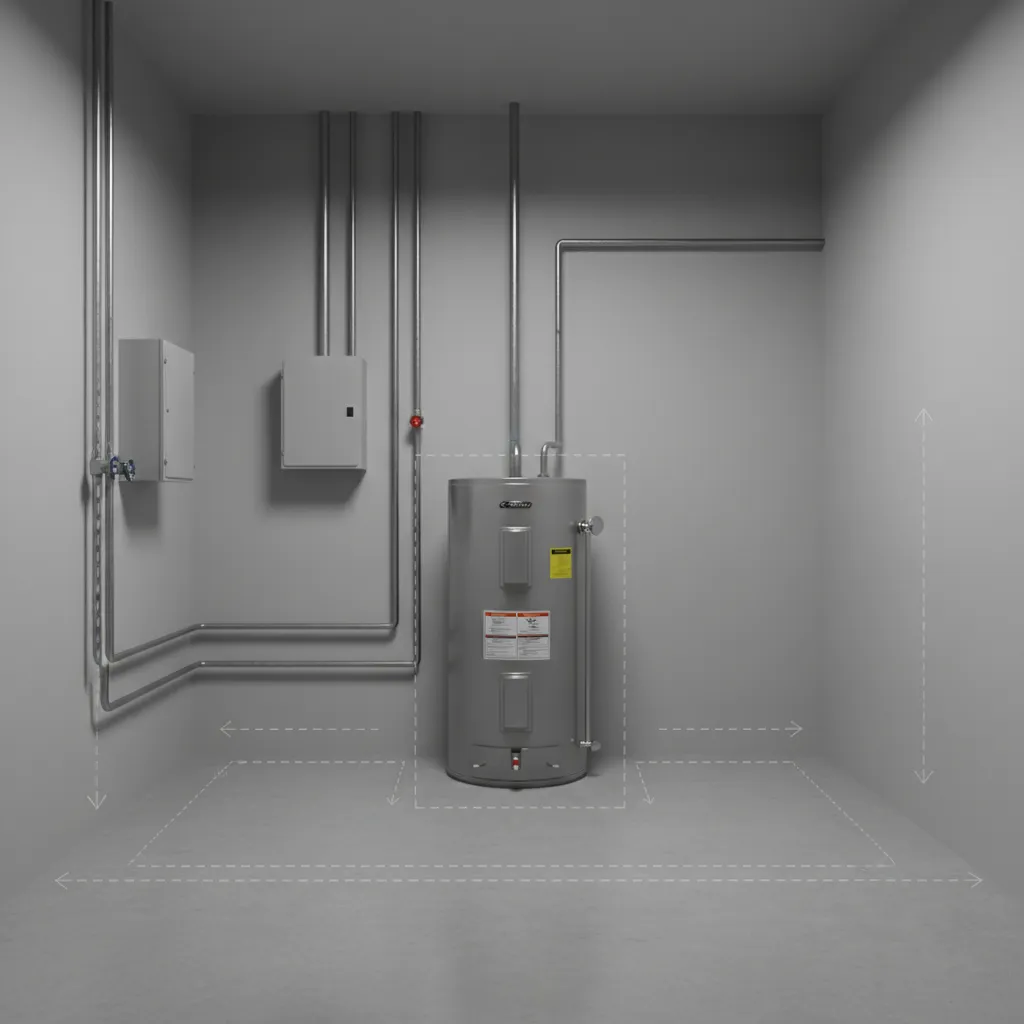

Minimum Clearance Requirements Around Water Heaters

Key Insight: Most water heaters require open space around the tank and service components to operate safely and allow maintenance.

Clearance requirements vary slightly by manufacturer, but these ranges are widely recommended across major brands.

Typical clearance guidelines:

1. Top clearance: 12–24 inches
2. Front service clearance: 24–30 inches
3. Side clearance: 6–12 inches
4. Bottom clearance: must remain unobstructed

Two components must never be blocked:

1. Pressure relief valve
2. Drain valve

Professional installers often leave extra space beyond minimums because service technicians need room for tools and replacement parts.

When planning enclosure walls or cabinets, I recommend mapping the space in advance using a room layout visualization that tests appliance clearances. It prevents the classic mistake of building cabinetry first and realizing later that the heater cannot be serviced.

save pin

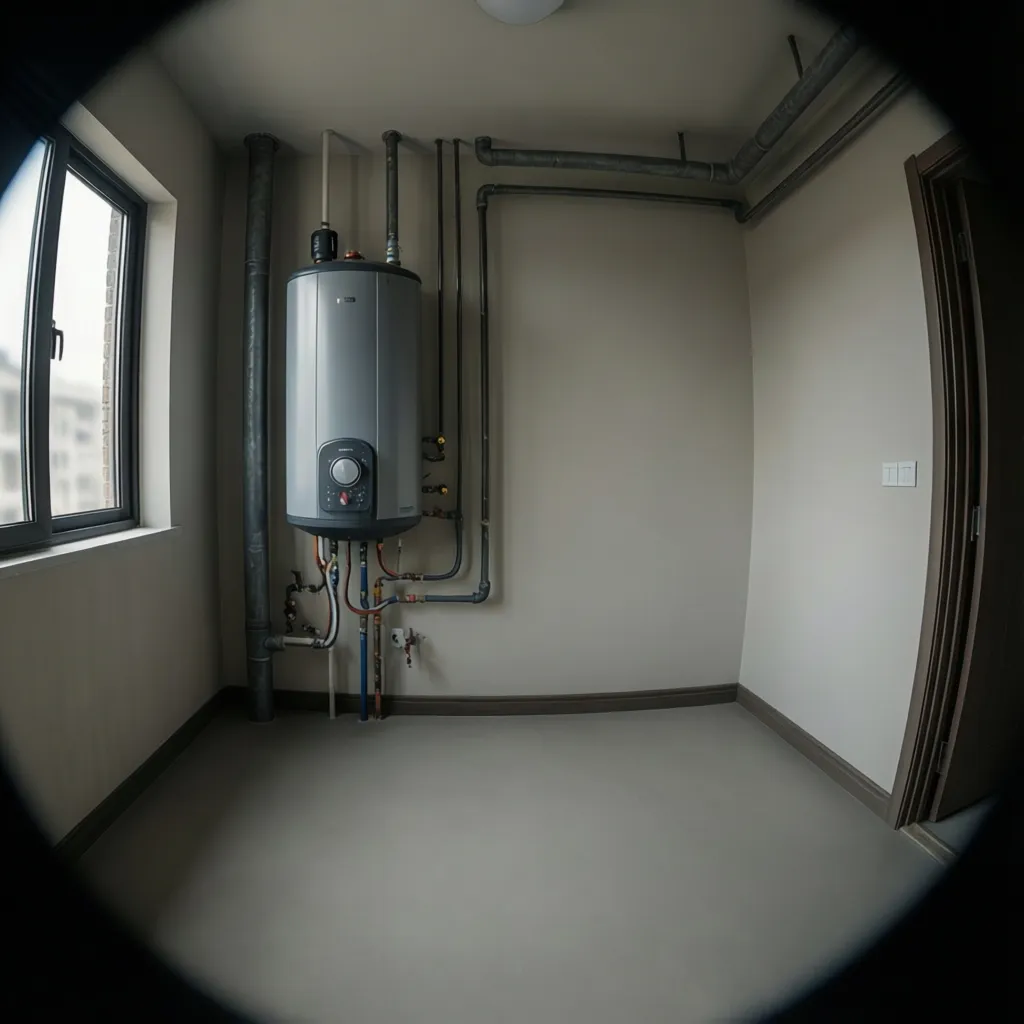

Ventilation Rules for Gas and Electric Models

Key Insight: Gas water heaters require combustion airflow and exhaust ventilation, while electric units mainly require heat dissipation airflow.

Many homeowners assume all heaters have identical ventilation needs. They don’t.

Gas water heater ventilation requirements:

1. Combustion air supply openings
2. Proper vent pipe clearance
3. Upper and lower airflow openings if in a closet

Typical closet installations include two vents:

1. High vent for hot air exhaust
2. Low vent for combustion air intake

Electric water heaters do not produce combustion gases, but they still release heat. Completely sealing them in cabinetry can raise temperatures around electrical components.

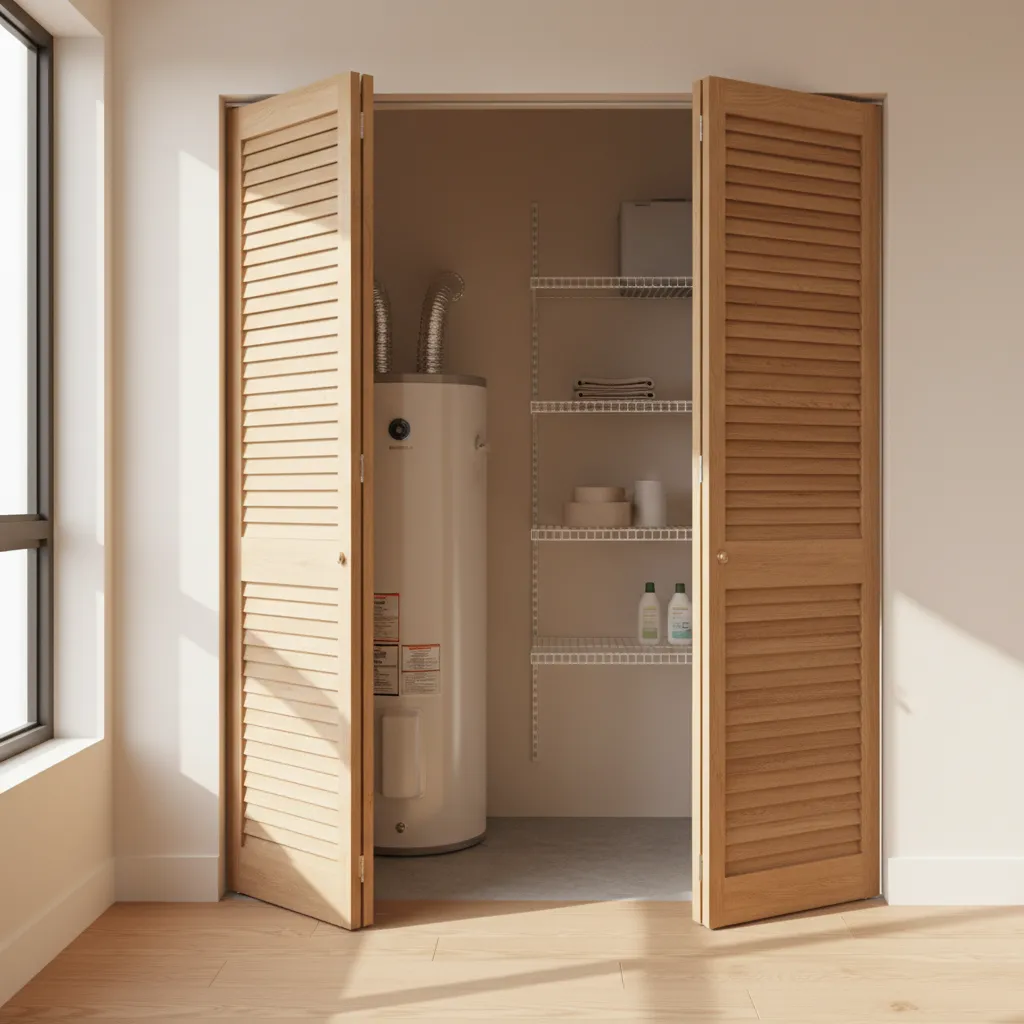

That’s why many of the best enclosures use:

1. Louvered doors
2. Slatted panels
3. Partial-height cabinets

These allow airflow while visually hiding the appliance.

save pin

Materials That Are Safe for Water Heater Enclosures

Key Insight: Fire‑resistant and heat‑tolerant materials significantly reduce enclosure risk.

One of the biggest hidden mistakes I see is using decorative materials that are not designed for mechanical spaces.

Safer enclosure materials include:

1. Metal framing
2. Cement board
3. Fire‑rated drywall
4. Solid wood panels with ventilation gaps

Materials to avoid near gas heaters:

1. Thin laminate panels
2. Plastic decorative screens
3. Fabric curtains too close to the tank

In several renovations I’ve worked on, switching from decorative MDF cabinets to ventilated wood slat panels instantly solved overheating issues while still hiding the tank visually.

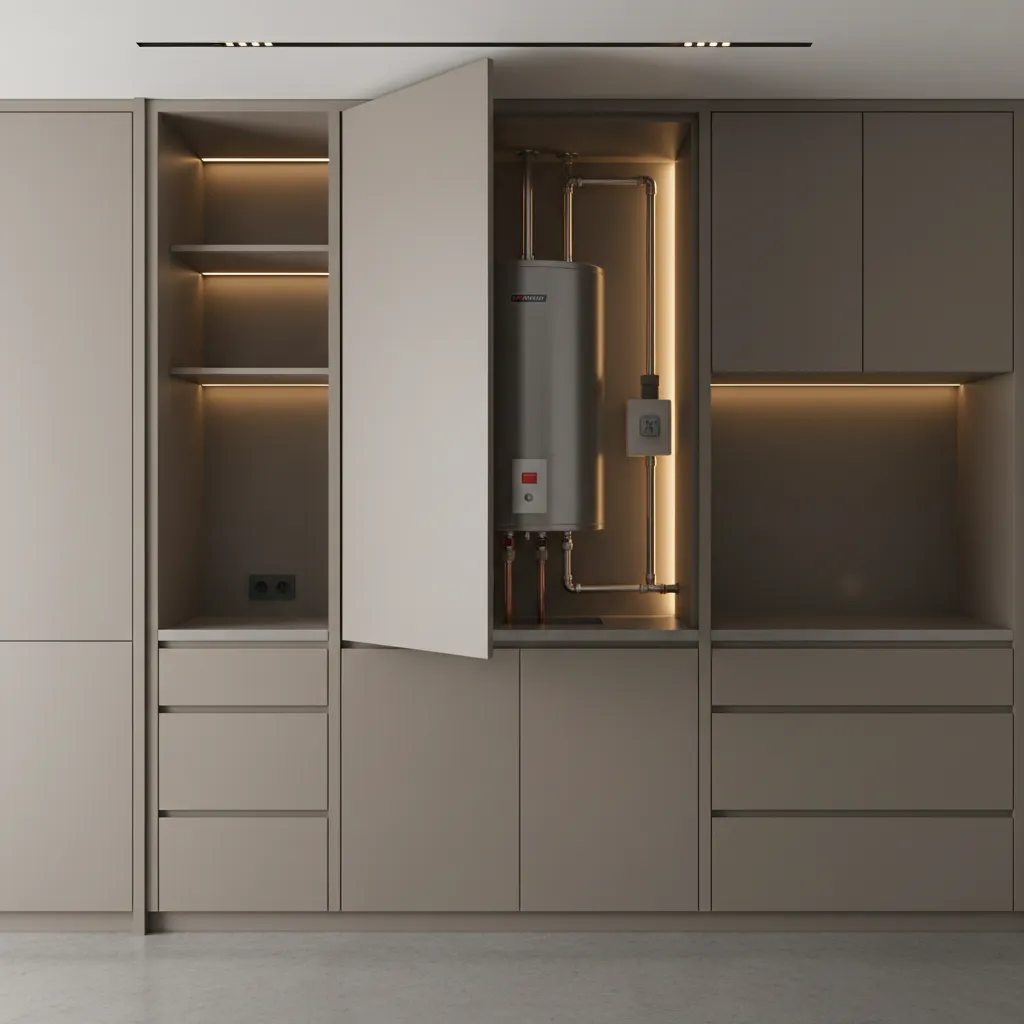

Access Requirements for Inspection and Maintenance

Key Insight: A water heater enclosure must allow technicians to inspect, drain, and repair the unit without dismantling the structure.

Maintenance access is the most overlooked design requirement.

Water heaters require routine tasks such as:

1. Flushing sediment
2. Checking the anode rod
3. Inspecting the pressure relief valve
4. Repairing thermostats or heating elements

If the enclosure blocks these tasks, the entire structure may need to be removed during service.

The best enclosure designs include:

1. Full swing doors
2. Removable panels
3. Sliding screens

When planning a built‑in structure, many designers preview the finished space using a 3D interior preview that simulates cabinetry and appliance placement. It helps confirm door swing space and technician access.

save pin

Answer Box

The safest water heater enclosure maintains manufacturer clearance, includes airflow openings, uses heat‑resistant materials, and allows full maintenance access. Enclosures should conceal the heater visually without sealing it inside a tight cabinet.

Common Code Violations Homeowners Should Avoid

Key Insight: Most unsafe enclosures fail because they prioritize appearance over mechanical access and airflow.

Across renovation projects, the same mistakes appear repeatedly.

Frequent enclosure mistakes:

1. Building cabinets directly against the tank
2. Blocking pressure relief valves
3. Sealing gas heaters without airflow vents
4. Using flammable materials too close to heat sources
5. Removing access to shutoff valves

Another overlooked issue is future replacement. Water heaters typically last 8–12 years. If the enclosure opening is smaller than the heater itself, replacing the unit becomes a demolition project.

That’s why experienced installers always think about removal clearance—not just installation.

Final Summary

1. Safe water heater enclosures always maintain manufacturer clearance distances.
2. Gas heaters require ventilation openings for combustion airflow.
3. Non‑combustible or heat‑resistant materials improve safety.
4. Maintenance access is just as important as appearance.
5. Design enclosures so the heater can be replaced in the future.

FAQ

Can you put a water heater in a cabinet?

Yes, but the cabinet must meet water heater enclosure safety rules including clearance, airflow, and service access.

How much clearance is required around a water heater?

Most manufacturers recommend 6–12 inches on the sides and at least 24 inches of front service space.

Do water heater closets need ventilation?

Yes. Gas heaters require combustion airflow vents, while electric models still benefit from heat ventilation.

What materials are safe for covering a water heater?

Fire‑rated drywall, cement board, metal framing, and ventilated wood panels are commonly used safe materials.

Can you hide a water heater with a curtain?

Curtains are possible but should remain several inches away from the heater and never be used near gas burner openings.

What is the biggest mistake when building a water heater enclosure?

The most common mistake is blocking airflow or maintenance access, which violates building code for water heater enclosure safety.

Do electric water heaters need ventilation?

They do not require combustion ventilation but still need airflow to dissipate heat.

How long do water heaters typically last?

Most residential water heaters last 8–12 years depending on water quality and maintenance.

References

1. U.S. Department of Energy – Water Heating Guidelines
2. International Residential Code (IRC) Mechanical Sections
3. Manufacturer installation manuals from Rheem, AO Smith, Bradford White
