Scale Floor Plan Creator: Design Your Perfect Space with Ease

Direct Answer

A scale floor plan creator is a tool that lets you design room layouts using real-world measurements so walls, furniture, and spacing remain proportionally accurate. Designers, homeowners, and remodelers use these tools to visualize layouts, test furniture placement, and avoid costly measurement mistakes before construction or purchasing furniture.

The best scale floor plan creators combine measurement accuracy, drag-and-drop design tools, and export options for sharing with contractors or interior designers.

Quick Takeaways

1. A scale floor plan creator allows rooms and furniture to be drawn using exact real-world dimensions.
2. Accurate scale planning prevents furniture sizing mistakes and renovation layout issues.
3. Professional designers almost always start projects with a scaled layout before selecting finishes.
4. Many modern tools allow importing room measurements directly from phone scans.
5. The best tools balance simplicity, measurement accuracy, and furniture libraries.

Introduction

After working on residential interiors for more than a decade, I can tell you something surprising: most design problems begin with inaccurate floor plans. Homeowners buy furniture that doesn't fit, leave awkward empty zones, or create cramped walkways simply because they never worked with a scaled layout.

A good scale floor plan creatorchanges that immediately. Instead of guessing, you design with exact dimensions. Every sofa, wall, doorway, and walkway fits the room proportionally.

In my own projects, I never start mood boards or color palettes until the scaled plan is done. It reveals circulation issues, furniture conflicts, and storage opportunities long before construction starts.

This guide breaks down how scale floor planning works, what tools designers actually use, and the hidden mistakes most people make when creating their first layout.

save pin

What Is a Scale Floor Plan Creator and Why Does It Matter

Key Insight: A scale floor plan creator converts real-world measurements into a proportional layout that ensures design decisions fit the physical space.

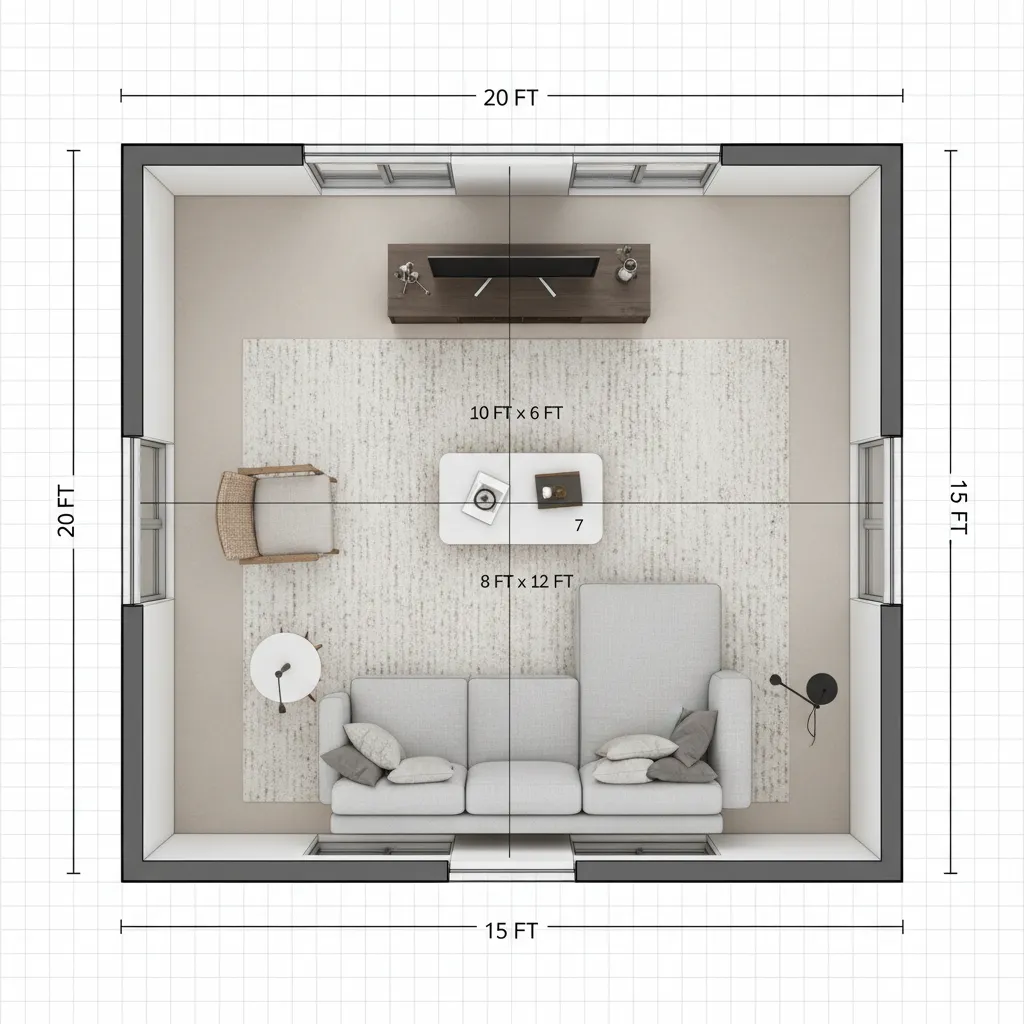

In interior design, "scale" means that every object in the plan represents its true size relative to the room. For example, a 10‑foot wall might be represented as 5 inches on paper using a 1:24 scale.

This matters because spatial perception is incredibly unreliable when eyeballing layouts.

Common design failures I see in consultations include:

1. Sofas blocking traffic paths
2. Dining tables too large for chair clearance
3. Kitchen islands placed too close to cabinets
4. Bedroom layouts leaving unusable corners

According to recommendations from the American Institute of Architects, circulation paths in residential spaces typically require 30–36 inches of clearance. Without a scaled layout, most homeowners underestimate this by several inches.

How Do Designers Create Accurate Scaled Floor Plans

Key Insight: Professional designers follow a simple but precise workflow that turns raw measurements into a usable scaled layout.

Even with modern software, the process still starts with careful measurement.

Typical designer workflow:

1. Measure wall lengths, ceiling heights, and openings.
2. Record door swings, windows, and fixed elements.
3. Choose a scale ratio such as 1:50 or 1:25.
4. Build the room outline in a floor plan creator.
5. Add furniture pieces using real product dimensions.

In my studio, we double‑verify every measurement before creating the digital plan. A 2‑inch error might sound small, but once multiplied across multiple pieces of furniture, the layout can fail completely.

save pin

Which Features Should a Good Scale Floor Plan Creator Include

Key Insight: The best tools combine accurate scaling, intuitive layout editing, and real furniture dimensions.

Many beginners assume all floor plan software is similar, but the difference between basic diagram tools and true layout software is huge.

Features worth prioritizing:

1. Real measurement input with feet/inches or metric
2. Furniture libraries with realistic dimensions
3. Wall editing and door swing controls
4. Grid snapping for precise placement
5. Export options for PDF or CAD sharing

Professional-grade software often includes 3D previews, but interestingly, many designers still rely primarily on the 2D scaled plan because it reveals layout problems faster.

Can a Scale Floor Plan Creator Prevent Expensive Design Mistakes

Key Insight: Scaled layouts dramatically reduce purchasing errors and renovation change orders.

One of the most expensive mistakes in residential design is buying furniture before planning the layout.

I once worked with a client who purchased a sectional sofa before measuring their living room. The piece was nearly two feet too long, forcing a costly return shipment and redesign.

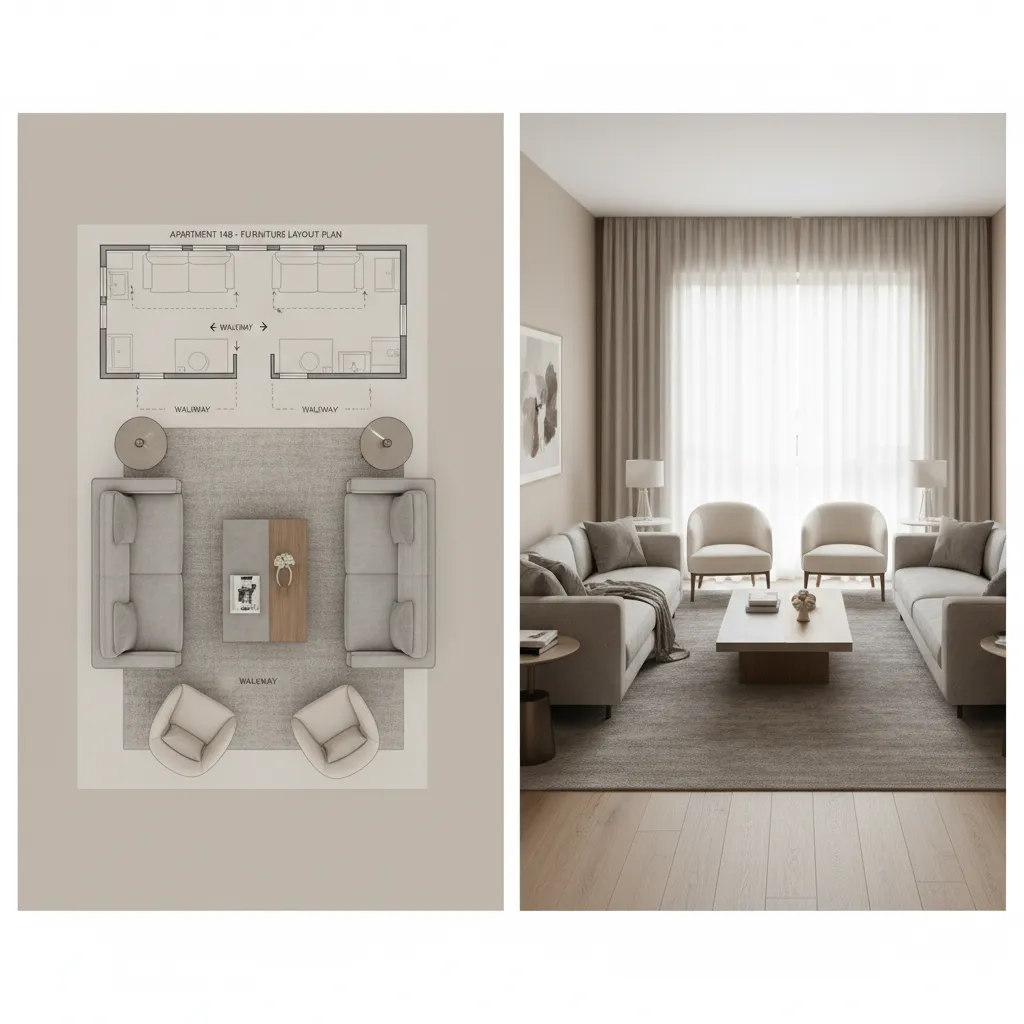

A scale plan avoids these issues by testing layouts first.

Here are typical mistakes a scaled plan prevents:

1. Oversized sectionals overwhelming living rooms
2. Kitchen islands violating appliance clearance zones
3. Bedroom layouts blocking closet doors
4. Office desks placed without chair clearance

Furniture manufacturers often publish exact dimensions online. When those are added to a scale floor plan creator, layout planning becomes far more reliable.

save pin

Hidden Problems Most Floor Plan Tools Do Not Solve

Key Insight: Even accurate floor plan software cannot replace spatial judgment about flow, proportion, and visual balance.

This is where many tutorials online fall short. They focus on drawing the room but ignore how the space actually feels.

Three issues software alone cannot fix:

1. Visual balance between furniture pieces
2. Comfortable circulation paths
3. Human perception of crowded spaces

For example, two sofas may technically fit inside a scaled layout, but the room may feel cramped if there isn't enough breathing space around them.

In practice, designers often leave more clearance than the minimum required by architectural guidelines.

What Are the Best Use Cases for a Scale Floor Plan Creator

Key Insight: Scaled planning is most valuable before renovation, furniture purchases, or room layout redesigns.

While professionals use these tools daily, homeowners benefit from them in several specific scenarios.

Best use cases include:

1. Planning furniture layouts before buying large pieces
2. Designing kitchen or bathroom remodel layouts
3. Testing multiple room arrangements
4. Planning home office or studio spaces
5. Communicating layouts with contractors

Real estate professionals also use simple scaled layouts to help buyers understand how rooms can function.

Answer Box

A scale floor plan creator helps transform room measurements into accurate layouts that guide furniture placement and renovation planning. Using scaled designs reduces layout mistakes, improves circulation planning, and allows homeowners to visualize spaces before making expensive decisions.

Final Summary

1. A scale floor plan creator ensures layouts reflect real-world measurements.
2. Accurate scaling prevents furniture sizing mistakes.
3. Professional designers always begin with scaled layouts.
4. Good tools combine precision, simplicity, and furniture libraries.
5. Scaled planning saves time, money, and design frustration.

FAQ

What is the purpose of a scale floor plan creator?

A scale floor plan creator helps users draw rooms and furniture with accurate proportions so layouts match real-world dimensions.

Can beginners use a scale floor plan creator?

Yes. Many tools are designed for homeowners and include drag‑and‑drop furniture with automatic scaling.

What scale is typically used for floor plans?

Common residential scales include 1:50, 1:25, or 1/4 inch representing one foot in imperial measurements.

Is a scale floor plan creator better than drawing by hand?

Digital tools are faster and easier to adjust, but the core principle of scale remains the same.

Do I need exact measurements before using a scale floor plan creator?

Yes. Accurate wall lengths, door openings, and window positions are essential for reliable layouts.

Can I place real furniture sizes into a scale floor plan creator?

Yes. Many tools allow you to input exact dimensions from manufacturer specifications.

Do interior designers always use scaled floor plans?

Almost always. Scaled layouts are the foundation of professional interior space planning.

Can a scale floor plan creator help with renovation planning?

Yes. It allows homeowners and contractors to test layout ideas before construction begins.
