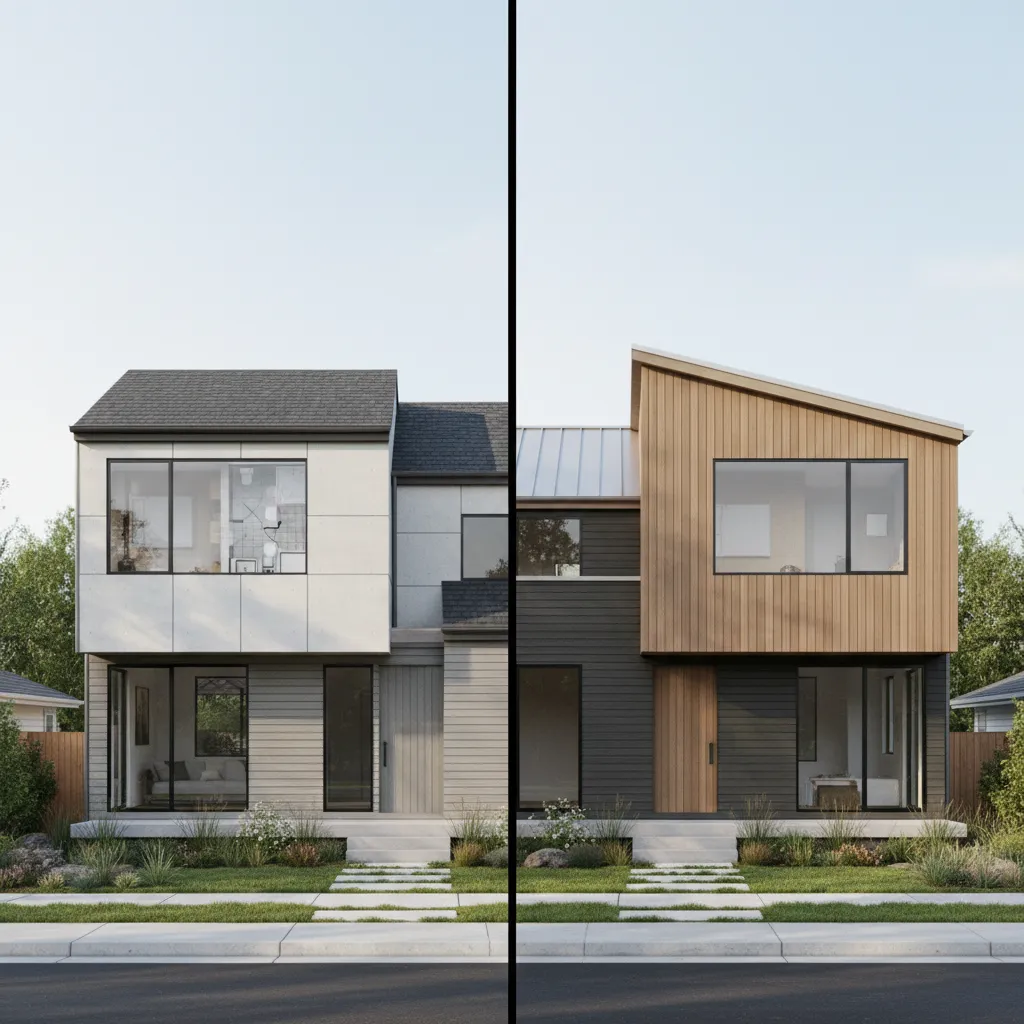

Second Floor House Plans Full Addition vs Partial Addition Comparison: Understand how full and partial second floor additions differ in structure cost flexibility and long term space planning

Direct Answer

A full second floor addition builds an entirely new level across the entire footprint of the home, while a partial second floor addition expands only part of the house vertically. The right choice depends on structure capacity, budget, layout goals, and how much disruption the homeowner can tolerate during construction.

Quick Takeaways

1. A full second floor maximizes space but requires stronger structural reinforcement.
2. A partial addition is cheaper but often creates layout constraints.
3. Structural load capacity is the biggest deciding factor between both approaches.
4. Full additions offer better long term resale value in most markets.
5. Partial expansions work best for targeted rooms like master suites or offices.

Introduction

When homeowners start exploring second floor house plans, the conversation almost always comes down to one big decision: should the new level cover the entire house or just part of it?

After working on residential renovations for more than a decade, I’ve seen both approaches succeed and fail depending on how early the structural and layout decisions were made. Many homeowners assume a partial addition is simply the "budget option" and a full second floor is the "premium option." In reality, the trade‑offs are more complicated.

For example, I once worked on a 1970s ranch home where the owners insisted on a partial expansion to save money. After structural reinforcement and awkward roof transitions, the project ended up costing nearly the same as a full addition.

One of the best ways to evaluate these options early is to visualize layouts using tools that allow homeowners to experiment with realistic second floor layout configurations before construction. Seeing circulation paths and load bearing walls early can prevent extremely expensive design revisions.

In this guide, I'll break down how full and partial second floor additions differ in structure, cost, design flexibility, and long‑term value so you can decide which approach actually fits your house.

save pin

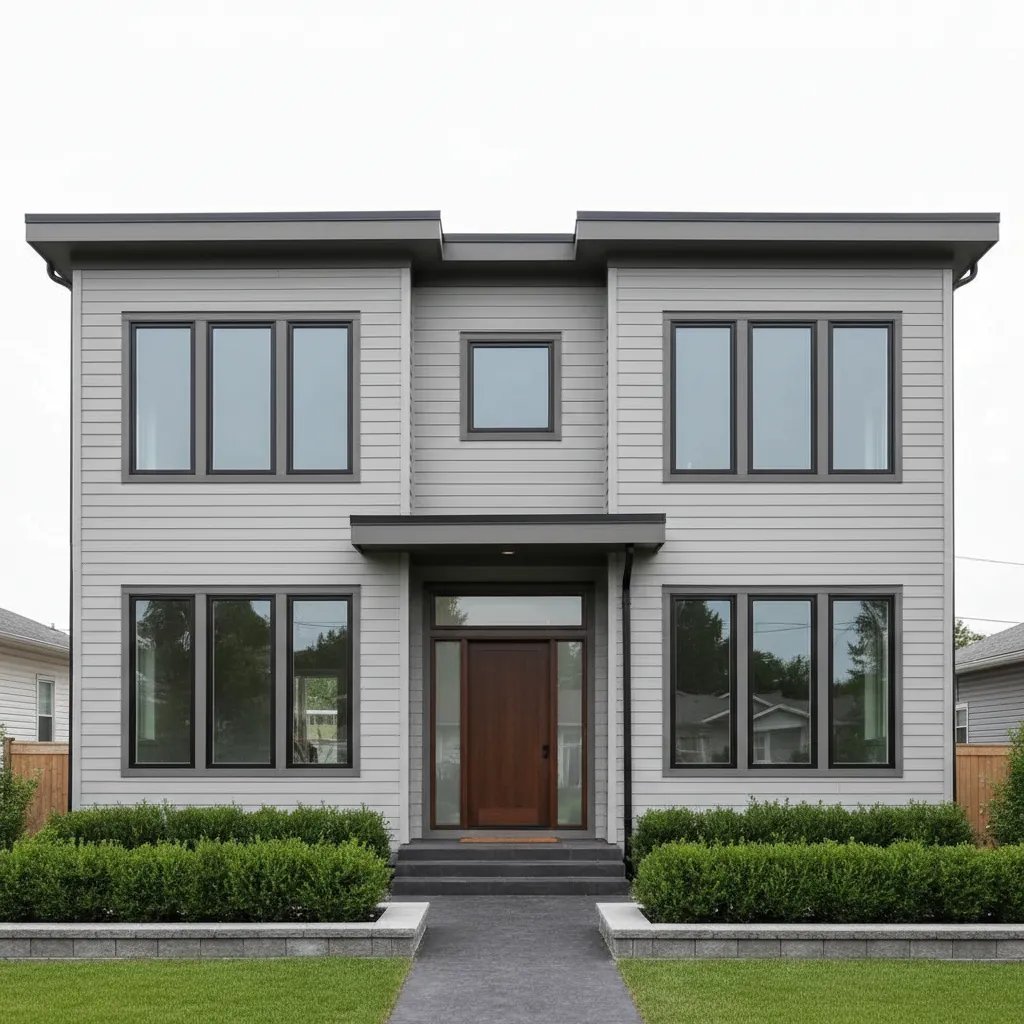

What Is a Full Second Floor Addition

Key Insight: A full second floor addition creates a completely new level covering the entire existing footprint of the home.

In this design, the existing roof is removed and replaced with a new structural system that supports a complete second story. The result is essentially doubling the usable square footage of the house.

From a design perspective, this option gives architects the most flexibility because the entire upper floor can be planned as a unified layout rather than squeezed around existing roof geometry.

Typical characteristics of full second floor additions:

1. Entire roof structure removed
2. Full footprint expansion above existing floor
3. Requires reinforcement of foundations or load bearing walls
4. Allows multiple bedrooms and bathrooms
5. Often increases resale value significantly

According to the National Association of Home Builders, major vertical expansions like full second stories are often chosen when homeowners want long‑term space growth instead of incremental upgrades.

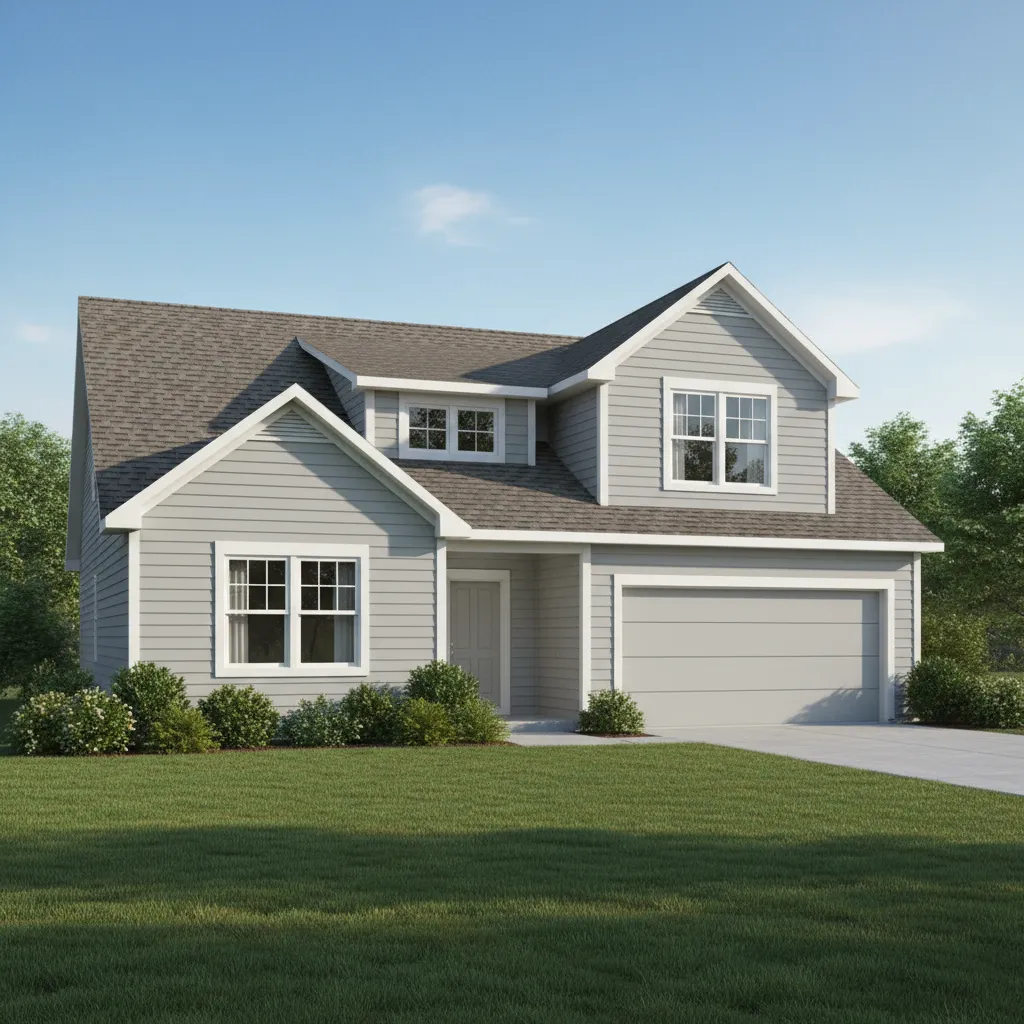

What Is a Partial Second Floor Expansion

Key Insight: A partial second floor expansion adds a new upper level only above a section of the home.

This approach is commonly used when homeowners need a single additional room rather than a full new level.

Examples include:

1. Adding a master suite above a garage
2. Building a second floor office above a living room
3. Expanding vertically over an existing rear extension

The biggest advantage is reduced construction scope. Less framing, less roofing replacement, and often fewer structural upgrades.

However, partial additions introduce a design challenge that most homeowners underestimate: roof transitions.

These intersections between old and new roof structures can create awkward ceiling slopes, drainage issues, and complicated framing costs.

save pin

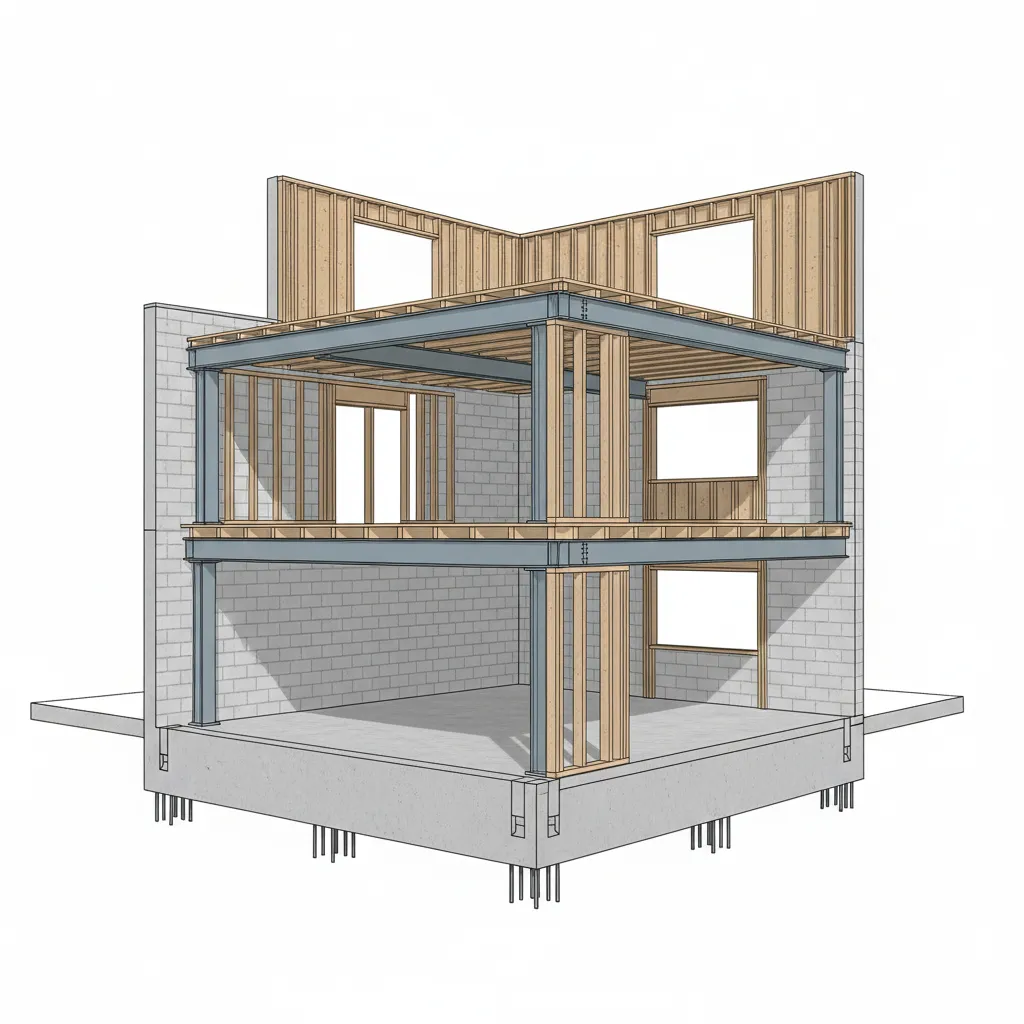

Structural Requirements for Each Approach

Key Insight: Structural load capacity often determines whether a full or partial second floor is even possible.

Before any layout design begins, engineers must evaluate three structural elements:

1. Foundation load capacity
2. Existing wall framing strength
3. Roof removal feasibility

Typical structural differences:

1. Full additions usually require reinforcing foundations and load bearing walls.
2. Partial additions may require steel beams to redistribute load.
3. Older homes often need framing upgrades regardless of the option chosen.

In practice, structural upgrades often surprise homeowners. I’ve seen cases where partial additions required expensive beam installations that eliminated most of the expected savings.

Homeowners planning structural layouts sometimes start with tools that help map possible vertical expansion layouts and room distributionsbefore hiring an architect. While these tools don't replace engineering analysis, they help clarify how space might be organized.

save pin

Cost Differences Between Full and Partial Additions

Key Insight: Partial additions usually cost less upfront, but structural complexity can narrow the price gap.

Cost varies widely depending on location, materials, and engineering needs, but the general pattern looks like this:

1. Full second floor addition: higher structural cost but more square footage
2. Partial addition: smaller project but sometimes inefficient cost per square foot

Typical cost factors include:

1. Structural reinforcement
2. Roof removal and reconstruction
3. Staircase placement
4. Plumbing and HVAC extensions
5. Temporary relocation during construction

A hidden cost many homeowners overlook is roof redesign. Partial additions frequently require complex roof framing which can significantly increase labor hours.

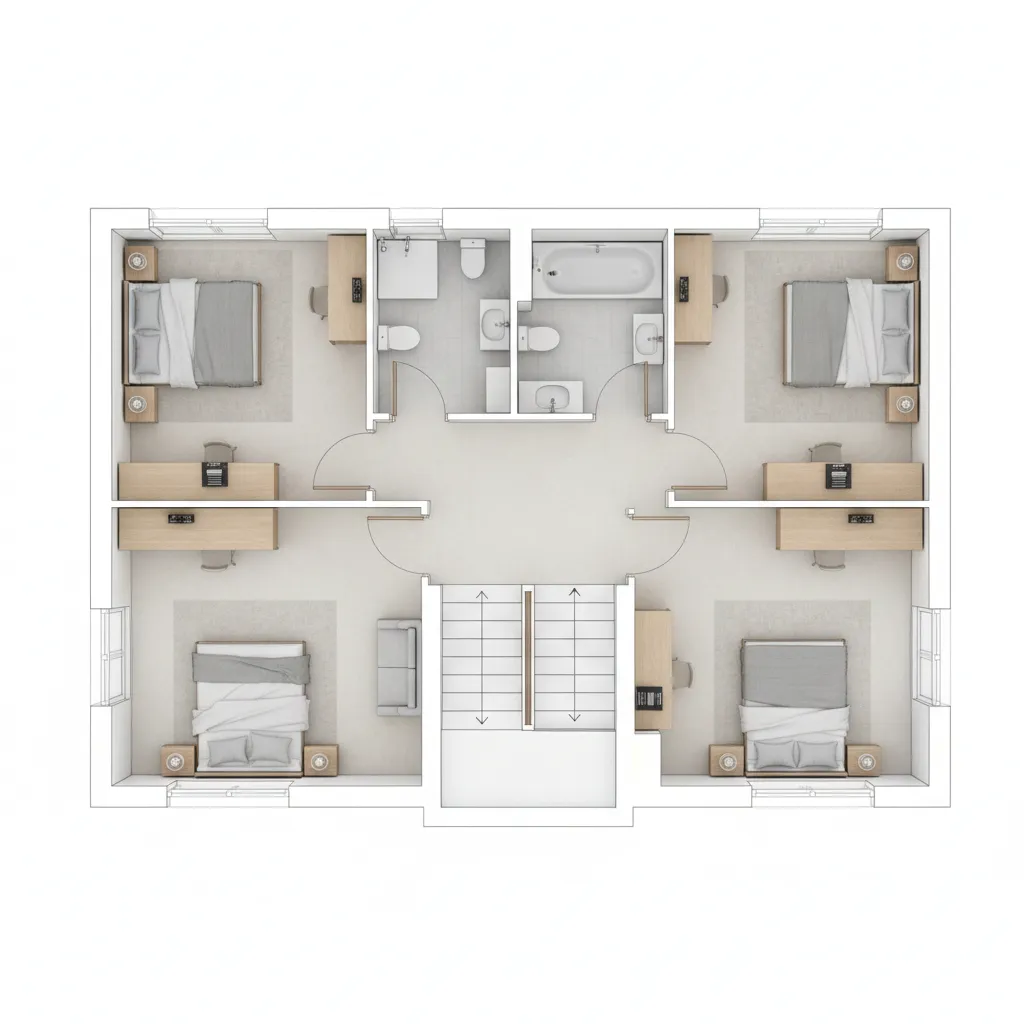

Design Flexibility and Space Efficiency

Key Insight: Full second floor additions provide dramatically better layout flexibility and circulation design.

With a complete upper level, designers can plan efficient hallway circulation, balanced bedroom placement, and symmetrical roof structures.

Partial additions, on the other hand, often create fragmented floor plans.

Common design challenges with partial additions:

1. Awkward stair placement
2. Uneven roof heights
3. Disconnected upper rooms
4. Limited natural lighting

Modern design tools allow homeowners to preview interior layouts and circulation flow. Some clients explore concepts by generating visual interior layout concepts for future second floor roomsbefore committing to construction drawings.

save pin

Answer Box

Full second floor additions deliver the most usable space and design flexibility, while partial additions reduce construction scope but introduce layout and structural challenges. The right choice depends on foundation strength, budget limits, and long term space needs.

When Each Option Makes the Most Sense

Key Insight: The best option depends more on long term living plans than immediate construction cost.

A full second floor addition makes sense when:

1. The home footprint is small but the lot cannot expand outward
2. The family expects long term growth
3. Multiple bedrooms or bathrooms are needed
4. Resale value is a priority

A partial second floor addition works best when:

1. Only one or two new rooms are required
2. Budget constraints limit full reconstruction
3. The structure cannot support a full level
4. The addition is planned above garages or extensions

In my experience, homeowners who expect to stay in their home for more than 10 years usually regret building too small rather than too large. That doesn't mean full additions are always correct, but it does mean long term planning should guide the decision.

Final Summary

1. Full second floor additions maximize space and resale value.
2. Partial additions reduce scope but can create layout challenges.
3. Structural capacity is the most important technical factor.
4. Roof complexity often increases the cost of partial expansions.
5. Long term family needs should guide the final decision.

FAQ

Is a full second floor addition more expensive?

Usually yes, but the cost per square foot can actually be lower because the new space is more efficient.

What is the biggest risk with partial second floor additions?

Roof transitions and structural beam requirements can make the project more complex than expected.

Can any house support a second floor addition?

No. Structural engineers must evaluate the foundation and framing before approving second floor house plans.

How long does a second floor addition usually take?

Most projects take between three and six months depending on structural modifications and weather conditions.

Does a full second story increase property value?

In many markets it does, especially when it adds multiple bedrooms and bathrooms.

Are partial second floor additions easier to build?

Not always. Structural beams and roof design often introduce unexpected complexity.

Do second floor additions require new stairs?

Yes. Stair placement must comply with building codes and can significantly affect layout efficiency.

What is the first step in planning second floor house plans?

Start with a structural evaluation and preliminary layout planning before hiring contractors.

References

National Association of Home Builders – Residential Construction Guidelines

International Residential Code Structural Standards
