Self-Leveling Roof Sealant vs Non-Sag Sealant: Key Differences and When to Use Each: Understand when to use self‑leveling or non‑sag roof sealant to prevent leaks and choose the right repair solution for your roof type.

Direct Answer

Self‑leveling roof sealant is designed for horizontal surfaces where the material can flow and settle into gaps, creating a smooth waterproof layer. Non‑sag roof sealant is thicker and holds its shape, making it ideal for vertical seams, edges, and joints where flowing would cause drips. Choosing the right type depends mainly on surface orientation and the movement expected in the roof joint.

Quick Takeaways

1. Self‑leveling sealant spreads naturally and works best on flat or low‑slope roof areas.
2. Non‑sag sealant stays where applied, making it ideal for vertical seams and flashing.
3. Using the wrong sealant type often causes premature cracking or seal failure.
4. Flat roof penetrations usually require self‑leveling formulas for full coverage.
5. Edges, gutters, and flashing details typically require non‑sag sealants.

Introduction

In more than a decade working on residential renovation projects and collaborating with roofing contractors, one question keeps coming up during repair planning: should you use self‑leveling roof sealant or non‑sag sealant?

The confusion is understandable. Both products seal joints, stop leaks, and protect roofing materials. But their behavior during application is completely different. I’ve seen plenty of repairs fail simply because the wrong type was used in the wrong location.

For example, one client sealed a vertical flashing seam with self‑leveling sealant. Gravity did what gravity always does—the material flowed downward overnight and left the joint exposed. The result was a leak after the first rainstorm.

Understanding the difference between sealant types is similar to planning structural layouts in interior renovations. When we evaluate structural surfaces or design flow paths, we often start with a layout model such as visualizing structural layouts with a digital floor plan creator. Roof repair decisions follow the same logic: match the material to the geometry of the surface.

In this guide, I’ll break down how each sealant works, where each performs best, and the hidden mistakes that most online guides skip.

save pin

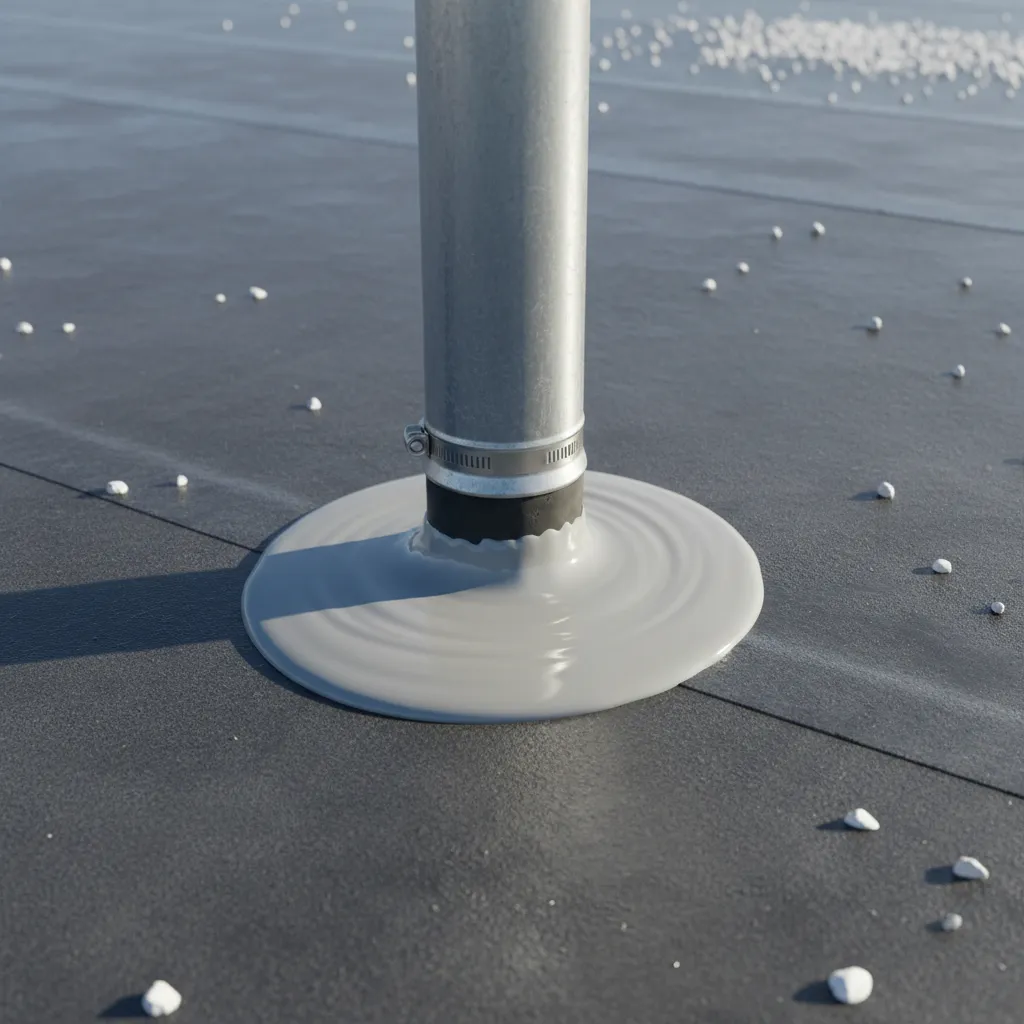

What Is Self-Leveling Roof Sealant

Key Insight: Self‑leveling roof sealant is designed to flow and settle, creating a seamless waterproof membrane over horizontal joints and penetrations.

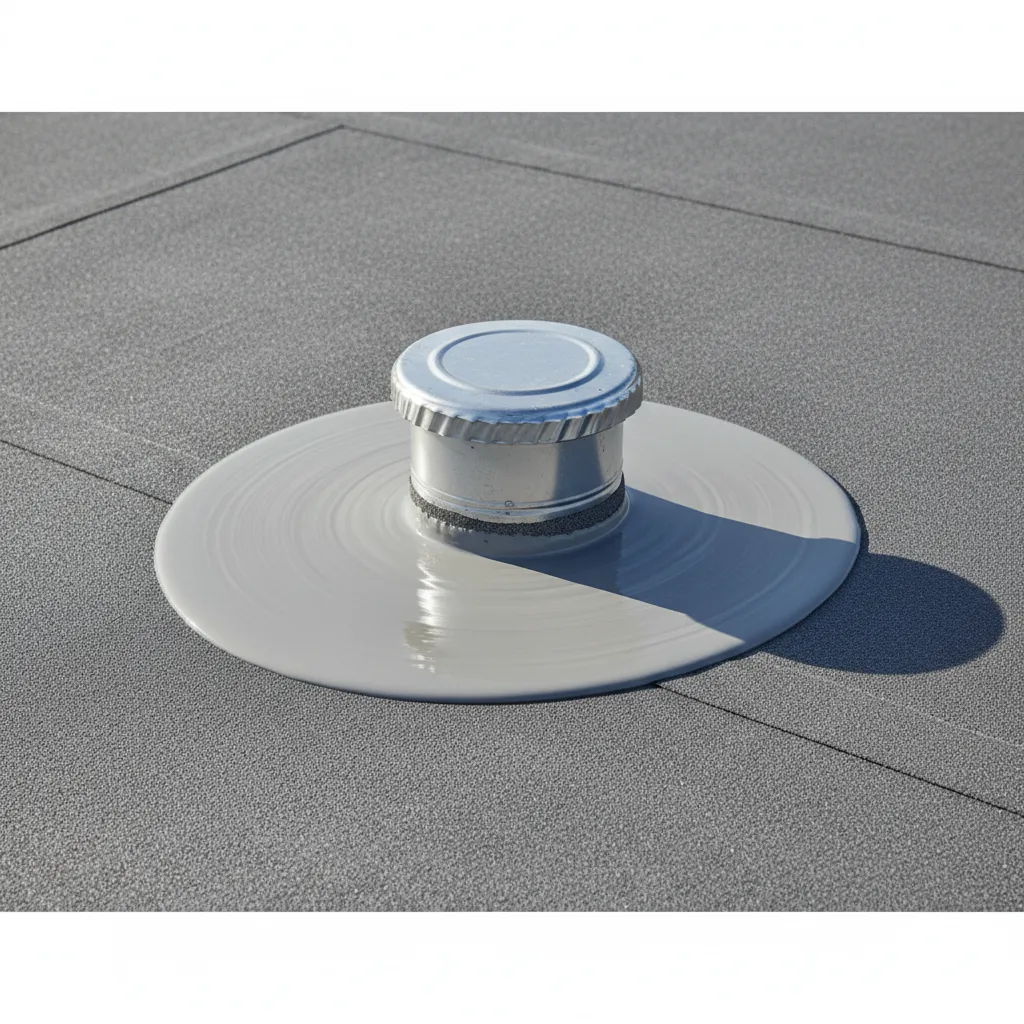

Self‑leveling sealants have a relatively thin viscosity compared with standard roofing caulks. Once applied, the material slowly spreads across the surface and fills irregular gaps before curing.

This behavior makes them ideal for areas where water naturally pools or moves slowly across the roof surface.

Typical characteristics of self‑leveling sealants:

1. Low viscosity for flow and surface coverage
2. Designed for horizontal applications
3. Forms smooth waterproof layers
4. Commonly used around roof penetrations
5. Compatible with rubber, metal, and TPO roofing systems

Common application areas:

1. Vent pipes
2. Roof drains
3. Skylight bases
4. HVAC penetrations
5. Flat roof seams

According to the National Roofing Contractors Association (NRCA), penetrations are one of the most frequent leak points on flat roofs, which is why fluid sealants that spread and encapsulate joints are commonly specified for these areas.

save pin

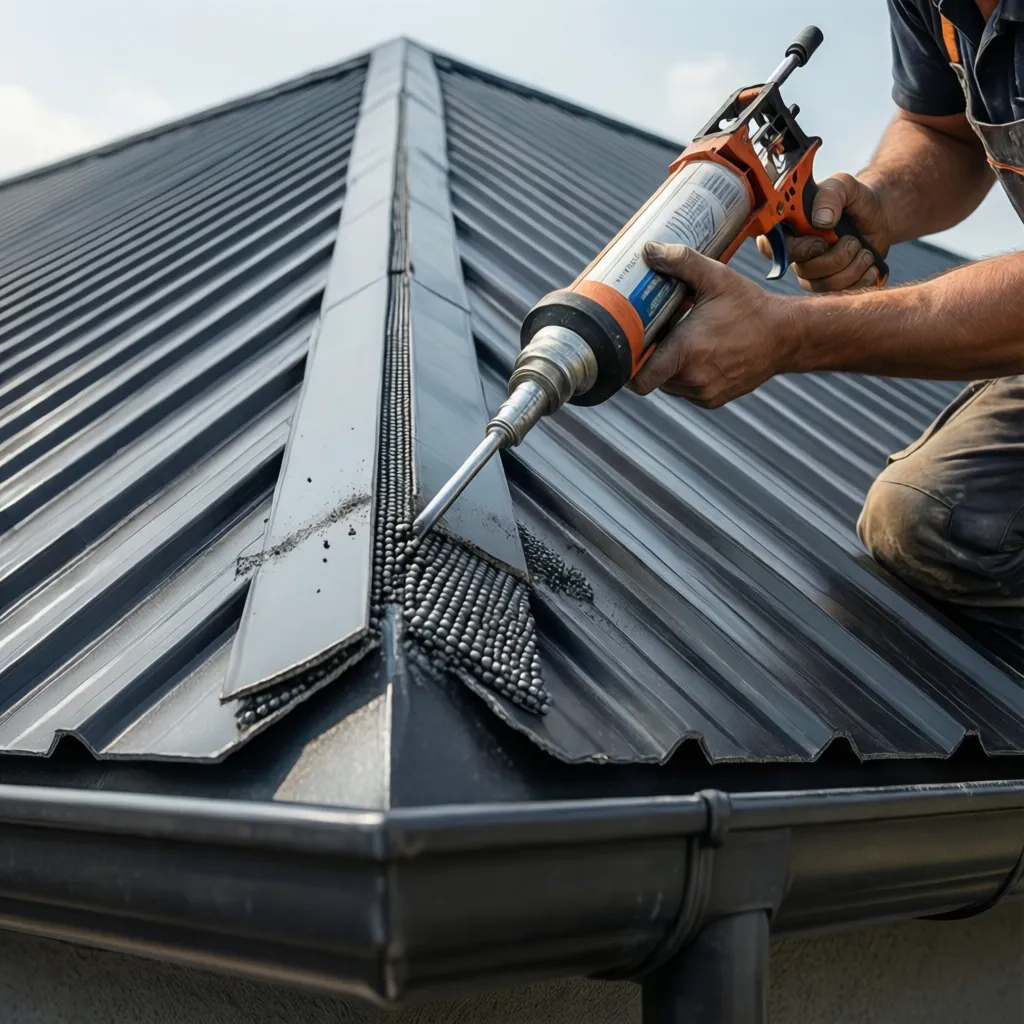

What Is Non-Sag Roof Sealant

Key Insight: Non‑sag roof sealant is thicker and designed to stay exactly where it is applied, making it ideal for vertical joints and flashing connections.

Unlike self‑leveling sealants, non‑sag formulas behave more like traditional caulking. They hold their shape during application and cure without flowing.

This is critical for vertical or angled surfaces where gravity would otherwise pull the sealant away from the joint.

Typical properties of non‑sag roof sealants:

1. High viscosity paste consistency
2. No flowing after application
3. Excellent adhesion to flashing materials
4. Controlled bead application
5. Works on vertical and sloped surfaces

Common applications:

1. Roof flashing seams
2. Metal edge joints
3. Gutter connections
4. Vertical wall transitions
5. Trim and parapet seams

In roofing inspections I’ve participated in, vertical flashing joints are one of the areas where incorrect sealant choice shows up fastest. If a self‑leveling formula is used here, it can literally drip out of the joint before curing.

save pin

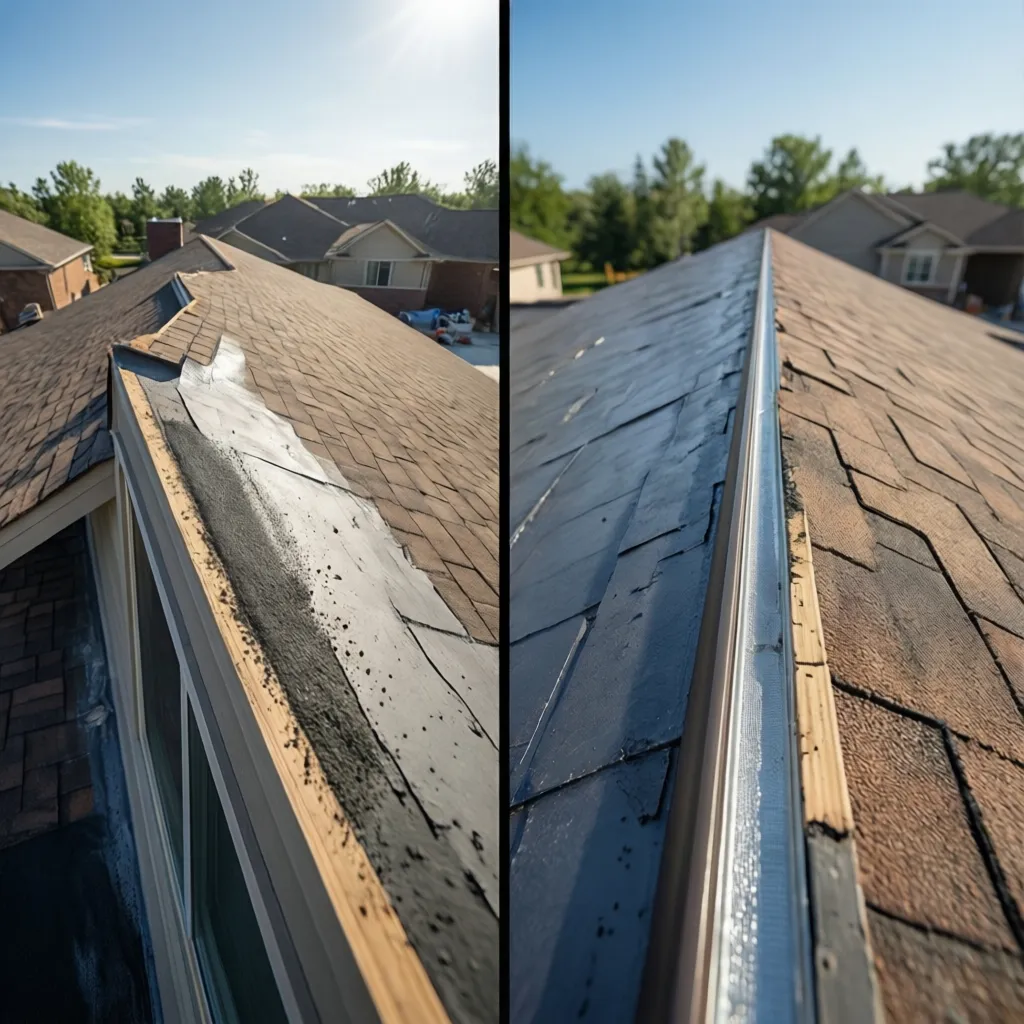

Performance Differences on Flat and Vertical Surfaces

Key Insight: Surface orientation—horizontal versus vertical—is the single most important factor when comparing self leveling vs non sag roof sealant.

The physics is simple: gravity affects low‑viscosity materials much more than thick sealants.

Performance comparison:

1. Self‑Leveling Sealant
2. Best for flat surfaces where spreading improves coverage and waterproofing.
3. Non‑Sag Sealant
4. Best for vertical or angled seams where material must stay in place.

Practical surface comparison:

1. Flat roof penetration → Self‑leveling
2. Vertical flashing seam → Non‑sag
3. Roof edge trim → Non‑sag
4. Drain collar → Self‑leveling
5. HVAC curb base → Self‑leveling

One overlooked detail: roof movement. Flat roofs expand and contract more than people expect. Sealants that spread evenly across penetrations often survive movement better than rigid bead applications.

Best Use Cases for Each Sealant Type

Key Insight: Most professional roofing repairs actually use both sealant types because different roof components require different material behavior.

During renovation planning, we often map roof penetrations and edges much like we map circulation paths in interior spaces using tools such as visualizing spatial layout before structural changes. The same planning mindset helps determine where each sealant belongs.

Use self‑leveling sealant when:

1. Sealing pipe penetrations
2. Repairing flat membrane seams
3. Sealing around roof drains
4. Encapsulating screw heads on horizontal surfaces

Use non‑sag sealant when:

1. Sealing flashing joints
2. Repairing vertical cracks
3. Working on parapet walls
4. Sealing roof edge trim

Professional roofers almost always keep both products in the truck for the same project.

Cost, Durability, and Application Comparison

Key Insight: Price differences between the two sealant types are usually small; durability depends far more on correct application than product cost.

Homeowners often try to choose based on price alone, but the bigger cost factor is repair longevity.

Comparison overview:

1. Material Cost: Usually $6–$15 per tube depending on brand and chemistry.
2. Application Difficulty: Self‑leveling is easier on flat areas; non‑sag requires cleaner bead control.
3. Coverage: Self‑leveling spreads wider, covering irregular gaps.
4. Failure Risk: Using the wrong type can cause leaks within months.

From field observations, the most expensive mistake isn’t buying a premium sealant—it’s applying the wrong formulation in the wrong orientation.

save pin

How to Choose the Right Sealant for Your Roof Repair

Key Insight: The best way to choose between sealant types is to evaluate three variables: surface direction, joint movement, and exposure to standing water.

Simple decision checklist:

1. If the surface is horizontal → use self‑leveling sealant.
2. If the surface is vertical or angled → use non‑sag sealant.
3. If water pools nearby → self‑leveling performs better.
4. If sealing flashing seams → non‑sag is safer.

When planning larger roof renovations or additions, mapping penetrations and drainage zones early—similar to creating a 3D layout to plan structural elements—can prevent many of these repair decisions from becoming guesswork later.

Answer Box

Self‑leveling roof sealant is best for horizontal roof areas because it flows and fills gaps evenly. Non‑sag sealant is designed for vertical or angled surfaces where material must stay in place. Choosing the correct type mainly depends on surface orientation and joint location.

Final Summary

1. Self‑leveling sealant flows and spreads on flat roof surfaces.
2. Non‑sag sealant holds shape for vertical seams and flashing.
3. Surface orientation is the key factor in sealant selection.
4. Most professional roof repairs require both sealant types.
5. Incorrect sealant choice often causes premature leaks.

FAQ

1. What is the difference between self leveling and non sag roof sealant?

Self‑leveling sealant flows and spreads on horizontal surfaces, while non‑sag sealant stays in place for vertical joints and flashing.

2. Can I use self leveling sealant on a vertical surface?

No. Self‑leveling sealant will usually run or drip on vertical surfaces before curing.

3. Which roof sealant is best for flat roofs?

Self‑leveling roof sealant is typically best for flat roofs because it spreads and fills gaps around penetrations.

4. Is non sag roof sealant the same as roofing caulk?

In many cases yes. Non‑sag sealants behave similarly to thick roofing caulk designed for vertical joints.

5. When should you use self leveling sealant?

Use it on flat roof penetrations, drain collars, pipe boots, and horizontal seams.

6. Does self leveling sealant last longer?

Not necessarily. Longevity depends on using the correct sealant for the surface orientation.

7. Can both sealants be used in the same roof repair?

Yes. Most professional repairs use self‑leveling for horizontal areas and non‑sag for vertical flashing joints.

8. Is self leveling sealant waterproof?

Yes. Once cured, self‑leveling roof sealant forms a waterproof membrane around roof penetrations.

References

National Roofing Contractors Association (NRCA). Roofing Maintenance and Repair Guidelines.

Roofing Contractors Association Industry Technical Manuals.
