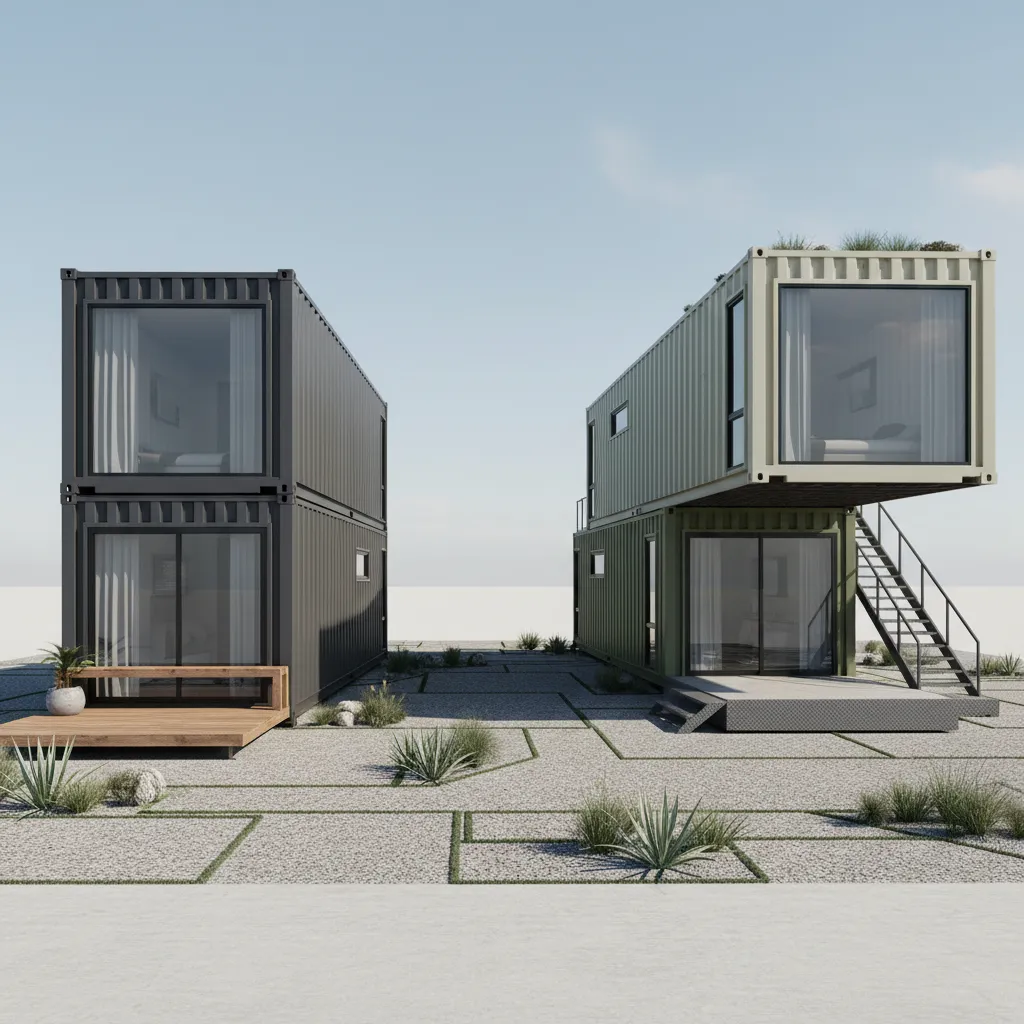

Shipping Container House Layout Comparison: Single vs Multi‑Container Designs: A practical guide to choosing between single and multi‑container home layouts based on cost, flexibility, and real‑world design constraints.

Direct Answer

A single shipping container home layout is simpler, cheaper, and faster to build, but space and layout flexibility are limited. Multi‑container designs allow larger rooms, open plans, and multi‑story living, though they introduce higher structural complexity and cost. The right choice depends on land size, budget, and how much interior flexibility your design requires.

Quick Takeaways

1. Single container homes are cost‑efficient but limited in layout flexibility.
2. Multi‑container homes allow open spaces and larger living areas.
3. Stacked containers reduce land footprint but increase structural work.
4. Side‑by‑side layouts are easier to build and modify later.
5. Early layout planning prevents costly structural changes.

Introduction

When people start researching container architecture, the first big decision usually isn't style or materials — it's layout. The shipping container home layout you choose fundamentally shapes everything: structural work, insulation strategy, interior design, and even long‑term maintenance.

After working on multiple container‑based residential projects over the past decade, I've noticed a common pattern. Many homeowners initially assume containers are like LEGO blocks that can be stacked or expanded freely. In reality, every cut you make in a container changes the structural behavior of the steel frame.

This is why the difference between single vs multi container house design matters so much. The layout decision determines whether your project stays simple and affordable or turns into a complex structural retrofit.

If you're still experimenting with different floor arrangements, it helps to visualize the structure early. Many designers begin by exploring interactive 3D floor planning examples for small modular homesbefore committing to a structural layout.

In this guide, I'll walk through the real trade‑offs between single‑container layouts and multi‑container modular designs — including a few design pitfalls most comparison articles completely ignore.

save pin

Understanding Basic Container House Layout Types

Key Insight: Most shipping container homes fall into three structural layout categories: single container, multi‑container side‑by‑side, and stacked modular systems.

Before comparing single vs multi container house design, it's important to understand the structural logic behind each layout. Shipping containers are engineered to carry loads primarily through their corner posts and perimeter frame. Once walls are removed to create larger rooms, reinforcement becomes necessary.

The three most common layout types include:

1. Single Container Layout – one 20ft or 40ft unit used as the entire structure.
2. Side‑by‑Side Multi‑Container Layout – two or more containers placed horizontally.
3. Stacked Container Layout – containers arranged vertically for multi‑story homes.

According to the U.S. Department of Housing and Urban Development modular housing reports, container homes are increasingly used in modular housing experiments because of their structural durability and standardized dimensions.

However, most successful projects combine containers strategically rather than randomly stacking them.

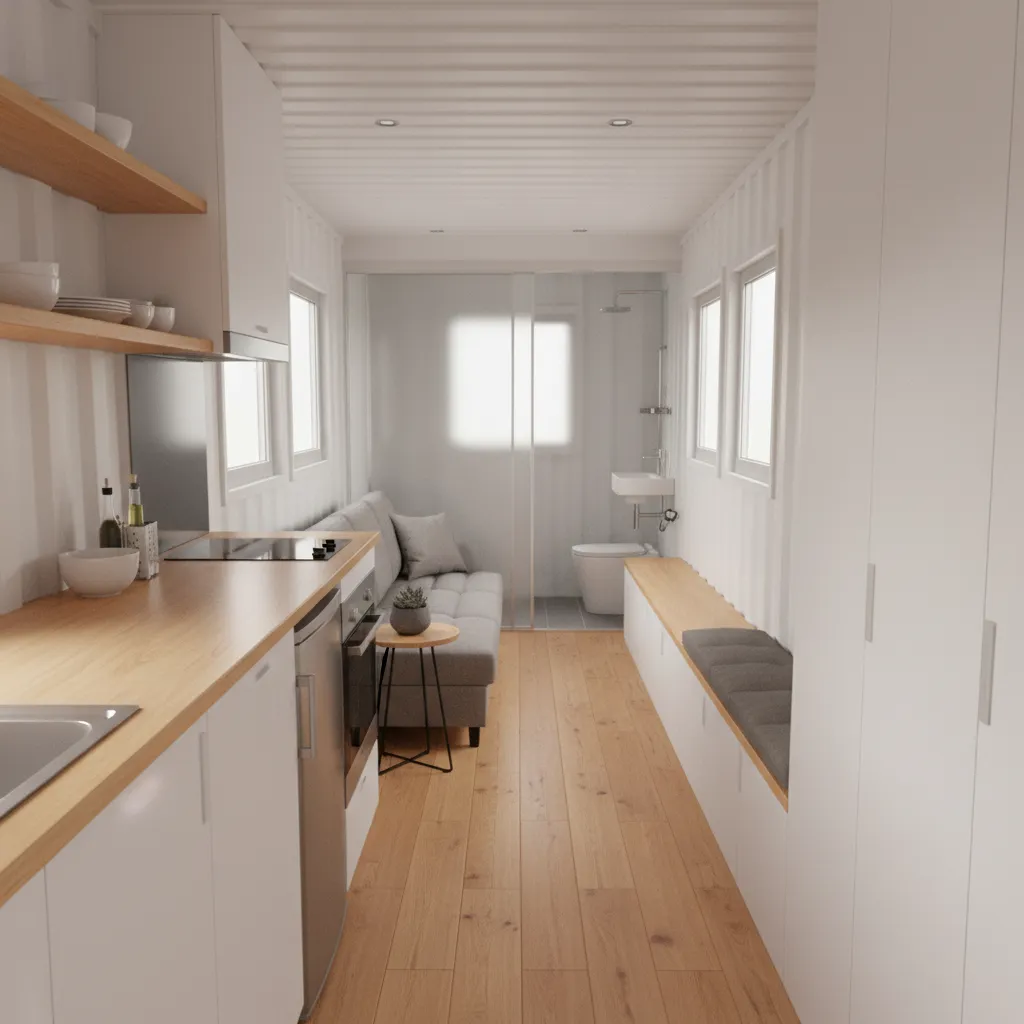

Single Container Home Design Advantages and Limits

Key Insight: Single container homes are ideal for compact living but quickly hit spatial limits once you try to add conventional room layouts.

A standard 40‑foot container offers about 320 square feet of interior space. That's roughly the size of a small studio apartment. For minimalist living, guest houses, or backyard ADUs, this can work extremely well.

Advantages of single container layouts:

1. Lowest construction cost
2. Minimal structural cutting
3. Fast permitting in many areas
4. Simple insulation and HVAC planning

But there are two major limitations most first‑time builders underestimate.

First, containers are only about 8 feet wide. Once insulation and wall finishes are installed, usable interior width can shrink to roughly 7 feet. This creates tight circulation spaces.

Second, traditional room division becomes difficult. Bedrooms, bathrooms, and kitchens often compete for the same narrow corridor.

Because of this, many designers use single containers mainly for:

1. Tiny homes
2. Office studios
3. Rental cabins
4. Backyard ADUs

save pin

Multi‑Container Modular Layout Configurations

Key Insight: Multi‑container layouts unlock true residential functionality by allowing larger open areas and flexible zoning.

Once you connect two or more containers, design possibilities expand dramatically. Walls between containers can be removed to create wider rooms — something impossible in a single unit.

Common modular container configurations include:

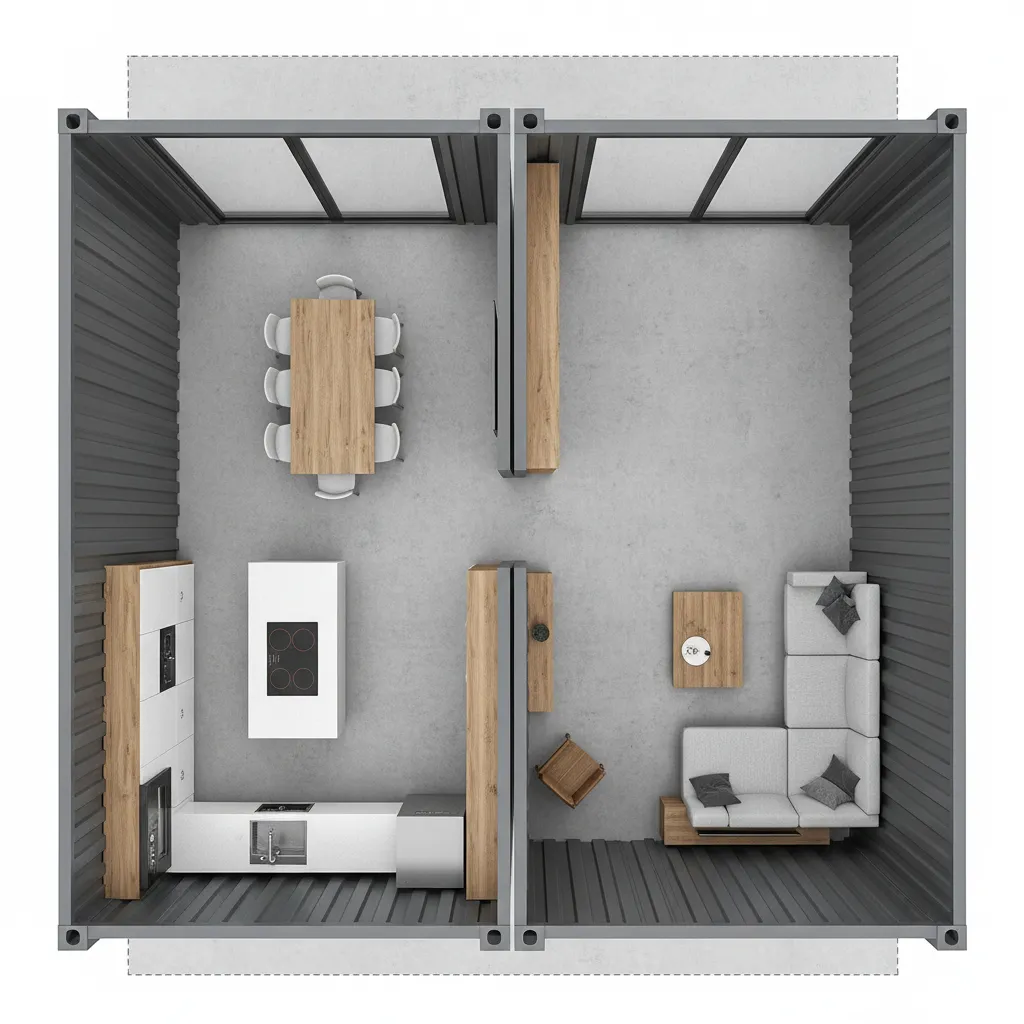

1. Two‑Container Parallel Layout – ideal for small two‑bedroom homes.

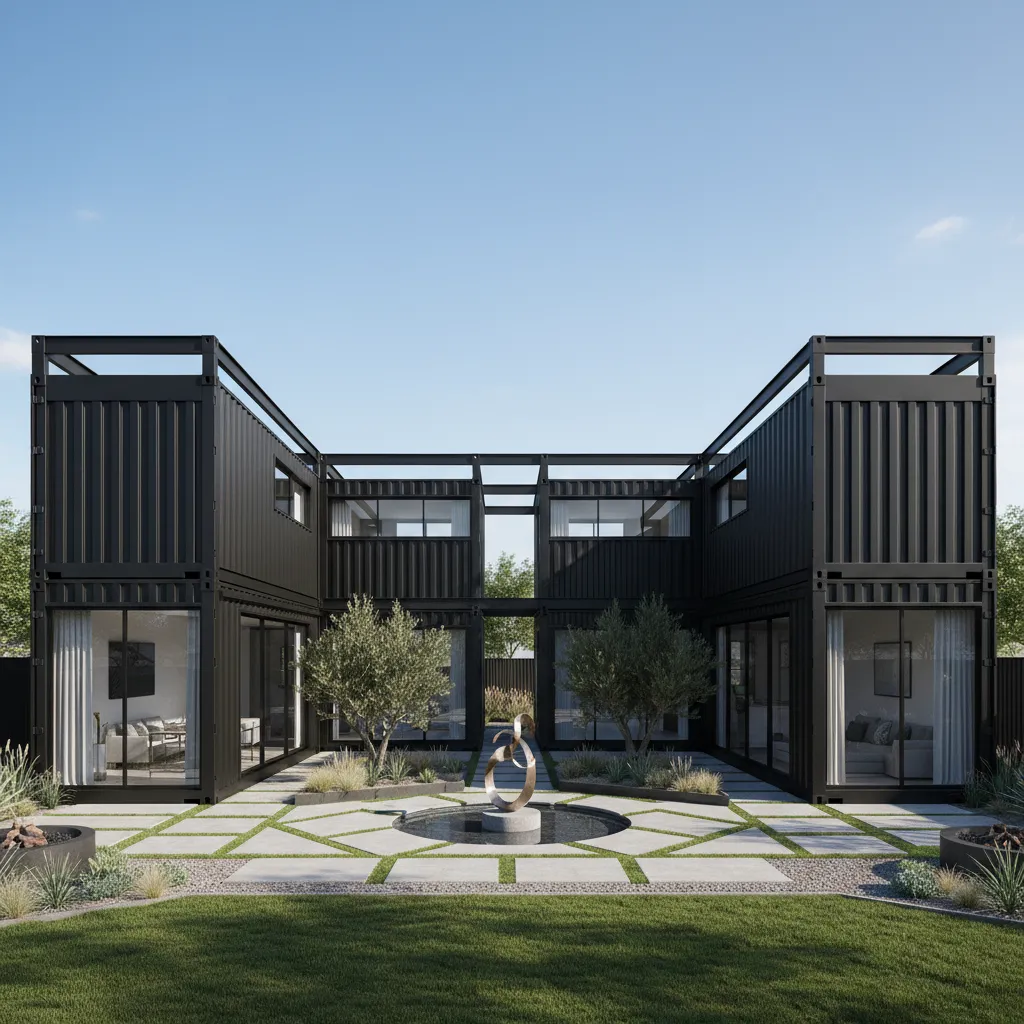

2. L‑Shaped Layout – creates natural outdoor courtyards.
3. U‑Shaped Layout – often used for larger family homes.
4. Four‑Container Square Layout – supports central living spaces.

In practice, many homeowners begin testing these layouts using simple tools for experimenting with modular house floor plansto understand room proportions before structural planning begins.

One insight from real projects: removing too many container walls without reinforcement can dramatically increase engineering costs. Structural steel beams are often required once openings exceed certain widths.

save pin

Stacked vs Side‑by‑Side Container Arrangements

Key Insight: Side‑by‑side layouts are structurally simpler, while stacked designs maximize land use but require more engineering.

Both layouts appear frequently in shipping container home layout comparison discussions, but they serve very different project goals.

Side‑by‑Side Layout

1. Easier structural modification
2. Better for open floor plans
3. Simpler plumbing and wiring
4. Lower engineering costs

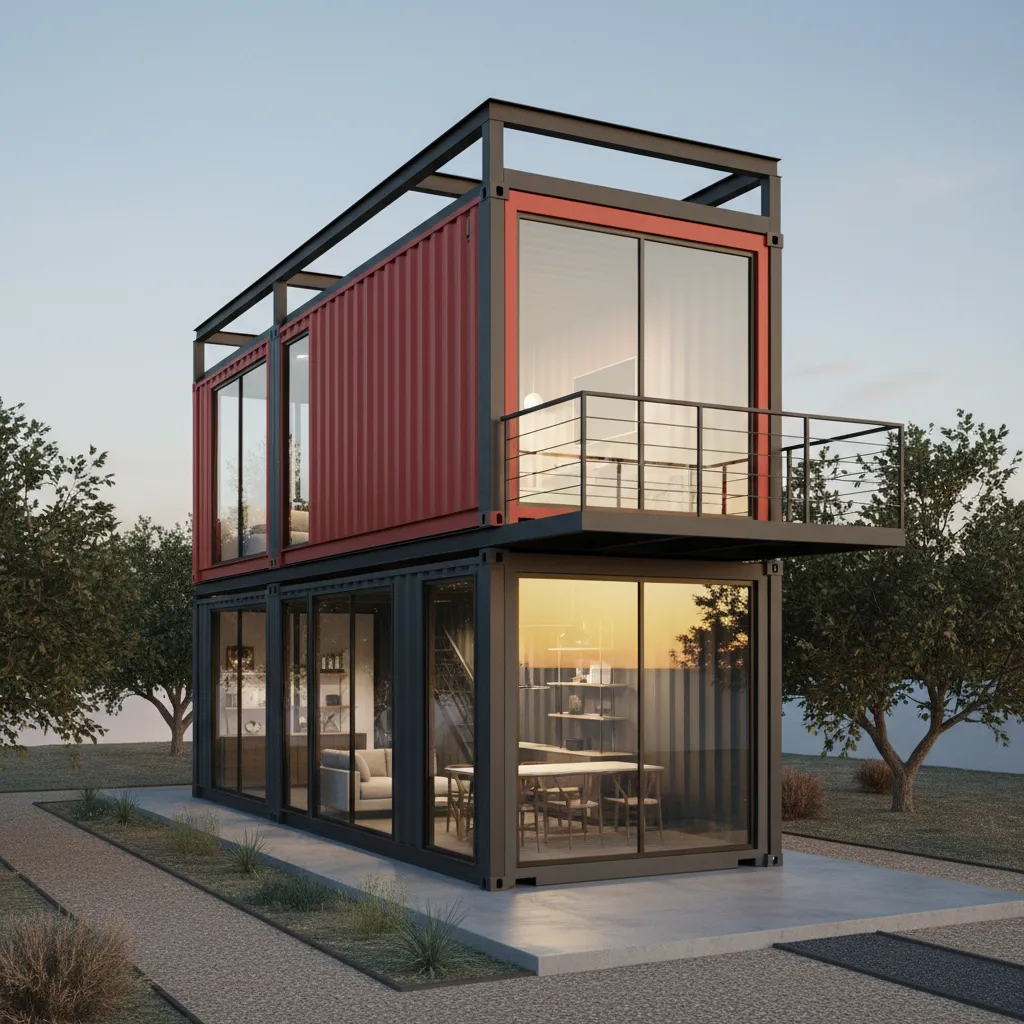

Stacked Layout

1. Ideal for small urban lots
2. Creates multi‑story homes
3. Stronger structural load requirements
4. More complex staircase and vertical circulation design

Architectural studies from modular housing research groups show stacked container homes typically require additional reinforcement around large openings and stair cores.

In my experience, stacked layouts are often chosen for aesthetic reasons — but side‑by‑side designs usually deliver better interior comfort.

save pin

Answer Box

The best container home layout depends on how much interior flexibility you need. Single containers are efficient for small spaces, while multi‑container layouts support real residential functionality. Most long‑term homes use at least two containers.

Cost and Complexity Differences Between Layout Types

Key Insight: Structural modification, not the container itself, is usually the biggest cost driver.

Many people assume more containers automatically mean higher costs. That isn't always true.

In several projects I've consulted on, the expensive part wasn't buying containers — it was cutting them.

Major cost drivers include:

1. Steel reinforcement after wall removal
2. Foundation upgrades for stacked units
3. Thermal insulation upgrades
4. Custom window and door openings

Typical project comparison:

1. Single container tiny home: $35,000–$70,000
2. Two‑container modular home: $80,000–$160,000
3. Stacked multi‑container house: $150,000+

According to modular housing data from McKinsey construction productivity reports, modular building methods can reduce build time by up to 20–50% when planning is optimized early.

How to Choose the Right Layout for Your Project

Key Insight: The best container home layout balances land size, lifestyle needs, and structural simplicity.

Before committing to a shipping container home layout comparison decision, consider these factors:

1. Land Size – small urban lots often benefit from stacked designs.
2. Budget – simpler layouts reduce reinforcement costs.
3. Interior Lifestyle – families typically need multi‑container layouts.
4. Future Expansion – side‑by‑side layouts allow easier additions.

If you're still exploring how interior spaces might look after structural decisions, it's useful to review visual examples of AI‑assisted container home interior concepts to understand how layout affects furniture planning and room flow.

The biggest mistake I see isn't choosing the wrong layout — it's choosing one without fully understanding the structural trade‑offs first.

Final Summary

1. Single containers work best for tiny homes and studios.
2. Multi‑container layouts enable real residential functionality.
3. Side‑by‑side arrangements are easier and cheaper to build.
4. Stacked layouts save land but increase engineering complexity.
5. Early layout planning prevents expensive structural changes.

FAQ

1. What is the best shipping container home layout?

Most homeowners prefer a two‑container side‑by‑side layout because it creates wider rooms while keeping construction relatively simple.

2. Is a single container house practical for living?

Yes, but mainly for minimalist living. A single container home typically works best as a studio, guest house, or tiny home.

3. How many containers are needed for a family house?

Most family homes use two to four containers to create enough bedrooms and shared living space.

4. Are stacked container houses safe?

Yes. Shipping containers are structurally strong, but stacked designs require proper engineering and reinforced openings.

5. What is the cheapest container house layout?

A single 20‑foot or 40‑foot container layout is usually the most affordable option.

6. Can container homes have open floor plans?

Yes. Multi‑container layouts allow walls to be removed and reinforced, creating larger open spaces.

7. How wide is a shipping container home interior?

After insulation and wall finishes, usable interior width is usually around 7 feet.

8. What is the difference between single vs multi container house design?

Single container homes are compact and simple, while multi‑container designs provide larger rooms and more flexible layouts.
