Side Mount vs Undermount Drawer Slides Removal and Maintenance Differences: Learn how to identify each drawer slide type and understand the real differences in removal, durability, and maintenance.

Direct Answer

Side mount and undermount drawer slides differ mainly in where the hardware sits and how the drawer releases. Side mount slides attach to the drawer’s sides and usually release through visible levers, while undermount slides are hidden underneath and release using small clips near the front underside of the drawer.

Because of that design difference, side mount slides are generally easier to identify, while undermount slides require locating the locking clips before removal.

Quick Takeaways

1. Side mount slides have visible metal rails on both drawer sides.
2. Undermount slides are hidden beneath the drawer for a cleaner cabinet look.
3. Side mount drawers release using side levers, usually halfway open.
4. Undermount drawers release through clips underneath the front edge.
5. Undermount systems often provide smoother and quieter operation.

Introduction

If you’ve ever tried removing a kitchen drawer and it refused to budge, there’s a good chance the issue wasn’t strength—it was the drawer slide system. In over a decade of residential kitchen projects, I’ve seen homeowners struggle with this exact moment. The reason is simple: side mount vs undermount drawer slides behave completely differently during removal.

Most guides online oversimplify the process. They assume all drawers release the same way, which simply isn’t true. Modern kitchens often use undermount systems with hidden locking clips, while older or budget cabinetry typically uses side mounted rails.

If you’re still unsure about the basic removal process, start with this walkthrough that explains step by step ways homeowners safely remove stuck kitchen drawers. Once you understand the basics, identifying the hardware type becomes much easier.

In this guide I’ll break down how each slide works, how to recognize them instantly, and the real-world maintenance differences I’ve seen across hundreds of installations.

save pin

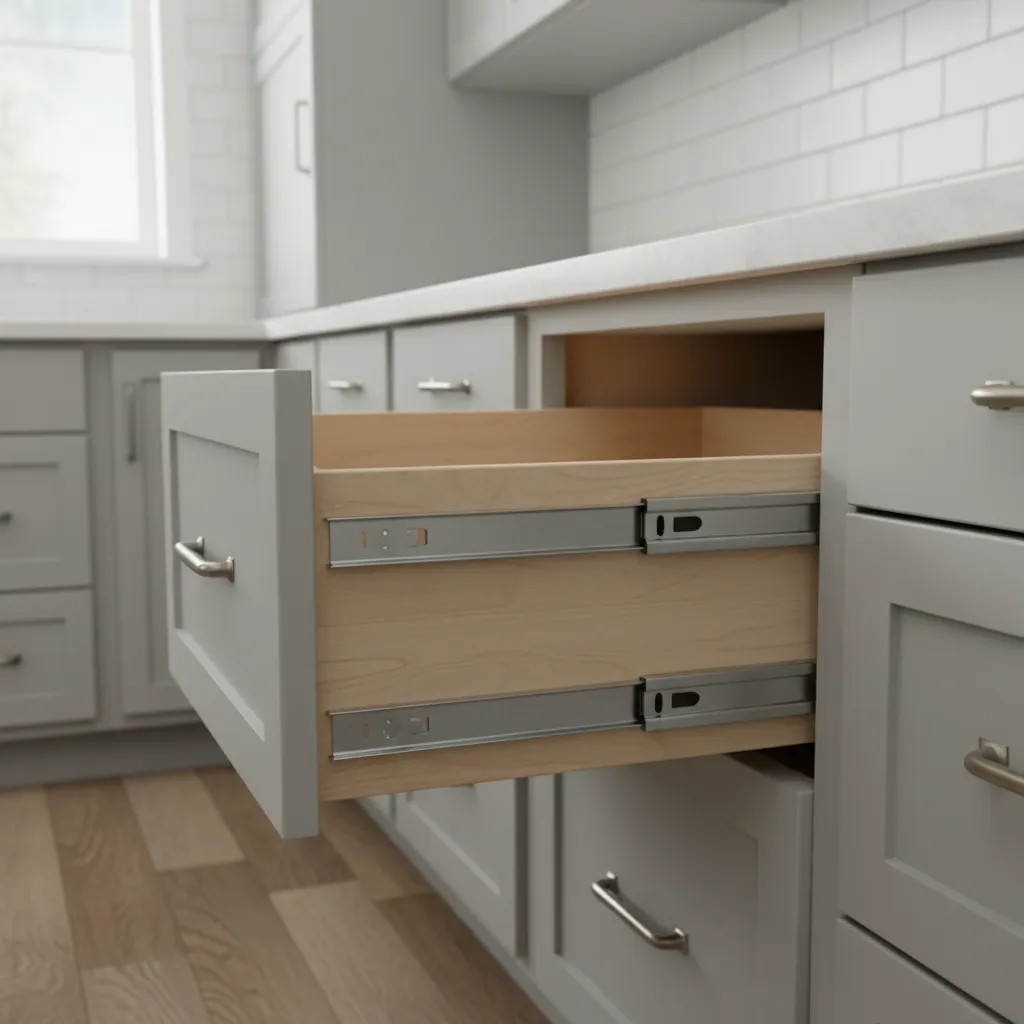

Overview of Common Kitchen Drawer Slide Types

Key Insight: Most residential kitchens use either side mount or undermount slides, and each type signals itself through hardware visibility and drawer construction.

From a designer’s perspective, drawer slides fall into three main categories, but two dominate residential kitchens.

1. Side mount slides – metal rails visible along the drawer sides.
2. Undermount slides – hidden rails mounted under the drawer box.
3. Center mount slides – older single-rail systems used in vintage cabinets.

In new construction homes built after roughly 2015, undermount slides have become the standard for mid-range and premium cabinetry. Brands like Blum and Hettich popularized them because they allow soft-close mechanisms while keeping hardware invisible.

Older kitchens and many DIY cabinet kits still rely on side mount slides because they’re cheaper and easier to install.

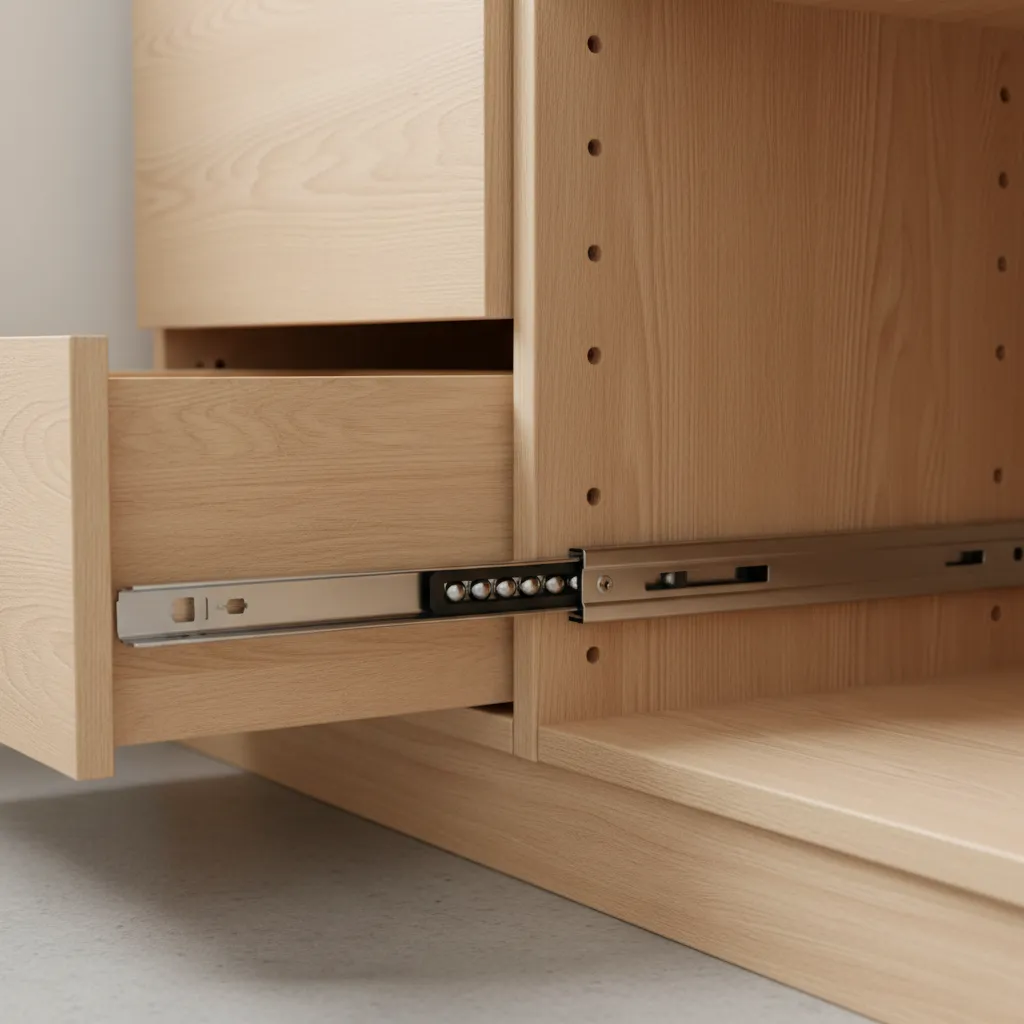

How Side Mount Drawer Slides Work

Key Insight: Side mount slides rely on telescoping rails attached to both the cabinet wall and drawer side.

This system uses two or three metal channels that extend outward when the drawer opens. Small steel ball bearings inside the rails keep the motion smooth.

The biggest advantage is accessibility. Every component is visible and easy to replace.

Typical side mount removal steps:

1. Pull the drawer fully open.
2. Locate the small release levers on both rails.
3. Press one lever up and the other down.
4. Pull the drawer straight forward.

From a maintenance perspective, these slides are forgiving. If debris or grease builds up, you can clean and lubricate them without removing the entire system.

save pin

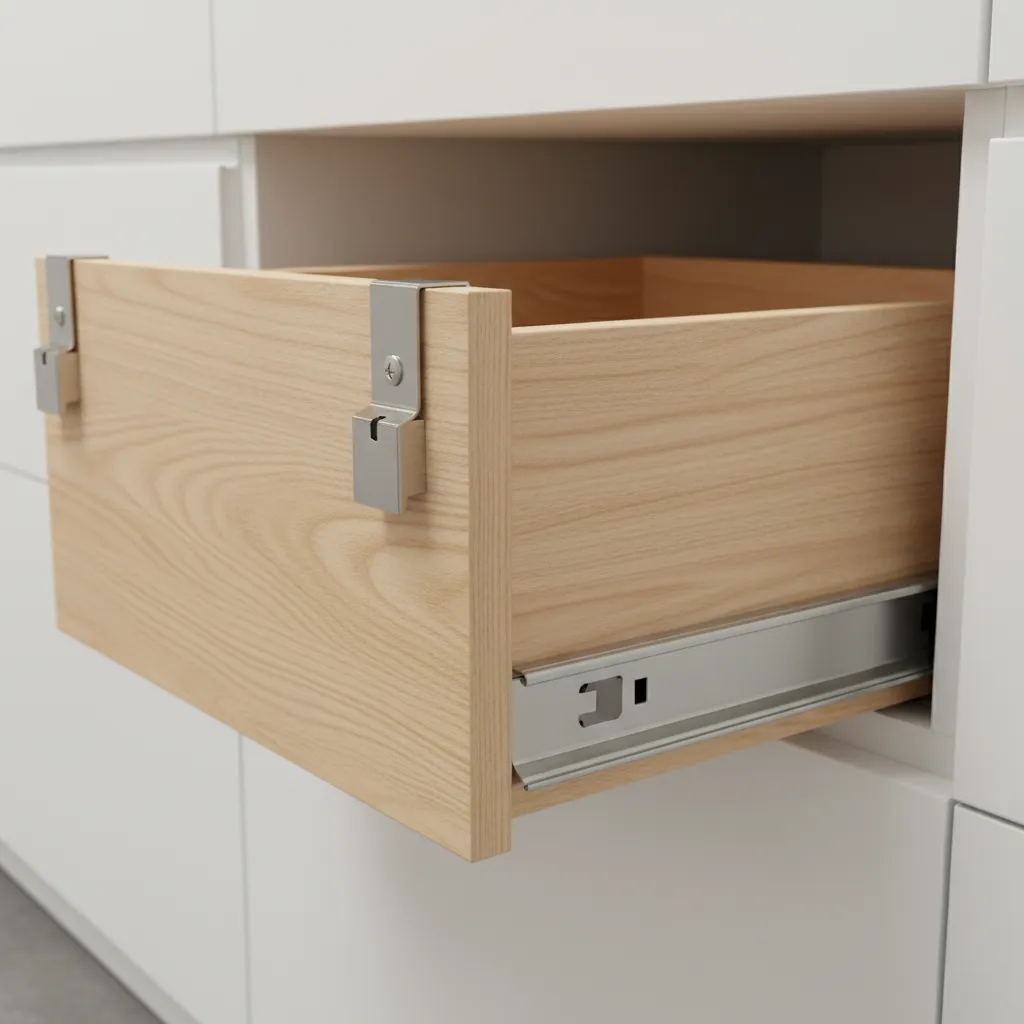

How Undermount Drawer Slides Work

Key Insight: Undermount slides attach beneath the drawer and use locking clips instead of side levers.

These systems hide the hardware completely, which is why high-end kitchens favor them. The rails sit below the drawer box and attach to the cabinet frame.

Instead of side levers, the drawer locks into the slide with small clips at the front underside.

Removal process:

1. Open the drawer fully.
2. Reach underneath the drawer front.
3. Press both locking clips simultaneously.
4. Lift slightly and pull forward.

Because the mechanism is hidden, homeowners often miss those clips entirely and assume the drawer is stuck.

If you're mapping kitchen storage improvements or planning layout upgrades, many designers use digital planning tools like this visual kitchen layout planning workflow used during cabinet designto preview how different drawer systems affect storage spacing.

save pin

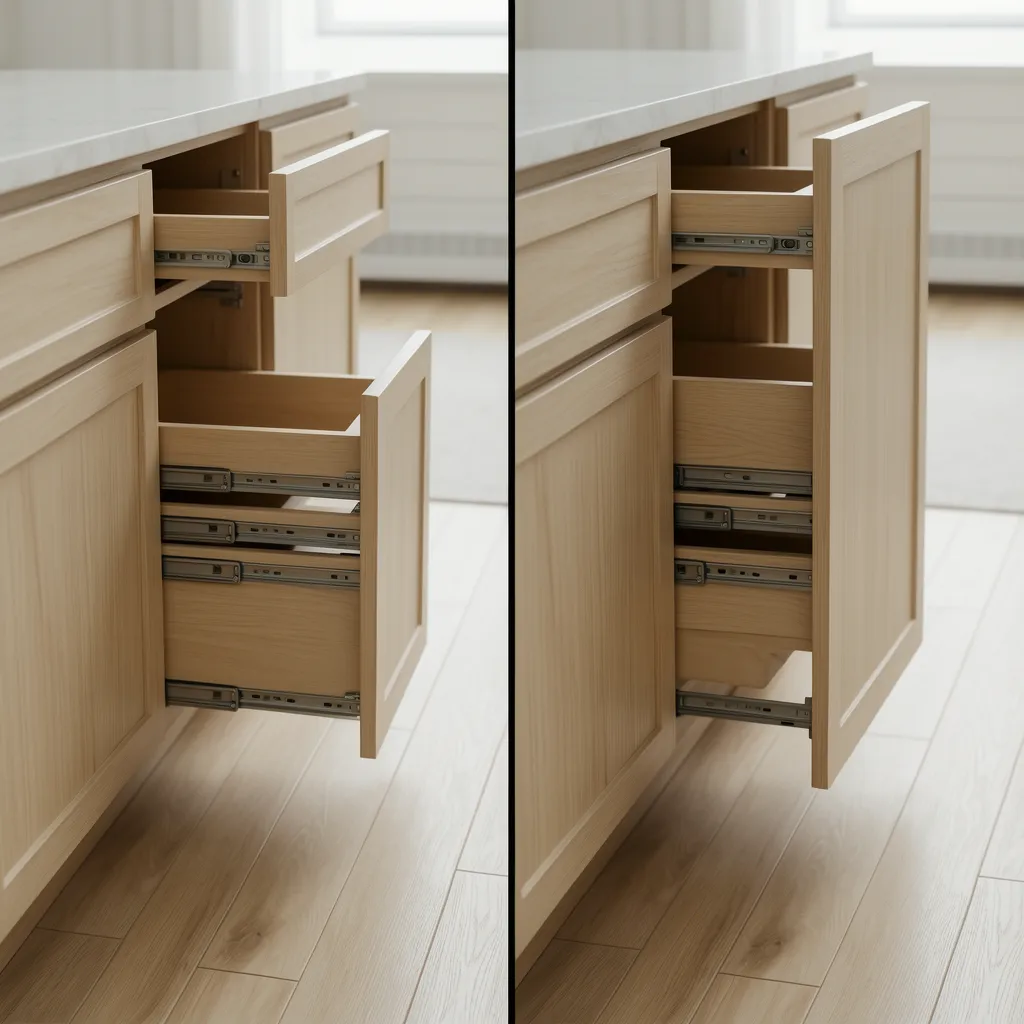

Key Differences When Removing Each Type

Key Insight: Removal difficulty usually depends more on slide design visibility than mechanical complexity.

Here’s the comparison I typically explain to homeowners during renovations:

1. Side mount slides
2. Release mechanism: visible lever
3. Removal difficulty: easy
4. Identification: obvious side rails
5. Undermount slides
6. Release mechanism: hidden clips underneath
7. Removal difficulty: moderate
8. Identification: no visible side hardware

A common mistake I see is homeowners pulling upward too aggressively on undermount drawers. These systems are designed to slide forward after the clips release, not lift vertically.

Another hidden detail: undermount drawers often require the drawer to be opened fully before the clips engage properly.

Maintenance and Lifespan Comparison

Key Insight: Undermount slides usually last longer in modern kitchens, but side mount systems are easier to repair.

In my project experience, lifespan depends heavily on usage patterns.

1. Side mount slides lifespan: about 10–15 years with regular use.
2. Undermount slides lifespan: often 15–20 years in residential kitchens.

The difference comes down to protection. Because undermount slides sit underneath the drawer, they collect less grease and dust from the kitchen environment.

However, when something fails, replacement is more complicated because the slides integrate tightly with the cabinet system.

save pin

Which Drawer Slide System Is Best for Your Kitchen

Key Insight: The best drawer slide system depends on whether you prioritize easy repairs or premium drawer performance.

Designers usually recommend undermount slides for modern kitchens because they offer:

1. hidden hardware
2. smoother glide
3. built-in soft close
4. higher weight capacity

But side mount slides still have one practical advantage: they’re incredibly easy to replace. For rental properties or budget renovations, that simplicity matters.

If you're redesigning cabinet layouts entirely, tools like this interactive floor plan creator used for cabinet and drawer layout planning can help visualize storage zones before installation.

Answer Box

Side mount drawer slides remove using visible release levers on the rails, while undermount slides use hidden clips under the drawer front. Side mount systems are easier to identify and repair, but undermount slides offer smoother motion and a cleaner cabinet appearance.

Final Summary

1. Side mount slides are visible and release using side levers.
2. Undermount slides hide beneath the drawer and use locking clips.
3. Undermount systems dominate modern kitchen cabinetry.
4. Side mount slides remain easier to repair and replace.
5. Correct identification prevents most drawer removal mistakes.

FAQ

How do I identify my drawer slide type?

Look at the drawer sides. Visible metal rails mean side mount slides. If the sides are clean and hardware is hidden, it’s likely an undermount system.

Which is better side mount vs undermount drawer slides?

Undermount slides usually provide smoother motion and soft close features, while side mount slides are cheaper and easier to repair.

Why won't my drawer come out?

Most modern drawers have release clips or levers. Pulling without activating them prevents removal.

Are undermount slides harder to remove?

Slightly. The release clips are hidden underneath the drawer, so they’re easy to miss if you don’t know where to look.

Do undermount slides support more weight?

Many premium undermount systems support 75–100 pounds depending on the manufacturer.

Can I replace side mount slides with undermount slides?

Usually not without modifying the drawer box, since undermount slides require special bottom notches and mounting holes.

What is the most common kitchen drawer slide today?

Undermount slides are now the most common in mid-range and high-end kitchen cabinets.

Which drawer slides are easiest to remove?

Side mount slides are generally the easiest because the release levers are visible and accessible.
