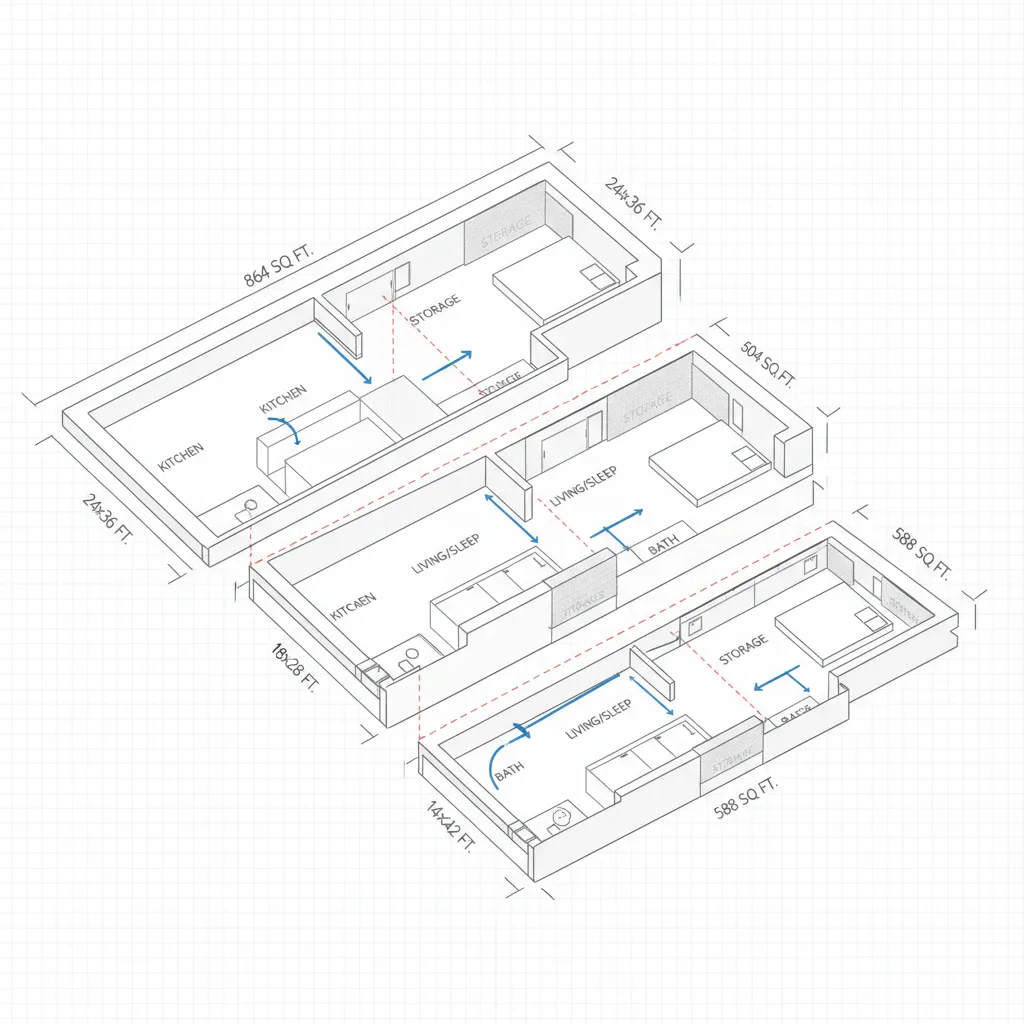

Simple Floor Plan Sample With Dimensions: A near-future lens on a simple plan: dimensions as living protocols, not just numbers

The future presses in as domestic bandwidth tightens: work, rest, and micro-rituals compete for square inches, not square feet. AIA and NAHB trend lines keep showing smaller footprints paired with higher performance, and I read a simple floor plan with dimensions as the earliest code of that shift. In this frame, a simple floor plan sample with dimensions isn’t a sketch—it’s a living operating system wrapped in rooms, a spatial reasoning toolkit that anticipates tomorrow’s behaviors.

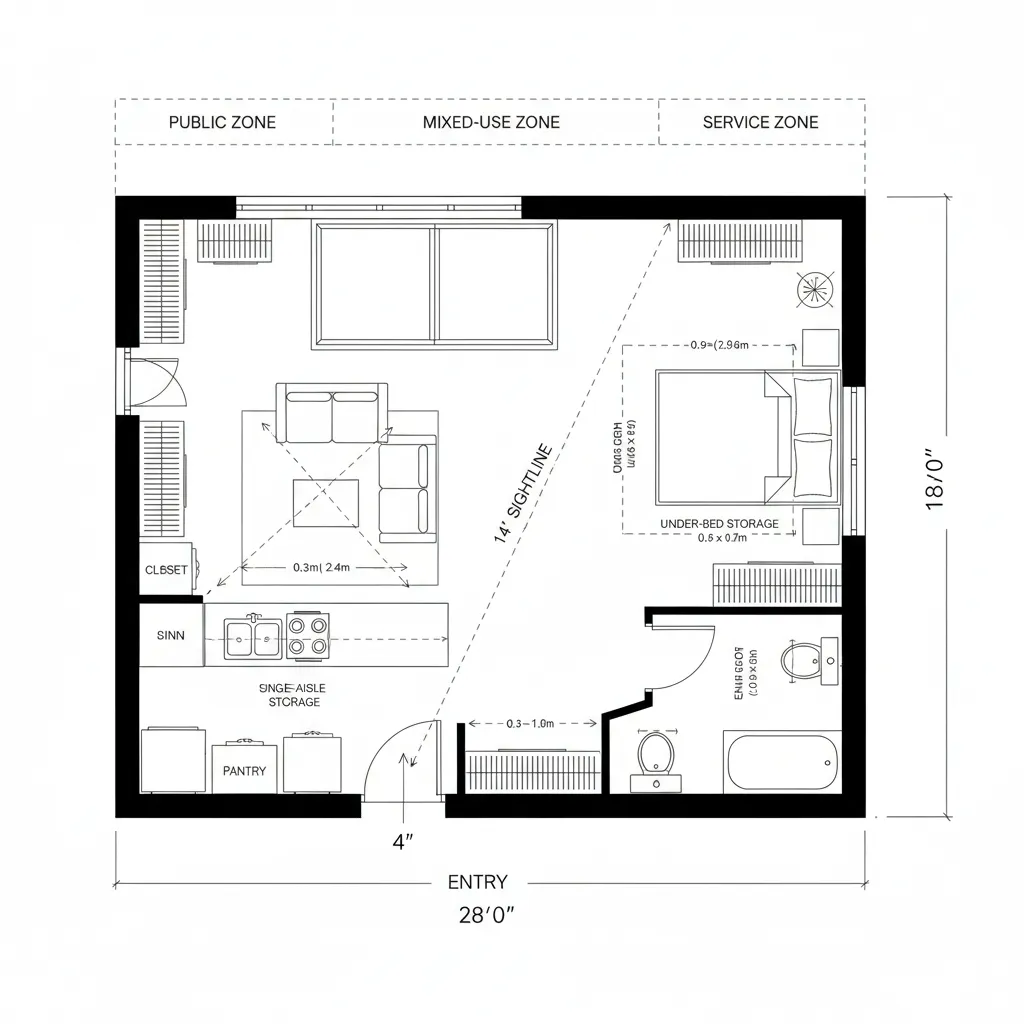

One-Room Studio Grid (18' x 28')

Design Logic： A 18' x 28' rectangle compiles like clean code: 6' modular bands set kitchen, sleep, and flex zones. Future lifestyles want fewer walls, more protocols—zones that adapt on a 24-hour clock.

Flow： Entry at the 28' edge; a 4' foyer buffer leads into a 9' kitchen run, then a 10' living/sleep field, ending with a 5' bath block—left-to-right like a command sequence.

Sightlines： From door, a 14' diagonal to window anchors the UI; vertical storage frames the periphery so the center reads as a clear dashboard.

Storage： 22"-deep pantry and a 24"-deep closet stack like cache lines; under-bed drawers add 18 cu ft of “cold storage” for infrequent items.

Furniture Fit： A 72" sofa, 30" dia table, and a 54" queen on a 36" circulation ring respect API limits—no collisions in peak hours.

Verdict： Five years out, this grid holds job shifts and gear upgrades; the plan stays stable while the modules hot-swap.

save pinOpen in 3D Planner Processing...

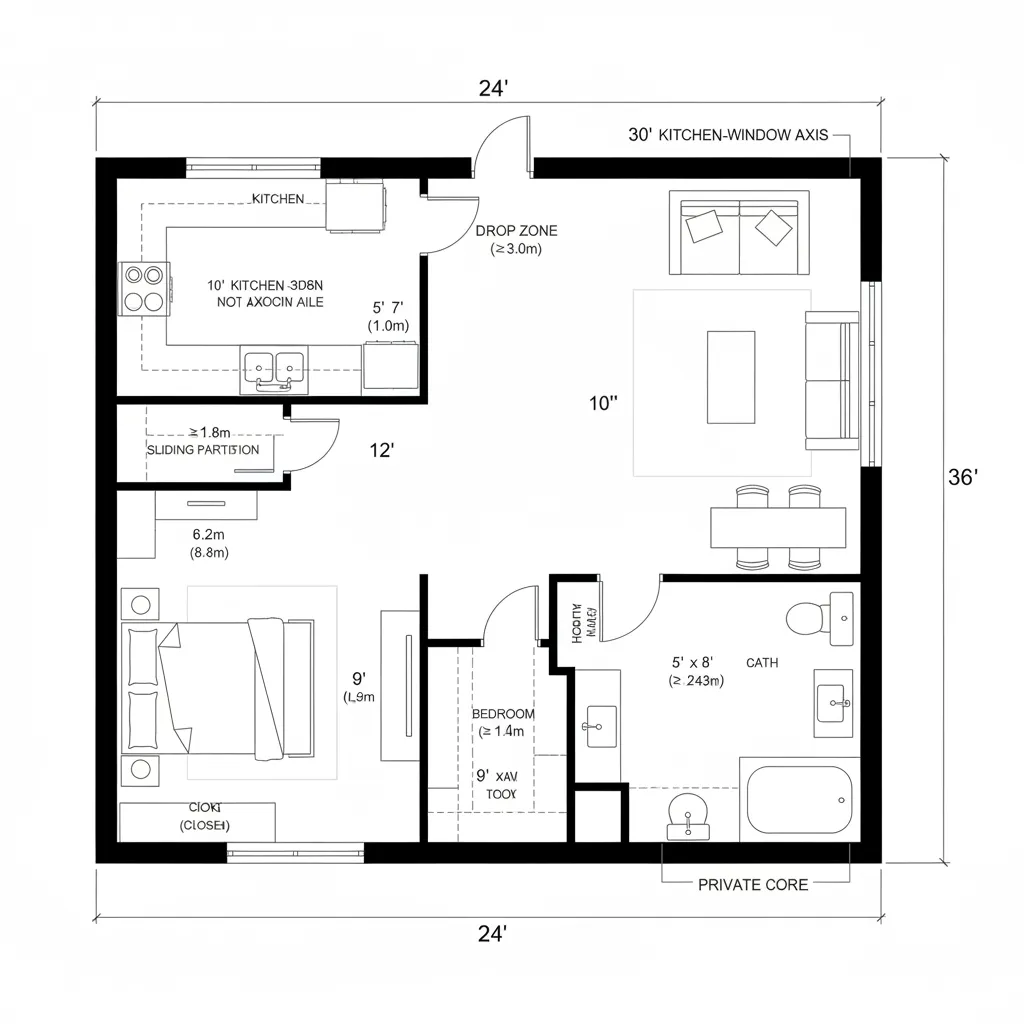

Compact One-Bed (24' x 36')

Design Logic： The 24' x 36' shell splits 2:1: a 24' x 12' public band and a 24' x 24' private core—a pattern matching remote work and recovery cycles.

Flow： Entry mid-long side; a 5' x 7' drop zone feeds kitchen (10' run), then living (12' span), then bedroom loop and a 5' x 8' bath—branching like a microservice call.

Sightlines： Kitchen to window aligns a 30' axis; bedroom door off-axis preserves privacy layers while keeping the living UI wide.

Storage： Bedroom wall gets a 9' linear closet at 26" depth; living room hides a 10' media-low unit at 15"—fast cache in front, archival in back.

Furniture Fit： 84" sofa, 48" dining bench table, queen bed with 30" side aisles; desk niche is 60" x 24"—human APIs honored without latency.

Verdict： As schedules fragment, this split-bus plan keeps signals clean: social, work, and sleep process without cross-talk.

save pinOpen in 3D Planner Processing...

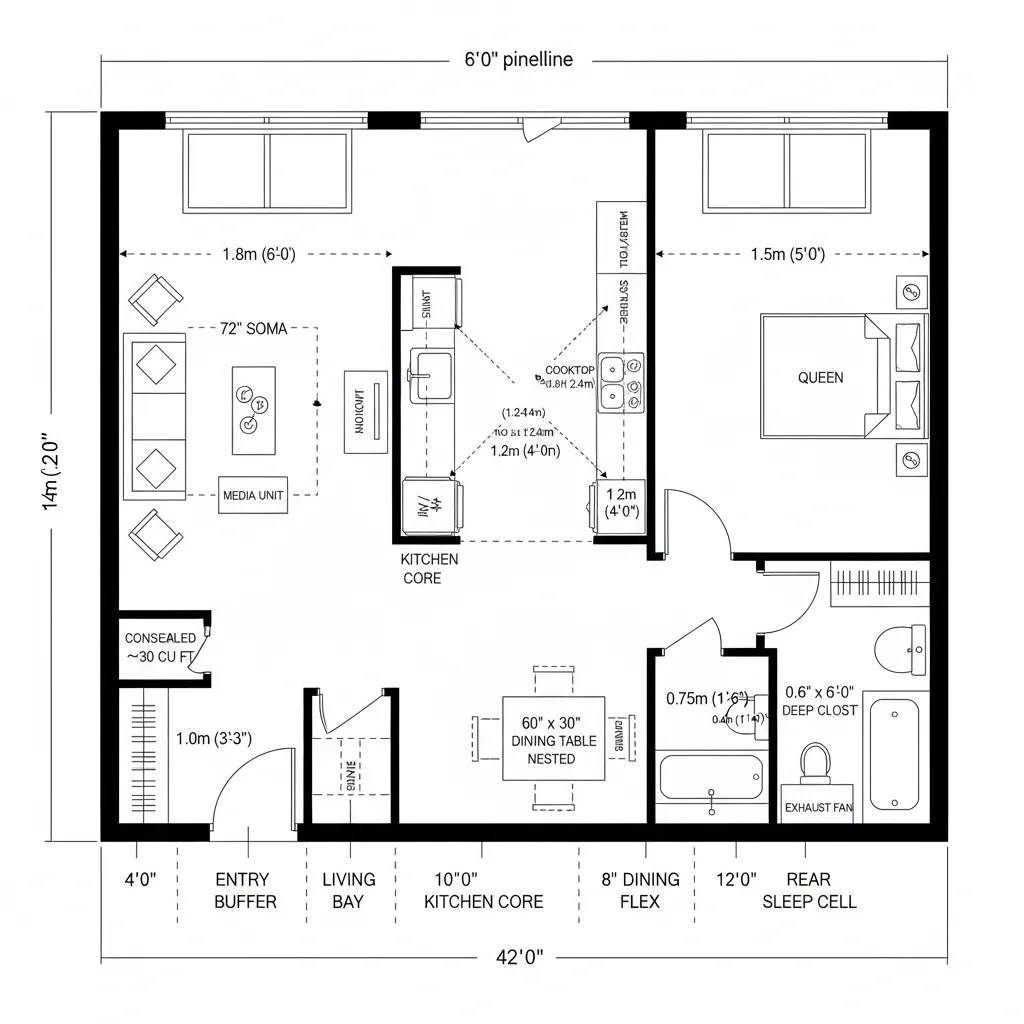

Narrow Row Format (14' x 42')

Design Logic： A 14' width demands serial logic: functions queue along the length. Future urban living accepts depth as the bandwidth, not breadth.

Flow： 4' entry buffer, 12' living bay, 10' kitchen core, 8' dining flex, 8' bath, and a 12' rear sleep cell—an ordered pipeline.

Sightlines： Longitudinal sightline of 38' keeps cognitive load low; partial-height storage ribs create readable layers without splintering the UI.

Storage： Stair or wall cavity yields 30 cu ft of concealed cache; peg and rail systems act as dynamic memory for rotating gear.

Furniture Fit： 72" sofa, 24"-deep kitchen, 30" walk clearances; a 60" x 30" table nests to 30" x 30"—functions debounce on demand.

Verdict： In five winters and summers, this narrow plan will still feel fast: clear lanes, predictable modules, and a calm signal-to-noise ratio.

save pinOpen in 3D Planner Processing...

Final Takeaway

A simple floor plan sample with dimensions is not minimalism for its own sake; it’s a precise interface for changing routines, devices, and attention. Whether a compact studio layout, a small one-bedroom design, or a narrow apartment plan, the logic is the same: clean flows, legible sightlines, and storage as structured memory. In my experience, the smartest homes of the future won’t be larger—only more intentional.
