Simple Hospital Floor Plans for Students: How I map future-ready healthcare spaces through clear AutoCAD logic

The future of care is moving closer while today’s training studios still teach corridors like straight lines and lives like variables. AIA data shows outpatient footprints rising as inpatient beds compress, so simple hospital floor plans in AutoCAD must read like concise code. I treat the plan as a living interface, and my students learn the syntax before the scale. spatial reasoning toolkit is how I label the first layer—clean, legible, accountable.

I’ve watched clinics pivot from volume to velocity; NAHB-level attention to accessibility echoes here too—door widths, transfer arcs, the choreography of care. In this map, the hospital isn’t a maze; it’s a system compiled for clarity.

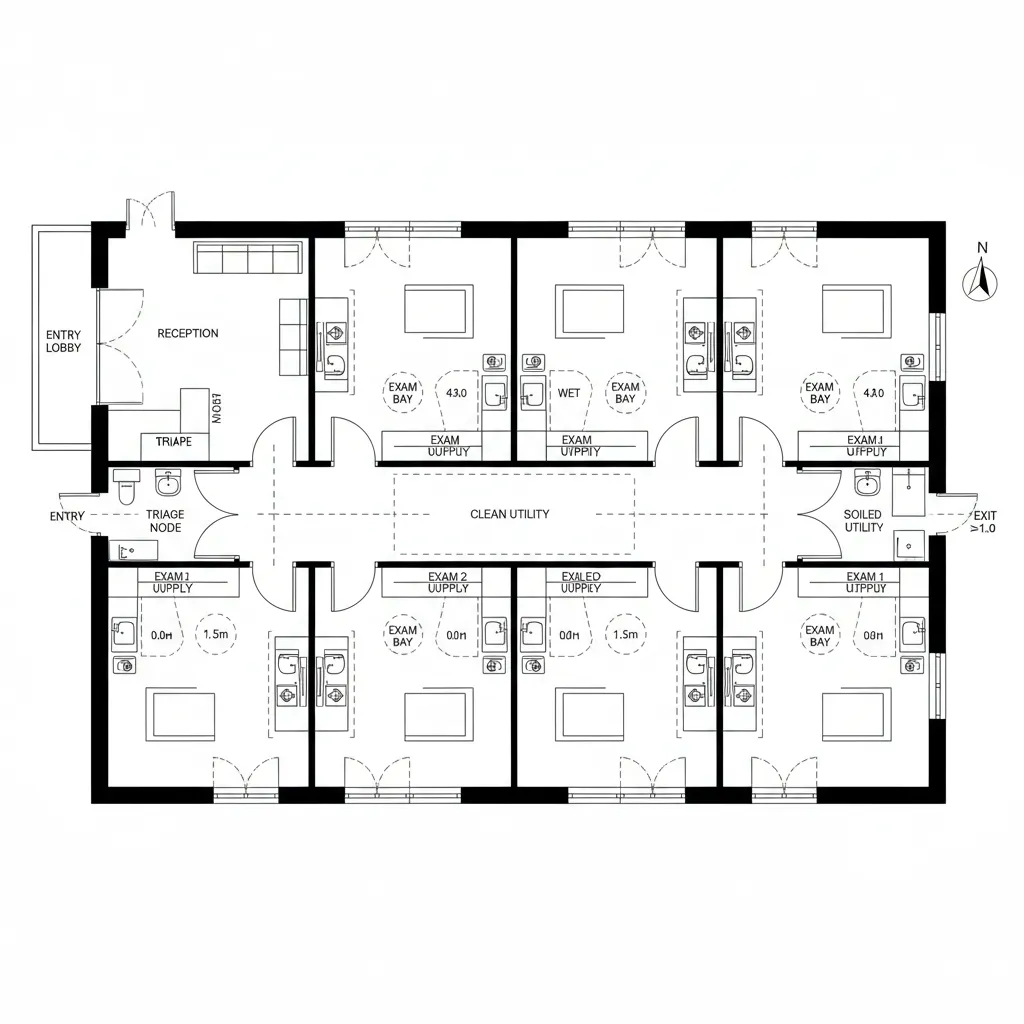

Compact Outpatient Spine

Design Logic： A linear spine with exam rooms paired across a central staff lane anticipates high-throughput, low-friction care as telehealth triage trims waiting zones.

Flow： Entry → check-in → short waiting bar → triage node → exam pairs → clean/soiled support → exit; a predictable instruction sequence cuts cognitive load.

Sightlines： Reception tracks arrivals; staff lane sees door indicators and handwash stations; patients get forward-facing cues, not backstage clutter.

Storage： Wall-integrated supply bays act as cache near exam doors; a larger clean utility at mid-spine for bulk restock, minimizing fetch time.

Furniture Fit： 5' clear turns, 3'6" door sets, compact exam tables, mobile vitals carts; API limits are ADA arcs and gurney paths, not fashion.

Verdict： This spine scales like code—add modules without breaking flow, suited to the next five years of hybrid visits and swift diagnostics.

save pinOpen in 3D Planner Processing...

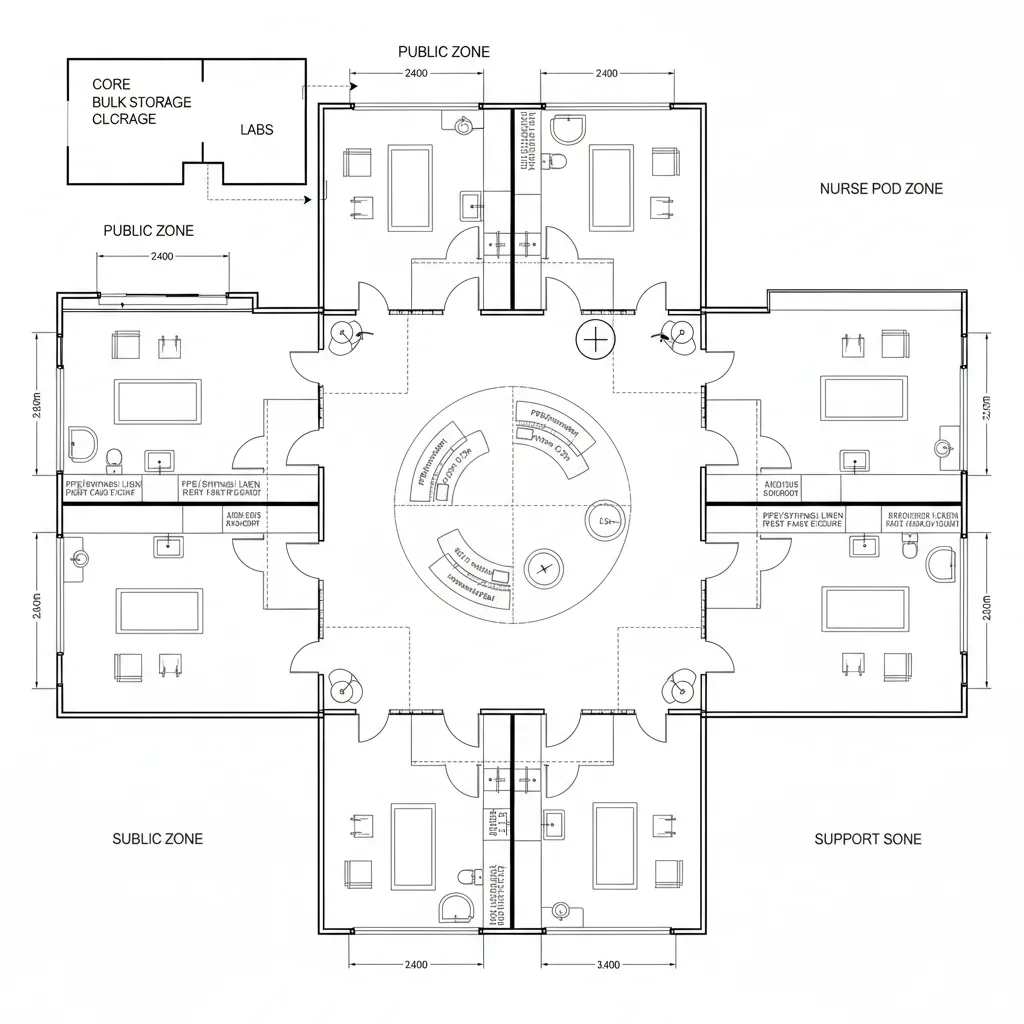

Decentralized Nurse Pods

Design Logic： Small care pods wrapped by four rooms beat one big station; future staffing models value proximity over spectacle.

Flow： Arrival → assign pod → room-in care → labs via short hop → discharge; micro-loops reduce hallway miles and fatigue.

Sightlines： Glass sidelights give nurses a UI of status lights and silhouettes; patient privacy is kept with staggered door offsets.

Storage： Each pod keeps a fast cache—PPE, syringes, linens—while core storage sits two nodes away for bulk; the hierarchy prevents overflow.

Furniture Fit： Pod desks are shallow with cable management; seating aligns to 30" work zones; bariatric chair nodes inserted like robust endpoints.

Verdict： Pods future-proof staffing variability, letting small teams operate with server-like efficiency under changing demand loads.

save pinOpen in 3D Planner Processing...

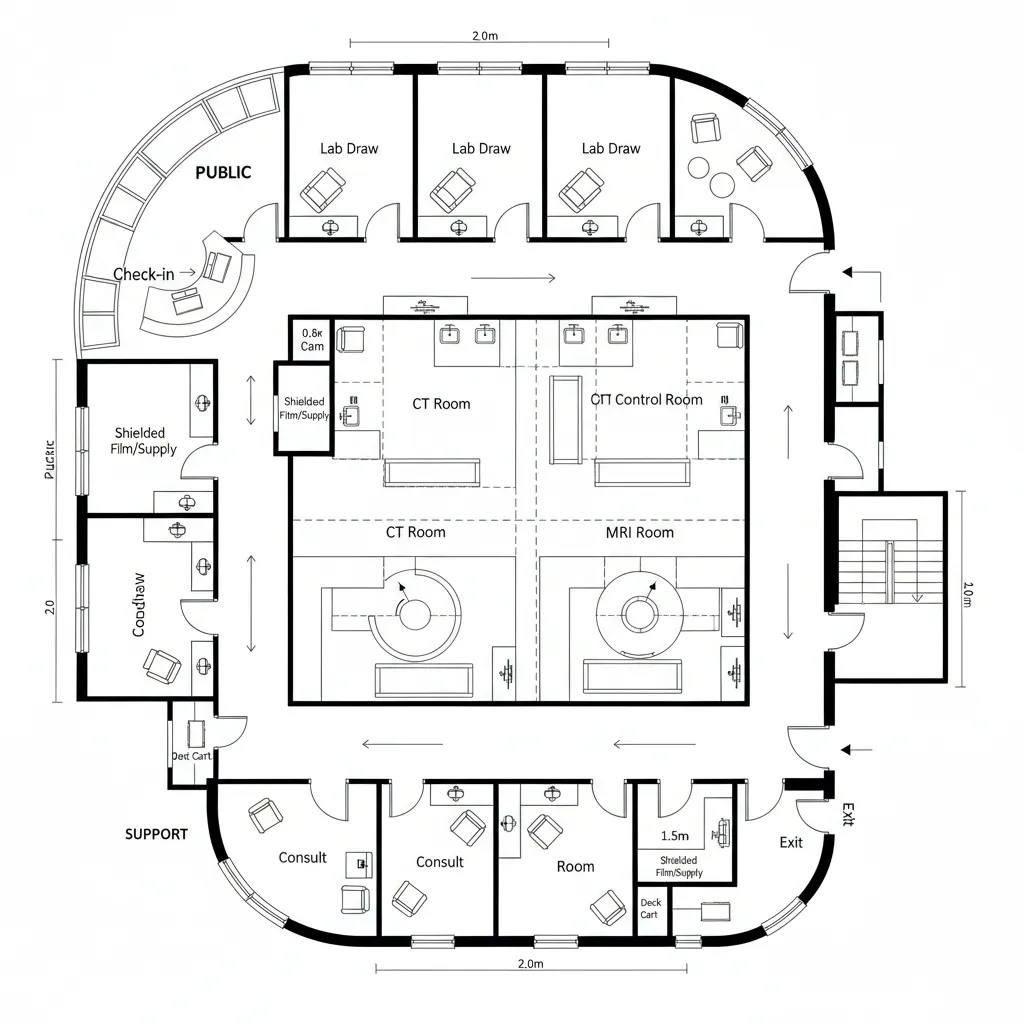

Clear Diagnostic Loop

Design Logic： Imaging, phlebotomy, and consult rooms form a loop that returns to reception, reducing wayfinding anxiety and supporting throughput analytics.

Flow： Check-in → lab draw → imaging → consult → scheduling → exit; no dead ends, just iterative checkpoints.

Sightlines： Subtle light gradients guide movement; staff see arrival points and prep bays without exposing equipment to public frames.

Storage： Shielded film/supply rooms act as secure cache; carts dock at loop nodes so resupply is a quick commit, not a cold start.

Furniture Fit： Imaging bays honor gantry clearance envelopes; consult rooms sized for two chairs plus 5' turning radius—precision is policy.

Verdict： The loop behaves like a stable circuit; in five years, modular imaging swaps in without rewriting the whole program.

save pinOpen in 3D Planner Processing...

Final Takeaway

Simple hospital floor plans in AutoCAD should read like clean, testable scripts where clinical intent compiles into humane movement. Variants—outpatient clinics, student training labs, micro-diagnostics—benefit from spine-and-loop thinking and decentralized pods. The next wave isn’t bigger hospitals, but clearer interfaces between staff, patients, and data. In my experience, the smartest healthcare spaces are systems first, walls second.FAQ
