SIP Basement Panels vs Traditional Concrete Basements: A practical comparison of structure, insulation, cost, and installation speed to help you choose the right basement system.

Direct Answer

SIP basement panels install faster and deliver far better insulation than traditional concrete basements, but concrete still wins in long‑term structural familiarity and widespread contractor availability. For most energy‑efficient homes, SIP basement systems reduce thermal loss and construction time, while concrete remains the default for heavy-load or complex foundation designs.

Quick Takeaways

1. SIP basement panels provide significantly higher insulation than concrete walls.
2. Concrete basements remain the most widely trusted structural foundation system.
3. SIP systems install much faster and require fewer on-site trades.
4. Concrete foundations may cost less in regions with established contractors.
5. The best system depends on climate, project complexity, and energy goals.

Introduction

When homeowners compare SIP basement panels vs concrete basement systems, the conversation usually starts with insulation. But after working on residential projects for more than a decade, I can tell you the decision is rarely just about R‑value.

Basements are structural systems first and living space second. I've seen beautiful high-performance homes struggle because the foundation decision was rushed early in the design phase. On the flip side, I've also seen SIP basement panels dramatically reduce build timelines and heating costs when the project conditions were right.

Before choosing either system, I always recommend mapping the foundation layout carefully. Many builders begin with a simple way to sketch a foundation layout before constructionso they can evaluate wall lengths, load paths, and room placement early.

In this guide, I'll break down how SIP basement walls compare with traditional poured or block concrete foundations across six factors that actually matter in real projects: structure, insulation, installation, cost, and suitability for different home types.

save pin

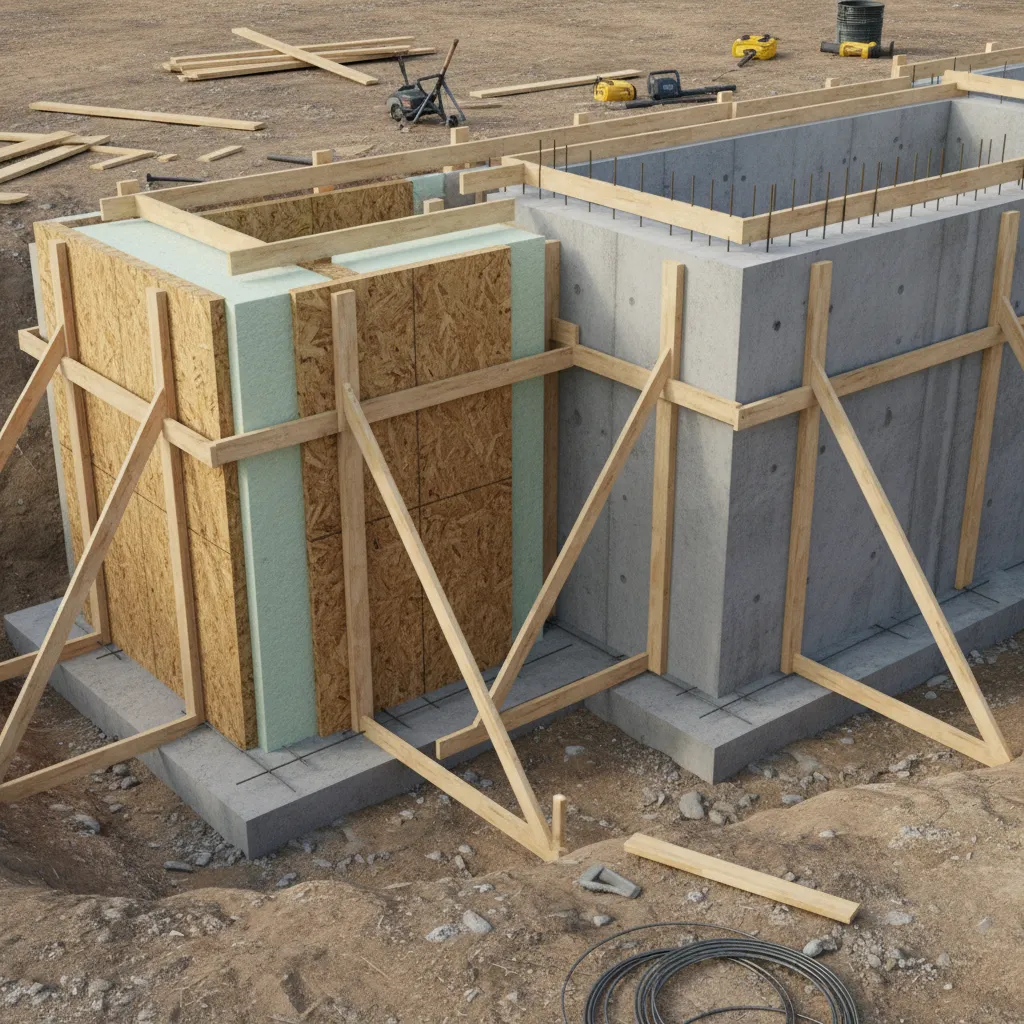

What Are SIP Basement Panels and Concrete Basement Walls

Key Insight: SIP basement panels are prefabricated insulated structural panels, while concrete basements rely on poured or block masonry walls for structural support.

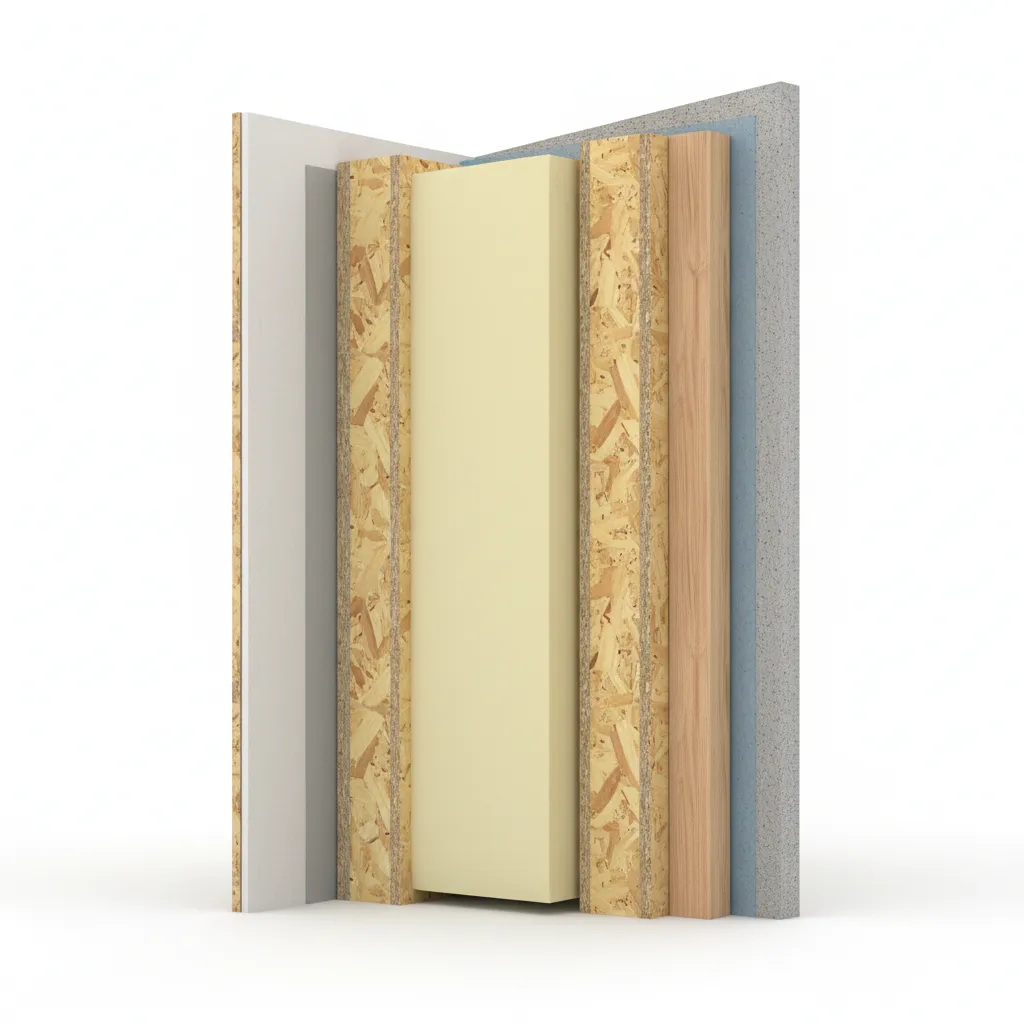

Structural Insulated Panels (SIPs) used for basements typically consist of two structural facings—often fiber cement or treated OSB—bonded to a rigid foam core. The result is a panel that acts as both structure and insulation.

Traditional basements, however, use either:

1. Poured reinforced concrete walls
2. Concrete masonry unit (CMU) block walls
3. Insulated concrete forms (a hybrid system)

Concrete foundations dominate residential construction because they are familiar, widely engineered, and extremely durable. SIP basement systems, while newer, combine structural support and insulation into a single assembly.

One overlooked difference: SIP panels arrive prefabricated and dimensionally precise. That consistency reduces construction errors that often appear in hand-formed concrete walls.

Structural Strength and Load Bearing Differences

Key Insight: Concrete foundations generally provide higher compressive strength, but properly engineered SIP panels meet residential load requirements.

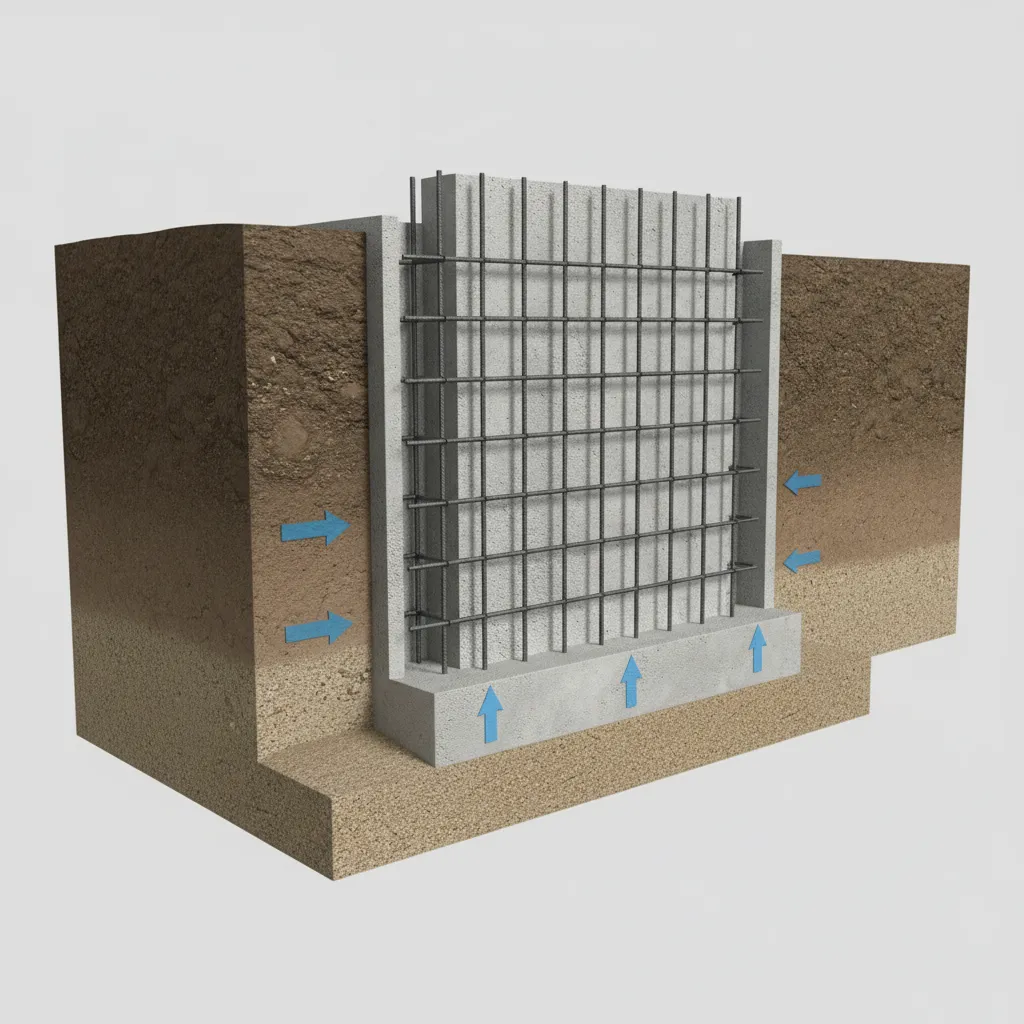

Concrete is naturally strong in compression. This makes it ideal for supporting heavy structures and resisting soil pressure.

SIP basement systems rely on engineered panel assemblies and steel or reinforced framing components to distribute loads.

Typical structural comparison:

1. Concrete compressive strength: commonly 3000–5000 psi
2. SIP wall assemblies: engineered load-bearing panels designed for residential structures
3. Steel reinforcement often added in SIP systems for additional structural stability

In my experience, structural concerns rarely eliminate SIP panels for standard homes. The bigger challenge is engineering approval and contractor familiarity.

Many local builders simply know concrete better, which can influence permitting and construction comfort.

save pin

Thermal Insulation Performance Comparison

Key Insight: SIP basement panels dramatically outperform traditional concrete in insulation and energy efficiency.

Concrete alone has very poor insulating properties. A standard poured wall has an R‑value of roughly R‑1 per inch, meaning most concrete basements require added insulation layers.

SIP basement walls already contain rigid insulation within the panel core.

Typical insulation comparison:

1. Concrete wall alone: R‑1 to R‑2
2. Concrete with interior insulation: R‑10 to R‑20
3. SIP basement panels: often R‑20 to R‑40 depending on thickness

In colder climates, this difference becomes significant. Energy modeling studies from the U.S. Department of Energy show basements can account for 10–30% of a home's heat loss.

That's why many high-performance homes use insulated systems rather than bare concrete foundations.

Installation Time and Construction Complexity

Key Insight: SIP basement panels dramatically reduce construction time compared with poured concrete foundations.

Traditional concrete foundations require multiple sequential steps:

1. Excavation
2. Formwork installation
3. Rebar placement
4. Concrete pouring
5. Curing time
6. Waterproofing and insulation

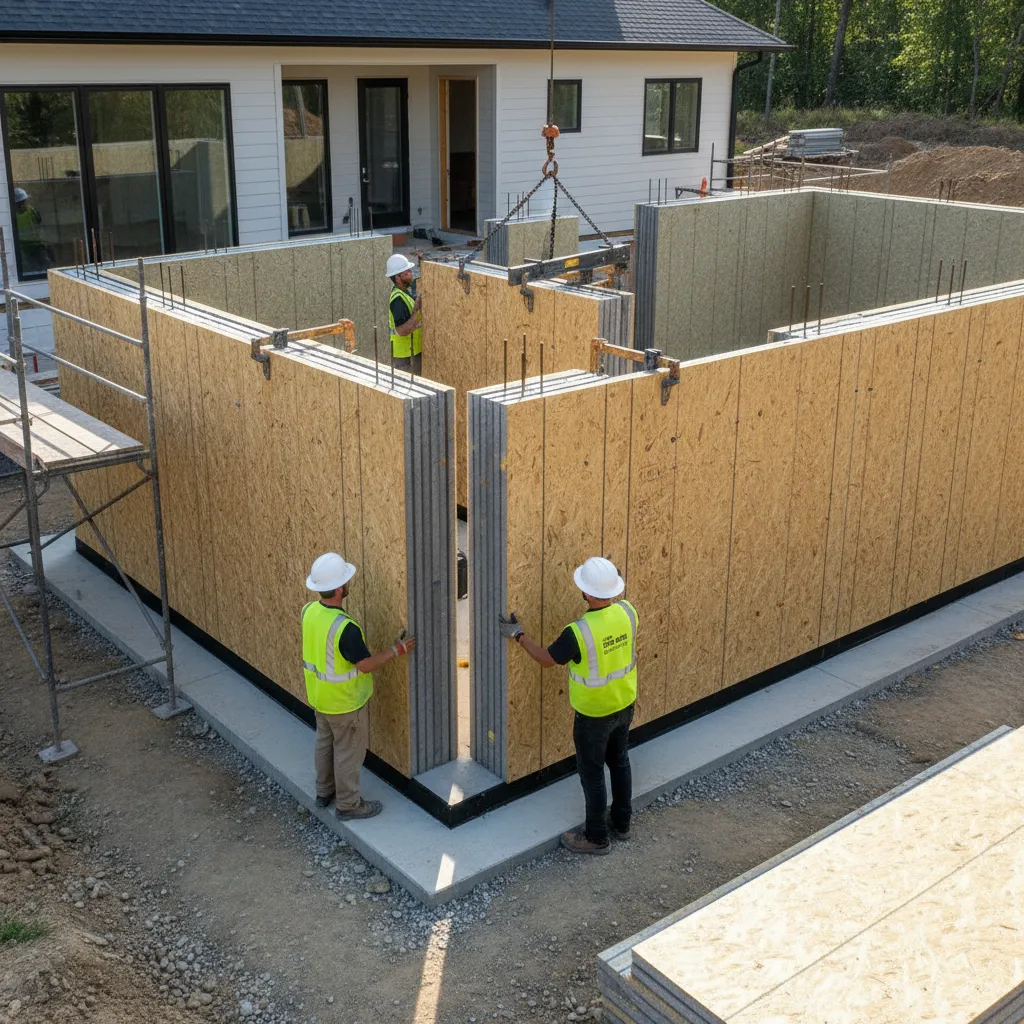

SIP systems streamline the process because the wall structure and insulation arrive prefabricated.

Typical SIP installation steps:

1. Prepare slab or footing
2. Install prefabricated wall panels
3. Seal joints
4. Add exterior waterproofing

On several residential projects I've observed, SIP basement structures were installed in two to three days compared with one to two weeks for concrete.

Builders often visualize panel placement using a 3D planning workflow that helps visualize structural wall placementbefore panels arrive on-site.

save pin

Cost Comparison: Materials and Labor

Key Insight: SIP basement panels usually have higher material costs but lower labor costs.

Cost comparisons vary heavily by region, but the typical breakdown looks like this:

1. Concrete materials: generally cheaper per square foot
2. Concrete labor: high due to formwork, pouring, and finishing
3. SIP panels: higher upfront material cost
4. SIP labor: lower due to fast installation

Hidden costs many homeowners overlook include:

1. Extra insulation added to concrete basements
2. Extended construction schedules
3. Weather delays during concrete curing

In several projects I've reviewed, the total installed price difference between SIP basement panels and concrete ended up closer than expected once insulation and labor were included.

Answer Box

SIP basement panels outperform concrete in insulation and installation speed, while concrete foundations remain the most universally trusted structural system. The best choice depends on climate, contractor experience, and project energy goals.

Which Basement System Is Best for Different Home Types

Key Insight: SIP basement panels work best in energy-efficient homes, while concrete remains ideal for heavy structures or complex foundations.

Based on real project scenarios, here's how the systems usually compare:

1. Energy-efficient homes: SIP basement panels reduce heat loss.
2. Custom modern homes: SIP systems speed construction.
3. Large multi-story homes: Concrete provides maximum structural confidence.
4. Homes in seismic zones: Engineering requirements may favor concrete.
5. Cold climates: SIP insulation significantly improves performance.

For homeowners exploring layout possibilities, many designers experiment with visual concepts that simulate finished basement living spacesbefore construction begins.

This step helps determine whether the basement will function primarily as storage, living space, or a fully finished lower level.

save pin

Final Summary

1. SIP basement panels install much faster than traditional concrete.
2. Concrete foundations remain structurally familiar and widely trusted.
3. SIP systems provide far superior insulation performance.
4. Total project cost differences are often smaller than expected.
5. The right choice depends on climate, design goals, and builder expertise.

FAQ

1. Are SIP basement panels strong enough for homes?

Yes. Properly engineered SIP basement systems meet residential load requirements and building codes when installed correctly.

2. Are SIP basement panels better than concrete?

For insulation and construction speed, SIP basement panels often outperform concrete. However, concrete remains more familiar to most builders.

3. Do SIP basements need additional insulation?

Usually no. The foam core inside SIP basement panels already provides high R‑value insulation.

4. How long do SIP basement panels last?

When properly waterproofed and installed, SIP basement walls can last several decades comparable to other structural systems.

5. Are SIP basement panels more expensive?

Material costs are typically higher than concrete, but faster installation can reduce labor expenses.

6. Can SIP panels be used for full foundations?

Yes. Many residential projects use SIP systems for entire basement wall structures.

7. Which has better insulation: SIP or concrete basement?

In the SIP basement panels vs concrete basement comparison, SIP walls provide dramatically higher R‑values.

8. Are SIP basement systems common?

They are growing in popularity, especially in energy-efficient and prefabricated home construction.

References

1. U.S. Department of Energy – Basement Insulation Guidelines
2. Building Science Corporation – Foundation Insulation Systems
3. Structural Insulated Panel Association (SIPA)
