Sliding vs Swing Kitchen Doors for Small Restaurant Kitchens: A practical comparison to help restaurant owners choose the most space‑efficient kitchen door system for tight commercial layouts.

Direct Answer

Sliding kitchen doors usually work better than swing doors in small restaurant kitchens because they do not require clearance space to open. However, swing doors can move faster during high‑traffic service and are often cheaper to install. The best choice depends on your kitchen’s layout, staff movement patterns, and service speed requirements.

Quick Takeaways

1. Sliding doors save floor space because they move along a wall rather than opening into walkways.
2. Swing doors allow faster two‑way movement during busy restaurant service.
3. Small kitchens benefit most from sliding systems when aisles are under 48 inches wide.
4. Swing doors are typically cheaper to install but require clearance space.
5. The right door type depends on workflow, not just square footage.

Introduction

When I redesign small restaurant kitchens, door placement is one of the most underestimated decisions. Many owners obsess over equipment layouts but forget that a poorly chosen door can slow down the entire service line.

The debate around sliding vs swing kitchen doors for restaurants usually comes down to space. But after working on dozens of compact kitchens—from food trucks with prep rooms to 900‑square‑foot urban bistros—I’ve learned the real issue isn’t just space. It’s movement.

A door that interrupts staff flow during a rush can cost minutes every hour. Multiply that across a full dinner service, and suddenly your kitchen efficiency drops in ways that floor plans never predicted.

When evaluating layouts, I often recommend mapping staff traffic before finalizing any openings. Tools like this interactive kitchen layout planning approach for compact restaurant kitchensmake it easier to visualize how doors interact with prep stations, dishwashing zones, and service counters.

In this guide, I’ll break down how sliding and swing kitchen doors actually perform in tight commercial kitchens—based on real design projects, operational constraints, and the hidden trade‑offs most comparison articles ignore.

save pin

Why Door Type Matters in Small Restaurant Kitchens

Key Insight: In tight kitchens, the wrong door type can silently waste more usable space than a refrigerator.

Most restaurant kitchens operate on narrow circulation paths. Health codes typically require aisles between 36 and 48 inches, but many older restaurants barely meet that minimum.

Now consider a standard swing door. It requires roughly 30–36 inches of clearance to open safely. That means a door installed in a narrow aisle effectively blocks the walkway every time someone passes through.

In one café project in Los Angeles, a single swinging door between the dish pit and prep area created a daily bottleneck. Staff kept propping it open, which defeated the purpose of separating clean and dirty zones.

Door choice affects several operational factors:

1. Staff traffic flow during peak service
2. Safety when carrying hot plates
3. Space for carts and ingredient bins
4. Noise and smell separation between zones

Industry guidance from the National Restaurant Association consistently emphasizes workflow efficiency as the primary factor in kitchen layout decisions, not just equipment density.

That’s why the door system should be considered part of the kitchen’s circulation design—not just a construction detail.

How Sliding Kitchen Doors Work in Commercial Spaces

Key Insight: Sliding kitchen doors eliminate swing clearance, making them ideal for narrow or high‑density kitchens.

Sliding doors operate on either a wall‑mounted track or a recessed pocket system. Instead of swinging into the room, the door glides horizontally along the wall.

This seemingly simple difference changes how the entire kitchen moves.

In commercial kitchens, the most common versions include:

1. Surface‑mounted sliding barn doors
2. Double sliding service doors
3. Pocket sliding doors hidden inside walls
4. Glass or stainless steel track systems

From a spatial perspective, sliding doors require only two things:

1. Wall space for the door panel
2. Track clearance above the opening

That’s why they work especially well between prep rooms, storage areas, and service corridors.

However, sliding systems also introduce operational considerations:

1. They require one hand to open
2. Tracks need occasional cleaning
3. Pocket systems complicate wall construction

Still, for kitchens under about 1,200 square feet, sliding doors often reclaim valuable circulation space that would otherwise be unusable.

save pin

Advantages and Limitations of Swing Kitchen Doors

Key Insight: Swing doors move faster during service but consume valuable clearance space.

Despite the popularity of sliding systems in modern designs, swing doors remain extremely common in restaurants—and for good reason.

Most commercial kitchens use double‑action swing doors that open in both directions. Staff can push them with their shoulder or hip while carrying trays.

That makes them incredibly efficient during high‑speed service.

Typical benefits include:

1. Hands‑free operation
2. Fast movement between kitchen and dining area
3. Lower installation cost
4. Simpler mechanical components

But there are trade‑offs many restaurant owners overlook.

The biggest issue is what I call the door swing shadow. That’s the semicircle of floor space that becomes unusable whenever the door opens.

In a narrow kitchen corridor, this shadow can block:

1. Dish carts
2. Prep tables
3. Ingredient shelving

According to commercial kitchen design guidelines from the Foodservice Consultants Society International (FCSI), circulation interruptions are one of the most common efficiency problems in small kitchens.

Swing doors often create those interruptions.

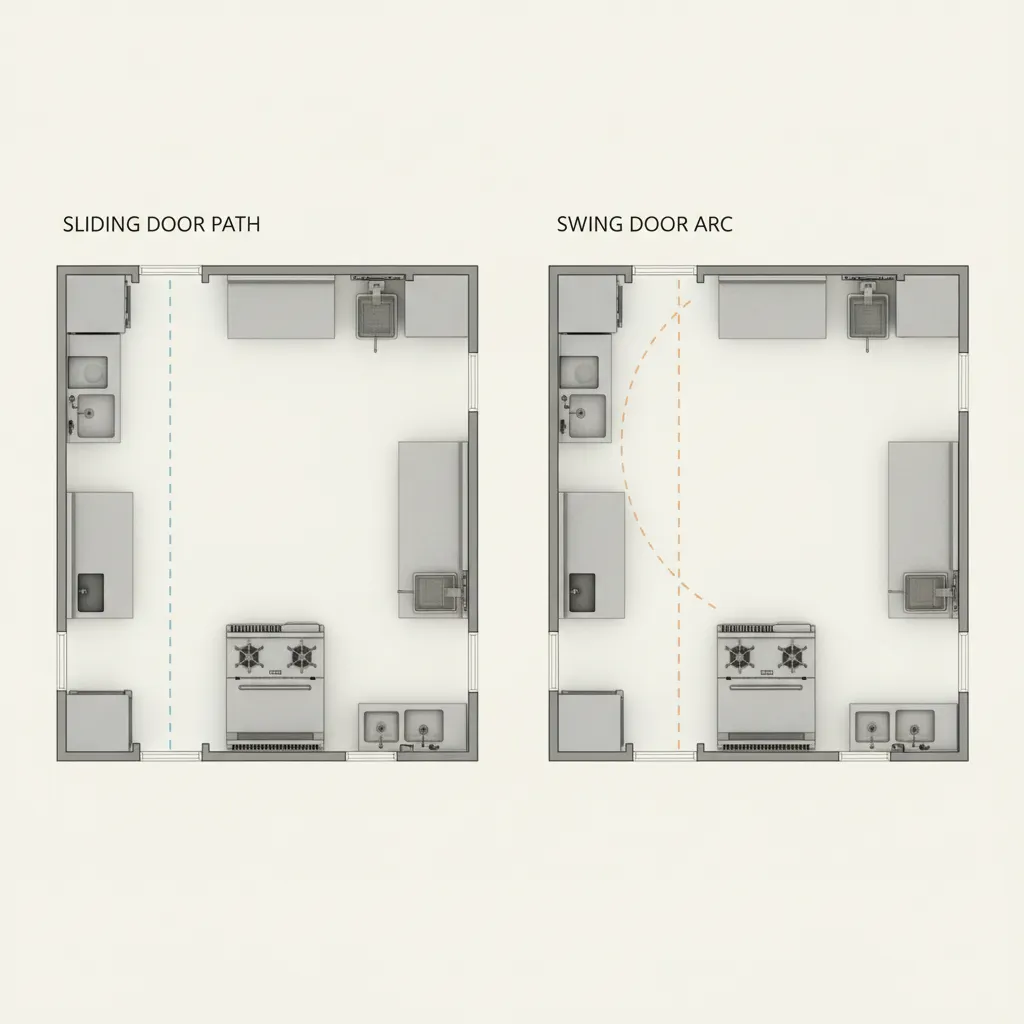

Space Efficiency Comparison for Tight Kitchen Layouts

Key Insight: Sliding doors usually reclaim 6–10 square feet of usable space in tight kitchens.

Let’s compare the spatial footprint of each door type.

FactorSliding DoorSwing Door Clearance spaceNone required30–36 inch arc Wall space neededYesNo Traffic interruptionMinimalModerate Best for narrow aislesExcellentPoor In several restaurant remodels I’ve worked on, switching from swing to sliding doors freed enough space to add extra shelving or prep counters.

For example:

1. A ramen shop gained a 24‑inch dry storage rack
2. A bakery added a rolling flour cart station
3. A café widened the dishwashing path

Before finalizing door decisions, I often simulate the kitchen layout using this 3D floor layout visualization for restaurant workspacesto see how door movement interacts with equipment and staff paths.

It’s one of the easiest ways to catch workflow conflicts early.

save pin

Installation Cost and Maintenance Differences

Key Insight: Swing doors are cheaper upfront, but sliding doors may reduce long‑term operational friction.

Budget often becomes the deciding factor for restaurant owners.

Typical cost comparison:

1. Swing commercial door installation: $300–$900
2. Sliding track door installation: $700–$2,000
3. Pocket sliding door installation: $1,200–$3,500

However, cost isn’t only about installation.

Hidden operational costs include:

1. Staff delays from blocked aisles
2. Door collisions during peak service
3. Repairs from heavy swing hinges

Sliding doors mainly require periodic track cleaning and roller replacement. Swing doors require hinge adjustments and impact plate replacements.

From a long‑term perspective, the difference often comes down to kitchen traffic intensity rather than hardware durability.

Which Door Type Fits Your Restaurant Workflow Best

Key Insight: The right door is the one that matches your staff movement patterns.

Instead of asking which door saves space, I usually ask clients three questions:

1. How many staff pass through the door during peak service?
2. Are they carrying trays or pushing carts?
3. Is the doorway in a corridor or against a wall?

General guidelines I use in projects:

1. Choose sliding doors if: aisles are narrow or equipment sits close to the opening.
2. Choose swing doors if: staff need quick, hands‑free movement.
3. Use double swing doors: between kitchen and dining areas.
4. Use sliding doors: for storage rooms, prep rooms, and utility spaces.

If you're testing different kitchen layouts, visualizing movement with this AI‑assisted floor planning method for restaurant kitchenscan help identify door conflicts before construction begins.

In small kitchens, even a few inches of extra circulation space can dramatically improve service flow.

save pin

Answer Box

Sliding kitchen doors are usually the most space‑efficient choice for small restaurant kitchens because they eliminate door swing clearance. Swing doors remain useful for fast service areas where staff need hands‑free movement. The best solution often combines both depending on kitchen zones.

Final Summary

1. Sliding doors save space by eliminating swing clearance.
2. Swing doors allow faster, hands‑free movement.
3. Narrow kitchens benefit most from sliding systems.
4. Door choice should follow staff workflow patterns.
5. Many restaurants benefit from using both door types.

FAQ

1. Are sliding doors better for small restaurant kitchens?

Yes. Sliding doors often work better in tight kitchens because they don’t require swing clearance that blocks aisles.

2. What is the best door type for a small commercial kitchen?

The best door type for a small commercial kitchen depends on workflow. Sliding doors maximize space, while swing doors allow faster traffic during service.

3. Do restaurant kitchens use sliding doors?

Yes. Many modern restaurants use sliding doors for prep rooms, storage areas, and utility zones where space is limited.

4. Are swing kitchen doors required by code?

No universal code requires swing doors. However, fire and accessibility regulations may affect door type depending on location.

5. Which kitchen door saves more space in restaurants?

Sliding doors save more space because they move along a wall instead of swinging into walkways.

6. Are sliding doors durable enough for commercial kitchens?

Yes. Commercial‑grade track systems with stainless steel hardware are designed for heavy daily use.

7. Do sliding kitchen doors slow down staff movement?

Sometimes. Because they require a hand to open, they can be slightly slower than push‑through swing doors during busy service.

8. Can restaurants use both sliding and swing kitchen doors?

Yes. Many kitchens use swing doors for service areas and sliding doors for storage or prep rooms.

References

1. National Restaurant Association – Commercial Kitchen Design Guidelines
2. Foodservice Consultants Society International (FCSI) Planning Resources
3. Restaurant Development + Design Industry Reports
