Small Bathroom Tub-to-Shower: 5 Smart Ideas: Turn that awkward tub into a stylish shower — space-saving ideas from a pro with 10+ years designing small bathrooms

I once removed a cast-iron tub for a young couple who insisted the tub was a family heirloom — only to discover it was glued to the floor with half a bag of tile mortar. That day I learned two truths: small bathrooms demand creativity, and sometimes you have to be stubbornly practical. Small spaces spark big ideas, and in this piece I’ll share 5 tub-to-shower conversion inspirations I actually used on real projects.

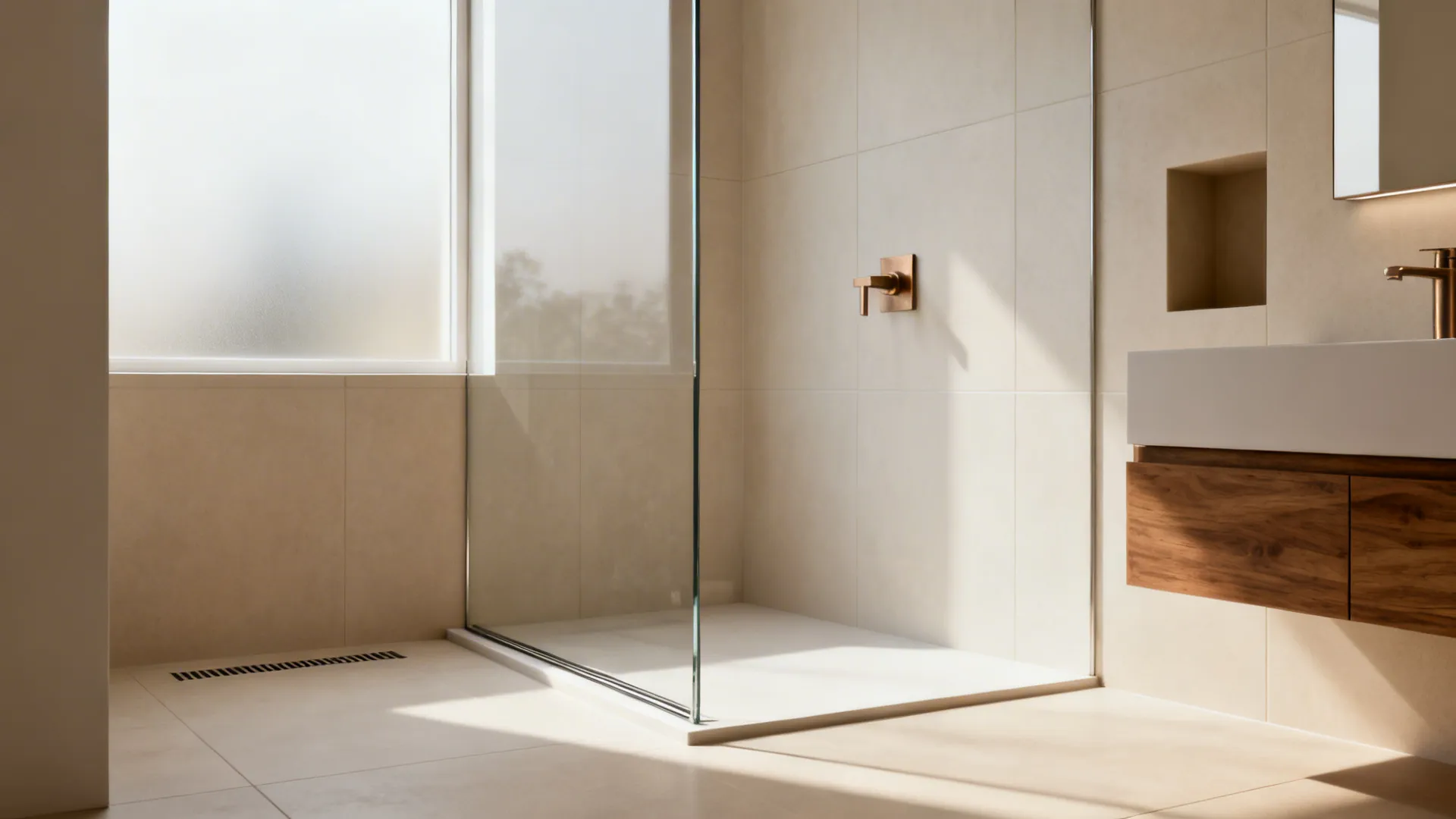

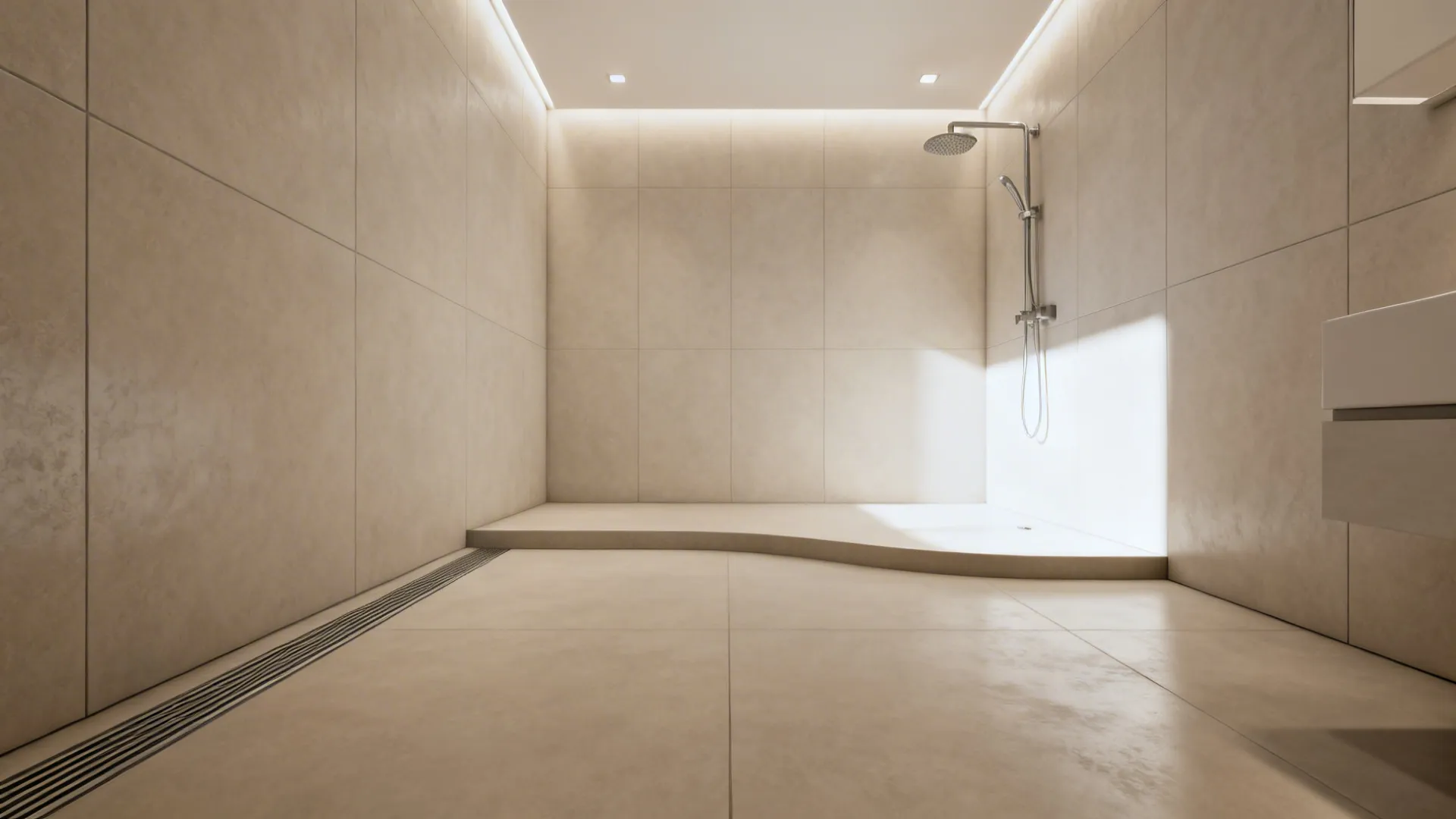

1. Curbless walk-in shower with linear drain

Going curbless makes a bathroom feel instantly larger and is great for accessibility. I used a linear drain on a narrow 1.2m bathroom to keep water control tidy while preserving a smooth floor slope. The upside is seamless visual flow; the downside is you may need to tweak the subfloor and waterproofing — but that extra prep pays off for both appearance and long-term performance.

save pin

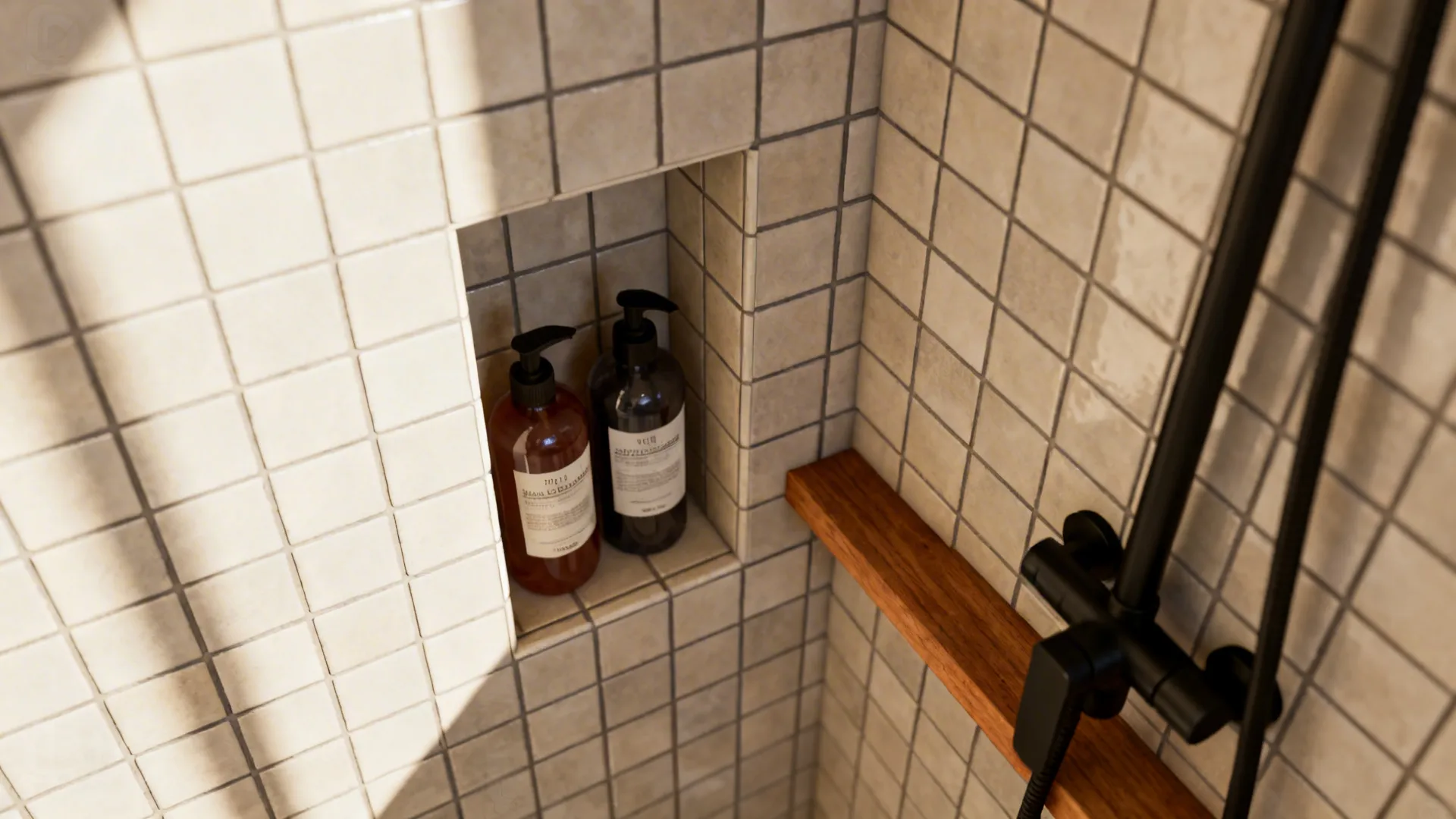

2. Compact alcove shower with glass niche

If your tub sits in an alcove, replace it with a custom-sized alcove shower and add a recessed niche for shampoos. I did this in a condo where the owners wanted maximum storage without bulky shelves; a tiled niche doubled as both storage and a design detail. It’s cost-effective and minimizes visual clutter, though tile layout needs careful planning to avoid awkward seams.

save pin

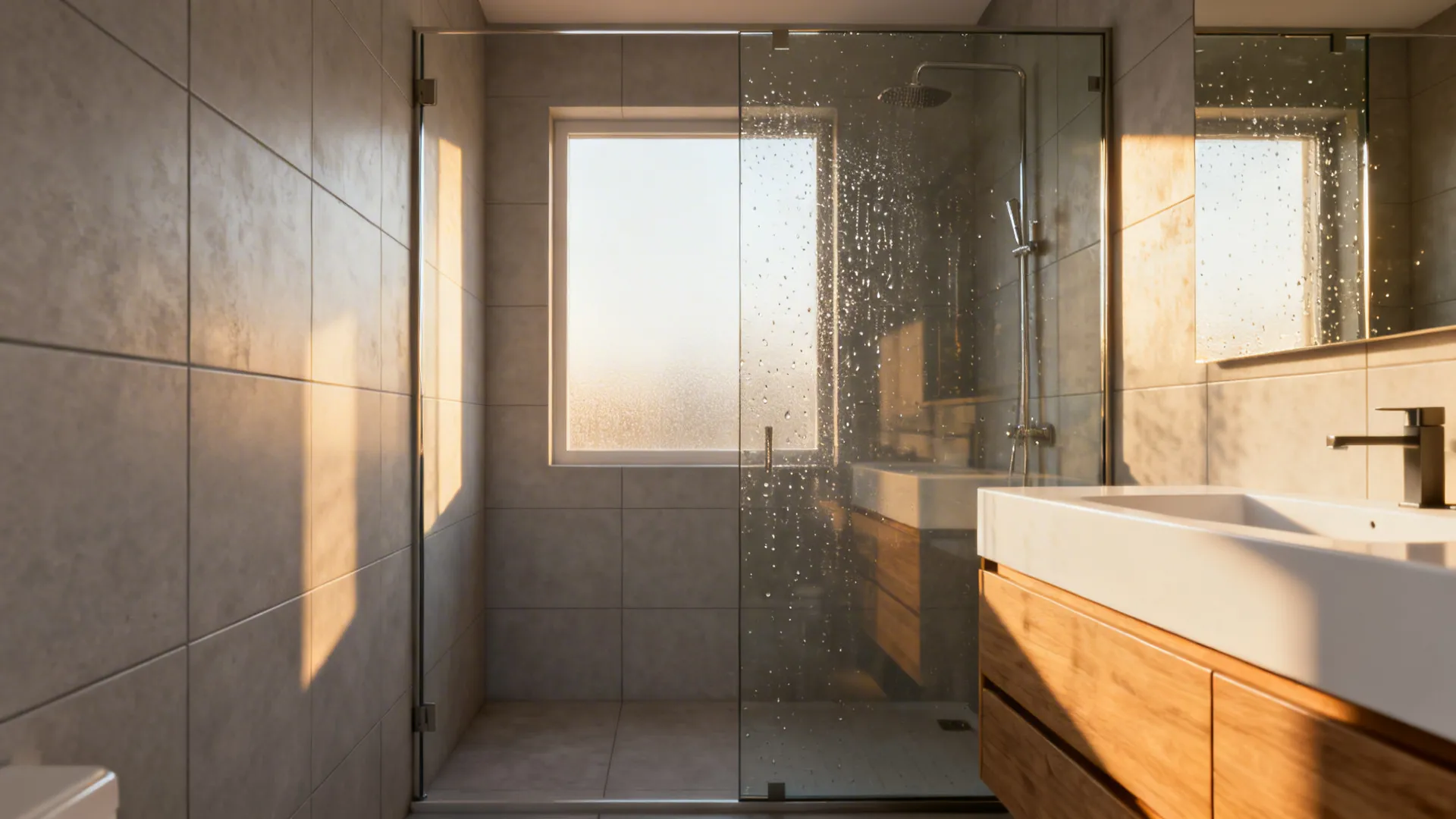

3. Frameless glass panel for an open feel

One frameless glass panel instead of a full enclosure keeps the space airy and avoids a cramped look. I recommend this when the shower doesn’t face direct drafts — otherwise you might get splashes. It’s a modern, minimal solution that pairs beautifully with large-format tiles to reduce grout lines.

save pin

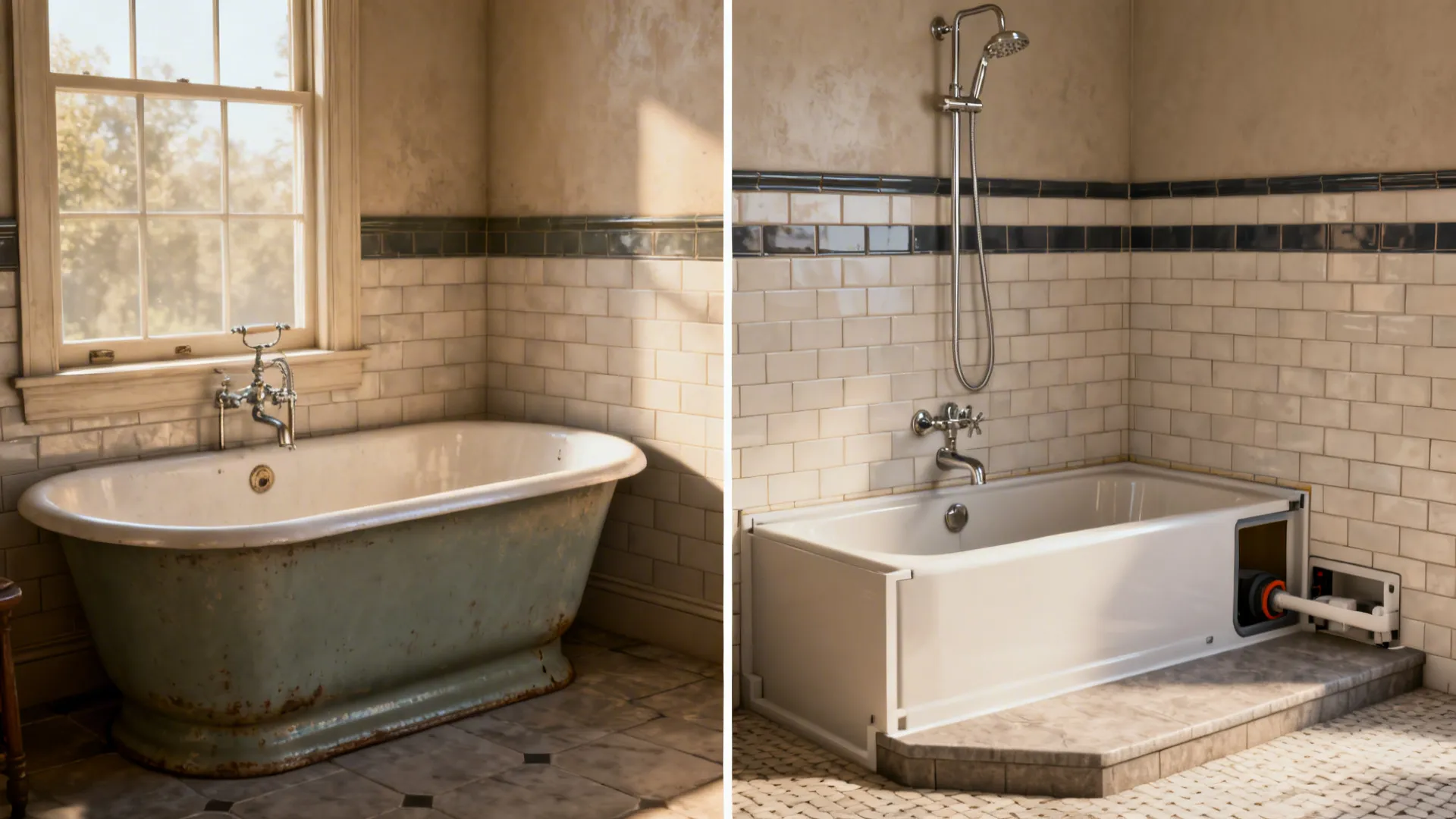

4. Shower-over-tub hybrid with smart conversion kit

Not everyone wants to fully lose the tub. A hybrid conversion kit can raise the shower curb slightly and reuse existing plumbing, which reduces cost and disruption. I used this approach for a client who wanted both options for resale value. The compromise is you keep a small curb and slightly less open floor, but you gain flexibility and lower renovation time.

save pin

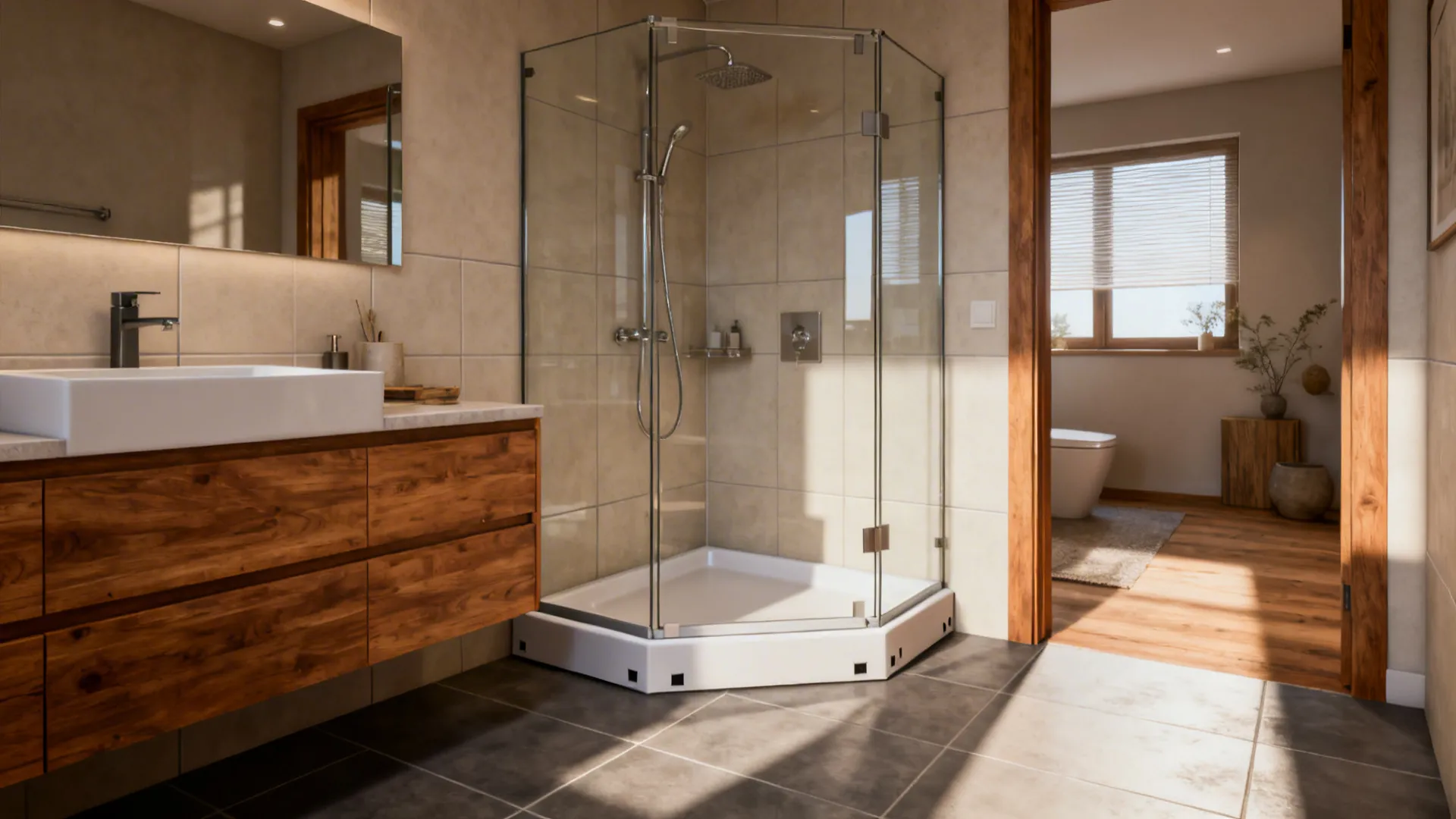

5. Corner neo-angle shower to reclaim floor space

When the tub eats too much central floor space, a corner neo-angle shower can free up circulation and create a cozier vanity zone. I fit one into a tricky 1.5m-wide bathroom and the room suddenly felt less claustrophobic. It does require precise measurements and prefabricated bases often look best, so expect some trade-offs between cost and custom tiling options.

If you want to sketch out these layouts quickly, try planning with the 3D floor planner — it helped me show clients real proportions before demo day.

save pin

Tips 1:

Budget note: curbless conversions and full waterproofing are pricier up front but reduce maintenance headaches later. For a low-budget route, consider a hybrid kit or a prefabricated corner base. Practical tip: always check floor joist capacity when switching to a lighter shower base — a cast-iron tub’s weight is different than a tiled shower assembly.

save pin

FAQ

Q1: How much does a tub-to-shower conversion typically cost? A1: Costs vary widely by region and choices, but expect anywhere from a modest budget prefabricated base installation to higher-end curbless tiled showers; planning and waterproofing are biggest cost drivers.

Q2: Do I need to change plumbing when converting a tub to a shower? A2: Often the drain position can remain the same, but curbless or neo-angle layouts may require moving the drain or altering slope, which can add cost.

Q3: Is a curbless shower waterproof? A3: Yes if properly installed with a linear drain and integrated waterproof membrane; poor installation is the main risk. For standards on waterproofing, refer to local building codes or industry guides like those from the National Tile Contractors Association (NTCA).

Q4: Can I DIY a tub-to-shower conversion? A4: Simple prefab base swaps might be DIY-friendly, but curbless tile work, waterproofing, and plumbing changes are best handled by pros to avoid leaks.

Q5: How long does a conversion take? A5: A basic conversion might take a week; full tiled curbless jobs with waterproofing and drying time can take several weeks.

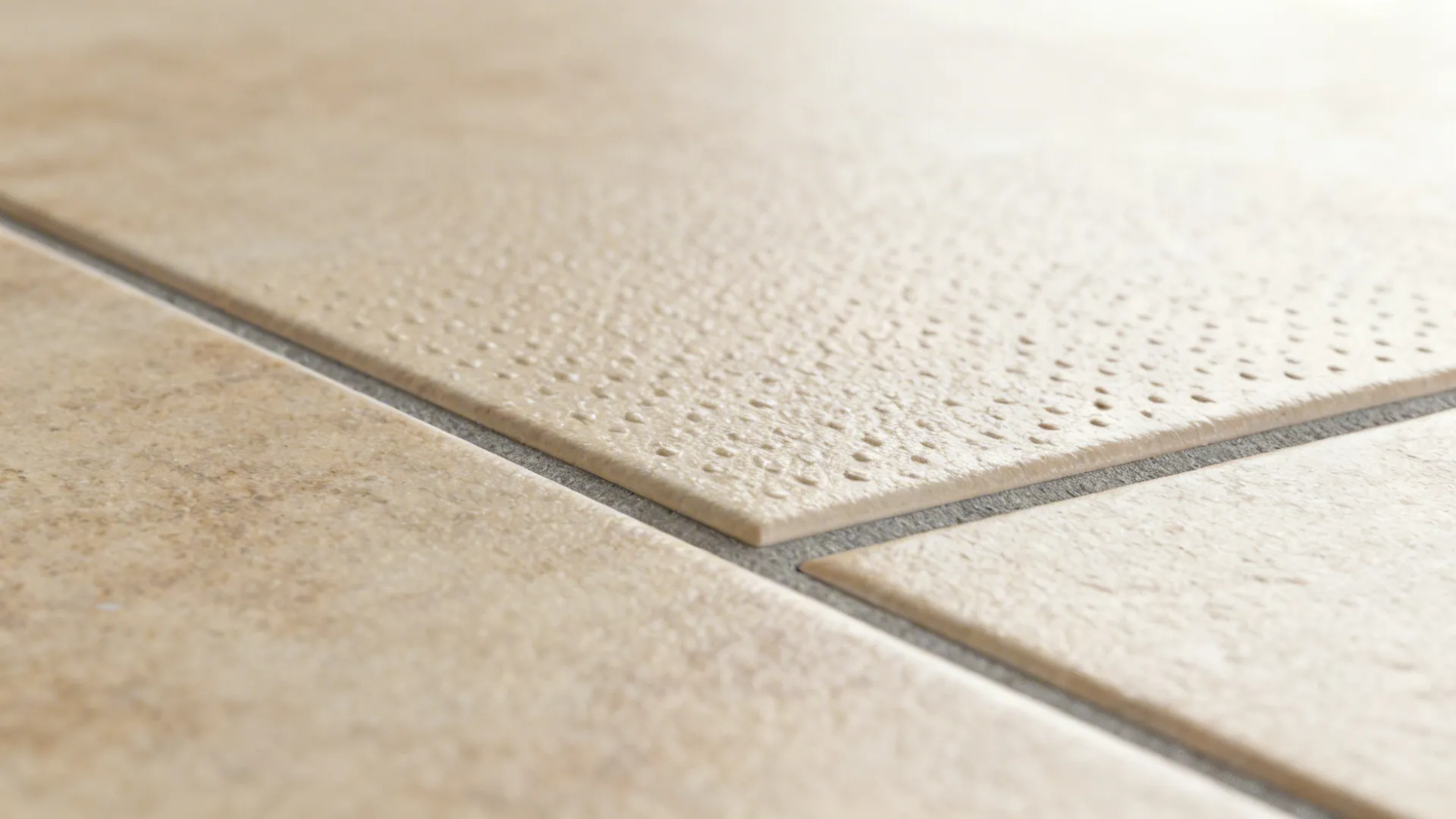

Q6: What flooring is best for small bathrooms after conversion? A6: Large-format porcelain or textured slip-resistant tiles help visually expand space and improve safety.

Q7: Will removing a tub affect my home’s resale value? A7: It depends on market and buyers; keeping a hybrid option can preserve resale appeal. Also consider local preferences — some buyers value a tub for families.

Q8: How do I maximize storage in a converted shower? A8: Recessed niches, corner shelves, and integrated benches work well in small showers without adding visual bulk.
