Small Chapel Design Standards and Architectural Guidelines: Professional planning principles, seating ratios, and spatial rules architects use when designing functional small chapels.

Direct Answer

Small chapel architectural standards focus on balanced proportions, efficient seating layouts, accessibility compliance, and clear sightlines toward the altar. In most professional projects, designers allocate about 10–15 square feet per seated worshipper, maintain a central focal axis, and prioritize natural light and acoustic clarity to support quiet reflection and communal worship.

Quick Takeaways

1. Most small chapels allocate 10–15 square feet per seated person.
2. A strong visual axis toward the altar improves worship experience.
3. Accessible entrances and aisles are required in modern chapel design.
4. Natural materials and soft daylight reinforce spiritual atmosphere.
5. Simple rectangular layouts are usually the most space‑efficient.

Introduction

Designing a small chapel sounds simple until you actually begin laying out the space. After working on residential sanctuaries, campus prayer rooms, and several community chapels over the past decade, I've noticed that the biggest challenge isn't style—it's proportion.

Many small chapel projects fail because the room feels either cramped or oddly oversized for the congregation. That usually happens when designers ignore basic small chapel architectural standards such as seating density, aisle spacing, and visual hierarchy.

Another common issue is layout planning. A well‑organized floor plan makes a chapel feel calm and intentional, while a poorly structured one can disrupt sightlines and circulation. When I'm sketching early concepts, I often start by testing layouts using tools similar to a simple workflow for generating accurate floor plans during early planning, which helps confirm seating capacity and aisle spacing before architectural drawings begin.

In this guide, I'll walk through the practical chapel design guidelines architects commonly follow—from space allocation and seating geometry to materials and accessibility requirements. These are the same principles I use when planning compact worship spaces that still feel dignified and welcoming.

save pin

Overview of Religious Building Design Standards

Key Insight: Most chapel design guidelines are derived from broader religious building design standards that prioritize orientation, gathering capacity, acoustics, and visual focus.

While small chapels are far simpler than cathedrals, they still follow architectural logic that has evolved over centuries. The goal is to create a quiet, focused environment where attention naturally moves toward the altar or focal worship element.

In practice, professional designers typically consider four core principles:

1. Focal orientation — seating arranged toward a central liturgical element.
2. Clear circulation — unobstructed paths for entry, exit, and ceremonial movement.
3. Acoustic balance — surfaces that allow speech and music to carry without echo.
4. Natural symbolism — light, height, and materials that evoke calmness.

Organizations such as the American Institute of Architects (AIA) and many denominational building committees emphasize these same design principles for small worship spaces.

Recommended Space Allocation for Small Chapels

Key Insight: A reliable rule is allocating 10–15 square feet per seated worshipper in a small chapel.

Space planning is where many first‑time chapel designs go wrong. I've seen projects attempt to seat 80 people in rooms that realistically fit 45.

Professional planning guidelines typically recommend:

1. 10–12 sq ft per person for compact seating
2. 12–15 sq ft per person for comfortable seating with aisles
3. 15–20 sq ft per person for ceremonial spaces or flexible seating

Example capacity estimates:

1. 400 sq ft chapel → 30–40 seats
2. 600 sq ft chapel → 45–55 seats
3. 900 sq ft chapel → 70–80 seats

Testing these numbers visually can make a huge difference. During concept phases I often review layouts with a visual 3D layout tool that previews seating density and circulation paths, which helps avoid overly optimistic seating estimates.

save pin

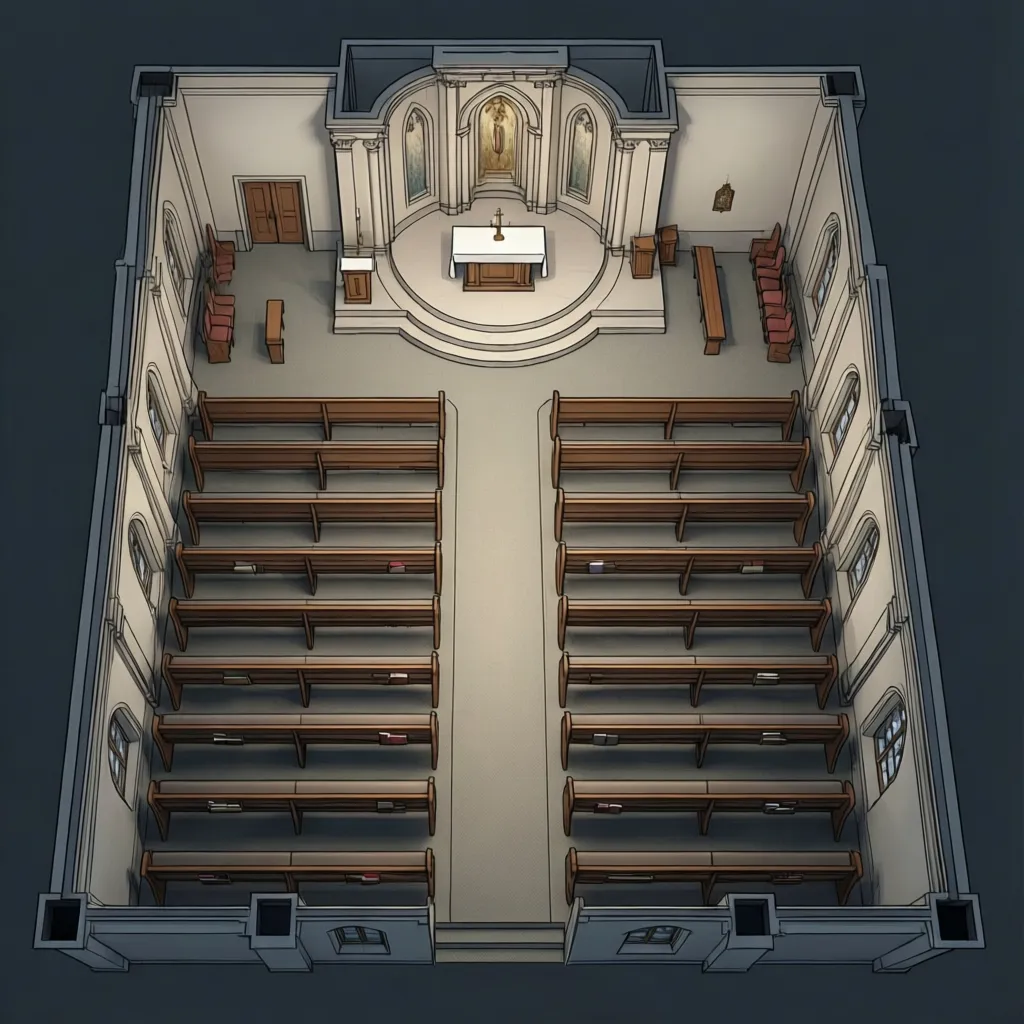

Seating Capacity and Layout Guidelines

Key Insight: A centered aisle and symmetrical seating arrangement usually produces the best sightlines in small chapel layouts.

Unlike large churches that may support multiple aisles, small chapels work best with simple geometry. The more complicated the layout becomes, the more visual distractions appear.

Common layout patterns include:

1. Single center aisle – classic chapel layout with equal seating blocks.
2. Side aisle – useful for extremely narrow buildings.
3. Fan layout – slightly angled seating improving altar visibility.

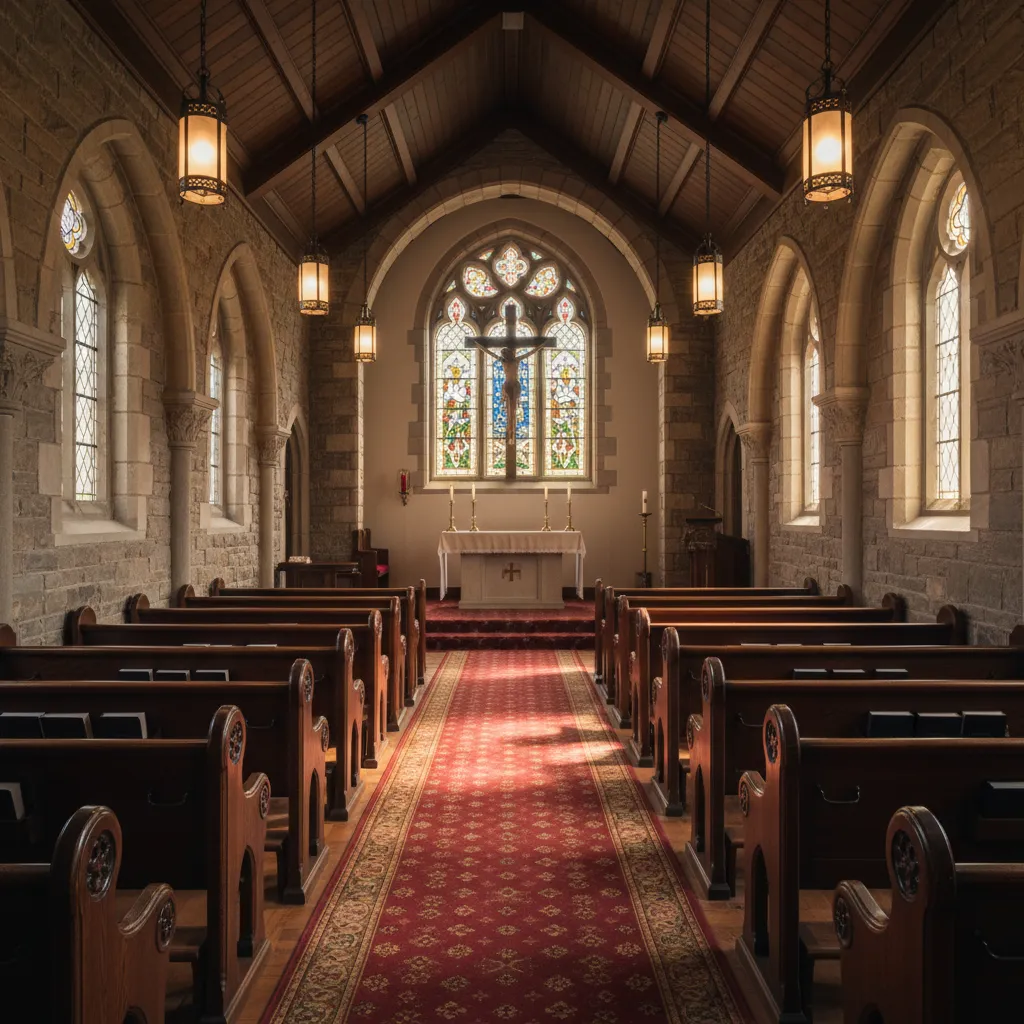

Typical spacing recommendations:

1. Seat width: 20–24 inches per person
2. Row spacing: 36–42 inches
3. Main aisle width: 48–60 inches

These measurements are widely used in worship facility planning guides and allow comfortable movement without wasting space.

save pin

Accessibility Considerations for Chapel Design

Key Insight: Accessibility planning should be integrated into the layout from the beginning, not added later.

Modern chapel design must comply with accessibility standards such as ADA guidelines in the United States. Beyond legal compliance, inclusive design simply makes worship spaces welcoming to everyone.

Important accessibility elements include:

1. Step‑free main entrances
2. Wheelchair seating areas integrated into seating rows
3. Aisles at least 36 inches wide
4. Accessible restrooms nearby
5. Clear signage and lighting

In several university chapel projects I've worked on, integrating accessible seating within the central seating rows—not pushed to the edges—created a far more inclusive environment.

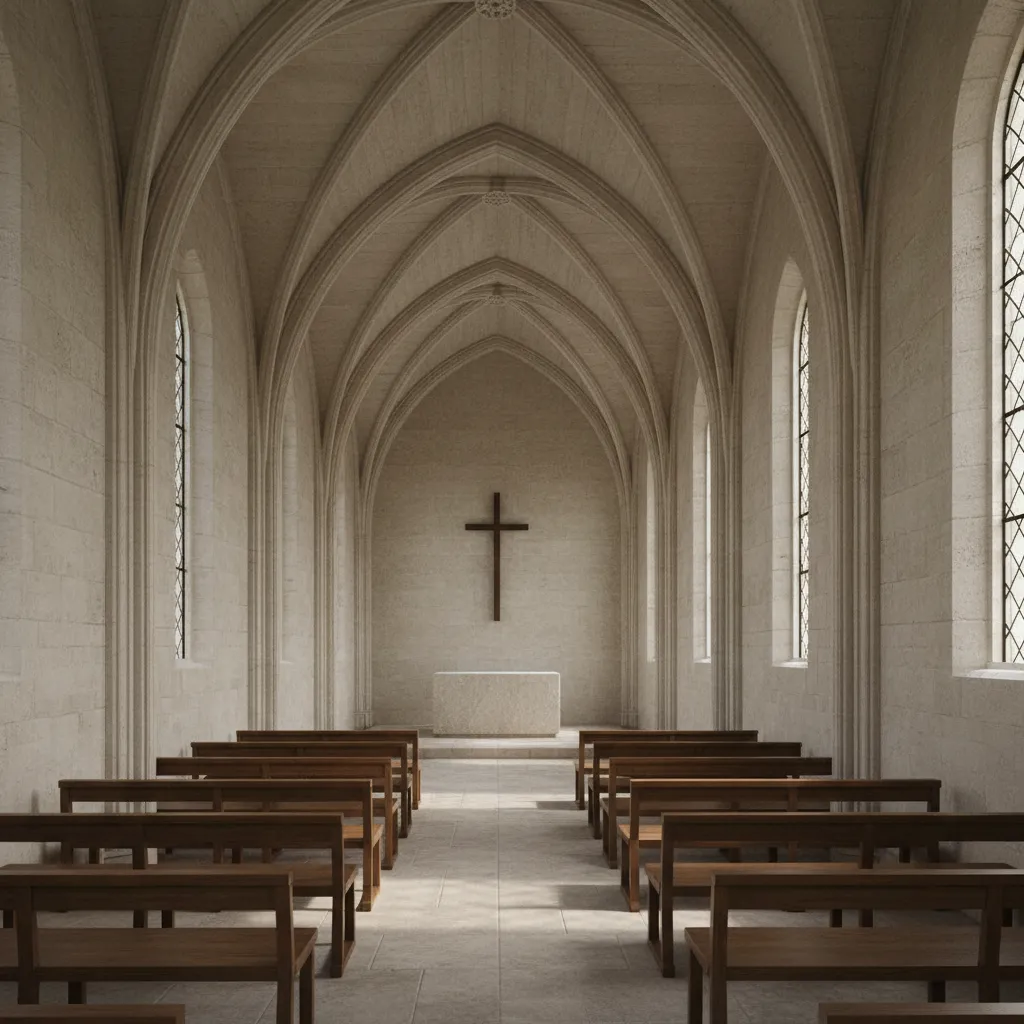

Architectural Proportions for Worship Spaces

Key Insight: The perceived dignity of a chapel often comes from vertical proportion rather than floor area.

A small chapel can feel surprisingly spacious when ceiling height and wall proportions are handled correctly.

Architects often follow these proportional guidelines:

1. Ceiling height: 1.5–2× the room width
2. Altar platform raised 6–12 inches
3. Windows placed higher than eye level
4. Strong central axis from entrance to altar

This vertical emphasis is common in historic European chapels and continues to influence modern worship architecture.

save pin

Materials and Design Elements Commonly Used

Key Insight: Natural materials and restrained color palettes create the calm atmosphere expected in chapel interiors.

Across many projects, I consistently see the same material palette appear in successful small chapel designs.

1. Natural wood for seating and ceilings
2. Stone or textured plaster walls
3. Neutral or warm color palettes
4. Soft daylight from narrow windows
5. Minimal decorative clutter

One mistake I often see online is overdecorating small chapels. In reality, restraint usually produces the most spiritual atmosphere.

Applying Professional Standards to Small Chapel Plans

Key Insight: The best chapel plans translate architectural guidelines into clear circulation, balanced seating, and strong visual focus.

When translating theory into an actual plan, I focus on three questions:

1. Can every seat see the altar clearly?
2. Do entrances naturally lead toward the focal space?
3. Does the layout allow quiet, uninterrupted movement?

Testing these factors with a step‑by‑step room layout planning process used for worship spaces helps reveal issues early—especially with aisle spacing and altar visibility.

Small chapels succeed when they balance efficiency with atmosphere. Even a 500‑square‑foot space can feel meaningful when proportions, lighting, and circulation are thoughtfully planned.

Answer Box

Effective small chapel design follows clear architectural rules: allocate about 10–15 square feet per seat, maintain a central visual axis toward the altar, prioritize accessibility, and emphasize vertical proportions to create a dignified worship environment.

Final Summary

1. Allocate roughly 10–15 square feet per worshipper.
2. Symmetrical seating improves sightlines and balance.
3. Accessibility should shape the initial layout.
4. Ceiling height strongly influences spatial perception.
5. Natural materials help create calm worship environments.

FAQ

How big should a small chapel be?

A small chapel typically ranges from 400 to 900 square feet, depending on seating capacity and program needs.

How much space is required per seat in a chapel?

Most small chapel architectural standards recommend 10–15 square feet per seated person.

What is the best layout for a small chapel?

A rectangular layout with a central aisle and symmetrical seating usually provides the best sightlines and circulation.

How wide should chapel aisles be?

Main aisles are typically 48–60 inches wide to allow comfortable movement during services.

Do small chapels need accessibility features?

Yes. Modern chapel design guidelines require accessible entrances, seating, and circulation paths.

What ceiling height works best for chapels?

Many architects aim for ceilings 1.5–2 times the room width to create vertical emphasis.

What materials are common in chapel interiors?

Wood, stone, plaster, and natural daylight are widely used to create calm and reflective environments.

Why are simple layouts preferred in small chapels?

Simpler layouts maintain clear sightlines, reduce distractions, and improve seating efficiency.
