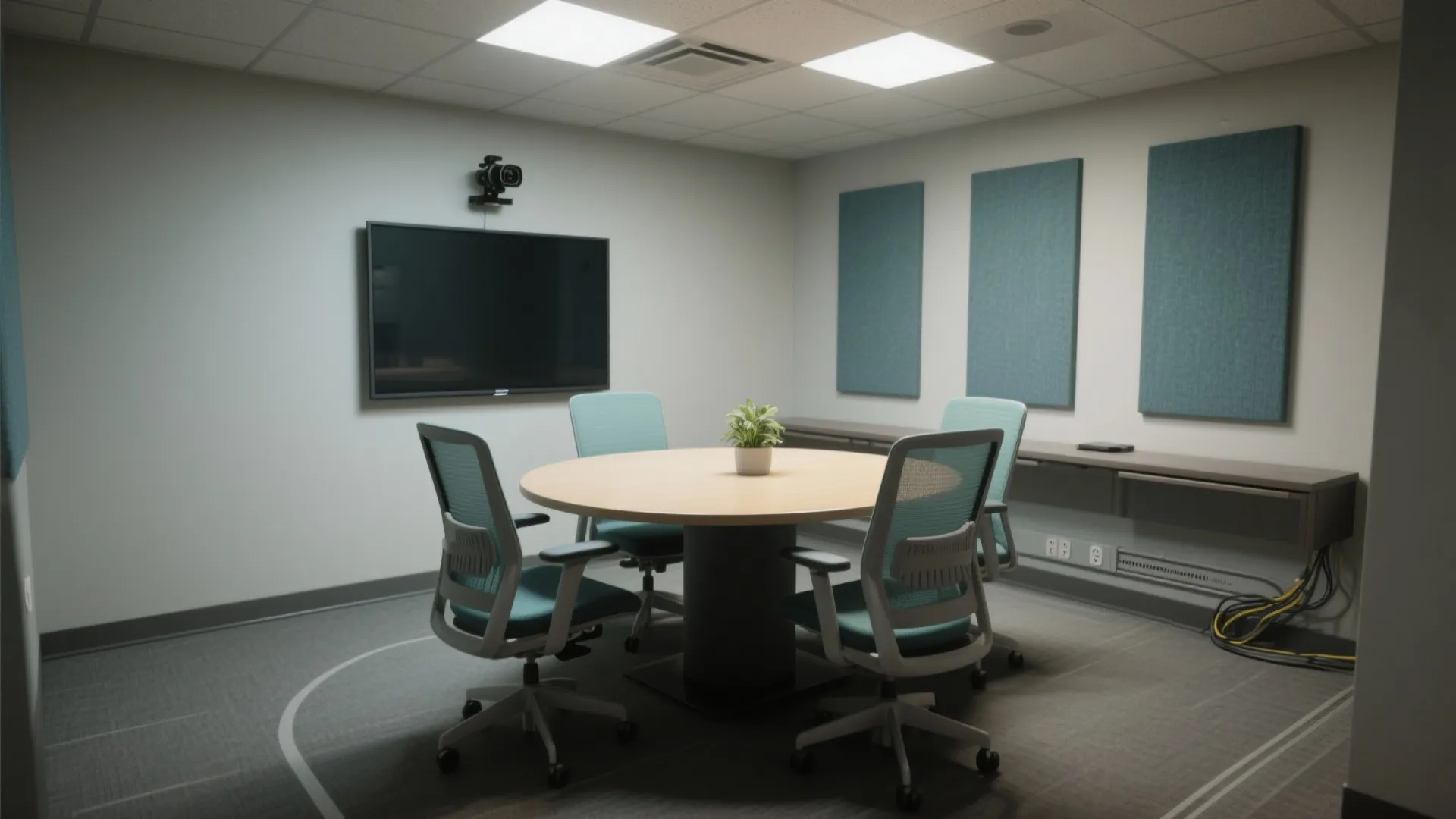

Small Meeting Room Design: Maximizing Space Without Compromise: Fast-Track Guide to an Efficient Meeting Room in 1 Minute

I’ve designed dozens of compact meeting rooms where every inch matters. The goal is simple: make a small footprint feel generous, support focused collaboration, and maintain visual calm. The trick lies in proportion, purposeful layout, and the right mix of ergonomics, light, and acoustics—without overfurnishing or underperforming.

Data consistently shows small rooms can outperform when planned well. Steelcase research found teams spend nearly 40% of their collaborative time in spaces sized for 2–4 people, yet these rooms are frequently misconfigured with oversized furniture and poor acoustics. WELL v2 guidance recommends average background noise under 40 dBA and speech privacy strategies to reduce distractions—critical standards that directly improve meeting quality in compact rooms. I often benchmark illumination at 300–500 lux on task surfaces with glare control, aligning with IES recommendations, and maintain color temperature around 3500–4000K for clarity without strain.

Spatial ratios matter. A clear 36-inch circulation path and a 30-inch minimum knee-to-edge clearance around tables preserve comfort, while sightlines should stay free of vertical clutter within the central 60° cone of vision. In practice, that means tight furniture footprints, rounded corners, wall-mounted tech, and carefully planned cable routes. Gensler’s workplace studies also highlight how control—lighting dimmers, flexible seating, and tool access—correlates with higher team performance, a principle that scales perfectly to small rooms.

Plan the Room Around Conversation

Start with the table. For 2–4 people, a 36–40-inch deep oval or rounded rectangle keeps elbows and laptops comfortable without overwhelming the floor plate. Pair with compact, supportive chairs (17–19-inch seat width) on glides rather than casters if the floor is small and you need stability. Mount the display on the short wall to tighten sightlines and avoid lateral neck turn. If you’re testing configurations, a room layout tool can help visualize the circulation envelope and corner clearances: room layout tool.

Light That Supports Focus

Layer ambient and task light. I use indirect ceiling wash for uniformity, µ-baffle or lens troffers to limit luminance hotspots, and a low-glare task light near the presenter zone. Keep vertical illuminance on faces balanced so video calls look natural. Aim for 300–500 lux on table surfaces, and keep CRI ≥90 for accurate color. Dimming between 10–100% plus a warm-to-neutral 3500–4000K range supports both note-taking and screen sharing. For standards and best practices, I reference IES recommendations and WELL v2 lighting requirements, which prioritize glare control and visual comfort (IES standards).

Acoustics: Quiet Enough to Think, Clear Enough to Speak

Small rooms amplify reflections. Balance absorption and diffusion: a 40–60% absorptive surface mix (acoustic ceiling tile, fabric panels, wool felt) with at least one diffusive element keeps speech intelligible without deadening. If adjacent to circulation, consider a solid-core door with perimeter seals, and add a soft threshold rug to reduce footfall noise. Keep background noise near 35–40 dBA per WELL v2 guidance. For ventilation, select low-sone diffusers, and decouple the display wall with resilient channels if speech privacy is critical.

Ergonomics and Human Factors

Comfort increases participation. Seat height at 17–19 inches with lumbar support is nonnegotiable. Maintain 20–28 inches personal elbow span at the table, and avoid sharp edges where forearms rest. Controls—lighting, volume, camera angle—should be reachable without standing. Use a single cable channel to the table’s underside and a flush power module centered, so laptops don’t fight for space.

Color Psychology for Calm and Clarity

Compact rooms benefit from low-saturation palettes with one anchoring accent. I lean on desaturated blues and greens for perceived calm and cognitive focus, supported by neutral warm greys to keep skin tones flattering on video. High-chroma colors belong on small, changeable elements (a tray, a notebook spine), not large surfaces—too much saturation compresses perceived volume. Color psychology research commonly associates cool, muted tones with concentration and reduced stress, which aligns with my field observations.

Materials and Surfaces

Textures should be tactile but quiet. Matte finishes minimize glare on cameras and displays. Choose durable, cleanable textiles with NRC contribution—wool felts, acoustic polyesters, or laminated fabric panels. Table surfaces in matte laminate or low-sheen wood veneer reduce specular reflection, and edge profiles in 2–3mm radii improve arm comfort. If sustainability is a priority, source low-VOC finishes and FSC-certified wood; verify emission data sheets and chain-of-custody documents.

Tech Integration Without the Tangle

Wall-mount displays centered at 42–48 inches to the bottom edge for seated sightlines. Keep cameras at eye level, and add an LED tally light as a cue that the mic is active. A single under-table hub with power, HDMI/USB-C, and cable weight makes setup automatic. Wi-Fi repeaters should sit outside the room if walls are dense; use a wall pass-through for clean cable management.

Layout Patterns That Make Space Feel Bigger

Use axial symmetry for small rooms: center the table, align chairs, and balance wall elements to reduce visual noise. Float the table 12–16 inches off walls to keep circulation and avoid knee bumps. If the room is long and narrow, rotate the table parallel to the long axis and mount the display at the short end to compress sightlines. For more trial-and-error planning, an interior layout planner can quickly test clearances: interior layout planner.

Lighting Controls and Cognitive Load

Meeting tasks shift from ideation to presentation quickly. Provide at least two scenes: Focus (higher vertical illuminance, low glare) and Screen Share (dimmed ambient, boosted vertical light from the front). Reduce cognitive load by limiting switches: one keypad with labeled presets is better than multiple dimmers without feedback. People feel more in control when the environment responds predictably—something workplace research from firms like Gensler has repeatedly connected to performance.

Chair and Table Selection Guide

- Table: 36–40 inches deep, 60–72 inches long for 2–4 seats; radius corners.

- Chairs: compact footprint, breathable back, fixed glides; if casters, soft-roll to protect flooring.

- Finish: matte to semi-matte; avoid glass tops in small rooms (glare + fingerprints).

- Access: center power, under-table cable tray, single grommet.

Storage and Clutter Control

Use one shallow credenza or a wall shelf instead of tall cabinets. Conceal markers, remotes, and adapters in a single drawer with labeled inserts. Keep the floor clean; vertical storage should not exceed chair back height to preserve visual openness.

Ventilation, Thermal Comfort, and Wellness

Small rooms heat up fast. Supply air should be diffused and quiet; consider a return near the door to balance airflow. Keep setpoints around 72–75°F for mixed clothing levels, and allow user overrides within a narrow band. For wellness criteria and acoustic thresholds, WELL v2 offers a practical framework that scales to compact spaces (WELL v2).

Make the Room Camera-Ready

For hybrid meetings, camera framing benefits from a centered table, uniform front lighting, and a low-sheen backdrop in a warm neutral. Avoid heavy patterns behind speakers; they flicker on video compression. Place microphones away from HVAC diffusers, and consider a small desktop boundary mic for clear pickup in rooms with soft finishes.

Common Pitfalls I See

- Tables too large for the floor plate, leaving no circulation.

- Over-reliance on downlights causing hard shadows and screen glare.

- Chairs with wide arms that collide with table edges.

- Tall storage making the room feel closed-in.

- Cables trailing across the floor—always route under-table and through wall passes.

- Ignoring acoustic balance; absorb everything and speech feels flat, ignore it and reflections fatigue the group.

A Simple, High-Performance Toolkit

Compact table with rounded corners, four ergonomic chairs, wall-mounted display and camera at eye level, two lighting scenes, acoustic ceiling tile with two fabric panels, single power hub, cable tray, and a shallow credenza for accessories. Add one plant for softness and perceived freshness, and keep surfaces matte.

FAQ

Q1: What’s the ideal table size for a 4-person small meeting room?

A: A 36–40-inch deep table at 60–72 inches long keeps laptops and elbows comfortable while preserving circulation. Rounded corners help with movement in tight spaces.

Q2: How bright should the room be?

A: Target 300–500 lux on the table surface with glare control. Keep color temperature around 3500–4000K for screen work and note-taking. These levels align well with common IES recommendations for small work settings.

Q3: How do I improve acoustics without making the room feel dead?

A: Balance absorption (ceiling tile, fabric panels, soft rug) with diffusion (bookshelf, shallow wood slats). A 40–60% absorptive mix typically yields clear speech and natural room tone.

Q4: What’s the best display mounting height?

A: Mount so the bottom edge sits around 42–48 inches from the floor for seated sightlines. Center the screen on the short wall to minimize neck rotation.

Q5: Is there a preferred chair type for small rooms?

A: Compact, supportive chairs with breathable backs and fixed glides reduce visual bulk and keep positions stable. If casters are needed, use soft-roll to protect floors.

Q6: How can lighting adapt for presentations vs. brainstorming?

A: Provide two scenes: Focus (uniform ambient, controlled task light) and Screen Share (dimmed ambient, boosted vertical light from the front). One keypad with labeled presets keeps controls intuitive.

Q7: What acoustic targets should I aim for?

A: Keep background noise near 35–40 dBA. Seal doors, use soft finishes, and avoid noisy diffusers. WELL v2 guidance is a useful reference for comfort thresholds.

Q8: How do I manage cables cleanly?

A: Use an under-table cable tray, a centered power/data module, and a wall pass-through to the display. Avoid floor runs to maintain clear circulation and reduce trip hazards.

Q9: Which colors make a small room feel larger?

A: Low-saturation cool tones (muted blues/greens) with warm neutrals enhance perceived depth and keep video-friendly skin tones. Reserve bold colors for small accents.

Q10: What ventilation details matter most?

A: Quiet supply diffusers, balanced return near the door, and a tight temperature band (around 72–75°F) help maintain comfort without noise or drafts.

Q11: Do I need storage in a small meeting room?

A: One shallow credenza or wall shelf is plenty. Keep storage below chair-back height to preserve openness and reduce visual clutter.

Q12: Any quick layout tools to test clearances?

A: Try a room design visualization tool to simulate circulation and furniture-to-wall distances: room design visualization tool.
