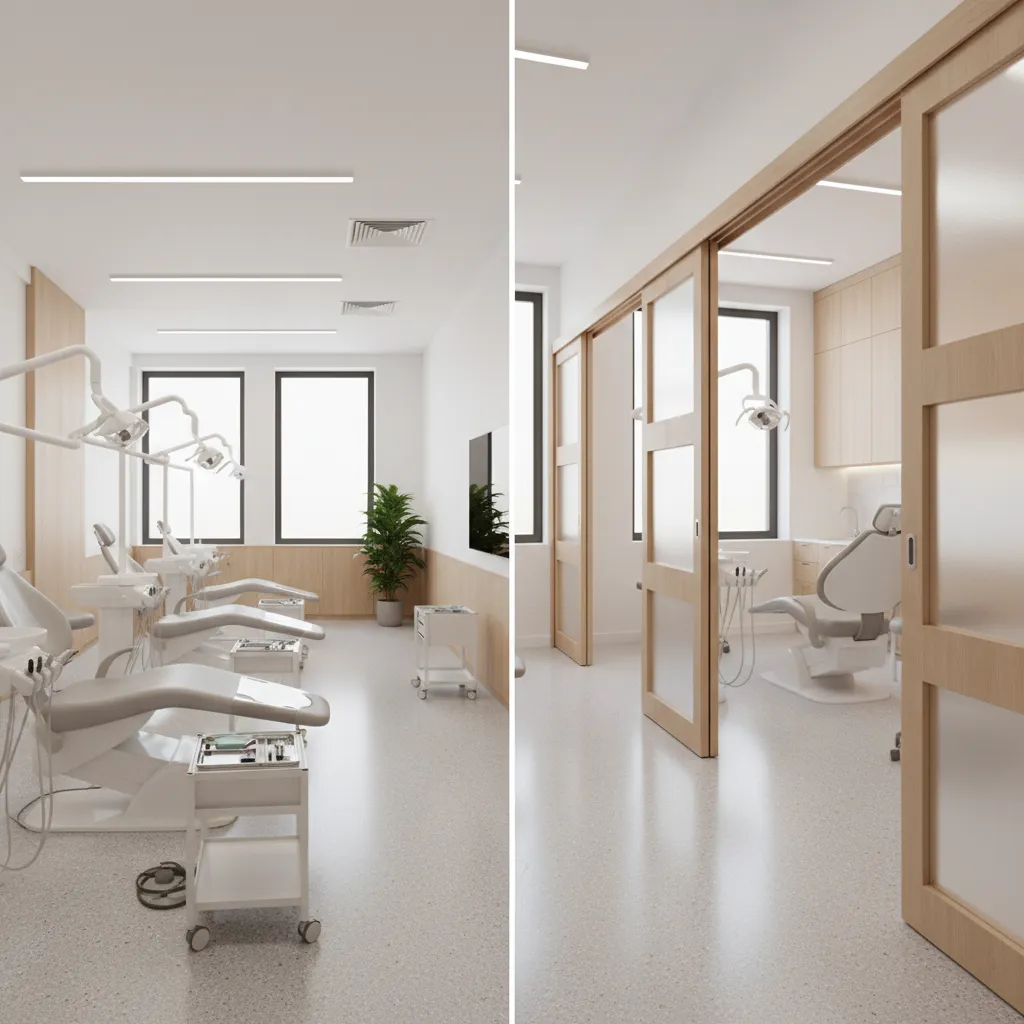

Small Orthodontic Office Layouts Compared: Open Bay vs Private Rooms: A practical comparison to help small orthodontic clinics choose the most efficient layout for workflow, privacy, and growth.

Direct Answer

For most small orthodontic offices, an open bay layout maximizes treatment capacity and staff efficiency, while private treatment rooms offer better patient privacy and acoustic control. Many modern practices use a hybrid layout that combines a central open treatment area with a few enclosed rooms for consultations and complex procedures.

Quick Takeaways

1. Open bay layouts treat more patients per hour in the same square footage.
2. Private rooms improve privacy but reduce chair density.
3. Hybrid layouts balance workflow efficiency and patient comfort.
4. Patient volume and staff size should drive layout decisions.
5. Circulation paths often matter more than room count in small clinics.

Introduction

Designing a small orthodontic office layout is rarely about aesthetics alone. After working on dozens of compact dental and orthodontic clinics over the past decade, I’ve noticed that the biggest problems usually appear after opening day: bottlenecked staff movement, wasted square footage, or treatment chairs placed where assistants constantly cross paths.

The debate between open bay vs private orthodontic office layout is one of the most common questions I hear from new practice owners. Many assume private rooms feel more "professional," while others believe open bays are the only way to scale. The truth is more nuanced.

In many of the small clinics I design, success comes from understanding how patient flow, chair turnover, and assistant movement interact with the physical space. Before locking in walls and plumbing, many dentists experiment with layouts using a visual planning approach for mapping dental workstations and circulationso workflow issues appear early instead of after construction.

This guide compares open bay, private room, and hybrid orthodontic office layouts specifically for small practices—typically between 900 and 2,500 square feet.

save pin

Overview of Common Orthodontic Layout Models for Small Clinics

Key Insight: Most small orthodontic practices fall into three layout categories: open bay, private rooms, or a hybrid combination of both.

Although every clinic is unique, nearly all efficient orthodontic offices follow one of these spatial frameworks. Each model solves the same design problem differently: how to treat multiple patients simultaneously while allowing assistants and orthodontists to move quickly between chairs.

1. Open Bay Layout – Multiple chairs arranged in one shared treatment zone.
2. Private Room Layout – Individual enclosed operatories for each patient.
3. Hybrid Layout – Central open chairs plus a few enclosed rooms.

According to design guidance from the American Dental Association’s facility planning resources, orthodontic practices typically require more simultaneous chairs but less procedure complexity than general dentistry. That’s why orthodontic clinics historically favored open treatment areas.

The catch? Patient expectations have shifted dramatically in the past decade. Privacy and comfort now matter far more than they did in traditional orthodontic clinics.

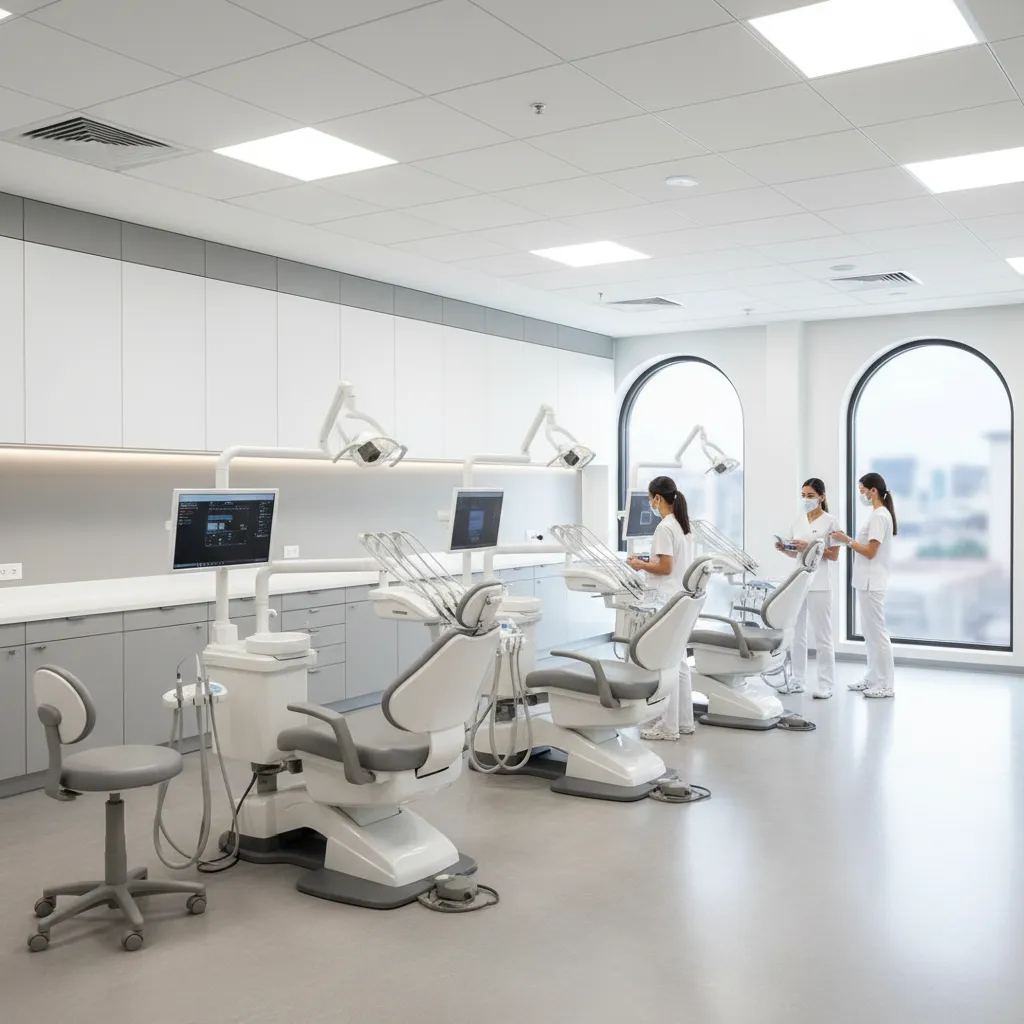

Open Bay Orthodontic Layout: Advantages and Limitations

Key Insight: Open bay layouts maximize treatment capacity and staff efficiency but sacrifice privacy and acoustic control.

The open bay model is still the most space‑efficient solution for small orthodontic practices. Instead of building walls around each chair, the treatment area becomes a shared clinical zone where assistants and orthodontists can move freely between patients.

Typical open bay advantages include:

1. Higher number of treatment chairs in the same square footage
2. Faster supervision by orthodontists across multiple patients
3. Simplified plumbing and equipment infrastructure
4. Lower construction cost per operatory

However, several hidden drawbacks appear in smaller spaces:

1. Patients hear every nearby conversation
2. Teen and adult patients often prefer privacy
3. Noise levels increase during peak hours
4. Parents sometimes crowd the treatment zone

In one 1,400 sq ft orthodontic office I redesigned in San Diego, converting four enclosed operatories into a six‑chair open bay increased patient throughput by nearly 40%. But we also had to introduce acoustic ceiling panels and partial dividers to maintain comfort.

save pin

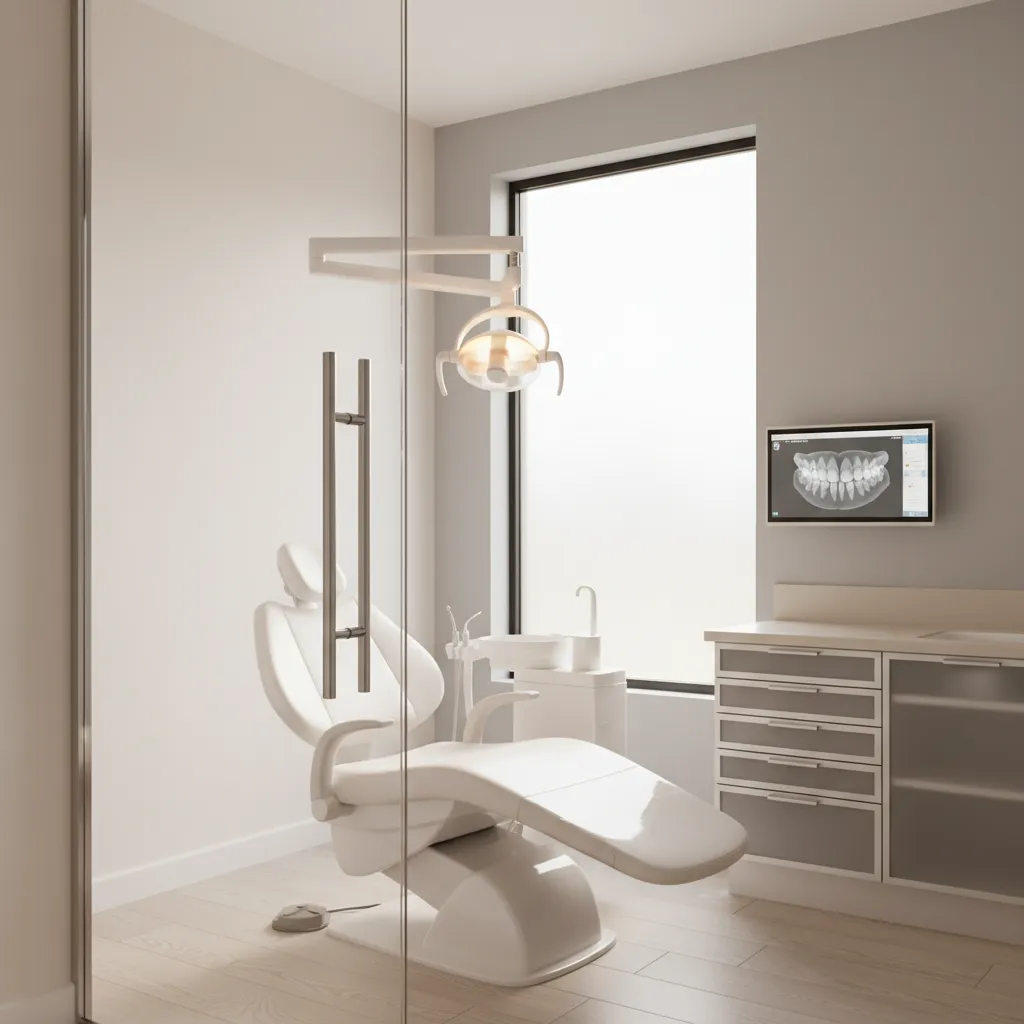

Private Treatment Room Layout: Benefits and Challenges

Key Insight: Private operatories improve patient comfort and confidentiality but often reduce operational efficiency in small clinics.

Private treatment rooms are the standard in general dentistry, but orthodontics operates differently. Adjustments are shorter and appointments overlap frequently, which means staff move between chairs constantly.

Private room advantages include:

1. Better patient privacy
2. Reduced noise levels
3. Improved perception of premium care
4. Greater flexibility for multidisciplinary treatments

The main challenge is spatial efficiency. Walls consume square footage, and circulation corridors expand quickly.

A common mistake I see is trying to fit too many enclosed operatories into a small suite. The result is narrow hallways, cramped sterilization areas, and assistants walking significantly farther between chairs.

When planning enclosed operatories, many designers test layouts digitally first using tools that allow teams to experiment with dental operatory placement and circulation paths in 3Dbefore construction decisions are finalized.

save pin

Hybrid Layout Designs for Compact Orthodontic Practices

Key Insight: Hybrid layouts combine the efficiency of open bays with the privacy of enclosed rooms, making them the most flexible solution for small orthodontic clinics.

Over the last five years, hybrid orthodontic layouts have become the dominant design approach in new practices.

A typical hybrid clinic might include:

1. 4–6 open treatment chairs in a shared bay
2. 1–2 enclosed consult or procedure rooms
3. A centrally located sterilization hub
4. Direct access to imaging and scanning rooms

This setup works well because not every appointment requires privacy. Quick wire adjustments can happen in the open area, while consultations and complex procedures move to enclosed rooms.

In practice, hybrid layouts often increase patient satisfaction without sacrificing treatment capacity.

How to Choose the Right Layout Based on Patient Volume

Key Insight: Patient volume—not aesthetics—should be the primary factor when choosing between open bay, private rooms, or hybrid layouts.

In my experience, clinics that choose layouts based purely on appearance often struggle operationally within the first year.

Here is a simplified decision framework:

1. Low volume (under 20 patients/day) – Private rooms can work well.
2. Moderate volume (20–45 patients/day) – Hybrid layouts are usually ideal.
3. High volume (45+ patients/day) – Open bay or hybrid becomes essential.

Another overlooked factor is staffing. If one orthodontist supervises several assistants, open sightlines dramatically improve efficiency.

Answer Box

Small orthodontic offices typically perform best with hybrid layouts that combine open treatment bays and a limited number of private rooms. This configuration balances patient throughput, staff workflow efficiency, and privacy expectations while fitting within compact floor plans.

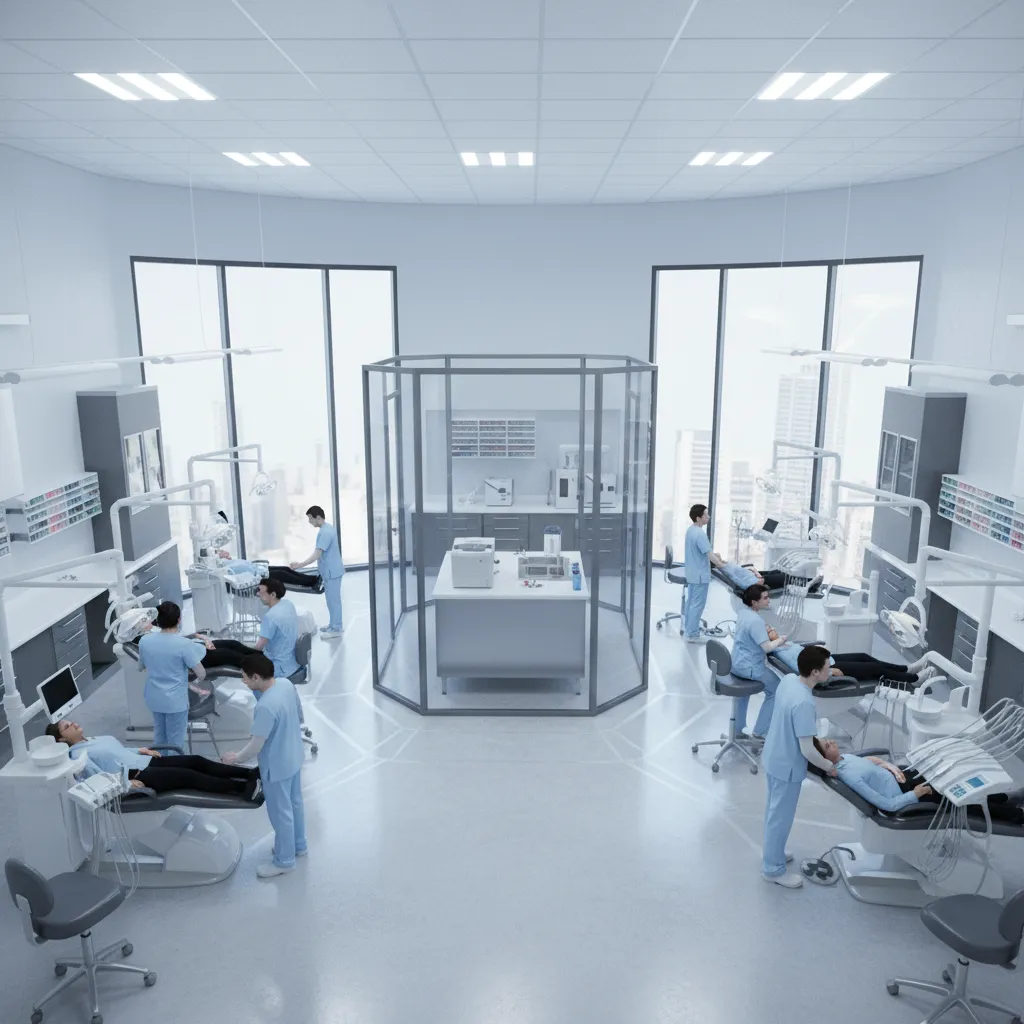

Space Efficiency and Staff Workflow Comparison

Key Insight: The most efficient orthodontic layouts minimize staff walking distance between chairs and sterilization zones.

One design metric many clinic owners overlook is staff travel distance. Over a full day, assistants may walk several miles inside the clinic.

Comparing layouts:

1. Open Bay – Shortest staff movement paths
2. Private Rooms – Longer corridors and door transitions
3. Hybrid – Balanced workflow when sterilization is central

During layout planning, I often recommend mapping treatment chairs, sterilization, and imaging rooms early using a step‑by‑step method for organizing treatment chairs and patient circulation. Seeing the circulation paths visually often reveals inefficiencies immediately.

save pin

Real World Examples of Small Orthodontic Office Layouts

Key Insight: Successful small orthodontic offices rarely rely on one pure layout model.

Here are three simplified real-world configurations from recent clinic projects:

1. 1,000 sq ft startup clinic – 4 open chairs + 1 consult room
2. 1,600 sq ft suburban practice – 5 open chairs + 2 private operatories
3. 2,200 sq ft growing practice – 8 open chairs + 2 consult rooms + digital scan room

The key lesson: flexible layouts age better than rigid ones. Clinics often grow faster than expected, and a layout that supports expansion prevents costly renovations later.

Final Summary

1. Open bay layouts maximize patient capacity.
2. Private rooms improve comfort but reduce density.
3. Hybrid designs balance efficiency and privacy.
4. Patient volume should guide layout decisions.
5. Staff workflow efficiency determines long‑term success.

FAQ

What is the best layout for a small orthodontic practice?

Hybrid layouts are usually best because they combine open treatment bays with a few private rooms for consultations and specialized procedures.

Is an open bay orthodontic office outdated?

No. Open bay designs are still widely used because they support fast patient turnover and efficient supervision by orthodontists.

How many chairs should a small orthodontic clinic have?

Most small practices operate efficiently with four to eight treatment chairs depending on patient volume.

Are private orthodontic treatment rooms necessary?

Not always, but at least one or two private rooms are useful for consultations, imaging reviews, or procedures requiring extra privacy.

What is the difference between open bay and private orthodontic office layout?

Open bay layouts place multiple chairs in one shared treatment area, while private layouts separate each patient into enclosed rooms.

How much space does an orthodontic operatory need?

Most orthodontic operatories require roughly 80–120 square feet depending on equipment and chair configuration.

Can a small orthodontic clinic use a hybrid layout?

Yes. Many clinics under 1,500 square feet successfully combine several open chairs with one or two enclosed rooms.

Why do many orthodontic offices prefer open bays?

Open bays allow orthodontists to supervise multiple patients simultaneously, which increases efficiency during short adjustment appointments.
