Software Tools for Designing Flat Slabs With Interior Panels and Drop Panels: A practical guide to the structural engineering software professionals use to model, analyze, and verify flat slab systems with drop panels.

Direct Answer

The most widely used software tools for designing flat slabs with interior panels and drop panels are ETABS, SAFE, and occasionally STAAD or Robot Structural Analysis. Engineers typically model the global structure in ETABS and perform detailed slab design and punching shear checks in SAFE.

These programs allow accurate modeling of drop panels, column strips, and punching shear behavior while enabling engineers to verify results against design codes.

Quick Takeaways

1. ETABS is commonly used for full building modeling with flat slab systems.
2. SAFE provides more accurate slab analysis and punching shear verification.
3. Correct modeling of drop panel thickness and geometry is critical.
4. Manual checks are still necessary to validate software results.
5. Most design errors come from incorrect slab strip definitions.

Introduction

Flat slab systems with interior panels and drop panels are common in residential towers, offices, and parking structures because they simplify formwork and reduce floor height. However, modeling them correctly in structural software is not as straightforward as many engineers expect.

After working on several mid‑rise residential projects in California where flat slabs were the preferred structural system, I noticed that many engineers rely heavily on software but underestimate how sensitive slab behavior is to modeling assumptions. A small mistake in drop panel geometry or column strip width can significantly change punching shear results.

Before jumping into analysis tools, it's useful to understand how layout decisions influence slab performance. For example, planning structural grids early using a visual 3D floor layout planning workflowhelps coordinate column locations and slab spans before the engineering model is built.

In this guide, I'll walk through the structural software engineers typically use, how flat slabs with drop panels are modeled in practice, and the common mistakes that lead to unreliable results.

save pin

Overview of Structural Software for Slab Design

Key Insight: Most professional workflows combine two tools: one for global structural modeling and another for detailed slab design.

In practice, engineers rarely rely on a single program. Large building models require global analysis software, while slab behavior—especially punching shear around columns—needs specialized slab design tools.

The typical workflow looks like this:

1. Model the full building in ETABS or similar software.
2. Export slab reactions and geometry to SAFE.
3. Run detailed slab analysis and punching shear checks.
4. Verify design strips and reinforcement requirements.

Common software used for flat slab systems:

1. ETABS – global structural analysis and building modeling
2. SAFE – slab design, punching shear checks, reinforcement detailing
3. STAAD Pro – general structural analysis
4. Autodesk Robot – advanced FEM structural modeling

CSI software (ETABS and SAFE) is the most widely adopted combination because both programs share compatible modeling data.

Modeling Flat Slabs With Drop Panels in ETABS

Key Insight: ETABS is best used for capturing the overall structural behavior of a flat slab building, not for final slab reinforcement design.

ETABS allows engineers to define slab thickness variations and drop panels, which influence stiffness and load distribution across the floor plate.

Typical modeling steps include:

1. Create slab sections for regular slab thickness.
2. Define additional slab sections representing drop panels.
3. Assign thicker slab regions around columns.
4. Define column strips and middle strips.

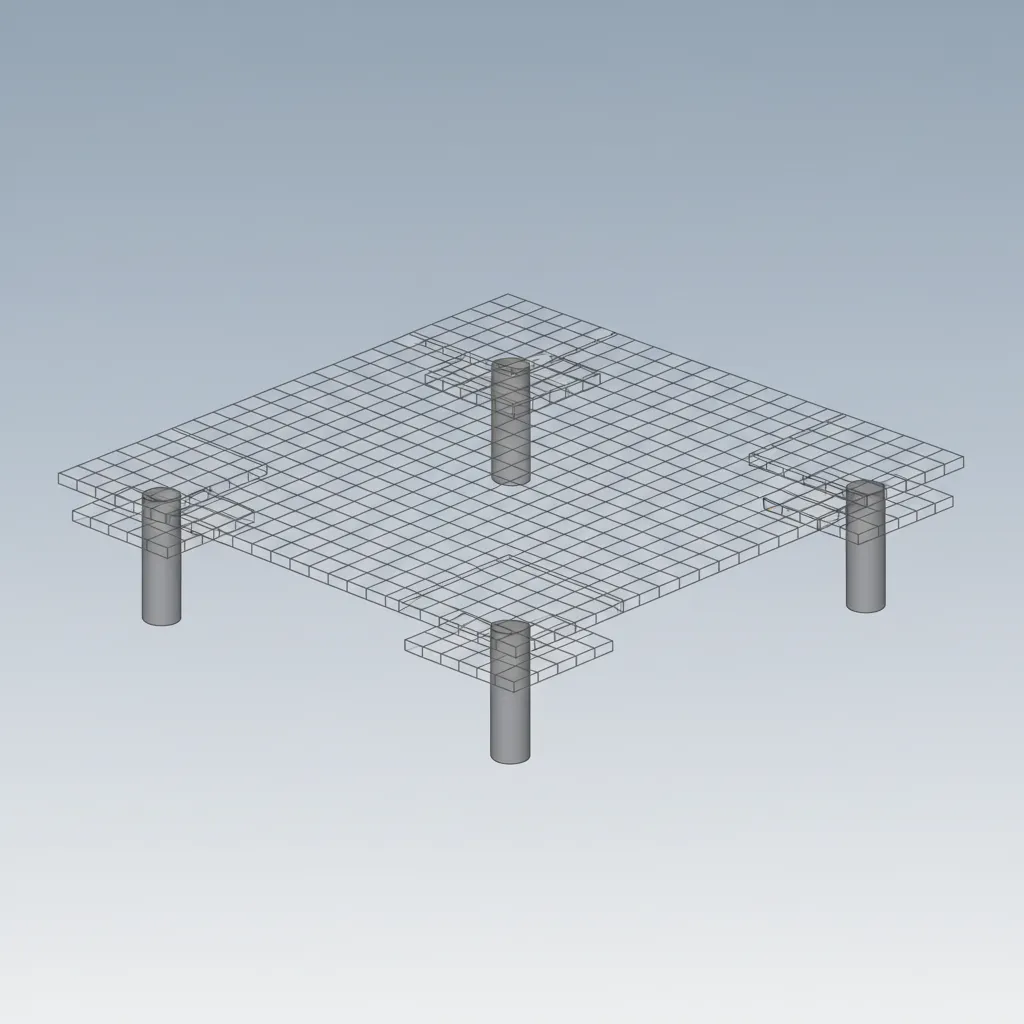

5. Run FEM analysis to obtain moments and reactions.

In real projects, drop panels are often modeled as thicker shell elements centered around columns. However, the engineer must verify that the drop dimensions comply with design code requirements.

According to ACI 318 guidelines, drop panels should typically extend at least one‑sixth of the span length from the column centerline.

save pin

Using SAFE for Detailed Slab Analysis

Key Insight: SAFE provides more reliable slab reinforcement design and punching shear evaluation than building‑level analysis software.

While ETABS can perform slab analysis, SAFE is specifically developed for slab and foundation systems. That specialization matters when dealing with punching shear around columns.

Key capabilities of SAFE include:

1. Automatic punching shear checks
2. Design strip generation
3. Reinforcement detailing
4. Nonlinear slab behavior modeling

In many engineering offices, the ETABS model is exported directly into SAFE so the slab geometry, loads, and column locations remain consistent.

Even architectural planning tools can assist early coordination. For instance, using a layout generator that quickly tests different column spacing scenarioshelps architects and engineers evaluate span efficiency before final analysis.

save pin

Input Parameters for Interior Panels and Drops

Key Insight: Correct geometry input—especially drop panel thickness and extent—is more important than many engineers realize.

Flat slab performance is extremely sensitive to drop panel dimensions. Small modeling errors can significantly change bending moments and punching shear capacity.

Critical parameters to define accurately:

1. Drop panel thickness
2. Drop panel plan dimensions
3. Column size
4. Column strip width
5. Slab effective depth

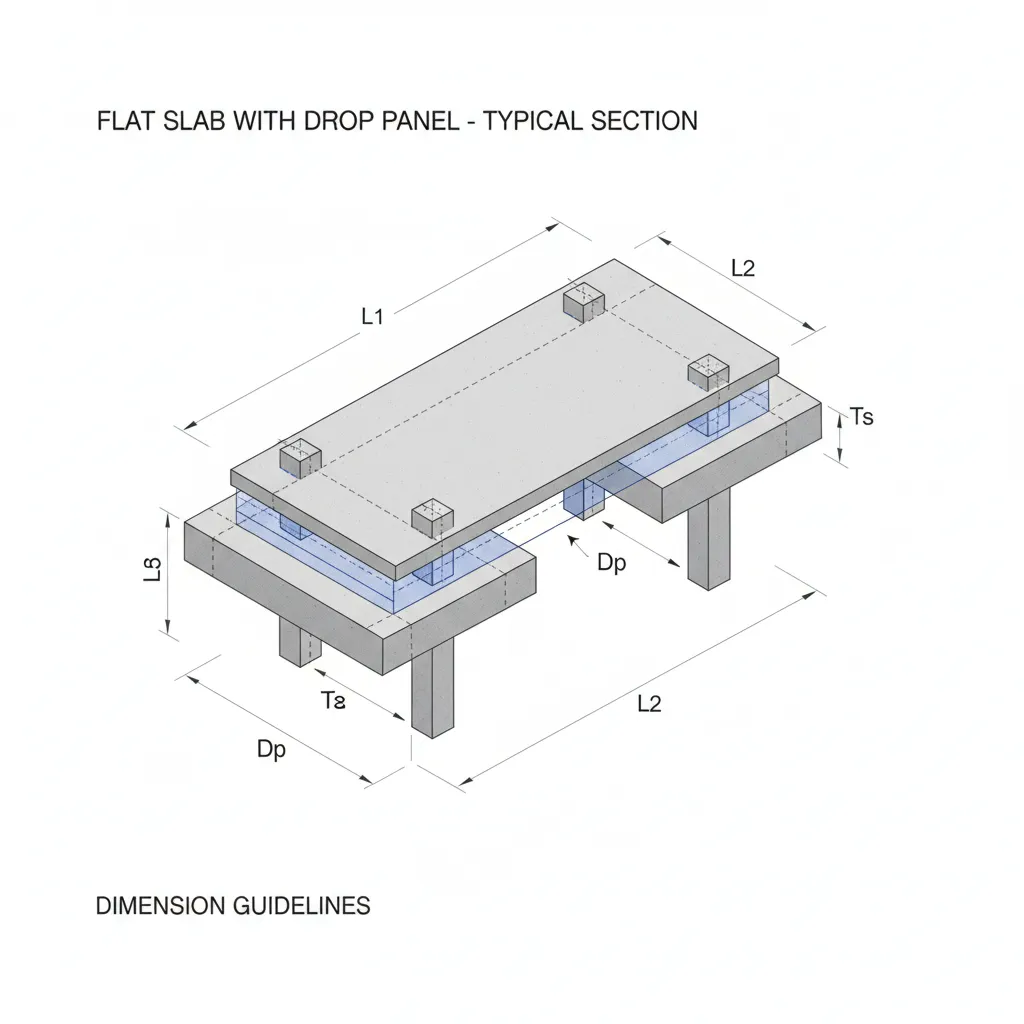

A useful rule many engineers follow is:

1. Drop thickness: 1.25–1.5 times slab thickness
2. Drop width: about one‑third of span length

These guidelines help ensure punching shear capacity without excessively increasing slab weight.

save pin

Common Modeling Errors Engineers Make

Key Insight: Most flat slab design mistakes come from incorrect modeling assumptions rather than software limitations.

Over the years, I’ve seen several recurring issues when reviewing structural models for flat slab buildings.

Frequent modeling mistakes include:

1. Ignoring drop panel stiffness in the model
2. Using incorrect column strip widths
3. Forgetting to assign slab offsets
4. Over‑refined meshes causing unrealistic stress concentrations
5. Relying solely on automated punching shear checks

One hidden issue is mesh density. Extremely fine meshes can produce artificially high localized stresses around columns, which may trigger unnecessary design changes.

Validating Software Results With Manual Checks

Key Insight: No structural software should be trusted without quick manual verification of critical values.

Experienced engineers always perform manual checks for:

1. Punching shear capacity
2. Column strip moments
3. Approximate slab deflection
4. Load distribution assumptions

Typical verification process:

1. Calculate approximate slab reactions manually.
2. Estimate punching shear capacity using code equations.
3. Compare manual values with software outputs.
4. Investigate large discrepancies.

Even in early design stages, using tools that allow quick spatial visualization—such as creating early structural floor layouts for coordination—can reduce conflicts between architectural layouts and structural grid placement.

Answer Box

The most effective workflow for designing flat slabs with drop panels combines ETABS for global structural modeling and SAFE for detailed slab analysis. Engineers must still verify punching shear, drop panel dimensions, and column strip behavior with manual calculations.

Final Summary

1. ETABS models the overall structural behavior of flat slab buildings.
2. SAFE is better suited for detailed slab design and punching shear checks.
3. Accurate drop panel geometry is essential for reliable results.
4. Mesh density and strip definitions strongly influence analysis output.
5. Manual verification remains necessary even with advanced software.

FAQ

1. What software is best for flat slab design?

ETABS and SAFE are the most widely used combination for flat slab design. ETABS handles building analysis, while SAFE performs detailed slab reinforcement and punching shear checks.

2. Can ETABS design flat slabs with drop panels?

Yes, ETABS can model flat slabs with drop panels and perform structural analysis, but detailed slab reinforcement design is usually completed in SAFE.

3. Why are drop panels used in flat slabs?

Drop panels increase slab thickness near columns, improving punching shear resistance and reducing bending moments.

4. Is SAFE required for flat slab analysis?

Not strictly required, but SAFE provides more reliable slab design tools and punching shear verification than most general structural programs.

5. How do engineers model drop panels in ETABS?

They define thicker slab sections and assign them around column regions representing the drop panel area.

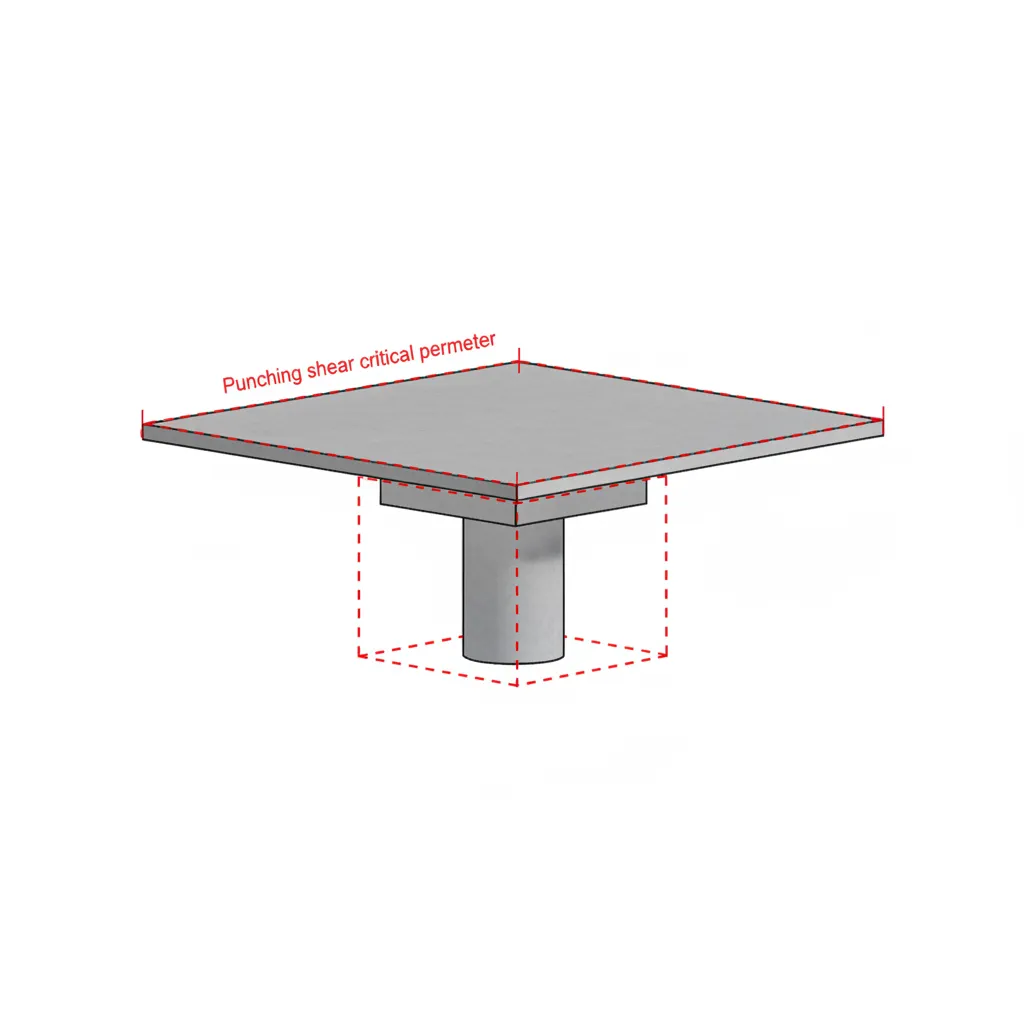

6. What is punching shear in flat slabs?

Punching shear occurs when concentrated column forces cause the slab to fail around the column perimeter.

7. How accurate is software for flat slab design?

Structural software is accurate when the model is correct. Errors usually come from incorrect geometry or assumptions.

8. What is the typical drop panel size?

Many designs use drop panels extending roughly one‑sixth of the slab span from the column centerline.
