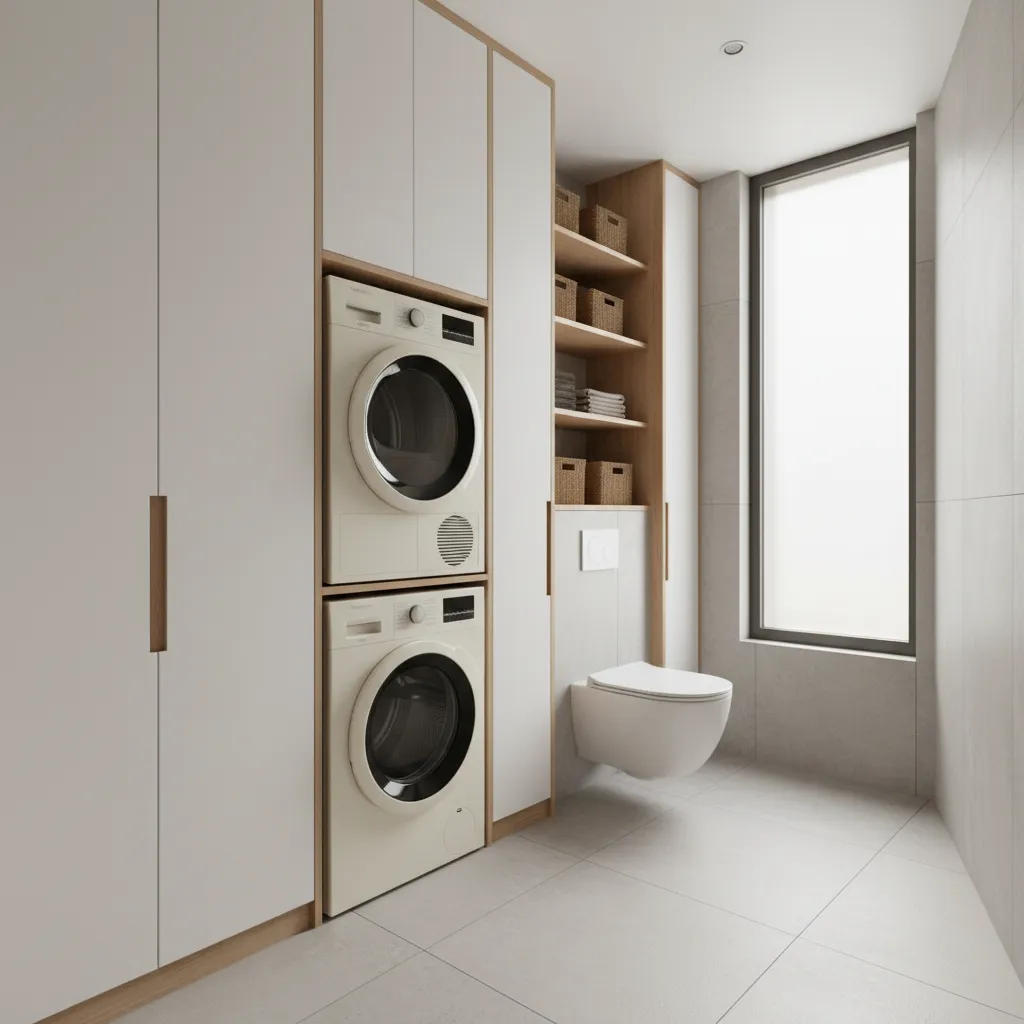

Space-Saving Layout Ideas for Laundry Rooms with a Toilet: Practical layout strategies to combine a laundry area and toilet without sacrificing function, hygiene, or storage.

Direct Answer

A small laundry room can successfully include a toilet if the layout prioritizes clearance, moisture control, and compact fixtures. The key is using wall-mounted or compact toilets, vertical storage, and thoughtful zoning so washing tasks and bathroom use don't interfere with each other.

Quick Takeaways

1. A combined laundry and toilet room works best with at least 30–36 inches of clearance in front of the toilet.
2. Wall-mounted or compact toilets free valuable floor space in small utility rooms.
3. Vertical storage and stacked appliances dramatically improve layout efficiency.
4. Proper ventilation is essential to prevent moisture buildup and odor problems.
5. Zoning the room keeps laundry work and toilet use hygienic and organized.

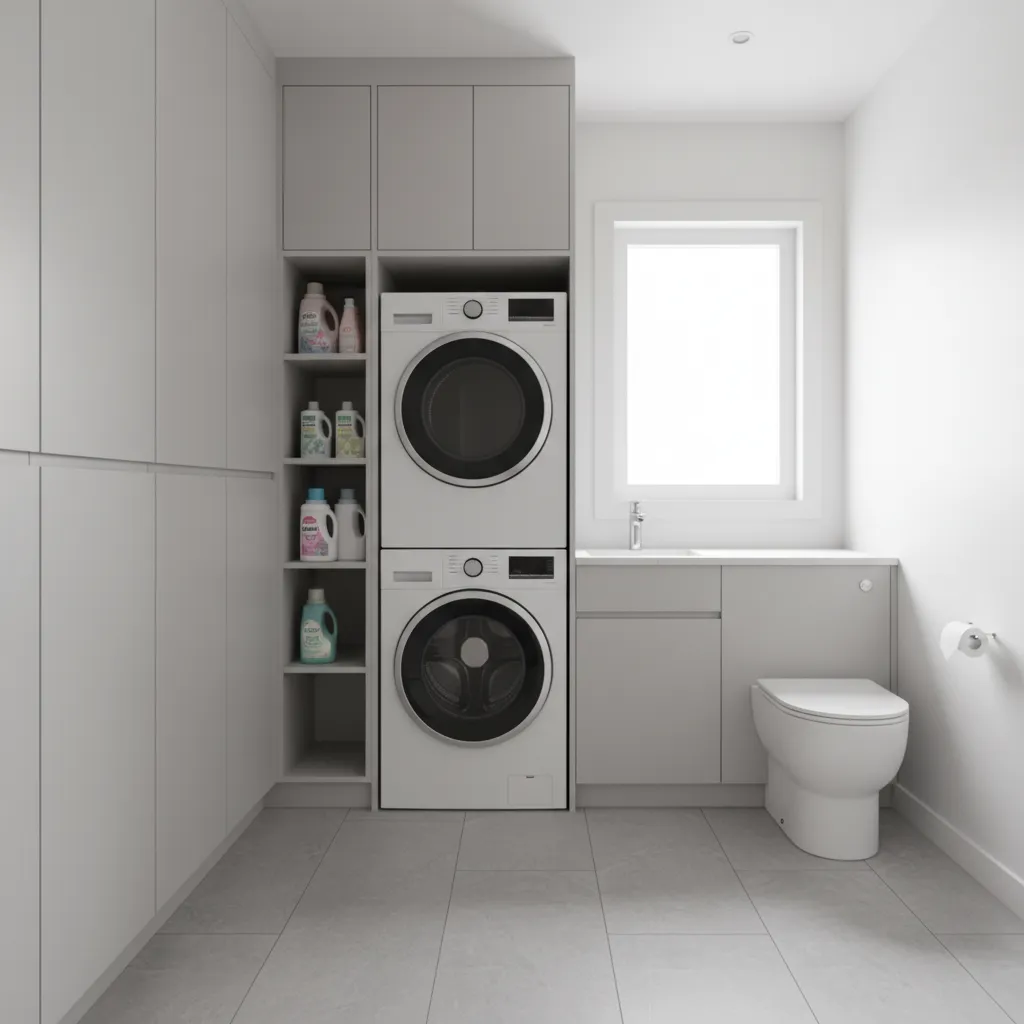

Introduction

Designing a small laundry room with toilet layout is one of those problems that seems simple on paper but gets tricky the moment you start measuring walls and plumbing lines.

After working on dozens of compact utility room remodels over the past decade, I've noticed the same pattern: homeowners underestimate how quickly a washer, dryer, sink, and toilet compete for space. Without careful planning, the room ends up cramped, poorly ventilated, and awkward to use.

The good news is that combining these functions is absolutely possible—even in surprisingly tight spaces. In fact, many modern homes intentionally design a laundry‑bathroom combo near mudrooms or garages.

If you're still experimenting with layouts, using a visual planning tool can help reveal space conflicts early. I often recommend starting with a simple digital mock‑up like this interactive room layout planning example for tight utility spacesbefore committing to plumbing changes.

In this guide, I'll walk through the layout decisions that matter most: clearance rules, compact toilet options, storage tricks, and ventilation strategies that keep the room comfortable and hygienic.

save pin

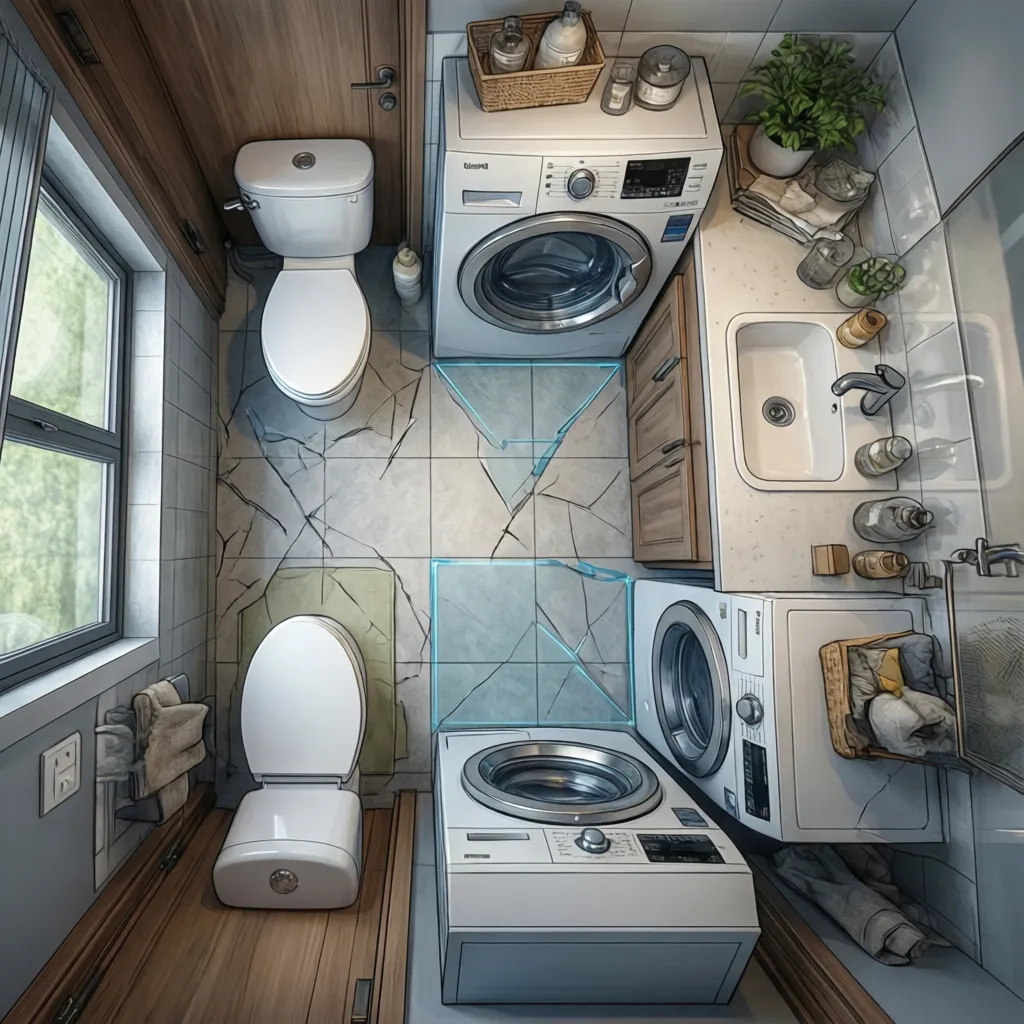

Planning a Combined Laundry and Toilet Layout

Key Insight: The most successful layouts separate "wet work" (laundry) from "personal use" (toilet) through zoning—even when the room is small.

In many projects I've reviewed, the biggest mistake isn't size—it's layout logic. People try to squeeze fixtures randomly instead of creating zones.

A functional layout typically organizes the room into three zones:

1. Laundry zone: washer, dryer, folding surface
2. Sanitary zone: toilet and small sink
3. Storage zone: cabinets or shelving for detergents and towels

Common layout strategies:

1. Stacked washer/dryer beside the toilet wall
2. Washer and dryer under a continuous countertop
3. Toilet tucked behind a partial partition
4. Corner toilet installation

In one 48‑square‑foot project I worked on in Los Angeles, rotating the washer and dryer 90 degrees created enough space to install a toilet without expanding the room.

This kind of experimentation is much easier when visualized first using a 3D floor layout visualizer for compact rooms, which helps spot clearance problems before construction starts.

save pin

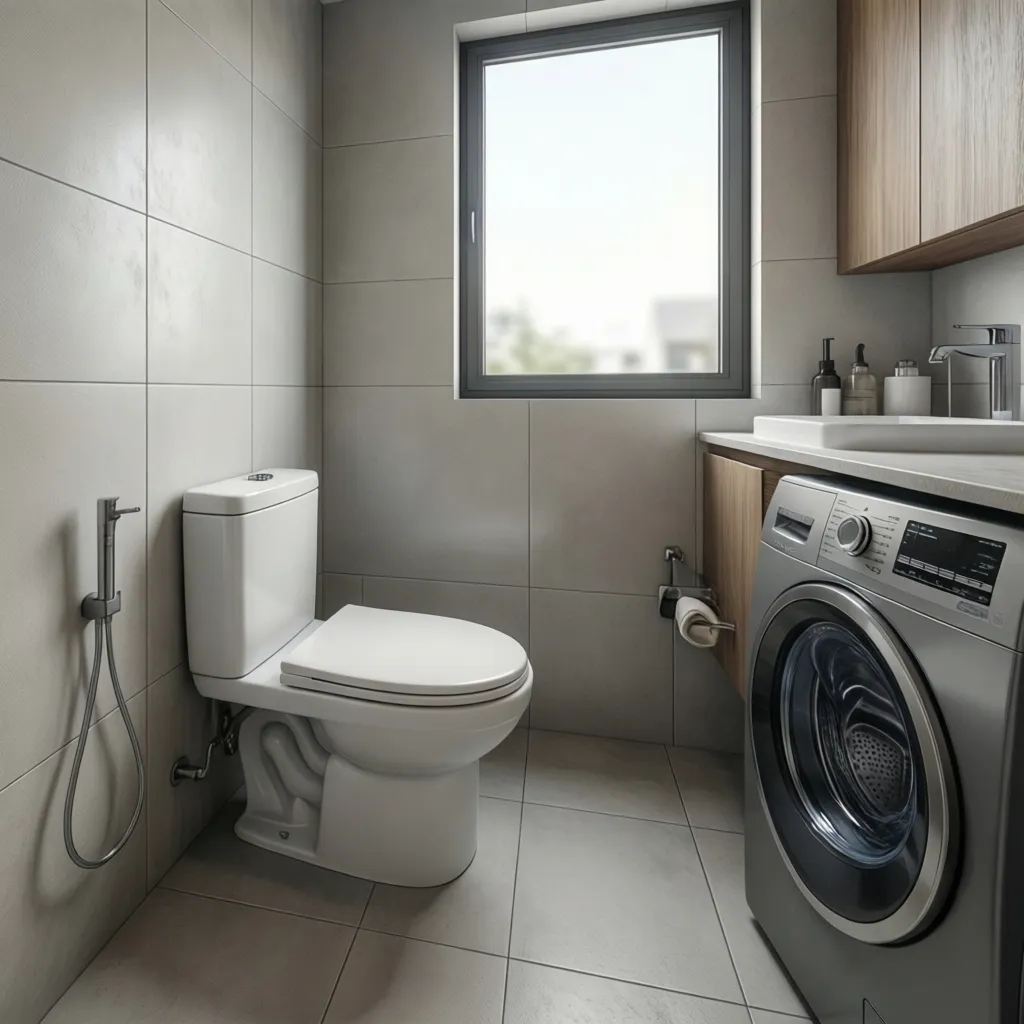

Minimum Space Requirements for a Toilet Installation

Key Insight: Even in a small laundry‑bathroom combo, toilet clearance rules cannot be ignored.

Building codes vary slightly by region, but the widely accepted minimums come from International Residential Code recommendations.

Typical toilet clearance guidelines:

1. Width: 30 inches minimum
2. Front clearance: 21 inches minimum (24–30 inches is more comfortable)
3. Side clearance: 15 inches from centerline to each wall

However, in real homes I usually aim for:

1. 32–36 inches front clearance
2. 36 inches total width

Why? Because laundry appliances already make the space feel tight. A slightly larger clearance dramatically improves comfort.

Hidden issue many homeowners miss: appliance doors. Washer or dryer doors can block the toilet area if the layout isn't planned carefully.

save pin

Best Compact Toilets for Laundry Rooms

Key Insight: Choosing the right toilet can free up 6–10 inches of space, which is huge in a small utility room.

In tight layouts, the toilet model matters more than people expect.

Three space‑saving options I frequently recommend:

1. Short‑projection toilets (24–26 inches depth)
2. Wall‑mounted toilets with concealed tanks
3. Corner toilets designed for diagonal installation

Comparison:

1. Standard toilet depth: ~28–30 inches
2. Compact toilet depth: ~24–26 inches
3. Wall‑mounted projection: ~20–22 inches

Wall-mounted toilets are my favorite for small laundry rooms because they:

1. Free floor space
2. Make cleaning easier
3. Create a visually lighter room

The trade‑off is installation complexity since the tank sits inside the wall.

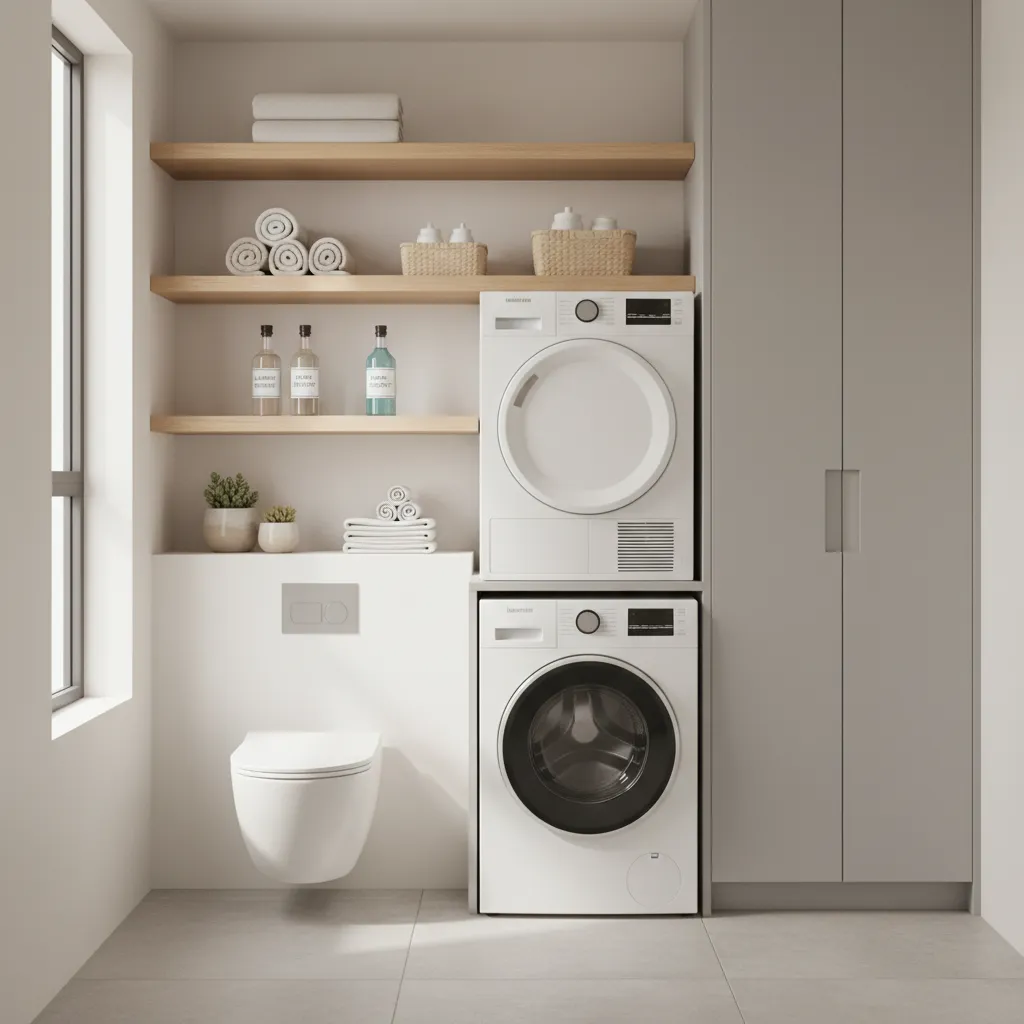

Smart Storage Solutions Around a Toilet Area

Key Insight: Vertical storage is the only reliable way to maintain order in a combined laundry and toilet space.

Detergent bottles, toilet paper, cleaning supplies, and towels quickly overwhelm small rooms.

The best storage strategies include:

1. Over‑toilet shelving for towels or paper products
2. Tall cabinets between washer and wall
3. Floating shelves above appliances
4. Narrow pull‑out cabinets for detergents

A trick I use often: install a shallow 8‑inch cabinet above the toilet. It's deep enough for supplies but doesn't crowd the room.

If you're exploring layouts that combine storage, plumbing, and appliances, this compact bathroom and utility room layout planning guideshows several space‑efficient configurations.

save pin

Ventilation and Moisture Control Strategies

Key Insight: Laundry machines and toilets together double the moisture load, so ventilation must be stronger than in a typical bathroom.

This is one of the most overlooked issues in laundry‑bathroom combos.

Common problems include:

1. Condensation on walls
2. Mold behind appliances
3. Lingering humidity

Effective solutions:

1. Install a high‑capacity exhaust fan (80–110 CFM)
2. Use moisture‑resistant drywall or cement board
3. Ensure the dryer vents outside, not into the room
4. Add under‑door airflow gaps

In several renovation projects I've seen, simply upgrading the exhaust fan solved persistent humidity problems.

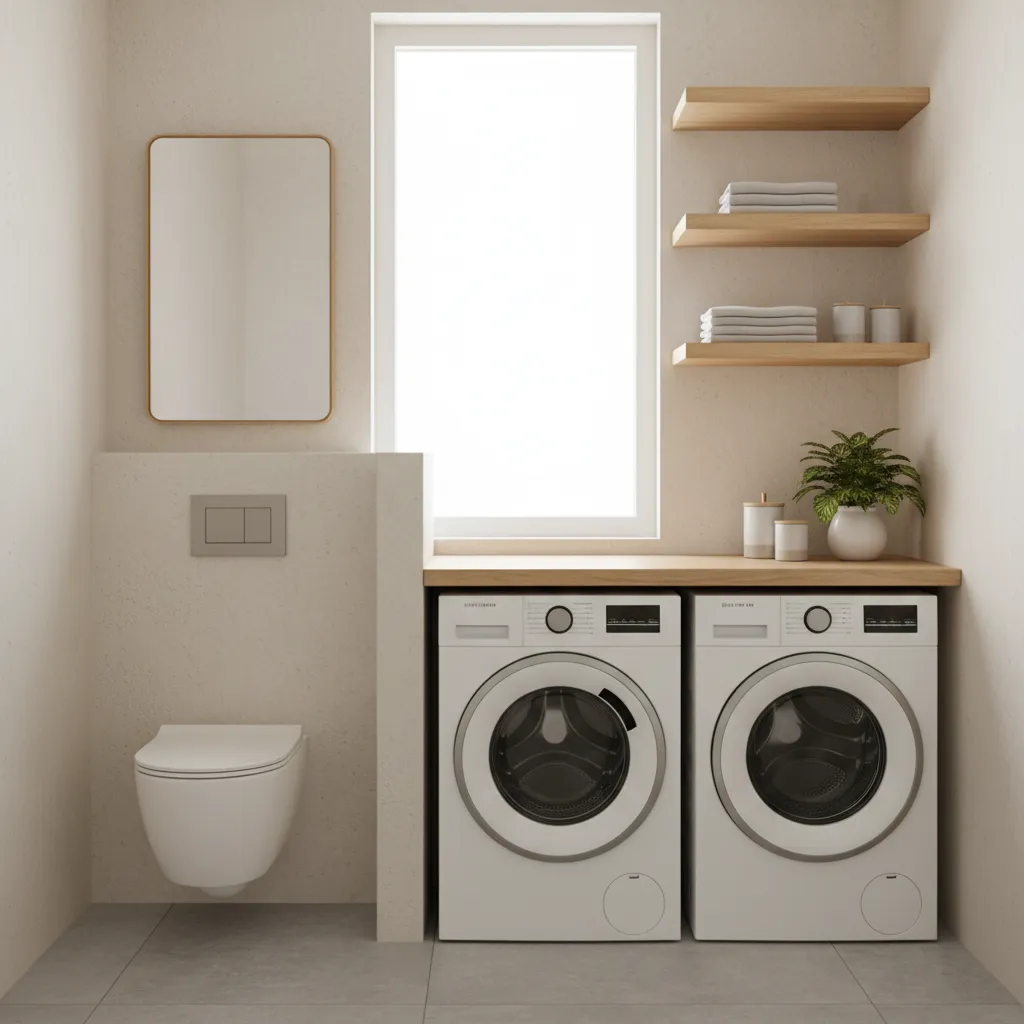

Design Tips to Keep the Room Functional and Clean

Key Insight: The best designs visually simplify the room so the toilet area doesn't dominate the laundry space.

Because laundry rooms already contain bulky appliances, visual clutter can make the room feel chaotic.

Design techniques that work well:

1. Use light, reflective colors
2. Install continuous countertops over appliances
3. Hide plumbing with cabinetry
4. Add a partial divider wall near the toilet

A subtle divider wall is particularly effective. It gives privacy without shrinking the room.

save pin

Answer Box

The most effective small laundry room with toilet layout combines compact fixtures, smart zoning, and strong ventilation. Prioritize toilet clearance, choose short‑projection fixtures, and rely on vertical storage to keep the space organized.

Final Summary

1. A toilet can fit in a laundry room with careful planning and clearance management.
2. Compact or wall‑mounted toilets save significant floor space.
3. Zoning separates laundry tasks from sanitary use.
4. Strong ventilation prevents moisture and odor problems.
5. Vertical storage keeps small rooms functional.

FAQ

Can you legally add a toilet to a laundry room?

Yes, but local plumbing and building codes must be followed. Most jurisdictions require proper drainage, ventilation, and clearance around the toilet.

What is the minimum space for a toilet in a laundry room?

Typically 30 inches width and 21 inches front clearance, though 36 inches is more comfortable in practice.

What is the best compact toilet for a laundry room?

Wall‑mounted toilets and short‑projection models are ideal because they reduce depth and free up floor space.

How do you hide a toilet in a laundry room?

A partial wall, sliding panel, or cabinet partition can visually separate the toilet without enclosing the space.

Is a laundry room bathroom combo practical?

Yes. Many modern homes use this layout to maximize utility spaces, especially near garages or mudrooms.

How do you prevent odors in a laundry room with toilet layout?

Install a strong exhaust fan, ensure proper plumbing venting, and maintain airflow around appliances.

What size room is needed for a laundry room bathroom combo?

Many functional layouts work within 40–60 square feet depending on appliance configuration.

Can stacked laundry units help fit a toilet?

Absolutely. Stacking appliances often frees 8–12 square feet of floor area for toilet installation.

References

International Residential Code (IRC) Guidelines for Bathroom Fixture Clearances

National Kitchen & Bath Association Planning Guidelines
