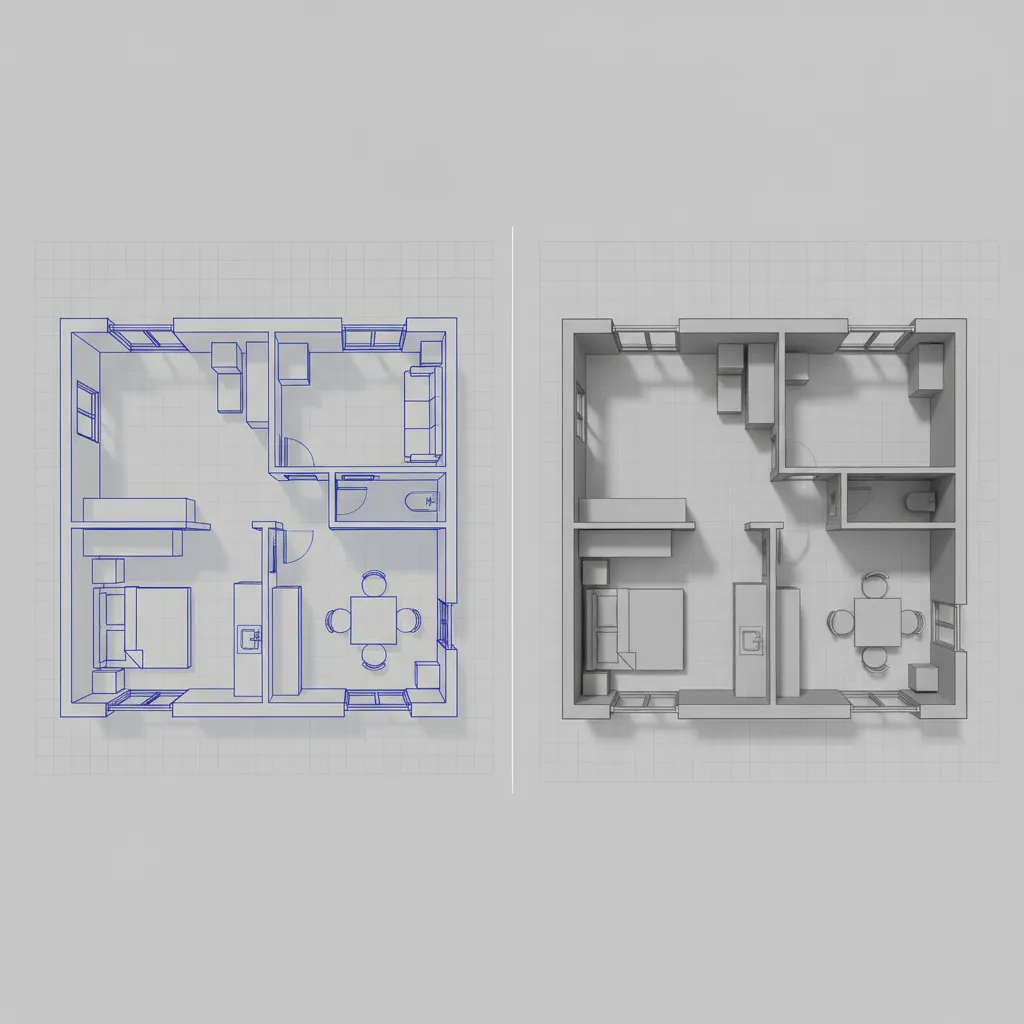

Spline vs Box Modeling for Floor Plans in 3ds Max: A practical comparison to help you choose the right architectural modeling workflow for accurate and editable 3ds Max floor plans

Direct Answer

For most architectural floor plans in 3ds Max, spline modeling is typically the better starting method because it delivers cleaner wall layouts, faster adjustments, and more accurate 2D tracing. Box modeling becomes useful later when creating structural details, complex geometry, or custom architectural elements.

In professional visualization workflows, many artists actually combine both: splines to define the floor plan structure and box modeling to refine architectural features.

Quick Takeaways

1. Spline modeling is faster for tracing architectural floor plans.
2. Box modeling offers stronger control for detailed structural geometry.
3. Most professional workflows combine both methods rather than choosing only one.
4. Spline walls remain easier to edit when clients request layout changes.
5. Box modeling becomes valuable during advanced architectural detailing.

Introduction

When beginners start architectural visualization in 3ds Max, one question appears surprisingly often: should you build a floor plan using spline modeling or box modeling?

After more than a decade working on residential visualization projects—from small apartment interiors to large multi-unit developments—I’ve seen both methods used successfully. But I’ve also seen artists lose hours rebuilding geometry simply because they started with the wrong workflow.

The truth is that spline vs box modeling for 3ds Max floor plan creation isn’t really about which technique is "better." It’s about which method gives you the most control at different stages of an architectural project.

For example, when my team begins a new residential visualization, we almost always start with splines because they allow us to trace architectural drawings quickly and maintain clean wall paths. Once the structure is established, we transition into mesh editing or box modeling for doors, trims, and structural elements.

If you're still exploring layout planning workflows, it also helps to understand how designers structure spatial planning before modeling. You can see a practical example in this walkthrough showing how professionals create accurate floor plan layouts from scratch.

In this guide, I’ll break down how spline and box modeling actually perform in real architectural workflows—where each shines, where each fails, and the approach most studios quietly rely on today.

save pin

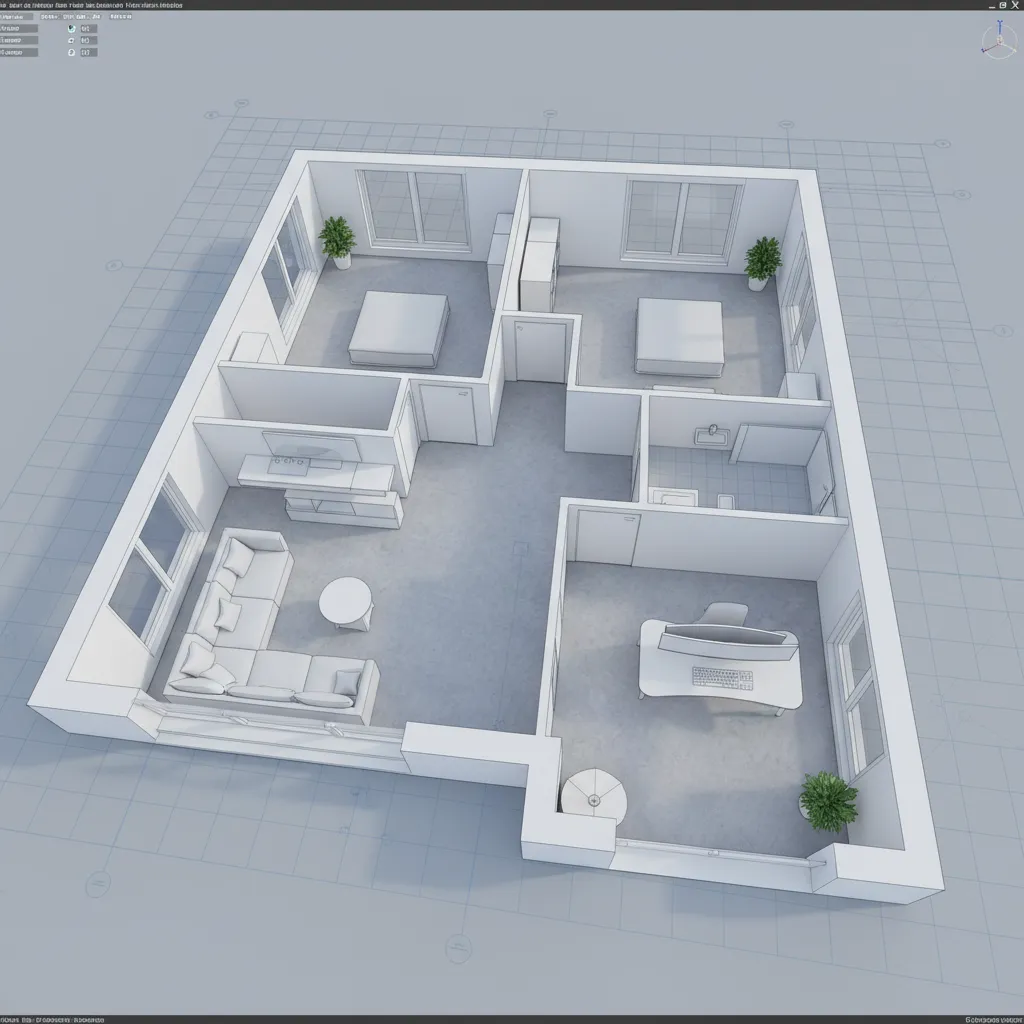

Understanding Spline-Based Floor Plan Modeling

Key Insight: Spline modeling is the fastest and cleanest way to build the structural outline of an architectural floor plan in 3ds Max.

Spline modeling uses 2D lines and shapes to trace the wall layout of a building. Once the outline is finished, modifiers such as Extrude or Sweep convert those shapes into 3D walls.

This method mirrors how architects actually draw plans, which is why it tends to produce more predictable results early in a project.

Typical spline workflow:

1. Import CAD floor plan or reference drawing
2. Trace walls using Line or Rectangle splines
3. Adjust vertices for accurate wall corners
4. Apply Extrude modifier to generate wall height
5. Add thickness using Outline or Shell modifier

Why professionals prefer splines for layout:

1. Easy to edit wall positions
2. Cleaner topology for long walls
3. Faster to adapt when clients revise layouts
4. Works well with CAD references

One overlooked advantage is how spline-based walls remain editable. I’ve had projects where a developer changed three apartment layouts halfway through production. With spline walls, we simply adjusted vertices and regenerated geometry in minutes.

Try doing that with fully box-modeled walls and you’ll quickly understand why many studios avoid starting with mesh geometry.

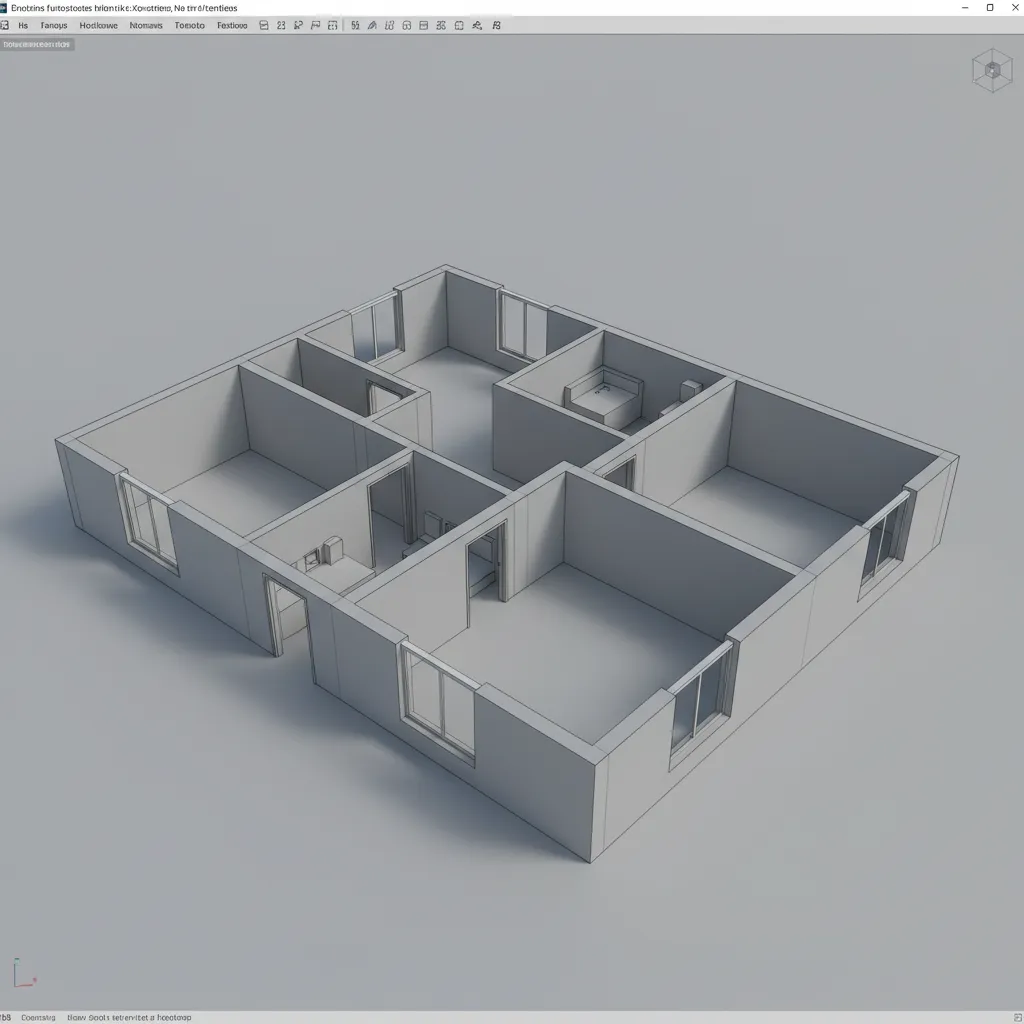

Using Box Modeling to Build Floor Layouts

Key Insight: Box modeling offers more geometric control but becomes inefficient when building entire architectural layouts from scratch.

Box modeling involves creating primitive shapes—usually boxes—and then editing them using polygon tools like extrude, inset, and edge loops.

In architectural modeling, this approach typically looks like:

1. Create a box for each wall section
2. Adjust dimensions to match architectural drawings
3. Use edge loops to define corners
4. Attach walls into a unified mesh

The advantage is precision over structural geometry.

For example, box modeling works well for:

1. Custom wall niches
2. Structural beams
3. Columns and pillars
4. Complex wall offsets
5. Architectural facades

But when artists attempt to build an entire floor plan this way, they often run into hidden problems:

1. More vertices than necessary
2. Difficult alignment across long walls
3. Messy topology when layouts change

In production environments, that extra complexity slows down both editing and rendering preparation.

save pin

Accuracy and Editing Flexibility Comparison

Key Insight: Spline modeling wins for layout accuracy and late-stage editing, which is why it dominates early architectural workflows.

Let’s compare the two approaches in areas that actually affect project efficiency.

Layout accuracy

1. Spline modeling follows 2D architectural drawings directly.
2. Box modeling requires manual alignment of multiple meshes.

Editing speed

1. Spline vertices can move entire wall systems instantly.
2. Box models require adjusting multiple edges and faces.

Topology cleanliness

1. Spline extrusions produce consistent wall thickness.
2. Box modeling often generates unnecessary edge loops.

A good way to visualize how clean layout structures should look is by examining a professional 3D floor plan visualization workflow used in real projects, where walls remain logically organized from the start.

From experience, messy geometry rarely causes problems during modeling—but it becomes painful during lighting, rendering, or exporting to game engines.

Performance and Scene Management Differences

Key Insight: Spline-based wall systems typically produce lighter scenes and easier layer management in large architectural projects.

In small interior scenes, the difference between spline and box modeling performance is minimal. But once you start working on multi-unit residential layouts or commercial spaces, scene organization becomes critical.

Scene management differences:

1. Spline workflows keep walls procedural through modifiers.
2. Box modeling creates heavier editable meshes earlier.
3. Spline layers remain easy to organize by floor level.

Another overlooked factor is revision speed. Developers and architects frequently send updated floor plans during production.

If the model was built entirely with boxes, revisions often mean deleting and rebuilding sections of the mesh.

With spline walls, you simply adjust the line structure and regenerate the geometry.

save pin

When Beginners Should Choose Each Method

Key Insight: Beginners should start with spline modeling for architectural layouts and introduce box modeling only when structural complexity requires it.

Many tutorials accidentally confuse beginners by presenting box modeling first because polygon tools look more "3D." In architectural modeling, however, thinking in 2D structure first usually leads to better results.

Choose spline modeling when:

1. Building an apartment floor plan
2. Tracing CAD architectural drawings
3. Designing room layouts
4. Creating wall systems

Choose box modeling when:

1. Adding architectural details
2. Creating custom structural features
3. Modeling furniture or fixtures
4. Building irregular shapes

A practical workflow many designers follow today begins with layout planning tools that help visualize spatial flow before modeling begins. For example, designers often explore room relationships using an interactive room planning workflow for interior layouts before translating the structure into 3ds Max.

Recommended Workflow for Architectural Projects

Key Insight: The most efficient architectural workflow combines spline layout modeling with selective box modeling for detail refinement.

After building hundreds of residential visualization scenes, this hybrid approach consistently produces the cleanest results.

Recommended professional workflow:

1. Import CAD plan or reference drawing
2. Trace walls using spline lines
3. Extrude splines to create base walls
4. Convert key elements to editable poly
5. Use box modeling for detailed features
6. Add doors, trims, and openings

This structure keeps the scene flexible early in production while still allowing precise geometry later in the process.

save pin

Answer Box

Spline modeling is usually the best starting method for creating floor plans in 3ds Max because it mirrors architectural drawing workflows and allows fast layout changes. Box modeling becomes more useful later when adding detailed architectural geometry or custom structures.

Final Summary

1. Spline modeling is the fastest method for creating architectural floor plan layouts.
2. Box modeling works better for structural details and custom geometry.
3. Most professional workflows combine both techniques.
4. Spline walls remain easier to edit when layouts change.
5. Cleaner geometry early saves time during rendering and revisions.

FAQ

Is spline modeling better for 3ds Max floor plans?

Yes. Spline modeling usually provides faster layout creation and easier editing, making it ideal for most architectural floor plans in 3ds Max.

Can you build an entire floor plan using box modeling?

Yes, but it is generally slower and harder to edit when architectural layouts change.

What is the best way to model walls in 3ds Max?

Most artists trace walls with splines and apply an Extrude modifier to generate accurate wall thickness and height.

Do professionals use spline or box modeling more?

Professionals typically start with splines for layout and use box modeling for architectural details.

Is spline vs box modeling important for architectural visualization?

Yes. Choosing the right method affects editing speed, geometry cleanliness, and project flexibility.

Does spline modeling improve scene performance?

Usually yes. Procedural modifiers and cleaner topology can make scenes easier to manage.

Which modeling method is easier for beginners?

Spline modeling is generally easier for beginners working on floor plans because it mirrors architectural drawings.

Should I convert spline walls to editable poly later?

Yes. Converting selected elements to editable poly allows detailed modeling while keeping the base layout flexible.
