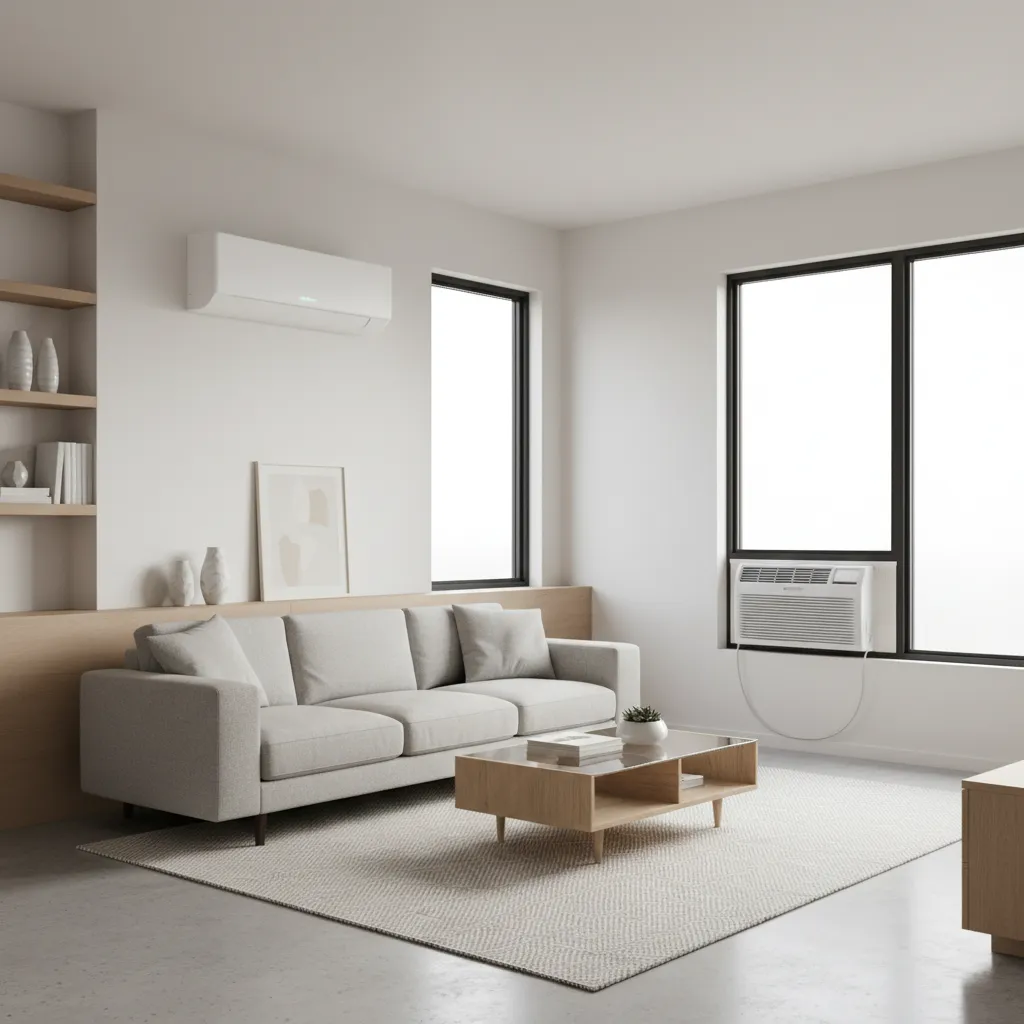

Split AC vs Window AC for an 800 Sq Ft House Which Is Better: Understand cooling power, energy use, cost, and layout impact before choosing the right AC for an 800 sq ft home

Direct Answer

For most 800 sq ft homes, a split AC is usually the better option because it cools larger areas more evenly and runs quieter. A window AC can still work well if the home is compact, has fewer rooms, and installation simplicity or lower upfront cost is the priority.

The best choice ultimately depends on layout, insulation, number of rooms, and budget rather than square footage alone.

Quick Takeaways

1. Split AC systems cool larger or multi-room layouts more evenly.
2. Window AC units are cheaper upfront and easier to install.
3. Energy efficiency often favors split AC models for long-term use.
4. Home layout matters more than square footage alone.
5. Improper placement is the most common cause of weak cooling.

Introduction

When homeowners compare split AC vs window AC for an 800 sq ft house, they usually focus on price or brand. But after working on interior layouts for more than a decade, I’ve learned that cooling performance is heavily influenced by spatial design.

Two homes with the same square footage can require completely different cooling setups depending on ceiling height, room separation, and airflow paths. I’ve seen small apartments cooled perfectly by a single window unit, while similarly sized homes struggled even with oversized AC systems because of poor layout.

Before choosing an air conditioner, it helps to visualize airflow and furniture placement. Many homeowners use simple planning tools to map airflow and room divisions before installation, like this guide on visualizing room layouts before planning airflow and appliance placement.

In this article, I’ll break down the real differences between split AC and window AC systems for an 800 sq ft home, including cooling power, energy costs, installation challenges, and the layout mistakes that often get overlooked.

save pin

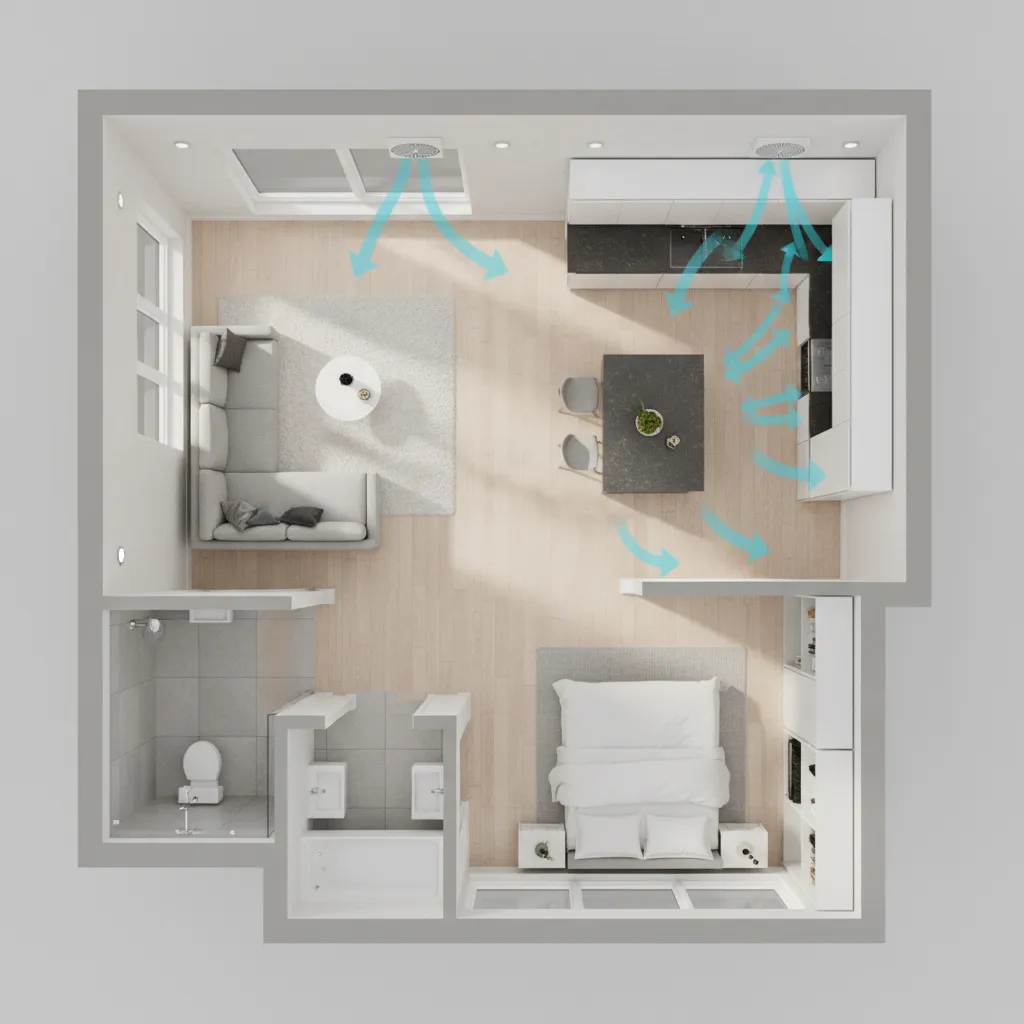

Cooling Requirements for an 800 Sq Ft Home

Key Insight: Most 800 sq ft homes need between 1.5 and 2.5 tons of total cooling capacity depending on layout and insulation.

Square footage alone doesn't determine cooling needs. In my design projects, I typically evaluate three factors before recommending an AC system.

1. Room divisions and doors
2. Ceiling height and ventilation
3. Sun exposure and insulation

For example:

1. Open-plan apartments: often cooled by one large unit.
2. Multi-room homes: usually require multiple units or a split system.
3. Top-floor homes: need higher capacity due to heat gain.

According to U.S. Department of Energy guidance, cooling loads depend heavily on building design and insulation rather than size alone.

This is why an 800 sq ft open studio might run perfectly on a single 18,000 BTU system, while a three-room layout may require two separate indoor units.

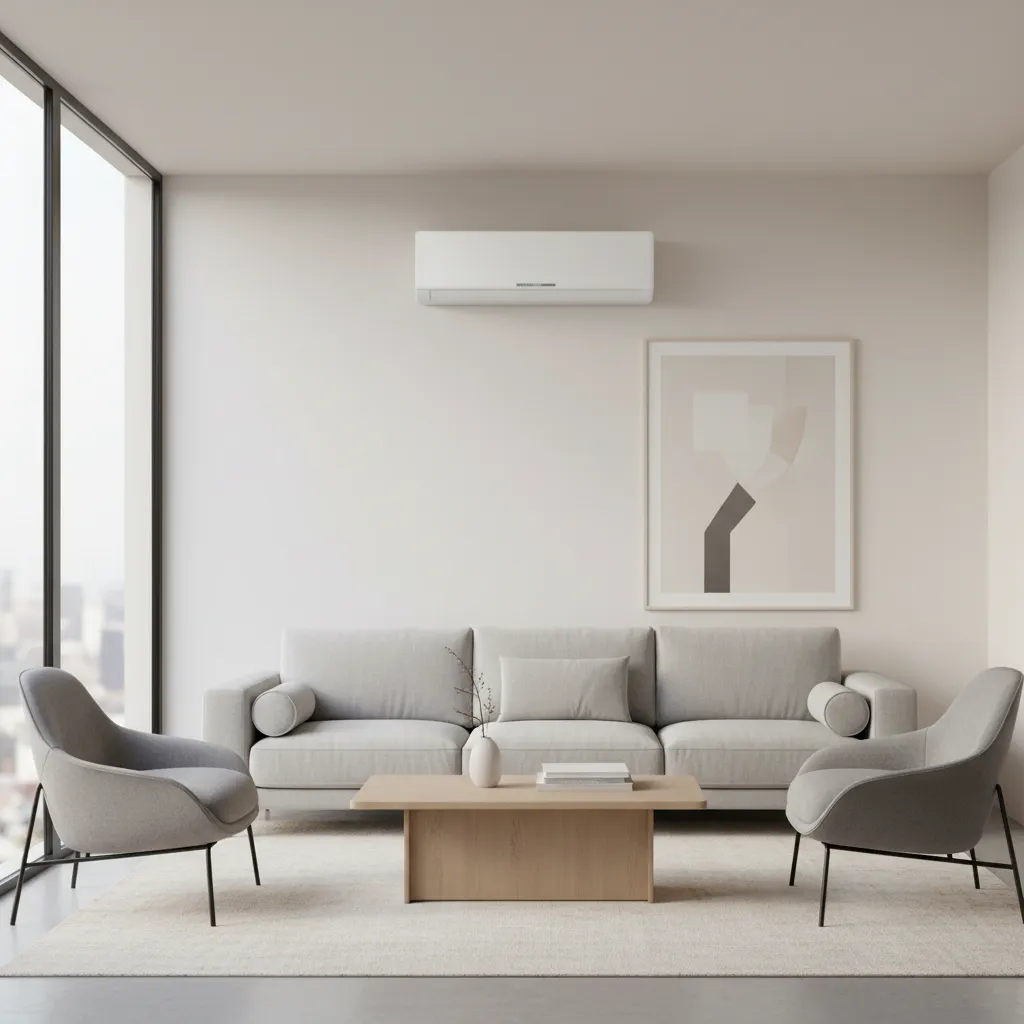

How Split AC Systems Work

Key Insight: Split AC systems separate the compressor and indoor unit, which improves efficiency and reduces indoor noise.

A split AC consists of two main components:

1. Indoor air handling unit
2. Outdoor compressor

The indoor unit circulates cool air while the compressor sits outside, removing heat from the house.

Advantages of split AC systems include:

1. Quieter operation
2. Better cooling coverage
3. Higher energy efficiency ratings
4. Ability to install multiple indoor units

In medium-sized homes around 800 sq ft, designers often install either:

1. One large split AC in an open living area
2. Two smaller units in separate rooms

Modern inverter split systems also adjust compressor speed, which helps reduce electricity consumption over time.

How Window AC Units Work

Key Insight: Window AC units combine all components into a single box, making them simpler but less flexible.

Window air conditioners install directly in a window or wall opening. The unit contains the evaporator, compressor, and condenser in one compact housing.

Their main benefits are simplicity and affordability.

1. Easy installation
2. Lower purchase price
3. Minimal structural changes
4. Portable replacement if needed

However, window units have limitations:

1. More noise inside the room
2. Limited cooling coverage
3. Reduced window space
4. Less efficient for multi-room layouts

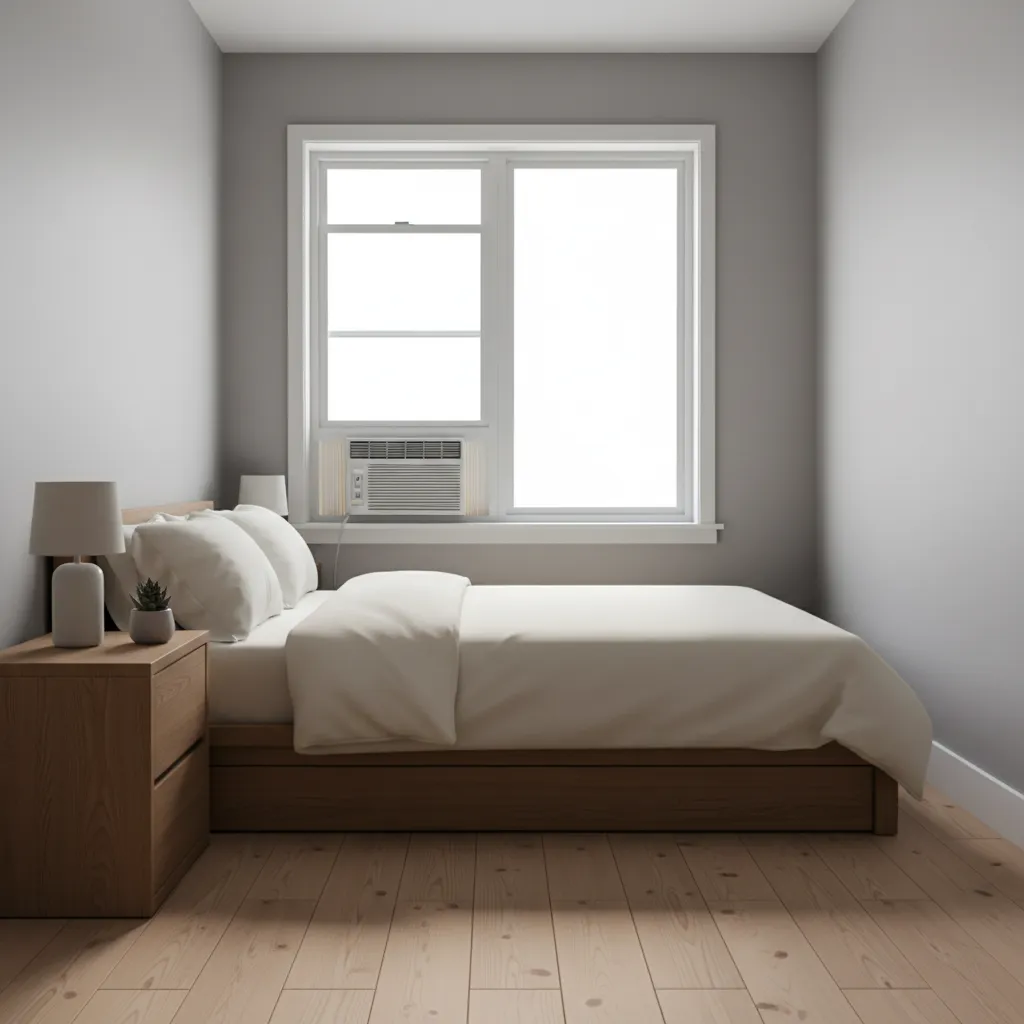

From experience, window AC works best in:

1. Studio apartments
2. Single-bedroom homes
3. Compact floor plans

save pin

Energy Efficiency Comparison

Key Insight: Split AC systems are typically more energy efficient for cooling an entire 800 sq ft home.

Energy efficiency depends on the system's SEER rating and compressor technology.

Typical comparison:

1. Split AC: SEER 16–25
2. Window AC: SEER 10–15

Higher SEER ratings mean lower electricity usage for the same cooling output.

Another major difference is inverter technology. Most modern split systems include inverter compressors that adjust power gradually instead of switching fully on and off.

This reduces:

1. Energy spikes
2. Temperature swings
3. Compressor wear

Energy Star guidance also notes that inverter systems can significantly reduce electricity consumption compared to older fixed-speed models.

Installation and Maintenance Differences

Key Insight: Window AC units install faster, but split AC systems offer cleaner long-term integration with the home.

Installation complexity often surprises homeowners.

Window AC installation typically involves:

1. Window or wall bracket mounting
2. Electrical connection
3. Basic sealing

Split AC installation requires:

1. Mounting the indoor unit
2. Installing outdoor compressor
3. Running refrigerant pipes
4. Professional vacuum and charging

From a design standpoint, planning installation locations early helps avoid awkward pipe routing. Many homeowners visualize equipment placement while planning layouts using tools similar to mapping furniture and airflow paths on a simple 3D floor layout.

Maintenance comparison:

1. Window AC: easier DIY cleaning
2. Split AC: requires periodic professional servicing

save pin

Cost Comparison for Small Homes

Key Insight: Window AC is cheaper upfront, but split AC often costs less over several years.

Typical cost differences for an 800 sq ft home:

1. Window AC purchase: $200–$600
2. Split AC purchase: $800–$2,500

Installation costs:

1. Window AC: minimal or DIY
2. Split AC: $300–$1,000 depending on piping length

However, hidden long-term costs matter.

Window units often:

1. Run longer to cool multiple rooms
2. Lose efficiency with age
3. Require multiple units

In many projects I’ve reviewed, homeowners eventually upgrade to split systems after realizing multiple window units increase electricity bills.

Which Option Is Best for Different House Layouts

Key Insight: Layout is the deciding factor when choosing between split AC and window AC for an 800 sq ft house.

Here is a practical guideline I use when advising clients.

Window AC works best for:

1. Studio apartments
2. Open floor plans
3. Single large living areas

Split AC works best for:

1. Homes with multiple bedrooms
2. L-shaped layouts
3. Spaces with limited window openings

If you're unsure how airflow will move through your home, it helps to preview cooling zones visually. Some homeowners experiment with layout scenarios using tools designed for simulating furniture layouts and airflow-friendly room arrangements.

Answer Box

For most 800 sq ft homes, split AC systems provide better cooling coverage, energy efficiency, and quieter operation. Window AC units remain a practical option for compact layouts or when installation simplicity and lower upfront cost are the main priorities.

Final Summary

1. Split AC is usually better for multi-room 800 sq ft homes.
2. Window AC works well in compact open layouts.
3. Energy efficiency generally favors split systems.
4. Layout and insulation impact cooling more than size.
5. Upfront cost differs, but long-term efficiency matters.

FAQ

Is split AC better than window AC for an 800 sq ft house?

In most cases yes. Split AC systems distribute cooling more evenly and operate more efficiently for homes with multiple rooms.

How many AC units are needed for an 800 sq ft house?

Usually one 1.5–2 ton unit for open layouts or two smaller units for homes with separate bedrooms.

Which AC is cheaper window or split?

Window AC units are cheaper upfront, but split AC systems often reduce long-term electricity costs.

Can a window AC cool an entire 800 sq ft home?

It can in an open-plan layout, but it may struggle if the home has multiple enclosed rooms.

What size AC is best for an 800 sq ft house?

Most homes need around 18,000–24,000 BTU total cooling capacity depending on insulation and layout.

Is window AC more energy efficient?

No. Modern split AC systems typically have higher efficiency ratings and inverter technology.

What is the best AC type for 800 sq ft home layouts?

The best AC type for 800 sq ft home layouts with multiple rooms is usually a split AC system.

Does ceiling height affect AC choice?

Yes. Higher ceilings increase cooling load and may require higher capacity units.

References

U.S. Department of Energy – Air Conditioning Guidelines

ENERGY STAR Cooling Efficiency Standards
