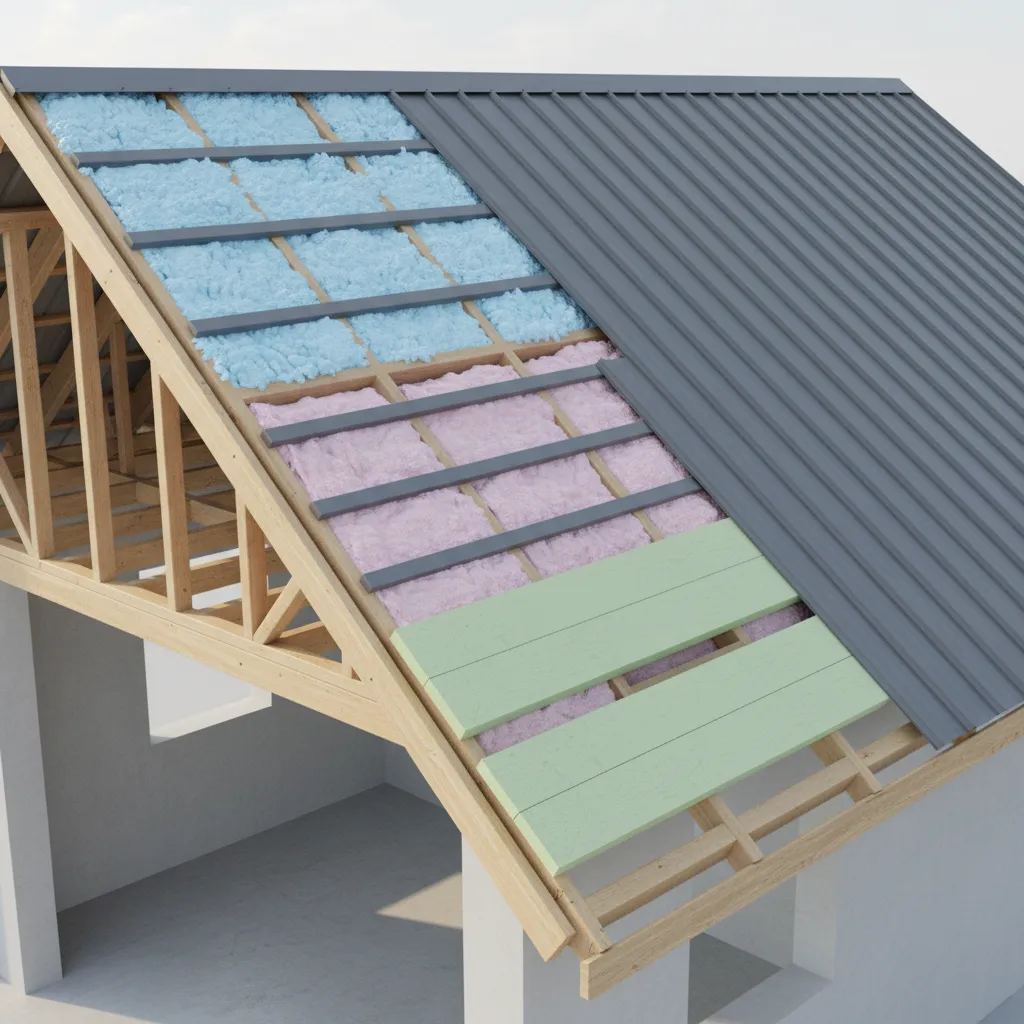

Spray Foam vs Fiberglass vs Rigid Board for Metal Roof Insulation: A practical comparison to help homeowners choose the best insulation for a metal roof from the inside

Direct Answer

The best insulation for a metal roof from inside depends on your climate, budget, and moisture control needs. Spray foam offers the highest air sealing and condensation protection, fiberglass is the lowest cost but requires careful vapor management, and rigid foam board provides strong thermal performance with predictable installation.

In most professional retrofit projects, closed‑cell spray foam performs best for condensation control, while rigid foam board often delivers the best balance of cost and insulation value.

Quick Takeaways

1. Closed‑cell spray foam offers the best air sealing and moisture protection for metal roofs.
2. Fiberglass is the cheapest option but the easiest to install incorrectly.
3. Rigid foam board provides strong insulation with predictable performance.
4. Condensation control matters as much as R‑value in metal roofing systems.
5. Climate zone should heavily influence which insulation material you choose.

Introduction

Choosing the right metal roof insulation is one of the decisions that most homeowners underestimate. After working on more than a hundred renovation and attic redesign projects, I’ve noticed the same pattern again and again: people focus almost entirely on insulation thickness and ignore moisture behavior.

That’s risky with metal roofing. Metal surfaces change temperature quickly, which means condensation can form inside the roof assembly if insulation isn’t chosen carefully. When that happens, even high R‑value insulation can fail because moisture destroys its effectiveness.

If you're evaluating the best insulation for metal roof from inside, the three materials that come up most often are spray foam, fiberglass batts, and rigid foam board panels. Each works—but only under the right conditions.

In design planning sessions I often show clients visual planning examples similar to these real interior layout concepts generated during early design exploration. The reason is simple: insulation decisions are easier when you see how the roof structure, ceiling height, and ventilation paths interact with the rest of the interior layout.

This guide compares spray foam vs fiberglass vs rigid board under metal roofing based on real installation performance, cost considerations, and long‑term durability.

We’ll also cover the hidden mistakes most online comparisons fail to mention.

save pin

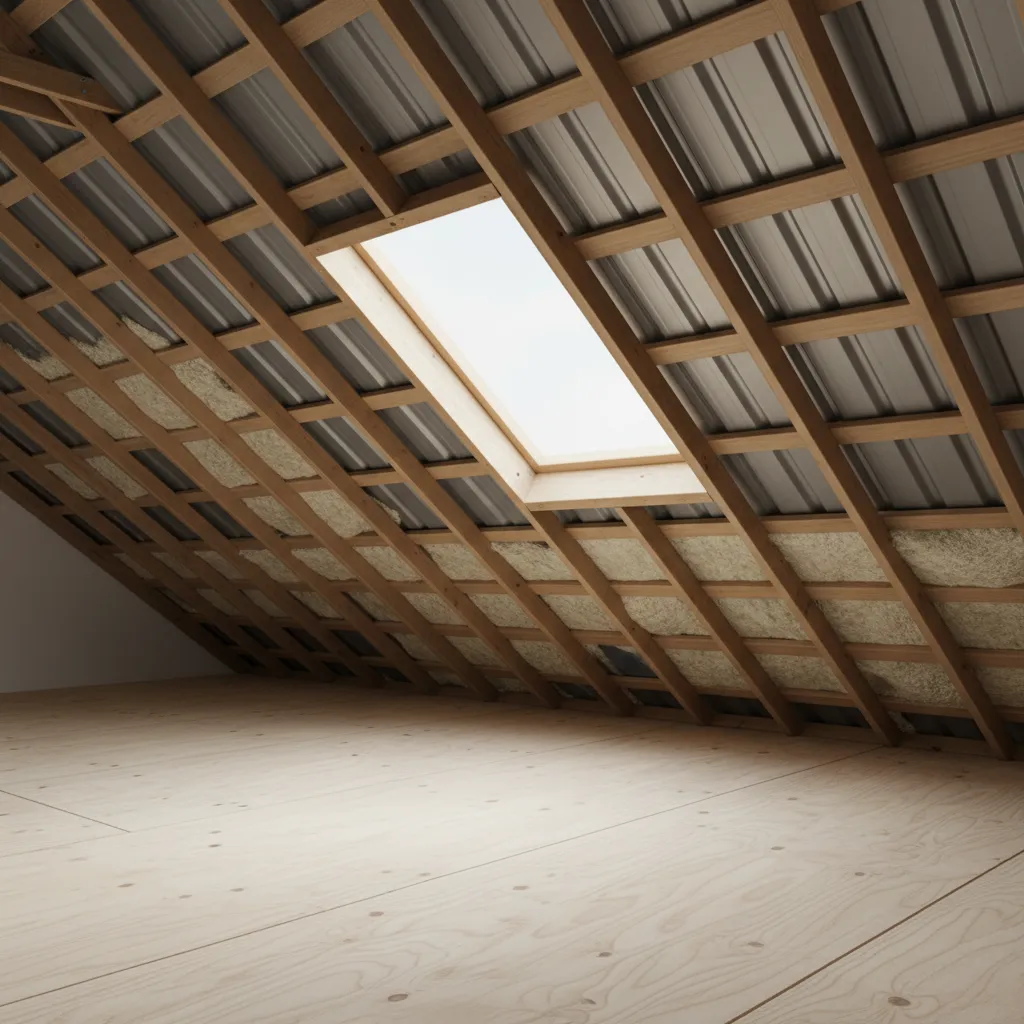

Why Material Choice Matters for Interior Metal Roof Insulation

Key Insight: Metal roofs require insulation that manages both heat transfer and moisture movement, not just R‑value.

Metal roofing behaves very differently from asphalt shingles or tile. Because metal conducts heat quickly, the roof panel temperature can swing dramatically between day and night.

Those swings create condensation risks inside the roof cavity.

If insulation allows warm interior air to reach the cold metal surface, water vapor condenses and begins soaking materials below the panel.

In renovation inspections I frequently see three problems:

1. Fiberglass batts compressed or wet from condensation
2. Mold forming on roof sheathing or framing
3. Energy loss caused by air leakage around insulation gaps

The material you choose determines how well your roof assembly controls:

1. Air leakage
2. Moisture vapor
3. Thermal bridging
4. Long‑term insulation performance

The U.S. Department of Energy consistently emphasizes air sealing as a critical component of insulation performance, especially in roof assemblies.

That’s why the "highest R‑value per inch" isn't always the best answer.

Spray Foam Insulation Pros Cons and Best Use Cases

Key Insight: Closed‑cell spray foam delivers the most reliable performance for metal roofs because it combines insulation and air sealing in a single layer.

Spray foam insulation expands after application, filling gaps and bonding directly to the underside of the metal deck or roof sheathing.

This expansion creates a continuous air barrier—something fiberglass cannot do.

Advantages of spray foam:

1. Excellent air sealing
2. High R‑value per inch
3. Strong resistance to moisture penetration
4. Reduces condensation risk
5. Adds structural stiffness to the roof assembly

Limitations to consider:

1. Higher installation cost
2. Requires professional application
3. Difficult to modify after installation

Typical R‑values:

1. Closed‑cell spray foam: about R‑6 to R‑7 per inch
2. Open‑cell spray foam: about R‑3.5 per inch

In cold climates or humid regions, closed‑cell spray foam is usually the safest choice because it functions as a vapor barrier.

However, cost can be two to three times higher than fiberglass.

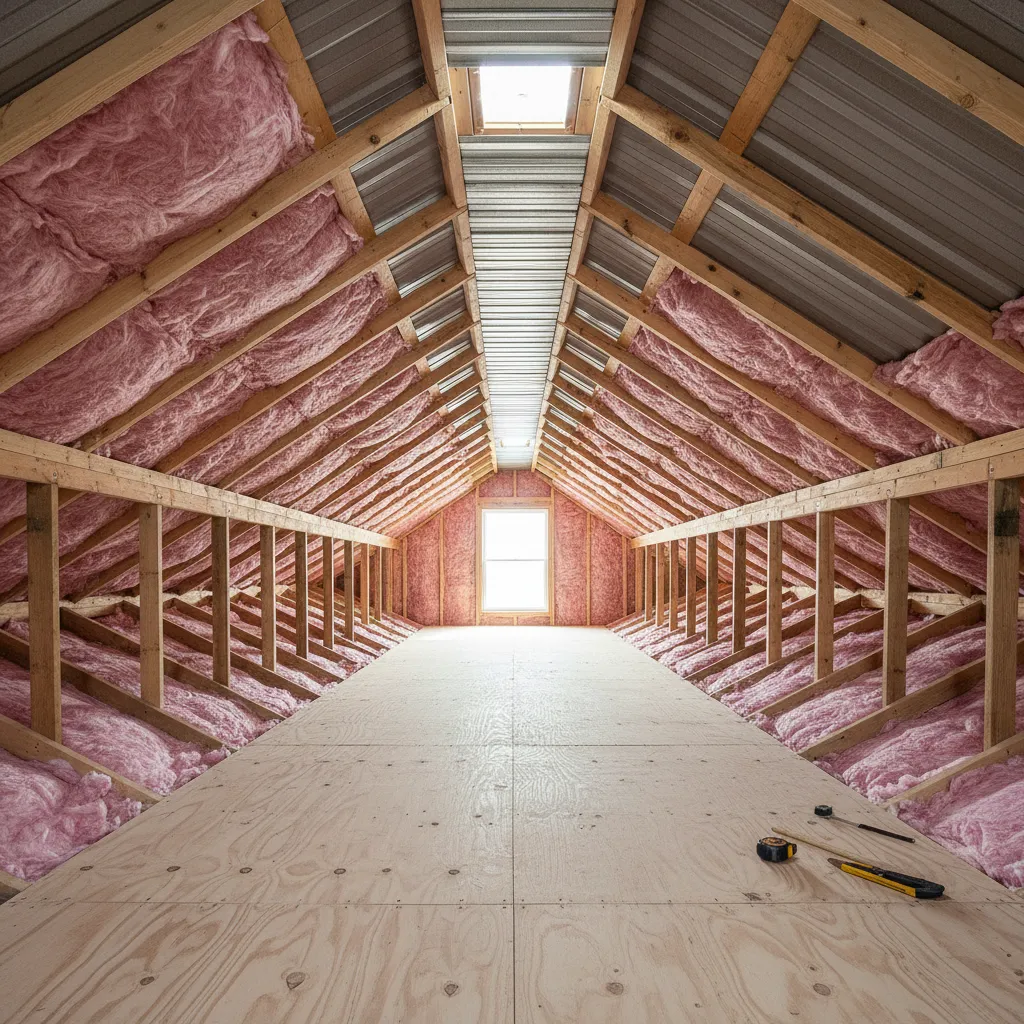

Fiberglass Insulation Under Metal Roofing

Key Insight: Fiberglass can work under metal roofs, but only when the assembly includes proper vapor barriers and ventilation.

Fiberglass batts remain popular largely because they’re inexpensive and widely available.

But fiberglass has a critical limitation: it does not stop air movement.

If warm air reaches the metal surface, condensation forms quickly.

To install fiberglass successfully under a metal roof, contractors usually combine multiple components:

1. Fiberglass batt insulation
2. Interior vapor barrier
3. Ventilation channel
4. Air sealing around penetrations

Common problems I see during attic inspections include:

1. Gaps between batts and rafters
2. Compressed insulation reducing R‑value
3. Missing vapor barriers
4. Air leakage around electrical penetrations

Fiberglass works best when:

1. The roof structure has adequate ventilation
2. Budget constraints are significant
3. The attic is not fully conditioned

save pin

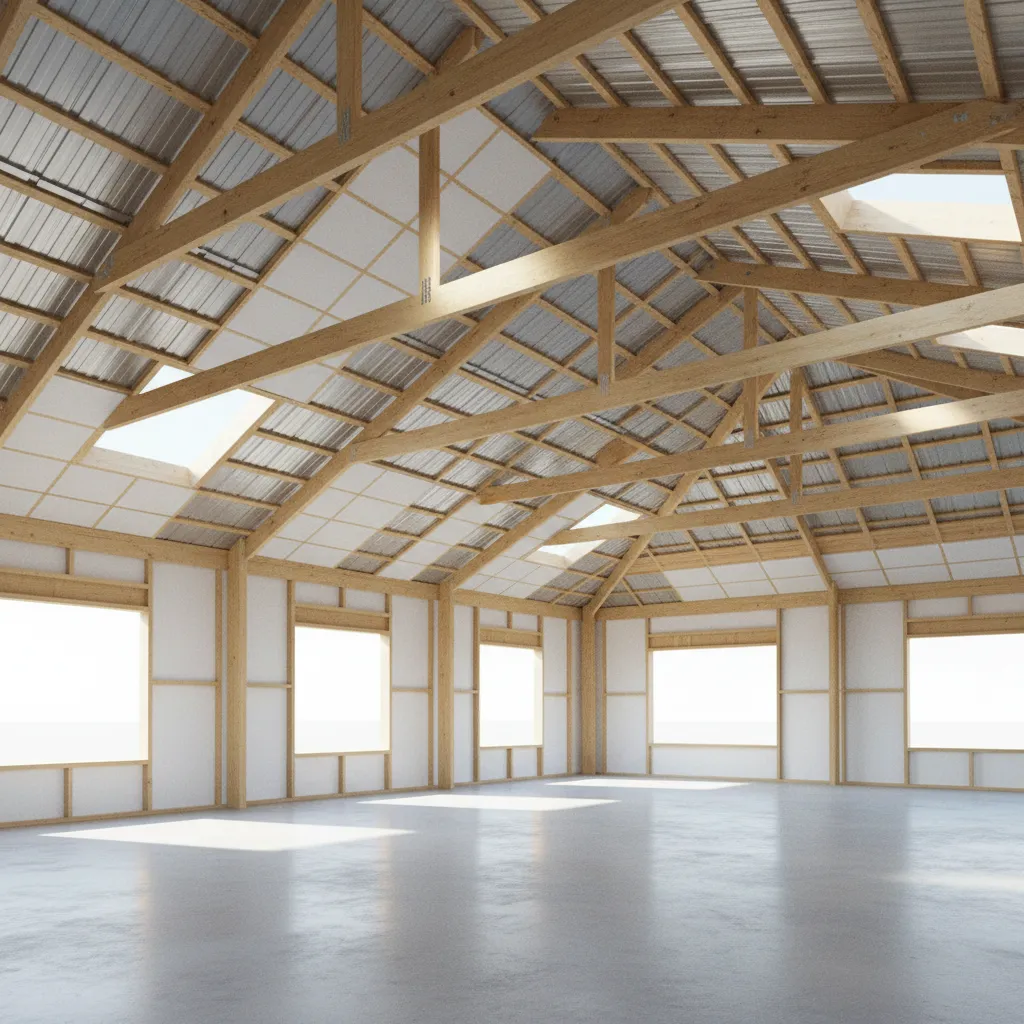

Rigid Foam Board Insulation Performance

Key Insight: Rigid foam board offers consistent thermal performance and is often the best compromise between cost and insulation efficiency.

Rigid foam panels are widely used in both residential and commercial roofing assemblies.

They are installed as continuous panels between framing or across rafters.

The main types include:

1. Polyisocyanurate (Polyiso)
2. Extruded polystyrene (XPS)
3. Expanded polystyrene (EPS)

Typical R‑values:

1. Polyiso: about R‑6 per inch
2. XPS: about R‑5 per inch
3. EPS: about R‑4 per inch

Rigid board insulation provides several advantages:

1. Continuous insulation reduces thermal bridging
2. Predictable thickness and performance
3. Moderate installation cost
4. Works well in layered roof assemblies

One hidden issue many guides ignore is seam sealing.

If panel joints are not taped or sealed, air leakage can significantly reduce real‑world insulation performance.

In professional installations we almost always combine rigid foam with sealed seams and interior drywall air barriers.

Design planning often helps visualize these layered assemblies. For example, many builders review structural layouts using tools similar to this interactive 3D floor planning workflow used during home designto ensure insulation thickness aligns with rafters and ceiling height.

save pin

Cost vs Thermal Performance Comparison

Key Insight: The most expensive insulation is not always the best long‑term value; installation quality often matters more than material type.

Here’s a simplified comparison based on common residential retrofit ranges.

1. Spray foam: highest cost but best air sealing
2. Rigid foam board: moderate cost with strong thermal performance
3. Fiberglass: lowest cost but highest risk of performance loss

Approximate installed cost ranges (U.S. residential averages):

1. Closed‑cell spray foam: $4–$7 per square foot
2. Rigid foam board systems: $2–$4 per square foot
3. Fiberglass batts: $1–$2 per square foot

However, long‑term efficiency often changes the equation.

Buildings with poor air sealing can lose up to 30% of heating and cooling energy according to U.S. Department of Energy research.

That’s why professionally installed rigid foam or spray foam often outperforms thicker fiberglass installations.

Answer Box

Spray foam provides the best condensation protection for metal roofs. Rigid foam board offers strong thermal performance at moderate cost. Fiberglass is the cheapest option but requires careful moisture control to avoid insulation failure.

Which Insulation Works Best for Different Climates

Key Insight: Climate zone should drive insulation decisions more than material popularity.

Here’s a simplified guideline I use when consulting on projects.

Cold climates:

1. Closed‑cell spray foam
2. Rigid foam board with sealed vapor barrier

Mixed climates:

1. Rigid foam board plus fiberglass hybrid systems
2. Spray foam for complex roof geometry

Hot humid climates:

1. Closed‑cell spray foam for moisture control
2. Reflective roof assemblies with rigid foam

Another overlooked factor is interior layout. Roof insulation thickness sometimes reduces ceiling height or attic usability.

During renovation planning, homeowners often explore spatial adjustments using tools similar to this simple floor plan creation workflow used during early home planning to understand how insulation affects interior dimensions.

Final Summary

1. Spray foam offers the strongest air sealing and condensation protection.
2. Rigid foam board provides balanced cost and thermal performance.
3. Fiberglass requires careful vapor and ventilation design.
4. Climate zone heavily influences insulation success.
5. Installation quality matters more than material marketing claims.

FAQ

What is the best insulation for metal roof from inside?

Closed‑cell spray foam is often considered the best insulation for metal roof from inside because it seals air gaps and prevents condensation.

Is spray foam better than fiberglass for metal roofs?

Yes in most cases. Spray foam stops air leakage and moisture movement, while fiberglass requires additional barriers to prevent condensation.

Can rigid foam board be used under a metal roof?

Yes. Rigid foam board works well when seams are sealed and the assembly includes proper air and vapor control layers.

Does fiberglass insulation cause condensation problems?

Fiberglass itself doesn’t cause condensation, but it allows air movement that can lead to moisture buildup on cold metal surfaces.

How thick should insulation be under a metal roof?

Most building codes recommend roof insulation levels between R‑30 and R‑49 depending on climate zone.

Is spray foam worth the extra cost?

In climates with high humidity or extreme cold, the improved air sealing and moisture protection often justify the cost.

What insulation works best in hot climates?

Closed‑cell spray foam or rigid foam board paired with reflective roofing materials typically performs best.

Can multiple insulation materials be combined?

Yes. Hybrid systems combining rigid foam board and fiberglass are commonly used to balance cost and performance.
