Stacked Porch Building Codes and Safety Requirements: Understand permits, structural rules, and inspections before building a safe and code compliant stacked porch

Direct Answer

Stacked porch building codes regulate structural loads, railing heights, column support, and permit approvals for multi‑level porches. Most municipalities require engineered support posts, minimum railing heights of 36–42 inches, and multiple inspections during construction. Because stacked porches place vertical loads on shared supports, local codes are usually stricter than those for single‑level decks.

Quick Takeaways

1. Stacked porch building codes primarily focus on structural load transfer and fall protection.
2. Two story porch permit requirements usually require engineered drawings and inspections.
3. Railing heights commonly range between 36 and 42 inches depending on jurisdiction.
4. Columns and footings must support combined loads from both porch levels.
5. Failing inspection stages can delay projects and increase construction costs.

Introduction

Stacked porch building codes are often overlooked during early design conversations. In more than a decade of residential projects, I've seen beautiful multi‑level porch ideas fall apart because someone assumed the rules were the same as a standard deck.

They aren't.

A stacked porch concentrates structural load vertically. That means the posts, beams, and footings must safely support two levels of weight, furniture, and people at the same time. Local inspectors pay close attention to this because failures can be dangerous.

Many homeowners start with a rough sketch, only to discover later that the structure needs engineering revisions. One way to avoid that mistake is to create a buildable porch layout before submitting plans for approval, which helps visualize support spacing and circulation early.

In this guide I'll walk through the rules that matter most: structural requirements, railing regulations, permit approvals, and inspection stages. These are the issues that consistently cause delays or redesigns during real projects.

save pin

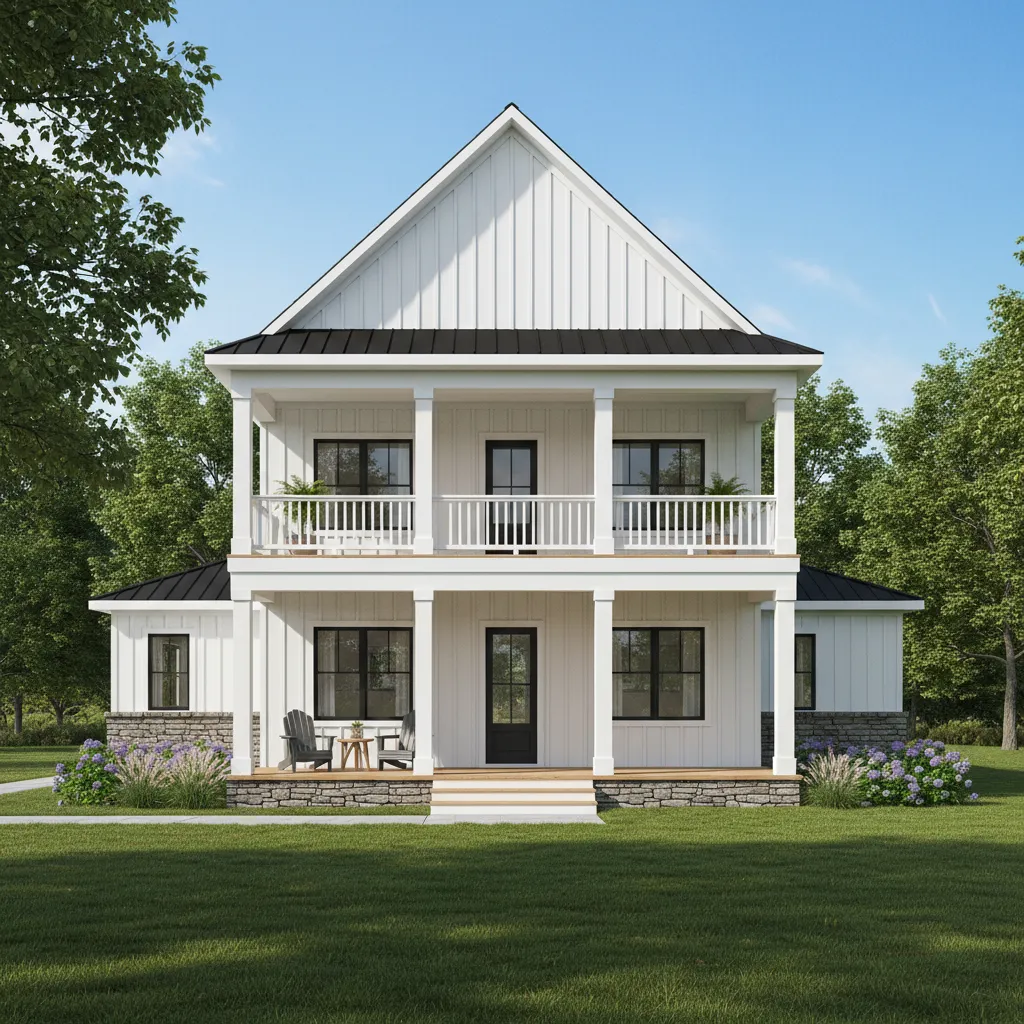

Why Building Codes Matter for Stacked Porches

Key Insight: Stacked porches face stricter scrutiny because structural failure affects multiple levels simultaneously.

Unlike ground‑level decks, stacked porches rely on shared vertical supports. If a beam or column fails, both levels may collapse. Building codes exist to prevent exactly that scenario.

International Residential Code (IRC) guidelines, widely adopted across the U.S., require proper load calculations, secure ledger connections, and approved guardrails for elevated outdoor spaces.

From experience, three common mistakes trigger code violations:

1. Undersized support posts
2. Footings that aren't deep enough
3. Improper railing installation

Another overlooked factor is live load. Porches are often designed for gatherings, which means structural components must handle concentrated weight from groups of people.

Architects typically design for:

1. 40 pounds per square foot live load (standard residential)
2. Additional load for roofing or upper decks

The American Wood Council's deck construction guidelines emphasize reinforced posts and beam connections for multi‑level structures.

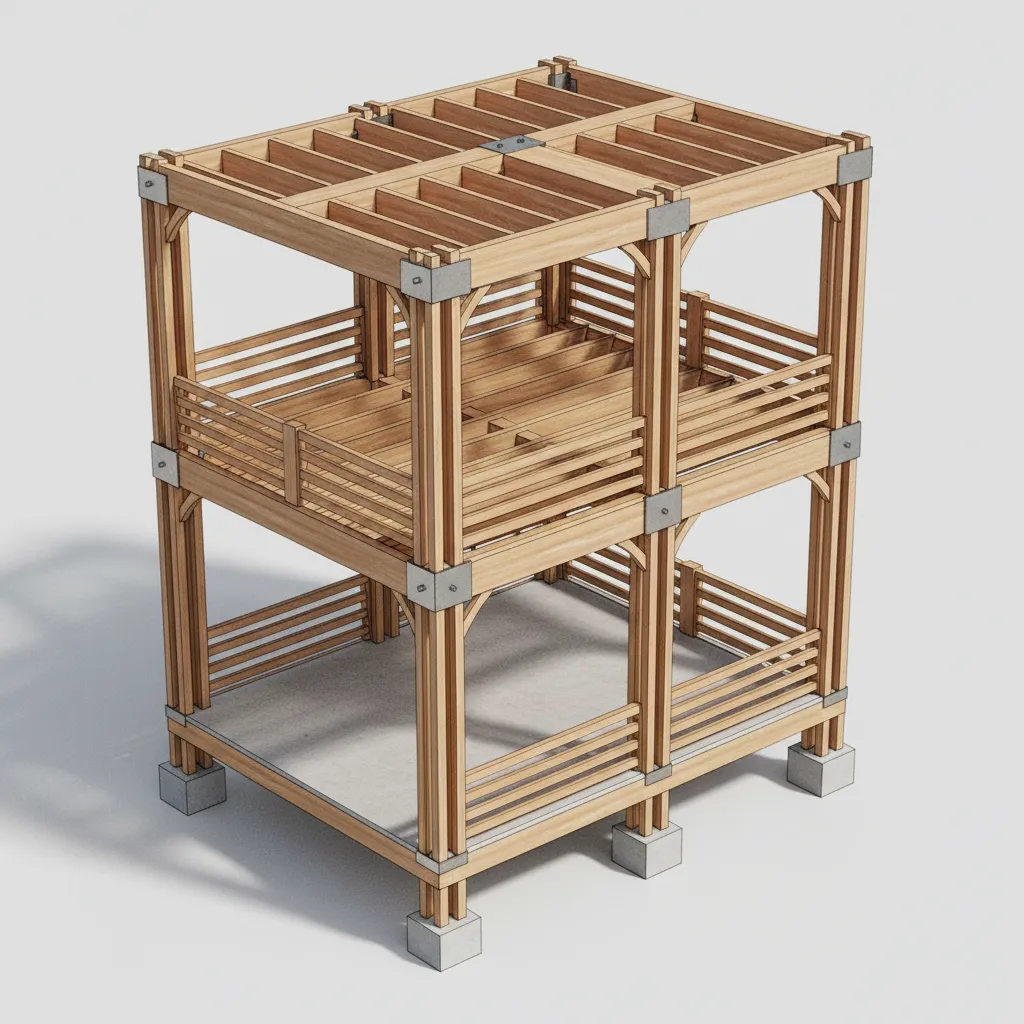

Structural Load and Support Requirements

Key Insight: Structural requirements for stacked porches focus on safely transferring combined loads from upper levels to foundation footings.

The biggest engineering challenge is vertical load stacking. The top porch transfers weight directly to the lower porch framing and columns.

That means the lower structure must be significantly stronger than a typical single‑level porch.

Key structural components include:

1. 6x6 or larger support posts in many jurisdictions
2. Reinforced beam connections
3. Concrete footings sized for combined loads
4. Ledger boards properly anchored to the home

In coastal areas or hurricane zones, engineers may require:

1. Steel connectors
2. Hurricane ties
3. Additional lateral bracing

When planning layouts, designers often test spacing and structure digitally before construction. Many homeowners use tools that allow them to visualize structural spacing in a multi level porch floor planto ensure beams and posts align vertically.

save pin

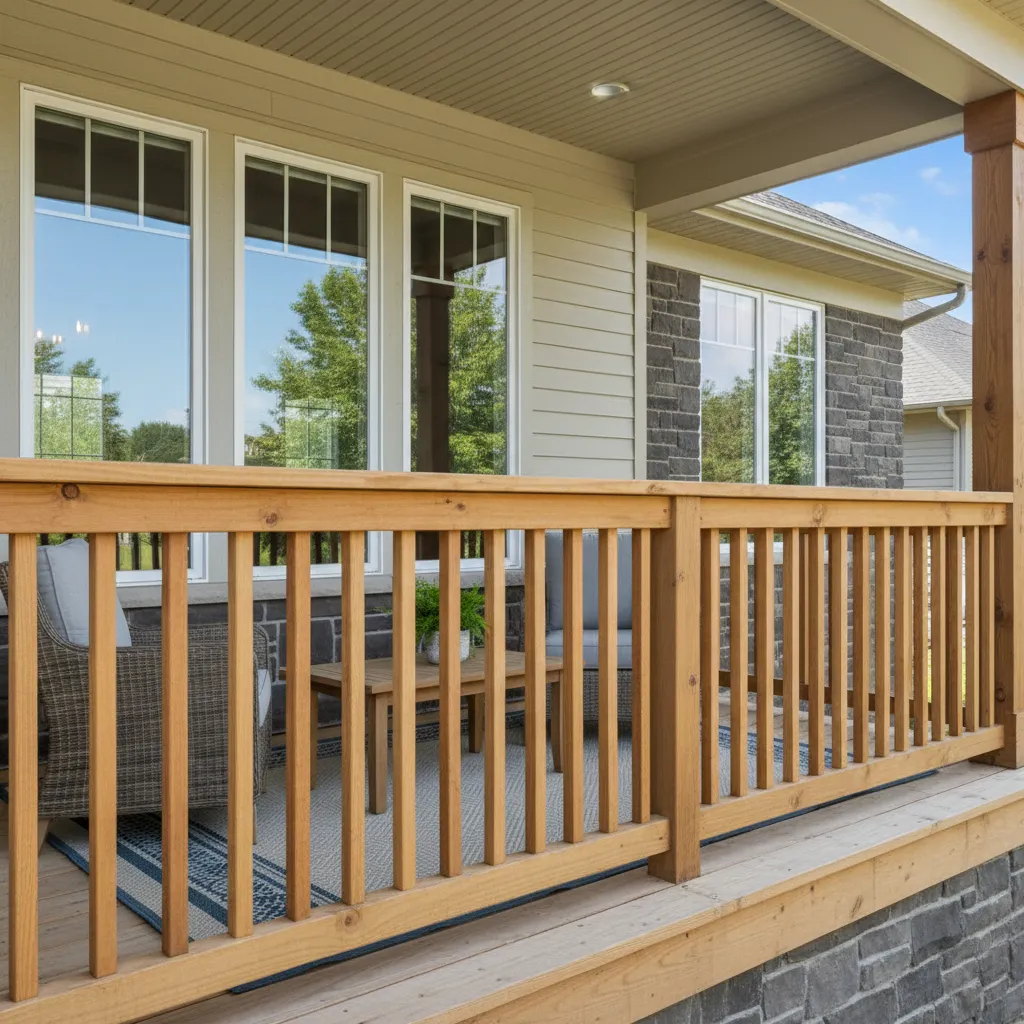

Railing Height and Safety Regulations

Key Insight: Guardrails are the most commonly failed inspection item in stacked porch construction.

Railing codes exist to prevent falls, particularly on elevated decks and second‑story porches.

Most U.S. jurisdictions follow these guardrail standards:

1. Minimum height: 36 inches for residential decks
2. Some states require 42 inches for upper levels
3. Baluster spacing must prevent a 4‑inch sphere from passing through
4. Stair railings require graspable handrails

What many homeowners don't realize is that furniture placement can also create safety issues. Chairs or benches placed against railings effectively reduce the protective height.

Designers often solve this by:

1. Adding built‑in seating away from railings
2. Using thicker top rails
3. Increasing railing height slightly for upper levels

Permit Requirements for Two Story Porches

Key Insight: Two story porch permit requirements almost always require structural drawings and multiple approval stages.

Permitting is where many projects slow down.

Most municipalities require the following documents before construction:

1. Site plan showing property setbacks
2. Structural framing drawings
3. Footing and foundation specifications
4. Guardrail and stair details

Some cities also require sealed drawings from a structural engineer when the porch exceeds a certain height.

A useful preparation step is to test layouts and circulation digitally so inspectors can clearly understand the structure. Many homeowners start by using tools that help experiment with exterior living layouts before submitting permit drawings.

save pin

Inspection Stages During Porch Construction

Key Insight: Porch construction permits and inspections occur in stages to confirm structural safety before finishing work begins.

Inspectors typically visit the site multiple times.

The most common inspection phases include:

1. Footing inspection before concrete is poured
2. Framing inspection after beams and joists are installed
3. Railing inspection before final approval
4. Final inspection once construction is complete

Failing an inspection usually means reopening finished work. That's why experienced contractors schedule inspections early rather than after installing flooring or ceilings.

Answer Box

Stacked porch building codes focus on three critical safety areas: structural load capacity, guardrail protection, and approved construction permits. Projects that address these early move through inspections faster and avoid expensive structural redesigns.

How to Ensure Your Stacked Porch Meets Local Codes

Key Insight: The safest approach is combining early design planning, structural verification, and communication with local inspectors.

In practice, successful projects usually follow this sequence:

1. Design the porch layout and vertical supports
2. Confirm local building code requirements
3. Prepare structural drawings if required
4. Submit permit applications
5. Schedule inspections at each stage

One mistake I see frequently is designing the upper porch first and trying to fit structural supports afterward. The correct approach is the opposite: structure first, layout second.

Final Summary

1. Stacked porch building codes prioritize structural load safety.
2. Permit approval usually requires engineered drawings.
3. Guardrail height and spacing are strictly regulated.
4. Multiple inspections verify structural safety during construction.
5. Planning support columns early prevents expensive redesigns.

FAQ

Do stacked porches require a permit?

Yes. Most municipalities require permits for any elevated or multi‑level porch because of structural and safety risks.

What railing height is required for stacked porches?

Typical stacked porch railing regulations require 36–42 inch guardrails depending on local building codes.

Are stacked porch building codes different from deck codes?

Often yes. Because loads stack vertically, inspectors may require stronger supports and deeper footings.

Do two story porches require engineered plans?

Many cities require structural drawings stamped by an engineer, especially for taller or larger porches.

How deep should porch footings be?

Footing depth usually follows frost line requirements and must support the combined weight of both porch levels.

What is the most common inspection failure?

Improper guardrail spacing or insufficient railing height causes many porch inspection failures.

Can stacked porches attach directly to a house?

Yes, but ledger boards must be properly bolted and flashed to prevent structural and moisture problems.

Are stairs regulated under stacked porch building codes?

Yes. Stair rise, run, handrails, and lighting must meet residential building code standards.

References

1. International Residential Code (IRC)
2. American Wood Council Deck Construction Guide
3. U.S. Department of Housing and Urban Development Residential Standards

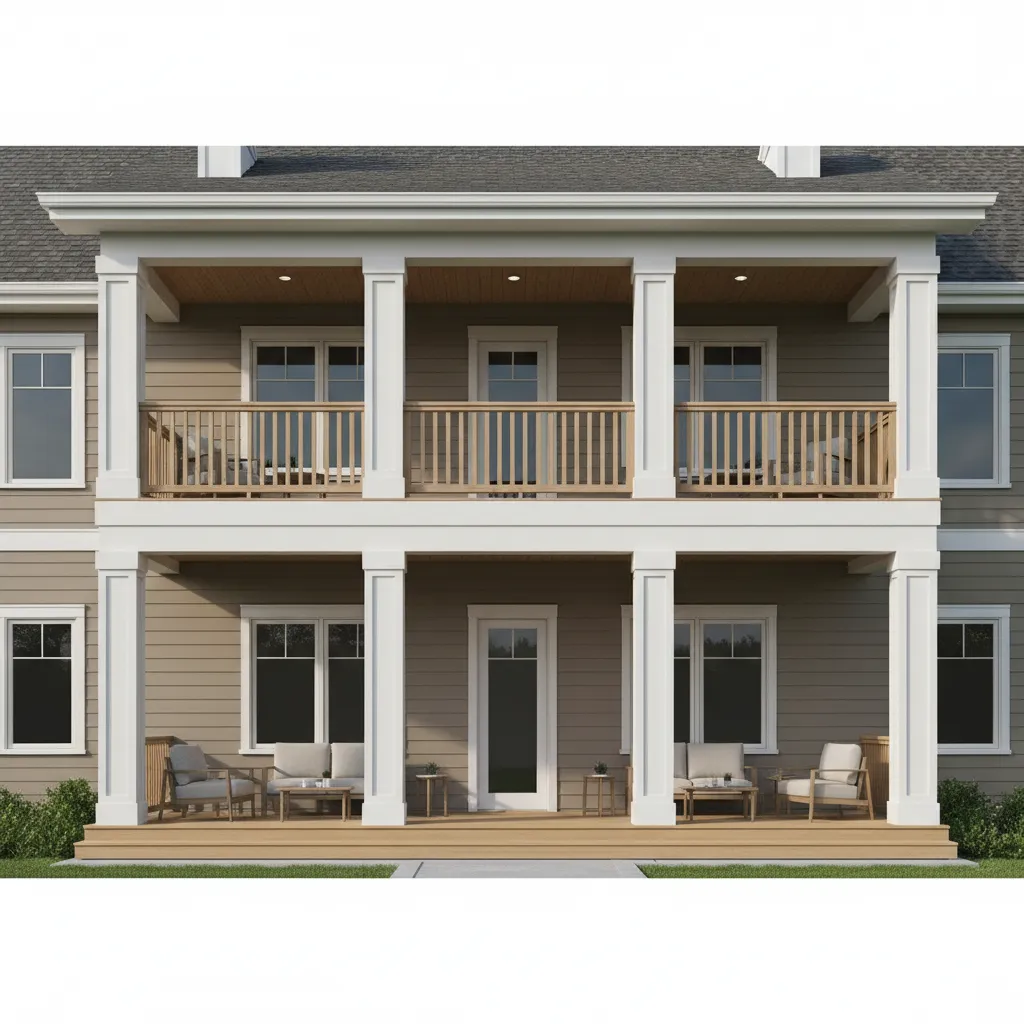

Featured Image
