Steam Room Size vs Steam Generator Capacity: How to Choose the Right Match: Learn how steam room dimensions affect generator power and how to select the correct capacity for efficient, consistent steam performance.

Direct Answer

Steam room size determines how powerful your steam generator must be. Larger rooms require higher-capacity generators because more cubic footage needs to be heated and filled with steam. In most residential setups, a generator must match the room’s calculated volume, with adjustments for materials like glass, tile, or stone that increase heat loss.

Quick Takeaways

1. Steam generator capacity is primarily determined by the cubic volume of the steam room.
2. Dense materials like stone or glass often require increasing generator size by 10–30%.
3. Undersized generators struggle to maintain steam, while oversized ones waste energy and cycle inefficiently.
4. Accurate volume calculation is the most important step in steam generator sizing.
5. Professional installers typically add capacity buffers for ceiling height and ventilation loss.

Introduction

Choosing the right steam generator size for a steam room sounds simple until you actually start planning one. After working on dozens of spa-style bathroom projects over the past decade, I’ve seen one mistake repeated constantly: homeowners focus on equipment first and room dimensions second.

In reality, steam generator size for steam room installations should always be determined by the space itself. The room’s cubic volume, ceiling height, wall materials, and even the amount of glass can dramatically change how much power is required.

When we design home spas, I often start by mapping the layout digitally using tools similar to a step-by-step floor plan creator for planning steam room layouts. Once the geometry is clear, generator sizing becomes much more predictable.

In this guide, I’ll walk through how professionals calculate steam room generator capacity, why room volume matters so much, and how to avoid the costly mistake of buying a unit that can’t keep up with your space.

save pin

Why Steam Room Size Directly Impacts Generator Performance

Key Insight: Steam generators must heat and fill the entire air volume of a steam room, so even small increases in size significantly increase power requirements.

Steam behaves differently from simple heated air. A generator must produce enough vapor to both heat the space and maintain dense humidity levels around 100%. If the room is too large for the generator’s capacity, steam dissipates faster than it can be produced.

In practice, the most important variable is cubic footage. A 6×6×8 ft room equals 288 cubic feet, but increasing the ceiling height to 9 feet raises the volume to 324 cubic feet. That difference alone can push the system into the next generator size category.

From real installations, I’ve noticed three room characteristics that often push required capacity higher:

1. Large glass walls or doors that release heat quickly
2. Natural stone tile surfaces that absorb heat
3. Ceilings higher than 8 feet

The North American Tile Council also notes that dense materials store heat longer, meaning generators must work harder during the initial warm-up phase.

Typical Steam Generator Capacity Ranges Explained

Key Insight: Most residential steam generators are rated to handle a specific cubic-foot range, making volume calculation the foundation of equipment selection.

Manufacturers usually publish sizing charts linking generator wattage or kilowatt output to room volume. While brands differ slightly, the ranges are surprisingly consistent.

1. 4–6 kW generators: small steam rooms up to ~250 cubic feet
2. 7–9 kW generators: mid-size rooms around 250–400 cubic feet
3. 10–12 kW generators: larger residential steam rooms
4. 12+ kW systems: large luxury or multi-user steam rooms

The tricky part is that these numbers assume ideal conditions. Once glass walls, stone surfaces, or high ceilings appear, installers often increase the recommended capacity.

During one luxury remodel in Santa Monica, a steam room technically measured 380 cubic feet. But with two full glass walls, the installer recommended a generator sized for over 450 cubic feet to maintain consistent steam density.

save pin

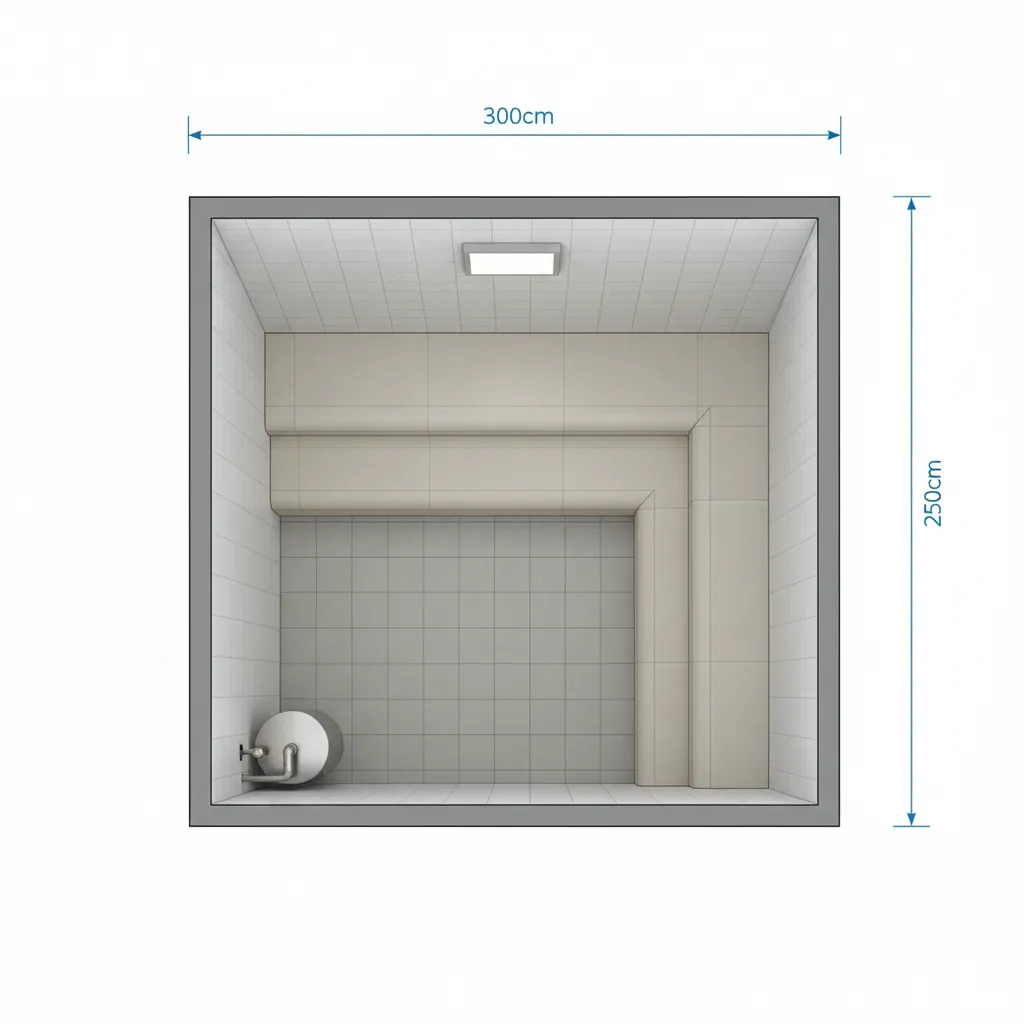

Steam Room Volume Calculation Step by Step

Key Insight: Steam room volume is calculated using length × width × height, then adjusted based on materials and structural features.

Many homeowners miscalculate steam room generator capacity simply because they estimate rather than measure the room precisely.

Here’s the method professionals follow:

1. Measure room length in feet.
2. Measure room width in feet.
3. Measure ceiling height.
4. Multiply all three numbers to determine cubic feet.
5. Add adjustment factors for heat‑absorbing materials.

Material adjustments typically include:

1. Add 10% for ceramic tile
2. Add 15–20% for natural stone
3. Add 25–30% for glass walls

If you’re still designing the space, using a visual 3D floor planner for mapping steam room dimensions can help confirm proportions before purchasing equipment.

Matching Generator Power to Room Size

Key Insight: The best generator match slightly exceeds the calculated room volume to maintain stable steam production without excessive cycling.

Professionals rarely choose a generator rated exactly for the calculated cubic footage. Instead, they select a unit with a modest buffer.

This approach prevents three common issues:

1. Slow steam production during startup
2. Temperature drops when the door opens
3. Inconsistent humidity levels

Typical matching strategy:

1. Calculated volume under 250 cu ft → choose generator rated up to 300 cu ft
2. 250–350 cu ft → choose generator rated near 400 cu ft
3. 350–500 cu ft → move to next capacity tier

From a design perspective, this small oversizing improves the user experience dramatically. A steam room should reach full steam within about 10–15 minutes.

Common Undersizing and Oversizing Problems

Key Insight: Both undersized and oversized generators reduce efficiency, but undersizing causes the most noticeable performance issues.

Most homeowners assume bigger generators are always better. In practice, both extremes create problems.

Undersized generators often cause:

1. Weak or thin steam output
2. Long warm-up times
3. Continuous operation that shortens equipment life

Oversized generators can cause:

1. Frequent on-off cycling
2. Temperature spikes
3. Higher installation cost

One hidden issue many guides ignore is ventilation loss. If the room has poor sealing or large door gaps, even correctly sized generators struggle to maintain steam density.

save pin

Answer Box

The correct steam generator capacity depends on the total cubic volume of the steam room plus adjustments for materials and ceiling height. Most residential installations choose a generator rated slightly above the calculated volume to ensure fast warm‑up and stable steam density.

Quick Reference Chart for Generator Selection

Key Insight: A simple volume-to-capacity chart provides a reliable starting point for selecting a steam generator.

Below is a simplified reference used during early design planning.

1. Up to 200 cu ft → 4–5 kW generator
2. 200–300 cu ft → 6–7 kW generator
3. 300–400 cu ft → 8–9 kW generator
4. 400–500 cu ft → 10–12 kW generator
5. 500+ cu ft → commercial or multi-unit systems

When designing larger home spas, I usually model the full bathroom layout using a complete room planning layout tool for spa-style bathrooms. This ensures the steam room proportions stay practical before moving to equipment selection.

save pin

Final Summary

1. Steam generator capacity must match the cubic volume of the steam room.
2. Glass, stone, and tall ceilings increase required generator power.
3. Choosing slightly higher capacity improves warm-up time and steam density.
4. Undersized generators cause weak steam and continuous operation.
5. Accurate room measurement is essential before buying equipment.

FAQ

1. How do I calculate steam generator size for a steam room?

Multiply room length, width, and height to get cubic feet, then adjust for materials like glass or stone.

2. What happens if a steam generator is too small?

An undersized generator produces weak steam and struggles to reach full temperature.

3. Can a steam generator be too large?

Yes. Oversized generators may cycle frequently and create unstable temperatures.

4. What is the ideal steam room ceiling height?

Most designers recommend 7–8 feet to maintain efficient steam circulation.

5. Does tile affect steam generator capacity?

Yes. Dense materials absorb heat, which may require a slightly larger generator.

6. What is the best steam generator for a large steam room?

Large rooms often require 10–12 kW systems or commercial-grade units.

7. How long should a steam room take to fill with steam?

A properly sized generator should produce full steam in about 10–15 minutes.

8. Do glass walls change steam generator sizing?

Yes. Glass increases heat loss, so installers often increase generator capacity by up to 30%.

References

1. Tile Council of North America Steam Room Guidelines
2. ASHRAE Humidity Control Standards
3. Residential Steam Generator Manufacturer Sizing Manuals
