Step-by-Step Guide to Drawing a Floor Plan: 5 Core User Pain Points & Step-by-Step Solutions

Drawing a floor plan is the bridge between creative ideas and real construction. With a modern free floor plan creator, you can plan accurate 2D layouts, preview them in 3D, and share clean drawings—without CAD experience.

Below are the 5 core pain points most beginners face—and a clear, step-by-step fix for each.

Pain Point 1: “I don’t know how to begin.”

What’s happening: New users open the tool and feel stuck—upload first, or start from a template, or draw from scratch?

Step-by-step solution

1. Create a new project in your workspace (New 3D Project).
2. Choose a start path:
3. Upload existing drawings (CAD/PDF/JPG) via the uploader inside the online floor plan tool.
4. Apply a template to auto-generate a starter layout you can edit.
5. Draw from scratch if you need full control.
6. If unsure, start with a template—it’s the fastest way to get a workable plan.

save pin

Pain Point 2: “The interface feels overwhelming.”

What’s happening: Too many panels and icons; you can’t find what matters.

Step-by-step solution

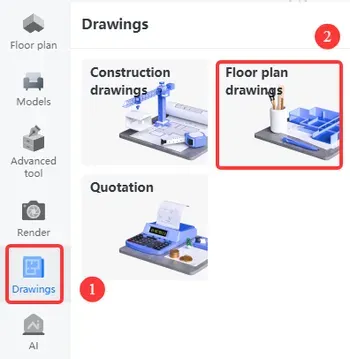

1. Locate essentials: Drawings → Floor Plan Drawings; right panel for scale, labels, and annotations.
2. Start simple: walls → doors/windows → room names.
3. Toggle 2D/3D to confirm geometry as you go using the 3D room planner.
4. Use tooltips: hover icons to learn functions without leaving the canvas.

save pin

Pain Point 3: “My plan isn’t accurate.”

What’s happening: Off-scale rooms, misaligned walls, missing structure make the plan unreliable.

Step-by-step solution

1. Turn on Snap-to-Grid for straight, aligned segments.
2. In the right panel, set the scale (units and ratio) before heavy editing.
3. Close the loop: ensure walls form a complete boundary so the room generates correctly.
4. Add columns, beams, and partitions to reflect real construction.
5. Validate measurements in 2D, then check clearances in 3D previews.

Pain Point 4: “I don’t know how to add doors, windows, and labels.”

What’s happening: Bare rooms don’t communicate function or circulation.

Step-by-step solution

1. Open the doors/windows library and place doors, windows, bay windows, or openings where needed.
2. Switch to 2D mode, select a room, then assign Room Type and Room Name in the right panel.
3. Iterate: adjust swing directions and sill heights for realism; re-label spaces after changes.
4. Use annotations for dimensions or notes to clarify intent in your floor plan drawings.

Pain Point 5: “How do I export and share clean drawings?”

What’s happening: Finalization is confusing—what format, what quality, and how to share?

Step-by-step solution

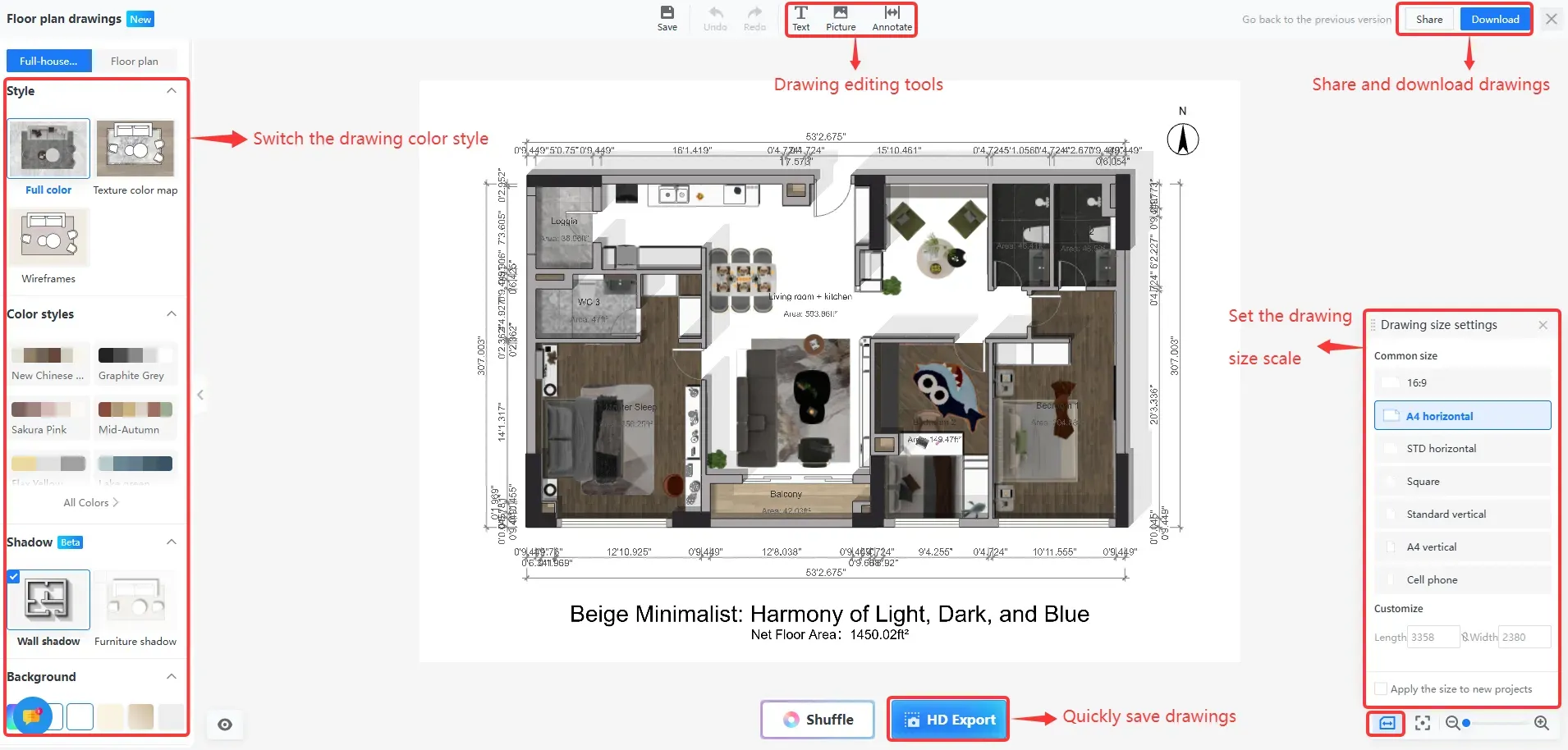

1. Open the drawing tool’s One-Click Generation to style lines, background, and text.
2. Set scale and units to match construction standards.
3. Export:
4. PDF for print-ready plans,
5. PNG/JPG for quick sharing,
6. CAD when coordinating with contractors.
7. Share a view link for feedback; send a rendered view if stakeholders need visuals—see 3D rendering options.

Quick Checklist (print-friendly)

1. New project created and start path chosen (upload / template / scratch)
2. Scale set; walls closed; rooms generated
3. Doors/windows placed; rooms named; key notes added
4. Structural elements present (columns/beams/partitions)
5. Final drawing styled, exported, and shared

Final Thoughts

A clear workflow—start, structure, label, refine, export—turns a blank canvas into a construction-ready plan. If you get stuck, return to templates, validate scale early, and rely on 2D/3D toggling to catch issues before export.
