Step by Step Troubleshooting Guide for Floor Plan to 3D Modeling Errors: A practical diagnostic workflow designers use to identify and fix floor plan conversion problems before they ruin a 3D model

Direct Answer

Floor plan to 3D modeling errors usually come from scale mismatches, unclear walls, missing architectural details, or poor floor plan quality. The fastest way to fix them is to verify scale first, rebuild wall alignments, restore missing elements, and validate geometry before rendering.

In most real projects, systematic troubleshooting prevents hours of remodeling later.

Quick Takeaways

1. Most floor plan to 3D modeling errors start with incorrect scale or unit settings.
2. Wall misalignment usually comes from overlapping lines or unclear wall thickness.
3. Low resolution or incomplete floor plans cause AI tools to guess missing geometry.
4. Always validate walls, doors, and dimensions before starting materials or rendering.

Introduction

After working on residential and commercial visualization projects for more than a decade, I can tell you one thing clearly: floor plan to 3D modeling errors rarely come from the software itself. They almost always come from the input.

Designers often import a drawing and assume the system will "figure it out." But if the floor plan contains inconsistent wall thickness, missing doors, unclear scale, or raster noise, the resulting model becomes distorted. Walls drift, rooms shrink, and furniture placement becomes impossible.

When teams on my projects prepare layouts using a workflow that converts rough layouts into editable digital floor plans, error rates drop dramatically because the geometry becomes structured before modeling begins.

This guide walks through the exact troubleshooting workflow I use when diagnosing floor plan conversion issues. Instead of randomly adjusting geometry, you will learn how to identify the real source of the problem and correct it quickly.

save pin

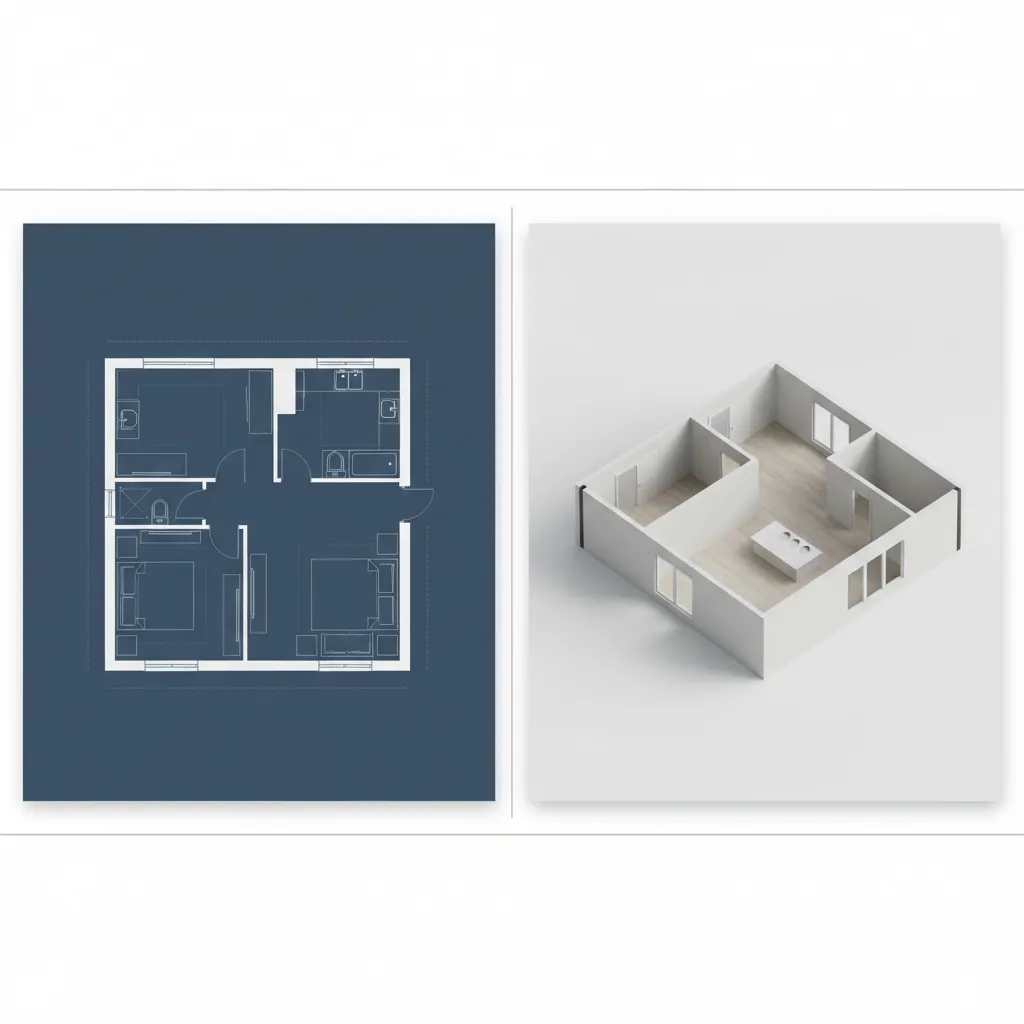

Identifying the Source of 3D Modeling Errors

Key Insight: Most 3D conversion problems can be traced back to four root causes: scale mismatch, wall detection failure, missing elements, or poor source drawings.

When a model looks wrong, the instinct is to start moving objects or rebuilding walls. That usually wastes time. The faster method is diagnosing which stage of the conversion pipeline failed.

In my experience reviewing hundreds of imported floor plans, the root issue typically falls into one of these categories:

1. Scale errors – incorrect units or missing reference measurements
2. Wall interpretation errors – walls detected as lines or merged geometry
3. Missing architectural symbols – doors and windows not recognized
4. Low drawing quality – blurred or pixelated plan images

According to Autodesk architectural documentation, geometry detection accuracy drops sharply when source drawings fall below standard drafting clarity or consistent line weight.

The fastest diagnostic method is simple:

1. Check scale reference
2. Verify wall thickness consistency
3. Inspect door and window symbols
4. Confirm plan resolution

Fixing the root source almost always solves the visible 3D error.

Fixing Incorrect Wall Dimensions and Alignments

Key Insight:Misaligned 3D walls usually originate from overlapping lines or inconsistent wall thickness in the original floor plan.

This is one of the most common issues I see in client-submitted drawings. Many 2D plans are drafted with single lines representing walls. When converted to 3D, the system must guess thickness, which leads to crooked or floating geometry.

Typical symptoms include:

save pin

1. walls intersecting incorrectly
2. rooms slightly skewed
3. corners not meeting at 90 degrees

To correct the issue:

1. ensure walls use double-line drafting
2. apply consistent wall thickness across the plan
3. remove duplicate or overlapping lines
4. snap corners precisely to grid intersections

When working with a structured digital workflow for rebuilding accurate wall layouts, these problems become much easier to identify and correct before modeling starts.

In professional studios, wall geometry validation is usually completed before any furniture or materials are added.

Resolving Missing or Misinterpreted Architectural Elements

Key Insight: Doors, windows, and openings fail to convert correctly when symbols are unclear or inconsistent.

AI and modeling tools rely heavily on recognizable drafting symbols. If the plan uses unconventional icons or lacks labels, the software may interpret openings as solid walls.

Common conversion mistakes include:

1. doors appearing as wall gaps
2. windows disappearing entirely
3. stairs converted into flat geometry

The fix is surprisingly simple.

1. use standard architectural symbols
2. ensure doors show swing arcs
3. mark window placements clearly
4. separate stairs from surrounding walls

Many architects overlook this step because humans can interpret imperfect drawings easily. Software cannot.

Correcting Scaling and Unit Conversion Problems

Key Insight: Scale errors are the single most damaging issue because they affect the entire model simultaneously.

I have seen projects where a 90 square meter apartment becomes a 40 square meter model simply because the import units were set incorrectly.

Typical scale problems include:

1. rooms appearing too small
2. doors larger than walls
3. furniture not fitting the space

The fastest solution is applying a verified reference dimension.

For example:

1. standard door width 80–90 cm
2. hallway minimum width 90 cm
3. bed length roughly 200 cm

If these proportions look wrong, the scale is wrong.

Before exporting final visuals, professionals often run their model through a full architectural preview to verify proportions and spatial accuracy. Rendering preview stages often reveal geometry mistakes that basic modeling views hide.

save pin

Handling Incomplete or Low Quality Floor Plans

Key Insight: Poor floor plan quality forces software to guess missing information, which leads to incorrect geometry.

This problem appears frequently with scanned real estate plans or old PDF blueprints.

Typical issues include:

1. blurry wall boundaries
2. missing dimension labels
3. cropped rooms
4. inconsistent line weights

Before converting these drawings, I usually rebuild the basic structure manually or vectorize the floor plan first.

Recommended preparation workflow:

1. increase image resolution
2. trace walls with vector lines
3. restore missing dimensions
4. simplify unnecessary annotations

This extra preparation step often saves more time than repairing a broken 3D model later.

save pin

Answer Box

The fastest way to fix floor plan to 3D modeling errors is verifying scale first, rebuilding wall geometry second, and correcting missing architectural elements before rendering. Most modeling failures originate from poor floor plan preparation rather than the 3D software itself.

Final Validation Checks Before Rendering or Export

Key Insight: A final validation pass prevents small geometry mistakes from appearing in renders, walkthroughs, or client presentations.

In professional visualization pipelines, every model goes through a short checklist before rendering.

1. verify wall heights
2. confirm door and window placements
3. check ceiling alignment
4. ensure floor levels are correct
5. test camera walkthrough paths

Even experienced designers skip this step when working quickly. Ironically, this is where many last-minute modeling errors appear.

Final Summary

1. Most floor plan conversion errors start with scale or wall geometry problems.
2. Clear architectural symbols significantly improve conversion accuracy.
3. Low quality floor plans often require reconstruction before modeling.
4. Systematic validation prevents costly redesign during rendering stages.

FAQ

Why are my walls misaligned in a 3D floor plan model?

Misaligned walls usually come from overlapping lines or inconsistent wall thickness in the source floor plan.

How do I fix floor plan to 3D modeling errors quickly?

Start by verifying scale, then rebuild wall alignments, check architectural symbols, and validate geometry before rendering.

Why does my 3D model look smaller than the original floor plan?

This usually indicates a unit conversion error during import, such as mixing meters and millimeters.

Can low resolution floor plans cause modeling errors?

Yes. Blurry drawings reduce wall detection accuracy and cause missing geometry.

What is the best resolution for floor plan conversion?

At least 300 DPI for scanned drawings or vector-based CAD plans.

Do AI tools always detect doors and windows correctly?

No. Detection accuracy depends on clear architectural symbols and consistent drafting standards.

How do I debug floor plan conversion issues step by step?

Check scale, verify wall thickness, confirm architectural symbols, then run a geometry validation test.

What causes geometry errors in architectural models?

Common causes include duplicate lines, broken wall loops, inconsistent units, and incomplete drawings.
