STEP vs IGES vs STL for API 6D Ball Valve 3D Models: A practical guide for engineers choosing the right CAD format for pipeline valve models, simulation, and manufacturing workflows

Direct Answer

For most engineering workflows involving API 6D ball valve 3D models, STEP files are the best choice because they preserve full solid geometry and assembly data. IGES works mainly for legacy CAD systems, while STL is suitable only for visualization or 3D printing since it lacks editable engineering geometry.

Engineers designing pipeline systems, performing simulation, or modifying valve components typically rely on STEP as the most reliable and interoperable format.

Quick Takeaways

1. STEP is the most reliable CAD format for editable industrial valve assemblies.
2. IGES remains useful for older CAD systems but often loses feature structure.
3. STL is best for visualization or 3D printing, not mechanical design.
4. Most modern CAD platforms import STEP files more accurately than IGES.
5. Choosing the wrong format can break assemblies or remove parametric data.

Introduction

Engineers searching for API 6D ball valve 3D models usually encounter three download options: STEP, IGES, and STL. At first glance they seem interchangeable, but after working on pipeline layouts and mechanical assemblies for over a decade, I can tell you the file format you choose can make or break your workflow.

I have seen teams lose hours rebuilding valve geometry simply because the wrong file format stripped away assembly relationships or converted everything into surfaces.

In industrial pipeline projects, the valve model often becomes part of a larger layout—connected to pumps, reducers, actuators, and control systems. When geometry integrity matters, the CAD format determines whether that model integrates smoothly or becomes a cleanup job.

If you're building full pipeline layouts or spatial arrangements, tools like a visual pipeline layout planning workflowcan help place equipment and valves accurately inside complex mechanical environments.

In this guide, I'll break down how STEP, IGES, and STL actually behave in real engineering workflows—and when each format makes sense for API 6D valve models.

save pin

Overview of Common CAD Formats for Valve Models

Key Insight: STEP, IGES, and STL store geometry in fundamentally different ways, which directly affects editability, accuracy, and compatibility.

Many engineers assume these formats are simply "different export options." In reality, they represent completely different data structures.

Core Differences

1. STEP (ISO 10303): Stores full solid geometry, assemblies, and metadata.
2. IGES: Primarily surface-based geometry exchange format.
3. STL: Triangular mesh used for visualization and 3D printing.

Practical Implications for Valve Models

1. STEP maintains parametric solids such as valve bodies and flanges.
2. IGES may import as surfaces that require stitching.
3. STL converts geometry into meshes with no engineering intelligence.

According to guidance from NIST and major CAD vendors such as SolidWorks and Siemens NX, STEP has become the preferred neutral CAD format for mechanical assemblies because it preserves the most engineering data.

STEP File Advantages for Industrial Valve Assemblies

Key Insight: STEP files preserve solid bodies and assemblies, making them ideal for engineering tasks like interference checks, modification, and simulation.

In most pipeline design environments I work with, STEP is the default format engineers request when downloading valve models.

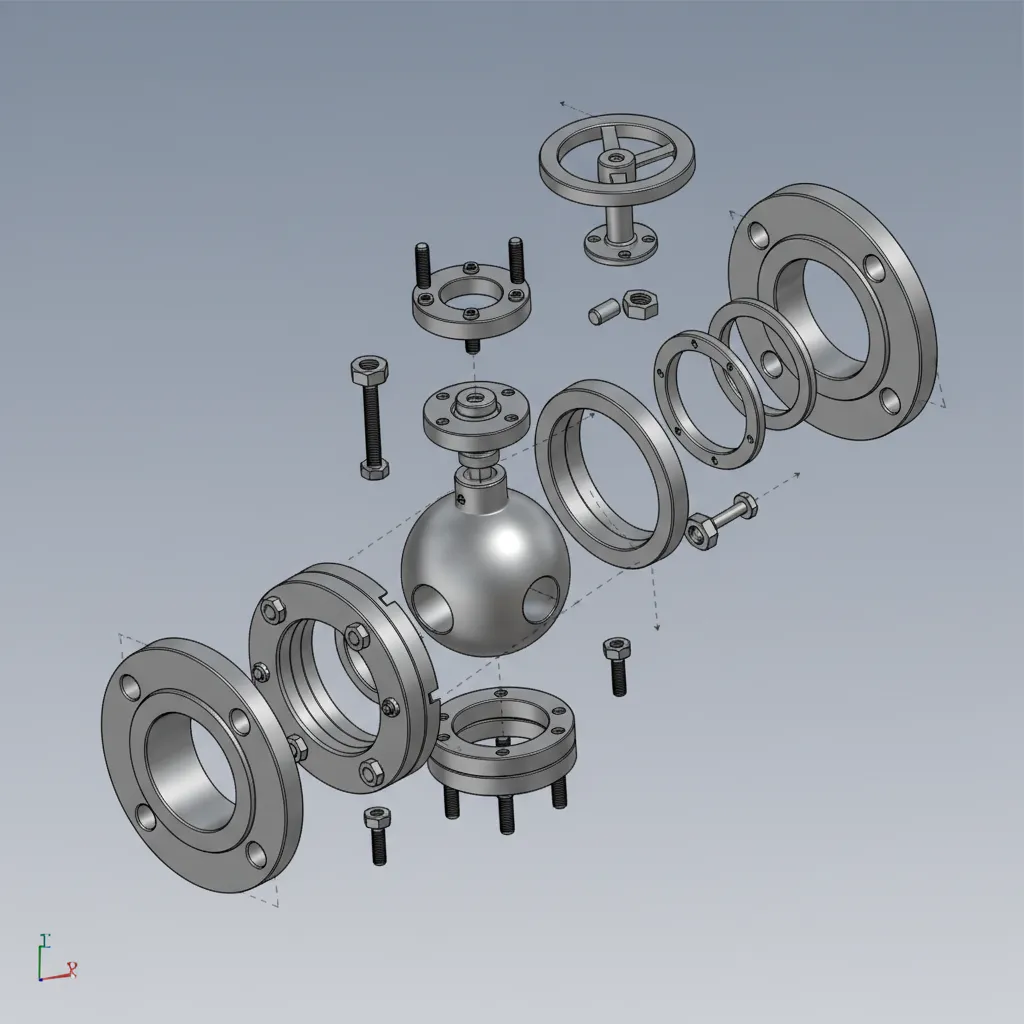

The reason is simple: industrial valves are assemblies, not just shapes. A typical API 6D ball valve includes multiple components:

1. Valve body
2. Ball
3. Stem
4. Seats
5. Actuator interface
6. Bolted flanges

STEP preserves these relationships in ways IGES cannot reliably do.

Advantages of STEP for Valve Engineering

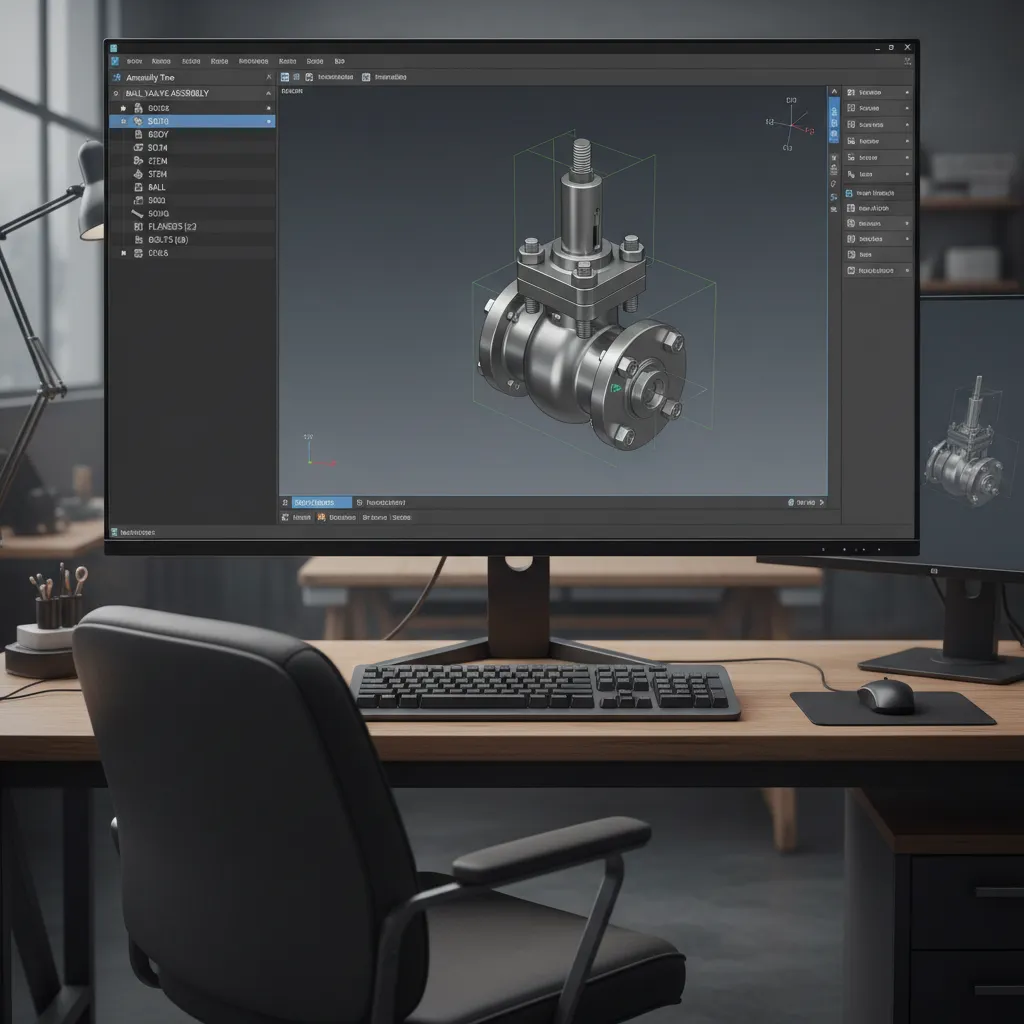

1. Maintains assembly hierarchy
2. Preserves solid geometry
3. Supports accurate mass properties
4. Works well with simulation tools
5. Reliable cross-platform compatibility

In pipeline projects, this matters when checking clearances around actuators or verifying flange alignment inside equipment skids.

Another overlooked benefit: STEP files typically import with fewer geometry errors, reducing model repair time.

save pin

IGES File Use Cases in Legacy CAD Systems

Key Insight: IGES still appears in valve CAD libraries mainly to support older engineering software.

IGES dates back to the 1980s and was originally designed to exchange surface geometry between CAD systems. Many valve manufacturers still offer IGES downloads because certain legacy engineering tools rely on it.

However, there are tradeoffs.

Typical Issues Engineers Encounter

1. Models import as surfaces instead of solids
2. Assembly structures disappear
3. Geometry gaps require manual repair
4. Mass properties become unreliable

In real projects, this means extra cleanup time before the valve can even be used in simulation or layout design.

That said, IGES can still be useful when:

1. Working with older CAD environments
2. Exchanging surface geometry for machining
3. Interfacing with specialized legacy software

But for modern mechanical design workflows, IGES is rarely the first choice anymore.

STL Format for Visualization and 3D Printing

Key Insight: STL files convert valve geometry into triangle meshes, making them unsuitable for engineering edits.

STL is extremely common online, which sometimes leads engineers to assume it can be used for CAD modeling. In reality, STL was developed for additive manufacturing.

What STL Files Actually Store

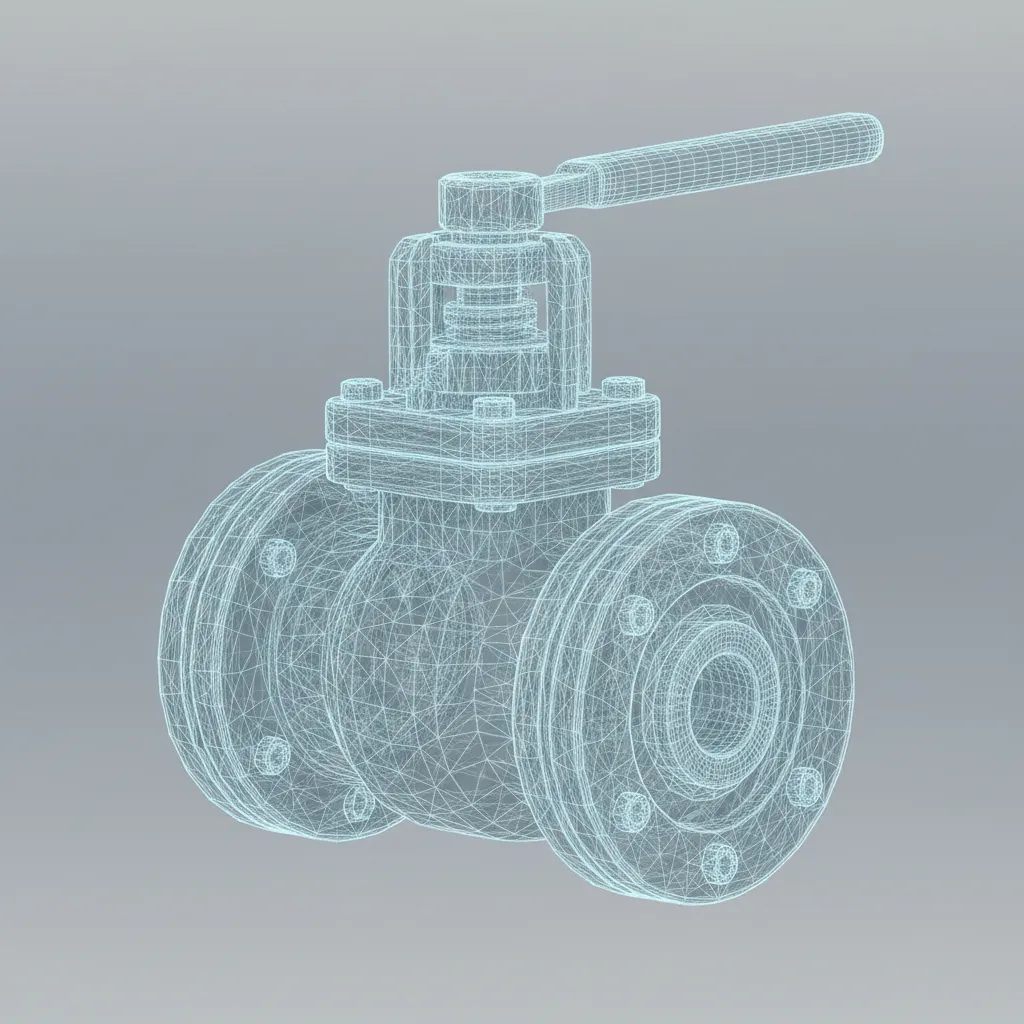

1. Triangular mesh surfaces
2. No parametric geometry
3. No assembly structure
4. No material data

This makes STL perfect for:

1. 3D printing demonstration valve models
2. Rendering and visualization
3. Marketing graphics

But if you attempt to modify a valve body or change flange dimensions, STL becomes almost impossible to work with.

For spatial planning or visualization of equipment layouts, engineers often pair simplified mesh models with tools like a 3D equipment layout planning environmentto quickly visualize pipelines and mechanical spaces.

save pin

Compatibility with Popular CAD Software

Key Insight: STEP consistently provides the most reliable import results across modern CAD platforms.

From my experience working across multiple design environments, compatibility differences become obvious quickly.

Typical Import Performance

1. SolidWorks: Best with STEP
2. Autodesk Inventor: STEP preferred
3. Siemens NX: STEP highly stable
4. CATIA: STEP and IGES supported
5. Fusion 360: STEP imports cleanly

STL imports in all of these programs, but only as meshes.

One hidden issue many teams overlook is that importing IGES or STL often breaks downstream workflows like finite element analysis or interference detection.

Choosing the Best Format for Pipeline Design Projects

Key Insight: For most pipeline engineering tasks, STEP offers the best balance of accuracy, compatibility, and editability.

When integrating API 6D ball valves into pipeline models, the goal is usually more than visualization. Engineers need reliable geometry for layout validation, clash detection, and sometimes stress analysis.

Recommended Format by Use Case

1. Engineering design: STEP
2. Legacy system compatibility: IGES
3. 3D printing prototypes: STL
4. Visualization or presentations: STL or STEP

If your work involves planning spatial equipment layouts or facility arrangements, combining accurate valve models with a large-scale industrial layout planning tool can help visualize piping systems inside full mechanical environments.

Answer Box

For API 6D ball valve 3D models, STEP is generally the best format for engineering work because it preserves solid geometry and assembly structure. IGES mainly supports legacy CAD systems, while STL is useful only for visualization or 3D printing.

Final Summary

1. STEP is the most reliable format for valve CAD assemblies.
2. IGES mainly exists for compatibility with older CAD software.
3. STL works for visualization but not engineering modification.
4. Choosing STEP reduces geometry repair and import errors.
5. Correct file format selection improves pipeline design efficiency.

FAQ

What is the best CAD format for ball valve 3D models?

STEP is generally the best CAD format for ball valve 3D models because it preserves solid geometry and assembly structure.

STEP vs IGES for industrial valve design?

STEP is more reliable for assemblies and modern CAD systems, while IGES is mainly used for legacy compatibility.

Can STL files be used for mechanical CAD editing?

No. STL files store triangle meshes and cannot be easily edited as engineering geometry.

Why do manufacturers still provide IGES files?

Some legacy CAD systems and machining workflows still rely on IGES surface data.

Do STEP files support assemblies?

Yes. STEP files can include multiple parts and maintain assembly relationships.

Is STL good for pipeline valve visualization?

Yes, STL works well for visualization or rendering but not for engineering modifications.

Which file format works best with SolidWorks?

STEP files typically import into SolidWorks with the fewest geometry issues.

What file format should I download for API 6D valve models?

In most cases, downloading the API 6D valve STEP file provides the best compatibility and editing flexibility.
